Product type	Washing machine
Brand	EAS Electric
Model	EMW9545VPDINOX
Washing capacity	9.0 kg
Dimensions (W x D x H)	595 x 565 x 850 mm
Net weight	71 kg
Power supply	220-240 V ~ 50 Hz
Rated current	10 A
Rated power	1900 W
Water pressure	0.05 to 1 MPa
Maximum spin speed	1400 rpm
Energy efficiency class	B
Wash programs	13 programs: Cotton, Synthetics, Mixed, Bedding, Baby clothes, 20°C, Self-cleaning, Spin only, Rinse and spin, Wool, ECO 40-60, Intensive, Express 15'
Special functions	Delay start, Pre-wash, Extra rinse, Child lock, SteamCare, Recharge, Quick wash, Dirt level
Detergent type	Powder or liquid
Spin noise level	76 dB(A)
Warranty	2 years
Water consumption (ECO 40-60 program, full load)	63.2 L
Energy consumption (ECO 40-60 program, full load)	0.952 kWh
Included accessories	Transport bolts, cold water inlet hose, instruction manual

Frequently Asked Questions - EMW9545VPDINOX EAS Electric

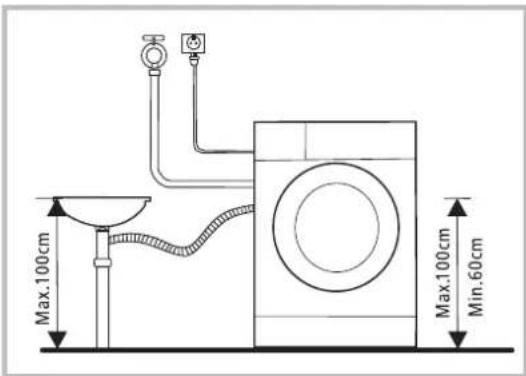

How to correctly install the EMW9545VPDINOX washing machine?

Installation requires removing the 4 transport bolts at the back, connecting the cold water inlet hose, securing the drain hose (height between 60 and 100 cm) and balancing the appliance by adjusting the feet. Make sure the machine rests on a solid, flat, dry surface, away from frost and heat sources.

Why does my washing machine display error code E30?

Code E30 means the door is not closed properly. Check that no clothing is trapped and close the door firmly. Then restart the program.

How to use the steam function (SteamCare)?

The SteamCare function is available with the Cotton, Mixed, Bedding and Baby clothes programs. Press the corresponding button before starting the cycle. Cannot be combined with pre-wash or quick wash. You will see steam in the drum.

What is the initial calibration for and how to perform it?

Calibration allows the machine to detect the load and optimize consumption. To do this, remove all accessories, close the door, plug in the machine, turn it on, then press simultaneously on Temp. and Dirt level for 10 seconds until 't19' is displayed, then press Start/Pause. Wait for '*****' to appear.

How to clean the drain pump filter?

Turn off and unplug the appliance. Open the service filter at the bottom right, turn the filter counterclockwise, remove it and clean it. Warning: hot water may drain. Perform this operation every 3 months.

What are the available wash programs?

The machine offers 13 programs: Cotton, Synthetics, Mixed, Bedding, Baby clothes, 20°C, Self-cleaning, Spin only, Rinse and spin, Wool, ECO 40-60, Intensive and Express 15'. Choose according to the fabric type and degree of soiling.

How to activate child lock?

Press simultaneously the Delay start and SteamCare buttons for 3 seconds. A beep sounds and the indicator lights up. To deactivate, repeat the same action. The lock prevents any action on the buttons except ON/OFF.

Why does my laundry come out very wet after spinning?

Check the selected spin speed. You can increase it up to 1400 rpm via the Spin button. Also make sure the load is balanced; washing a single garment can cause imbalance and reduce spin efficiency.

How to set a delayed start?

Select a program, press the Delay start button to choose a delay from 0 to 24 hours, then press Start/Pause. To cancel, press Delay start until '0h' is displayed, or turn off and on.

What to do in case of water leakage under the machine?

Check the connections of the inlet and drain hoses. Tighten the fittings if necessary. Make sure the drain pump filter is properly closed. Clean the water inlet filter if flow is low. If the problem persists, contact technical service.

USER MANUAL EMW9545VPDINOX EAS Electric

Simple line drawing of a container with two circular marks containing three wavy lines inside (no text or symbols)

EMW9545VPDINOX EMW9545VPDW

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a rectangular frame with a central circle and intersecting X marks (no text or symbols)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a mechanical component with a wrench and blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating motion or direction, no visible text or symbols

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Nota

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Simple line drawing of a bag being folded into a basket, with no text or symbols present.

Line drawing of two fabric bags with circular designs and ribbon handles (no text or symbols)

Simple line drawing of a bag with a hand holding a small object, no text or symbols present.

Line drawing of a T-shirt with pleated design and side detail (no text or symbols)

A Display

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram showing a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Illustration of a hand holding a connector with a tool inserted (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

■ Guarantee conditions 34

Blank white rectangle with a small black triangle symbol at the top-left corner (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Line drawing of a washing machine with water inlet and side-mounted fan (no text or symbols)

Three-panel image showing 3D head models, a magnifying glass, and an open book (no text or symbols)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a medical device with a blue arrow pointing to a dark circular component, no visible text or symbols.

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating direction, next to a circular object (no text or symbols visible)

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Simple line drawing of a pushpin at the top-left corner of a rectangular frame (no text or symbols)

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Simple line drawing of a bag being folded into a basket (no text or symbols)

Line drawing of two fabric bags with circular designs and a bow, no text or symbols present

Line drawing of a knitted sweater with pleated design (no text or symbols)

Empty rectangular frame with a small triangle marker at the top-left corner (no text or symbols)

AUTO
!

	◇	✿		◇	✿
Algodón	●	○	Lana	●	○
Sintéticos	●	○	Express 15'	●	○
Mixto	●	○	Intensivo	●	○
Ropa de cama	●	○	Solo centrífugado
Ropa Bebé	●	○	20°C	●	○
Autolimpieza
Aclarado y centrífugado		○
ECO 40-60	●	○

	Algodón, ECO 40-60, Intensivo
	Algodón, ECO 40-60, Intensivo
	20°C, Sintéticos
	Sintéticos
	Lana

EMW9545VPDINOX / EMW9545VPDW
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ircC1)	residual moitsure in %/spin speed 2)
20°C	4.5	20	1:01	0.189	47.6	20	65%/1000
Algodón	9.0	60	3:44	1.603	78.2	60	53%/1400
Intensivo	9.0	40	3:48	1.206	78.2	40	70%/800
Mixto	9.0	40	1:20	0.813	78.2	40	65%/800
Express 15'	2.0	Cold	0:15	0.030	40.0	Cold	75%/800
ECO 40-60 3)	9.0	-	3:48	0.952	63.2	38	53%/1350
	4.5	-	2:54	0.622	45.5	37	53%/1350
	2.5	-	2:54	0.211	41.4	22	53%/1350

!

Algodón

Sintéticos

Ropa de bebé

Mixto

Ropa de cama

20°C

Eco 40-60

Express 15'

Lana

Solo centrifugado

Line drawing of a hand washing a washing machine with a circular vent (no text or symbols)

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

[Non-Text]

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand inserting a plug into a device (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols visible)

!

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

E30

E10

E21

E12

EXX

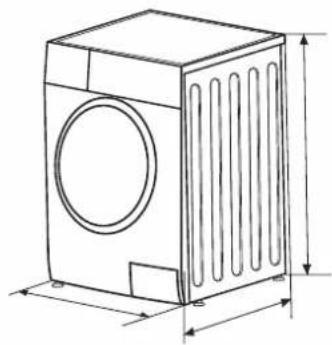

Line drawing of a washing machine with side panel and height dimension lines (no text or symbols)

Blank gray image with no visible content, text, or symbols

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
EMW9545VPDINOX / EMW9545VPDW	9.0kg	595*565*850	71kg	1900W

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark: EAS ELECTRIC SMART TECHNOLOGY

Supplier's address (b): P.I Canyada Codonyers C/Principal, n°4, 46220. Picassent - Valencia

Model identifier: EMW9545VPDINOX / EMW9545VPDW

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (a) (kg)	9.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEIw (a)	59.9		Energy efficiency class (a)	B
Washing efficiency index (a)	1.04		Rinsing effectiveness (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.570		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	50
Maximum temperature inside the treated textile (a) (°C)	Rated capacity	38	Remaining moisture content (a) (%)	Rated capacity	53
	Half	37		Half	53
	Quarter	22		Quarter	53
Spin speed (a) (rpm)	Rated capacity	1350	Spin-drying efficiency class (a)	B
	Half	1350
	Quarter	1350
Programme duration (a) (h:min)	Rated capacity	3:48	Type	free-standing
	Half	2:54
	Quarter	2:54
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	76		Airborne acoustical noise emission class (a) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier ( ^b ): 2 years

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023

(1) (b) is found: www.easelectric.es

^(a) for the eco 40-60 programme.
(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

COMMERCIAL GUARANTEE CONDITIONS FOR WHITE PRODUCTS

This appliance has a two-year repair guarantee, from the date of sale, against all malfunctions originating from manufacturing, including labor and spare parts. To justify the purchase date, it will be mandatory to present the invoice or purchase receipt. This guarantee will only be effective in Spain.

GUARANTEE EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.
12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without prior notice for product improvement.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

PRÉCAUTIONS DE SÉCURITÉ

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple line drawing of a rectangular box with a circular center and an X mark on the top (no text or symbols)

Diagram of a box with an upward arrow and a magnified inset showing a small structure (no text or symbols)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Close-up of a white object with a dark circular feature and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close-up of a mechanical component with a wrench and blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating motion or movement, no visible text or symbols

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Remarque

Line drawing of a sweater with a tag and tie, no text or symbols present

Simple line drawing of a basket with an arrow indicating rotation or movement (no text or symbols)

Line drawing of two bags with circular designs, no text or symbols present

Line drawing of a money bag with a hand placed inside, no text or symbols present

Line drawing of a T-shirt with pleated collar and side ribs (no text or symbols)

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

Remarque

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

EXCLUSIONS DE LA GARANTIE

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a rectangular frame with a central circle and two intersecting X-shaped lines (no text or symbols)

Desembalar a máquina de lavar

△ Atenção

Illustration of a box with an arrow pointing upward, showing a magnified view of a small object inside (no text or symbols present)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remova os parafusos e arruelas de borracha e guarde-os para uso futuro.

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating motion or direction, next to a small transparent container (no text or symbols visible)

Close-up of a hand holding a small object with blue arrows indicating rotation or change (no text or symbols)

Note

Simple diagram showing two concentric circles with curved arrows indicating rotation or direction (no text or symbols)

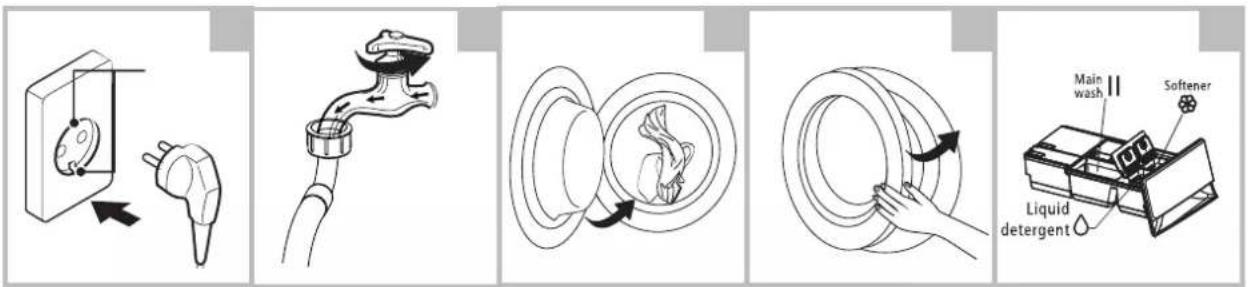

Escolha o programa

Hand pointing at a button with a play symbol (no text or numbers visible)

Simple line drawing of a sweater with a decorative tag (no text or symbols)

Verifique a etiqueta

Simple line drawing of a basket with an arrow indicating rotation or movement (no text or symbols)

Two handbags with circular designs, one wrapped in a strap and the other in a blanket (no text or symbols)

Simple line drawing of a bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a knitted sweater with patterned fabric (no text or symbols)

Silenciar as alertas

Escolha o programa

Line drawing of a hand washing a washing machine (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram showing a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a connector with a cable, no text or symbols present

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

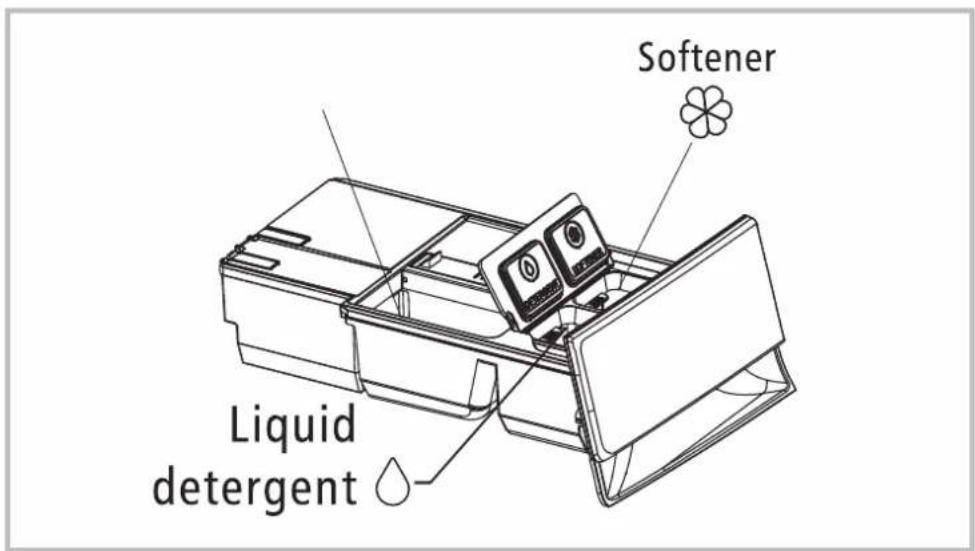

Limpeza da gaveta do detergente

Line drawing of a hand using a tool to lift a curved component, with arrows indicating direction (no text or symbols)

Hand holding a rotary knob on a device with directional arrows (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)
