RG 2375 - Grill plate SEVERIN - Free user manual and instructions

Product type	Raclette grill with reversible cooking plate
Brand	SEVERIN
Model	RG 2375
Category	Grill plate
Cooking surface	Reversible plate (ribbed side and smooth side) with non-stick coating
Number of ramekins	8
Temperature setting	Adjustable thermostat from MIN to MAX
Heating indicator	Indicator light: on (heating), off (heating off)
Supply voltage	Corresponds to rating plate (mains standard)
Included accessories	8 ramekins, reversible cooking plate, power cord
Compatible food types	Meat, fish, vegetables, raclette cheese (soft cheese or raclette type)
Non-stick coating	Plate and ramekins with non-stick coating
Cleaning plate and ramekins	Hot soapy water, dry with a soft cloth
Cleaning appliance body	Damp cloth, do not immerse
Safety	Do not immerse, unplug before cleaning, hot surfaces, keep away from children under 8 years
Recommended use (cheese)	200 to 300 g per person, slices 3 to 5 mm thick
Preparation before first use	Heat empty for 10 minutes then clean
Recommended preheating	About 10 minutes at maximum power

Frequently Asked Questions - RG 2375 SEVERIN

How to use the grill plate for the first time?

Before first use, remove all packaging. Clean the reversible cooking plate and the ramekins with a damp cloth. Heat the appliance empty for about 10 minutes (thermostat at maximum) to eliminate the new smell. Then clean again according to the care instructions.

How to clean the plate and the ramekins?

Unplug the appliance and let it cool down. Remove the plate and the ramekins, then wash them in hot water with a mild detergent. Do not immerse them in water. Dry with a soft cloth. The appliance body can be wiped with a damp cloth.

What temperature to use for grilling meat?

The thermostat allows you to set the temperature between MIN and MAX. For meat, it is recommended to preheat fully (MAX) then adjust according to desired doneness. The indicator light shows the heating cycle.

Can I use metal utensils on the plate?

No, to avoid damaging the non-stick coating, only use non-abrasive utensils (wood, silicone, heat-resistant plastic).

What type of cheese to use for raclette?

Preferably use raclette cheese or soft cheeses. Cut the cheese into slices 3 to 5 mm thick and allow about 200 to 300 g per person.

Can I defrost frozen foods on the plate?

Yes, it is advisable to defrost frozen foods before grilling for even cooking. Then place them on the preheated plate.

How to use the reversible plate?

The plate has two sides: the ribbed side for grilling meat and sausages, the smooth side for cooking fish and vegetables. Place the desired side on the appliance before use.

What to do if the indicator light does not come on?

Check that the appliance is properly plugged in and that the thermostat is not in the MIN position. If the light remains off, contact SEVERIN customer service. Do not attempt to repair yourself.

Can I use the appliance outdoors?

No, the appliance is intended for indoor household use only. Do not use outdoors or near a water source.

How to store the ramekins?

After cleaning and drying, the ramekins can be stacked and stored in a dry place. The cooking plate can be placed on top to save space.

USER MANUAL RG 2375 SEVERIN

Exterior view of a modern flat-screen grater with black and silver plates, no visible text or symbols on the device itself.

ART.-NO. RG 2375

GB Instructions for use

FR Mode d'emploi

Raclette grill with grill plate 9

4 MIN MIN 3

Technische Daten / Technical Data / Caractéristiques techniques / Technische gegevens / Datos técnicos / Dati tecnici / Tekniske data / Tekniska data / Tekniset tiedot / Dados técnicos / Dane techniczne / Τεχνικά χαρακτηριστικά
Art.Nr. / Item no. / Art. n° / Art.nr. / Nr. ° Art. / Num. art. / Artikelnr. / Art.nr. / Tuotenro / N.° Art.° / Nr art. / Ap. πρ.	: RG 2375
Leistung / Power / Puissance / Vermogen / Potencia / Potenza / Effekt / Effekt / Teho / Potência / Moc / Iσχύς	: 1700 W
Spannung/Frequenz / Voltage/Frequency / Tension/Fréquence / Spanning/frequentie / Tensión/frecuencia / Tensione/Frequenza / Spænding/Frekvens / Spänning/Frekvens / Jännite/taajuus / Tensão/frequência / Napięcie/częstotliwość / Táση/Συχνότητα	: AC 220 – 240 V~50 – 60 Hz
Schutzklasse / Protection class / Classe de protection / Veiligheidsklasse / Grado de protección / Classe di protezione / Beskyttelsesklasse / Skyddsklass / Kotelointiluokka / Classe de proteção / Stopień ochrony / Κατηγορία προστασίας	: 1
Gewicht / Weight / Poids / Gewicht / Peso / Peso / Vægt / Vikt / Paino / Peso / Waga / Bápoς	: 4 kg
Maße Grillfläche / Grill surface dimensions / Dimensions de la plaque de cuisson / Afmetingen grillvlak / Dimensiones de la superficie de la parrilla / Dimensioni della superficie di grigliatura / Grillfladens mål / Mått grillyta / Grillitason mitat / Dimensões da superfície do grelhador / Wymiary powierzchni grilla / Διαστάσεις επιφάνειας ψησίματος	: 485 x 240 mm

DE

Raclette grill with grill plate

Dear Customer,

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

• The appliance should only be connected to an earthed socket installed in accordance with the regulations.
  • Make sure that the supply voltage corresponds with the voltage marked on the rating label.
• This product complies with all binding CE labelling directives.

Familiarisation

1. Reversible grill plate
2. Power cord with plug
3. Temperature control
4. Indicator light
5. Mini-pans (8 pcs)
6. Rating label (on underside of appliance)

Important safety instructions

- In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact

our customer service department by telephone or email (see appendix).

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
• The reversible grill plate and mini-pans should be cleaned in warm soapy water. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system. - This appliance is intended

for domestic or similar applications, such as - in staff kitchens in shops, offices and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments.

This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

- Children must not be permitted to play with the appliance. - Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age. - The appliance and its power cord must be kept well away from children under 8 at all times.

- Caution: Keep children away from any packaging materials—these are a potential source of danger, e.g. of suffocation.

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- The exterior surfaces, reversible grill plate and mini-pans become hot during use and will remain so for some time afterwards. Risk of burns!

• Do not leave the appliance unattended while in use.
• Do not allow the power cord to touch any hot part of the appliance.
• During operation, the appliance must be placed on a heat-resistant, stable and level surface, impervious to splashes and stains. When cooking food with a high fat or moisture content, splashes are not always avoidable.
• Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.
• Do not position the appliance on or near hot surfaces, open flames or inflammable vapours.
• Caution: Do not operate the appliance outdoors.
• Before use, place the reversible grill plate on the appliance over the heating element.
• Always remove the plug from the wall socket
• after use,
• in case of any malfunction, and
• before cleaning the appliance.
• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Intended Use

The electric raclette grill is designed for low-fat grilling of meat, fish or vegetables and for gratinating with cheese.

Any use other than that described in these instructions must be considered improper and may lead to personal injury or material damage.

Before first use

• Remove any packing materials completely.
• Before first use, wipe the reversible grill plate and mini-pans with a damp cloth.
• Leave the appliance with the reversible grill plate and mini-pans in place to heat up for about 10 minutes without food to allow any unpleasant odour to dissipate (you may notice slight smoke coming from the appliance). Ensure adequate ventilation by opening windows or balcony doors.
• Clean the appliance afterwards as described in Cleaning and care.

Reversible grill plate

• Before use, place the reversible grill plate on the appliance.
• You can use either side of the reversible grill plate. The ribbed section is ideal for grilling meat, sausages, etc., whereas the smooth one is particularly suitable for fish and vegetables.
• Oil lightly before use.

Variable thermostat and indicator light

• The thermostat serves to regulate the temperature between MIN and MAX.
• The indicator light shows the current heating status:
  Heating on = indicator light on
  Heating off = indicator light off
• After use, return the thermostat to its lowest setting and unplug the appliance from the mains supply.

Operation

Hint: For the very best results, meat should be taken from the refrigerator about half an hour before grilling, covered and left to stand.

• Place the reversible grill plate on the appliance.
• Insert the plug into a suitable wall socket and turn the thermostat all the way to the right.
• Let the appliance preheat for about 10 minutes to reach the required temperature.
• Place the food to be cooked on the reversible grill plate.
• Put the raclette cheese into the mini-pans. Place the mini-pans in the appliance, under the heating element, and leave them until the cheese has melted.
• Warning: Do not place empty mini-pans in the appliance while it is switched on.
• When cooking is finished, turn the thermostat all the way to the left and unplug the appliance from the mains.

How to prepare raclette cheese

Use about 200 to 300 grammes of cheese per person. Cut the cheese into slices of about 3 to 5 mm thickness and put them into the mini-pans. It is preferable to use original raclette cheese. Any other fast melting cheese, however, is also suitable.

Practical hints

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the coating of the reversible grill plate and mini-pans, use only non-abrasive utensils.
• When grilling larger amounts of food, accumulated fat should be carefully removed from time to time, using suitable kitchen towels or similar.

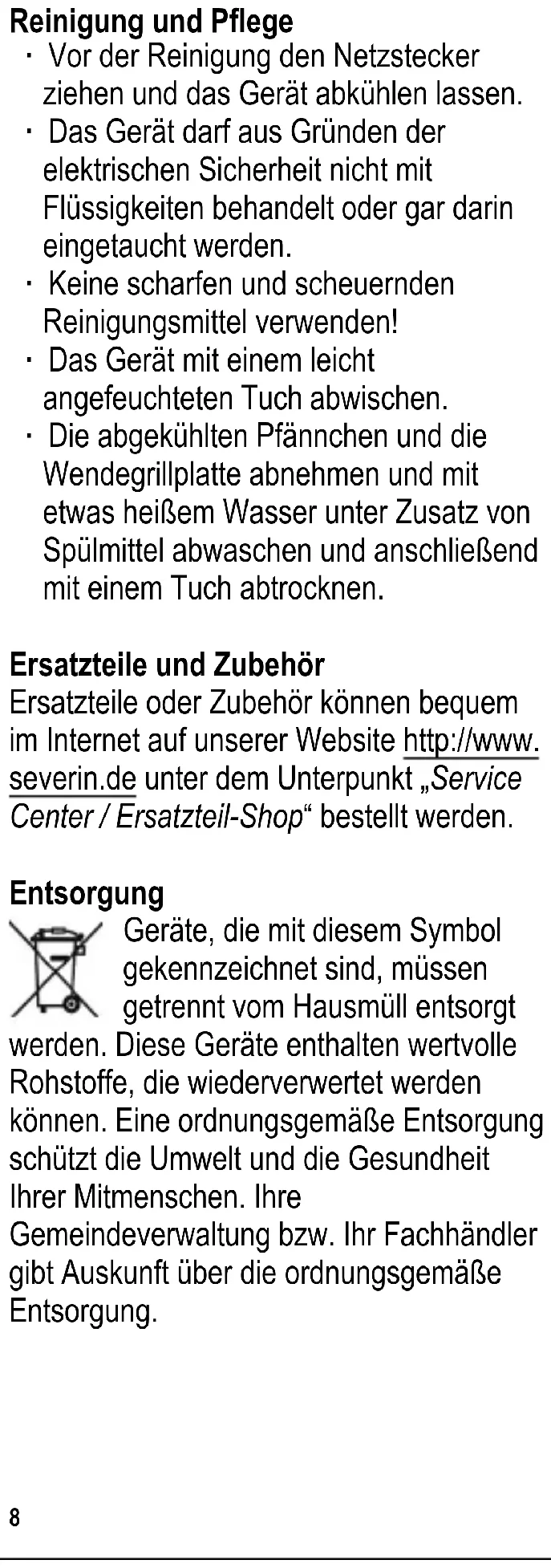

Cleaning and care

• Before cleaning the appliance, always make sure that the plug has been removed from the wall socket and allow the appliance to cool down.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.
• Wipe the outer surfaces of the grill with a clean damp cloth.
• Remove the pans and the reversible grill plate once they have cooled down, and rinse in a little hot water. If necessary, some mild detergent may be used. Wipe thoroughly dry again with a soft cloth.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Chère cliente, Cher client,
