Nora - Aroma diffuser STADLERFORM - Free user manual and instructions

Product type	Aroma diffuser
Brand	STADLERFORM
Model	Nora
Dimensions (diameter x height)	101 x 83 mm
Weight	300 g
Power supply	DC 5 V, 3 W, via USB-C (5V/2A adapter recommended)
Water tank capacity	90 ml
Battery life	Up to 7 hours (rechargeable lithium battery 5200 mAh)
Mains operation time	Up to 18 hours
Noise level	Less than 26 dB(A)
Protection rating	IP44 (splash-proof)
Materials	Aluminum (lid), bamboo (casing)
Atomization type	Ultrasonic (membrane)
LED lighting	White, 3 modes (normal, dimmed, off)
Use	Indoor and outdoor (with USB-C cap)
Maintenance	Regular cleaning, descaling the membrane
Safety	Use only alcohol-free essential oils; do not immerse
Warranty	2 years

Frequently Asked Questions - Nora STADLERFORM

What type of essential oils can I use?

Use only alcohol-free essential oils. Alcohol can damage the device and void the warranty.

How to fill the water tank?

Lift the aluminum lid, pour water up to the MAX mark (90 ml) and add 2-3 drops of fragrance. Close the lid.

Can Nora be used outdoors?

Yes, thanks to the IP44 rating and the supplied USB-C cap. Make sure rain or snow does not enter directly into the device.

How to recharge the battery?

Connect the USB-C cable to a power source (5V/2A). The charging LED stays on during charging and turns off when the battery is full.

How long does a full charge last?

The battery offers up to 7 hours of autonomy. When plugged into the mains, the device can operate up to 18 hours.

How to clean Nora?

Empty the water, wipe the exterior with a damp cloth. Clean the membrane with descaling solution or vinegar. Do not immerse. Clean every 3 days.

What to do if the membrane is scaled?

Use a household descaler or vinegar. Never scratch the membrane with a hard object. Rinse and dry after cleaning.

How to change the fragrance?

Completely empty the water, clean the tank with a damp cloth, then fill with fresh water and add the new fragrance.

Is the device quiet?

Yes, the noise level is below 26 dB(A), making it very discreet, ideal for a bedroom.

What to do if the battery LED blinks?

This means the battery is at less than 10%. Recharge the device as soon as possible.

USER MANUAL Nora STADLERFORM

Operating instructions

Gebrauchsanweisung

Mode d'emploi

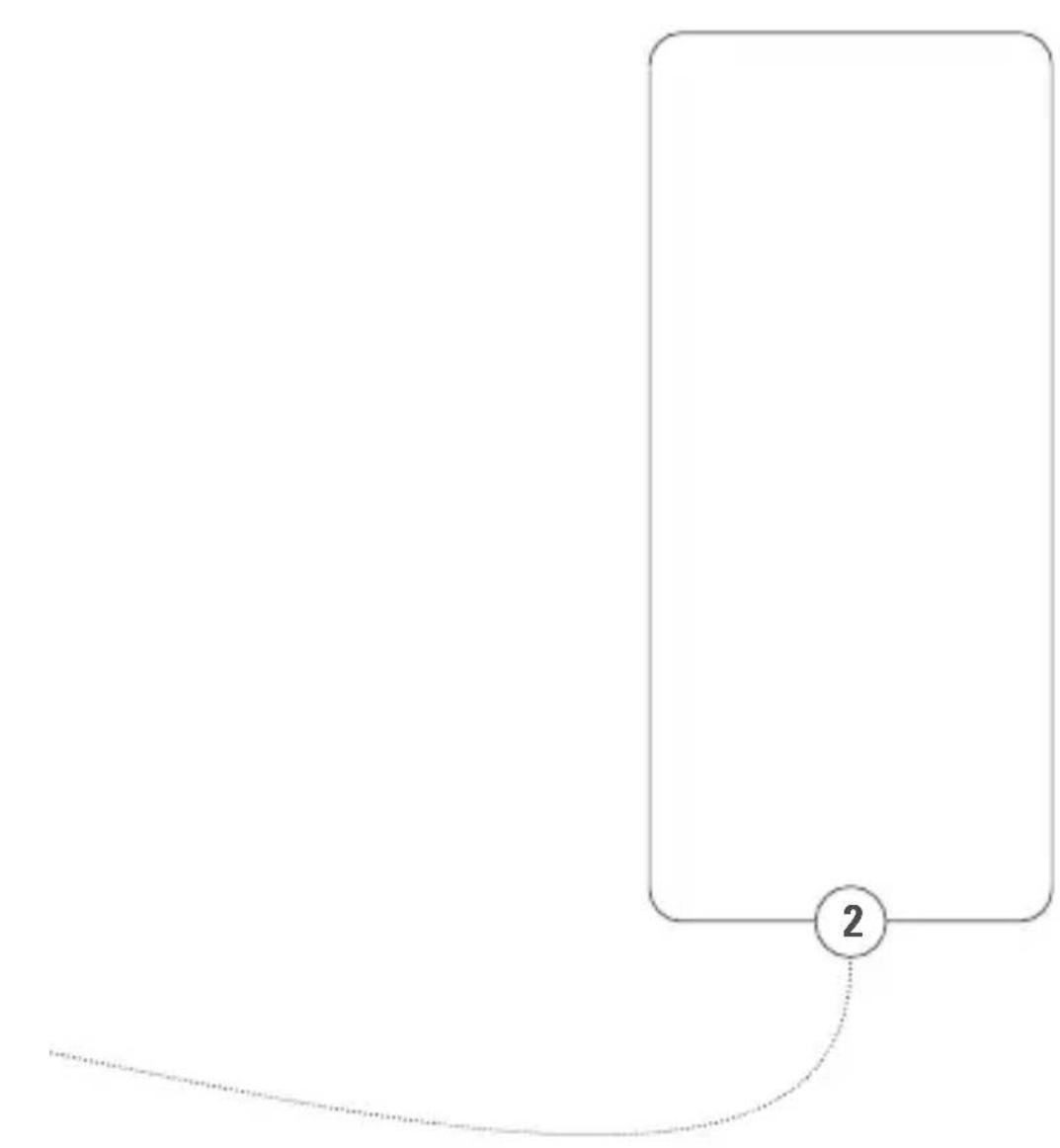

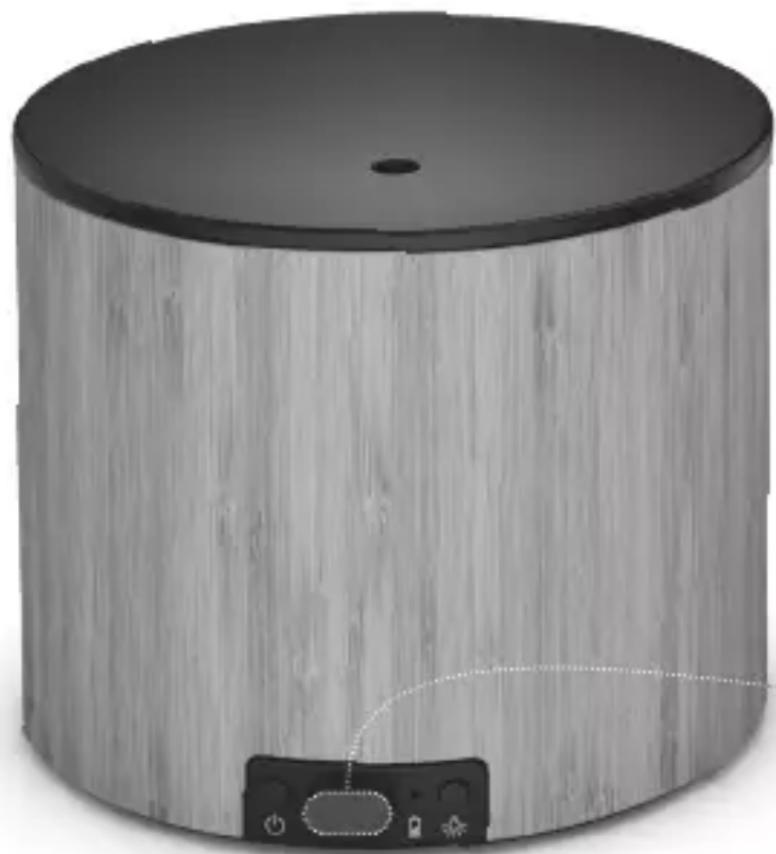

USB Connection Cover

ABDECKUNG USB ANSCHLUSS / COUVERCLE DE CONNEXION USB / PROTEZIONE CONNETTORE USB / OSŁONA ZŁĄCZA USB / KAPJE VOOR USB-AANSLUITING / USB-TILSLUTNINGSAFDAĘKNING / USB-LIITÄNNÄN SUOJAKATE / USB- TILKOBLINGSDEKSEL / USB-ANSLUTNINGSLOCK / KPЫШКА USB-PAЗЬEMA

Circular metallic device with textured surface and control buttons at bottom (no visible text or symbols)


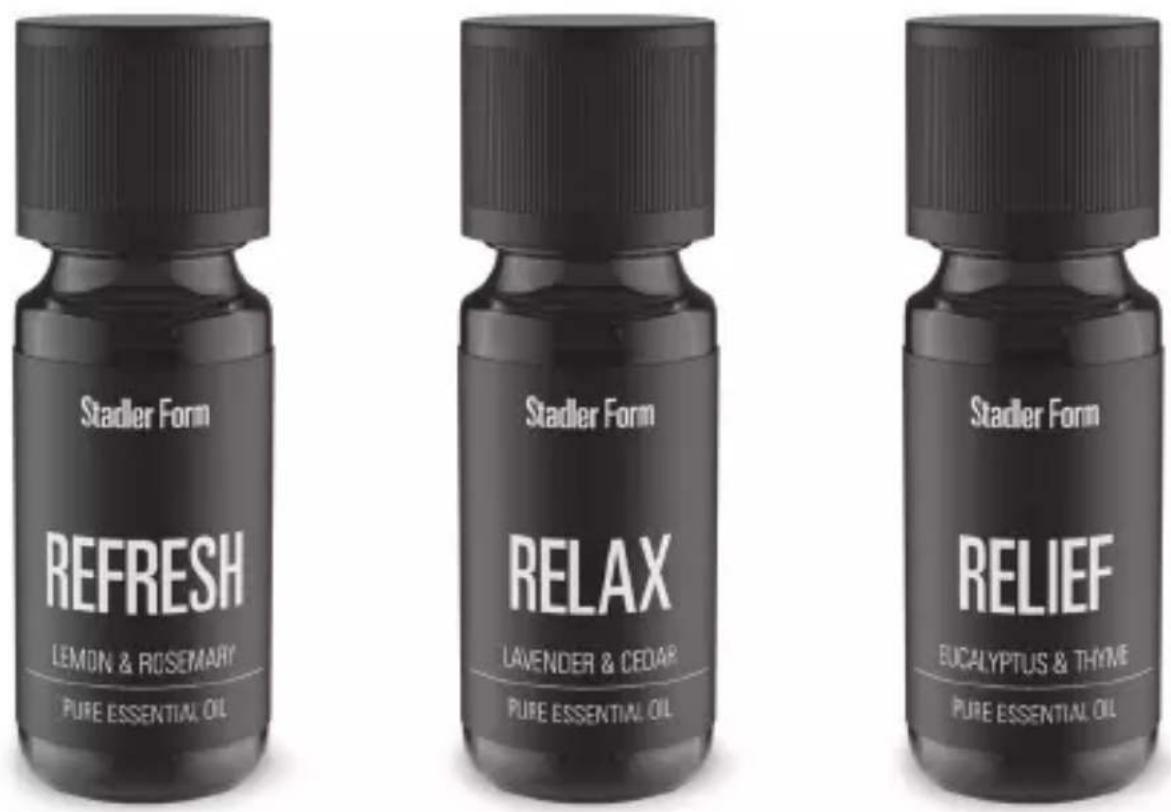

Fragrance

DUFTSTOFFE / PARFUMS / FRAGRANZE / SUBSTANCJE ZAPACHOWE /

EN: Optional accessory

www.stadlerform.com/home-fragrance

REUKSTOFFEN / DUFTSTOFFER / TUOKSUT / PARFYME / PARFYM / APOMATN3ATOP

100%

Simple gray five-pointed star inside a rounded rectangle (no text or symbols)

Gray right-pointing triangle inside a rounded rectangle (no text or symbols)

Watch the video of Nora: Schauen Sie sich das Video zu Nora an: Regardez la vidéo du Nora : www.stadlerform.com/nora/video

Subscribe to our newsletter!

www.stadlerform.com/newsletter

You

Tube

Stadler Form Aktiengesellschaft, Chamerstrasse 174, 6300 Zug, Switzerland Phone [phone], Fax [phone], www.stadlerform.com/contact

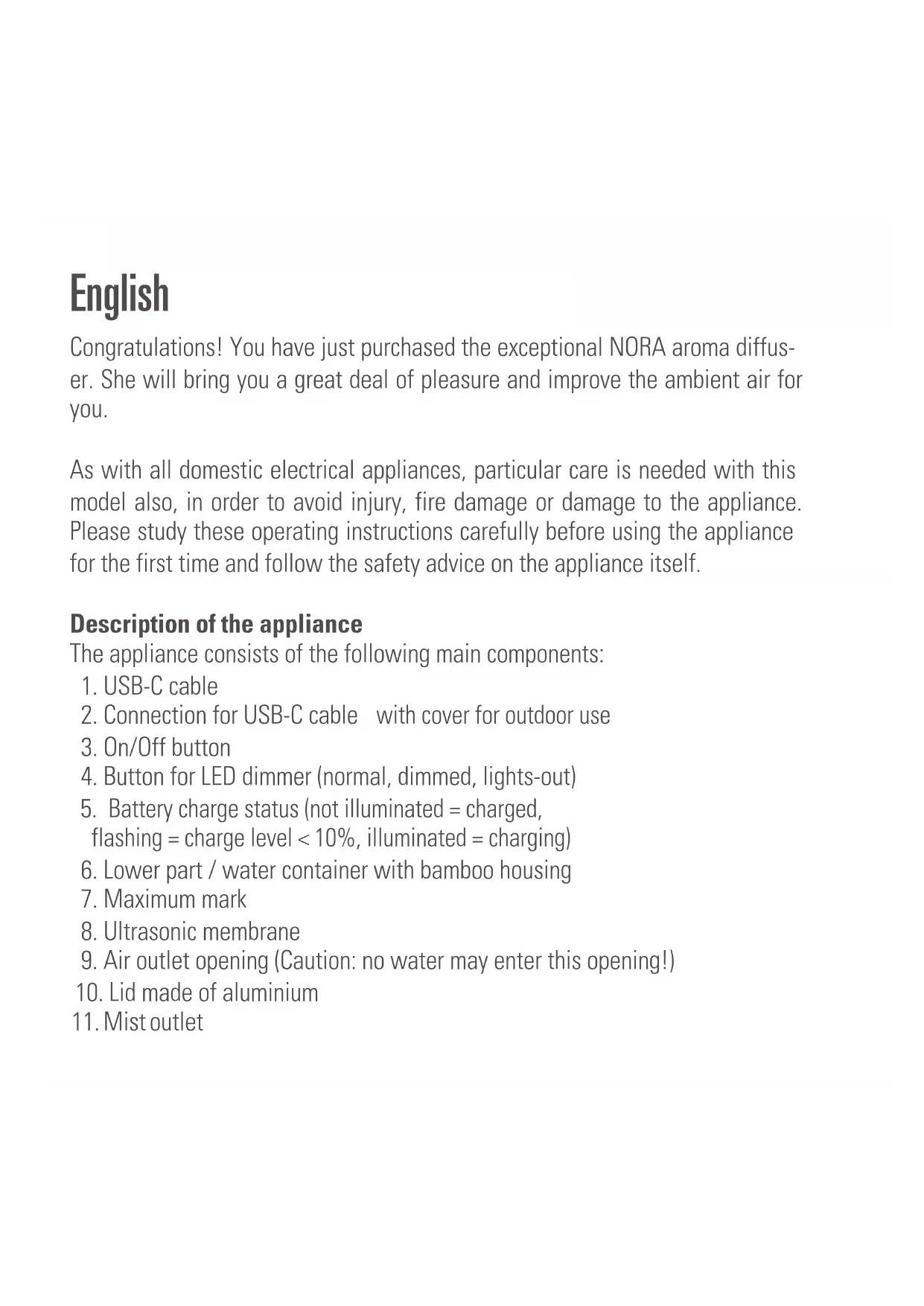

English

Congratulations! You have just purchased the exceptional NORA aroma diffuser. She will bring you a great deal of pleasure and improve the ambient air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. USB-C cable
2. Connection for USB-C cable with cover for outdoor use
3. On/Off button
4. Button for LED dimmer (normal, dimmed, lights-out)
5. Battery charge status (not illuminated = charged, flashing = charge level < 10%, illuminated = charging)
6. Lower part / water container with bamboo housing
7. Maximum mark
8. Ultrasonic membrane
9. Air outlet opening (Caution: no water may enter this opening!)
10. Lid made of aluminium
11. Mist outlet

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.
• Do not use damaged extension cords.
• Do not run the power cord over sharp edges and make sure that it does not get trapped.
• Do not pull the plug from the socket with wet hands or by holding on to the power cord.

• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 0.7 m). Place the appliance such that a person in the bath tub cannot touch the appliance.

• The product is protected according to standard IP44 against solid foreign bodies more than 1 mm in diameter and against access by a wire and is splash-proof from all sides.

• Only use the device directly on the house wall or under a canopy. The device must not be exposed to rain or snow.
• Keep the device away from heat sources.
• This device contains a lithium battery.
• In case of battery leakage: Avoid contact with human eyes and skin. Collect spillage.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• Do not drop the device. Otherwise the battery may overheat, cause a fire or malfunction and reduce service life.
• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• If the power cord is damaged, it must be replaced by the manufacturer or a repair shop authorized by the manufacturer or by similarly qualified persons in order to avoid a hazard.

• Only use fragrances, aromas or essential oils that do NOT contain alcohol. Alcohol can damage the appliance. Appliances that are damaged by such additives are not covered by the warranty.

• Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.

• Repairs to electrical appliances must only be carried out by a qualified electrical technician.
• WARNING: Only use the USB cable provided by the manufacturer. Use only an external supply with the following specifications: DC 5V/2A.
• Do not permit the area around the diffuser to become damp or wet. If dampness occurs, turn the output of the diffuser down. If the diffuser output cannot be turned down, use the diffuser intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.
• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
• Unplug the appliance during filling and cleaning.
• Never leave water in the water tank when the appliance is not in use.
• Clean the water tank every 3 days
• Empty and clean the appliance before storage. Clean the appliance before next use.
• Warning: Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water tank and be blown in the air causing very serious health risks.

Setting up / operation

1. Place Nora in the desired position on a flat surface. Remove the cover from the connector for the USB-C cable (2). Keep the cover in a safe place as it is es -

sential for outdoor use: it protects the device against the ingression of water and dust. Connect the USB-C cable (1) to the appliance (2) and connect the cable to a suitable power source (PC, external battery, USB socket or to a suitable socket via a power adapter with min. 2 A/5 V). When the appliance is used for the first time, the battery must be charged by connecting the appliance to a power source for at least 5 h. When the battery is fully charged, the battery charge status LED (5) will go out. If the LED starts to flash, the battery is almost dead (charge level 10% or less). After the battery has been fully charged for the first time, you can operate the appliance without the cable using the power from the integrated rechargeable battery. A fully charged battery will give the appliance a running time of up to 7 h. When the water container is full and the appliance is connected to a power source, it can operate for up to 18 h.

1. Nora is certified splash-proof (IP44), making her suitable for use in covered areas outdoors. In such cases, the USB-C connector must always be protected using the cover provided (2). Make sure that your device is not exposed to rain or snow. The device should only be charged by plugging it into a power socket indoors.
2. Remove the lid (10) to fill with water and fragrance.
3. Fill the water container (6) up to the maximum mark (MAX) (7) with water. No water may enter the air outlet opening (9). This will damage the appliance and will void any claim to the warranty.
4. Important: transport the appliance in an upright position and without making any jerky movements if there is water in the container (6). If the

appliance is moved quickly or tilted, water may leak out and run into the electronics inside the appliance. This will damage the appliance and will void any claim to the warranty.

1. Add 2–3 drops of your favourite liquid fragrance directly into the water. It is not necessary to mix them as the ultrasonic membrane (8) does this for you. Only use fragrances, aromas or essential oils that do NOT contain alcohol.
2. Put the lid (10) back on the lower part (6).
3. Then switch Nora on by pressing the On/Off button (3).
4. If you would like to top the water up, switch off the appliance and disconnect the USB cable if it is connected to the appliance (1 + 2) . Remove the lid (10) and fill the water up to the maximum mark.
5. If you are disturbed by the brightness of the illuminated mist (in the bedroom, for example), you can reduce the brightness of the LEDs by pressing the dimmer button (4). You can choose between three different modes:

• Normal mode (switched on as standard)
- Dimmed mode (press once)
• Light-off mode (press twice)

You can return to normal mode by re-pressing the dimmer button (4).

1. On the back of the bottom part next to the connection for the USB cable (2), you will find the status display for the battery (5):

2. Normal operation with fully charged battery: LED is not illuminated

3. Battery level 10 % or lower: LED flashes
4. Battery is charging: LED is illuminated constantly

When the device is fully charged, the LED will go out. You can now disconnect the USB cable and use the device in battery mode (for up to 7 hours).

Note: If you would like to change the fragrance, empty Nora completely and clean the water container with a damp cloth. Fill Nora once again and pour the drops into the device following the instructions.

Cleaning

Prior to any maintenance and after each use, switch off the appliance (3) and disconnect the USB cable (1) from it (2).

Careful: Never immerse the device in water (danger of short circuit).

• Daily: Fill the appliance with fresh, cold tap water. If the appliance is not used for several days, empty the water from the lower part (6) beforehand and if necessary, clean it with a bit of dish detergent and a clean cloth. Fill fresh water into the lower part (6) before putting the appliance back into operation.
• Regularly as required: To clean the outside, rub with a damp cloth and then dry thoroughly.
• If you have hard water (with a high lime content), a white coating will build up on the inside. This coating consists of very fine limescale particles that you can wipe off easily with a cloth or microfibre cloth.
• If there are marks caused by water and/or fragrances on the lid (10), clean it with a damp cloth and a squirt of washing-up liquid. Then dry the lid thoroughly before using the appliance again.
• Internal cleaning: You can clean the ultrasonic membrane with a conventional household descaler. If there are lime deposits, we recommend that you use Stadler Form Cleaner & Descaler (www.stadlerform.com/accessories).

Alternatively, you can use a household descaling agent or vinegar. Please do not try to scratch off deposits from the membrane with a hard object. For stubborn deposits, we recommend that you descale the device several times in a row. After the descaling rinse the base and then dry thoroughly.

- No water may enter the air outlet opening (9). This will damage the appliance and will void any claim to the warranty.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.
• In the event of a repair, the following points must be observed before the appliance is shipped or taken to the dealer: completely empty the water in the appliance (water tray or water tank), and allow the appliance to dry completely. Appliances containing residual water may be damaged during transport, invalidating the warranty.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Battery disposal method:

This appliance contains batteries that are non-replaceable. When the battery is at end of life, the appliance shall be properly disposed of. Do not throw into the trash can, the electrode is wrapped in insulating paper, it can be recycled and reused.

Specifications

Rated voltage DC 5 V

Power output 3 W

Running time up to 7 h on battery power and up to 18 h on mains power

Dimensions 101 x 83 mm (diameter x height)

Weight 300 g

Tank capacity 90 ml

Sound level < 26 dB(A)

Battery charging

temperature range 0–45 °C, Humidity ≤85 % RH

Battery model YY-1S2P18650 -5200mAh

Complies with EU

regulations CE / WEEE / RoHS / EAC / UKCA

All rights for any technical modifications are reserved
