Tina - Aroma diffuser STADLERFORM - Free user manual and instructions

Product Type	Aroma Diffuser
Brand	STADLERFORM
Model	Tina
Dimensions (Diameter x Height)	75 x 177 mm
Weight	300 g
Power Supply	100–240 V AC, 50/60 Hz, 3.5 W
Battery Type	Rechargeable Lithium (PN102540)
Battery Life	Up to 30 hours
Diffusion Method	Natural evaporation with fan
Intensity Adjustment	By rotating the top part
LED Lighting	Yes, soft light
Available Scents	White Amber, Orange Bergamot, Red Jasmine, Blue Rosewood, Black Orchid, Yellow Vanilla
Noise Level	< 26 dB(A)
Charging Temperature	0–45 °C
Usage	Indoor use only
Exterior Maintenance	Damp cloth then dry
Interior Maintenance	Dish soap on a damp cloth or sponge
Repairability	By qualified electrician only
Warranty	2 years
Box Contents	Device, power adapter, USB cable, White Amber scented globe, instruction manual
Standards	CE, RoHS, EAC

Frequently Asked Questions - Tina STADLERFORM

How does the Tina diffuser work?

The diffuser works by natural evaporation: a fan blows air over the scented oil-impregnated beads in the globe, releasing the fragrance into the room.

How to adjust the fragrance intensity?

Turn the top part of the device upward: the more you open it, the higher the fragrance intensity.

How long does the battery last?

The rechargeable lithium battery offers a battery life of up to 30 hours in wireless use.

How to recharge the battery?

Connect the provided USB cable to the power adapter and to the device. The battery indicator LED is solid during charging and turns off once the battery is full.

What scents are available for the globe?

The range includes six scents: White Amber, Orange Bergamot, Red Jasmine, Blue Rosewood, Black Orchid and Yellow Vanilla. Globes are sold separately.

How to clean the device?

For the exterior, wipe with a damp cloth then dry. For the interior, remove the globe, put a drop of dish soap on a damp cloth or sponge, rub the top and bottom parts, then let dry completely. Never immerse the device in water.

What to do if the LED flashes?

If the battery indicator LED flashes, it means the battery is charged to 10% or less. Recharge the device via the USB cable.

Can I use the device without plugging it in?

Yes, once the battery is fully charged, you can use Tina up to 30 hours wirelessly.

What to do in case of battery leakage?

Avoid contact with eyes and skin. Collect the spilled liquid with an absorbent cloth. If contact occurs, rinse thoroughly with water and consult a doctor.

How to dispose of the device at end of life?

In accordance with the WEEE directive, do not dispose of the device with household waste. Take it to a designated recycling center. The scented globe can be disposed of as household waste. The lithium battery must be recycled.

USER MANUAL Tina STADLERFORM

Operating instructions

Gebrauchsanweisung

Mode d'emploi

7 4 5 Stanley Farm 3 9

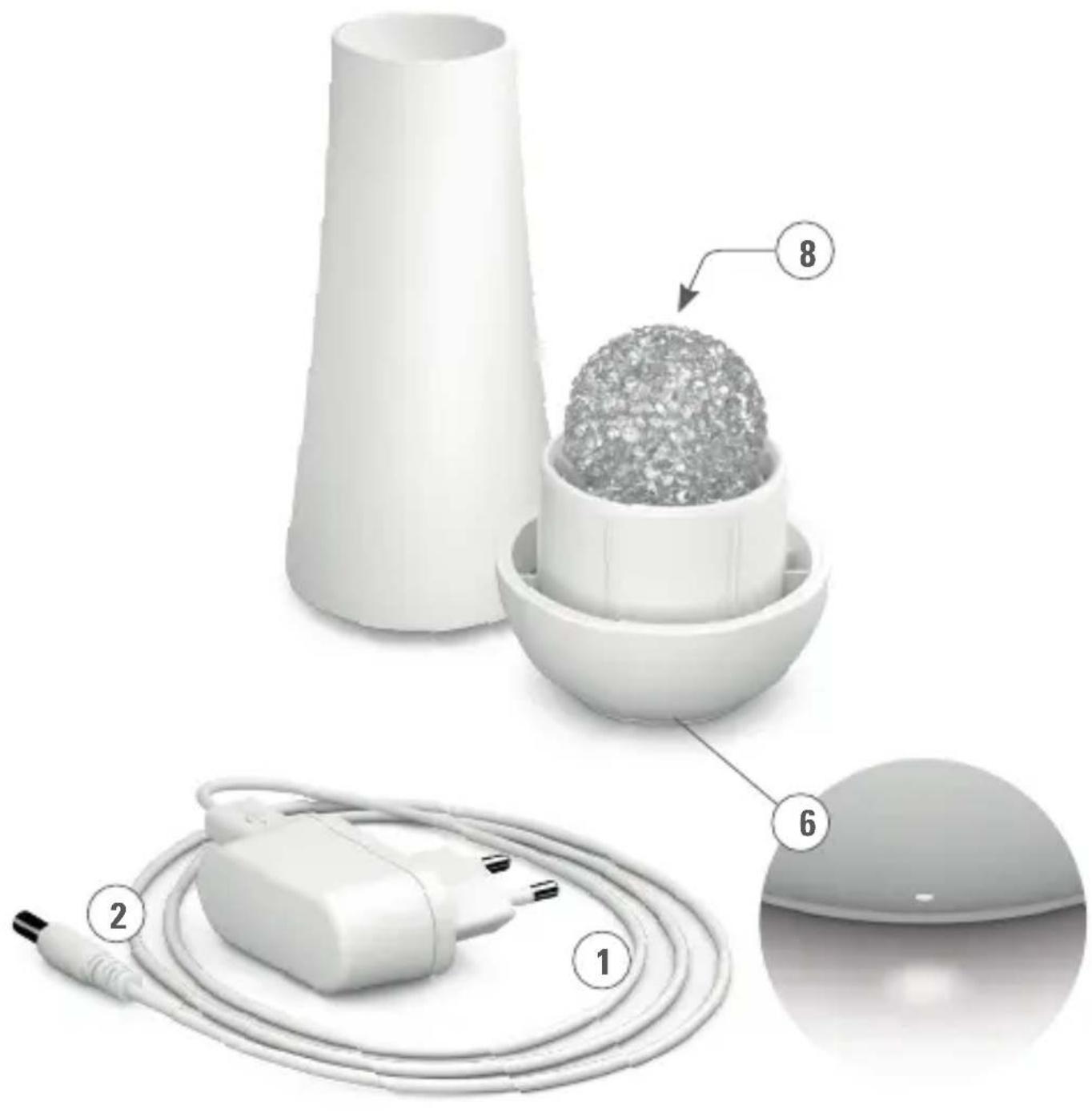

Diagram showing a device setup with labeled parts including a conical flask, a spherical container, and connected cables.

Setting up

FRAGRANCE EXPERIENCE MADE EASY

Diagram illustrating a cooking process with labeled steps: adding a capsule, adding a conical flask, and adding a steaming pot.

Simple gray five-pointed star inside a rounded rectangle (no text or symbols)

Share your feedback about Tina on:

www.stadlerform.com/Reviews

?

For frequently asked questions go to:

www.stadlerform.com/Tina/support

PDF

Download instruction manual:

www.stadlerform.com/Tina/manual

Gray right-pointing triangle play button icon inside a rounded rectangle (no text or symbols)

Watch the video of Tina:

www.stadlerform.com/Tina/video

Subscribe to our newsletter!

www.stadlerform.com/Newsletter

You

Tube

Stadler Form Aktiengesellschaft, Chamerstrasse 174, 6300 Zug, Switzerland Phone [phone], Fax [phone], www.stadlerform.com/contact

English

Congratulations! You have just purchased the exceptional aroma diffuser lady TINA. It will bring you a great deal of pleasure and improve the ambient air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. USB cable
2. Power adapter for power supply
3. Connection for USB cable
4. Upper part (turn upwards for a more intense fragrance)
5. Lower part
6. Status LED light
7. Fragrance outlet
8. Fragrance Globe „White Amber“
9. Battery status display

How your product works

The way that your aroma diffuser works is based on the natural principle of evaporation. A fan blows air across the beads in the fragrance globe which are filled with fragrance oil so that the fragrance is emitted into the room.

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• Use and keep the device and fragrance globe out of reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.

• Do not use damaged extension cords.

• Do not run the power cord over sharp edges and make sure that it does not get trapped.

• Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 0.7 m). Place the appliance such that a person in the bath tub cannot touch the appliance.
• Keep the device and fragrance globe away from heat sources.
  • This device contains a lithium battery.
• In case of battery leakage: Avoid contact with human eyes and skin. Collect spillage.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• Do not drop the device. Otherwise the battery may overheat, cause a fire or malfunction and reduce service life.
• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.
• The appliance is not splash-proof.
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).

• If the power cord is damaged, it must be replaced by the manufacturer or a repair shop authorized by the manufacturer or by similarly qualified persons in order to avoid a hazard.

• Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.

• Repairs to electrical appliances must only be carried out by a qualified electrical technician.
• Only use the adapter provided by the manufacturer.
• Fragrance globe: Harmful if swallowed. May cause an allergic skin reaction. Very toxic to aquatic life. Toxic to aquatic life with long lasting effects. Do not eat, drink or smoke when using this product. Avoid release to the environment.
• To prolong the life of your fragrance globe, please keep it in the airtight blister pack when it is not being used. The fragrance gloce may decrease in size if it is used over a period of several weeks.

Setting up / operation

1. Place Tina in the desired position on a flat surface. Connect the USB cable (1) to the power adapter (2) and to the appliance (3) and insert the adapter into a suitable socket. Alternatively, you can also connect the USB cable to another power source such as a PC or an external battery (battery pack/power bank) with min. 2A. The device is equipped with a battery. When fully charged, it allows Tina to operate for up to 30 hours without having to be plugged into the mains.
2. Remove the top part (4) by pulling it upwards firmly. Remove the fragrance globe (8) provided from the plastic bag and place the globe back in the device. Then put the top part back on the bottom part (5)
3. Then start Tina by turning the top part (4) upwards. Tina will open and the fan will start to distribute the fragrance automatically. The wider you open the top

part, the more intense the fragrance will become. While the device is in operation, the LED light at the front (6) will shine down on the surface underneath it, creating a soft glow.

1. On the back of the bottom part next to the connection for the USB cable (3), you will find the status display for the battery (9):

2. Normal operation with fully charged battery: LED is not illuminated

3. Battery level 10 % or lower: LED flashes
4. Battery is charging: LED is illuminated constantly

When the device is fully charged, the LED will go out. You can now disconnect the USB cable and use the device in battery mode (for up to 30 hours).

Note: There are 6 different fragrance types to choose from in the fragrance globe range: White Amber, Orange Bergamot, Red Jasmine, Blue Rosewood, Black Orchid, Yellow Vanilla. You can buy the fragrance globes from the same place you bought your Tina.

Cleaning

Before maintenance and after every use, switch the device off and pull the network adapter out of the socket.

Careful: Never immerse the device in water (danger of short circuit).

• Regularly as required: To clean the outside, rub with a damp cloth and then dry thoroughly.
• Regularly as required: Cleaning the inside: Take the fragrance globe out of the device and place it on a surface that is not sensitive to fragrances. Put a drop

of washing-up liquid on a damp cloth or sponge, use it to wipe the inside of the top and bottom parts and then leave them to dry completely.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for infor-

mation concerning the correct disposal of their old appliance. The fragrance

globe is made from chlorine-free plastic and can be disposed of with the household waste. Battery disposal method: do not throw into the trash can, the electrode is wrapped in insulating paper, it can be recycled and reused.

Specifications

Rated voltage 100–240 V / 50/60 Hz

Power output 3.5 W

Running time up to 30h

Dimensions 75 x 177 mm (diameter x height)

Weight 300g

Sound level < 26 dB(A)

Battery charging

temperature range 0–45 °C

Battery model PN102540

Complies with EU

regulations CE / RoHS / EAC

All rights for any technical modifications are reserved

White ceramic vase with smooth, rounded edges (no text or symbols)

Deutsch

White ceramic vase with smooth, rounded edges and a narrow neck (no text or symbols)

Français

White conical vase with rounded body and narrow neck (no text or symbols)

Italiano

White ceramic vase with a flared rim and rounded body (no text or symbols visible)

Español

White conical object with a narrow neck and rounded body, resembling a vase or container (no text or symbols visible)

Nederlands

White ceramic vase with a flared rim and rounded body (no text or symbols)

Dansk

White conical object with smooth, rounded surface (no text or symbols)

Suomi

White conical object with smooth surface and rounded body (no text or symbols)

Norsk

Gratulerer! Du har akkurat anskaffet deg den eksepsjonelle aroma diffuser-damen TINA. Den vil gi deg mye nytelse og forbedre luften du omgir deg med.

White cylindrical object with a smooth, rounded base and slightly flared top (no text or symbols visible)

Svenska

White conical object with smooth, rounded surface (no text or symbols)

Русский

White ceramic vase with a flared rim and rounded body (no text or symbols visible)

Warranty/Garantie/Garantie

2 Years warranty

This warranty covers defects of construction, manufacturing and material. Excluded are all wearing parts and improper usage, or consequential damages due to lack of cleaning and/or descaling of the appliance.
