USER MANUAL Pure ONE Air TINECO

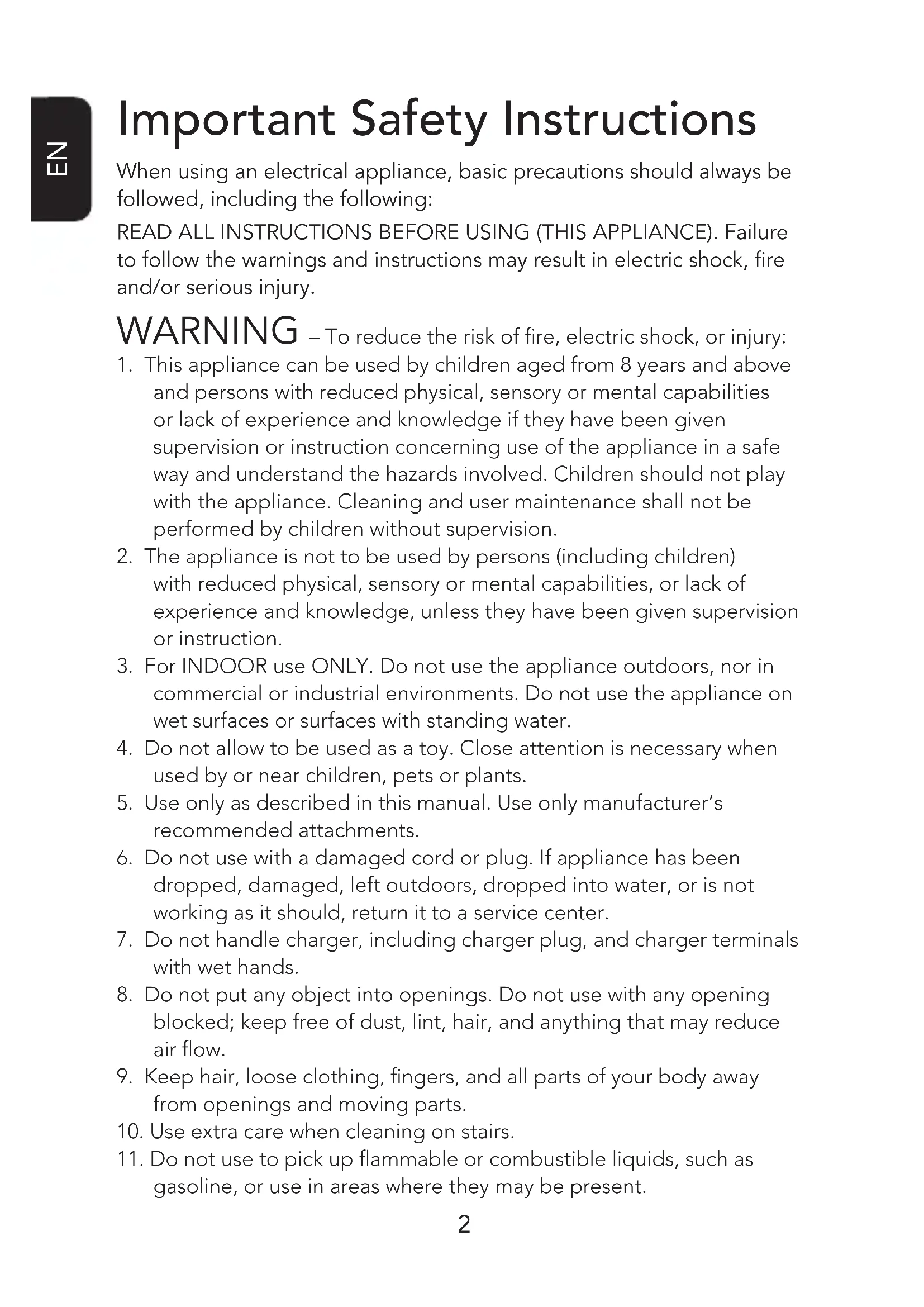

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. WARNING – To reduce the risk of re, electric shock, or injury: 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. 5. Use only as described in this manual. Use only manufacturer’s recommended attachments.6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.7. Do not handle charger, including charger plug, and charger terminals with wet hands.8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air ow.9. Keep hair, loose clothing, ngers, and all parts of your body away from openings and moving parts.10. Use extra care when cleaning on stairs.11. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where they may be present. Important Safety Instructions3

12. Do not pick up anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

13. Do not use without lter.

14. Prevent unintentional activation. Ensure the switch is in the off-

position before picking up or carrying the appliance. Carrying the appliance with your nger on the switch or energizing appliance that have the switch on invites accidents.

15. Disconnect the battery pack from the appliance before making any

adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. For the purposes of recharging the battery, only use the detachable

supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

17. Use appliances only with specically designated Tineco battery

packs. Use of any other battery packs may create a risk of injury and re.Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

18. When battery pack is not in use, keep it away from other metal

objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

19. Under improper usage, liquid may be ejected from the battery;

avoid contact. If contact accidentally occurs, ush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.

20. Do not use a battery pack or appliance that is damaged or modied.

Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

21. Do not expose a battery pack or appliance to re or excessive

temperature. Exposure to re or temperature above 266°F (130°C) may cause an explosion.

22. Follow all charging instructions and do not charge the battery pack

or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperaturesoutside of the specied range may damage the battery and increase the risk of re.4

23. Have servicing performed by a qualied repair person using only

identical replacement parts. This will ensure that the safety of the product is maintained.

24. This appliance contains battery cells that are non-replaceable. Do not

modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

25. Always turn off this appliance before connecting or disconnecting the

26. Brush may start unexpectedly Disconnect battery pack before

cleaning or servicing.

27. Do not charge or store the appliance outdoors or inside the car.

Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.

28. Do not unplug by pulling on cord. To unplug, grasp the charger, not

29. Do not pull or carry by cord, use cord as a handle, close a door

on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

SAVE THESE INSTRUCTIONS

Household use only. FCC Supplier’s Declaration of Conformity

TINECO / PURE ONE AIR SERIES

This appliance complies with part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation. TINECO INTELLIGENT, INC. 1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

1-855-292-8864 Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.5

Note: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help. (5) This device can be used in portable mode. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Note The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment, such modications could void the user’s authority to operate this equipment. IC Note This appliance contains licence-exempt transmitter(s)/receiver(s)that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this appliance may not cause interference. (2) this appliance must accept any interference, including interference that may cause undesired operation of the appliance. - This Class B digital apparatus complies with Canadian ICES-003. - This equipment complies with ISED RSS- 102 radiation exposure limits set forth for an uncontrolled environment6

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.

• To identify what should be included with your purchase, please refer to the “Included Accessories” located on the packaging box.

• As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com. Multi-tasker power brush Ideal for both hard oors and carpets. Very effective for dislodging dirt embedded in the carpet. 2-in-1 dusting brush Switches between a wide and a soft brush by pressing the release button. The soft brush is most effective on hard-surface furniture while the wide brush is effective for upholstered furniture, curtains, etc. Crevice tool For corners, nooks, and other hard-to-reach places such as around car seats, picture frames, and cupboards. Hair cleaning tool Use the end with the small blade to remove hair and debris wrapped around the roller. Use the end with the brush to clean the brush window, and the dustbin, as required

Assembly Tube Installation Insert tube. Insert to the main body. Press the release button to remove the tube. Brush Installation Insert the power brush. Press the release button to remove the power brush. Charging Dock Installation Lift up the charging post to the upright position. Press hard to x the charging post rmly on the dock. click10

Operation Preparing for Use Note:

• Before the rst use, please charge the appliance (see “Charging the Battery”) for 3-4 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C).

• Select an accessory and attach it to the appliance before use (see “Accessories”). Press the power button to activate the suction. Press it again to turn off the appliance. The default setting on startup is AUTO. Press the button to switch between AUTO and MAX mode. The indicator color changes between blue and red according to dust detected.

• Place the appliance on the charging dock for convenient storage and recharging after use. Place the main body on the dock. To avoid bristle damage, always place attachments on the dock after use.11

Emptying the Dustbin Press the release button on the side of the dustbin to empty the contents. Close and click the dustbin ap back into place. Charging the Battery Plug the adaptor into the charging port at the bottom of the dock. Place the appliance on the charging dock and plug the adaptor into a wall outlet.

• Only use the Tineco-provided adapter to charge the appliance.

• To avoid trip hazards, please place the appliance securely on the charging dock, near a wall during charging.

• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.

• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)~104°F (40°C). Back Side12

• In AUTO mode, the runtime is approximately from 10 minutes to 20 minutes.

• Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized accessories. Charging Time

• A full charge takes approximately 3-4 hours.

• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C). Indicator When in Use Solid blue light: AUTO mode. Slowly blinking red light: low power. Rapidly blinking red light: the air channel or brush roller is blocked. Solid red light: dust sensor is blocked. During Charging Breathing blue light: charging. Fully Charged In 5 minutes: solid blue light. After 5 minutes: light off.13

• Clean the dustbin and lters after each use.

• To maintain high performance, wash and dry the sponge lter monthly, replacing it every 6 months. Wash and dry the HEPA lter every 2 months, replacing it every 6 months. Dustbin and Mesh Filter Press the dustbin release button to remove the dustbin. Clean with a damp cloth, taking care to prevent water entering the appliance main body and battery. Turn counter-clockwise to remove the mesh lter. Clean the mesh lter with a damp cloth, wash under cold, running water if necessary. Air dry completely before reinstalling. Dust Sensor To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with a damp cloth.

HEPA and Sponge Filter

Ensure the appliance is switched off before cleaning, rotate to remove the HEPA lter and take out the sponge lter. Clean the dust on the HEPA and sponge lter, wash them under cold, running water if necessary. Air dry completely before reinstalling.

After cleaning, put back the sponge lter and ensure the HEPA is correctly installed.15

Slide the switch to open the brush roller end cover, and rotate it counter-clockwise to be able to pull out the brush roller. Remove the debris wrapped around the roller with the Tineco Hair Cleaning Tool.

Fully reinsert the brush roller into the brush window and the end cover can be rotated clockwise until it clicks securely back into place.

The power brush contains electrical components which must not be soaked or washed with water.16

Problem Possible cause Solution The appliance does not turn on No power Charge the battery Auto protection for overheating Restart after cooling down The appliance is blocked (i.e. the tube, suction mouth or some other parts) Check and remove blockages Weak suction power Dustbin and lters are full Clean the dustbin and lters The mesh lter is not installed Install the mesh lter The appliance is blocked (i.e. the tube, suction mouth or some other parts) Remove blockages Rapidly blinking red Brush roller tangled Clean the brush roller Air channel blocked Remove blockages Slowly blinking red Low power Charge the battery Solid red light Dust sensor blocked Remove blockages Battery won’t charge The adaptor is not designed for this appliance Use the original adaptor The adaptor is not correctly inserted Reinsert the adaptor correctly Poor contact during charging Check the appliance is correctly placed Abnormal motor sounds The appliance is blocked (i.e. the tube, suction mouth or some other parts) Remove blockages Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support. Troubleshooting17

• Only applies to purchases made from authorized retailers of Tineco.

• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.

• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer. WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.

• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.

• This warranty will only be valid if the appliance is used in the country in which it was sold. WHAT IS NOT COVERED? Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.

• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.

• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

• Use of parts not in accordance with the Tineco Instruction Manual.

• Use of parts and accessories other than those produced or recommended by Tineco.

• External factors unrelated to product quality and use, such as weather, modications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.18

• Failing to clear blockage and other hazardous material from the appliance.

• Normal wear and tear, including normal wearing parts, such as clear bin, belt, lter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or oor damage due to use not in accordance with manufacturer’s instructions or failure to turn the brush bar off when necessary.

• Reduction in battery discharge time due to battery age or use. WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of tness for a particular purpose, are limited to the duration of this warranty.

• Warranty coverage applies to the original owner and to the original battery only and is not transferable.

• This limited warranty gives you specic legal rights. You may also have other rights which vary by region.

• Manufacturer’s warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from. Please review the warranty carefully, and contact the manufacturer if you have any questions. WARRANTY SERVICE Register: We highly recommend that upon purchase, you register your appliance on the Tineco ofcial website (www.tineco.com) and enjoy exclusive benets. To register, please enter the whole serial number (found on the base of the main body). Failure to register your product won’t diminish your warranty rights.19

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it. All work will be carried out by Tineco or an authorized agent. Any replaced defective parts will become the property of Tineco. Service under this warranty will not extend the period of this warranty. Contact our Customer Service Hotline: [phone] or Visit Tineco website www.tineco.com for expert customer service.20
