USER MANUAL PWRHERO XL TINECO

*Actual product may differ from illustration. PWRHERO

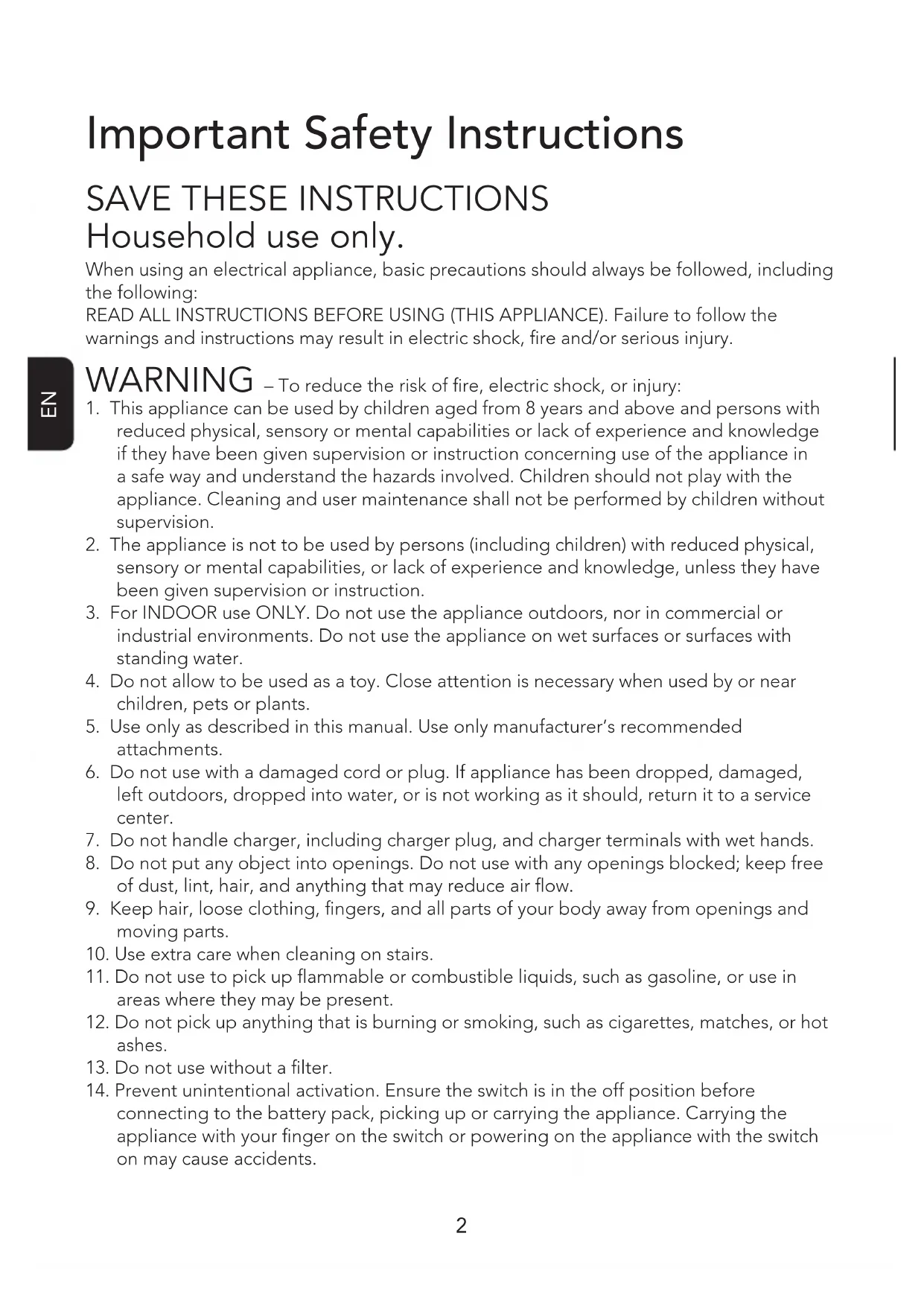

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. WARNING – To reduce the risk of re, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

2. The appliance is not to be used by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or

industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.

4. Do not allow to be used as a toy. Close attention is necessary when used by or near

children, pets or plants.

5. Use only as described in this manual. Use only manufacturer’s recommended

6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged,

left outdoors, dropped into water, or is not working as it should, return it to a service center.

7. Do not handle charger, including charger plug, and charger terminals with wet hands.

8. Do not put any object into openings. Do not use with any openings blocked; keep free

of dust, lint, hair, and anything that may reduce air ow.

9. Keep hair, loose clothing, ngers, and all parts of your body away from openings and

10. Use extra care when cleaning on stairs.

11. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in

areas where they may be present.

12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot

13. Do not use without a lter.

14. Prevent unintentional activation. Ensure the switch is in the off position before

connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on the switch or powering on the appliance with the switch on may cause accidents.EN

15. Disconnect the battery pack from the appliance before making any adjustments,

changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. For the purposes of recharging the battery, only use the detachable supply unit

provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

17. Use appliances only with specically designated Tineco battery packs. Use of any other

battery packs may create a risk of injury and re.

18. When battery pack is not in use, keep it away from other metal objects, like paper clips,

coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact

accidentally occurs, ush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.

20. Do not use a battery pack or appliance that is damaged or modied. Damaged or

modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

21. Do not expose a battery pack or appliance to re or excessive heat. Exposure to re or

temperatures above 266°F (130°C) may cause an explosion.

22. Follow all charging instructions and do not charge the battery pack or appliance

outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

23. Have servicing performed by a qualied repair person using only identical replacement

parts. This will ensure that the safety of the product is maintained.

24. This appliance contains battery cells that are non-replaceable. Do not modify or

attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

25. Always turn off this appliance before connecting or disconnecting the motorized

26. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use

the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only. Tineco/PWRHERO XL This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation. Tineco INTELLIGENT, INC. 1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

1-855-292-8864 CAUTION: Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.EN

Note: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.EN

To assemble the handle, insert it into the appliance until you hear a click. In the event that the product must be returned, please disassemble the handle. Press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance. How to Assemble/Disassemble Assembly click rst holeEN

• A full charge takes approximately 4-5 hours.

• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C). Charging Instruction

• Only use the Tineco-provided adapter to charge the battery.

• During long periods of not being used, store the lithium battery in a cool, dry place. Ensure the battery is fully charged every 3 months.

• Store appropriately indoors in a dry place. Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)~104°F (40°C). Place vacuum on the charger base.Connect the external charging cord to the charging base and plug it into the wall outlet.EN

• Breathing blue light: in charging.

• Solid blue light in 3 minutes: full charging, then light off. BAREFLOOR Mode. CARPET Mode. Place foot on oor nozzle and tilt handle back to begin cleaning.

1. Press the power button once to turn on the

bareoor setting, the brush roller will spin slowly to vacuum up litters on bare oors.

2. Press the power button a second time to turn

on the carpet setting, the brush roller will spin quickly in this mode to get deep carpet cleaning.

3. Press the power button a third time to turn off

• Before the rst use, please charge the vacuum for 4-5 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C). Operation Preparing for Use ERROR BATTERY BAREFLOOR CARPET POWER BUTTON MODE SWITCH Runtime

• When in BAREFLOOR mode, the runtime is 30 minutes. When in CARPET mode, the runtime is 10 minutes.

• Estimated runtime data was obtained by Tineco Laboratory.EN

• Clean the dustbin and lters after each use.

• To maintain high performance, wash and dry the mesh lter monthly, replace the sponge lter every 3 months. Maintenance Dustbin Press down on the dustbin release button and lift dustbin out. Close and click the dustbin ap back into place. Press the release button on the side of the dustbin to empty the contents. Replace the dustbin by aligning the bottom rst and then locking it into place.

Sponge and Mesh Filter Turn counter-clockwise to remove the dustbin lid, take out the sponge and mesh lter. Clean the dust on the sponge and mesh lter, wash them under cold, running water if necessary. Air dry completely before reinstalling. Brush Roller Push and turn the brush roller lock counterclockwise to release the brush roller. Pull the brush roller out of the nozzle with the pull tab. Remove the debris wrapped around the roller with a cleaning tool. Reinstall the brush roller into the nozzle and turn clockwise to lock. click Sponge lter Filter holder Mesh lterEN

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.

• When removing the battery, the appliance must be powered off.

• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into re, water or soil. Do not dispose of batteries and chargers into household waste!

• If battery leakage contacts skin or clothing, immediately ush with water to avoid irritation and seek medical help. SpecicationsEN

Problem Possible cause Solution The appliance does not turn on No power Charge the battery The appliance is blocked (i.e. the brush roller, suction mouth or some other parts) Remove blockages The main body is in the upright position Pull back handle to recline and press the power button Weak suction power Dustbin is full Clean the dustbin The appliance is blocked (i.e. the brush roller, suction mouth or some other parts) Remove blockages Abnormal motor sounds The appliance is blocked (i.e. the brush roller, suction mouth or some other parts) Remove blockages Battery won’t charge The adaptor is not correctly inserted Reinsert the adaptor correctly The adaptor is not designed for this appliance Use the original adaptor Blinking red light The appliance is blocked (i.e. the brush roller, suction mouth or some other parts) Remove blockages Solid red light Overvoltage or overcurrent Unplug and before recharging Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support. TroubleshootingEN

• Only applies to purchases made from authorized retailers of Tineco.

• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below. WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.

• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.

• This warranty will only be valid if the appliance is used in the country in which it was sold. WHAT IS NOT COVERED? Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.

• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.

• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

• Use of parts not in accordance with the Tineco Instruction Manual.

• Use of parts and accessories other than those produced or recommended by Tineco.

• External factors unrelated to product quality and use, such as weather, modications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

• Failing to clear blockage and other hazardous material from the appliance.

• Normal wear and tear, including normal wearing parts, such as clear bin, belt, lter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or oor damage due to use not in accordance with manufacturer’s instructions or failure to turn the brush bar off when necessary.

• Reduction in battery discharge time due to battery age or use.EN

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of tness for a particular purpose, are limited to the duration of this warranty.

• Warranty coverage applies to the original owner and to the original battery only and is not transferable.

• This limited warranty gives you specic legal rights. You may also have other rights which vary by region.

• Manufacturer’s warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from. Please review the warranty carefully, and contact the manufacturer if you have any questions. WARRANTY SERVICE Register: We highly recommend that upon purchase, you register your appliance on the Tineco ofcial website (www.tineco.com) and enjoy exclusive benets. To register, please enter the last 11 digits of the serial number (found on the back of the appliance). Failure to register your product won’t diminish your warranty rights. How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it. All work will be carried out by Tineco or an authorized agent. Any replaced defective parts will become the property of Tineco. Service under this warranty will not extend the period of this warranty. Contact our Customer Service Hotline: [phone] or Visit Tineco website www.tineco.com for expert customer service. E******** XXXXXXXXXXXES
