eufyCam S110 - Surveillance Camera eufy - Free user manual and instructions

Product Type	Surveillance Camera
Brand	eufy
Model	eufyCam S110 (eufyCam E)
Power Supply	Rechargeable lithium-ion battery, micro-USB charging (5V, fast charge < 4 h via HomeBase)
Motion Detection	Yes, range up to 10 meters
Connectivity	Wireless (compatible with eufy Security HomeBase)
Mounting	Indoor and outdoor, recommended height 2-3 m
Box Contents	eufyCam E camera, outdoor mount, indoor mount, mounting screws, anchors, micro-USB cable
Compatibility	eufyCam or eufyCam E security system
LED Indicator	Solid red when charging, off when fully charged
App	Eufy Security (iOS/Android)
Safety	CE certified, recyclable
Manual Languages	FR, DE, EN, ES, IT

Frequently Asked Questions - eufyCam S110 eufy

How to install the eufyCam S110 camera?

Follow the instructions in the Eufy Security app. Mount the camera 2-3 m above the ground, outdoors or indoors, using the provided mount. Drill 6 mm holes for the anchors if necessary.

How to add the camera to my existing system?

Open the Eufy Security app, tap 'Add Device', then select eufyCam E and follow the on-screen instructions.

How to charge the camera?

Use the provided micro-USB cable. Connect the camera to the charging port on the back of the HomeBase for fast charging (< 4 h), or to a standard 5V USB charger (slower charge). The solid red LED indicates charging, it turns off when fully charged.

Where to mount the camera for best detection?

Mount the camera at a height of 2 to 3 meters above the ground. Avoid direct sunlight to optimize motion detection.

What to do if the Wi-Fi signal is weak?

Move the camera closer to the HomeBase to improve wireless signal strength. Use the 'Mounting Guide' feature in the app to test signal strength.

How to test signal strength?

In the Eufy Security app, go to 'Camera Settings > Mounting Guide'. Follow the instructions to check signal quality at the chosen location.

How to clean the camera?

Use a soft, dry cloth to clean the lens and housing. Do not use harsh or abrasive chemicals.

What are the LED indicators?

The LED is solid red when the camera is charging, and off when the battery is fully charged.

Is the camera compatible with a HomeBase station?

Yes, the eufyCam S110 camera is designed to work exclusively with the eufy Security system including a HomeBase.

Is the camera waterproof for outdoor use?

Yes, it is designed for outdoor use with a special mount. Ensure the outdoor mount is securely attached and avoid direct exposure to heavy rain.

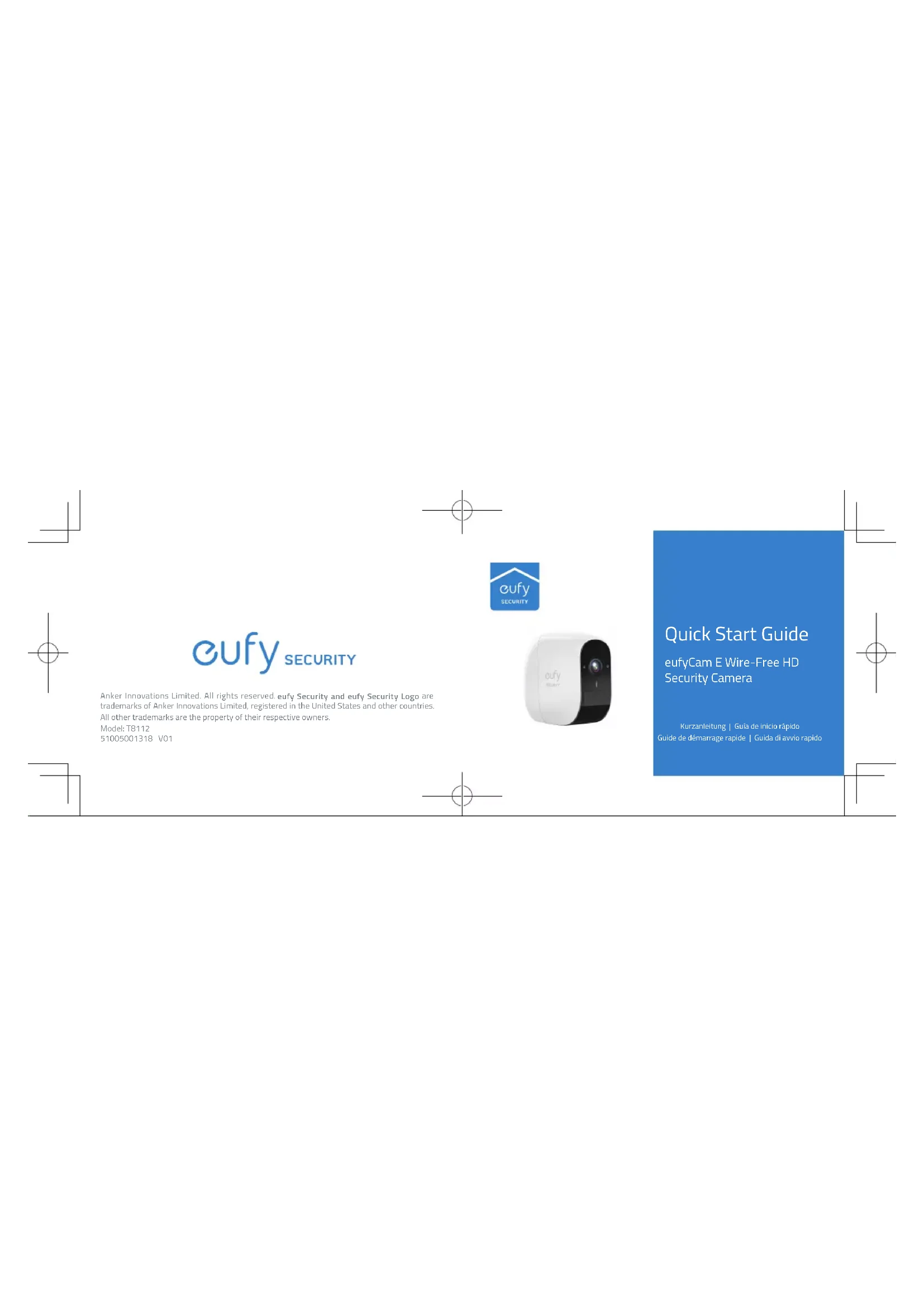

USER MANUAL eufyCam S110 eufy

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

Model: T8112

51005001318 V01

Quick Start Guide

eufyCam E Wire-Free HD Security Camera

What's in the Box 02

Adding eufyCam E to Your Existing System 04

Find a Good Mounting Spot 05

Mounting the Camera Outdoors 07

Mounting the Camera Indoors 09

Charging eufyCam E 11

Safety

15

English 01

What's in the Box

eufyCam E (T8111)

Micro-USB Charging Cable

Outdoor Mount Mounting Screws and Anchors

Indoor Mount Hook

(for Indoor Mount)

Keep the camera at least 1 ft away from your internal / external hard drives.

02 English English

1. eufyCam E is only compatible with the eufyCam or eufyCam E Security System.
2. Make sure the region printed on your product package (A or B) matches the region printed on your HomeBase.

03

Adding eufyCam E to Your Existing System

On Eufy Security app, follow the onscreen instructions to add your Eufy Security devices. Choose Add Device, then select eufyCam E to add it to your system.

Line drawing of a rectangular device with a lid and a separate circular device (no text or symbols)

04 English English

Find a Good Mounting Spot

Signal Strength

Use the "Mounting Guide" function, found at the end of the setup process or under Camera Settings > Mounting Guide, to test the wireless signal strength of eufyCam E at the location you wish to mount the camera. Move the camera as close to the HomeBase as possible if the wireless signal strength is poor.

Height and Location

Hang eufyCam E 7-10 ft (2-3 m) above the ground. This height maximizes the detection range of the motion sensor of eufyCam E. Avoid placing eufyCam E under direct sunlight.

06 English English

Mounting the Camera Outdoors

Outdoor mount is designed specifically for outdoor environment.

Drill holes with a 15/64 in (6 mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.

07

08 English English

Screw the base of the outdoor mount onto the wall. Fasten the ball bracket of the outdoor mount to the base of the outdoor mount.

Fasten eufyCam E to the outdoor mount and adjust the viewing angle by checking the live stream feed in the eufy Security app.

Mounting the Camera Indoors

Stick the camera directly to any flat surface made out of iron. Or you can use the indoor mount to mount the camera:

Drill a hole. Use the included anchor if it's drywall and fasten the hook.

09

b

C

10 English English

Hang the indoor mount on the hook.

Attach eufyCam E to the indoor mount and adjust the viewing angle.

Charging eufyCam E

Fast charging (<4Hr)

11

Normal charging

Simple line drawing of a plug inserted into a socket connected to a power outlet (no text or symbols)

Use the provided micro-USB charging cable to connect eufyCam E to the camera charging port on the backside of the HomeBase. Charging a camera takes

12 English English

approximately 4 hours; it will take longer if you charge the camera via a universal 5V USB charger.

The LED indicator turns solid red during charging, and goes off once eufyCam E is fully charged.

13

For troubleshooting, check Help on the eufy Security app. Refer to app page for LED Indicator status.

English

Safety

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try

English 15

to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FEC regulations.

The following importer is the responsible party

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone:[phone]

CE This product complies with the radio interference requirements of the European Community.

16 English English

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site www.eufylife.com

Due to the used enclosure material, the product shall only be connected to a USB interface of version 2.0 or higher. The connection to so called power USB is prohibited.

A statement regarding the AC/DC adapter as disconnect device is missing in the user manual.

The statement shall require a socket outlet that is installed near equipment and that shall be easily accessible.

The adapter shall be installed near the equipment and shall be easily accessible.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for the product and accessories is -20°C-50°C.

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges

from 5°C\~25°C

Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the projector and the guarantee article.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Wi-Fi Operating Frequency Range:2412-2472MHz for EU;

SUB-1G Frequency range: 866-866.8MHz

Product is designed and manufactured with high quality materials and components, which can be recycled and reused.

18 English English

The symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device."

Simple blue rectangle with corner markers and crosshairs, no text or symbols present

Inhalt

Im Lieferumfang 22

Line drawing of a rectangular device with a lid and a smaller circular device (no text or symbols)

24 Deutsch Deutsch

Höhe und Position

31

Normales Laden

Simple line drawing of a plug connected to a power outlet, with a plug inserted into a socket (no text or symbols)

Simple blue rectangle with corner markers and crosshairs, no text or symbols present

Índice

Line drawing of a rectangular device with a lid and a smaller circular device (no text or symbols)

40 Español Español

Altura y ubicación

47

Carga normal

Simple line drawing of a plug connected to a socket and plug outlet (no text or symbols)

Line drawing of a rectangular device with a lid and a separate circular device (no text or symbols)

56 Français Français

60 Français Français

63

Charge normale

Simple line drawing of a plug inserted into a socket connected to a power outlet (no text or symbols)

Simple blue rectangle with corner markers and crosshairs, no text or symbols present

Sommario

Line drawing of a rectangular device with a rounded top and a smaller circular device on the right (no text or symbols)

72 Italiano Italiano

Altezza e posizione

79

Ricarica normale

Simple line drawing of a plug connected to a power outlet, with a small plug inserted into the socket (no text or symbols)
