USER MANUAL Carpet One Spot TINECO

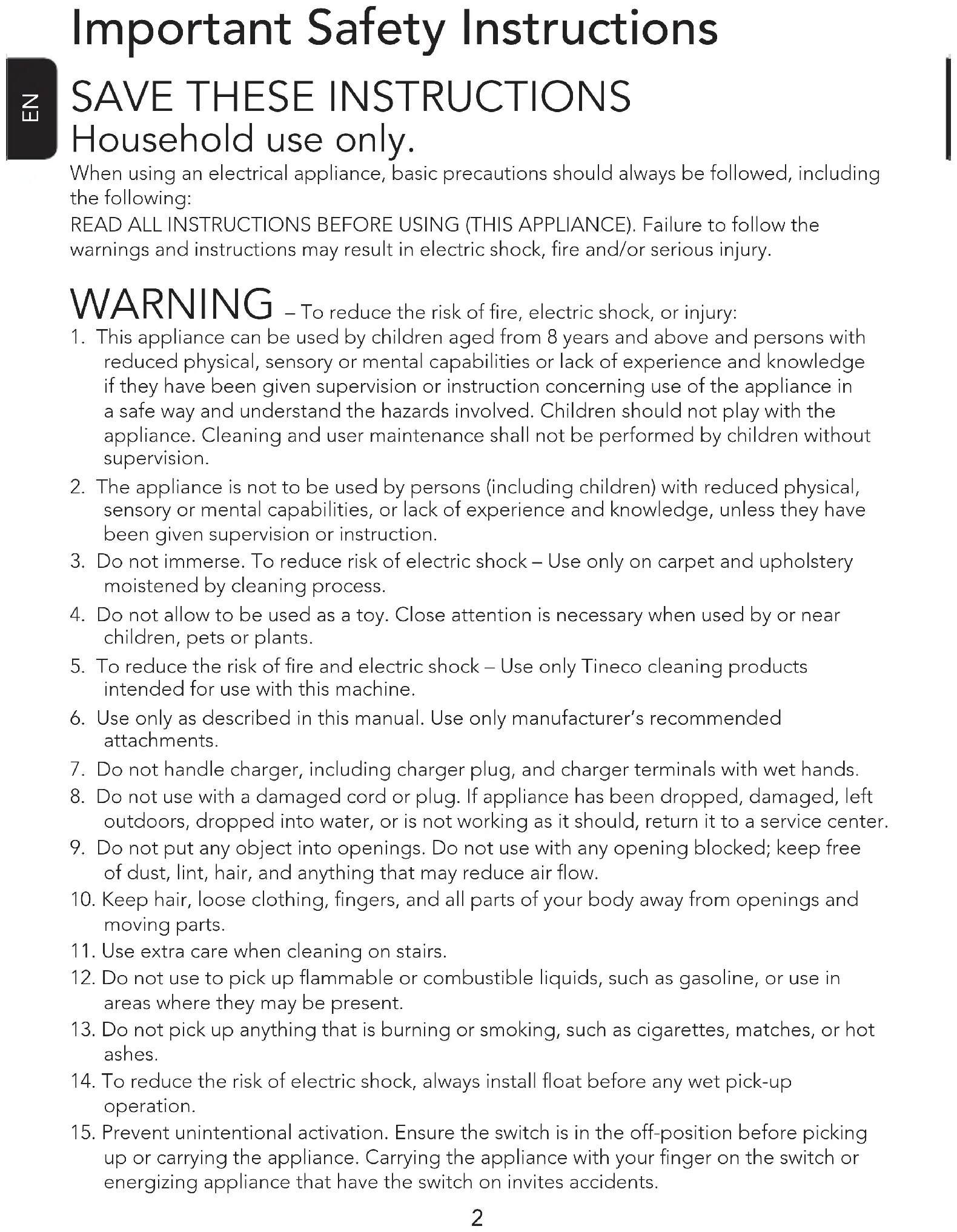

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. WARNING – To reduce the risk of re, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

2. The appliance is not to be used by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

3. Do not immerse. To reduce risk of electric shock – Use only on carpet and upholstery

moistened by cleaning process.

4. Do not allow to be used as a toy. Close attention is necessary when used by or near

children, pets or plants.

5. To reduce the risk of re and electric shock – Use only Tineco cleaning products

intended for use with this machine.

6. Use only as described in this manual. Use only manufacturer’s recommended

7. Do not handle charger, including charger plug, and charger terminals with wet hands.

8. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left

outdoors, dropped into water, or is not working as it should, return it to a service center.

9. Do not put any object into openings. Do not use with any opening blocked; keep free

of dust, lint, hair, and anything that may reduce air ow.

10. Keep hair, loose clothing, ngers, and all parts of your body away from openings and

11. Use extra care when cleaning on stairs.

12. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in

areas where they may be present.

13. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot

14. To reduce the risk of electric shock, always install oat before any wet pick-up

15. Prevent unintentional activation. Ensure the switch is in the off-position before picking

up or carrying the appliance. Carrying the appliance with your nger on the switch or energizing appliance that have the switch on invites accidents.EN

16. Always switch off the appliance before making any adjustments, changing accessories,

or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

17. Recharge only with the charger specied by Tineco KL-WA260060-J. A charger that is

suitable for one type of battery pack may create a risk of re when used with another battery pack.

18. Use appliances only with specically designated Tineco battery packs. Use of any other

battery packs may create a risk of injury and re.

19. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If

contact accidentally occurs, ush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.

20. Do not use a battery pack or appliance that is damaged or modied. Damaged or

modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

21. Do not expose a battery pack or appliance to re or excessive temperature. Exposure

to re or temperature above 266°F (130°C) may cause an explosion.

22. Follow all charging instructions and do not charge the battery pack or appliance

outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

23. Have servicing performed by a qualied repair person using only identical replacement

parts. This will ensure that the safety of the product is maintained.

24. When battery pack is not in use, keep it away from other metal objects, like paper clips,

coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

25. This appliance contains battery cells that are non-replaceable. Do not modify or

attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

26. Do not charge or store the appliance outdoors or inside the car. Only charge, store or

use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.

27. Always turn off this appliance before connecting or disconnecting the motorized

28. Do not use to pick up ultrane particles, such as lime, cement, sawdust, gypsum

29. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper

30. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner,

strong acids, or strong alkali.

31. Stop using immediately if the appliance is overheating, making unusual noises,

producing unusual odors, performing low suction, or leaking electricity.

32. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.

33. Always clean the Dirty Water Tank after each use to avoid potential blockage, which

may lead to low suction power, motor overheating, or reduce the service life of the appliance.

35. Store appropriately indoors in a dry place after use.

36. Do not place or submerge appliance in standing water or try to clean ooded areas.

37. The plug must be removed from the socket-outlet before cleaning or maintaining the

38. A hazard may occur if the appliance runs over the supply cord.

39. Do not use the appliance when the water depth is more than 5mm above the surface.

40. To reduce the risk of re and electric shock due to internal component damage, use

only Tineco cleaning uid/solution: Carpet Deodorizing & Cleaning Solution intended for use with this appliance. See the Cleaning Fluid/Solution section of this manual.

41. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

42. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

43. Do not use appliance in an enclosed space lled with vapors given off by oil base paint,

paint thinner, some moth proong substances, ammable dust, or other explosive or toxic vapors.

44. Do not store cleaner with solution in Clean Water Solution Tank or dirty water in Dirty

Water Tank. Mineral deposits and mildew can form which will affect the performance of your carpet cleaner. Range of Usage

1. This spot cleaner is to be used on carpets, upholstery, car interior and stairs, such as

ber/cotton/ax/lamb cashmere and etc.

2. Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber

carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, rst test a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.

3. Important: Keep the foot of the deep cleaner perpendicular to the rug’s edge with each

cleaning pass to prevent damage.

4. Important! Please check manufacturer’s tag before cleaning area rugs for any

specialized cleaning instructions. We do not recommend deep cleaning delicate, silk, wool, antique or area rugs without a manufacturer’s tag.

5. When cleaning area rugs, place the rug on a sealed surface to test for colorfastness in

an inconspicuous area. Your cleaner should not be used on unsealed surfaces.

6. Do not use on rugs or carpet when dry cleaning is recommended.

7. For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the

upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean). Do not clean fabric marked “S” (“solvent/dry” clean only). If your upholstery does not have a code, seek professional assistance

8. Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden

area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.

9. Keep your appliance away from heat sources, such as replace or heater, to avoidEN

10. Do not use to pick up ammable or combustible liquids, ultrane particles, sharp

objects, hazardous material, chemicals or anything that is burning or smoking, as described above. About Cleaning Fluid/Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the

appliance. Don’t shake the machine violently.

2. Add solution as instructed in the Operation section. We recommend using the

provided cleaning solution.

3. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse

thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.

4. Do not use the product with acidic, alkaline solution, or any substances harmful to the

5. Dirty water and solution disposal should comply with local environmental regulations.

6. WARNING: To Reduce the Risk of Fire and Electric Shock due to internal component

damage, use only TINECO CARPET DEODORIZING & CLEANING SOLUTION intended for use with the appliance. About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions

for operating and cleaning.

2. Use extra care when cleaning on stairs.

3. Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high

and low voltages can damage the adaptor, appliance, or even cause danger to the user.

4. Always install the Dirty Water Tank and Clean Water Tank properly before use.

5. Do not allow the appliance to get wet to avoid risk of re or injury caused by a short

6. To avoid being tripped accidentally, please put away the appliance on the charging dock.EN

• All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for nal explanations. Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.

• When removing the battery, the appliance must be powered off.

• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into re, water or soil. Do not dispose of batteries and chargers into household waste!

• If battery leakage contacts skin or clothing, immediately ush with water to avoid irritation and seek medical help.EN

K L M A. Power Button B. DWT (Dirty Water Tank) C. Self-cleaning Button D. Power Brush E. Carpet/ Upholstery Mode Switch F. Handle Display G. Self-Cleaning Box H. Mute/Language Switch Button

I. CWT (Clean Water Tank)

J. Power Brush Release Button K. Power Brush Head L. Carpet Deodorizing & Cleaning Solution M. AdaptorEN

Main Unit Display A. Power button B. Self-cleaning indicator C. CWT empty D. DWT full E. Power brush uninstalled F. Brush roller tangled G. Battery status Handle LED Display A. Carpet mode B. Fault indicator C. Spraying water D. Spot mode E. Upholstery mode F. Stain monitoring loop (Red to blue as stain is cleared)EN

Accessories Note: Accessories may vary between markets. If you require more accessories, please go to www.tineco.com or store.tineco.com. Power Brush SPOT/AUTO/SUCTION mode will be activated when using this brush, embedded with a motor provides the strong power to remove stains. Deodorizing & Cleaning Solution Removes dirt, grime, grease and tough stains from most types of carpets. Always use Tineco solution in your appliance. Add two bottle caps of solution to each full tank of clean water. Cleaning Tool A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT. Deep Stain Tool (optional accessory) Scrubs and suctions away tough stains on carpet, upholstery and auto interiors.EN

Assembly How to Assemble/Disassemble Note: For water tank and brush assembly, please refer to “Operation” and “Maintenance”. click ClickPressPress Install the power brush. When dissemble, press the release button to remove the power brush. Install the self-cleaning box and place the appliance on the base.EN

Operation Preparing for Use Before rst use, please charge the appliance for 5 hours (refer to “Charging Instructions” for details).Pretreat spots and heavy trafc areas with Tineco Pretreat Cleaning Solutions to achieve better cleaning effect. Follow Directions on bottle.If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again to achieve better cleaning effect.* Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) ~ 104°F (40°C).

Remove the Clean Water Tank. Open the tank cap, add two bottle caps of solution. MAX MAX click Fill water to the MAX line and tightly close the cap.Put the Clean Water Tank back on the base.Carpet UPH Use the power brush and aim it at the stain spot. Select the Carpet or Upholstery mode according to different occasions.EN

Press the sub-mode button underneath the handle to select SPOT/AUTO/SUCTION mode. Put the power brush into the self-cleaning box after cleaning.

button to turn on/off the voice prompt.

button twice to switch languages.(More voice languages will be added, please refer to the actual product for now.) Cleaning Mode Selection Carpet Mode In Carpet mode, the appliance will spray a large amount of water to clean the satins, perfect for medium and low pile carpets. Upholstery Mode Upholstery mode can tackle stains and dirt on upholstery and car interiors.EN

• Spot mode is perfect for st-sized embedded dirt and tough stains.

• The appliance automatically stops as stains are removed, hands-free for better cleaning experience.

• This mode requires no elbow grease & scrubbing. AUTO Mode (Carpet)

• AUTO mode can intelligently adjust water ow for easy and effective cleaning.

• A red stain monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected.

• This mode requires light back-and-forth movement to cover the required area. SUCTION Mode (Carpet)

• In SUCTION mode, the appliance only absorbs water and saving you the drying time.

• This mode requires light back-and-forth movement to cover the required area. Note:

• Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

• The default setting for voice prompt is English, you can either switch to other languages via App or quickly press the language switch button twice. Runtime

• Approximately 25 minutes.

• Estimated runtime data was obtained by a Tineco Laboratory.

• The default setting for voice prompt is English, you can either switch to other languages via App or double press the language switch button. Charging Time

• A full charge takes approximately 5 hours.

• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).EN

Indicator When in Use Solid red light on the handle display: dirt sensor malfunction or blocked. Illuminated: appliance is in need of self-cleaning Illuminated: CWT is empty. Illuminated: DWT is full or not installed, or the channel has a blockage. Illuminated: brush roller has a blockage. Illuminated: power brush is not installed. During Charging Battery indicator blinking. Fully Charged In 5 minutes: battery indicator illuminated. After 5 minutes: battery indicator off.EN

Voice Prompt (Contents may vary, pleaseinkindprevail.) Status Reminder Low battery Low battery Upgrade rmware Firmware upgraded Restore factory settings Factory settings restored Switch to Carpet-Spot Mode Spot mode (Carpet) Switch to Carpet-Auto Mode Auto mode (Carpet) Switch to Carpet-Suction Mode Suction mode (Carpet) Switch to Upholstery-Spot Mode Spot mode (Upholstery) Switch to Upholstery-Auto Mode Auto mode (Upholstery) Switch to Upholstery-Suction Mode Suction mode (Upholstery) Connect the appliance to charger and start self-cleaning Starting self-cleaning Self-cleaning completed Self-cleaning is complete, please clean the dirty water tank and the channel underneath it Shutting down Shutting Down Charging the appliance Charging Appliance is not upright Appliance is not upright. Place the appliance back on the charging dock Pause self-cleaning Pause self-cleaning Auto detecting Auto detecting Deep cleaning Deep cleaning Enter standby mode Standby Mode Pause water spraying Water spraying paused Self-cleaning stopped Spot cleaning completed, appliance in standby mode Checking cleanliness Cleanliness check in progress Place the appliance on the base after cleaning Please turn on self-cleaning function to ensure effective cleaning Need to clean Dirty Water Tank Please clean the dirty water tank to prevent unwanted odors Voice prompts on Voice prompts on Voice prompts disabled Voice prompts disabledEN

• For optimal performance and to prevent odors, always clean and dry DWT, power brush and power brush cover completely after each use.

• Please make sure each part is installed correctly or the appliance may not work properly.

• After maintenance, place the appliance on the charging dock vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place. Power Brush Self-cleaning Put the power brush into the self-cleaning box, and press the button on the handle to start the self-cleaning cycle. Note:

• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT exceeds 20%. Dirty Water Tank

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.

• Pull up the tank lid to empty the DWT. Rinse the inside of DWT and lid, place them back into the appliance. Power Brush click Click
• Press against the roller end cover downward.

• Pull out the brush roller.

• Remove the debris wrapped around the roller and rinse with water.

• Fully reinsert the brush roller at an angle and push upward until it clicks securely back into place.EN

Power Brush Cover Hold the upside of the cover and pull out to remove. Rinse with water. Debris Channel When LED loop illuminates solid red, remove Dirty Water Tank, clean the dirt sensor with a damp cloth or the cleaning tool.EN

Cotton Filter Clean the cotton lter regularly, in case the appliance doesn’t spray sufcient amount of water or water doesn’t come out. Take out the lter beneath CWT. Rinse the lter, and put it back. Charging Instructions

• To charge the appliance, place the appliance on the charging dock, connect the external charging cord to the charging dock and plug it into the wall outlet.

• To avoid tripping hazards, please place the appliance on the charging dock near a wall during charging.

• Only charge the appliance with the adaptor supplied by Tineco.

• During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 5-6 hours for a full charge.

Troubleshooting Problem Possible cause Solution The appliance does not turn on

1. Charge the appliance

2. Restart after cooling down

Fault indicator on handle display is on

4. Self-cleaning needed

Check main unit display for detailed reasons Power brush uninstalled indicator on Voice prompt: Please install the power brush and try again The power brush is not installed Install power brush correctly Brush roller tangled indicator

Voice prompt: The brush roller is stuck, please clean the brush roller The brush roller is blocked Remove blockages CWT empty indicator on Voice prompt: The clean water tank is lack of water, please add water CWT is empty Rell CWT DWT full indicator on Voice prompt: Please check the dirty water tank The dirty water in DWT has reached the MAX line Empty the dirty water and then reinstall the DWT All lights off in operation Battery overheat or malfunction Cool the appliance down and restart Battery indicator in red Low battery Charge the appliance, or restart LED loop illuminates red Dirt sensor malfunction or blocked Remove blockages, clean the debris channel under DWT, or restart Self-cleaning button doesn’t work Self-cleaning only works when it’s charging Place the appliance on charging dock and connect to the charger The appliance shuts off automatically Voice prompt: Appliance is not upright. Check the appliance and restart it Appliance is detected not upright Place the appliance upright or back on the charging dock Note: If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.EN

• Only applies to purchases made from authorized retailers of Tineco.

• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.

• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer. WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories bought separately come with a 1-year warranty.

• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.

• This warranty will only be valid if the appliance is used in the country in which it was sold. WHAT IS NOT COVERED? Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.

• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.

• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

• Use of parts not in accordance with the Tineco Instruction Manual.

• Use of parts and accessories other than those produced or recommended by Tineco.

• External factors unrelated to product quality and use, such as weather, modications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

• Failing to clear blockage and other hazardous material from the appliance.

• Normal wear and tear, including normal wearing parts, such as clear bin, belt, lter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or oor damage due to use not in accordance with manufacturer’s instructions or failure to turn the brush bar off when necessary.EN

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of tness for a particular purpose, are limited to the duration of this warranty.

• Warranty coverage applies to the original owner and to the original battery only and is not transferable.

• This limited warranty gives you specic legal rights. You may also have other rights which vary by region.

• Manufacturer’s warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from. Please review the warranty carefully, and contact the manufacturer if you have any questions. WARRANTY SERVICE Register: We highly recommend that upon purchase, you register your appliance on the Tineco ofcial website (www.tineco.com) and enjoy exclusive benets. To register, please enter the whole serial number (remove the Clean Water Tank to nd the serial number). Failure to register your product won’t diminish your warranty rights.

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it. All work will be carried out by Tineco or its authorized agency. Any replaced defective parts will become the property of Tineco. Service under this warranty will not extend the period of this warranty. Contact our Customer Service Hotline: [phone] or Visit Tineco website www.tineco.com for expert customer service.ES
