Product Type	Ultrasonic air humidifier
Brand	Sanitas
Model	SLB 40
Dimensions (L x W x H)	14.9 x 21.2 x 31.7 cm
Empty weight	1.5 kg
Power supply	100 – 240 V AC, 50/60 Hz
Rated power	25 W
Tank capacity	4 liters
Maximum evaporation rate	300 ml/hour
Recommended area	Up to 30 m²
Cable length	Approx. 1.5 m
Main functions	Quiet humidification, automatic shut-off when tank is empty, automatic shut-off when tank is removed, aroma compartment, continuous evaporation adjustment
Fill indicator	Blue LED (operation) / red (empty tank)
Care and cleaning	Regular cleaning of the membrane, tank and base; descaling recommended; use mild dish soap or vinegar
Safety	Automatic shut-off if tank is empty or removed; use by children aged 8 years and above with supervision; protection against electric shock (class II)
Spare parts and accessories	Aroma pads (ref. 164.148), optional anti-limescale filter (ref. 164.147)
Warranty	2 years

Frequently Asked Questions - SLB 40 SANITAS

How to fill the water tank of the Sanitas SLB 40 humidifier?

Remove the water tank from the base by lifting it up, turn it over, open the screw cap, fill with warm water (30-45°C) up to a maximum of 4 liters, close tightly, then place the tank back on the base, making sure it is properly seated.

Can I use essential oils with this humidifier?

Yes, but only in the aroma compartment provided for this purpose. Place a few drops of aroma on the aroma pad. Never add oils directly into the water, as this could damage the ultrasonic membrane and the plastic.

What to do if the device does not produce mist?

Check that the power cable is plugged in, the knob is not set to Off, and the tank has enough water. If the level is too low, fill the tank. The red indicator signals an empty tank.

How to clean the ultrasonic membrane?

Turn off and unplug the device. Empty the water from the base via the side edge. Clean the membrane with a cotton swab. For descaling, apply a few drops of descaling agent to the membrane, let it sit for 2-5 minutes, then clean with the supplied brush and rinse with clean water.

What water should I use?

Use fresh drinking water. If the water is very hard, prefer demineralized or distilled water to avoid limescale deposits. The water should be warm (30-45°C) when filling.

The device turns off by itself, is that normal?

Yes, it is normal. The humidifier turns off automatically when the water tank is empty or when it is removed from the base. The indicator turns red in this case.

How to descale the water tank?

Fill the tank halfway with water, add a small amount of descaling agent, close the cap, shake and tilt the tank, then empty it. Repeat with clean water several times.

Is the humidifier suitable for a child's room?

Yes, but under supervision. The device can be used by children aged 8 years and above if they are supervised. Make sure the cable is out of reach and that the device is placed on a stable surface out of reach of very young children.

What to do in case of a strange smell from the mist?

If the device is new, remove the tank, open the cap and let it air for 12 hours in a cool, dry place. Otherwise, empty and carefully clean the base and tank with fresh water.

Where can I buy spare parts such as aroma pads?

Accessories are available in stores or from after-sales service. The references are: aroma pads (164.148) and anti-limescale filter (164.147). Consult the list of customer service addresses provided with the device.

USER MANUAL SLB 40 SANITAS

White Sanitas water purifier with control knob and lid (no visible text or symbols on body)

DE Luftbefeuchter

Instructions for use 12

Three-step diagram showing a hand placing a white kettle into a container, then adjusting the lid and casing (no text or symbols visible)

8. Anwendung

Hinweis

White plastic electronic device with a black arrow indicating rotation (no text or symbols visible)

Close-up of hands holding a white plastic device with a lid (no visible text or symbols)

[e-mail]

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

Table of contents

1. Included in delivery 12
2. Getting to know your device....13
3. Signs and symbols....13
4. Intended use....13
5. Warnings and safety notes .... 14
6. Device description.....15
7. Initial use....16

8. Use....17

9. Cleaning and maintenance 17

10. Additional anti-limescale filter 19
11. Accessories and replacement parts.....19
12. What if there are problems?......19
13. Disposal 20
14. Technical data.... 20
15. Warranty/service 20

WARNING

• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Disconnect the device from the mains supply during filling or cleaning.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

1. Included in delivery

Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 x Air humidifier
15 x Replacement aroma pads
1 x These instructions for use

2. Getting to know your device

Humans spend a large proportion of their time indoors. For ideal ambient air, a relative humidity level of between 40% and 60% is recommended. This value is often not reached, particularly in winter, when cold, dry air enters living spaces that are being aired and is then warmed up. This dry ambient air draws in moisture, drying out mucous membranes and skin, but also furniture.

Ambient air that is too dry has a number of negative effects:

• Mucous membranes and lips dry out.
• Eyes become irritated.
• Infections and respiratory diseases are more likely to occur.
• Exhaustion, tiredness and difficulty concentrating.
• Pets and plants are put under unnecessary strain.
• Dust forms more quickly.
• Electrostatic charging of textiles made of synthetic fibres, such as carpets and plastic floor coverings.
• Wooden furniture and, especially, parquet floors, are damaged.
• Musical instruments go out of tune.

3. Signs and symbols

The following symbols appear in the instructions for use, on the packaging and on the type plate:

WARNING	WARNINGWarning of risks of injury or health hazards.
IMPORTANT	CAUTIONSafety information about possible damage to appliance/accessories.
Note	NoteImportant information.
	Read the instructions
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE.
	CE labellingThis product satisfies the requirements of the applicable European and national directives.
	Manufacturer
	Device in protection class 2
	Dispose of packaging in an environmentally friendly manner.
	The products demonstrably meet the requirements of the Technical Regulations of the EAEU.

4. Intended use

This air humidifier is only intended for humidifying ambient air.

The device is intended for private use only.

5. Warnings and safety notes

Read these instructions for use carefully! Non-observance of the following information may result in personal injury or material damage. Store these instructions for use in a safe place and make them accessible to all users. Make sure you include these instructions for use when handing over the device to third parties.

Electric shock

WARNING

As with every electrical device, use this air humidifier carefully and cautiously in order to avoid hazards resulting from electric shock.

• Use the device only with the mains voltage specified on the device (the type plate is located underneath the base unit).
• Only insert the mains cable into the socket when the device is switched off.
• Never use the device if it or any of its accessories are visibly damaged.
• Do not use the device if it has sustained a fall or if water has penetrated the device interior.
• Do not use the device during a storm.
• In the event of defects or operational faults, switch off the device immediately. Pull the plug out of the mains socket.
• Do not pull on the mains cable or on the device to disconnect the plug from the socket.
• Never hold or carry the device by the mains cable.
• Do not clamp or pinch the mains cable.
• Keep the mains cable away from hot surfaces.
• Ensure that the mains cable and plug do not come into contact with water, steam or other liquids.
• Only use the device in dry internal rooms (e.g. never in the bathroom, sauna, etc.).
• Never reach for a device that has been submerged in water. Pull the plug out of the mains socket immediately.
• Do not drop the device or subject it to any impacts.

Repairs

WARNING

• Do not open the base unit.
• Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer.

Risk of fire

WARNING

There is a risk of fire if the device is used improperly or these instructions for use are ignored.

- Never use the device underneath a cover, such as a blanket or pillow.

- Never use the device near highly flammable substances.

Operation

WARNING

• The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.
• If you suffer from a severe respiratory or lung disease, consult your doctor before using the air humidifier.
• Switch off the device after every use and before cleaning. Pull the plug out of the mains socket.
• Ensure that the mains cable does not pose a trip hazard.

IMPORTANT

• Ensure that the device is placed on a firm, secure surface that is not susceptible to moisture.
• Do not insert any objects into openings on the device. Ensure that the moving parts can move freely at all times.
• Do not place any objects on the device.
• Do not expose the device to high temperatures.

6. Device description

The air humidifier

• humidifies the air,
  • runs quietly and is continuously adjustable,
  • is suitable for rooms up to 30 m²,
• has a low energy consumption and switches off automatically when the water tank is empty,
• switches off automatically when the water tank is removed,
• contains an aroma compartment for room fragrancing,

• is easy to clean.

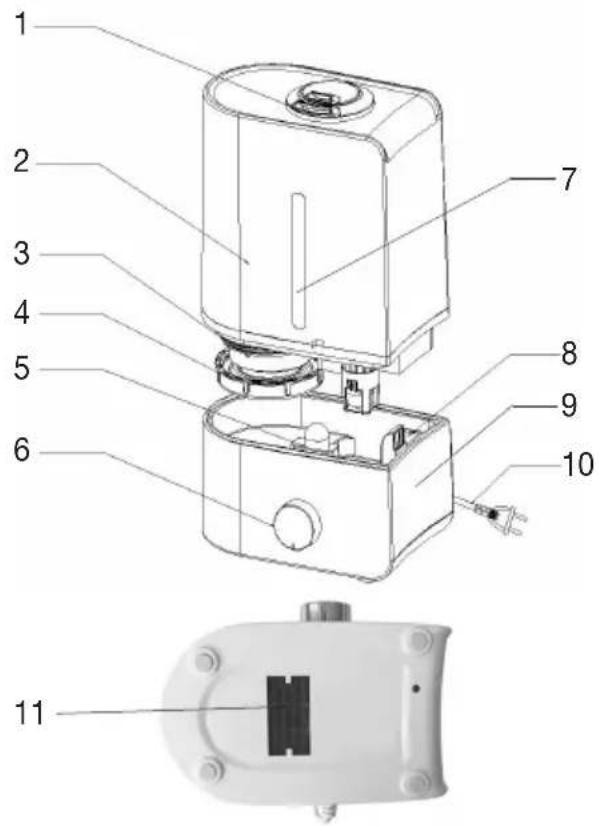

• Mist outlet

• Water tank
• Anti-limescale filter (not included in delivery)
• Water tank screw plug
• Ultrasound membrane
• Control dial
• Fill level indicator
• Aroma compartment with aroma pad
• Base unit
• Mains cable
• Air filter

Principle behind the SLB 40 air humidifier

1. A membrane, vibrated by ultrasound, moves the water and releases tiny water droplets from the surface.
2. The fan draws in air at the bottom of the device.
3. The air is humidified with the released water droplets and blown gently upwards towards the opening.
4. If you wish, the device can be used with aromas.

7. Initial use

Unpacking the device

WARNING

Keep packaging material away from children. There is the risk of suffocation.

1. Open the cardboard packaging.
2. Remove the protective insert. Keep the plastic film closed.
3. Lift the device up and out of the packaging.
4. Remove the plastic covering.
5. Check the device, the mains plug and the cable for damage.

Installation location

WARNING

Read the safety notes before putting the device into operation.

Note

• The immediate vicinity of the air humidifier can become damp.
• Calcareous water can leave white deposits.
• Do not place the device on the floor, but in a raised position (e.g. on a table or chest of drawers).
• Position the device so that the mist outlet is not directed towards objects.
• Do not use the air humidifier in rooms with significant temperature variations since this could lead to condensation inside the device.
  • Empty any remaining water when the device is not in use.
• Place the air humidifier on a firm, level and water-resistant surface.
  If the device should accidentally tip over, water may escape, even if the device is switched off and unplugged.

Water

i Note

• Do not add any essential oils or fragrances to the water. If additives are used, the plastic material may become discoloured and damaged. The ultrasound membrane gets stuck and is damaged.
• Use fresh drinking water in the device. If the drinking water is very hard, you can use demineralised or distilled water.
• Use warm water (30°C-45°C) and always fill the tank to the maximum level, otherwise the device could leak due to physical factors.
• Tip! If the water is hard, we recommend using the optional anti-limescale filter.

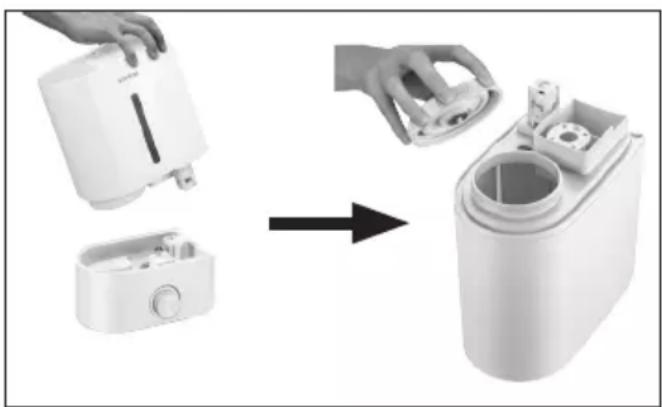

Filling the water tank

1. Remove the water tank from the base unit in an upward direction.
2. Turn the water tank over. The water tank is kept closed by means of a spring valve.
3. Open the screw plug on the water tank.
4. Fill the water tank with warm water (30°C-45°C). The water tank holds a maximum of 4.0 litres. The water level is visible from the outside.
5. Close the screw plug on the water tank tightly.
6. Turn the water tank over.
7. Place the water tank on the base unit. Ensure that the water tank is sitting firmly on the base unit.

Product assembly diagram showing hand placing a white water heater into a cylindrical container (no text or symbols visible)

8. Use

Note

Check the humidity of your ambient air regularly. Intensive continuous operation can cause the ambient air to become excessively humid. The relative air humidity should not exceed 60%.

Switching on the device

1. Plug the mains cable into a suitable socket.
2. Turn the control dial clockwise.. The fill level indicator starts to glow blue. Mist now flows from the mist outlet. If there is not enough water or no water at all in the water tank, the fill level indicator will light up red and the device will switch off for safety reasons. Should the device switch off, fill the water tank as described in the section "Filling the water tank".
3. Using the control dial, select the desired evaporation output. Evaporation is limited to a maximum of 300 ml per hour.

i Note

You may optionally add drops of aroma/scented oils to the aroma pad in the aroma compartment. This releases a fragrance into the air. Under no circumstances should you add the aroma directly to the water.

Switching off the device

1. Turn the control dial left as far as it will go, until you feel slight resistance and the control dial clicks. The fill level indicator goes out.
2. Unplug the mains cable from the mains socket.

9. Cleaning and maintenance

Regular cleaning and disinfection is a prerequisite for hygienic and fault-free operation. The level of contamination of the device depends on the water quality and how long it has been in operation. In any case, we recommend the following cleaning intervals.

Every three days As required
x
x Rinsing the water tank, replacing the water
	x Cleaning the air humidifier inside and out
	x Descaling

WARNING

Switch off the device after every use and before cleaning. Pull the plug out of the mains socket.

IMPORTANT

The water tank must be cleaned and the air humidifier completely emptied if the device has not been used for over a week.

Note

• Clean the device using only the methods specified.
  • Under no circumstances may water enter the inside of the housing.
• Do not use any solvent-based cleaning products.
• Use only a mild detergent or vinegar/vinegar-based cleaner to perform cleaning or disinfection work.

Cleaning the ultrasound membrane, rinsing the base unit

Note

Empty the water from the base unit via the side rim in the direction indicated by the arrow. Ensure that no water gets inside the device, e.g. via the fan opening.

1. Clean the ultrasound membrane with a cotton bud.
2. Empty the water from the base unit via the side rim. Observe the markings on the device!
3. Should dirty residue remain in the base unit, pour some clean, fresh water into the base unit and tip it out via the side edge.

Rinsing the water tank, replacing the water

Clean the water tank regularly, at least once a week if using daily. Use a mild cleaning product or vinegar/vinegar-based cleaner.

1. Clean the thread of the screw plug using a soft brush.
2. Fill the water tank halfway with water.
3. Close the screw plug on the water tank.
4. Shake and turn the water tank over repeatedly.
5. Open and empty the water tank completely.
6. Repeat the process using clean, fresh water.

Cleaning the air humidifier inside and out

1. Empty the water from the base unit via the side rim.
2. Wipe the air humidifier with a damp cloth inside and out. Use only a mild detergent or vinegar/vinegar-based cleaner to perform cleaning work.

Descaling

Descaling the ultrasound membrane

Hard water can cause limescale to build up in the device and, especially, on the ultrasound membrane. This forms white deposits. Descale the device regularly.

1. Drop some descaler onto the ultrasound membrane.
2. Allow the descaler to work for 2 to 5 minutes.
3. After this time, clean the ultrasound membrane with the cleaning brush provided.
4. Rinse the base unit several times with clean, fresh water.

Cleaning inside the base unit

1. Dip a damp, soft cloth briefly in descaling solution.
2. Wipe the inside of the base unit with the cloth.
3. Carefully add some clean, fresh water into the base unit.
4. Empty the water from the base unit via the side rim.
5. Repeat the process using clean, fresh water.

Descaling the water tank

1. Fill the water tank halfway with water.
2. Add a small amount of descaler.
3. Close the screw plug on the water tank.
4. Shake and turn the water tank over repeatedly.
5. Open and empty the water tank completely.
6. Repeat the process several times using clean, fresh water.

10. Additional anti-limescale filter

TIP!

If the water is hard, we recommend using the optional anti-limescale filter (see section "11. Accessories and replacement parts").

Note

• If the anti-limescale filter does not prevent limescale build-up, or if white deposits form on or in the device, the anti-limescale filter should be replaced.
• The service life of the anti-limescale filter is around 2 to 3 months at most.
• If the device is not used for a relatively long time, the anti-limescale filter must be removed from the water tank and dried out.

Fitting the anti-limescale filter

1. Ensure that the device is switched off.
2. Remove the water tank from the base unit in an upward direction.
3. Turn the water tank over.
4. Open the screw plug on the water tank.
5. Screw the anti-limescale filter on the screw plug thread of the water tank.
6. Close the screw plug on the water tank. The anti-limescale filter is now fitted.

Close-up of hands installing a white plastic component into a device (no text or symbols visible)

11. Accessories and replacement parts

For replacement parts and additional items contact the corresponding service address in your country (according to the service address list).

Replacement parts and additional items are also available from retailers.

Item Item number
10 aroma pads 164.148
Anti-limescale filter (optional) 164.147

12. What if there are problems?

Problem Cause Solution
No mist is produced The	mains cable is not plugged in. Plug the mains cable into a suitable socket.
	The control dial is in the off position.	Turn the control dial clockwise towards the maximum position.
	The water level is too low; the water tank is empty.	Fill the water tank.
The mist has a strange smell	The device is new. Lift up the water tank, turn the screw plug and remove it. Air the open, empty water tank in a cool, dry place for 12 hours.
	Stale or dirty water. Empty the base unit and the water tank and clean them thoroughly. Fill the water tank with fresh water.
Strange noise The water	tank is not positioned correctly on the base unit.	Lift up the water tank and position it correctly on the base unit. The tank should sit tightly on the base unit.
	There is too little water in the water tank.	Fill the water tank.
	The device is not level and unstable.	Place the device on a firm, level surface.
Mist escapes from underneath the water tank	The water tank is not positioned correctly on the base unit.	Lift up the water tank. Check whether the join between the base unit and water tank is clean. Clean if required. Position the water tank correctly on the base unit. The tank should sit tightly on the base unit.

13. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its service life.

Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal.

14. Technical data

Dimensions (L x W x H) approx.	14.9 cm x 21.2 cm x 31.7 cm
Cable length approx. 1.5 m
Deadweight approx. 1.5 kg
Mains voltage/frequency 100 - 240 V AC / 50/60 Hz
Nominal power 25 watts
Room size up to 30 m	2
Maximum capacity approx. 4 litres
Evaporation output 300 ml/hour

15. Warranty/service

Hans Dinslage GmbH, Riedlinger Straße 28, 89524 Uttenweiler, Germany (hereinafter referred to as "HaDi") provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller's statutory warranty obligations which ensue from the sales agreement with the buyer.

The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

HaDi guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is 2 years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use.

German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, HaDi shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide HaDi, or an authorised HaDi partner, with

• a copy of the invoice/purchase receipt, and
• the original product.

The following are explicitly excluded from this warranty:

• deterioration due to normal use or consumption of the product;
• accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);
• products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by HaDi;
• damage that arises during transport between manufacturer and customer, or between service centre and customer;
• products purchased as seconds or as used goods;
• consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.

FRANÇAIS

Three-step diagram showing a hand placing a white blender into a plastic container, then adding a plastic lid to the lid (no text or symbols present)

8. Utilisation

i Remarque

White plastic electronic device with a black arrow indicating rotation (no text or symbols visible)

Close-up of hands installing or adjusting a white plastic component on a mechanical device (no visible text or symbols)

Two-step diagram showing a hand placing a white device into a container, with an arrow indicating process (no text or symbols present)

8. Impiego

Nota

White plastic electronic device with a black arrow indicating rotation (no text or symbols)

Close-up of hands operating a white cylindrical device with a small component, no visible text or symbols

Three-step diagram showing a hand placing a white kettle into a container, then adjusting the lid and casing (no text or symbols visible)

8. Управление

Указание

White plastic container with a black arrow indicating rotation or movement (no text or symbols)

Close-up of hands operating a white industrial device with a lid (no visible text or symbols)

Product assembly diagram showing hand placing a white water heater into a multi-stage container (no text or symbols visible)

8. Zastosowanie

Wskazówka

White plastic drawer with internal compartments and a black arrow indicating rotation (no text or symbols)

Close-up of hands installing a white plastic component into a device (no text or symbols visible)

Product assembly diagram showing hand holding a water heater and cleaning a container (no text or symbols visible)

8. Gebruik

i Aanwijzing

White plastic drawer with internal compartments and a black arrow indicating rotation (no text or symbols)

Waterreservoir spoelen, water verversen

Close-up of hands holding a white plastic container with a small lid (no text or symbols visible)
