Setting Up the Printer

1. Box Contents

- Print Heads

• Ink Bottles
  • Power Cord
• Phone Cable
• Setup CD-ROM
  • Safety and Important Information
  • Getting Started (this manual)

2. Turning on the Printer

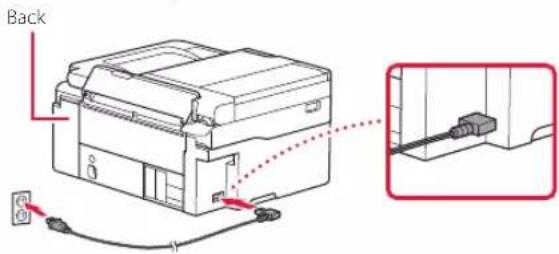

1 Connect the power cord.

Back 6

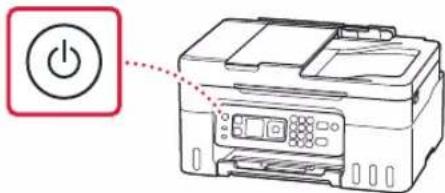

2 Press the ON button.

Diagram showing a printer with a power button icon and a dotted line indicating the operation.

Setting Up the Printer

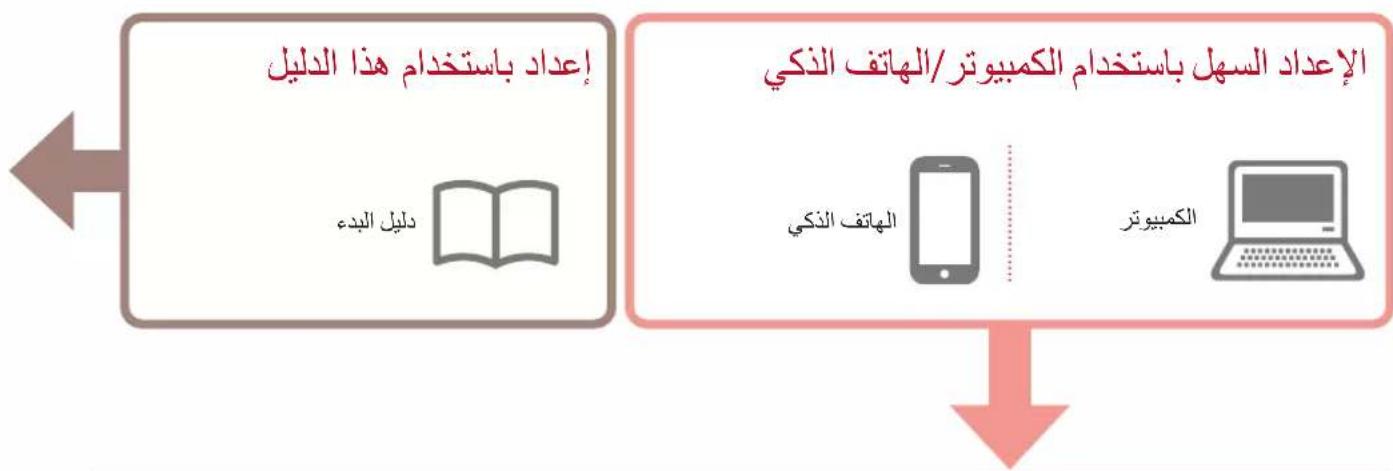

Easy Setup Using Computer/Smartphone Setup Using this Manual

Computer Smartphone

Getting Started

3 Easy Setup Using Computer/Smartphone

Simple, easy-to-follow instructions are displayed on your computer or smartphone.

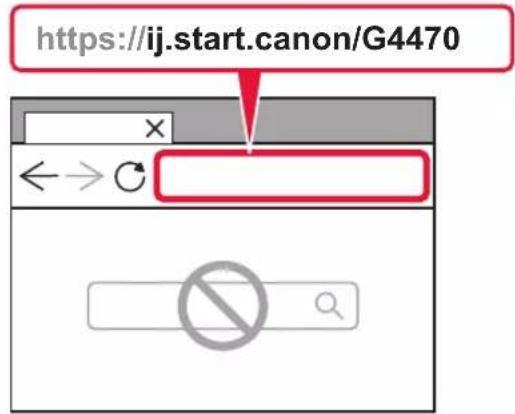

1 Visit the URL below to start setup.

https://ij.start.canon/G4470

2 Follow the instructions to complete setup and print.

1

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and document (no text or symbols)

2

4. Making Initial Settings

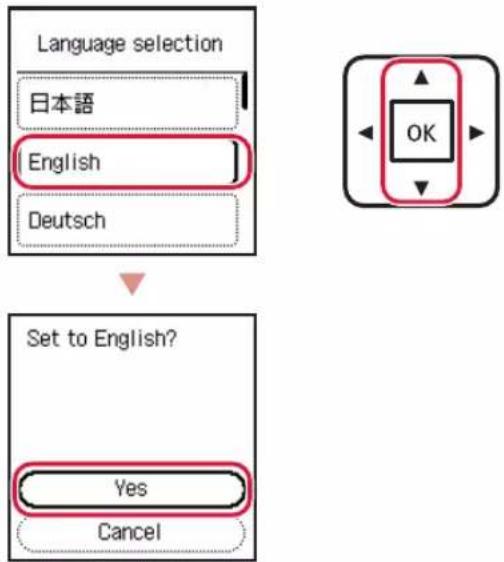

1 Use the ▲ and ▼ buttons to select a language, and then press the OK button.

2 If the following screen appears, select your country or region, and then press the OK button.

Country and region Turkey United Kingdom Others

3 Select ON, and then press the OK button.

Do you want to update automatically when new firmware is available? ON OFF

5. Installing the Print Heads

1 Open the scanning unit / cover.

Caution

Do not touch the print head holder until it stops moving.

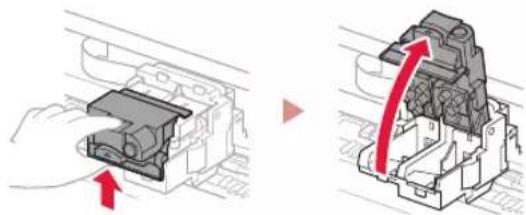

2 Open the print head locking cover.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

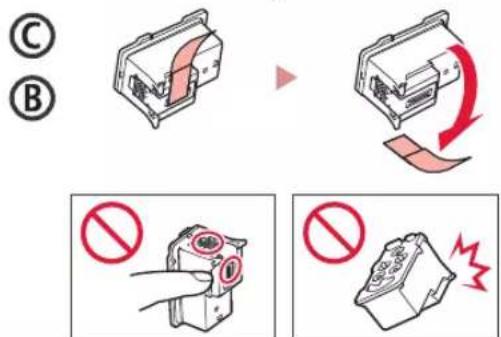

3 Take out each print head from the package and remove the label.

Diagram showing two configurations (C and B) of a battery pack with red circuit breakers, illustrating step-by-step assembly or disassembly.

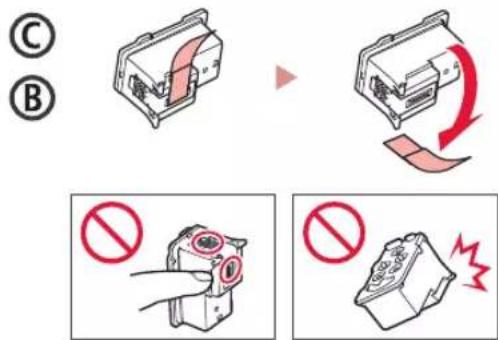

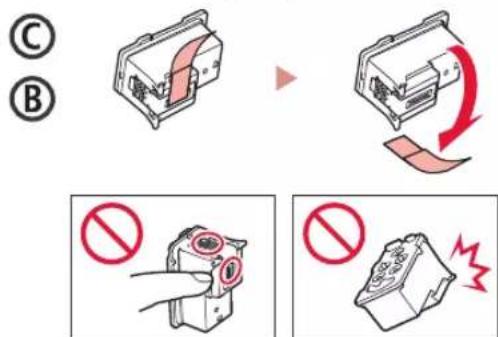

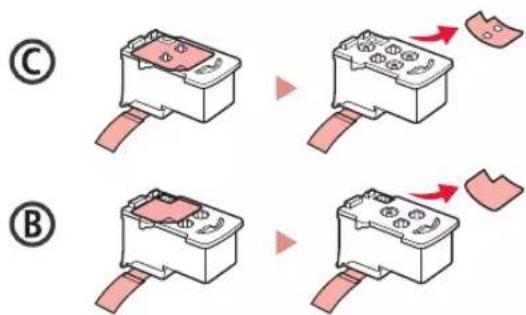

4 Remove the orange tape.

(C) (B) No No

Setting Up the Printer

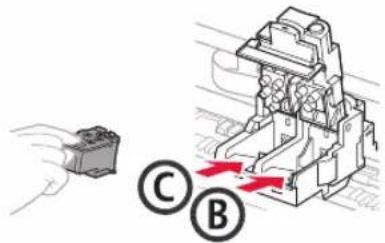

5 Insert the C (color) print head on the left and the B (black) print head on the right.

Diagram showing a device emitting red arrows labeled C and B to a mechanical component, with a hand holding the device.

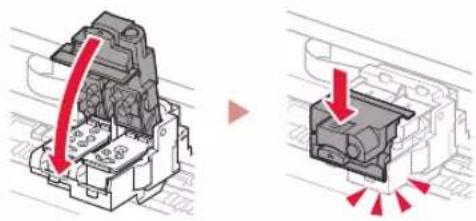

6 Close the print head locking cover and press down until it clicks.

Technical diagram showing mechanical assembly with red arrows indicating motion or force direction, likely illustrating a process or assembly step.

6. Pouring Ink

Important

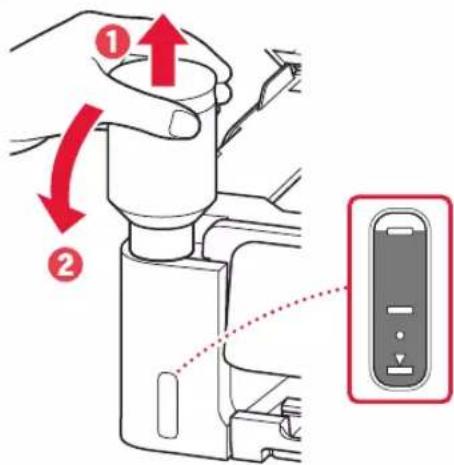

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the tank cap on the left of the printer.

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating motion direction (no text or symbols)

2 Hold the ink bottle upright and gently twist the bottle cap to remove.

Check! PGBK

3 Align the nozzle of the ink bottle with the inlet.

Mechanical assembly diagram showing tool path and component detail (no text or symbols)

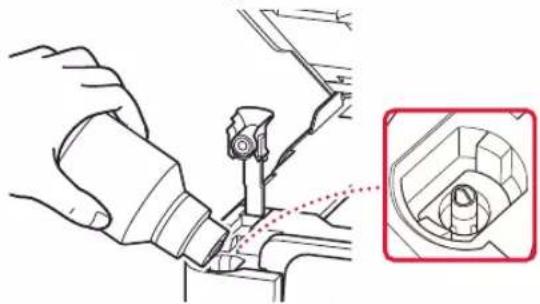

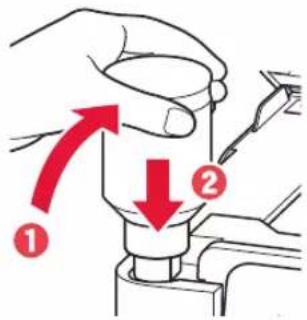

4 Slowly stand the ink bottle upside down and push down to pour the ink.

- If the ink does not pour, gently remove the ink bottle and try again.

Diagram showing a hand operating a tool with two red arrows labeled ① and ② indicating direction of movement or process.

5 Gently remove the ink bottle from the inlet.

- Be careful not to spill the ink.

Diagram showing hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

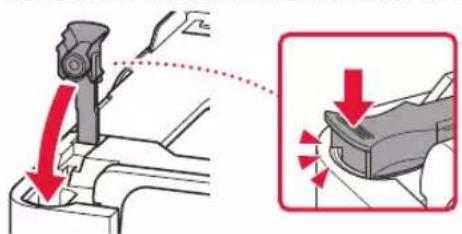

6 Replace the tank cap securely.

Diagram illustrating a mechanical assembly process with red arrows indicating direction of motion, including a magnified inset showing the step and rotation.

7 Repeat steps 1 through 6 to pour all ink into the corresponding ink tanks on the right.

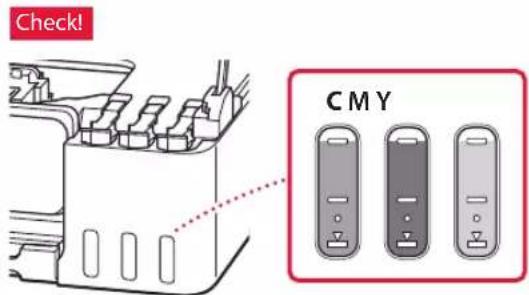

Check! CMY

8 Close the scanning unit / cover.

- If you lift the scanning unit / cover slightly and release it, it will close by itself.

Diagram showing printer operation with labeled parts and directional arrows indicating movement

9 When the following screen appears, press the OK button.

After pouring all ink from the bottle, press OK.

Performing initial adjustments. Please wait momentarily About minute

Setting Up the Printer

10 Check that the following screen appears.

Copy Scan Fax

Select the connection method that best matches how you will use the printer.

• To use the printer without connecting to any other devices

→ Setup is now complete.

To set up a fax, see "Using Fax Function" on page 7.

• To use the printer connecting to a computer or smartphone

→ Proceed to the next page.

7. Connecting to a Computer or Smartphone

ENSOLIDH

If you are using multiple computers/smartphones, perform these steps on each device.

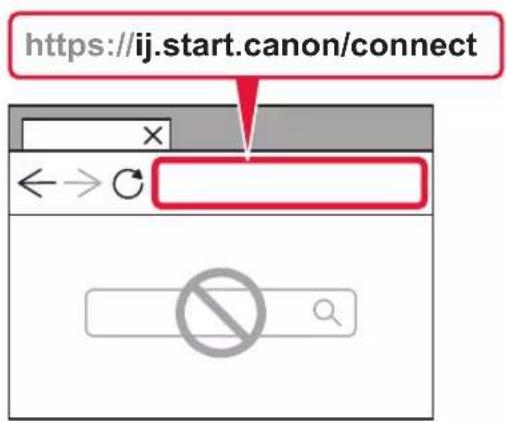

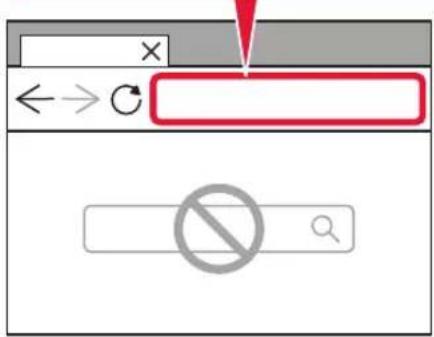

1 Access the Canon website directly. No need to search.

https://ij.start.canon/connect

2 Enter your printer's model name and click Go.
3 Follow the on-screen instructions.

Using the Setup CD-ROM

1. Double click EasySetup.exe on the screen that appears.
2. If the printer selection screen appears, select G4470.

If the installation screen appears, click Next.

1. Follow the on-screen instructions.

If nothing appears, start Explorer and then run EasySetup.exe in the CD-ROM.

Using Fax Function

The fax function of your printer requires setup. Refer to FAX Setup Guide.

1 Access the Canon website.

https://ij.start.canon/fax

Loading Paper

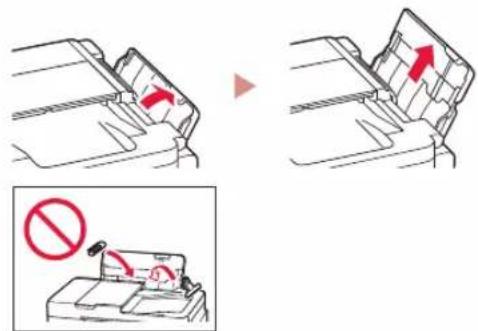

1 Open the rear tray cover and extend the paper support.

Diagram illustrating vehicle seatbelting and safety rules, showing left-hand rule and right-hand rule with red arrows and a prohibition symbol.

2 Slide the right-hand side paper guide to the far right.

Technical line drawing of a mechanical component with a red arrow indicating a specific section (no text or symbols present)

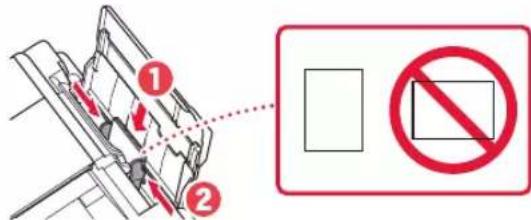

3 Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Diagram showing a mechanical component with numbered parts and a prohibition symbol, likely illustrating safety or clearance instructions.

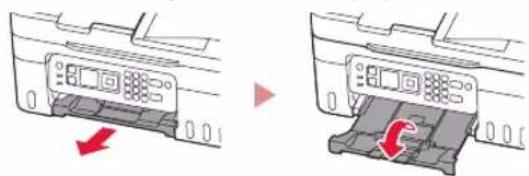

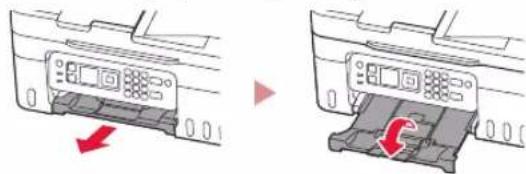

4 Extend the paper output tray.

Two-step diagram showing printer insertion process: one with a red arrow indicating left-side shift, the other with a red arrow indicating right-side zoom (no text or symbols)

Transporting Your Printer

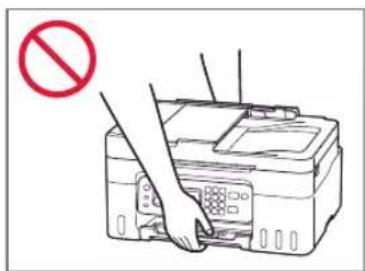

When relocating the printer, check the following. Refer to the Online Manual for details.

Check if the tank caps are completely closed.

If the print head holder is in the center of the printer, check that the cover is closed.

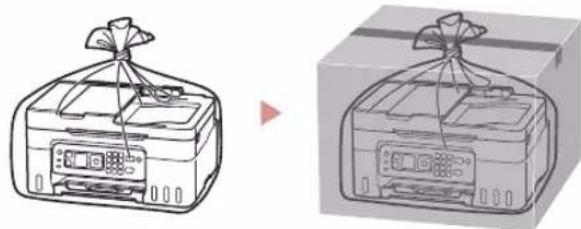

Pack the printer in a plastic bag in case ink leaks.

- Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.

• Do not tilt the printer. Ink may leak.

- Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.

- When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

Illustration of a printer with a bag attached to its side, showing front and back views (no text or symbols)
