USER MANUAL BAS125C Greencut

PROBLÈME CAUSE POSSIBLE SOLUTION

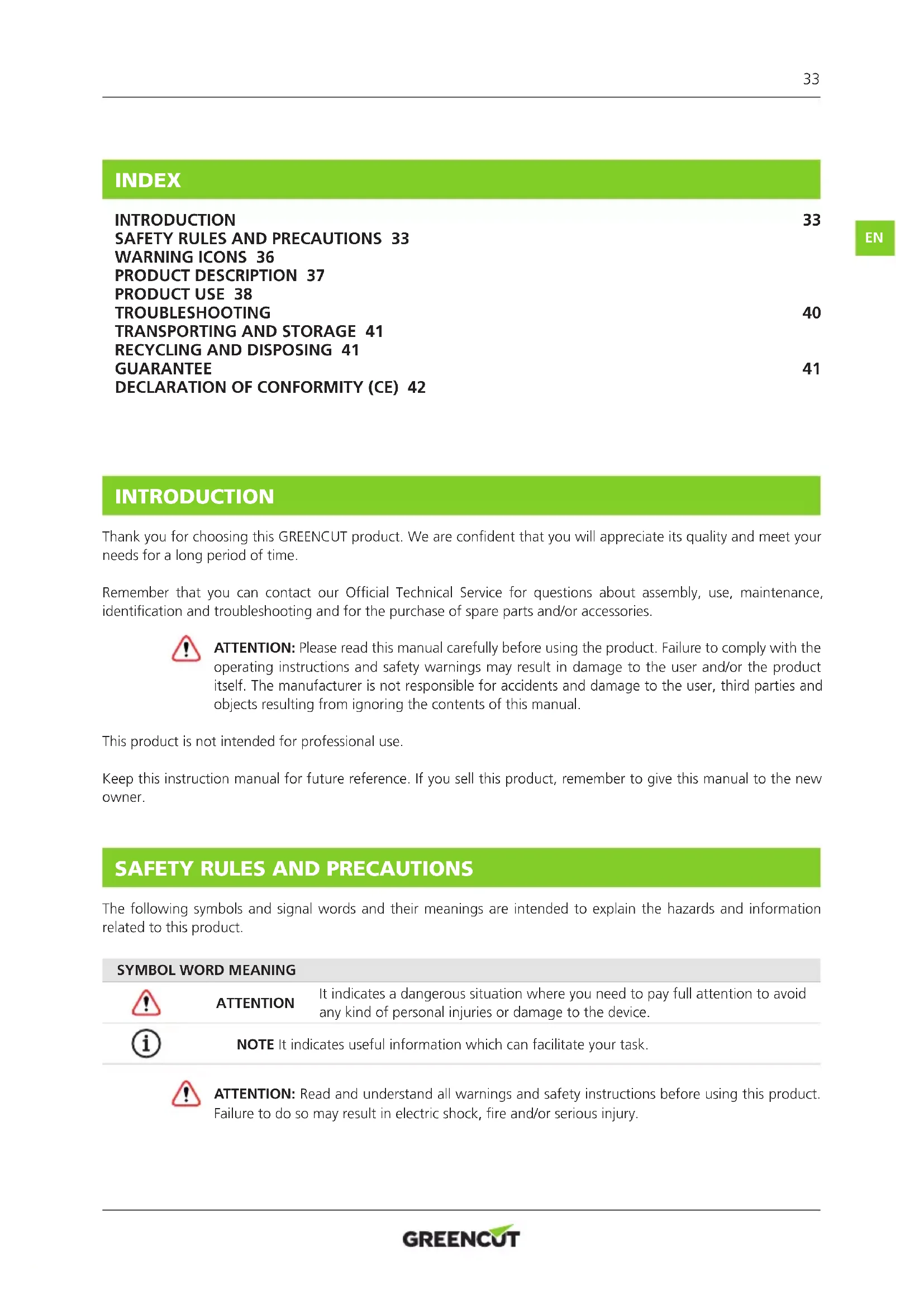

INTRODUCTION Thank you for choosing this GREENCUT product. We are condent that you will appreciate its quality and meet your needs for a long period of time. Remember that you can contact our Ofcial Technical Service for questions about assembly, use, maintenance, identication and troubleshooting and for the purchase of spare parts and/or accessories. ATTENTION: Please read this manual carefully before using the product. Failure to comply with the operating instructions and safety warnings may result in damage to the user and/or the product itself. The manufacturer is not responsible for accidents and damage to the user, third parties and objects resulting from ignoring the contents of this manual. This product is not intended for professional use. Keep this instruction manual for future reference. If you sell this product, remember to give this manual to the new owner.

SAFETY RULES AND PRECAUTIONS

The following symbols and signal words and their meanings are intended to explain the hazards and information related to this product.

ATTENTION It indicates a dangerous situation where you need to pay full attention to avoid any kind of personal injuries or damage to the device. NOTE It indicates useful information which can facilitate your task. ATTENTION: Read and understand all warnings and safety instructions before using this product. Failure to do so may result in electric shock, re and/or serious injury. INDEX INTRODUCTION 33

RECYCLING AND DISPOSING 41

All the information contained in this manual is relevant to your own safety and that of your environment. If you have any doubt about the information included in this manual, consult a professional or contact the Ofcial Technical Service. The following hazard and caution information includes the most probable situations that may arise during the use of this machine. Consult all product documentation, packaging, and labels before use. If you encounter a situation not described in this manual, use common sense to operate the machine as safely as possible and, if you see danger, do not use the machine. USERS

• This product has been designed to be handled by users over the age of 18 who have read and understood these instructions. Do not allow minors and persons who do not understand these instructions to use the product.

• Familiarize yourself with this product before using it. Make sure you know where all the controls are, the safety devices, and how they should be used.

• If you are an inexperienced user we recommend that you practice doing simple work and, if possible, in the company of an experienced person. PERSONAL SAFETY

• Don’t force this machine. Use this machine, accessories, tools, etc. according to these instructions, taking into account the conditions and the work to be carried out. Using this machine for unintended purposes can cause a dangerous situation.

• Be alert, watch what you’re doing when you drive this machine.

• Do not use this machine when tired or under the inuence of drugs, alcohol, or medications.

• Dress appropriately to handle equipment.

• Check that all security features are installed and in good condition. Do not use this machine if any of its components are damaged.

• Operate the machine only when it is on a xed, stable, level surface. Slippery or unstable surfaces may cause a loss of balance or control of the machine.

• Do not hold or suspend the pump by its electrical wires or other unstable means.

• Do not operate the pump without a source of suction uid.

• The water pump creates high pressures. Do not disconnect the pump or piping until the internal pressure has been released.

• Do not pump ammable or explosive liquids such as fuels, oil, kerosene, solvents or thinners.

• Do not leave this machine running unattended.

• Keep the work area clean and well lit. Cluttered, dark areas can cause accidents.

• Place the water pump on a rm, at surface.

• Keep children, people, or animals away while operating this machine.

• Remember that the machine operator is responsible for hazards and accidents caused to other people or things. Under no circumstances shall the manufacturer be liable for damage caused by improper or incorrect use of this machine.35

• Before starting up the appliance, check that: the earthing, the neutral connection and the differential protection device comply with the safety regulations of the energy supply companies and function perfectly.

• Whenever possible, use a residual current device (RCD).

• Keep electrical outlets away from excessive moisture and water.

• In case of risk of ooding, connect the plugs in a place protected against ooding.

• In case the pump is connected to the outside it is important that the conductor cable is also for outdoor use.

• Avoid unintentional start-up of the equipment. Make sure the switches are in the OFF position before connecting or moving the product.

• Do not use equipment with exposed cables or damaged switches.

• Do not use electrical cords to lift, move, or transport equipment.

• Make sure that the electrical cables do not present a risk of tripping.

MACHINE CARE, TRANSPORT AND STORAGE

• Do not modify product controls.

• Check regularly for broken parts or other conditions that may affect the proper operation of the machine. Keep the pump, electrical wiring and hoses in good working order.

• Replace worn or damaged parts immediately with original spare parts only.

• Carry out regular maintenance on the machine. Do not attempt any maintenance or repair work not described in this instruction manual. We recommend that maintenance and repairs not described in this manual are carried out by the Ofcial Technical Service.

• At the end of the work, always clean the machine.

• The equipment is not weather resistant, and should not be stored in direct sunlight, high ambient temperatures, or in humid or wet locations.

• Store the product out of the reach of children. SERVICE

• Have the product checked periodically by a qualied technician and use only original spare parts. If you have any questions, please contact the Ofcial Technical Service.36 WARNING ICONS The icons on the warning labels on this machine and/or in the manual indicate information necessary for the safe use of this machine. Attention! Danger! Read this manual carefully before starting the machine. Use eye protection. Wear ear protection. Wear a mask. Wear protective non-slip gloves. Wear leg protection and non-slip, steel toe safety boots. Danger of ying materials. Be careful with objects that can be red. People who are not properly protected should be at a safe distance. Keep children away from this machine. Turn off the machine and disconnect it completely before servicing the machine. Guaranteed sound power level XX Lwa, dB (A) Dispose of your device in an environmentally friendly way. Do not throw in the domestic rubbish containers. It complies with the CE directives.37

This product is designed to extract clear water from deep wells or boreholes only. Any other use other than the described above may cause dangerous situations and exempts the manufacturer from all liability.

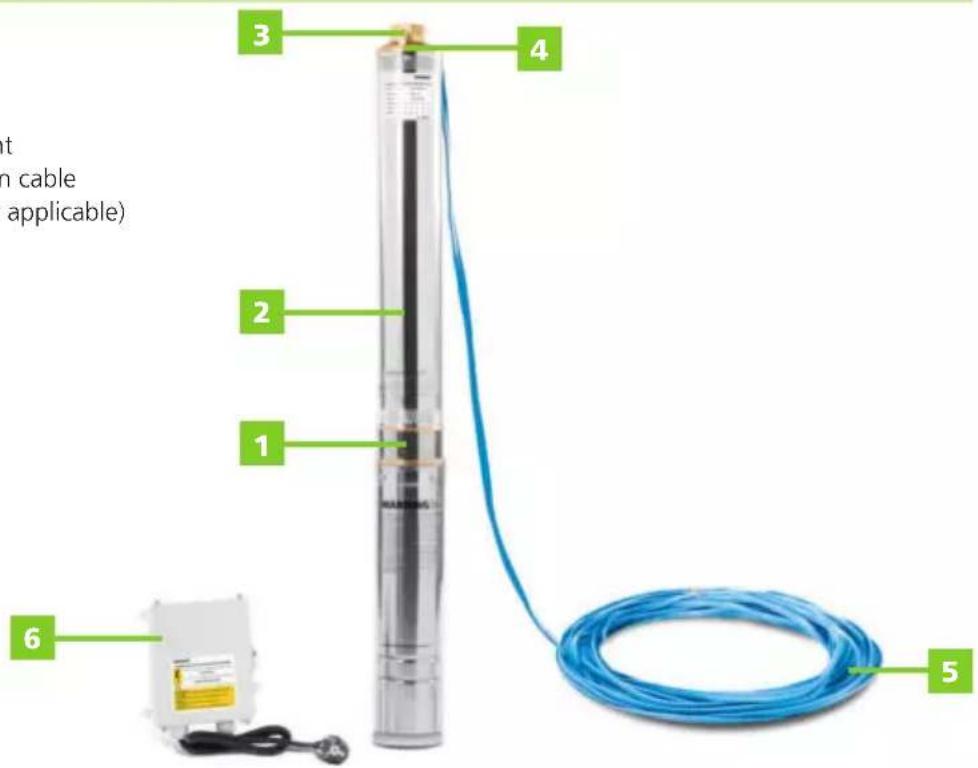

DETAILED DESCRIPTION OF THE PRODUCT

TECHNICAL FEATURES BAS125C Power 1250W - 1,7cv Voltage 240V / 50Hz Motor Single phase Output diameter 1,25” (3,175cm) Maximum ow 5,5m3/h Maximum pumping height 101m Maximum water temperature 35ºC Maximum depth 30m NOTE: GREENCUT reserves the right to modify the technical characteristics without prior notice. NOTE: The products detailed in this manual may vary in appearance, inclusions, description and packaging as shown or described here.

6. Control box (where applicable)38

PRODUCT USE PREPARATION Consider the following information when preparing and using the pump:

• The diameter of the hole must be greater than the diameter of the pump. For example, if the pump is 100 mm, the diameter of the hole must be large enough to introduce the pump, cables, hoses, oat switches, etc.

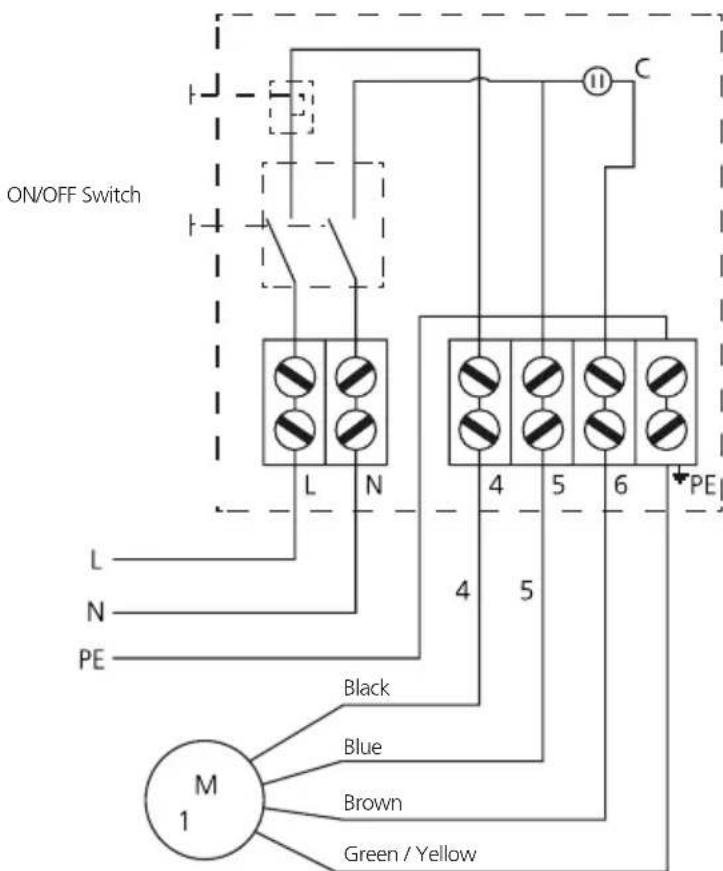

• If the pump is used in greater depths of the electrical connection cable, the entire cable must be replaced by another one with an adequate length. The replacement of the cable must be done by a qualied electrician. As the length of the cable increases, the cable gauge also increases to avoid loss of power (voltage drop) by the length of the cable that can affect the operation / efciency of the pump. ELECTRICAL CONNECTIONS Some pumps are equipped with an electrical control box that accepts 240 V AC single phase and converts it into a three phase output. The control box provides a switch to start / stop the pump and can be equipped with an overload circuit breaker. The pump cable must be connected to the control box, which in turn requires an electrical supply. The control box and pump cables should be connected as follows: FLOAT SWITCHES Some pumps are equipped with a oat switch that is used to automatically switch the pump from ON to OFF depending on the water level in the hole / reservoir. This is to prevent the pump from “dry” operation. The oat switch, when in vertical position (oating) allows the pump to operate - if the water level is reduced and the switch is no longer in the vertical position, the pump stops. Make sure that the switch has the space to move freely - if the area around the pump is too small, the switch can be trapped in the vertical position and will not work properly. ON/OFF Switch Black Blue Brown Green / Yellow39

The operation of the oat switch should be checked every 3 months. To check, place the pump in a container lled with water and lift the oat switch out of the water - the pump should stop, then put it back in the water - the pump should start.

ATTENTION: • Always use the hose with the correct diameter. • Fit all hoses. The joints and clamps have a suitable construction to handle the suction inlet and the pressure outlet. • Hoses should not be damaged, twisted or scratched. • All connectors and hose connections should be secured and properly sealed to ensure correct and reliable operation of the pump. • The pump should be used in accordance with the specications. For best performance, always use the accessories of the outlet that are intended for the general application of the water pump; for example, high pressure, water transfers, etc. The insufciently compatible sizes of the hose can inuence the efciency of the pump either by increasing the resistance of the pump (diameter of the hose is too small) or by reducing the outlet pressure (diameter of the hose too large).

WATER PUMPING OPERATION

Note that as soon as the pump motor is running (power is switched on and in the “ON” position), the pumping action of the machine is activated. Please take the following recommendations into account:

• Do not intentionally make debris enter the pump.

• Do not allow the pump to operate “dry”; that is, not having enough or adequate uid to extract.

• After use, clean the pump and hoses to remove corrosive substances, debris or other impurities carried by the pumped uid.40 TROUBLESHOOTING Good maintenance extends the life of the machine. Regular or prolonged use may require more intensive maintenance so that the machine continues to function properly. The table includes some of the most common problems, their causes and solutions.

PROBLEM POSSIBLE CAUSE SOLUTION

The water pump doesn’t start or doesn’t pump Insufcient fuel. Make sure that the bombe is sufciently submerged in the water and that the water can be pumped. Inlet or outlet of the hose is blocked or the turbine is clogged. Make sure that the pump inlet is submerged and that the water pump is not clogged. Make sure the inlet is not buried in mud, etc. Make sure that the hose outlet is not twisted or clogged. Replace damaged hoses. If the turbine is clogged, have the pump checked and repaired. Voltage input is not available or it is too low or a phase is missing. Make sure the voltage available for the pump meets the requirements. To calibrate the pump, the diameter of the wire cable should be sufcient for the requirements of the length of the cable and the power of the pump. Check for faulty electrical connections, defective cables, switches and short circuits, and rectify. Damaged pump motor Have the pump inspected and repaired. The water pump is working, but the output power is low Input or turbine or hose partially clogged. Make sure that the pump inlet is not blocked – clean any visible dirt and debris from the opening. Make sure that the hose outlet is not twisted or clogged. Replace damaged hoses. If the turbine is blocked, have the pump checked and repaired. Worn turbine or pump motor is damaged. Have the pump inspected and repaired. The engine has overheated Elevator too low. Make sure that the pump elevator (pumping height) conforms to the specications. Input or turbine or hose partially clogged. Make sure that the pump inlet is not blocked – clean any visible dirt and debris from the opening. Make sure that the hose outlet is not twisted or clogged. Replace damaged hoses. If the turbine is blocked, have the pump checked and repaired. Input voltage too low. Make sure that the voltage available for the pump meets the requirements. To calibrate the pump, the diameter of the wire cable should be sufcient for the requirements of the length of the cable and the power of the pump. Check for faulty electrical connections, defective cables, switches and short circuits, and rectify. Damaged pump motor. Have the pump inspected and repaired. NOTE: In the event of not being able to resolve the problem, get in touch with an Ofcial Technical Service.41

• Allow the equipment to cool down completely before transporting or storing it.

• Keep the machine out of reach of children or untrained persons.

• Never store the equipment in places where there are ammable materials, combustible gases or combustible liquids, etc.

• The equipment is not weather resistant, and should not be stored under direct sunlight, at high temperatures or in wet or very humid places.

RECYCLING AND DISPOSING

When you decide to get rid of the machine, make sure to follow the local regulation. Protect the environment. Get rid of the machine taking care of the environment. Do not simply throw it away in the trash. Please separate plastic and steel to recycle. Take this device to an ofcial recycling centre (green point) Petrol, used oil, oil/petrol mixtures, as well as objects stained with petrol (e.g.: cloths) must not be disposed of into the domestic waste, pipes, soil, rivers, lakes or the sea. All objects stained with oil must be disposed of according to the local regulations: take it to the most suitable recycling centre. Package materials are recyclables. Please, throw them away on the appropriate rubbish bin. GUARANTEE GREENCUT offers a 3 years guarantee (in Europe) for all its products. The guarantee is subject to the purchasing date, taking into account the design and purpose of the product. In order to claim your guarantee, you must present your receipt of purchase, -which should include the purchasing date, its description, and the faulty product. The guarantee does not cover wear and tear, especially for blades, blade assembly parts, turbines, light sources, fan and transmission belts, impellers, air lters, sparkplugs, and damage due to inappropriate usage, especially caused by a failure to observe the instructions and maintenance in this manual. It is also excluded when non original or not-adequate assembly accessories or parts have been used on the product. Justied guarantee claims will be considered for repair or replacement of the faulty product. All claims not included in the guarantee will not be covered. Product failure or damage due to misuse or as a result for not following the maintenance schedule will void the guarantee. In order to claim your guarantee, you will need to present records of maintenance performed to the machine.42 DECLARATION OF CONFORMITY (CE) PRAT INTERNATIONAL BRANDS S.L. owner of GREENCUT brand, with legal address in Calle Migdia S/N. 43830 – Torredembarra, SPAIN, declares that the submersible water pumps BAS125C, as from 2017 series onwards, are in accordance with the European Parliament Directives and of the Council:

• Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC.

• Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits..

• Directive 2004/108/CE of the European Parliament and of the Council of 15th December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC.. The product delivered coincides with the prototype that was submitted for CE exam. Valls, 2 may 2023 Mireia Calvet, CEO (Authorised representative and responsible for technical documentation).43
