USER MANUAL HC515 Bimar

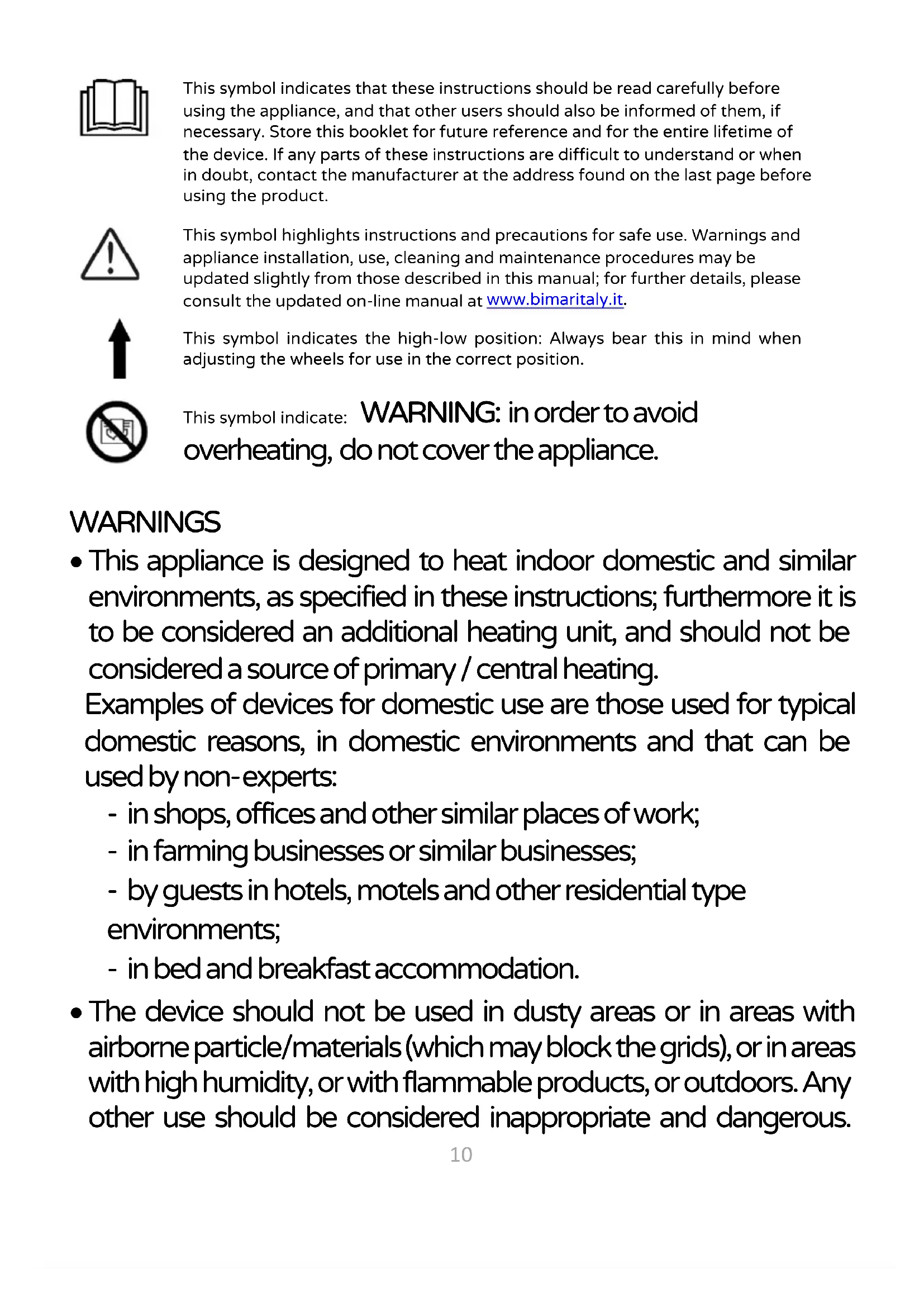

This symbol indicates that these instructions should be read carefully before using the appliance, and that other users should also be informed of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions are difficult to understand or when in doubt, contact the manufacturer at the address found on the last page before using the product.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it. This symbol indicates the high-low position: Always bear this in mind when adjusting the wheels for use in the correct position.

This symbol indicate:

WARNING: in order to avoid

overheating, do not cover the appliance.

• This appliance is designed to heat indoor domestic and similar environments, as specified in these instructions; furthermore it is to be considered an additional heating unit, and should not be considered a source of primary / central heating. Examples of devices for domestic use are those used for typical domestic reasons, in domestic environments and that can be used by non-experts: - in shops, offices and other similar places of work; - in farming businesses or similar businesses; - by guests in hotels, motels and other residential type environments; - in bed and breakfast accommodation.

• The device should not be used in dusty areas or in areas with airborne particle/materials (which may block the grids), or in areas with high humidity, or with flammable products, or outdoors. Any other use should be considered inappropriate and dangerous.11 The manufacturer cannot be held responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs done by an unqualified person.

• The appliance heats up when it is running. Therefore only touch the sides and the control panel. Avoid touching the surface since it becomes very hot. The heat supplied by the appliance is variable and can become so hot that it will burn skin that comes into direct contact with it. The use of this appliance is not recommended for people with reduced sensitivity to heat or who are not able to react quickly enough to avoid skin burns.

• The grid and the panel do not provide complete protection to children or to people with reduced physical, sensory or mental capacity.

• Ensure that the convection heater does not come into contact with water or any other liquid. If water or any other liquid comes in contact with the appliance, first turn off the power outlet by switching it off on the electrical panel, and only then remove the plug from the socket. Carefully dry both the plug and the socket before restoring power. Plug into the plug point and then continue using the device. If in doubt consult a qualified professional. CAUTION:

some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- when using electrical appliances, always adhere to basic safety precautions to prevent the risk of fire, electric shocks and physical injury.12 - Do not use in small rooms where there are people who are unable to leave the room unaided, unless they are under constant supervision. - Do not use this appliance in a room with an area of less than 4m².

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children younger than 3 years of age must be kept away from the appliance unless they are being constantly supervised. Children between the ages of 3 and 8 years should only turn on / off the unit as long as it has been placed or installed in its normal operating position, and as long as they are supervised or receive instructions concerning the safe use of the appliance and understand the hazards involved. Children between the ages of 3 and 8 years should not plug it in, adjust or clean the appliance or perform user maintenance.

- The heater must not be located immediately below a socket- outlet. - The plug point must be easily accessible so as to easily remove the plug in case of an emergency. - Do not use this heater with programmers, timers or with any other device that automatically turns on the appliance, as this13 could pose a fire risk should the device be covered or positioned incorrectly. - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified in order to avoid a hazard. - Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• In order to protect yourself from electric shocks, do not immerse the plug, the power cable or the appliance in water or any other liquid.

• If the appliance is not being used, unplug it from the mains.

• Do not touch the appliance with wet hands or feet.

• Do not move the appliance when it is in operation.

• Do not leave the appliance exposed to atmospheric conditions (sun, rain, etc..).

• Should the appliance fall or not work correctly, disconnect the electric cable immediately. Check that it is not damaged, and thereafter turn it back on: if in any doubt, consult a qualified professional.

• Do not pull on the power cable or the appliance itself to unplug the appliance from the mains.

• Do not pull on the power cable to move the appliance.

• Do no use the appliance if it does not work properly or if it appears damaged; when in doubt, contact a qualified technician.

• Avoid allowing the appliance to overheat; to this end, check that the inlet and outlet are free from obstructions: do not leave anything hanging over or under the unit. Should overheating occur, the in-built safety device will stop the convection heater14 from running. To restore operation, remove the plug from the mains and wait for it to cool (about 20-30 minutes) and insert the plug into the plug point once again.

INSTALLATION After unpacking, check the integrity of the appliance; if in doubt, do not use it and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they constitute possible safety risks and must be disposed of according to applicable regulations. All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The bag which is unmarked due to its small size or packing materials (for example: packing tape), therefore you have to follow the procedures for the disposal of their municipality.

• Before connecting the heater check that the voltage shown on the specifications plate corresponds to that of the electrical supply, and that the plug is effectively grounded. In the event of incompatibility between the power supply and the plug, have the plug replaced with a suitable model by a qualified professional, who should ensure that the size of the cable is suitable for the power used by the unit. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the the appliance.

• Place the convection heater far from any other source of heat, from flammable material (curtains, tapestries, etc.), from flammable gases or flammable material (spray cans) and from materials that can be deformed by heat. Make sure there is 100cm of free space in front of the heater and 30cm free space on both sides and at the back (at the portable installation).

• The surface must be stable, not sloping (as the unit may fall over), heat resistant.

• Ensure that the power cable is correctly positioned and does not come into contact with hot parts or sharp edges, nor become wound around the appliance itself, is not twisted and does not snag, in order to prevent the appliance from falling. Make sure there's no risk of tripping, to prevent people from accidentally tripping over it or being injured.

• Make sure that the air inlet and outlet are not blocked, to prevent fire hazards or possible overheating; do not cover the device, nor use it for drying laundry.

• If there is a fault or the appliance is not working correctly, switch it off and have it checked by a qualified professional. Repairs done by an unqualified person can be dangerous and cause the guarantee to become void. Warning : the appliance must run only if its feet are correctly assembled. To use the machine, equally assemble the two feet whith wheels supplied as follows (see figures):15

Always unplug the appliance before you assemble.

2. Insert the wheels into the bottom part

of the supporting feet, and to be sure it is tight enough.

3. Place the appliance upside down,

position the feet near the end of the base, making sure that the protrusion of the head of the 2 screws coincides with the round cavities of the feet.

4. Fix each foot by the supplied screws,

screwing with a force just to lock them: the feet must perpenticular to the body, and the 4 wheel must be in adhesion to floor surface.

USE Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk. The appliance can be adjusted as follows: -Selector. Turn the relative knob (C) clockwise to select functions:

= off, = minimum (1000W), = maximum (2000W).

Room thermostat. Set (using relative knob B) the room temperature and start the appliance in continuous mode until the set temperature is reached: if these drops, the appliance restarts for the time necessary to re-establish the set value. If the knob is turned completely anti- clockwise, the appliance remains off “-“, if it is turned completely clockwise the maximum temperature is set “+”; for intermediate values the temperature increases as the knob is turned towards the Maximum position and vice versa. The lamp (A) is on when the thermostat is active for the positions of the selectors ( and ), if it reaches the set temperature, the light goes out and turns back on as soon as it decreases. The appliance has an anti-tipping switch inside which allows it to function only when the appliance is vertical, and switches it off if it tilts. First use

Warning:run the appliance for at least a few hours to eliminate the "new smell" and any oil

residue from the manufacturing process.During this operation, ventilate the room well to eliminate the "new smell" that is given off.16 Follow these steps to use the appliance correctly:

1) Insert the plug into the power socket.

2) Turn the thermostat dial (B) to the position of the required temperature.

3) Use the specific switches (C ) to turn on the appliance and to select the required power:

4) Turn the switches to “0” position to turn off the appliance, and remove the plug from the

and remove the plug from the power socket. Never leave the appliance connected to the socket if it is not in use, especially for long periods.

CLEANING AND MAINTENANCE

before cleaning the appliance, turn it off, unplug the plug from the mains and wait until it cools down.

• Periodically check that the air inlet and outlet are not blocked by lint; to clean use a vacuum cleaner if necessary, taking care not to damage the heating element.

• To clean the main casing using a soft, damp cloth; do not use steel wool or abrasive products.

• If the heater is not used for long period of time, cover it and store it in a dry place; it is advisable to place it in the original packaging to protect it from dust and moisture.

• If you decide to no longer use the appliance, it is recommended that it is made inoperative by cutting the power cable (first ensure that the appliance has been unplugged from the power supply), and ensure that any parts that could represent a risk to playing children are put away. Correctly disposing of the product as per European Directive 2011/65/UE

At the end of its lifespan, the product must not be disposed of as part of ordinary waste. It can be handed in to specific collection points set up by the municipality, or to retailers who provide such a service. Disposing of a household appliance separately avoids possible negative consequences for the environment and human health resulting from inappropriate disposal and allows the recovery of the materials of which it is made in order to obtain significant savings in energy and resources. As a reminder of the obligation to dispose of appliances separately, the product is marked with a wheeled bin symbol. Incorrect disposal of the product by the user will lead to administrative sanctions according to current regulations.17

GUARANTEE: it is advised to register the appliance on the website https://www.bimaritaly.it/it/garanzia or to scan the QR code on the side to properly register the warranty (fill out the form to acivate the warranty on the product you purchased).

General guarantee terms
