USER MANUAL HR319 Bimar

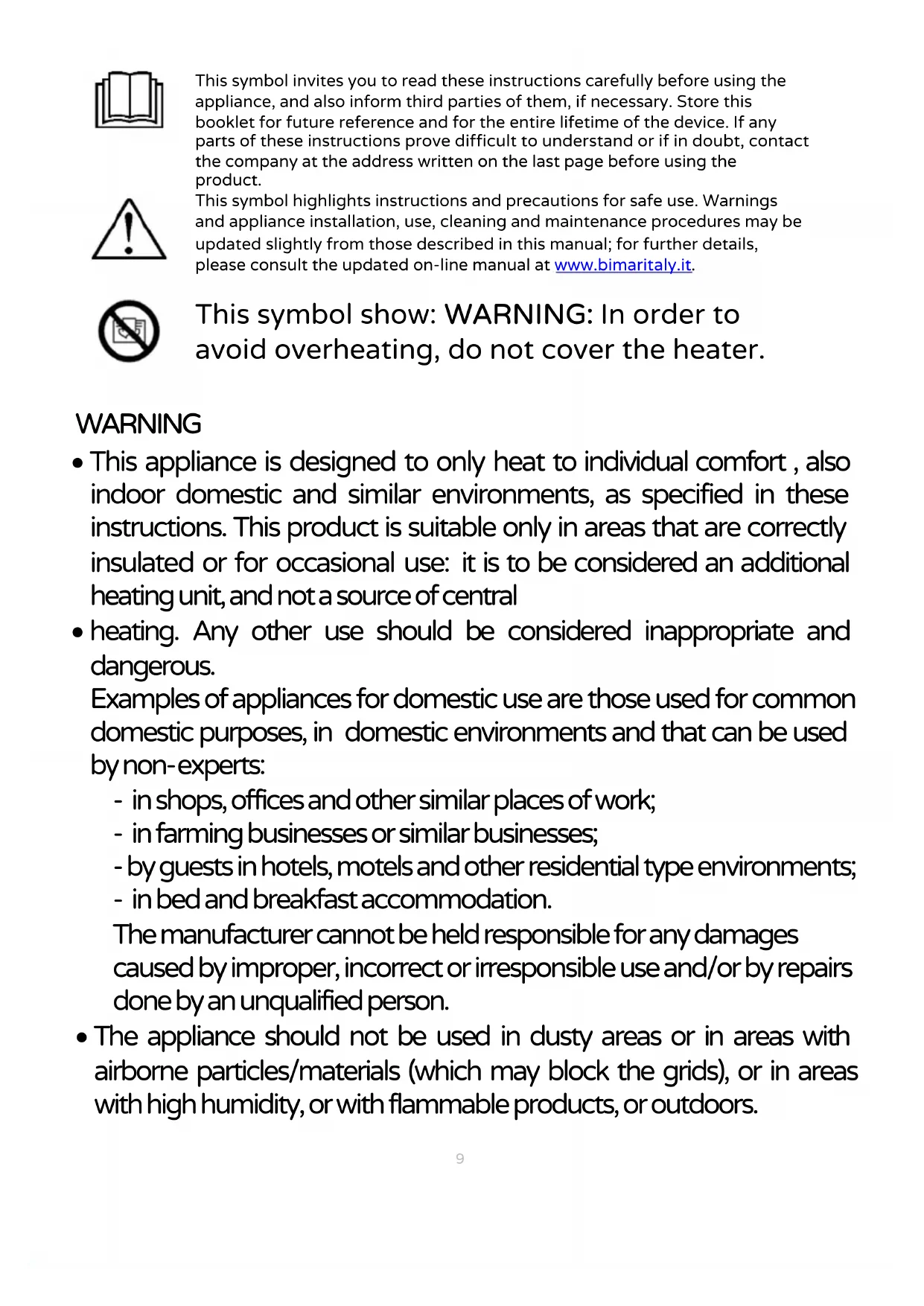

• This appliance is designed to only heat to individual comfort , also indoor domestic and similar environments, as specified in these instructions. This product is suitable only in areas that are correctly insulated or for occasional use: it is to be considered an additional heating unit, and not a source of central

• heating. Any other use should be considered inappropriate and dangerous. Examples of appliances for domestic use are those used for common domestic purposes, in domestic environments and that can be used by non-experts: - in shops, offices and other similar places of work; - in farming businesses or similar businesses; - by guests in hotels, motels and other residential type environments; - in bed and breakfast accommodation. The manufacturer cannot be held responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs done by an unqualified person.

• The appliance should not be used in dusty areas or in areas with airborne particles/materials (which may block the grids), or in areas with high humidity, or with flammable products, or outdoors.

This symbol invites you to read these instructions carefully before using the appliance, and also inform third parties of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions prove difficult to understand or if in doubt, contact the company at the address written on the last page before using the product. This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it

In order to avoid overheating, do not cover the heater.10

• This radiant heater has elements that visibly heat up to a high temperature (over 650°C): to avoid burns, touch only the heater's knobs and handles. Do not touch any other parts, especially the front safety grille as it gets hot. The front safety grille of the heater was designed to prevent direct access to the heating elements and must be kept in place while using the heater. This safety device does not guarantee complete protection for children and disabled persons.

• Make sure the heater does not come into contact with water or any other liquid. If water or any other liquid comes into contact with the appliance, first turn off the power by switching it off at the distribution board, and only then remove the plug from the socket. Carefully dry it (including the plug and power cable) and only thereafter plug it back in. Plug into the mains and then continue using the appliance. If in doubt consult a qualified professional.

• The appliance can be used by children over 8 and by people whose physical, mental or emotional capacity is limited or compromised, or who lack the appropriate experience or knowledge, only if they are supervised after receiving instructions about safe use of the appliance and they understand the hazards. Children must not play with the appliance. Cleaning and maintenance that must be carried out by the user must not be done by children unless they are supervised.

• Children younger than 3 years of age must be kept away from the appliance unless they are being constantly supervised.

• Children between the ages of 3 and 8 years should only turn on / off the appliance as long as it has been placed or installed in its normal operating position, and as long as they are supervised or receive instructions concerning the safe use of the appliance and understand the hazards involved. Children between the ages of 3 and 8 years should not plug it in, adjust or clean the appliance or perform user maintenance.11 WARNING! Parts of this product can become hot and cause burns. Special care should be taken in the presence of children and vulnerable people.

• Warning: when using electrical appliances, always follow basic safety precautions to prevent fire, electrocution and physical injury.

• The grille does not provide complete protection to children or to people with reduced physical, sensory or mental capacity.

WARNING : this heater does not come equipped with a device for controlling ambient temperature. Do not use in small rooms where there may be people who cannot be left unattended, unless they are under constant supervision.

• Do not use this appliance in a room with an area of less than 4m².

• This appliance must not be used in any type of vehicle or restricted space (lifts, camper vans, cars, cabins etc.).

• Do not leave the appliance unattended when it is connected to the mains.

• Do not move the appliance when it is running.

• Do not touch the appliance with wet hands or feet.

• Do not use the appliance to dry clothes.

• If the appliance is not being used, unplug it from the plug point.

• Do not allow the appliance to be exposed to the weather (sun, rain, etc.).

• After switching it on or off the appliance might make a 'clicking' sound, due to the heating and cooling of its metal parts; this is not an indicator of incorrect operation.

• Should the appliance fail or not work correctly, disconnect the power cord immediately. Check that it is not damaged, and thereafter turn it back on: if in any doubt, consult a qualified professional.

• In order to prevent electric shocks, never immerse the plug, the power cord or the appliance in water or any other liquid.12

• Do not pull on the power cord or the appliance itself to unplug the appliance from the plug point.

• If the power cord is damaged, it must be replaced by the manufacturer or its technical assistance centre or by someone who is similarly qualified, in order to prevent any risks.

• Do not use this heating appliance with programmers, timers or with any other device that automatically turns on the appliance, as this could pose a fire risk should the appliance be covered or positioned incorrectly.

• Do not use the appliance near a bathtub, a shower, swimming pool;

• The appliance must not be placed directly beneath a plug point.

WARNING : The heater must not be used if the quartz tubes are damaged. INSTALLATION

• After unpacking, check that all parts of the appliance are present; if in doubt, do not use and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they constitute possible sources of danger and must be disposed of according to applicable regulations. All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The secondary elements of the packaging with low weight (es: packing tape) are unmarked as are its small size packing materials, the protective film of surfaces: therefore you have to follow the procedures for the disposal in force in your municipality.

• Before connecting the heater check that the voltage shown on the specifications plate corresponds to that of the electrical supply, and that the plug is effectively grounded. Check that other appliances with high absorption are not connected to the power line to avoid overloading and fire hazards. In the event of incompatibility between the power socket and the appliance's plug, have the plug replaced with a suitable model by a qualified professional, who should ensure that the cable is appropriate for the power rating of the device. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the appliance.

• The plug point must be accessible so as to easily remove the plug in case of an emergency.

• Place the appliance far from any other source of heat, from flammable material (curtains, tapestries, etc.), from flammable gases or flammable material (sprays) and from materials that can be deformed by heat. Make sure there is 120cm of free space in front of the appliance and 50cm on the sides and back.

• Do not use the appliance in areas where it could be bumped. Keep away from bathtubs and swimming pools to prevent it falling in.

• The surface where the appliance is used must be stable, spacious (do not use on shelves), and level (since the appliance could tip over). It must also be smooth to allow the safety switch on the base to work correctly: this switch stops operation should the heater be knocked over.13

• Ensure that the power cable is correctly positioned and does not come into contact with hot parts or sharp edges, nor become wound around the appliance itself, is not twisted and does not snag, in order to prevent the appliance from falling. Make sure there's no risk of tripping, to prevent people from accidentally being injured. Also make sure the cord is not under a carpet.

• If there is a fault or the appliance is not working correctly, switch it off and have it checked by a qualified professional. Repairs done by an unqualified person can be dangerous and cause the guarantee to become void.

ASSEMBLING To use the machine, equally assemble the base supplied as follows (see figure): - Always unplug the appliance before you assemble. - Put the appliance down horizontally on a flat, smooth surface. - match the pin of the anti- toppling switch of the stove with the slot in the base

rest and tilt forward the base to the lower body on the guides

- slide the base down (direction: front grille) as far as it will go on the support guides

Straighten the appliance and check the support on the floo USE Attention : The appliance may only be used if complete with the support.

run the appliance to eliminate the "new smell" and any oil residue from the manufacturing process for at least 10/15 minutes. During this operation, ventilate the room well to eliminate the "new smell" that is given off by the appliance.

1) Insert the plug into the socket.

2) To turn on the stove and check the power, turn the knob, these modes:

0= Off I= 300W II= 600W

3) To switch the appliance off, turn the selector to the “0” off position and remove the plug from

the power socket. Never leave the appliance connected to the socket if it is not in use, especially for long periods.14

CLEANING AND MAINTENANCE

Attention: before cleaning the appliance, switch off, unplug and wait for before it has completely cooled down.

• Protect the parabola from dust to keep save its reflecting characteristic.

• To clean the body use a soft damp cloth; do not use abrasive products.

• The protection grill and the smocking net are very delicate; to clean them only use your vacuum cleaner, paying attention not to damage them.

• When the stove is not in use it is necessary to cover and put it in a dry place. We advise to use the original packing to preserve it from dust and humidity.

• The halogen heater must be substituted with a special tool: please contact a competent qualified electrician.

• If you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EU. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.15

With distance control option

GUARANTEE: it is advised to register the appliance on the website https://www.bimaritaly.it/it/garanzia or to scan the QR code on the side to properly register the warranty (fill out the form to acivate the warranty on the product you purchased).

General guarantee terms
