USER MANUAL HP128 Bimar

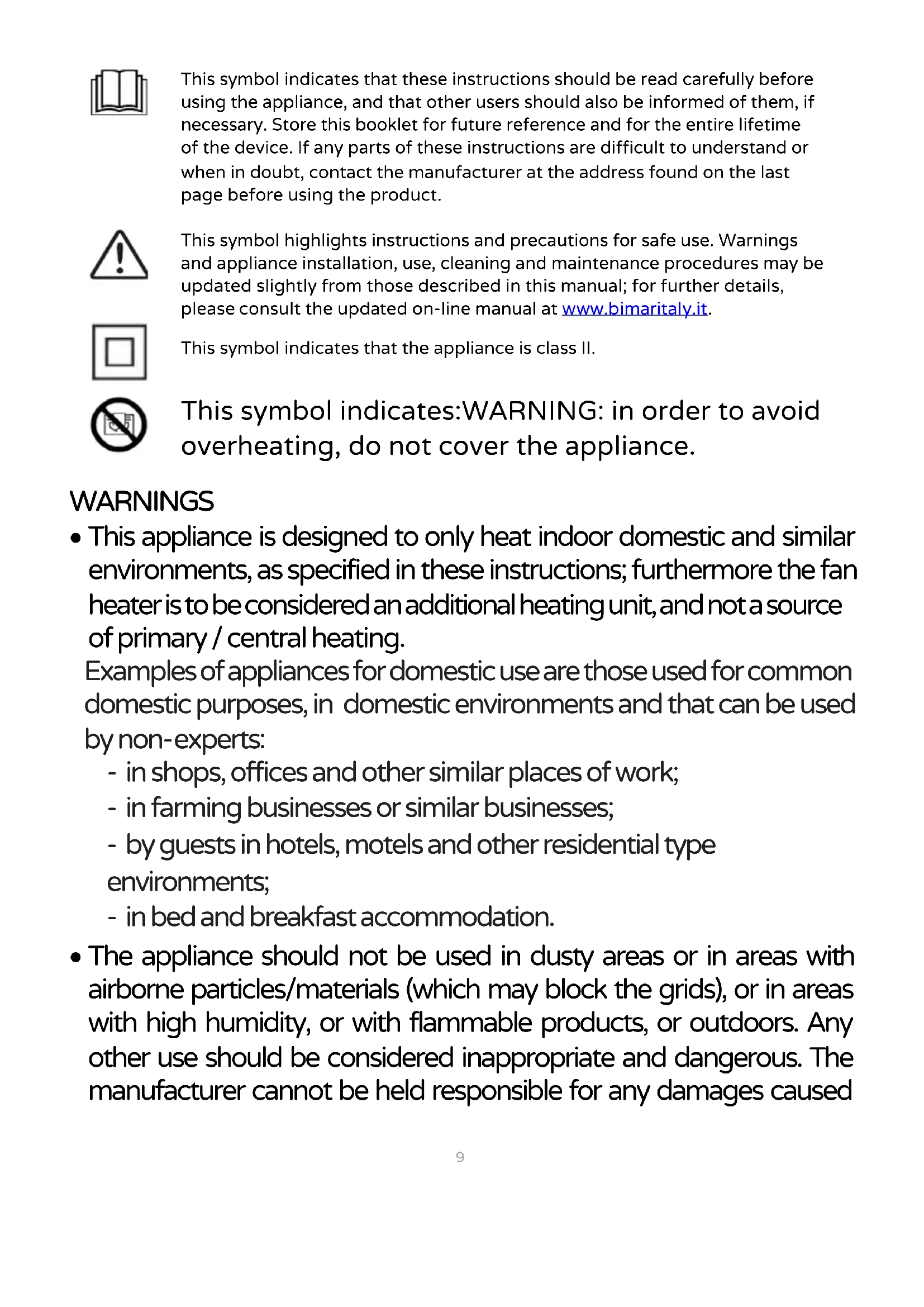

• This appliance is designed to only heat indoor domestic and similar environments, as specified in these instructions; furthermore the fan heater is to be considered an additional heating unit, and not a source of primary / central heating. Examples of appliances for domestic use are those used for common domestic purposes, in domestic environments and that can be used by non-experts: - in shops, offices and other similar places of work; - in farming businesses or similar businesses; - by guests in hotels, motels and other residential type environments; - in bed and breakfast accommodation.

• The appliance should not be used in dusty areas or in areas with airborne particles/materials (which may block the grids), or in areas with high humidity, or with flammable products, or outdoors. Any other use should be considered inappropriate and dangerous. The manufacturer cannot be held responsible for any damages caused

This symbol indicates that these instructions should be read carefully before using the appliance, and that other users should also be informed of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions are difficult to understand or when in doubt, contact the manufacturer at the address found on the last page before using the product. This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it

This symbol indicates that the appliance is class II. This symbol indicates:WARNING: in order to avoid overheating, do not cover the appliance.10 by improper, incorrect or irresponsible use and/or by repairs done by an unqualified person.

• The fan heaters gets hot when in use. Only touch the plastic handle and knobs. Avoid touching the grid since it becomes very hot. Do not insert fingers and/or any object through the front grid, in order to prevent abrasions, electric shocks or damage to the appliance.

• The grille does not provide complete protection to children or to people with reduced physical, sensory or mental capacity. WARNING!

Parts of this product can become hot and cause burns. Special care should be taken in the presence of children and vulnerable people.

- when using electrical appliances, always adhere to basic safety precautions to prevent the risk of fire, electric shocks and physical injury. - Do not use this appliance in a room with an area of less than 4m².

• The appliance can be used by children over 8 and by people whose physical, mental or emotional capacity is limited or compromised, or who lack the appropriate experience or knowledge, only if they are supervised after receiving instructions about safe use of the appliance and they understand the hazards. Children must not play with the appliance. Cleaning and maintenance that must be carried out by the user must not be done by children unless they are supervised.

• Children younger than 3 years of age must be kept away from the appliance unless they are being constantly supervised. Children between the ages of 3 and 8 years should only turn on / off the appliance as long as it has been placed or installed in its normal operating position, and as long as they are supervised or receive instructions concerning the safe use of the appliance and understand the hazards involved. Children between the ages of 3 and 8 years11 should not plug it in, adjust or clean the appliance or perform user maintenance.

• Make sure the fan heater does not come into contact with water or any other liquid. If water or any other liquid comes into contact with the appliance, first turn off the power by switching it off at the distribution board, and only then remove the plug from the socket. Carefully dry both the plug and the socket before restoring power. Plug into the mains and then continue using the appliance. If in doubt consult a qualified professional.

- The appliance must not be placed directly beneath a plug point. - The plug point must be accessible so as to easily remove the plug in case of an emergency. - Do not use the appliance near a bathtub, a shower, swimming pool or basin/sink, etc. - If the power cord is damaged, it must be replaced by the manufacturer or its technical assistance centre or by someone who is similarly qualified, in order to prevent any risks. - This appliance is not to be used with an external timer or with a separate distance control unit. This serves to prevent fire hazards should the appliance be covered or incorrectly positioned. Check that other devices with high power consumption are not connected on the same circuit.

• In order to prevent electric shocks, never immerse the plug, the power cord or the appliance in water or any other liquid.

• If the appliance is not being used, unplug it from the plug point.

• Do not touch the appliance with wet hands or feet.

• Do not move the appliance when it is running.

• Do not allow the appliance to be exposed to the weather (sun, rain, etc.).12

• Should the appliance fail or not work correctly, disconnect the power cord immediately. Check that it is not damaged, and thereafter turn it back on: if in any doubt, consult a qualified professional.

• Do not pull on the power cord or the appliance itself to unplug the appliance from the plug point.

• Do not pull on the power cord to move the appliance.

• Do not use the appliance if it does not work properly or if it appears damaged; when in doubt, contact a qualified technician.

• Ensure the heating element is free of dust, lint, or any similar material: this improves the fan heater's performance, and prevents overheating. Periodically check that the aspiration grille does not become obstructed by objects, fabrics or other materials to prevent overheating or breaking the appliance.

• After unpacking, check that all parts of the appliance are present; if in doubt, do not use and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they are potentially hazardous. All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The secondary elements of the packaging with low weight (es: packing tape) are unmarked as are its small size packing materials, the protective film of surfaces: therefore you have to follow the procedures for the disposal in force in your municipality.

• Before connecting the appliance, check that the voltage on the data plate matches that of the electric system. In the event of incompatibility between the plug point and the appliance's plug, have the plug replaced with a suitable model by a qualified professional, who should ensure that the cord is suitable for the power rating of the appliance (10A). Check that other appliances with high absorption are not connected to the power line to avoid overloading and fire hazards. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the appliance.

• Before each use, check that the appliance is in good condition and that the power cord is not damaged: if in doubt consult a qualified professional.

• Ensure that the power cord is correctly positioned and does not come into contact with hot parts or sharp edges, or become wound around the appliance itself and is not twisted.

• Do not hang or even lean the appliance against any walls.

• Place the fan heater far from any other source of heat, from flammable material (curtains, tapestries, etc.), from flammable gases or explosive objects (spray cans) and from materials that can be deformed by heat. Make sure there is 120 cm of free space in front of the fan heater and 50cm free space on both sides and behind it.

• The surface where the appliance is used must be stable, spacious (do not use on shelves), level (since the appliance could tip over) and heat resistant.13

-Selector. By turning the relative knob, you can select these functions:

= off, only ventilation. = hot air (1400W). = very hot air (2000W), (see a ref. picture on the side).

To activate oscillation (right- left) turn the knob to the position corresponding to the desired power setting and symbol “ ” (see a ref. picture on the side).

-Room thermostat. It adjusts the appliance’s functions according to the temperature, continuously until reaching the set temperature, then at intervals to keep it constant. By turning the relative knob completely anti-clockwise the heating fan remains off (pos.”-“), when turned completely clockwise it is set on the maximum temperature (pos.”+“), in intermediate positions the surrounding temperature is lower. - Indicator light: comes on according to the thermostat’s operation. It is on when the appliance is running. -Equipped with a safety device, which turns off the appliance in the event of overheating. To start it again, remove the plug from the mains and allow it to cool (approximately 10/20 minutes). Thereafter, plug it back in and turn it on once again. - Anti-tipping switch which allows the heating fan to function only when it is positioned correctly (when it is put in place, you will hear a “click”) but it stops the appliance if it tips. First use: run the appliance to eliminate the "new smell" and any oil residue from the manufacturing process for at least 10/15 minutes, pos. and “+”. During this operation, ventilate the room well to eliminate the "new smell" that is given off by the appliance.

To use the heating fan, follow these steps:

1. Insert the plug in the power socket.

2. Turn the thermostat knob to the temperature required.

3. Switch on the appliance by turning the selector knob to the position of the required function.

4. The light turns on and turns off when the appliance reaches the requested temperature; if the

thermostat is set at the maximum level, the appliance works continuously.

5. To switch off the appliance, switch off the resistance completely, let only the fan run for about 3

minutes (pos. ) to cool the resistance (this way it will last longer), then switch off the fan by turning the knob to “0” (off). Then always remove the plug from the power socket. If the appliance is not being used for long periods of time, remove the plug from the plug point.14

CLEANING AND MAINTENANCE

before cleaning the appliance, turn it off, remove the plug from the plug point and wait until it cools down.

• To ensure proper operation of the appliance, periodically check that the rear ventilation grille is not blocked by fluff or threads: this should be done after removing the plug from the mains; If necessary, use a vacuum cleaner, taking care not to damage the element.

• To clean the main outer casing using a soft, damp cloth; do not use steel wool or abrasive products.

• If the fan heater is not used for long period of time, cover it and store it in a dry place; it is advisable to place it in the original packaging to protect it from dust and moisture.

• Do not immerse the appliance in water or another liquid. Do not wash it with running water or in the dishwasher.

• If you decide to no longer use the appliance, it is recommended that it is made inoperative by cutting the power cord (first ensure that the appliance has been unplugged from the power supply), and ensure that any parts that could represent a risk to playing children are put away. Correctly disposing of the product as per European Directive 2011/65/UE

At the end of its lifespan, the product must not be disposed of as part of ordinary waste. It can be handed in to specific collection points set up by the local authority, or to retailers who provide such a service. Disposing of a household appliance separately avoids possible negative consequences for the environment and human health resulting from inappropriate disposal and allows to recover the materials from which it is made in order to obtain significant savings in energy and resources. As a reminder of the obligation to dispose of appliances separately, the product is marked with a crossed- out wheelie bin symbol. Incorrect disposal of the product by the user will lead to sanctions according to current law.15

General guarantee terms Guarantee coverage starts from the moment of purchase of the appliance as indicated by a fiscally mandatory delivery document (bill or tax receipt or shipping document). Guarantee coverage lasts 24 months and terminates after the prescribed term. Guarantee coverage covers all replacements or repairs that become necessary due to defects in material or manufacture. Guarantee coverage does not cover all those parts which become defective due to failure to comply with installation, operating or maintenance instructions, shipping damage, operating neglect or negligence, improper use or any circumstances which are not due to manufacturing defects of the appliance. Guarantee coverage is also excluded for replacement or repair of all parts subject to fair wear and tear or to expiry, as well as removable parts, light bulbs, glass components, ceramic parts, external tubes, batteries and disposable (throw-away) accessories. Replacements or repairs that come under guarantee coverage are performed free of charge for goods delivered free the Manufacturer’s factory or to one of our Technical Service Centres. The Customer must only pay for shipping costs. Guarantee coverage is not granted if repairs are performed by personnel not belonging to authorized Technical Service Centres or when non-genuine spare parts are used. This warranty is governed by and construed in accordance with applicable laws in force in the country where the product is purchased. For details, contact the Customer Support in your country or the Bimar website. (www.bimaritaly.it).The Manufacturer declines all responsibility for any direct or indirect harm to persons, pets or property consequent to failure to comply with all the provisions specified in the appliance instruction booklet and especially those regarding appliance maintenance, operation, installation or warnings.
