Product type	All-in-one DJ controller for rekordbox dj
Brand	Pioneer DJ
Model	DDJ-RZ
Dimensions (W × H × D)	870 mm × 98.4 mm × 419.5 mm
Weight	10.7 kg
Power supply	AC 110 V to 240 V, 50/60 Hz, 30 W (0.4 W standby)
Main functions	Large jog wheels, performance pads, 4-channel mixer, SOUND COLOR FX, OSC SAMPLER, compatible with rekordbox dj
Audio section	Sampling frequency 44.1 kHz, A/D converter N/A 24-bit
Inputs	CD/LINE (4× RCA), PHONO (2× RCA), MIC1 (XLR + 1/4" TRS jack), MIC2 (1/4" TRS jack)
Outputs	MASTER OUT 1 (XLR), MASTER OUT 2 (RCA), BOOTH OUT (1/4" TRS jack), PHONES (1/4" jack + 3.5 mm mini-jack)
Connectivity	USB type B (2 ports), USB type A (1 port)
Signal-to-noise ratio	USB: 111 dB, CD/LINE: 97 dB, PHONO: 90 dB
Total harmonic distortion	USB: 0.002%, CD/LINE: 0.004%
Operating temperature	+5 °C to +35 °C, humidity < 85%
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Disconnect the power plug before any maintenance. Do not expose to water or open flames. Leave 5 cm ventilation space around the device.
Spare parts and repairability	Contact Pioneer authorized service center for any repairs. No user-serviceable parts.
General information	rekordbox dj license key included. Aluminum top panel. Warranty according to region.

Frequently Asked Questions - DDJ-RZ PIONEER

How do I connect the DDJ-RZ to a computer?

Use the supplied USB cable (or a standard USB 2.0 cable) to connect the USB-B port of the controller to a USB port on the computer. Install the driver and rekordbox software before connection.

Can I use the DDJ-RZ with software other than rekordbox?

The DDJ-RZ is specifically designed for rekordbox dj. While it can function as a generic MIDI interface, advanced features (pads, effects) will not be fully supported without custom mapping.

How do I activate rekordbox dj with the license key?

After installing rekordbox, create an account and log in. Go to the software settings, License section, and enter the license key provided with the DDJ-RZ. Activation is permanent for that account.

What types of analog inputs are available?

The DDJ-RZ has 4 CD/LINE inputs (RCA), 2 PHONO inputs (RCA for turntables), one MIC1 input (XLR or TRS jack), and one MIC2 input (TRS jack).

How do I adjust the crossfader for a sharper cut?

Use the CROSS FADER CURVE selector on the front of the controller. Set to 'sharp' for instant cut, 'smooth' for progressive transition.

What should I do if the sound is distorted or clipping?

Check the input levels using the TRIM controls on each channel. Make sure the main level (MASTER LEVEL) is not at maximum. Reduce gain if the red indicator lights up.

How do I use the OSC SAMPLER function?

Press the OSC SAMPLER SELECT button to activate the oscillator. Use the OSC SAMPLER VOLUME and OSC SAMPLER PARAMETER controls to adjust the sound. The SAMPLER SYNC button syncs the sampler to the tempo.

Can I connect two computers simultaneously?

Yes, the DDJ-RZ has two USB-B ports. Connect one computer to each port and use the USB (A/B) selector to switch between them. Useful for transitions between two DJs.

How do I update the firmware of the DDJ-RZ?

Download the latest firmware from the Pioneer DJ website (Support > Software & firmware updates). Follow the instructions provided with the file to update via USB.

What to do if there is no sound after connection?

Check that the power cable is plugged in and the power switch is on. Ensure the master volume (MASTER LEVEL) is not at zero. Verify the source selection (SOURCE) on the front panel. If the problem persists, restart the software and computer.

USER MANUAL DDJ-RZ PIONEER

The Pioneer DJ site shown above offers FAQs, information on software, and various other types of information and services to allow you to use your product in greater comfort.

For the latest version of the rekordbox software, access rekordbox.com and download the software from there.

Operating Instructions (Quick Start Guide)

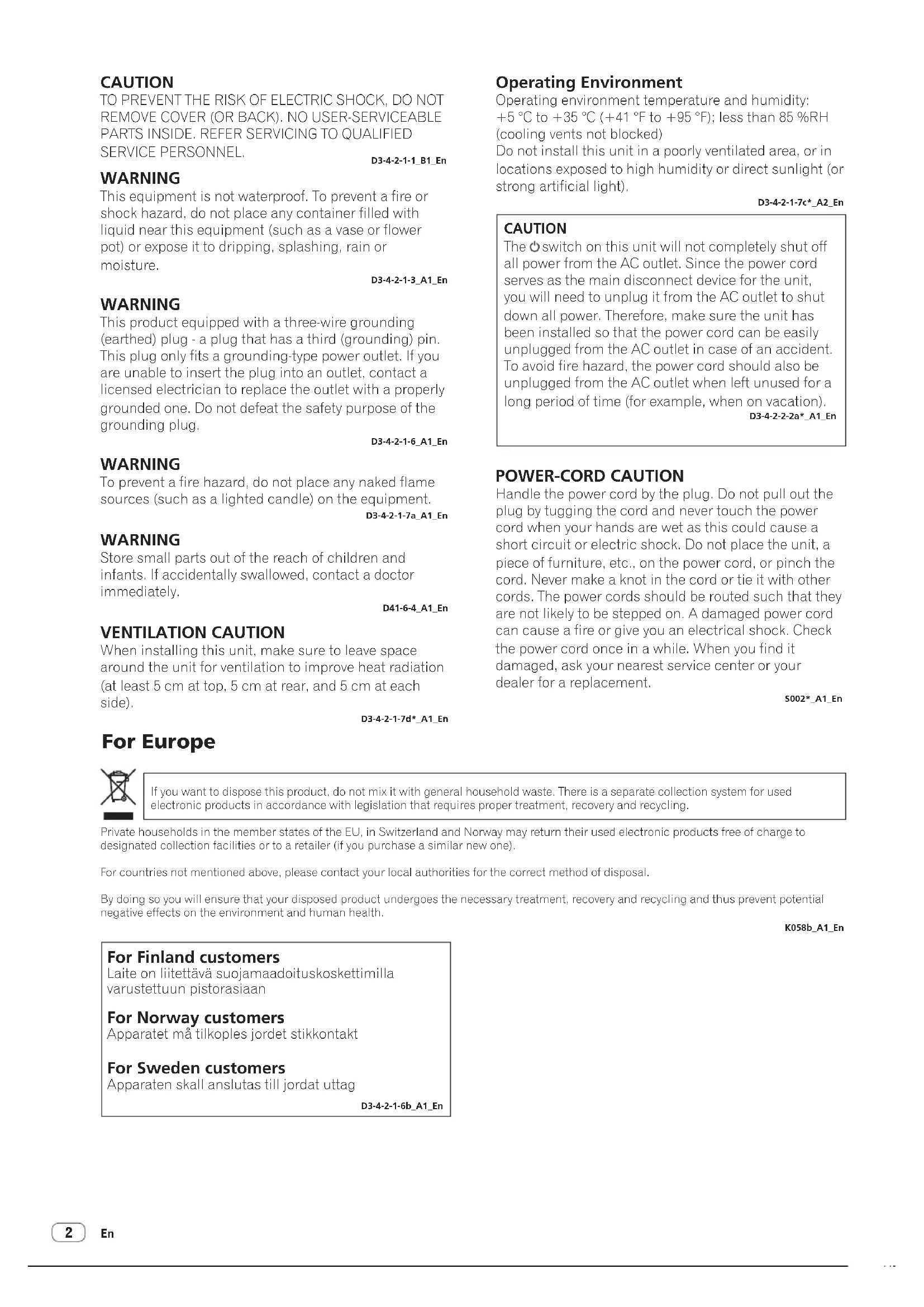

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 5 cm at top, 5 cm at rear, and 5 cm at each side).

D3-4-2-1-7d*_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

D3-4-2-1-7c*_A2_En

CAUTION

The ⬇ switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest service center or your dealer for a replacement.

S002*_A1_En

For Europe

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058b_A1_En

For Finland customers

For Norway customers

For Sweden customers

Apparaten skall anslutas till jordat uttag

D3-4-2-1-6b_A1_En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

D8-10-2_A1_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: DJ Controller

Model Number: DDJ-RZ

Responsible Party Name: PIONEER ELECTRONICS (USA) INC.

SERVICE SUPPORT DIVISION

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A.

Phone: [phone]

URL: http://www.pioneerelectronics.com

D8-10-4*_C1_En

Contents

How to read this manual

- Thank you for buying this Pioneer DJ product. Be sure to read this manual and the Operating Instructions that is available on the Pioneer DJ site. Both contain important information that you should understand before using this product.

After you have finished reading the instructions, put them away in a safe place for future reference.

• In this manual, names of screens and menus displayed on the product and on the computer screen, as well as names of buttons and terminals, etc., are indicated within brackets. (e.g.: [CUE] button, [Files] panel, [MIC1] terminal)
• Please note that the screens and specifications of the software described in this manual as well as the external appearance and specifications of the hardware are currently under development and may differ from the final specifications.
• Please note that depending on the operating system version, web browser settings, etc., operation may differ from the procedures described in this manual.

This manual provides brief descriptions regarding the names of parts on this unit and the connections between this unit and peripherals. For more detailed instructions on using this unit, see the Operating Instructions for this unit. For instructions on operating the rekordbox software, see the rekordbox software's manual.

- For obtaining the Operating Instructions for this unit and rekordbox software's manual, see Acquiring the manual (p.5).

01 Before start

Features 5

What's in the box 5

Acquiring the manual 5

Preparing the software....5

Names of Parts 6

02 Connections

Example of connections 9

Connections....10

03 Additional information

Changing the settings.... 11

Troubleshooting....11

About trademarks and registered trademarks .... 11

Cautions on copyrights 11

Specifications.... 11

Before start

Features

This unit is an all-in-one DJ controller designed specifically for rekordbox dj. It's interfaces incorporating various controls such as "BIG JOG", "PERFORMANCE PADS" and 4-channel mixer are positioned with room to spare to allow for more individualistic DJ performances using rekordbox dj.

Also, the unit provides "SOUND COLOR FX" and "OSC SAMPLER" functions so that original arrangements can be added to the music being played back.

Furthermore, numerous input and output terminals support a variety of DJ styles. Featuring aluminum material for the top panel, the design makes the unit look high quality, which is appropriate in a variety of scenes such as nightclubs, home parties, etc.

• rekordbox
  — rekordbox is a composite software that enables track management and DJ performances.
• rekordbox dj
  — The DJ performance function of rekordbox is called rekordbox dj. Enter the license key included with this product to use rekordbox dj.

What's in the box

• Power cord
• USB cable
• Operating Instructions (Quick Start Guide) (This document)
• Warranty (for some regions only) ^[2]
• rekordbox dj license key
  1 Only one USB cable is included with this unit.
  To connect two units, use a cable conforming to USB 2.0 standards.
  2 The included warranty is for the European region.

Cautions

The license key cannot be reissued. Be careful not to lose it.

Acquiring the manual

Various instructions are sometimes provided as files in PDF format. Adobe ^® Reader ^® must be installed in order to view PDF format files.

Downloading this unit's operating instructions

1 Launch a web browser on the computer and access the Pioneer DJ site below.
http://www.pioneerdj.com/
2 Click the [Support] icon.
3 Click the [FIND TUTORIAL & MANUALS] icon.
4 Click the [DDJ-RZ] icon in the [CONTROLLER] category.
5 Click on the required language on the download page.

Downloading the rekordbox software manual

1 Launch a web browser on the computer and access the rekordbox site below.

http://rekordbox.com/

2 Download the software manual from the rekordbox software manual download page.

For inquiries on rekordbox, see the rekordbox site indicated above.

Preparing the software

About rekordbox

Acquiring rekordbox (Mac/Windows)

1 Launch a web browser on the computer and access the rekordbox site below.

http://rekordbox.com/

2 Download rekordbox from the rekordbox download page.

3 Install rekordbox and register the account.

4 Activate rekordbox dj.

- For instructions, see the rekordbox software's manual.

To activate the rekordbox dj function, enter the rekordbox dj license key supplied with this product.

About the driver software

This driver software is an exclusive driver for outputting audio signals from a computer.

◆ Obtaining the driver software

1 Launch a web browser on the computer and access the Pioneer DJ site below.

2 Click the [Support] icon.

3 Click the [Software & firmware updates] icon.

4 Click the [DDJ-RZ] icon in the [CONTROLLER] category.

5 After clicking [Drivers], download the latest driver software from the download page.

Names of Parts

- For details on the functions of the various buttons and controls, see Part names and functions in the Operating Instructions.

Diagram of a multi-panel electronic instrument with labeled parts, showing front, side, and top views.

1 Browser section
2 Deck section
3 Mixer section
4 Effect section

Browser section

0 mm RMS TRACK INST. DORMLES BACK LOAD AREA RELATED TRACK

1 Rotary selector
2 BACK button
3 LOAD button

Deck section

This section is used to control the four decks. The buttons and controls for operating decks 1 and 3 are located on the left side of the controller, those for operating decks 2 and 4 are located on the right side of the controller.

Labeled diagram of a CD-ROM drive with numbered components and control buttons

1 Jog dial display section
2 Jog dial
3 NEEDLE SEARCH pad
4 JOG FEELING ADJUST control
5 VINYL SPEED ADJUST control
6 MASTER TEMPO button
7 Takeover indicator
8 TEMPO slider
9 AUTO BEAT LOOP button
10 LOOP 1/2X button
11 LOOP 2X button
12 LOOP IN button
13 LOOP OUT button
14 PARAMETER◀ button, PARAMETER▶ button
15 SEQUENCER START button
16 SEQUENCER OVERDUB button
17 HOT CUE mode button
18 PAD FX1 mode button
19 SLICER mode button
20 SAMPLER mode button
21 CAPTURE button
22 Performance pads
23 PLAY/PAUSE ▶/II button

24 CUE button
25 QUANTIZE button
26 SYNC button
27 SHIFT button
28 DECK 3 button
29 DECK 1 button
30 GRID SLIDE button
31 GRID ADJUST button
32 SLIP button
33 SLIP REVERSE button
34 FX PANEL button

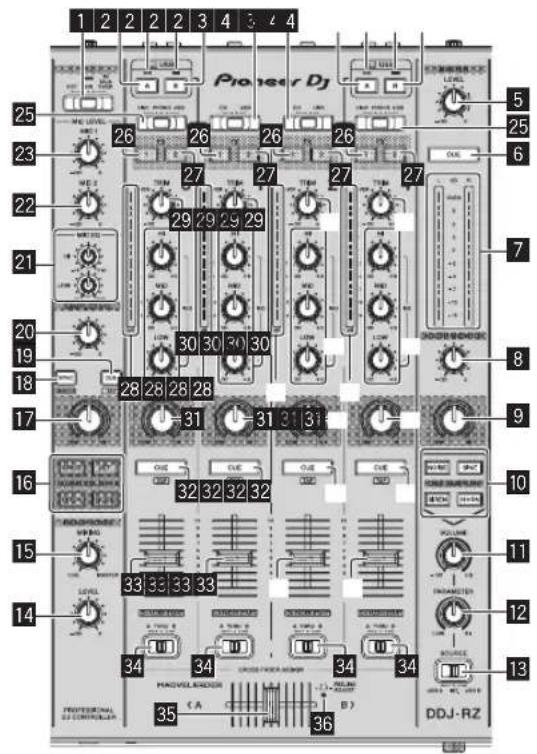

Mixer section

1 2 2 2 2 3 4 5 4 Pioneer DJ 25 26 26 26 26 26 27 27 27 27 28 28 28 28 30 30 30 30 31 31 31 31 32 32 32 32 33 33 33 33 34 34 34 34 35 CA DDJ-RZ PROFESSIONAL DJ CONTROLLER 5 25 6 7 8 9 10 11 12 13

1 OFF, ON, TALK OVER selector switch
2 USB connection indicator
3 USB (A) button
4 USB (B) button
5 MASTER LEVEL control
6 MASTER CUE button
7 Master level indicator
8 BOOTH MONITOR control
9 MASTER OUT COLOR control
10 OSC SAMPLER SELECT button
11 OSC SAMPLER VOLUME control
12 OSC SAMPLER PARAMETER control

13 SOURCE selector switch
14 HEADPHONES LEVEL control
15 HEADPHONES MIXING control
16 SOUND COLOR FX buttons
17 MIC COLOR control
18 SAMPLER SYNC button
19 SAMPLER CUE button
20 SAMPLER VOL control
21 EQ (HI, LOW) controls
22 MIC2 control
23 MIC1 control
24 CD, USB selector switch
25 LINE, PHONO, USB selector switch
26 FX 1 assign button
27 FX 2 assign button
28 Channel Level Indicator
29 TRIM control
30 ISO (HI, MID, LOW) controls
31 COLOR control
32 Headphones CUE button
33 Channel fader
34 Crossfader assign selector switch
35 Crossfader
36 FEELING ADJUST adjustment hole

Effect section

This section is used to control the two effect units (FX1 and FX2).

Controls and buttons used to operate the FX1 unit are located on the left side of the controller, those used to operate the FX2 unit are located on the right side of the controller. The channels to which the effect is to be applied are set using the effect assign buttons on the mixer.

FX1 ON ON ON BEAT 1 2 3 4

1 Effect parameter controls
2 RELEASE FX control
3 Effect parameter buttons
4 BEAT◀ button, BEAT▶ button

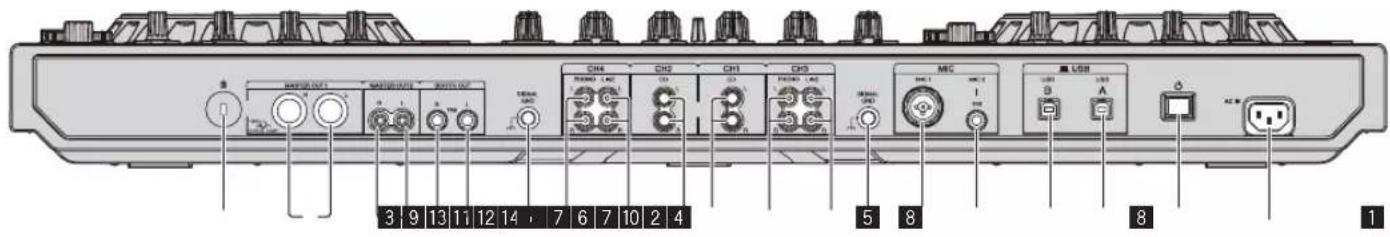

Rear panel

AMETER OUT1 AMETER OUT2 30000 OUT CH4 CH2 CH1 CH3 R/W/ LAG CD CD 35 8 1 3 5 6 7 10 2 4 MIC USB USB 3 A AC 3 9 13 11 12 14 7 6 7 10 2 4 5 8 1

1 Kensington security slot
2 MASTER OUT 1 terminals
3 MASTER OUT 2 terminals
4 BOOTH OUT terminals
5 SIGNAL GND terminal
6 PHONO terminals
7 LINE terminals

8 CD terminals
9 MIC1 terminal
10 MIC2 terminal
11 USB-B terminal
12 USB-A terminal
13 switch
14 AC IN terminal

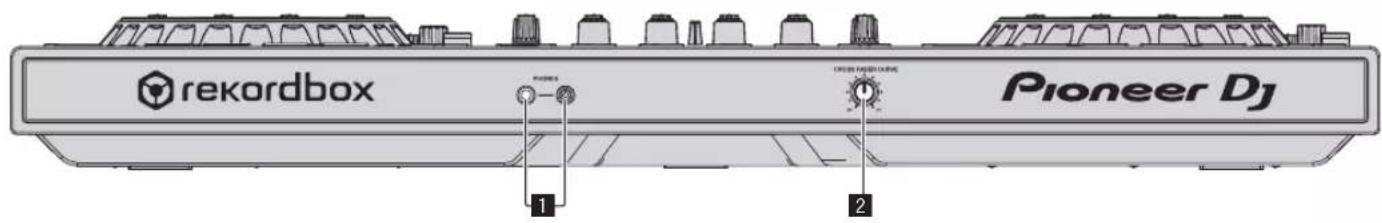

Front panel

rekordbox Pioneer Dj 1 2

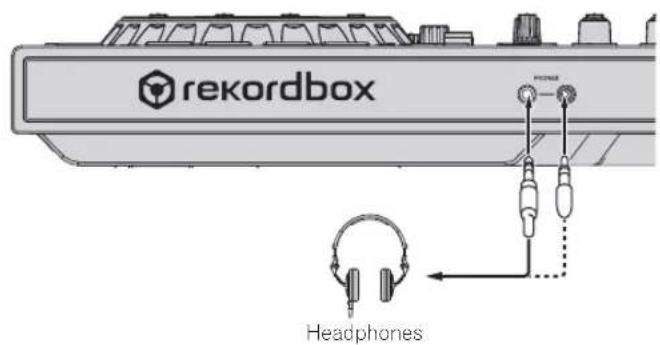

1 PHONES jacks
2 CROSS FADER CURVE selector switch

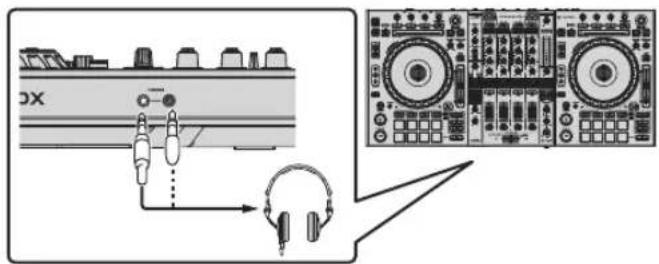

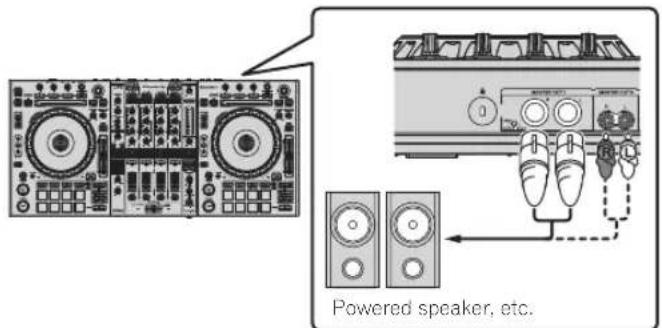

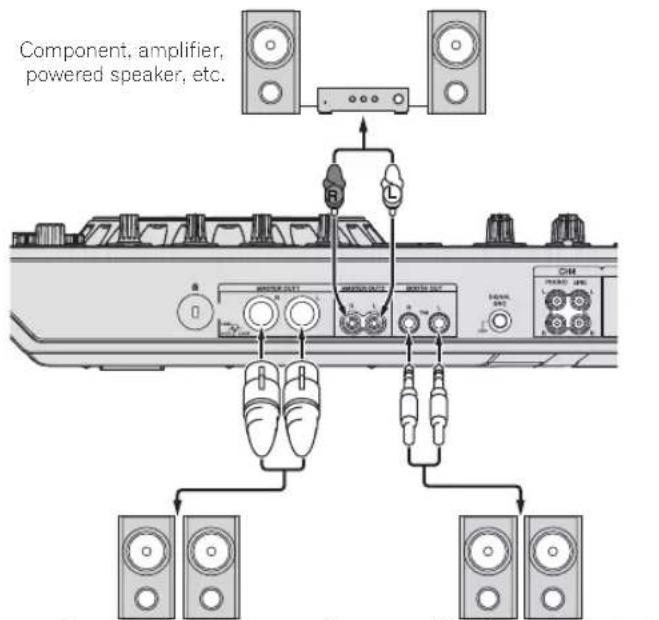

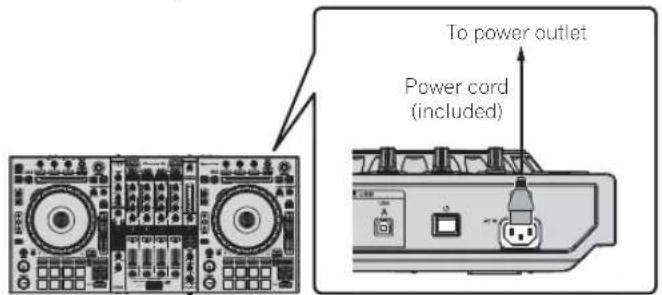

Connections

• Connect the power cord after all the connections between devices have been completed.
  Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
  Refer to the operating instructions for the component to be connected.
• Be sure to use the included power cord.
• Be sure to use the USB cable included with this product or the one that conforms to USB 2.0.

Example of connections

Connecting input terminals

Rear panel

Connecting output terminals

Rear panel

Component, amplifier, powered speaker, etc.

Power amplifier, powered speakers, etc.
Power amplifier (for booth monitor), powered speakers, etc.

Front panel

rekordbox Headphones

Connections

For information on using this product with rekordbox dj, refer to this product's operating instructions published on the Pioneer DJ site.

1 Connect headphones to one of the [PHONES] terminals.

Diagram showing audio recording setup with headphones connected to a CDX interface and output stage

2 Connect powered speakers, a power amplifier, components, etc., to the [MASTER OUT 1] or [MASTER OUT 2] terminals.

Powered speaker, etc.

• To output the sound from the [BOOTH OUT] terminals, connect speakers or other devices to the [BOOTH OUT] terminals.
• For details on connecting the input/output terminals, see the Operating Instructions.

3 Connect this unit to your computer via a USB cable.

USB cable (included)

4 Turn on the computer's power.
5 Connect the power cord.

To power outlet Power cord (included)

6 Press the [☐] switch on this unit's rear panel to turn this unit's power on.

Diagram showing two electronic circuit boards with a close-up of a device interface (no text or symbols visible)

Turn on the power of this unit.

- For Windows users The message [Installing device driver software] may appear when this unit is first connected to the computer or when it is connected to a different USB port on the computer. Wait a while until the message [Your devices are ready for use] appears.

7 Turn on the power of the devices connected to the output terminals (powered speakers, power amplifier, components, etc.).

- When a microphone, DJ player or other external device is connected to input terminals, the power of that device also turns on.

Additional information

Changing the settings

- For detailed instructions on changing this unit's settings, see Changing the settings in the Operating Instructions.

Troubleshooting

- If you think that there is something wrong with this unit, check the items in the "Troubleshooting" section of this unit's operating instructions and access the Pioneer DJ site and check [FAQ] for the [DDJ-RZ]. http://www.pioneerdj.com/

Sometimes the problem may lie in another component. Inspect the other components and electrical appliances being used. If the problem cannot be rectified, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

- This unit may not operate properly due to static electricity or other external influences. In this case, proper operation may be restored by turning the power off, waiting 1 minute, then turning the power back on.

About trademarks and registered trademarks

- "Pioneer DJ" is a trademark of PIONEER CORPORATION, and is used under license.

The names of companies and products mentioned herein are the trademarks of their respective owners.

Cautions on copyrights

rekordbox restricts playback and duplication of copyright-protected music contents.

- When coded data, etc., for protecting the copyright is embedded in the music contents, it may not be possible to operate the program normally.

- When rekordbox detects that coded data, etc., for protecting the copyright is embedded in the music contents, processing (playback, reading, etc.) may stop.

Recordings you have made are for your personal enjoyment and according to copyright laws may not be used without the consent of the copyright holder.

- Music recorded from CDs, etc., is protected by the copyright laws of individual countries and by international treaties. It is the full responsibility of the person who has recorded the music to ensure that it is used legally.

- When handling music downloaded from the Internet, etc., it is the full responsibility of the person who has downloaded the music to ensure that it is used in accordance with the contract concluded with the download site.

Specifications

Power requirements ......AC 110 V to 240 V, 50 Hz/60 Hz

Power consumption.... 30 W

Power consumption (standby) 0.4 W

Main unit weight 10.7 kg

Max. external dimensions ....870 mm (W) × 98.4 mm (H) × 419.5 mm (D)

Tolerable operating temperature ....+5 °C to +35 °C

Tolerable operating humidity ....5 % to 85 % (no condensation)

Audio Section

Sampling rate 44.1 kHz

A/D, D/A converter 24 bits

Frequency characteristic USB, CD/LINE, MIC1, MIC2 20 Hz to 20 kHz

S/N ratio (rated output, A-WEIGHTED)

USB 111 dB CD/LINE 97 dB PHONO 90 dB MIC1 84 dB MIC2 84 dB

Total harmonic distortion (20 Hz — 20 kHzBW) USB....0.002 % CD/LINE....0.004 %

Standard input level / Input impedance CD/LINE....-12 dBu/47 kΩ PHONO....-52 dBu/47 kΩ MIC1....-52 dBu/8.5 kΩ MIC2....-52 dBu/8.5 kΩ

Standard output level / Load impedance / Output impedance MASTER OUT 1.....+6 dBu/10 kΩ/390 Ω or less MASTER OUT 2.....+2 dBu/10 kΩ/820 Ω or less BOOTH OUT.....+6 dBu/10 kΩ/390 Ω or less PHONES.....+8 dBu/32 Ω/10 Ω or less

Rated output level / Load impedance MASTER OUT 1....24 dBu/10 kΩ MASTER OUT 2....20 dBu/10 kΩ

Crosstalk CD/LINE 82 dB

Channel equalizer characteristic HI ....-∞ dB to +6 dB (13 kHz) MID ....-∞ dB to +6 dB (1 kHz) LOW ....-∞ dB to +6 dB (70 Hz)

Microphone equalizer characteristic HI ....-12 dB to +12 dB (10 kHz) LOW ....-12 dB to +12 dB (100 Hz)

Input / Output terminals

CD/LINE Input terminals RCA pin jacks ....4 sets

PHONO input terminals RCA pin jacks ....2 sets

MIC1 terminal XLR connector & 1/4" TRS jack ....1 set

MIC2 terminal 1/4" TRS jack ....1 set

MASTER OUT 1 output terminal XLR connector....1 set

MASTER OUT 2 output terminal RCA pin jacks ....1 set

BOOTH OUT output terminal 1/4" TRS jack ....1 set

PHONES output terminal 1/4" stereo jack ....1 set 3.5 mm stereo mini jack ....1 set

USB terminals B type ....2 sets

— Be sure to use the [MASTER OUT 1] terminals only for a balanced output. Connection with an unbalanced input (such as RCA) using an XLR to RCA converter cable (or converter adapter), etc., may lower the sound quality and/or result in noise. For connection with an unbalanced input (such as RCA), use the [MASTER OUT 2] terminals.

— The specifications and design of this product are subject to change without notice.

• © 2015 Pioneer DJ Corporation. All rights reserved.

Diagram of three industrial control panels labeled 1, 2, and 4, showing various electronic interfaces and buttons.

Labeled diagram of a CD-ROM drive with numbered components and control buttons

1 Section d'affichage de la molette jog
2 Molette jog
3 Pad NEEDLE SEARCH
4 Commande JOG FEELING ADJUST
5 Commande VINYL SPEED ADJUST
6 Touche MASTER TEMPO
7 Indicateur TAKEOVER
8 Curseur TEMPO
9 Touche AUTO BEAT LOOP
10 Touche LOOP 1/2X
11 Touche LOOP 2X
12 Touche LOOP IN
13 Touche LOOP OUT
14 Touche PARAMETER◀, touche PARAMETER▶
15 Touche SEQUENCER START
16 Touche SEQUENCER OVERDUB
17 Touche de mode HOT CUE
18 Touche de mode PAD FX1
19 Touche de mode SLICER
20 Touche de mode SAMPLER
21 Touche CAPTURE
22 Pads performance
23 Touche PLAY/PAUSE ▶/II

24 Touche CUE
25 Touche QUANTIZE
26 Touche SYNC
27 Touche SHIFT
28 Touche DECK 3
29 Touche DECK 1
30 Touche GRID SLIDE
31 Touche GRID ADJUST
32 Touche SLIP
33 Touche SLIP REVERSE
34 Touche FX PANEL

Section Mixeur

1 2 2 2 2 3 4 5 4 Pioneer DJ LEVEL 25 26 26 26 26 26 27 27 27 27 27 28 28 28 30 30 30 30 31 31 31 31 32 32 32 32 33 33 33 34 34 34 34 34 35 (A) B) DDJ-RZ

FX1 ON ON ON ON 3 2 1 2 4 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Diagram showing audio recording setup with CDX interface and two connected electronic boards displaying various audio units.

Câble USB (fourni)

Diagram showing two electronic devices with a close-up view of the internal components (no text or symbols visible)

Diagram of three CD/DVD instrument front panels with labeled buttons and dials, showing control panel and display interface.

Labeled diagram of a CD-ROM drive with numbered components and control buttons

1 Jog-Dial-Anzeige-Abschnitt
2 Jog-Scheibe
3 NEEDLE SEARCH-Pad
4 JOG FEELING ADJUST Regler
5 VINYL SPEED ADJUST-Regler
6 MASTER TEMPO-Taste
7 TAKEOVER-Anzeige
8 TEMPO-Schieber
9 AUTO BEAT LOOP-Taste
10 LOOP 1/2X-Taste
11 LOOP 2X-Taste
12 LOOP IN-Taste
13 LOOP OUT-Taste
14 PARAMETER◀-Taste, PARAMETER▶-Taste
15 SEQUENCER START-Taste
16 SEQUENCER OVERDUB-Taste
17 HOT CUE-Modus-Taste
18 PAD FX1-Modus-Taste
19 SLICER-Modus-Taste
20 SAMPLER-Modus-Taste
21 CAPTURE-Taste
22 Auftritt-Pads
23 PLAY/PAUSE ▶/II-Taste

24 CUE-Taste
25 QUANTIZE-Taste
26 SYNC-Taste
27 SHIFT-Taste
28 DECK 3-Taste
29 DECK 1-Taste
30 GRID SLIDE-Taste
31 GRID ADJUST-Taste
32 SLIP-Taste
33 SLIP REVERSE-Taste
34 FX PANEL-Taste

Mixer-Sektion

1 2 2 2 2 3 4 5 4 Pioneer DJ LEVEL 25 26 26 26 26 26 27 27 27 27 27 28 28 28 30 30 30 30 31 31 31 31 32 32 32 32 33 33 33 34 34 34 34 34 35 (A) B) DDJ-RZ

1 OFF, ON, TALK OVER-Wahlschalter
2 USB-Anschlussanzeige
3 USB (A)-Taste
4 USB (B)-Taste
5 MASTER LEVEL Regler
6 MASTER CUE-Taste
7 Master-Pegelanzeige
8 BOOTH MONITOR-Regler
9 MASTER OUT COLOR-Regler
10 OSC SAMPLER SELECT-Taste
11 OSC SAMPLER VOLUME-Regler
12 OSC SAMPLER PARAMETER-Regler

13 SOURCE-Wahlschalter
14 HEADPHONES LEVEL Regler
15 HEADPHONES MIXING Regler
16 SOUND COLOR FX-Tasten
17 MIC COLOR Regler
18 SAMPLER SYNC-Taste
19 SAMPLER CUE-Taste
20 SAMPLER VOL-Regler
21 EQ (HI, LOW)-Regler
22 MIC2-Regler
23 MIC1 Regler
24 CD, USB-Wahlschalter
25 LINE, PHONO, USB-Wahlschalter
26 FX 1-Zuweisungstaste
27 FX 2-Zuweisungstaste
28 Kanalpegelanzeige
29 TRIM Regler
30 ISO (HI, MID, LOW)-Regler
31 COLOR-Regler
32 CUE-Kopfhörertaste
33 Kanalfader
34 Crossfader-Zuweisung-Wahlschalter
35 Crossfader
36 FEELING ADJUST Einstellungsloch

Effekt-Sektion

Diagram showing audio recording setup with CDX interface and two handheld electronic devices connected via audio jack and headphones.

Diagram showing a CD/DVD instrument with an open control panel and a close-up of its interface (no text or symbols present)

Diagram of a three-part electronic instrument with labeled parts, showing front, side, and top views.

Labeled diagram of a CD-ROM drive with numbered components and control buttons

Diagram showing audio recording setup with CDX interface and two CD/DVD headsets connected via audio jack to audio headphones

Diagram showing two electronic devices with a close-up view of the device's internal control panel (no text or symbols visible)

WAARSCHUWING NETSNOER

Diagram of a three-part electronic instrument with labeled parts, showing front, side, and top views.

Gauge Test Track - INST. DISUES BACK AREA LOAD RELATE TRACKS 1 2 3

Labeled diagram of a CD-ROM drive with numbered components and control buttons

1 Instelknop-aanduidingsdeel
2 Jog-draaiknop
3 NEEDLE SEARCH-vlak
4 JOG FEELING ADJUST-instelling
5 VINYL SPEED ADJUST-instelling
6 MASTER TEMPO knop
7 TAKEOVER-indicator
8 TEMPO schuifregelaar
9 AUTO BEAT LOOP knop
10 LOOP 1/2X-toets
11 LOOP 2X-toets
12 LOOP IN-toets
13 LOOP OUT-toets
14 PARAMETER◀-toets, PARAMETER▶-toets
15 SEQUENCER START-toets
16 SEQUENCER OVERDUB-toets
17 HOT CUE-standtoets
18 PAD FX1-modustoets
19 SLICER-standtoets
20 SAMPLER-standtoets
21 CAPTURE-toets
22 Performance-pads
23 PLAY/PAUSE ▶/Ⅱ knop

24 CUE-toets
25 QUANTIZE-toets
26 SYNC-toets
27 SHIFT-toets
28 DECK 3-toets
29 DECK 1-toets
30 GRID SLIDE-toets
31 GRID ADJUST-toets
32 SLIP-toets
33 SLIP REVERSE-toets
34 FX PANEL-toets

Mengpaneel-gedeelte

1 2 2 2 2 3 4 5 4 Pioneer DJ LEVEL 25 26 26 26 26 26 27 27 27 27 27 28 28 28 28 30 30 30 30 31 31 31 31 32 32 32 32 33 33 33 34 34 34 34 34 35 (A) B) DDJ-RZ

1 OFF, ON, TALK OVER-keuzeschakelaar
2 USB verbindingsindicator
3 USB (A)-toets
4 USB (B)-toets
5 MASTER LEVEL instelling
6 MASTER CUE-toets
7 Hoofdniveau-aanduiding
8 BOOTH MONITOR-instelling
9 MASTER OUT COLOR-instelling
10 OSC SAMPLER SELECT-toets
11 OSC SAMPLER VOLUME-instelling
12 OSC SAMPLER PARAMETER-instelling

Diagram showing audio recording setup with headphones connected to a CDX interface and a separate CD-ROM.

Diagram showing a CD/DVD instrument with an open control panel and a close-up of its internal interface (no text or symbols present)

Schakel dit apparaat in.

Diagram of three industrial control panels labeled 1, 2, and 4, showing various electronic devices and gauges.

Labeled diagram of a CD-ROM drive with numbered components and control buttons

Diagram showing audio recording setup with CDX interface and two connected electronic boards displaying audio equipment

2 Conecte altavoces activos, un amplificador de potencia, componentes, etc, a los terminales [MASTER OUT 1] o [MASTER OUT 2].

Altavoces activos, etc.

Diagram showing two electronic devices with a close-up view of the internal components (no text or symbols visible)

Diagram of three CD/DVD backends with labeled control panels and buttons, showing front, side, and top views.

Gauge Test Track - INST. DISUES BACK AREA LOAD RELATE TRACKS 1 2 3

Labeled diagram of a CD-ROM drive with numbered components and control buttons

Diagram showing audio recording setup with CDX interface and two connected electronic devices

Diagram showing two electronic devices with a close-up view of the internal components (no text or symbols visible)

Diagram of three CD/DVD instrument front panels with labeled buttons and dials, showing control panel and display interface.

Labeled diagram of a CD-ROM drive with numbered components and control knobs

Diagram showing audio recording setup with CDX and two connected electronic boards displaying audio equipment

Diagram showing two electronic devices with a close-up view of the device's front panel (no text or symbols present)

© 2015 Pioneer DJ Corporation.

All rights reserved.

© 2015 Pioneer DJ Corporation.

Pioneer DJ Corporation

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

Pioneer DJ 株式会社

Pioneer DJ Europe Limited

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ, U.K. TEL: [phone]

Pioneer DJ Americas, Inc.

P.O. BOX 1720, Long Beach, California 90801-1720, U.S.A. TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE, PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS (THAILAND) CO., LTD.

17th Fl., KPN Tower, 719 Rama 9 Road, Bangkapi, Huaykwang, Bangkok 10310 TEL: [phone]

PIONEER TECHNOLOGY (MALAYSIA) SDN. BHD

16th Floor, Menara Uni. Asia 1008 Jalan Sultan Ismail 50250 Kuala Lumpur TEL: [phone]

先鋒股份有限公司

Lob 11-017, Jebel Ali Free Zone P.O. Box 61226, Jebel Ali Dubai, United

Arab Emirates TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec,

Mexico, D.F. 11000 TEL: [phone]

PIONEER INTERNATIONAL LATIN AMERICA S.A.

Plaza Credicorp Bank, 14th Floor, Calle 50, No.120 Panama City

816-01361 Republic of Panama TEL: [phone]

PIONEER INDIA ELECTRONICS PRIVATE LTD.

1. Second Floor, Time Tower, M.G. Road, Sector 28, Gurgaon 122001,

Haryana, India TEL: [phone]

Сделано в Малайзии

Printed in / Imprimé

Black and white barcode image with vertical lines and dots
