XR 8A01 - Speaker Trevi - Free user manual and instructions

Product type	Portable speaker with microphone
Brand	Trevi
Model	XR 8A01
Dimensions	142 x 90 x 73 mm
Unit weight	383 g
Microphone weight	58 g
Power supply	5V - 1A via Type-C port
Unit battery	Internal lithium 3.7 V - 1200 mAh
Microphone battery	Internal lithium 3.7 V - 500 mAh
Audio power	10 W
Max wireless transmission power	0.8 mW
Wireless frequency	2.4 GHz
Connectivity	Wireless, USB, TF card, AUX (3.5 mm jack)
Main features	Music playback, hands-free, LED light effects, microphone with reverb and voice effects
Controls	Volume, track, play/pause, light, mode, microphone (volume, reverb, magic voice) buttons
Battery life	Charging: about 4 hours; usage: varies depending on volume
Maintenance and cleaning	Use a slightly damp soft cloth, avoid solvents and abrasives
Safety	Do not use with voltage above 5 V; do not listen at high volume; avoid magnetic fields, heat, humidity, dust, vibrations; leave 5 cm of space around for ventilation
Spare parts and repairability	Battery replaceable by technical personnel; Trevi authorized service center
General information	Automatic shutdown after 15 min in wireless/AUX mode; disposal according to WEEE regulations

Frequently Asked Questions - XR 8A01 Trevi

How to pair the speaker with my smartphone?

Turn on the device and select the Wireless function with the M button. On your smartphone, search for Bluetooth devices and select 'XR 8A01'. A tone confirms pairing.

How to charge the speaker and microphone?

Use the supplied Type-C cable. Plug it into the Type-C port of the speaker (mark 9) or microphone (mark 16) and into a USB 5V 1A adapter. The red light turns on during charging and turns off when the battery is full.

What to do if the device does not turn on?

Make sure the battery is charged. Press and hold the ⏻ ▶ II button (3) for a few seconds. If the problem persists, perform a reset by inserting a pointed object into the AUX input (7) to reach the RESET button.

How to use the microphone with the speaker?

Turn on the microphone by pressing and holding the (11) button. Adjust the volume with the + and - buttons on the mic. Press (11) to switch to reverb mode, then press and hold + or - to enable/disable it. Use (14) to change voice effect.

How to activate the light effects?

Press the light button (4) several times to cycle through the different LED modes. To turn off the light completely, press and hold this button for a few seconds.

Can I play music from a USB drive or SD card?

Yes. Insert a USB drive into the USB input (6) or a TF card into the slot (8). Playback starts automatically. Use the + and - buttons to navigate between tracks.

How to connect a device via the AUX cable?

Plug a 3.5 mm jack cable from your device (phone, computer) into the AUX input (7). The speaker automatically switches to this source. Control playback from your external device.

What is the battery life and how to extend it?

The 1200 mAh lithium battery offers several hours of listening. To extend its life, charge it fully before first use and avoid letting it discharge completely. The ideal charging temperature is between 5°C and 35°C. Do not charge for more than 4 hours.

How to clean the speaker?

Use a slightly damp soft cloth without solvents or abrasive products. Avoid allowing water to enter the openings. Disconnect the device before cleaning.

What to do in case of Bluetooth connection issues?

Delete the device 'XR 8A01' from your phone's Bluetooth list. Restart the speaker and your phone. Perform a new search. If the problem persists, try a reset via the RESET hole in the AUX input.

USER MANUAL XR 8A01 Trevi

White and magenta portable radio with a black-and-white microphone beside it (no visible text or symbols)

Do not use power supply with a voltage higher than 5V, cause damage to the player.

• Listen at high volume for long periods of time, may damage your hearing.

• Avoid using it in the following cases:

• Near strong heat sources, such as central heating plants or stoves.

• In very humid places such as bathrooms, swimming pools, etc.
• In very dusty places.
• In places subject to strong vibrations.

• Position the appliance in such a way that there is always enough room for free air circulation (at least 5cm).

• Do not block the air inlets.

• If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
• Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
  • No naked flame sources, such as lighted candles, should be placed on this.
• The apparatus shall not be exposed to dripping or splashing water and no object filled with water, such as vases, should be placed on the unit.
• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning it is recommended to use a soft, slightly damp cloth. Avoid solvents or abrasive substances.

IMPORTANT

The construction of this device guarantees long flawless operation. However, if come some problem, you should consult your nearest authorized service center.

TREVI pursues a policy of continuous research and development. Therefore, the products may show different characteristics from those described.

WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY

• Recharge the battery in an ambient temperature between 5^ C and 35^ C.
• Don't recharge more than the suitable period to prevent the risk of overheating and burst.
• Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration.
• Rechargeable battery is liable to wear and tear and its performance will reduce gradually.
• To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result in reduced duration. In this case, repeat the full charging/discharging cycle many times.
• Avoid recharge the battery for the whole night.

CONTROLS

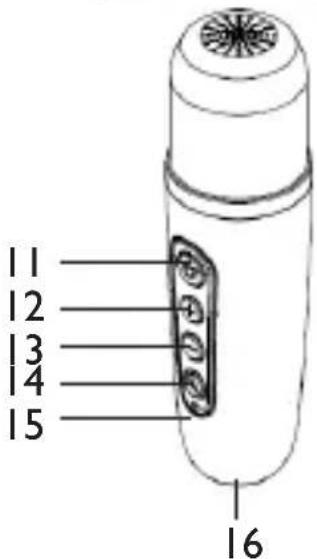

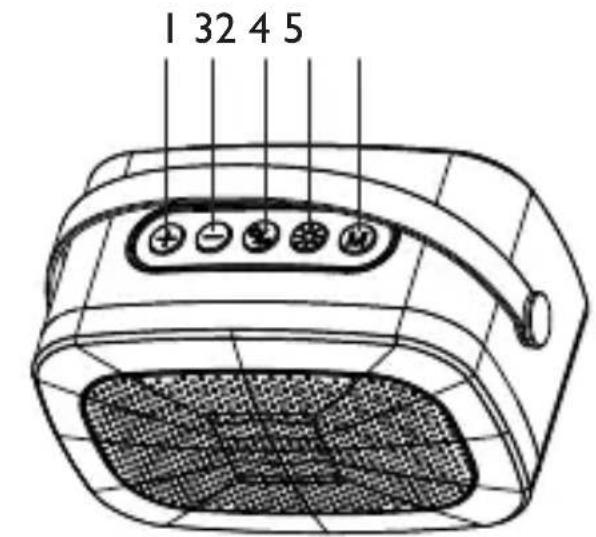

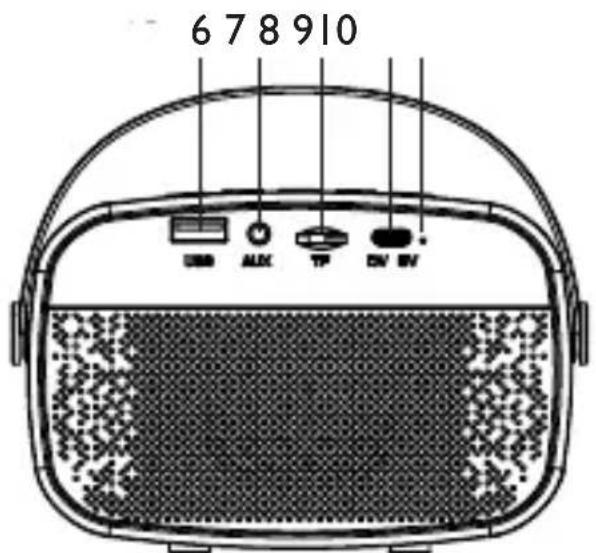

1 32 4 5

678910 USB AUX TP CN BV

11 12 13 14 15 16

1. • button:

2. click: Volume Up

3. Long press: next song

2 - button:

• click: Volume Down

• Long press: previous song

• button:

• click: Play/Pausa

• Long press: switch On and Off

• Lighting button:

• click: switch to LED magic light mode

• Long press: Turn the light On/Off

• Tasto M:

• click: function selection

• Long press: In Wireless mode, eliminates the voice cancel. Under TF card and USB mode single loop/sequential play

• USB input

• AUX input, RESET function

• TF card input

• TYPE-C input for charging 5V—

• Charging indicator

• button:

• click: Volume control/Reverb control

• Long press: Power On/power Off

• • button; volume up/reverb up
• • button; volume down/ reverb down

• Microphone button:

• Click: magic voice

• Long press: eliminates the original sound

• Charging indicator

• TYPE-C input for charging 5V____

CHARGE THE DEVICE

UNIT

The unit must be recharged when switched off.

I. Using the supplied cable, connect the side with the C-type socket to the socket (9) of the speaker and the other end to the USB port of a USB power supply (5V — IA not included);
2. The Led indicator (10) will turn on (red) to indicate the recharging function. When fully charged, it will turn off.

Note: when the battery is running low, the device will emit a beep a few times before turning off automatically.

MICROPHONE

The microphone must be recharged when switched off.

I. Using the supplied cable, connect the side with the C-type socket to the socket (16) of the speaker and the other end to the USB port of a USB power supply (5V — IA not included);
2. The Led indicator (15) will turn on (red) to indicate the recharging function. When fully charged, it will turn off.

BASIC OPERATION

ON/OFF

To switch On and Off the unit, press and hold ▶ II (3) button for a few seconds.

To switch On and Off the microphone, press and hold the key(11) for a few seconds.

Note: In Wireless and AUX IN mode, if there is no operation within 15 minutes, the unit will turn off automatically; to reactivate it, hold down the ⏻ ▶ II (3) button for a few seconds.

VOLUME ADJUSTMENT

Adjust the speaker volume using the +(1) and -(2) keys on the device.

Adjust the microphone volume using the +(12) and -(13) keys on the microphone.

WIRELESS OPERATION

Pairing to devices:

I. Place the speaker close to the Wireless device to pair;
2. Switch On the device and select the Wireless function using the M(5) key;
3. Follow the instructions of your external device to search for the speaker;
4. Search and pair the speaker named "XR 8A01";
5. Once pairing is successful (you will hear a confirmation tone) it will be possible play music tracks.

Note: When Wireless pairing with external devices fails, delete another one Wireless device in the connection list; restart the Wireless speaker and search for signal again.

Music playback management

• Hold down the +(1) button on the speaker for a few seconds to go to the next track, hold down the -(2) button for a few seconds to go to the previous track.
• Press the ⏻▶ II (3) key to pause; press it again to resume music playback.
• Hold down the M(5) key for a few seconds to lower the voice of the song being played and sing on it.

TF CARD/USB

I. Insert a TF Card or a USB memory in sockets (8) or (6) and turn on the device;
2. Playback will start automatically;
3. Hold down the -(2) key for a few seconds to go to the previous track, hold down the +(1) key for a few seconds to go to the next track;
4. Press ⏻ ▶ II (3) button to pause; press it again to resume music playback;
5. Press and hold the M(5) key for a few seconds to activate the track repeat/sequential playback function.

AUX

I. With the device switched on, connect any unit equipped with an audio output via the appropriate 3.5mm Jack cable to the AUX input (7);
2. The unit will automatically switch to this input;
3. Start playback from the external device. For all playback functions, refer to the manual of the external device.

RESET

Insert a pointed object all the way into the AUX input (7) to reach the RESET button.

LIGHTING EFFECTS

I. To view the various light effects available, press the key (4) repeatedly;
2. Press and hold the button (4) for a few seconds to completely deactivate/activate the light effects.

MICROPHONE

I. Turn on the microphone by holding down the key(II) for a few seconds;
2. Use the +(12) and -(13) keys on the microphone to adjust the volume;
3. Press the (11) button once to switch to the reverb function and press and hold the +(12) or -(13) button on the microphone to turn the reverb function on or off. Press again the (1) button to switch to volume adjustment.
4. Press the key (14) several times to vary the vocal effect.

TECHNICAL FEATURES

Rechargeable Battery Unit: ....... Internal Lithium 3.7V - 1200mAh

Rechargeable Battery Microphone: Internal Lithium 3.7V - 500mAh

Power supply: 5V JA with C-Type socket

Audio power: 10W

Wireless max tx power: 0.8mW

Wireless TX Frequency: 2.4GHz

Dimensions: 142 x 90 x 73mm

Weight unit: 383gr

Weight Microphone: 58gr

BATTERY REMOVAL AND DISPOSAL POLICY

Attention: the removal and disposal operation is reserved exclusively to specialized technical personnel!

Regardless of the type of used battery, it must not be disposed of with household waste, fire or water. Each type of used battery must be recycled or disposed of at the appropriate dedicated collection centres.

To remove the battery:

I. Remove the grille covering the speaker by pulling it outwards;
2. Unscrew the 4 screws that fix the Led frame; disconnect and extract the Led frame;
3. Unscrew the 4 outermost screws and extract the internal black cabinet;
4. Unscrew the screws that secure the printed circuit board and those remaining in front of the speaker;
5. Separate the two plastic parts and locate the battery, disconnect and remove it.

NOTES D'EMPLOI

FONCTIONNEMENT WIRELESS

Couplage aux appareils:

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product. Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type XR 8A01 is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.trevi.it/dms/zidi/TREVI/DOCXR8A01.pdf

Grid of nine grayscale speech bubbles containing national flags and country symbols (no text or numbers visible)

EN If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it
