Product Type	UHF 2-channel wireless microphone system
Brand	Vonyx
Model	WM82B (with bodypack transmitter and headset)
Versions	179.212: WM82 with handheld microphone; 179.214: WM82B with bodypack transmitter and headset
Frequency	UHF
Receiver Power Supply	12 V DC 1 A (power adapter included)
Handheld Microphone Power (WM82 model)	2 AA batteries (remove if not used for extended periods)
Bodypack Transmitter Power	Built-in rechargeable lead-acid battery (recharge every 3 months if unused)
Receiver Audio Outputs	2x balanced XLR (Channel A and B), 1x 6.35 mm jack
Antenna	Integrated antenna on receiver
Range	Approximately 30-50 m in open field (depending on obstacles)
Usage	Indoor only, ambient temperature 5°C to 35°C
Safety	Do not open the housing, do not expose to moisture, use on a protected circuit with ground
Maintenance	Clean with a dry cloth, no solvents. Remove batteries if not used for extended periods.
Reparability	Repairs by authorized technician only, original parts mandatory
Dimensions (Receiver)	Approximately 200 x 150 x 40 mm (estimate)
Weight (Receiver)	Approximately 0.5 kg (estimate)
Package Contents	Receiver, bodypack transmitter, headset microphone, power adapter, manual

Frequently Asked Questions - WM82B Vonyx

How to turn on the receiver?

Use the Power switch on the front of the receiver. The LCD display shows channels and frequencies.

What type of batteries for the handheld microphone (WM82 model)?

The handheld microphone uses 2 AA batteries. If not used for extended periods, remove the batteries to prevent leakage.

What is the system range?

The range is approximately 30 to 50 meters in open field, but may be reduced by metal obstacles or interference.

How to adjust the volume?

Turn the Volume A and Volume B knobs on the front of the receiver to adjust each channel's level.

Can I use a handheld microphone (WM82) with the WM82B receiver?

Yes, the receiver is compatible with both versions. The WM82B system is shipped with a bodypack transmitter, but you can use a separate handheld microphone on the same receiver.

How to recharge the bodypack transmitter battery?

The bodypack transmitter contains a rechargeable lead-acid battery. Recharge it every 3 months if unused by plugging it in via the provided cable (not specified in the manual, but generally via an external charger). Consult the manual for exact charging method.

What to do if the microphone does not pick up?

Check that batteries are charged, that there are no obstacles between the microphone antenna and receiver antenna, and that the distance is not too large. Avoid sources of interference like computers.

How to clean the microphone?

Use a dry cloth. Do not use chemicals or solvents. For the handheld microphone, the grille can be wiped gently.

Can I use this system outdoors?

No, the device is designed for indoor use only with a temperature between 5°C and 35°C. Do not expose it to rain or moisture.

How to connect the receiver to a mixer?

Use the balanced XLR outputs (Channel A and B) or the 6.35 mm jack output to connect the receiver to the mixer input.

USER MANUAL WM82B Vonyx

WM82 Series Wireless UHF Microphone

Ref. nr.: 179.212; 179.214; 179.215

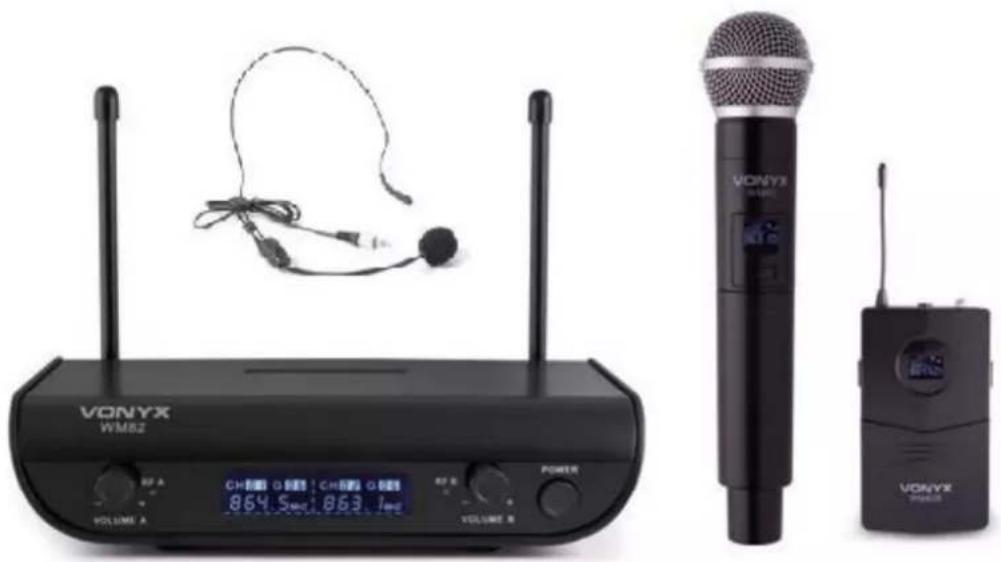

Three black VONYX WMSZ audio devices: two connected to a handheld earbuds, and one with a visible microphone (no text or symbols on the devices themselves)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

V1.3

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

- Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.

- The product contains voltage carrying parts. Therefore, do NOT open the housing.

- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.

- Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.

- The product is not suitable for continuous use.

- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.

- When unplugging the product from a mains outlet, always pull the plug, never the lead.

- Do not plug or unplug the product with wet hands.

- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.

- If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.

- To avoid fire and shock hazard, do not expose the product to rain and moisture.

- All repairs should be carried out by a qualified technician only.

- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.

- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.

- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

- To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.

- Do not repeatedly switch the product on and off. This shortens the lifetime.

- Keep the product out of the reach of children. Do not leave the product unattended.

- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.

- Do not force the controls.

- If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.

- If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.

- If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.

- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.

- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.

- Keep away from electronic equipment that may cause interference.

- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.

- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.

- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!

- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.

- Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

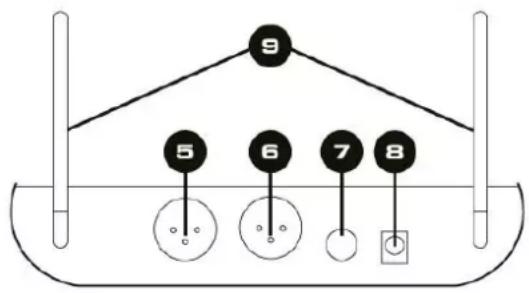

FRONT- AND BACKPANEL

1. LCD Display
2. Volume Channel A
3. Volume Channel B
4. Power On/Off
5. 3-pin XLR Balanced output Channel B
6. 3-pin XLR Balanced output Channel A
7. Jack 6.35mm (1/4") output connector
8. Power input (12V DC 1A)
9. Antenna

Models:

179.212 : WM82 UHF Microphone System 2 channel handheld microphone

179.214 : WM82B UHF Microphone System 2 channel bodypack + headset

UHF HANDHELD

1. Grille: Protects the cartridge and help reducing the breath sounds and wind noise.
2. Display
3. Power ON/OFF Switch.
4. Low battery indicator: Red light glows when the power is low and change the battery.
5. Battery Cover: Open it to install the battery. remove batteries in case of long time no use (prevent leakage).

Attention: If the microphone are not used for a longer period, please remove the batteries to prevent damage in case of battery leakage!

UHF BODYPACK

1. Power ON/OFF
2. Microphone input Jack for headset.
3. Antenna
4. Power On/Off LED indication
5. Battery Cover: Open it to install the battery.
6. Display
7. Belt Clip

Line drawing of a medical device with ear and ear components (no text or symbols)

Attention: If the bodypack are not used for a longer period, please remove the batteries to prevent damage in case of battery leakage!

HEADSET MICROPHONE

Connect the connector of supplied headset microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless headset system (6).

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

OPERATION

1. Switch on the microphone receiver with the power switch. The display indicates the preset transmission channels and frequencies.
2. Switch on the hand-held microphone or bodypack. The power indicator lights. If it fails to light up, a new battery must be inserted.
3. Switch on the following audio unit (e.g. amplifier or mixer).
4. Speak into each microphone and match the output level of the receiver to the input of the following unit with the respective level control.
5. After operation switch off the receiver and the microphones.

For optimum receiving:

• Make sure that maintain a line-of-sight between the microphones and receiver antennas.
• Make sure the distance between the microphones and the receiver is not too long.
• Make sure the reception is not disturbed by objects in the transmission path, avoid metal or other dense materials may be present and computers or other HF-generating equipment.
  • Make sure the batteries of are always sufficiently charged.
