WM62B - Microphone Vonyx - Free user manual and instructions

Product type	UHF wireless microphone with bodypack transmitter
Brand	Vonyx
Model	WM62B
Frequency band	UHF (specific range not specified)
Receiver power supply	Mains adapter 220-240 V~ / 50 Hz, micro USB plug
Transmitter power supply	2 R6 (AA) 1.5 V batteries
Audio outputs	1x XLR, 1x 6.35 mm jack
Antennas	2 adjustable antennas at 45°
Main functions	Channel selection, IR synchronization, volume control, LCD screen
Range	Approximately 50 m in open field (estimated)
Usage	Indoor, temperature 5°C to 35°C
Approximate dimensions (receiver)	200 x 150 x 45 mm (estimated)
Approximate weight (receiver)	500 g (estimated)
Maintenance and cleaning	Dry cloth, no chemical products
Safety	Do not open, avoid moisture, unplug during storms
Spare parts and repairability	Use original parts, repair by qualified technician
General information	CE certification, no license required in listed countries

Frequently Asked Questions - WM62B Vonyx

How to set up the WM62B system?

Connect the receiver via the mains adapter, install the batteries in the bodypack transmitter (2x AA), turn on both devices, then use IR synchronization to pair the channels.

What type of batteries to use for the bodypack transmitter?

Use two 1.5 V R6 (AA) alkaline batteries. Remove the batteries if not used for a long time to avoid leakage.

How to synchronize the transmitter with the receiver?

On the receiver, press and hold the Down button to activate the IR function. Place the transmitter facing the IR sensor on the receiver, then press the corresponding button on the transmitter to synchronize.

What is the maximum range of the system?

The range is approximately 50 meters in open field without obstacles. Indoors, it may be reduced by walls and interference.

Can I use the system outdoors?

The device is designed for indoor use only. Do not expose it to rain or moisture.

How to clean the microphone and receiver?

Use a dry, soft cloth. Do not use chemicals or sprays, as they may damage the coating.

What to do if the sound is weak or distorted?

Check the transmitter batteries, the volume on the receiver, the antenna position (at 45°), and avoid sources of interference such as other wireless devices.

Is it necessary to have a license to use this microphone?

No, in the countries listed in the manual (BE, DK, FR, FI, DE, HU, IT, NL, NO, PL, PT, RO, SI, ES, SE, CH, GB), no license is required.

Can I use multiple WM62 microphones at the same time?

Yes, multiple systems can be used simultaneously by selecting different channels to avoid interference.

What to do if the transmitter does not turn on?

Check the battery polarity and condition. Replace them if necessary. Ensure the switch is in the ON position.

USER MANUAL WM62B Vonyx

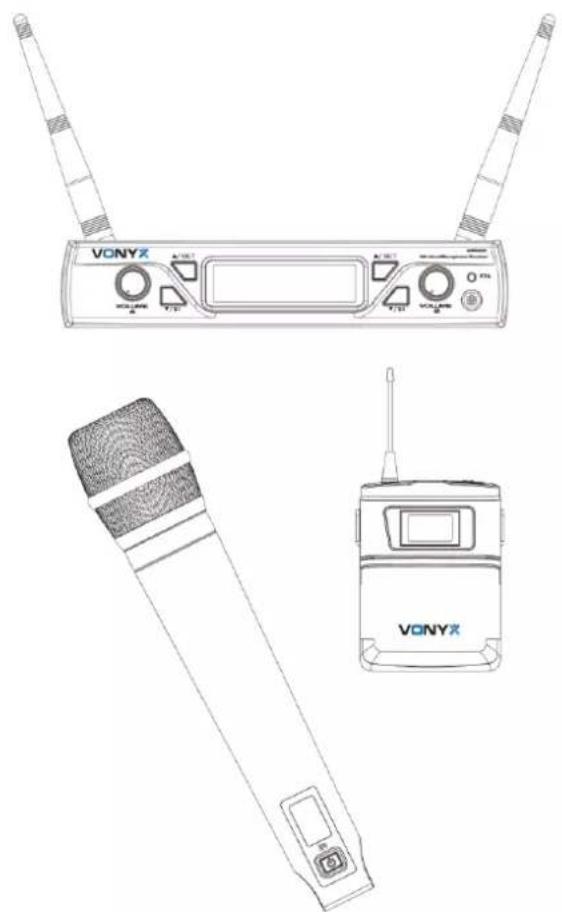

WM62 UHF Wireless Microphone set

Ref. nr.: 179.262; 179.264

Technical line drawing of a VONYX wireless device with external antennas, showing front, side, and top views (no text or symbols on the device itself)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

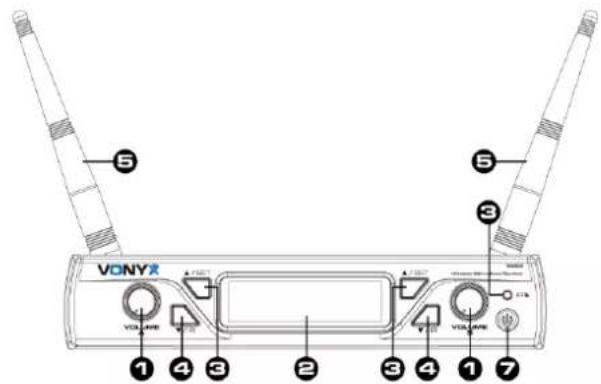

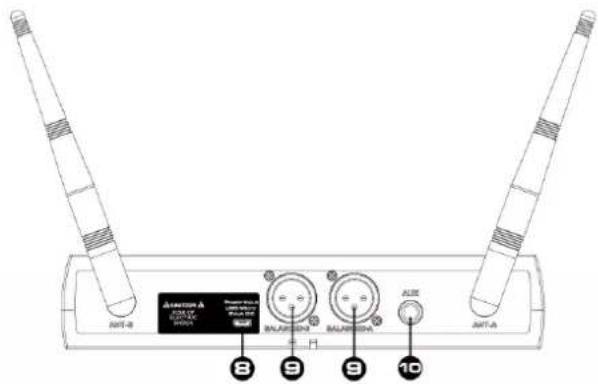

FRONT- AND BACKPANEL

1. Volume
2. Display
3. Up function / Set channel data
4. Down function / Set channel data or press long to apply IR function
5. Antenna
6. Infrared sensor
7. Power On/Off
8. Power input via micro USB connector
9. XLR connector for output signal to mixer
10. 6.3mm ¼ Jack for output signal to mixer

Models:

179.262:WM62 UHF Microphone System with 2x handheld microphone

179.264:WM62B UHF Microphone System with 2x bodypack

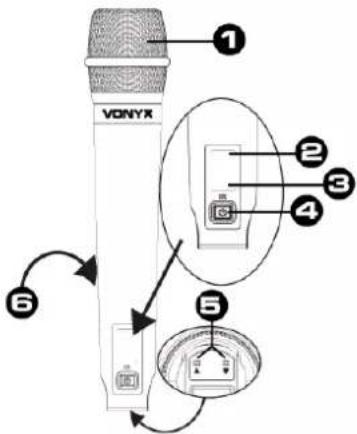

HANDHELD MICROPHONE

1. Grille, protects the cartridge and help reducing the breath sounds and wind noise.
2. Display
3. IR Learn sensor
4. Power ON/OFF
5. Up / Down Channel selection
6. Battery compartment - 2xAA 1.5V

Attention: If the handheld microphone are not used for a longer period, please remove the batteries to prevent damage in case of battery leakage!

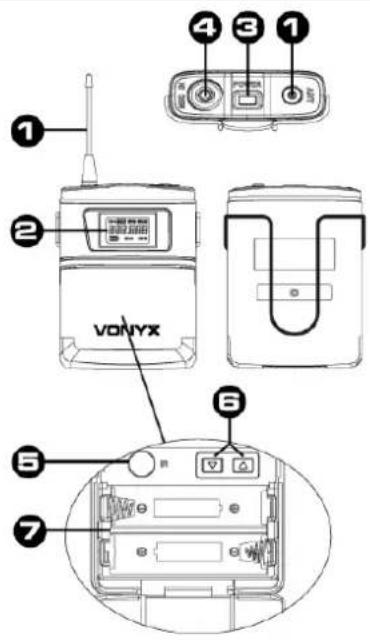

BODYPACK

1. Antenna
2. Display
3. Power ON/OFF
4. Microphone input Jack for headset.
5. IR Learn sensor
6. Up / Down Channel selection
7. Battery compartment - 2xAA 1.5V

Line drawing of a medical device with attached tubing (no text or symbols)

Attention: If the bodypack are not used for a longer period, please remove the batteries to prevent damage in case of battery leakage!

Lavalier microphone

Headset microphone

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

Line drawing of a person wearing a headset and holding a device (no text or symbols)

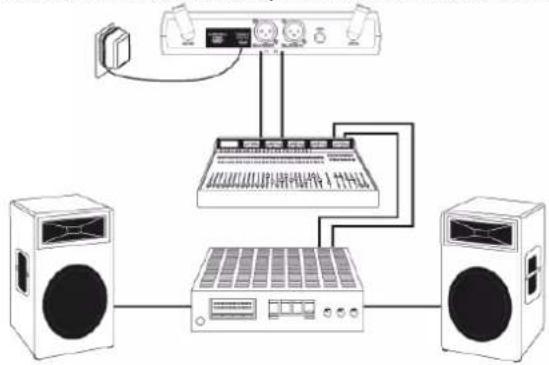

SYSTEM CONNECTIONS

1. Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC adapter into a AC230V 50Hz outlet.

1. Keep the position of antenna at a 45^ angle from vertical. Shown as below.

1. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.

No license required (excluding geographical restrictions)

BE	DK	F	FI	DE
HU	IT	NL	NO	PL
PT	RO	SI	ES	SE
CH	GB

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB).

NEDERLANDS

Line drawing of a medical device with ear and connector (no text or symbols)

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

Line drawing of a person wearing a headset and tie, holding a small object (no text or symbols)

SYSTEEM AANSLUITEN

Line drawing of a medical device with ear and connector (no text or symbols)

Line drawing of a VONX device with attached cable and sensor (no text or symbols)

Line drawing of a person wearing a headset and holding a device (no text or symbols)

SYSTEMANSCHLÜSSE

Line drawing of a medical device with earbuds and connector (no text or symbols)

Line drawing of a device with a Lenovo logo and cable, no text or symbols present

Line drawing of a person wearing a headset and holding a small object (no text or symbols)

Line drawing of a medical device with ear and connector (no text or symbols)

Emetteur de poche

Line drawing of a VANYX sensor device with cable and connector (no text or symbols)

Line drawing of a person wearing a headset and tie (no text or symbols)

BRANCHEMENTS

Line drawing of a medical device with attached tubing (no text or symbols)

Illustration of a person holding a medical device with an inset showing a close-up of the device (no text or symbols present)

Line drawing of a VANYX sensor device with attached cable and connector (no text or symbols)

Line drawing of a person wearing a headset (no text or symbols)

	WM62	WM62B
	179.262	179.264
Power supply:	100-240VAC 50/60Hz
Frequency Range:	863 – 865 Mhz
Frequency Response:	40Hz - 17.000Hz
Frequency stability:	0.002%
Sensitivity:	-90dB
Signal-to-noise ratio:	>90dB
THD:	<1%
Dimensions:
Receiver:	185 x 215 x 40mm
Handheld:	52x250mm	-
Bodypack:	-	30 x 68 x 100mm
Weight:	0,9kg	0,8kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

• The products referred to in this manual conform to the European Community Directives to which they are subject:
  ●

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
