05914 - Barbecue Gourmetmaxx - Free user manual and instructions

Brand	Gourmetmaxx
Model	05914
Product type	Electric barbecue with rotating spit
Power supply	220 – 240 V ~ 50 Hz
Power	max. 1400 W
Protection class	I
Maximum capacity	4 kg of meat or a whole chicken
Suitable for	Kebab, gyros, whole chicken, skewers
Material	Metal, plastic
Included parts	1 stand, 1 medium spit gear, 6 skewer prongs, 1 medium spit, 1 rotating spit base, 1 drip tray, 1 heat shield, switch, cord
Assembly	Manual, tool-free disassembly
Operation	Motorized rotating spit, resistance heating
Cleaning	Dishwasher safe: medium spit, base, prongs, tray; appliance: damp cloth
Safety	Heat shield, hot surfaces, do not immerse, use by children over 8 under supervision
Operating temperature	High (not specified)
Use	Indoor only, on a stable and heat-resistant surface
Warranty	Manufacturer's warranty on manufacturing defects (non-conforming use excluded)
Parts availability	Original manufacturer parts
Article code	05914
Importer	Am Heisterbusch 1, 19258 Gallin, Germany

Frequently Asked Questions - 05914 Gourmetmaxx

How to assemble the Gourmetmaxx 05914 barbecue?

Place the appliance on a flat surface, insert the drip tray, the heat shield, then the medium spit into the hub. Attach the gear to the spit, then the stand into the rear slot and screw it in. For skewers, add the prongs with their gears.

What types of food can I cook with this barbecue?

The appliance is designed for grilling kebab, gyros, whole chickens, and skewers. It can hold up to 4 kg of meat.

What to do if the spit does not rotate?

Check that the meat does not extend beyond the rotating spit base and that the gears are correctly assembled (smooth side up). Make sure the stand is properly fixed in the rear wall and on the gear.

Can I wash the parts in the dishwasher?

Yes, the medium spit with its base, the skewer prongs, and the drip tray are dishwasher safe. Clean the appliance body with a damp cloth and dish soap.

Is it safe to use this barbecue outdoors?

No, the appliance is designed for indoor use only. Do not use in damp rooms or near flammable materials.

How to avoid burns during use?

Surfaces become very hot. Use oven mitts to handle the appliance. Skewer handles may also heat up. Allow to cool before removing skewers.

Can children use this appliance?

It can be used by children aged 8 and above under supervision. Cleaning by children is allowed only if they are over 8 and supervised. Keep the appliance out of reach of children under 8.

What to do in case of a grease fire?

Never use water. Smother the flames with a fire blanket or an extinguisher suitable for grease fires. Unplug the appliance immediately.

How to clean stubborn grease residues?

Dishwasher-safe parts withstand a normal cycle. For the heat shield, grease residues may cause discoloration without affecting operation. Clean it with a damp cloth and mild detergent.

What is the electrical power of the appliance?

The appliance operates on 220-240 V ~ 50 Hz with a maximum power of 1400 W. It is protection class I, requires a grounded outlet.

USER MANUAL 05914 Gourmetmaxx

Black-and-white photo of a stainless steel kitchen appliance with food items on a table, no visible text or symbols.

05914

DE

Gebrauchsanleitung

ab Seite 3

EN

Operating instructions

starting on page 13

FR

Mode d'emploi

Technical line drawing of a mechanical device with a central hub and a separate circular component (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical top and internal structure, showing no text or symbols.

Technical line drawing of a mechanical device with a central hub and a separate circular component (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Simple line drawing of a mechanical device with a base and lever, no text or symbols present

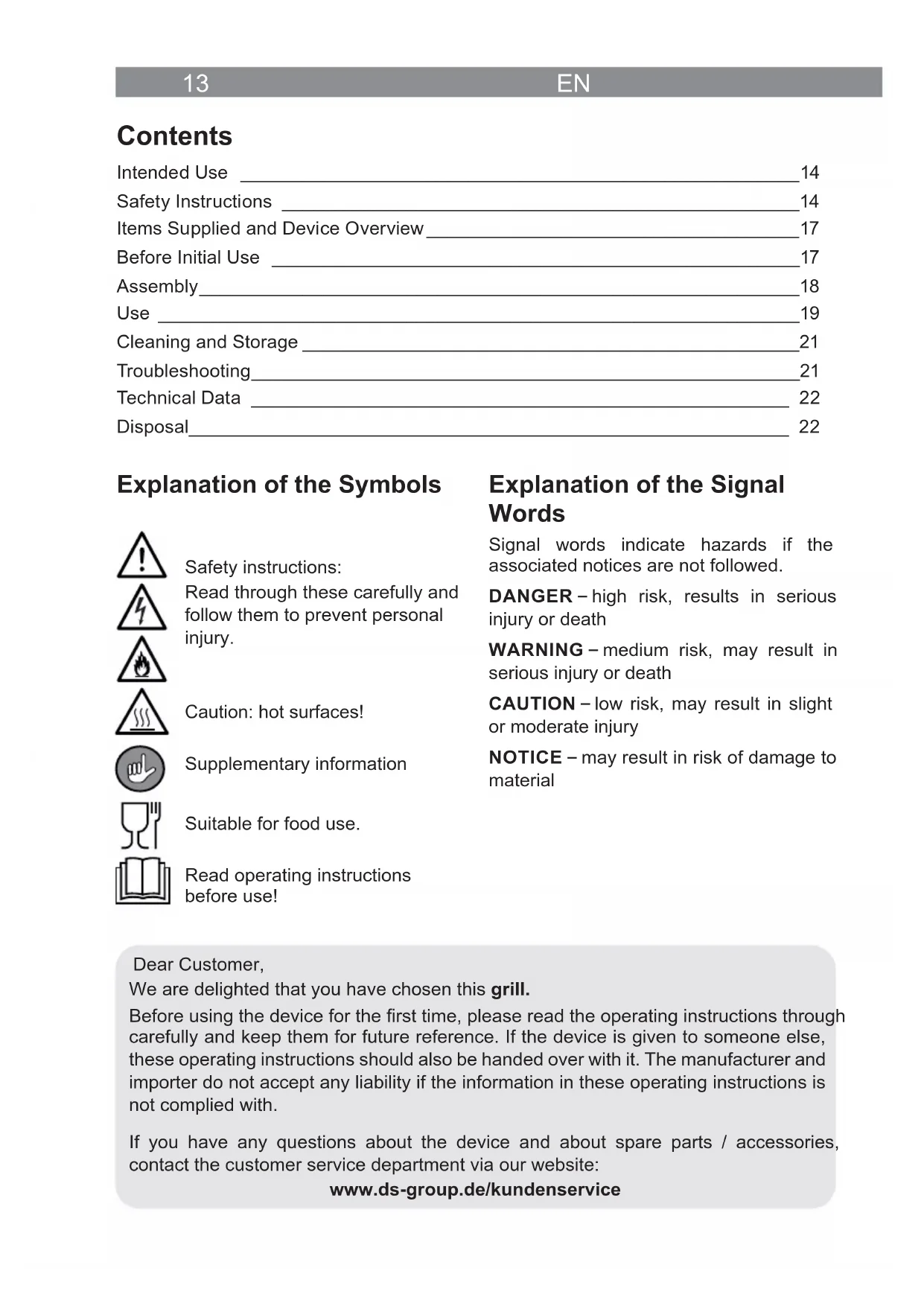

Safety Instructions 14

Items Supplied and Device Overview 17

Before Initial Use 17

Assembly 18

Use 19

Cleaning and Storage 21

Troubleshooting 21

Technical Data 22

Disposal 22

Explanation of the Symbols

Safety instructions:

Read through these carefully and follow them to prevent personal injury.

Caution: hot surfaces!

Supplementary information

Suitable for food use.

Read operating instructions before use!

Explanation of the Signal Words

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in slight or moderate injury

NOTICE – may result in risk of damage to material

Dear Customer,

We are delighted that you have chosen this grill.

Before using the device for the first time, please read the operating instructions through carefully and keep them for future reference. If the device is given to someone else, these operating instructions should also be handed over with it. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website:

• The device is intended for grilling kebabs, döner kebab and whole chickens.
• This device is for personal use only and is not intended for commercial applications.
• Use the device only for the intended purpose and as described in the operating instructions. Any other use is deemed to be improper.
• The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.

Safety Instructions

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
- Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.
■ Children younger than 8 years of age and animals must be kept away from the device and the mains cable.

■ CAUTION: Hot surface! The device will become very hot during use. Do not come into contact with heated parts while or after using the device! Wait until the device has cooled down fully before it is transported or stored away. Use suitable oven gloves when handling the device.

■ Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
- The device must always be disconnected from the mains power when left unattended and before assembling, disassembling or cleaning it.
- The device is not designed to be operated with an external timer or a separate remote control system.

• Check the device for damage each time before you use it. Only use the device if the device, mains cable and mains plug have no signs of damage!
• Do not make any modifications to the device. Also do not replace the mains cable yourself. If the device, the mains cable or the mains plug of the device are damaged, these parts must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
  It is essential to note the cleaning instructions in “Cleaning and Storage”!

DANGER – Danger of Electric Shock from Water

■ Use and store the device only in closed rooms. Do not operate the device in rooms with high humidity.
- Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
- Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
- Do not use the device if it has malfunctioned, fallen or been dropped in water. Have it checked in a specialist workshop before using it again.

WARNING – Danger of Electric Shock from Damage and Inappropriate Use

The device should only be connected to a properly installed socket with safety contacts. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.

- Do not use the device in conjunction with extension cables.

WARNING – Danger of Fire

• Do not use the device in rooms containing easily ignitable or explosive substances.
• Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper or plastic) on or in the device.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
• Do not cover the device during operation in order to prevent it from catching fire. Ensure that there is sufficient ventilation while the device is in operation.
• Do not use food wrapped in cling film, plastic bags or aluminium foil with the device.
  ■ Do not use the device for heating.

In the event of a fire:

– Pull the mains plug out immediately.
- Hot fat / oil may catch fire if it is overheated. Do not extinguish burning fat / oil with water, but smother the flames with a fire blanket or similar cloth or extinguish a fat fire with a fire extinguisher which is capable of extinguishing fires involving cooking fat!
- Do NOT use water to extinguish the fire as the steam can pose an additional risk of scalding.
- Dispose of the device.

CAUTION – Danger of Injury

■ The skewers have sharp points. Take care when handling them.

Danger of burns!

■ During operation the plastic handles of the skewers also become hot. Allow the skewers to cool down before they are removed from the device.
The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
■ Do not move the device during use.

- Danger of tripping! Make sure that the connected mains cable does not present a trip hazard.

NOTICE – Risk of Damage to Material and Property

■ Always set up the device with enough clearance on all sides (approx. 30 cm) and above and on a dry, even, stable and heat-resistant surface. Do not place it below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
■ Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces (this also applies to the hot surfaces of the device!).
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
■ Never pull or carry the device by the mains cable. When the mains plug is removed from the plug socket, always pull on the mains plug and never the mains cable.
- Do not wrap the mains cable around the device.
- Protect the device from heat, naked flames, extreme temperatures, persistent moisture, wet conditions and collisions.
■ Use only original spare parts from the manufacturer.

Items Supplied and Device Overview

PLEASE NOTE!

■ WARNING – Danger of suffocation! Keep children and animals away from the packaging material.

■ Never remove the rating plate and any possible warnings!

1. Unpack the items supplied and check them for completeness and transport damage. If the device, the mains plug or the mains cable does have damage, do not (!) use the device, but contact our customer service department.

2. Remove all packaging materials and any possible protective films used for protection during transportation.

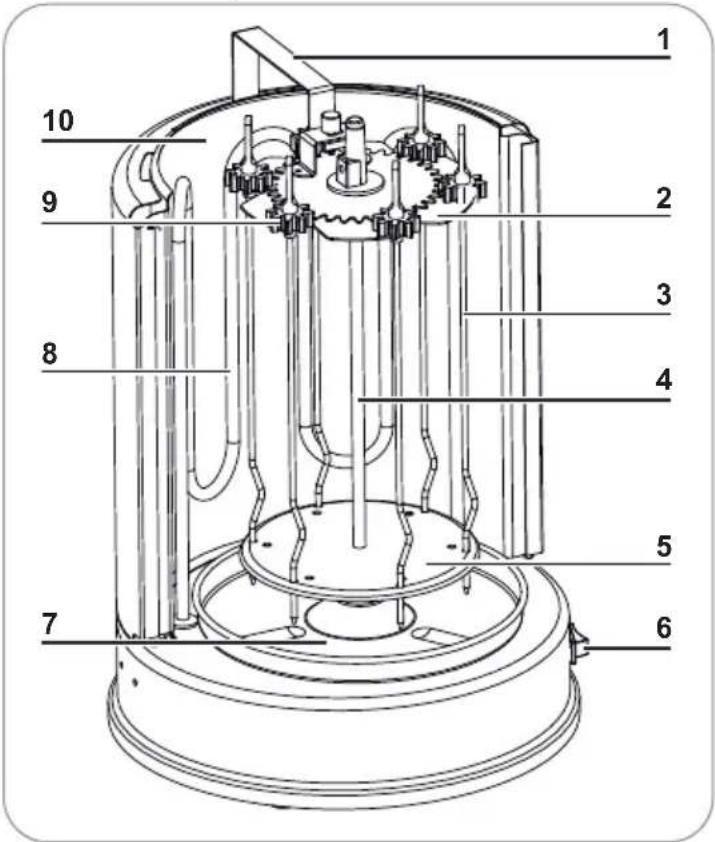

1 2 3 4 5 6 7 8 9 10

1 Retaining bracket
2 Cog - central spit
3 Skewers (6 x)
4 Central spit
5 Skewer plate
6 On / Off switch I/O with operating lamp
7 Fat collecting tray
8 Heating element
9 Plastic cogs for skewers (6 x)
10 Heat shield

Not shown:

- Mains cable with plug

Before Initial Use

PLEASE NOTE!

• You may notice a strange smell the first time you use the device. We therefore recommend that you initially operate the device for a few minutes WITHOUT any contents in order to burn off any production residues that may remain. During this time, make sure the room is well ventilated, e. g. with wide-open windows!
  There may still be some production residues on the device. To avoid harmful effects to your health, thoroughly clean the device before you use it for the first time (see "Cleaning and Storage" chapter).

• Place the device on a dry, heat-resistant, flat surface with sufficient clearance on all sides and above (around 30 cm).

• Insert the plug into a properly installed socket.
• Switch the device on by moving the On/Off switch (6) to Position I (On). The operating lamp lights up. Allow the device to heat up for around 5 minutes to remove any production residues.
• Switch the device off by moving the On/Off switch (6) to Position 0 (Off).
• Remove the plug from the socket.
• Allow the device to cool down and then clean it again.

Assembly

1. Place the device on a dry, heat-resistant, flat surface with sufficient clearance on all sides and above (around 30 cm).

Technical line drawing of a mechanical component with a circular base and internal structure (no text or symbols)

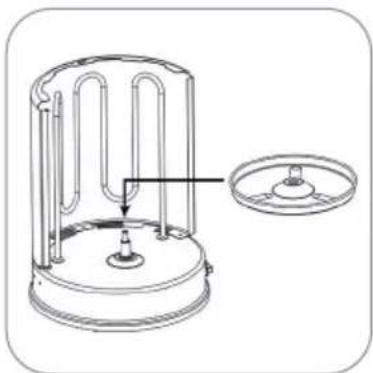

1. Place the fat collecting tray (7) in the hub of the central spit in the base of the device.

Technical line drawing of a mechanical device with a cylindrical top and internal structure (no text or symbols)

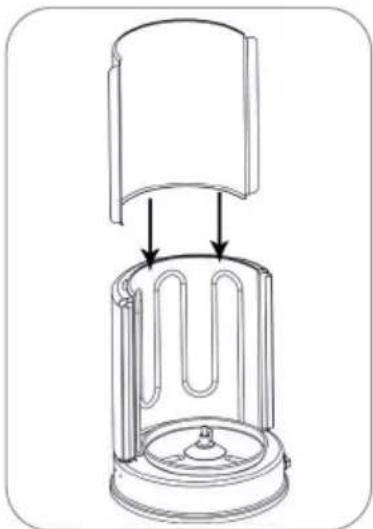

1. Place the heat shield (10) between the heating element (8) and the rear wall of the device.

Technical line drawing of a heat exchanger with cooling tower and side-mounted fan (no text or symbols)

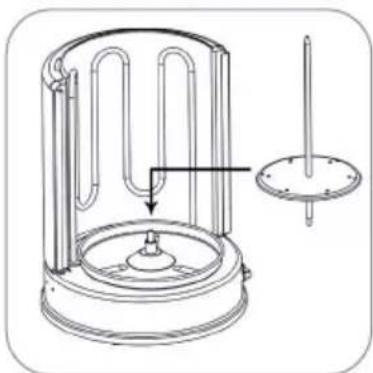

1. Place the lower end of the central spit (4) in the hub in the base of the device.

Technical line drawing of a mechanical gear assembly (no text or symbols)

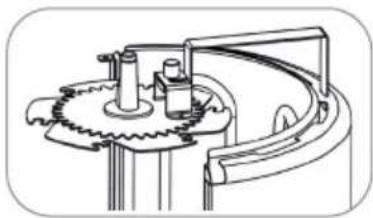

1. Place the cog of the central spit (2) on the upper end of the central spit (4).
2. Place the longer end of the retaining bracket (1) into the slit in the rear wall of the device.

Simple line drawing of a mechanical device with two cylindrical components and an attached lever (no text or symbols)

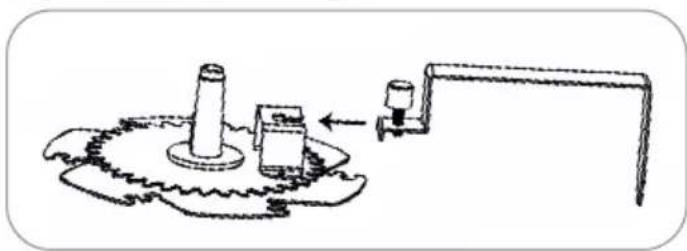

1. Place the screw at the other end of the retaining bracket (1) into the opening in the clamp on the cog of the central spit (2). Slide the screw into position on the right.
2. Tighten the screw to fix the retaining bracket (1) into place.

Perform the steps in reverse order to dismantle the device.

Use

PLEASE NOTE!

■ Never operate the device without the heat shield. Make sure that it is fitted correctly before operating the device.

• On the central spit you can grill up to 4 kg meat or a whole chicken.
  • Make sure the meat is not cut too thickly, so that it fits easily on the spit.
• Use the skewers to grill sausages or meat / mixed / vegetarian kebabs.

1. Cut the meat into slices.
2. Place the slices on the central spit (4) one after the other. Make sure that the slices of meat do not protrude beyond the edge of the skewer plate.
3. Assemble the device (see the "Assembly" chapter).
4. Insert the plug into a properly installed socket.
5. Switch the device on by moving the On/Off switch (6) to Position I (On). The device starts to heat up. The operating lamp lights up and the central spit (4) rotates. The meat is grilled.

If the central spit (4) cannot rotate freely, you should dismantle the device and assemble it again. Make sure that the retaining bracket (1) is fitted correctly to the cog of the central spit (2).

1. When the meat is brown enough, switch the device off by moving the On/Off switch (6) to Position 0 (Off). Use a sharp knife to cut off the outer layer of the meat, and catch the meat in a suitable container. Switch the device on again. Repeat the procedure until all the meat has been grilled.

2. Switch the device off by moving the On/Off switch (6) to Position 0 (Off).

3. Disconnect the device from the mains power after use and allow it to cool down before you clean it.

Grilling a whole chicken

1. Skewer the chicken vertically on the central spit (4). Make sure that it does not protrude above the edge of the skewer plate.
2. Assemble the device (see the "Assembly" chapter).
3. Insert the plug into a properly installed socket.
4. Switch the device on by moving the On/Off switch (6) to Position I (On). The device starts to heat up. The operating lamp lights up and the central spit (4) rotates. The chicken is grilled.

If the central spit (4) cannot rotate freely, you should dismantle the device and assemble it again. Make sure that the retaining bracket (1) is fitted correctly to the cog of the central spit (2).

1. Switch the device off by moving the On/Off switch (6) to Position 0 (Off).

2. Allow the device to cool down.

3. Remove the retaining bracket (see the "Assembly" chapter) and remove the grilled chicken.

4. Disconnect the device from the mains power after use and allow it to cool down before you clean it.

Grilling kebabs

1. Place the plastic cogs (9) on the skewers (3) from above. The smooth side of the cog must be facing upwards and the cog has to click into place completely.
2. Place the food on the skewers (3).
3. Assemble the device (see the "Assembly" chapter).
4. Insert the base of the skewers (3) into the outer holes of the skewer plate (5).
5. Fit the handles of the skewers (3) into the outer gaps in the cog of the central spit (2). Make sure that the plastic cog of each skewer (9) and the cog of the central spit (2) mesh correctly.
6. Switch the device on by moving the On/Off switch (6) to Position I (On). The device starts to heat up. The operating lamp lights up and the central spit (4) rotates. The kebabs on the skewers (3) are grilled.

If the central spit (4) cannot rotate freely, you should dismantle the device and assemble it again. Make sure that the retaining bracket (1) is fitted correctly to the cog of the central spit (2).

1. Switch the device off by moving the On/Off switch (6) to Position 0 (Off).

During operation the handles of the skewers (3) become hot! Allow them to cool down before you remove the skewers (3). We recommend that you wear oven gloves when handling the device.

1. Disconnect the device from the mains power after use and allow it to cool down before you clean it.

Cleaning and Storage

PLEASE NOTE!

Before commencing the cleaning, note the safety instructions in the “Safety Instructions” chapter!
- Clean the device after every use to prevent the formation of germs.
- The central spit with the skewer plate, the skewers and the fat collecting tray are suitable for the dishwasher.
- Do not spray cleaning agents directly onto the device.
- Do not use corrosive or abrasive cleaning agents, rough sponges or knives to clean the device. These could damage the surfaces.

1. Dismantle the device (see the "Assembly" chapter).
2. Clean the device with a slightly damp, soft cloth and a little mild washing-up liquid.
3. Clean the above mentioned accessory parts with a little mild washing-up liquid and warm water or in the diswasher.
   Over time residues of fat can burn into the heat shield (10). This leads to discolouration, but does not affect the performance of the device.
4. Dry the device and the accessories thoroughly before you assemble and / or store away the device.
5. Store the device in a dry place that is protected from sunlight and is not accessible to children and animals.

Troubleshooting

If the device stops working properly, first check whether you are able to correct the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a defective electrical device yourself!

Problem Possible cause / solution
The device does not work.The operating lamp does not light up.	Is the plug inserted in the socket correctly?Is the socket defective? Try another socket.Check the fuse of your mains connection.
The central spit (4) does not rotate.	Does the food protrude beyond the edge of the skewer plate?Are the cogs fitted correctly to the skewers (3)?The smooth surface must be facing upwards!

Technical Data

Article No.: 05914

Model: HS-R10A

Voltage supply: 220 – 240 V \~ 50 Hz

Power: max. 1400 W

Protection class: I

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The adjacent symbol (crossed-out bin underlined) means that used devices should not be disposed of in the domestic waste, but should instead be taken to special collection and return systems.

Owners of used devices from private households can take them free of charge to the collection points of the public waste disposal authorities or the disposal points which are set up by manufacturers and distributors under the Electrical Equipment Act so that they can be disposed of in an environmentally friendly way and valuable raw materials can be recovered. If they are not disposed of properly, toxic ingredients may escape into the environment and cause harm to the health of humans, animals and plants. Businesses which market electrical and electronic devices are also obliged to take back used devices.

Waste prevention makes an even more valuable contribution to protecting the environment. This means if possible, as well as continuing to use or repair a device yourself, passing it on to another user also represents an ecologically beneficial alternative to disposal.

Importeur:

* Calls to German landlines are subject to your provider's charges.

Technical line drawing of a mechanical device with a circular base and internal structure, no text or symbols present.

Technical line drawing of a mechanical device with a lid and internal structure (no text or symbols)

Technical line drawing of a mechanical device with a central hub and a separate circular component (no text or symbols)

Technical line drawing of a mechanical gear assembly (no text or symbols)

Simple line drawing of a mechanical device with two cylindrical components and a lever, no text or symbols present.

WAARSCHUWING – Brandgevaar

Technical diagram of a mechanical device with numbered components for identification

Technical line drawing of a mechanical component with a central hub and a separate circular base (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical top and internal structure (no text or symbols)

Technical line drawing of a heat exchanger with cooling tower and side-mounted fan (no text or symbols)

Technical line drawing of a mechanical gear assembly (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present
