USER MANUAL BL8 SE Electronics
Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.
Capturing excellent audio is our passion. We sincerely hope you'll enjoy using this microphone as much as we've enjoyed designing and building it for you.
Happy Tracking,
The sE Team
Brief description
The BL8 is a half-cardioid boundary microphone, utilizing the same capsule as the celebrated sE8 small-diaphragm condenser. Its hand-crafted, true condenser capsule utilizes an ultra-thin three-micron gold-sputtered diaphragm for superior transient response. The BL8 is designed to reproduce low frequencies with stunning accuracy, often eliminating the need for an additional outer kick drum mic. It is also compatible with The KellyShu® Flatz Isolation System, making it ideal for touring applications.
The BL8's transformerless Class-A circuitry ensures plentiful headroom without distortion, while its low-noise electronics deliver transparency and clarity. The integrated low-cut filter, the switchable attenuation pad and the EQ shaping switch make it a very versatile microphone; excelling at ambience recording, room miking, and can even be used on grand pianos. A switchable attenuation pad keeps high-SPL sources from overloading your mixer's input.
Robustly built, the BL8 features an all-metal construction, a dent-proof grille, and gold-plated XLR contacts to ensure long-term reliability.
What's in the box
Your packaging should contain the follow items. If anything is missing, please contact your sE Electronics dealer for assistance.
- BL8 microphone
- Pouch
Controls

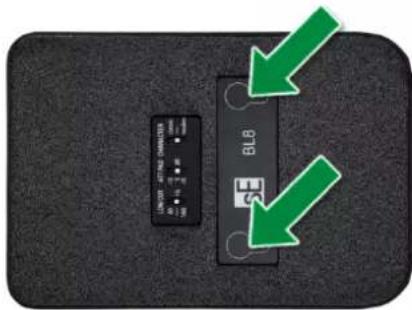

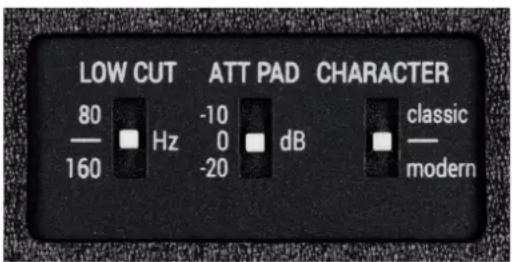

The BL8 features three switches on the bottom, allowing you to shape its tone and prevent overloading your mixer, microphone preamp or audio interface.
Low Cut
This switch allows you to the curb low-frequency response at two different frequencies or leave it flat. For applications like room miking or speech, the low-cut switch reduces unwanted footfall noise and rumble. It can also be used to minimize proximity effect.
Att Pad
The attenuation pad reduces the microphone's signal by 10 or 20 dBs when activated, preventing loud sources from overloading your mixer, preamp or audio interface. In its center position, the pad is disactivated, and the microphone's output is unaffected.
We recommend initially activating the 10dB attenuation when miking a kick drum. For very loud sources you may need to activate the 20dB attenuation. Moderately loud sources should be fine at the 0dB setting.
Character
The ideal studio kick drum tone is often different than our preferences in a live sound environment. Similar to our award-winning kick-drum mic, the V KICK, the BL8 offers “Classic” and “Modern” character voicings. These options both cut and shape the low-mids to emphasize transients and punch. In its center position, the capsule’s neutral response is retained, which is ideal for a plethora of other applications.
Changing the capsule

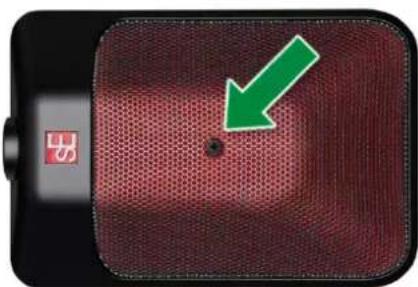

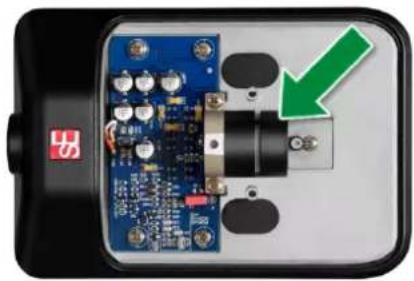

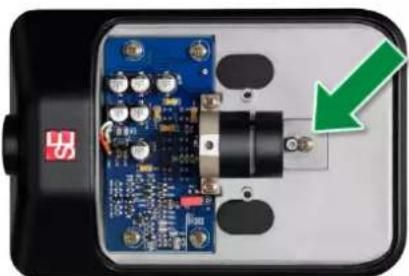

To switch the BL8's capsule, first make sure it's not connected to an XLR cable. Then, turn the screw at the center of the microphone's grille counter-clockwise until it's loose. Once the screw has been removed, the grille can also be removed.
Refasten the capsule-retainer screw.
Place the microphone's grille back on its base, and finish by replacing the exterior screw.
Mounting on a surface

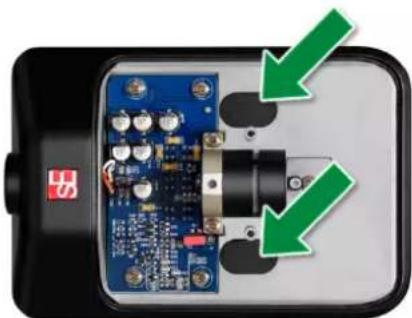

Using screws, the BL8 can be mounted to a surface, wall, ceiling, or the lid of a grand piano. Open the microphone as described in the section "Changing the capsule". The two mounting points are covered with black stickers; remove them with a sharp tool.
At last, please close the microphone as described in the section "Changing the capsule".
Technical specifications
| Capsule | Hand-crafted small-diaphragm true condenser capsule |
| Polar patterns | Half-cardioid |
| Frequency range | 20 – 20,000 Hz |
| Sensitivity | 25 mV/Pa (-32 dBV) |
| Max. SPL (0.5% THD) | 143 / 153 / 163 dB_SPL(0/10/20 dB attenuation pad) |
| Equivalent noise level | 14 dB(A) |
| Dynamic range | 129 / 139 / 149 dB (0/10/20 dB attenuation pad) |
| Signal-to-noise ratio | 80 dB |
| Low-cut filter | 80 / 160 Hz, 6 dB/oct, switchable |
| Attenuation pad | 10 / 20 dB, switchable |
| Powering | 48 Volts according to IEC 61938 |
| Electrical impedance | 60 Ohms |
| Recommended load impedance | >1k Ohms |
| Current consumption | 5.0 mA |
| Connectivity | 3-pin male XLR connector |
| Dimensions | 139 x 95 x 28.5 mm (L x W x H)5.47 x 3.74 x 1.12 in. (L x W x H) |
| Weight | 538 g (18.98 oz.) |

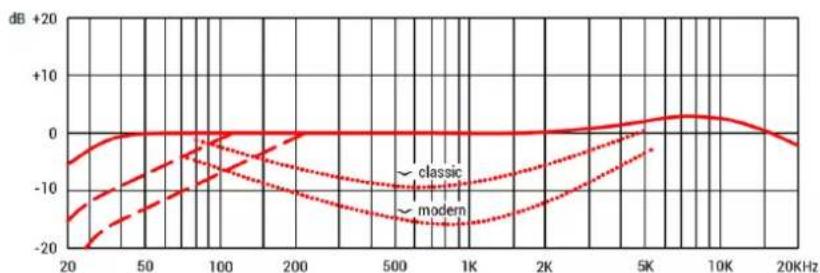

Frequency Response
line
| Frequency | classic | modern | | --------- | ------- | ------ | | 20 | -5 | -15 | | 50 | 0 | -10 | | 100 | 0 | -5 | | 200 | 0 | 0 | | 500 | 0 | -5 | | 1K | 0 | -10 | | 2K | 0 | -5 | | 5K | 5 | 0 | | 10K | 10 | 5 | | 20K | 0 | 0 |Polar Pattern

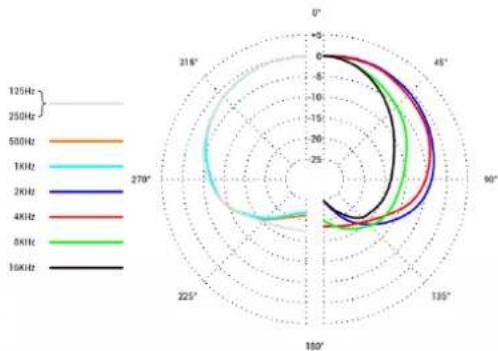

radar
| Frequency | Angle (°) | Value | |---|---|---| | 125Hz | 0 | 6 | | 125Hz | 45° | 7 | | 125Hz | 90° | 6 | | 125Hz | 135° | 5 | | 125Hz | 180° | 4 | | 125Hz | 225° | 3 | | 125Hz | 270° | 2 | | 125Hz | 315° | 1 | | 125Hz | 360° | 0 | | 250Hz | 0 | -1 | | 250Hz | 45° | -2 | | 250Hz | 90° | -3 | | 250Hz | 135° | -4 | | 250Hz | 180° | -5 | | 250Hz | 225° | -6 | | 250Hz | 270° | -7 | | 250Hz | 315° | -8 | | 250Hz | 360° | -9 | | 500Hz | 0 | -1 | | 500Hz | 45° | -2 | | 500Hz | 90° | -3 | | 500Hz | 135° | -4 | | 500Hz | 180° | -5 | | 500Hz | 225° | -6 | | 500Hz | 270° | -7 | | 500Hz | 315° | -8 | | 500Hz | 360° | -9 | | 1KHz | 0 | -1 | | 1KHz | 45° | -2 | | 1KHz | 90° | -3 | | 1KHz | 135° | -4 | | 1KHz | 180° | -5 | | 1KHz | 225° | -6 | | 1KHz | 270° | -7 | | 1KHz | 315° | -8 | | 1KHz | 360° | -9 | | 2KHz | 0 | -1 | | 2KHz | 45° | -2 | | 2KHz | 90° | -3 | | 2KHz | 135° | -4 | | 2KHz | 180° | -5 | | 2KHz | 225° | -6 | | 2KHz | 270° | -7 | | 2KHz | 315° | -8 | | 2KHz | 360° | -9 | | 4KHz | 0 | -1 | | 4KHz | 45° | -2 | | 4KHz | 90° | -3 | | 4KHz | 135° | -4 | | 4KHz | 180° | -5 | | 4KHz | 225° | -6 | | 4KHz | 270° | -7 | | 4KHz | 315° | -8 | | 4KHz | 360° | -9 | | 8KHz | 0 | -1 | | 8KHz | 45° | -2 | | 8KHz | 90° | -3 | | 8KHz | 135° | -4 | | 8KHz | 180° | -5 | | 8KHz | 225° | -6 | | 8KHz | 270° | -7 | | 8KHz | 315° | -8 | | 8KHz | 360° | -9 | | 10KHz | 0 | -1 | | 10KHz | 45° | -2 | | 10KHz | 90° | -3 | | 10KHz | 135° | -4 | | 10KHz | 180° | -5 | | 10KHz | 225° | -6 | | 10KHz | 270° | -7 | | 10KHz | 315° | -8 | | 10KHz | 360° | -9 | The chart displays the frequency response of a system under varying frequencies, with values plotted on a radial scale from -1 to +6. The frequency values are labeled as 'Hz'. The chart is divided into four quadrants: Top, Center, Bottom, and Right. The data is presented in a single column format with labels indicating the frequency value at each position. The color of the bars corresponds to the frequency value.Powering
To ensure proper operation, your sE product requires a Phantom power source that provides 48 Volts according to IEC 61938.
Risk of damage
Do not connect your sE product to any power supply other than a Phantom power source (input with Phantom power or external IEC standard Phantom power supply) with a floating connector, using a balanced cable with studio-grade connectors to IEC 268-12 only. This is the only way to ensure safe and reliable operation.
Please be aware that Phantom power cannot pass through TRS connectors. A balanced microphone cable with XLR connectors at both sides is required to provide Phantom power to your sE product.
Safety and maintenance
Warning
The product may contain small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts and keep them away from children under four years of age.
• This product is safe under normal and reasonably foreseeable operating conditions.
- Do not open or modify the product.
• The product must be returned to the manufacturer or destined vendors for any service or repair.
- Do not disassemble or attempt to service this product.
• This is not a children's product and is not intended to be used by children under 14 years old.
Risk of damage
Please make sure that any piece of equipment to which your sE product will be connected fulfills the safety regulations enforced in your country and is fitted with a ground lead.
Compliance
This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE).
For RoHS and WEEE information, go to http://www.seelectronics.com/compliance
Maintenance is not required for product compliance.
Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be separated and brought to an appropriate collection point to be recycled and to avoid potential impact on the environment and/or human health. For more information, contact your local authorities or place of purchase, or visit
http://www.seelectronics.com/recycling
Warranty
sE Electronics warrants that its hardware product shall be free from defects in materials and workmanship beginning from the date of original retail purchase.
See http://www.seelectronics.com/warranty for specific warranty information about your product and procedures for a warranty claim.
sE Electronics' entire liability and your exclusive remedy for any breach of warranty shall entail, at sE Electronics' option, to repair or replace a functional equivalent of the product, or to refund the price paid, provided that the hardware is returned to the purchased location along with a receipt.
Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty.
Our headquarters:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Our R&D and manufacturing center:
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
Full Warranty Information:
https://www.seelectronics.com/warranty
Support
In case you have any questions about your new sE product, please do not hesitate to contact us directly:
http://www.seelectronics.com/contact-us
In the event that your new sE product is operating improperly, it must be returned to us as the manufacturer or to a destined vendor for any service or repair. For the fastest and most direct service, please contact your dealer first. If authorized service is required, it will be arranged by that dealer:
http://www.seelectronics.com/dealers
If you are experiencing difficulties with support or assistance, please do not hesitate to contact us directly:
http://www.seelectronics.com/contact-us
Lastly, please remember to register your new gear with sE to extend your warranty to a full three years:
http://www.seelectronics.com/registration
Contact
Feel free to contact us:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Our international distributors & sales representatives: http://www.seelectronics.com/contact-us
Danke
LOW CUT Schalter
Close-up of an electronic device showing a circuit board, lens, and internal components with a green arrow pointing to a component (no text or symbols visible)natural_image
Close-up of an electronic circuit board with a green arrow pointing to a component (no visible text or symbols)natural_image
Close-up of an electronic device showing a blue circuit board with green arrows pointing to components (no text or symbols visible)Beschädigungsgefahr
Warnung
Beschädigungsgefahr
http://www.seelectronics.com/recycling
Garantie
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
https://www.seelectronics.com/warranty
Kundenservice
http://www.seelectronics.com/registration
Kontakt
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Unsere internationalen Händler & Vertriebsvertreter: http://www.seelectronics.com/contact-us
致谢

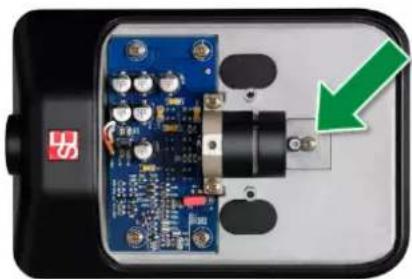

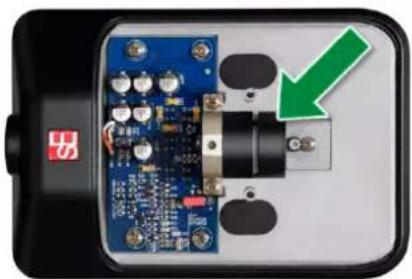

LOW CUT (低切)
重新紧固音头固定器螺丝。
警告
损坏风险
http://www.seelectronics.com/recycling
保修条款
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
我们的研发和制造中心:
http://www.seelectronics.com/registration
联系方式
请随时联系我们:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Low Cut (passa-alto)
Close-up of an electronic device showing a circuit board, connector, and internal components with a green arrow pointing to a component (no text or symbols visible)natural_image
Close-up of an electronic circuit board with a green arrow pointing to a component (no visible text or symbols)natural_image
Interior view of an electronic device showing a blue circuit board and connector, with green arrows pointing to the components (no text or symbols visible)line
| Frequency | Classic Frequency (Hz) | Modern Frequency (Hz) | | --------- | ---------------------- | --------------------- | | 20 | 0 | -20 | | 50 | 0 | -10 | | 100 | 0 | -5 | | 200 | 0 | -10 | | 500 | 0 | -15 | | 1K | 0 | -15 | | 2K | 0 | -10 | | 5K | 0 | -5 | | 10K | 0 | 0 | | 20K | 0 | 0 |Alimentazione
Rischio di danni
Avvertenze
Rischio di danni
http://www.seelectronics.com/recycling
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949 USA
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Cina
https://www.seelectronics.com/warranty
Assistenza
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949 USA
I nostri distributori e responsabili commerciali internazionali: http://www.seelectronics.com/contact-us
Remerciements
LOW CUT (coupe-bas)
Interior view of an electronic device showing a circuit board, connector, and a green arrow pointing to a component (no text or symbols visible)natural_image
Close-up of an electronic device showing a blue circuit board with internal components and a green arrow pointing to a component (no text or symbols visible)natural_image
Interior view of an electronic device showing a blue circuit board with green arrows pointing to a component (no text or symbols visible)Risque de dommages
Avertissement
Risque de dommages
http://www.seelectronics.com/recycling
CE Fabriqué
en Chine
Garantie
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Chine
https://www.seelectronics.com/warranty
Support
http://www.seelectronics.com/registration
Contact
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Interior view of an electronic device showing a circuit board, connector, and a green arrow pointing to a component (no text or symbols visible)natural_image
Close-up of an electronic circuit board with a green arrow pointing to a component (no visible text or symbols)natural_image
Close-up of an electronic device showing a blue circuit board with connectors and a central connector, marked with green arrows indicating assembly or connection points (no text or symbols visible)Riesgo de daños
Advertencia
Riesgo de daños
http://www.seelectronics.com/recycling
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
https://www.seelectronics.com/warranty
Asistencia
http://www.seelectronics.com/registration
Contacto
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Close-up of an electronic device showing a circuit board, connector, and a green arrow pointing to a component (no text or symbols visible)natural_image
Close-up of an electronic device showing a circuit board, connector, and a green arrow pointing to a component (no text or symbols visible)natural_image
Close-up of an electronic device showing a blue circuit board with green arrows pointing to a component, no visible text or symbols.Предупреждение
http://www.seelectronics.com/recycling
сделаны в Китае
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA (CIIA)
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China (Китай)
https://www.seelectronics.com/warranty
Поддержка
http://www.seelectronics.com/registration
Обратная связь
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA (CША)
