| Product Type | Touch screen for fixed installation |
| Brand | LD Systems |
| Model | QTP 8 |
| Processor | RK3566 Quad-core up to 1.8 GHz |
| RAM | 2 GB |
| Internal memory | 16 GB |
| Screen type | 8" capacitive IPS touch screen |
| Screen resolution | 1280 x 800 pixels |
| Brightness | 300 nits |
| Control keys | Touch screen, Set and Restart buttons |
| Operating system | Android 11 |
| Network connectivity | Ethernet 10/100 Mbps, Wi-Fi 2.4 GHz, Bluetooth 4.0 |
| Ports | Ethernet RJ45, Power In, RS485 (non-functional), USB-C |
| Card reader | TF/MicroSD |
| Mounting options | Landscape or portrait, compatible with EU, US, type 86 boxes |
| Dimensions (W x H x D) | 200 x 124.6 x 37.7 mm |
| Weight | 0.45 kg |
| Power supply | PoE+ (IEEE 802.3at) or 12V/2A DC (optional adapter) |
| Operating temperature | 0°C to 40°C |
| Relative humidity | < 80% non-condensing |
| Included accessories | Mounting plate, locking screws |
| Intended use | Professional, indoor |
| Maintenance and cleaning | Clean with a soft, dry cloth; do not use abrasive products |
| Safety | Contains small parts; keep out of reach of children. Use only indoors. |
Frequently Asked Questions - QTP 8 LD Systems
User questions about QTP 8 LD Systems
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Receiver in PDF format for free! Find your manual QTP 8 - LD Systems and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. QTP 8 by LD Systems.
USER MANUAL QTP 8 LD Systems
ENGLISH
ABOUT THIS MANUAL 3
INTENDED USE 3
SAFETY INSTRUCTIONS 3
PACKAGING CONTENT 3
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 4
INSTALLATION
HOLE DISTANCE 5
AUTOSTART
IP CONFIGURATION 9
TECHNICAL DATA 9
DISPOSAL
MANUFACTURER'S DECLARATIONS 10
DEUTSCH
This device was developed and manufactured under high quality requirements to ensure many years of trouble-free operation. This is what LD Systems stands for with its name and many years of experience as a manufacturer of high-quality audio products. Please read these operating instructions carefully so that you can quickly and optimally use your new LD Systems product. You can find more information about LD Systems on our website WWW.LD-SYSTEMS.COM
ABOUT THIS MANUAL
- Read the safety instructions and the entire manual carefully before commissioning.
- Observe the warnings on the unit and in the operating instructions.
• Always keep the operating instructions within reach. - If you sell or pass on the appliance, be sure to hand over these operating instructions as well, as they are an essential part of the product.
INTENDED USE
The product is a device for professional audio installation! The product has been developed for professional use in the field of audio installation and is not intended for use in households! Furthermore, this product is intended for installation by qualified persons with specialist knowledge and for operation by instructed persons! The use of the product outside the specified technical data and operating conditions is considered as not intended! Liability for damages and third party damages to persons and property due to non-intended use is excluded! The product is not suitable for:
- Persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).
SAFETY INSTRUCTIONS
HAZARD:
- Please read these instructions carefully.
- Keep all information and instructions in a safe place.
- Follow the instructions.
- Use the accessory in the prescribed manner only.
- Do not open or modify the product.
CHOKING HAZARD! KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE SWALLOWED AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF REACH OF CHILDREN!
CAUTION: HIGH VOLUME AUDIO PRODUCTS!
This touch panel and associated products are intended for professional use. The commercial operation is subject to the applicable national regulations and guidelines for accident prevention. Hearing damage due to high volume and continuous exposure: The use of this touch panel and related products may generate high sound pressure levels (SPL) that may cause hearing damage. Avoid exposure to high volumes!
FOR INDOOR USE ONLY:
This symbol indicates electrical equipment designed primarily for indoor use
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.
1 x LD QTP 8 touch panel
1 x Mounting plate with locking screw (pre-assembled)
User's manual

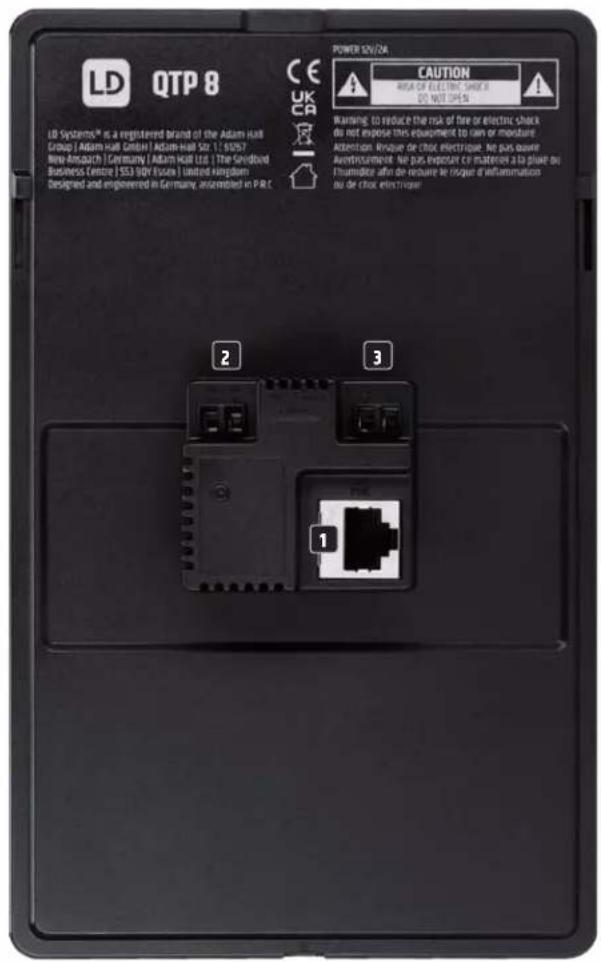

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
Ethernet connection for the data connection and power supply via PoE (Power over Ethernet).
2 POWER IN
Alternative power supply via an optionally available power supply unit (12V / 2A DC voltage, ensure correct polarity, see labelling).
3 SERIAL INTERFACE RS485
Currently without function.
4 TF-CARD
Slot for a TF card or MicroSD card.
5 TYPE-C
USB-C port for data connection with a computer.
6 SET
For service purposes only.
7 RESTART
Use a paper clip, for example, to force a restart of the unit.
8 DISPLAY
8 inch touch display.
LED
Multi-colour indicator LED (for future use).
THREAD
Thread for fastening the mounting plate (mounting plate and locking screw included).

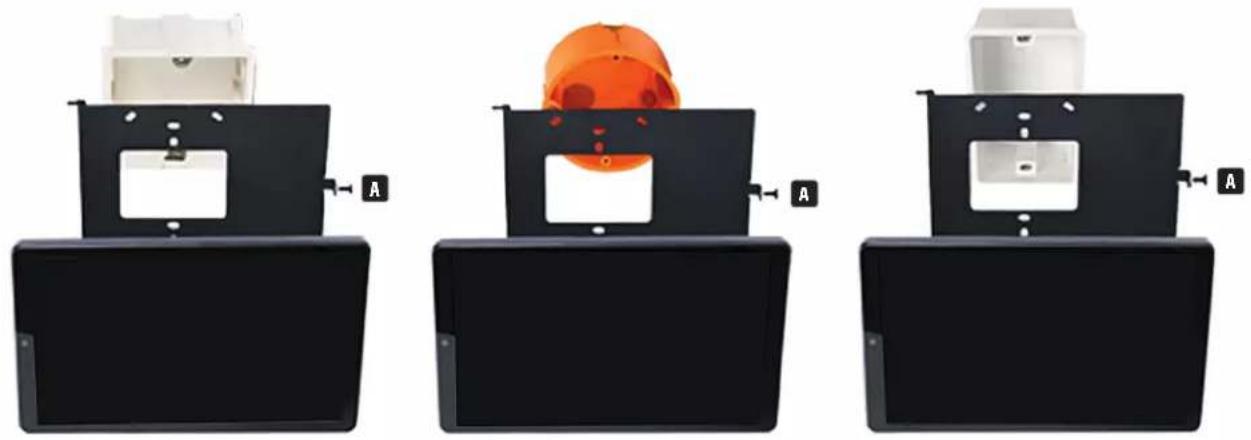

INSTALLATION
Make sure that the flush-mounted box is deep enough (connection terminal plus Ethernet connector).
RECOMMENDATION: Mount the touch panel in landscape format with the locking screw A pointing to the right on a suitable location on a wall. The mounting plate of the QTP8 touch panel is compatible with type 86, EU type and US type flush-mounted boxes. Installation of the touch panel only by authorised personnel and electricians. No liability is assumed for the mounted flush-mounted box and its function. Inspection by qualified personnel is required.
Loosen the locking screw A from the mounting plate, remove the mounting plate from the touch panel and fix it to the corresponding flush-mounted box. Now make the cable connections with the touch panel. Place the touch panel on the mounting plate so that the two pins on the left side of the mounting plate engage in the corresponding recesses in the touch panel, slide the panel about one centimetre to the right and secure the connection with the previously loosened locking screw.

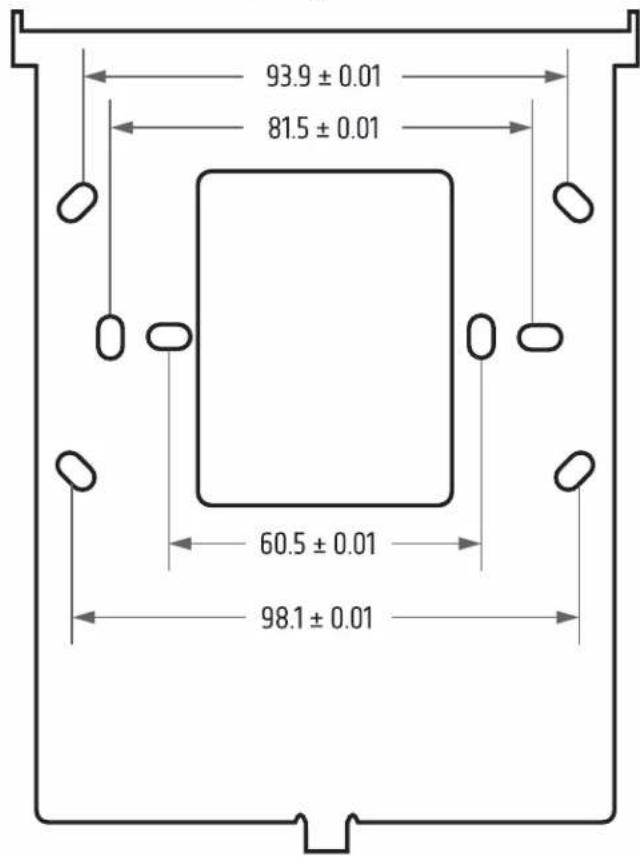

HOLE DISTANCE (mm)
As the system language of the touch panel is English ex works, the following screenshots are also in English. The system language can be set.

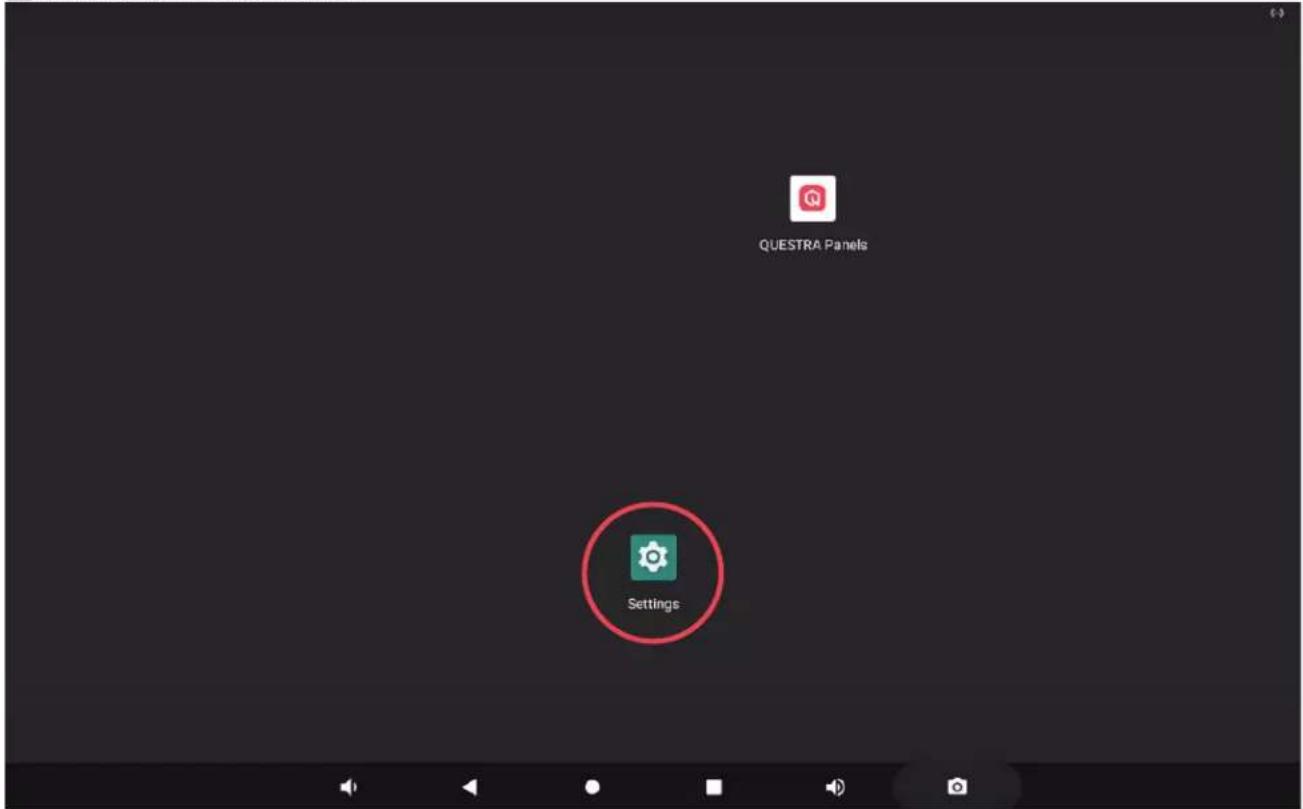

1 Open the system settings „Settings“.
Sound Volume, vibration, Do Not Disturb Storage 41% used - 9.49 GB free Privacy Permissions, account activity, personal data Location On - 2 apps have access to location Security Screen lock Accounts Google Accessibility Screen readers, display, interaction controls Screenshot Screenshot Google Services & preferences System Languages, gestures, time, backuptext_image

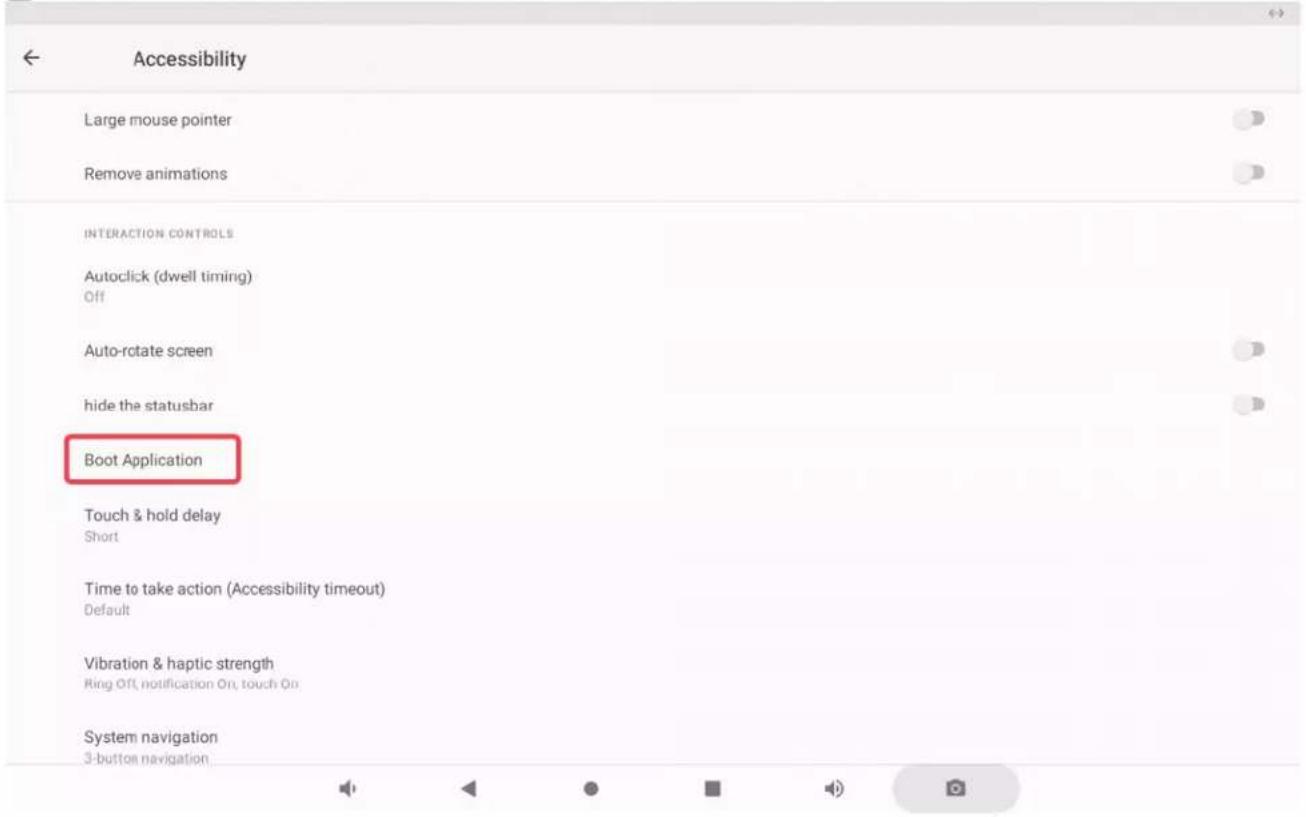

Accessibility Large mouse pointer Remove animations INTERACTION CONTROLS Autoclick (dwell timing) Off Auto-rotate screen hide the statusbar Boot Application Touch & hold delay Short Time to take action (Accessibility timeout) Default Vibration & haptic strength Ring Off, notification On, touch On System navigation 3-button navigation4 Tap on "Select startup application".

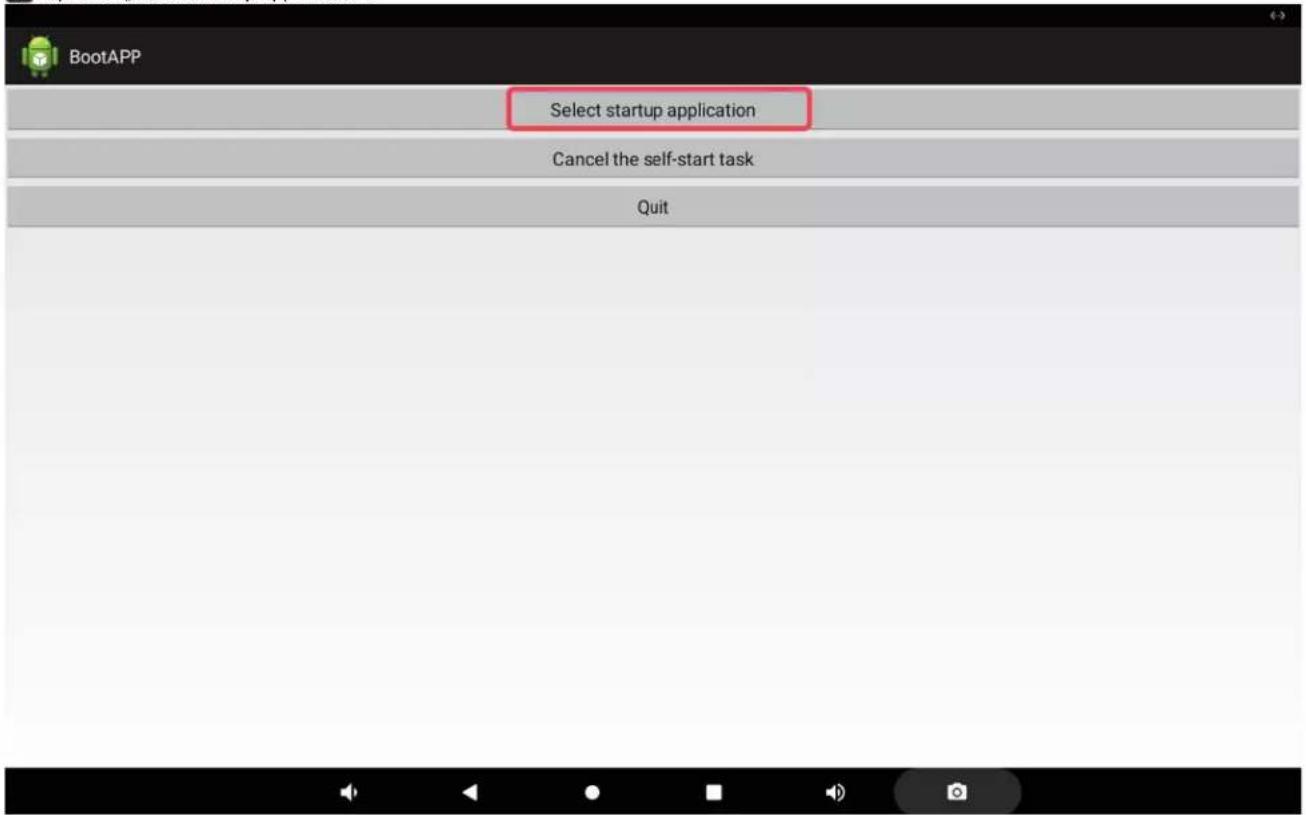

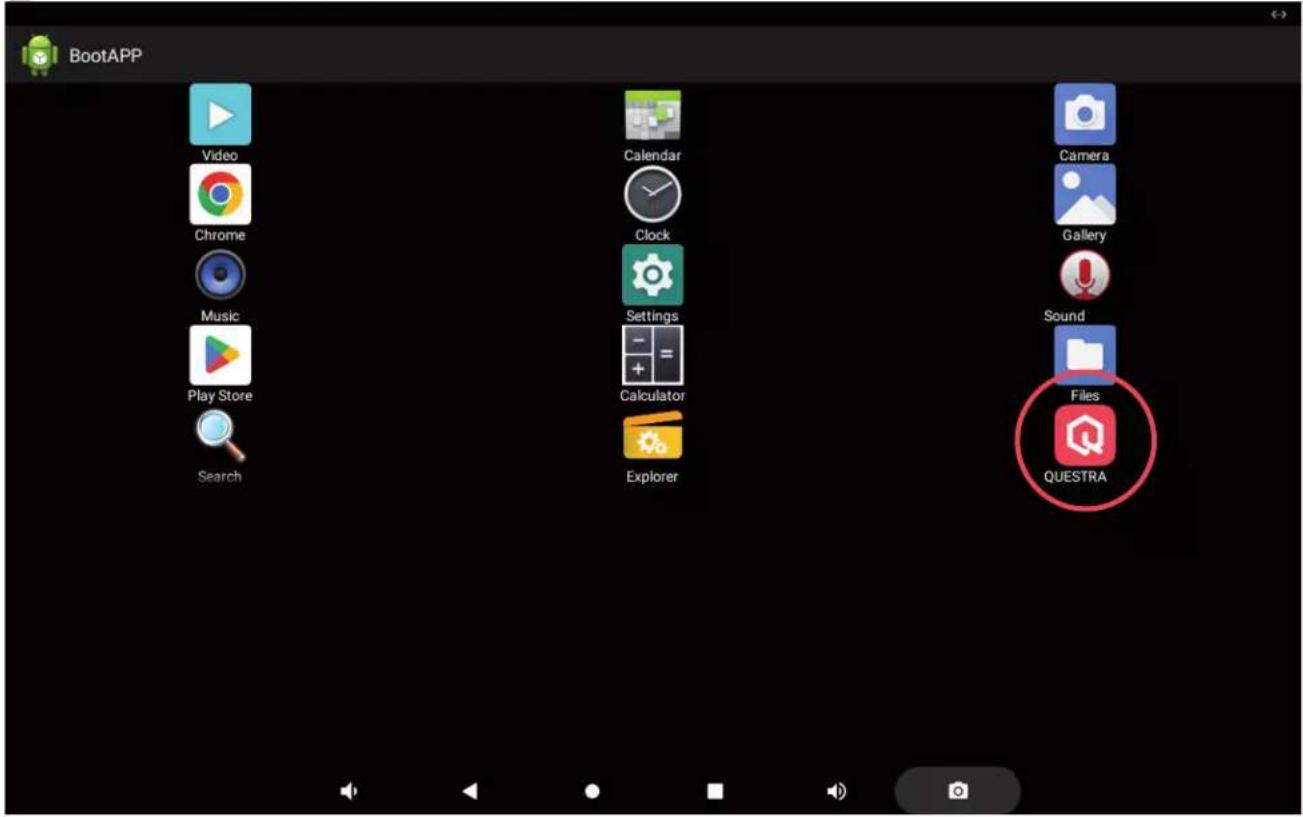

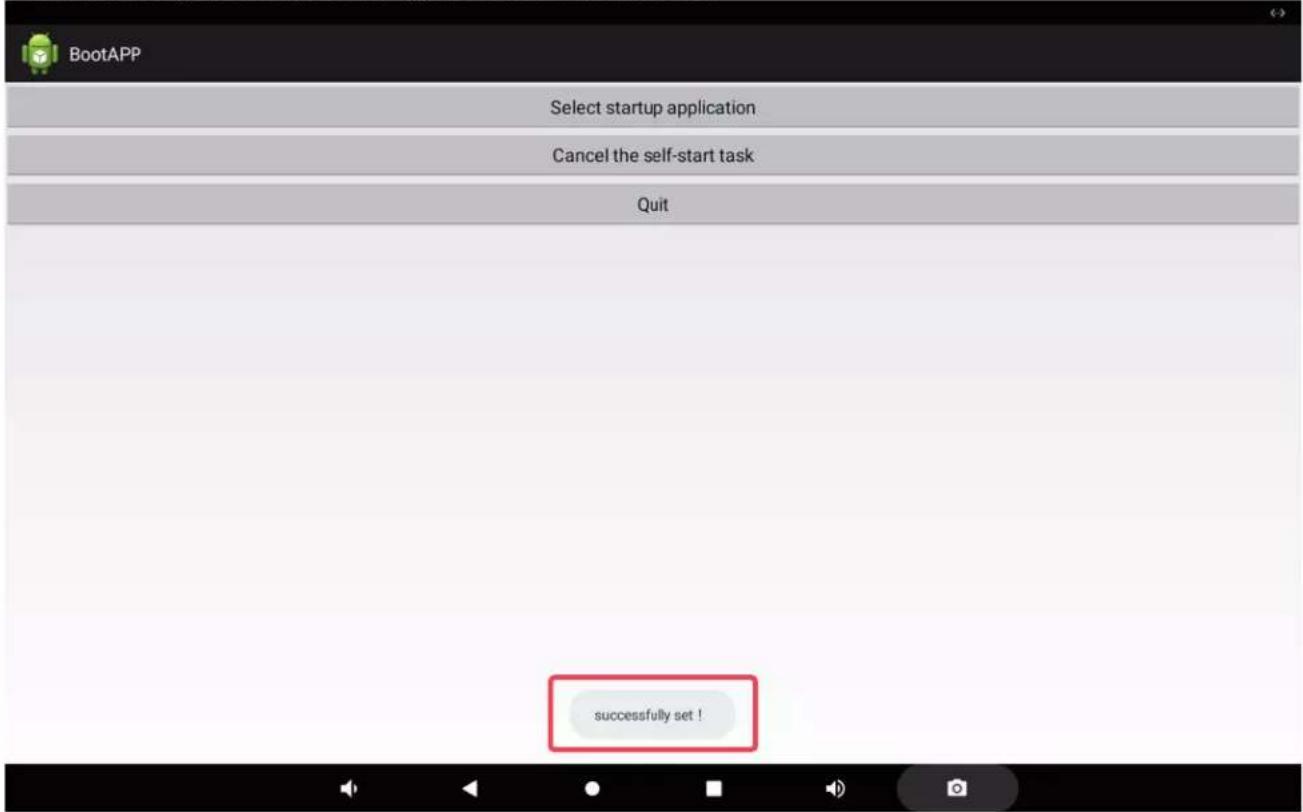

The automatic network configuration via DHCP is activated in the delivery state. To configure the network manually, go to the settings and change the „Ethernet IP mode“ to „static“ (Settings -> Network & Internet -> Ethernet -> Ethernet IP Mode -> static -> Configure IP etc.). Restart the unit after changing the status.
TECHNICAL DATA
Article number LDQTP8
| Product type Installation equipment | |
| Type 8" QUESTRA touch panel, PoE powered | |
| Processor RK3566 - Quad-core up to 1.8 GHz | |
| Working memory 2 GB | |
| Internal memory 16 GB | |
| Operating controls 8" touch display, set, restart | |
| Display resolution 1280 x 800 Pixel | |
| Display brightness 300 nits | |
| Touch Panel Type 5-points capacitive IPS touch panel | |
| Mounting position Landscape or portrait format (landscape format recommended) | |
| Operating system Android 11 | |
| Connections Ethernet RJ45, Power In, RS485 (currently without function), USB-C | |
| Card reader TF Card / MicroSD | |
| Network 2.4G WIFI, BT 4.0, 10M/100M Ethernet | |
| Power supply | PoE+ (Power over Ethernet), IEEE 802.3at compliant, external power supply 12 V DC 2 A (optionally available) |
| Mounting options EU flush-mounted box, US 2-gang electrical box, 86-type electrical box | |
| Dimensions (W x H x D) | 200 mm x 124.6 mm x 37.7 mm |
| Weight | 0.45 kg |
| Ambient temperature | 0 - 40°C |
| Relative air humidity <80%, non-condensing | |
| Accessories (optional) | Power supply |
| Accessories included Mounting plate plus locking screw | |
DISPOSAL
PACKAGING:
- Packaging can be disposed of via the usual waste disposal channels.
- Please separate the packaging according to the waste disposal and materials regulations in your country.
DEVICE:
- This device is subject to the European Directive on Waste Electrical and Electronic Equipment in its applicable version. WEEE Directive-Waste Electrical and Electronical Equipment. Old devices and batteries do not belong in household waste. The old device or batteries must be disposed of via an approved waste disposal service or a municipal waste disposal facility. Follow the directives in your country!
- Follow the disposal laws in your country.
- As a private customer, you can obtain information on environmentally friendly disposal options from the retailer from whom you purchased the product or from the relevant regional authorities.
MANUFACTURER'S DECLARATIONS
MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY
Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf. Contact your distribution partner for service.
UKCA-CONFORMITY
Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable): Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 (SI 2016/1091) The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 2017(SI 2016/2015)
UKCA-DECLARATION OF CONFORMITY
Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at info@adamhall.com. Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/
CE CONFORMITY
Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): R&TTE (1999/5/EC) or RED (2014/53/EU) as of June 2017. Low Voltage Directive (2014/35/EU) EMC Directive (2014/30/EU) RoHS (2011/65/EU) The complete Declaration of Conformity can be found at www.adamhall.com. Furthermore, you can also request it at info@adamhall.com.
CE DECLARATION OF CONFORMITY
Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested from info@adamhall.com. Declarations of conformity for products subject to RED Directive can be downloaded from www.adamhall.com/compliance/.
Subject to misprints and errors, as well as technical or other modifications!
DEUTSCH
QUESTRA Panels SettingsVolume, vibration, Do Not Disturb
Storage
41% used - 9.49 GB free
Privacy
Permissions, account activity, personal data
Location
On - 2 apps have access to location
Security
Screen lock
Accounts
Accessibility
Screen readers, display, interaction controls
Screenshot
Screenshot
Services & preferences
System
Languages, gestures, time, backup
Johannes B. V. 2018
BootAPP Select startup application Cancel the self-start task Quittext_image
BootAPP Select startup application Cancel the self-start task Quit successfully set !IP-KONFIGURATION
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf.
Sound
Volume, vibration, Do Not Disturb
Storage
41% used - 9.49 GB free
Privacy
Permissions, account activity, personal data
Location
On - 2 apps have access to location
Security
Screen lock
Accounts
Accessibility
Screen readers, display, interaction controls
Screenshot
Screenshot
Services & preferences
System
Languages, gestures, time, backup
法定代表人：
3 Ouvrez „Boot Application”.
BootAPP Select startup application Cancel the self-start task Quit successfully set !CONFIGURATION DE L'ADRESSE IP
DÉCLARATION DE CONFORMITÉ EU
Three identical black-and-white photos showing a device with a white object inside, one with an orange helmet on top, and two others with arrows labeled 'A' pointing to them (no text or symbols on devices)DISTANCIA ENTRE ORIFICIOS (mm)
