USER MANUAL NI-S630 PANASONIC

Safety precautions To reduce the risk of electric shock, injury, re, loss of life, and damage to equipment or property, always observe the following safety precautions. Explanation of symbols The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. WARNING Denotes a potential hazard that could result in serious injury or death. CAUTION Denotes a hazard that could result in minor injury or damage your belongings. The following symbols are used to classify and describe the type of instructions to be observed. This symbol is used to alert users to a specific operating procedure that must not be performed. This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an iron, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Only use an iron for its intended use.

2. To avoid the risk of electric shock, do not immerse the

iron in water or other liquids.

3. Always turn the iron OFF before plugging or

unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.

4. Do not let the cord touch hot surfaces. Let the iron cool

completely before putting the iron away. Coil the cord loosely around the iron when storing.

5. Always disconnect the iron from the electrical outlet

before lling the iron with water, emptying the water from the iron, and when the iron is not in use.

6. Do not operate the iron with a damaged cord or in the

event the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualied serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.

7. Close supervision is required for any appliance used by

or near children. Do not leave the iron unattended while the iron is connected or on an ironing board.05 English

8. Burns can occur from touching hot metal parts, hot water,

or steam. Use caution when you turn a STEAM IRON upside down – there might be hot water in the reservoir.

9. To avoid a circuit overload, do not operate an iron on the

same circuit with another high wattage appliance.

10. If an extension cord is absolutely necessary, a cord with

an ampere rating equal to or greater than the maximum rating of the iron shall be used. A cord rated for less amperage can result in a risk of re or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.

SAVE THESE INSTRUCTIONS

WARNING Do not use when the power plug or power cord is damaged or hot. Never use the appliance if the power plug fits loosely in socket-outlet. - Doing so may cause electric shock, or fire due to a short circuit. Do not leave the appliance unattended while it is connected to socket-outlet. - Doing so may cause fire. Do not connect or disconnect the power plug to socket-outlet with wet hands. - Doing so may cause electric shock or injury. Do not damage, modify, forcibly bend, pull, or twist the power cord. Do not place anything heavy on or pinch the power cord. - Doing so may cause electric shock or fire due to a short circuit. Do not allow the power cord to touch hot surfaces of the steamer head. - Doing so may cause electric shock or injury.English

WARNING The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. - Refer servicing to authorized service personnel. Do not use in a way exceeding the rating of the socket-outlet or the wiring. - Exceeding the rating by connecting too many plugs to one socket-outlet may cause fire due to overheating. Always ensure the iron is operated on an electric power source matched to the rated voltage indicated on the iron. Fully insert the power plug. - Failure to do so may cause injury, electric shock or fire. Regularly clean the power plug to prevent dust from accumulating.

• Disconnect the power plug and wipe with a dry cloth. - Failure to do so may cause an accident or injury. Independently use socket-outlet, and do not use extension cord. - Failure to do so may cause electric shock or fire. This iron must use socket-outlet with earth connection. - Failure to do so may cause fire or electric shock. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Failure to do so may cause an accident or injury. Immediately stop using and remove the power plug if there is an abnormality or malfunction. - Using it in such conditions may cause fire, electric shock, or injury. <Abnormality or malfunction cases>

• The power cord is damaged (like it cracks, or the core wire is exposed).

• The main body, power cord or power plug is abnormally hot, deformed or discolored.

• The appliance cannot power on occasionally after the power cord is moved.

• The power plug or power cord smells of burning. - Immediately request inspection or repair at an authorized service center.07 English WARNING If the power cord is damaged, it must be replaced by the manufacturer, its service center, or similarly qualified persons in order to avoid a hazard. - Failure to do so may cause an accident or injury. The iron must be used and rested on a flat, stable surface. When placing the iron on its heel rest, ensure that the surface on which the heel rest is placed is stable. - If placed on a shaggy rug or other unstable location, the iron may fall over and cause damage to the rug, injury or burns. CAUTION Do not insert pins or needles into the appliance or use the appliance on clothes with sewing needles or the like inserted. - Doing so may cause electric shock or injury. Do not put the soleplate too close to you or others since steam may unexpectedly erupt from it. - Doing so may cause scalding, hot surface related injuries. Do not use the appliance on anything other than fabric. - Failure to do so may cause damage to the appliance.. Do not store the appliance until it has fully cooled down. - Doing so may cause scalding, hot surface related injuries. Do not store the appliance while the power cord is twisted. - Doing so may result in breakage to the wire of the power cord and may cause a short circuit resulting in an electric shock or fire. Do not add perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water reservoir. Please only use room- temperature pure water or distilled water in this iron. - Otherwise the clothes may be stained or discolored. Do not repeatedly and quickly press the power shot button. - If repeating operation over an interval of less than 2 seconds, burns due to hot water leaks may result. Do not use the iron near walls or furniture that cannot withstand high temperature or humidity. - Doing so may damage the wall or furniture. Do not use steam when wearing gloves through which steam can penetrate. - Doing so may cause scalding, hot surface related injuries.English

CAUTION Do not add hot water in the water reservoir. - Doing so may cause burns due to hot water splashes. If the shot intensity is low, do not operate the power shot button. - Doing so may cause burns due to hot water leaks. Do not use any ironing accessories available on the market. - Doing so may cause burns or damage to cloth due to incorrect operation. Do not touch the hot surface (such as the surface of the soleplate, any side of the iron and the hot area around it) during use.

• Do not place your hands, feet, etc. under the ironing board.

• Do not place the appliance on your hand, knee or any other part of the body.

• Do not use steam when the iron is partially sticking out from the ironing board. - Doing so may cause scalding, hot surface related injuries. Do not touch the steam during use.

• Do not aim the steam towards your hand, knee, or any other part of the body.

• Do not iron the clothes that you are wearing. - Doing so may cause scalding, hot surface related injuries. Do not put the steamer head on a carpet or the floor. - Doing so may damage the product, carpet or floor. Do not set the temperature selector to the steam zone if the temperature setting is , or when the iron is still heating up. - Otherwise hot water may leak from the iron and it may cause scalding, hot surface related injuries. Steam Zone Fabric type Temperature setting Steam setting * Cotton / Linen MAX Wool (Dry Only) Silk / Acrylic

• These marks are one of examples. They might be di󰀨erent09 English CAUTION Disconnect the power plug by holding the power plug instead of pulling the power cord. - Failure to do so may break the power cord, and may cause burns, electric shock, or fire due to a short circuit. Care should be taken when using the iron. - Steam emission may cause burns. Use the iron only for its intended purpose, for ironing fabrics. - Failure to do so may cause injury. When using with following fabric, test on an inconspicuous area, or place a cloth over the fabric to prevent the fabric from marking.

• Expensive or specially processed fabrics (velvet, acrylic, nylon, cashmere, etc.)

• Fabrics that are labeled as “low heat” or “medium heat”, or dark colored fabrics. - Failure to do so may cause damage fabric. The plug must be removed from the socket-outlet before the water reservoir is filled with water. Also, disconnect the power plug during emptying, cleaning and not in use. - Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration. When ironing wet clothes, please use dry ironing. - Failure to do so may cause scalds due to hot water splashes from the main body.English

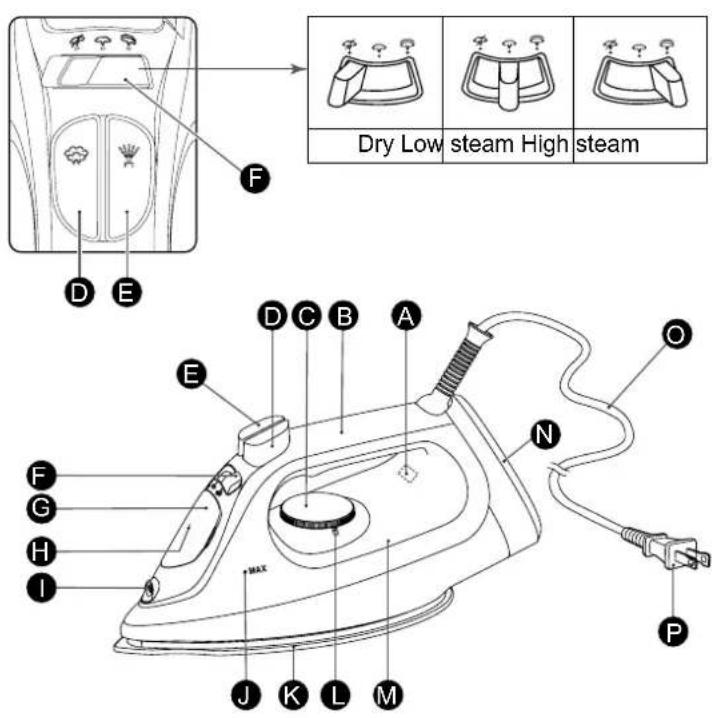

Dry Low steam High steam

Thermostat operating indicator light

Maximum water level indicator

Power plug11 English Before use The temperature selector of the iron has words, dots and steam symbols. The dots are symbols for 3 temperature ranges:

• • • High temperature Some fabrics are labeled with these dots as a guide for selecting the proper ironing temperature setting. Use a press cloth if necessary. Notes:

• The thermostat operating indicator light goes on and o󰀨 alternately to indicate the changing temperature of soleplate. If you turn the temperature selector from a high temperature to a lower temperature, wait until the indicator light goes on before using the iron.

• Do not place the hot iron on cloth for extended time or wrap cloth over the hot iron. How to use as an iron Be sure to disconnect the power plug from the power outlet before filling the water reservoir with water.

1. Move the steam/dry selector to

the dry position to avoid water leakage.

2. Fill water in the water reservoir

when using steam, power shot, vertical steam or spray. ① Open the water fill cover. Hold the iron as shown and fill the iron with water up to " MAX " (about 300 mL / 10,2 oz). Use a clean cup for filling. ② Place iron in vertical position to check water level. ③ Close water fill cover firmly to prevent spillage during ironing. Note: Do not overll the water reservoir. The steam will release through the vents when the iron is positioned vertically. "MAX"English

and make sure the temperature selector is set to " OFF ".

4. Plug into a 120 V AC household outlet.

5. Set the temperature selector.

The thermostat operating indicator light goes on. Refer to "Guide for Steam/Dry selector" on P13

• Please make sure the temperature select indicator setting is on " MAX " when using " high steam " and " power shot ". Note: If the temperature of soleplate is high, the light does not go on.

6. Wait until the thermostat operating indicator light goes off

(usually about 1-2 minutes), then you can use the iron. The light will go on and off while ironing to indicate the temperature chosen by the temperature selector is being maintained.

Set the temperature selector to " OFF " and unplug. 1 Set the steam/dry selector to the dry position. If the steam/dry selector is not in the dry position after using, remaining water will move into the soleplate and can result in burns when the iron is used next time. 2 Empty the water reservoir immediately after using. Do not store the iron with water in it. If you empty the water reservoir after it has cooled, heat the iron for about 5 minutes with the temperature selector set to " MAX ".

• Do not wind the power cord around the iron. 3 Wait until the iron has cooled before storing it, and always set it on the heel rest to protect the soleplate from scratches, corrosion or stains.13 English Steam/Dry selector Temperature zone Recommendations Dry Choose according to the type of fabrics. For polyester and other synthetic ber material. Low steam For thin or delicate fabrics requiring a small amount of steam. High steam For fabrics requiring a lot of steam. (i.e. thick materials, items with stubborn wrinkles). Please make sure the temperature select indicator setting is on " MAX " when using " high steam ". CAUTION: Do not aim the steam at any parts of your body or others. Note:

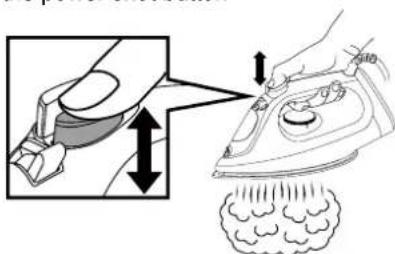

• Use an ironing board to support the steam iron. Using the " power shot " The " power shot " feature provides extra steam which goes deep into the garment and is helpful for removing stubborn wrinkles. It is necessary to clean the inside of the iron before using the " power shot " feature, if you have not used the " power shot " feature for a prolonged period. Simply test the " power shot " feature several times away from the ironing board and clothes to be ironed. This will prevent brown spotting or water spotting on the clothes. Set the steam/dry selector to the dry position. Set the temperature selector to the " MAX " position. Simply pump the power shot button

• Pump the power shot button several times at the beginning of each ironing session.

• Press the power shot button in intervals of at least 2 seconds during the use to prevent water spotting.

• If the power shot weakens, wait until the thermostat operating indicator light goes on, and then off.

• Use a press cloth if necessary. Guide for Steam/Dry selector steam zoneEnglish

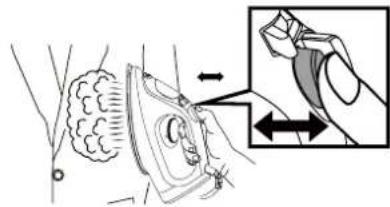

Using the " vertical shot " To get better results when using vertical steam, hang the garment on a hanger. Curtains and drapes may also be steamed once they are hung. Hold the iron away from your body, close to but not touching the fabric. Pull the fabric tightly and pump the power shot button at 2 seconds intervals as you press the iron over the wrinkled fabric.

• If the power shot weakens, wait until the thermostat operating indicator light goes on, and then off. Using the " spray " The spray feature is particularly helpful for removing stubborn wrinkles and where extra dampen is needed. The spray may be used with steam or dry ironing. Simply push the spray mist button whenever spray is desired.

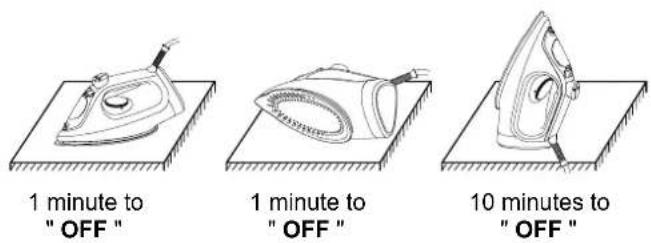

• If the spray does not work immediately, keep triggering until it does. Electronic 3-way auto shut-o󰀨 function The auto shut-off feature is not intended to take the place of unplugging the cord. The auto shut-off system works regardless of the position of the temperature selector.

1. When the iron is left idle with its soleplate facing down or

on its side for approx. 1 minutes, the iron will automatically shut off.

2. When the iron is left idle on its heel rest for

approx.10 minutes, the iron will automatically shut off.

3. To resume ironing and turn the iron on, simply move the

iron in any manner. If the iron has been left in the auto shut off mode for more than 10 minutes, allow the iron to reheat until the indicator light goes off. Always unplug the iron when you nish ironing. Even though the iron is unplugged, the soleplate is still hot. Make sure to rest the iron on its heel, away from fabric. 1 minute to " OFF " 1 minute to " OFF " 10 minutes to " OFF "15 English How to care for and store your iron Cleaning ►Using the " power shot " feature

1. Fill the water reservoir with tap water as described in the

" How to use as an iron " on P11.

2. Set the temperature

select indicator to " OFF ".

3. Plug into a 120 V AC household outlet.

4. Stand the iron up and set the

temperature select indicator to " MAX ".

5. Hold the iron horizontally over the sink after the thermostat

operating indicator light has gone out.

6. Pump the power shot button quickly

(at least 3 times per second) for approx. 20-30 times continuously. While pumping, shake the iron back and forth.

7. Set the temperature select

indicator to " OFF ".

8. Unplug and dispose of any water

remaining in the water reservoir.

9. To prevent corrosion of the soleplate vents, plug the power

plug into a socket-outlet, stand the iron up, set the temperature select indicator to " MAX "and preheat for about 5 minutes. 10.Set the temperature select indicator to " OFF " and unplug. 11.Iron on a used cloth to remove any impurities on the soleplate.

• Repeat the steps if venting of the steam does not improve.

• Clean the iron once every two weeks. If the water is very hard (i.e. steam holes on the soleplate are easily blocked by impurities), this method should be used more frequently.

• Let the iron cool down on its heel rest and follow the instructions in the " After each use " on P12. ►Automatic anti calc system (Stay clean vents) The built-in automatic anti calc system in the water reservoir continuously reduces scale build up in the vaporizing chamber of the iron. This system makes it possible to use the steam function for a long period of time and prevents steam vents from clogging.English

How to care for your iron ►Surface of the iron

• After unplugging and cooling the iron, simply wipe off with a damp cloth and if necessary, use a mild detergent.

• Never use any strong cleaners. ►Soleplate

• Starch and other residue may be easily removed from the soleplate with a damp cloth.

• To avoid scratching the surface, never use a metallic pad to clean the soleplate, and never place the iron on a rough surface.

• The best way to remove synthetic residue from the soleplate is to iron over an old cotton cloth rag after heating the iron. Note: Never use cleaners in the iron, since they may damage the working parts of the iron. Some odor may be released during initial use of the iron, however, this is normal and the odor will not attach to your clothes. Never use steam iron detergent in the iron, since they may damage the working parts of the iron. Q&A Question Answer Why click sound or metallic sound be heard while using or shaking the iron?

These sounds are made by the internal parts of the iron, spray mechanism, etc., moving slightly. This is normal. Why do the clothes sometimes become brown after being ironed?

If there is laundry detergent remaining on the fabric, the clothes may become brown after being ironed. Why are there white powder/particles coming out of the steam vents while using the steam function (especially when using " power shot ")?

The powder/particles are hydrophilic treatment or impurities and minerals found in hard water etc. These are not harmful and can be brushed o󰀨 clothing.17 English Trouble shooting Problem Causes, solution No heating ► Make sure the power plug is plugged into socket-outlet. No steam Poor steaming power

Fill the water reservoir with tap water up to " MAX " dot.

If there is no steam, set the steam/dry selector to the steam position, or set the temperature selector to " MAX ".

For poor steam, move the steam/dry selector several times, then reset to the steam position.

Press the power shot button several times when the " power shot " appears insufcient.

Wait until the thermostat operating indicator light goes o󰀨 before using the iron. ► Set the temperature selector to " MAX ". No spray ► Push the spray mist button several times.

Fill the water reservoir with tap water up to " MAX " dot. Water leaks from steam vents

Press the power shot button in intervals of at least 2 seconds when using the " power shot ".

Wait until the thermostat operating indicator light goes o󰀨 before using the iron. Clothes are marked

Empty the water reservoir and ll it with clean water. There may be contaminants in the iron/ cup. Specifications Model No. NI-S630 Power source 120 V 60 Hz Power consumption 1 500 W Weight (approx.)

(2,4 lb) Dimension (approx.) 282 × 120 × 134 mm (11,1 × 4,7 × 5,4 in.) This iron is intended for household use only.LIMITED WARRANTY (U.S.A) Panasonic Products Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as ″the warrantor″) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (″warranty period″), at its option either (a) repair your product with new or refurbished parts, (b)replace it with a new or a refurbished equivalent value product, or (c)refund your purchase price. The decision to repair, replace or refund will be made by the warrantor. Product or Part Name Labor Parts Small Appliances 1 yr. 1 yr. During the ″Labor″ warranty period there will be no charge for labor. During the ″Parts″ warranty period, there will be no charge for parts.This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold ″as is″. Mail-in Service - Online or Telephone Repair Request Online Repair Request To submit a new repair request, and for quick repair status visit our Web Site at: http://shop.panasonic.com/support When shipping the unit, carefully pack and send it repaid in the original (or supplied) carton. Include a letter detailing the complaint along with the bill of sales and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty. When shipping Lithium Iron batteries please visit our web site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE. Limited Warranty Limits And Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER glass, plastic parts, temperature probes (if included) and normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, maladjustment of consumer controls, improper maintenance, power line surge, lightning damage, modication, or commercial use (such as in a hotel, o󰀩ce, restaurant, or other business), rental use of the product, service by anyone other than a factory service center or other authorized servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.LIMITED WARRANTY (U.S.A) Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specic legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to: Consumer A󰀨airs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERIVCE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Shop Accessories! for all your Panasonic gear Go to http://shop.panasonic.com/supportGet everything you need to get the mostout of your Panasonic productsAccessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more... Customer Services Directory For Product Information, Operating Assistance, Parts, Owner's Manuals, Dealerand Service info go tohttp://shop.panasonic.com/supportFor the hearing or speech impairedTTY: 1-877-833-8855 AS of April 2017LIMITED WARRANTY (Canada) Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT-LIMITED WARRANTY

EXCHANGE PROGRAM Pansonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the data of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc. This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an anthorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging. Electric Iron One (1) year IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS
