Product type	LED LCD Television
Screen size	43 inches (109 cm)
Resolution	Full HD (1920 x 1080 pixels)
Backlighting	LED
Reception	Digital terrestrial (DVB-T/T2), cable (DVB-C), satellite (DVB-S/S2)
Operating system	Android TV
Wi-Fi connectivity	Yes, 2.4 GHz and 5 GHz
Bluetooth	Yes, version 4.2
HDMI inputs	3
USB inputs	2
Ethernet (LAN)	1
Optical audio output	1
Headphone jack	1
Audio power	2 x 8 W
Power supply	100-240 V AC, 50/60 Hz
Power consumption (standby)	Less than 0.5 W
Weight (with stand)	9.0 kg
Weight (without stand)	8.5 kg
Dimensions (with stand)	968 x 617 x 215 mm
Dimensions (without stand)	968 x 570 x 78 mm
Operating temperature	+10 to +35 °C
Operating humidity	80% max at 25 °C
Screen cleaning	Soft, damp cloth, no detergent
Energy efficiency class	A+ (according to European standard)

Frequently Asked Questions - 43FL1EA SHARP

How to install the TV stand?

Follow the instructions in the provided quick start guide. Attach the stand to the TV using the included screws. Make sure the TV is placed on a stable surface.

How to connect the TV to the Internet?

You can use a wired connection via the Ethernet port (RJ45 cable) or a Wi-Fi connection. Go to Settings > Network to configure the connection.

What to do if the remote control does not work?

Check that the batteries are inserted correctly (respect polarity). Replace the batteries if necessary. Ensure there are no obstacles between the remote and the TV.

How to clean the TV screen?

Use a soft, damp cloth with clean water. Never use detergents, solvents, or chemicals. Do not spray liquid directly onto the screen.

Can I mount the TV on the wall?

Yes, the TV is VESA wall mount compatible (200x200 mm standard). Use the included screws and spacers. Follow the wall mount manufacturer's instructions. Ensure the wall can support the weight.

How to play USB files on the TV?

Connect a USB drive formatted in FAT16 or FAT32. From the Source menu, select USB. Use the file manager to browse and play compatible videos, photos, or music.

Why is the image frozen (burn-in)?

Avoid displaying static images (logos, menus, games) for long periods. Reduce brightness and contrast. If a persistent image appears, it may be permanent. Use screen saver functions.

How to replace the remote control batteries?

Open the compartment on the back of the remote. Insert two AAA batteries observing the polarities (+/-). Do not mix used and new batteries, or different types.

What to do in case of a storm?

Unplug the power cable and all connection cables (antenna, Ethernet) to avoid damage from lightning. Wait for the storm to pass before reconnecting.

Where to find the complete user manual?

The electronic manual is accessible from the TV: press the HOME button, select Applications, then 'E-instruction Manual'. An Internet connection is required.

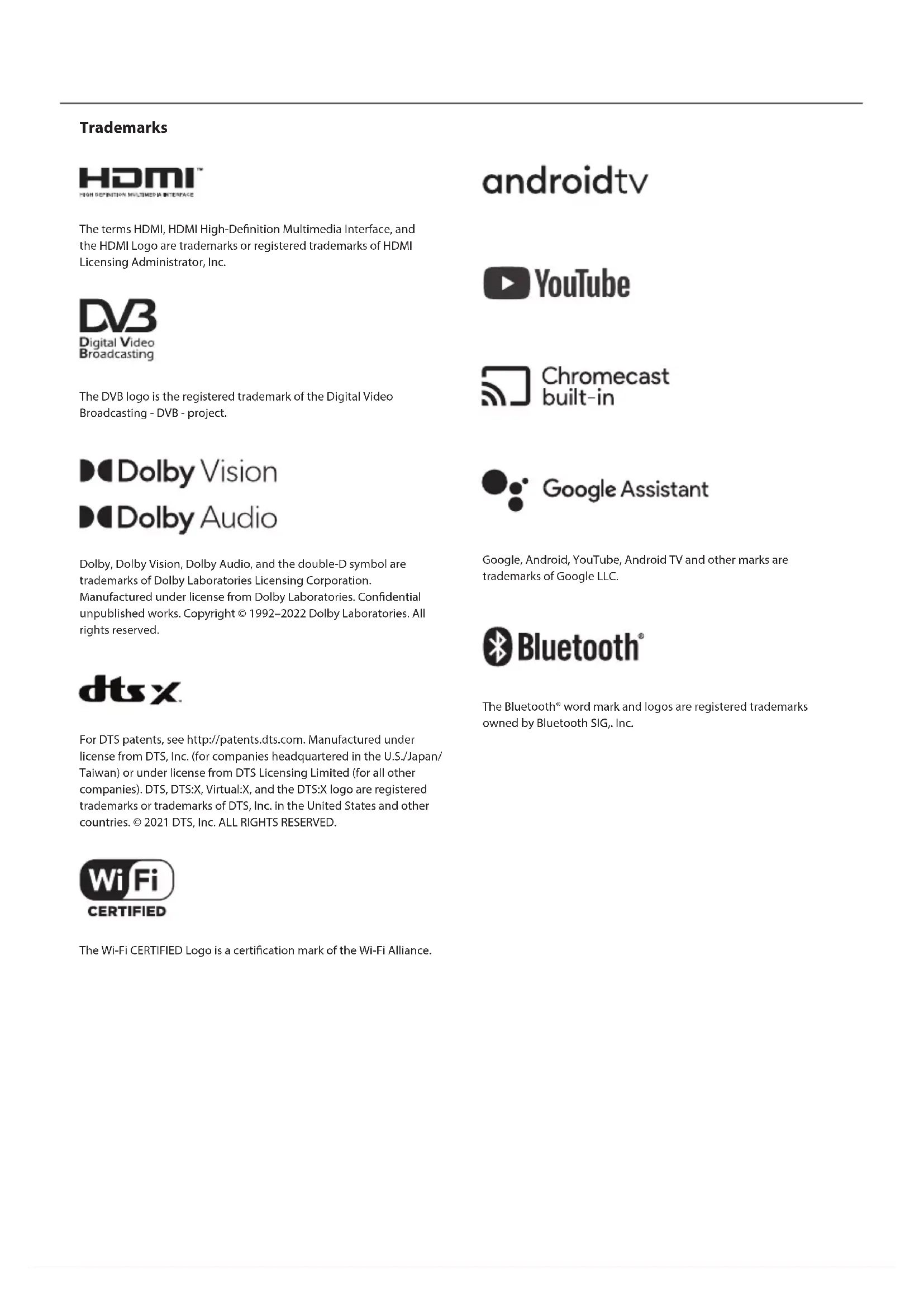

USER MANUAL 43FL1EA SHARP

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The DVB logo is the registered trademark of the Digital Video Broadcasting - DVB - project.

Dolby Vision

Dolby Audio

Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2022 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/ Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, DTS:X, Virtual:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

androidtv

YouTube

Chromecast built-in

Google Assistant

Google, Android, YouTube, Android TV and other marks are trademarks of Google LLC.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

Important safety instructions

Please, read these safety instructions and respect the following warnings before the appliance is operated:

In order to prevent fire always keep candles and other open flames away from this product.

Alternating Current

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
- Television sets with 43'' size screens or more must be lifted and carried by at least two people.
- This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the manufacturer or the authorised service agent. Contact with certain parts inside the TV might endanger your life. The guarantee does not extend to faults caused by repairs carried out by unauthorized third parties.
- Do not remove the rear part of the appliance.
- This appliance is designed for the receiving and reproduction of video and sound signals. Any other use is strictly forbidden.
- Do not expose the TV to dripping or splashing liquid.
- To disconnect the TV from mains please unplug the mains plug from the mains socket.
- If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
- The suggested distance to watch HD TV is approximately three times longer than the screen diagonal size. Reflections on the screen from other light sources can make the quality of the picture worse.
- Ensure the TV has sufficient ventilation and is not close to other appliances and other pieces of furniture.
- Install the product at least 5cm from the wall for ventilation.
- Ensure that the ventilation openings are clear of items such as newspapers, table-cloths, curtains, etc.
- The TV set is designed to be used in a moderate climate.
- The TV set is designed exclusively for operation in a dry place. When using the TV outside, please, make sure it is protected against moisture (rain, splashing water). Never expose to moisture.
- Do not place any objects, containers filled with liquids, such as vases, etc. on the TV. These containers might get pushed over, which would endanger electric safety. Place the TV exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the TV.
- Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance.
- Do not place the appliance near heating elements or in a place with direct sunlight as it has a negative effect on cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the

appliance. In order to ensure the safety, ask a qualified person to remove the dirt from the appliance.

• Try to prevent damage to the mains cable or mains adapter. The appliance can only be connected with the supplied mains cable/adapter.
• Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by lightening the appliance might get damaged, even if it is turned off. You should disconnect all the cables and connectors of the appliance before a storm.
• To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents and in no case use solvents.
• Position the TV close to the wall to avoid the possibility of it falling when pushed.
• WARNING - Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Use cabinets or stands recommended by the manufacturer of the television set.
• Only use furniture that can safely support the television set.
• Ensure the television set is not overhanging the edge of the supporting furniture.
• Not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not place the television set on cloth or other materials that may be located between the television set and supporting furniture.
  Educate children about the dangers of climbing on furniture to reach the television set or its controls.
• Ensure that children do not climb or hang onto the TV.
• If your existing television set is being retained and relocated, the same considerations as above should be applied.
• The instructions shown below are a safer way to set up the TV, by fixing it to the wall and will avoid the possibility of it falling forwards and causing injury and damage.
• For this type of installation you will need a fastening cord A) Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/s to the TV. B) Secure the other end of the fastening chord/s to your wall.
• The software on your TV and the OSD layout can be changed without notice.
• TV operating conditions:

-temperature from +10 to +35^
- humidity no more than 80% (at a temperature of 25^ )
- atmospheric pressure from 86 to 106kPa (from 650 to 800mmHg )

Warning:

• When turning off the set, use the standby button on the remote control. By long pressing of this button, TV will turn off and enter the energy saving standby mode to meet the eco-design requirements. This mode is default one.
• For the electrostatic discharge (ESD) test of EN55035, it was found that manual operation by Standby button ON/OFF switch is needed to resume normal operation as intended after the test.
• Do not use TV set directly after unpacking. Wait until TV warms up to the room temperature before using it.
• Never connect any external devices to a live appliance. Switch off not only the TV but also the devices which are being connected! Plug the TV plug into the wall socket after connecting any external devices and the aerial!
  Always make sure there is free access to the TV mains plug.
• The appliance is not designed for a use in a workplace fitted with monitors.

• The systematic use of headphones at high volume might lead to irreversible hearing damage.

• Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling.

• While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The chemicals contained in these products might have a reaction with the TV stand. This could result in bits of the material sticking to the furniture surface, which are difficult to remove, if not impossible.
• The screen of your TV has been produced under top quality conditions and was checked in detail for faulty pixels several times. Due to the technological properties of the manufacturing process, it is not possible to eliminate the existence of a small number of faulty points on the screen (even with maximum care while in production). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries defined by DIN norm.
• The manufacturer cannot be held responsible, or be liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider.
• There are a variety of reasons you may be unable to access content or services from the device unrelated to the device itself, including, but not limited to, power failure, the Internet connection, or failure to confi gure your device correctly. Sharp Consumer Electronics Poland, its directors, offi cers, employees, agents, contractors and affi liates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided.
• All third party content or services accessible via this device is provided to you on an "as-is" and "as available" basis and Sharp Consumer Electronics Poland and its affiliates make no warranty or representation of any kind to you, either express or implied, including, without limitation, any warranties of merchantability, non-infringement, fitness for a particular purpose or any warranties of suitability, availability, accuracy, completeness, security, title, usefulness, lack of negligence or error-free or uninterrupted operation or use of the content or services provided to you or that the content or services will meet your requirements or expectations.
• 'Sharp Consumer Electronics Poland' is not an agent of and assumes no responsibility for the acts or omissions of third party content or service providers, nor any aspect of the content or service related to such third party providers.
• In no event will 'Sharp Consumer Electronics Poland' and/or its affi liates be liable to you or any third party for any direct, indirect, special, incidental, punitive, consequential or other damages, whether the theory of liability is based on contract, tort, negligence, breach of warranty, strict liability or otherwise and whether or not Sharp Consumer Electronics Poland and/or its affi liates have been advised of the possibility of such damages.
• This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
• Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Important information regarding use of video games, computers, captions and other fixed image displays.

• The extended use of fixed image program material can cause a permanent "shadow image" on the LCD screen (this is sometimes incorrectly referred to as "burnout to the screen"). This shadow image is then permanently visible on the screen in the background. It is irreversible damage. You can avoid such a damage by following instructions below:
• Reduce the brightness/contrast setting to a minimum viewing level.
• Do not display the fixed image for a long period of time. Avoid displaying of:

» Teletext time and charts,
TV/DVD menu, e.g. DVD contents,
» In the n Pause" mode (hold): Do not use this mode for a long time, e.g. while watching a DVD or a video.
Turn off the appliance if you are not using it.

Batteries

• CAUTION: Risk of explosion if the battery is replaced by an incorrect type.
• Observe the correct polarity when inserting the batteries.
• Do not expose batteries to high temperatures and do not place them on locations where the temperature might increase quickly, e.g. near the fire or on the direct sunshine.
• Do not expose batteries to excessive radiant heat, do not throw them into the fire, do not disassemble them and do not try to recharge un-rechargeable batteries. They could leak or explode.

Never use different batteries together or mix new and old ones.
Dispose of batteries in an environmentally friendly way.
» Most of the EU countries regulate the disposal of batteries by law.

Disposal

• Do not dispose of this TV as unsorted municipal waste.

Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

CE Statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this equipment is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU.
• The full text of the EU declaration of conformity is available by following the link www.sharpcomer.com/documents-of-conformity/ This equipment may be operated in all EU countries.

The 5 GHz WLAN(Wi-Fi) function of this equipment may only be operated indoors.

Wi-Fi max transmitter power:

100 mW at 2,400 GHz - 2,4835 GHz

100 mW at 5,150 GHz - 5,250 GHz

100 mW at 5,250 GHz - 5,350 GHz

100 mW at 5,470 GHz - 5,730 GHz

100 mW at 5,735 GHz - 5,835 GHz

BT max transmitter power: 10 mW at 2,402 GHz - 2,480 GHz.

What is included in the box

Supply of this TV includes following parts:

• 1xTV - 1xTV stand installation packet
• 1x Remote control - 1x Quick Start Guide
• 2x AAA batteries

Attaching the Stand

Please follow the instructions in Technical leaflet, located in the accessories bag.

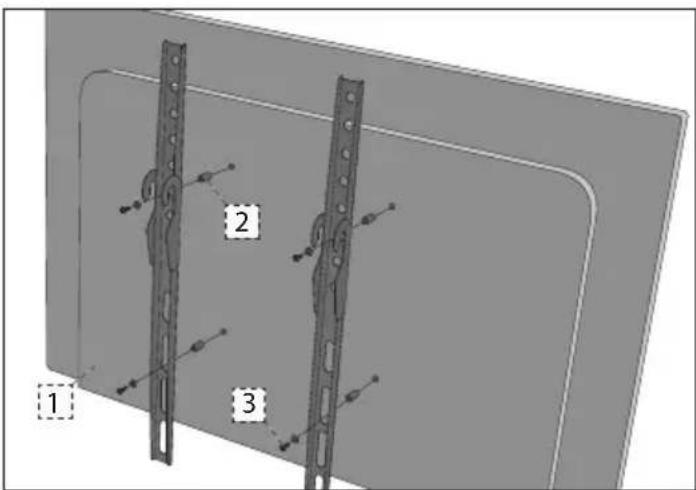

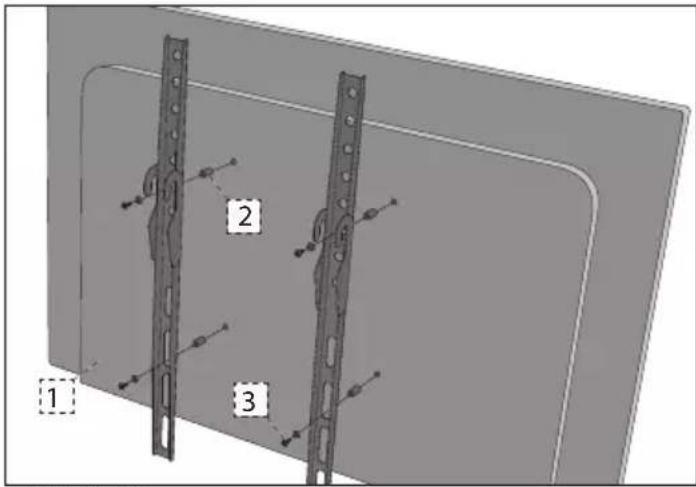

Wall mounting the TV

1. Remove the four screws that are supplied in the wall mounting holes.
2. The wall mount can now be easily attached to the mounting holes on the rear of the TV.
3. Install the wall mounting bracket to the television as advised by the bracket manufacturer.

Some TVs come with spacers and longer screws for wall mounting. When fixing the wall mount brackets on model that has spacers supplied, instead of screws provided in TV wall mounting holes, we recommend the use of longer screws and spacers included in the accessory pack. Please put spacers into TV wall mounting holes, located on the back of the TV, then put wall brackets onto them. Attach the brackets and spacers to the TV using longer screws as shown below:

1. TV
2. SPACER
3. SCREW

NOTE: TV and the wall bracket type shown in the

diagram is for illustration purposes only.

Connections

Connecting external devices see last page in this IM.

Getting started - initial set up

1. If rubber parts, foam parts or tape are attached to the TV frame, please remove them gently.

2. Using the antenna cable (not supplied), connect the TV to the antenna wall socket.

3. For connecting to the Internet with a wired connection connect a Cat 5/Ethernet cable (not included) from the TV to your broadband modem/rodter.

4. Insert the batteries supplied into the Remote control.
5. Connect the power cable to the Electrical outlet.
6. Then press Standby button to power on TV.
7. After turning the TV on, you will be welcomed by the First Time Installation menu.
8. Please select language for TV menu.
9. Please set desired settings in remaining screens of First installation menu.

TV buttons*

Vol+ Volume up and menu right

Vol-Volume down and menu left

CH+Programme/Channel up and menu up

CH-Programme/Channel down and menu down

MENUDisplaysMenu/OSD

SOURCE Displays the input source menu

STANDBY Standby Power On/Off

* - for TV with buttons

TV Control Stick*

TV control stick is located on the lower left corner of back side of the TV. You can use it instead of remote control to control most of the functions of your TV.

While TV is in standby mode:

• short press of control stick - Power On
  While watching TV:
  RIGHT/LEFT - volume up/volume down
  UP/DOWN - changes channel up/down
  short press-Displays Menu
• long press - Standby Power Off

While in menu:

• RIGHT/LEFT/UP/DOWN - navigation of cursor in on-screen menus
  short press - OK/Confirrm selected item
  * for TV with control stick

Choosing Mode Input/Source

To switch between the diff erent input/connections.

a) Using the buttons on the remote control:

1. Press [SOURCE/ ] - The source menu will appear.
2. Press [▲] or [▼] to select the input you require.
3. Press [OK].

b1) Using the buttons* on the Television:

1. Press [SOURCE].
2. Scroll up/down using CH+ / CH- buttons to the input/source you require.
3. Press [VOL + ] to change input/source to the one selected.

b2) Using the TV control stick*:

1. Shortly press control stick to enter menu.
2. Press control stick down and navigate cursor to SOURCES menu.
3. Shortly press control stick to enter SOURCES menu.
4. With control stick choose the input/source you require.
5. By short press of control stick, you will change input/source to the one selected.

* - optional

TV Menu navigation

Use the ( / /) buttons to focus on the desired item.

Press the OK button to select the item currently in focus.

Press the BACK button to go back one step in the menu.

Press the EXIT button to leave menu.

Press the / HOME button to enter TV Home menu.

To enter Live TV menu, press the TV button and then press the MENU button.

USB Media playback notice

This TV supports playback of a wide variety of fi le types from a USB drive. However, for data security reasons, Google limit the supported fi le system types.

To playback any media from a USB storage drive, the USB drive must be formatted to a FAT16 or FAT32 file system. NTFS is not supported.

Electronic instruction manual

Find more useful information directly from your TV.

To launch the online manual, press the / HOME button, select Apps from the Home menu, and select "E-instruction Manual" from the apps list.

NOTE: An Internet connection is required to use this electronic manual.

Remote control

See in On Screen Manual in TV

Botones* de la television

Palanca* de control de la television

100mWbij5,470GHz-5,730GHz

100mW at 2,400 GHz - 2,4835 GHz

100mW at 5,150 GHz - 5,250 GHz

100mW at 5,250 GHz - 5,350 GHz

100mW at 5,470 GHz - 5,730 GHz

100mW at 5,735 GHz - 5,835 GHz

BT max sändarkraft: 10 mW at 2,402 GHz - 2,480 GHz.

NDBY Standby Taend/Sluk

b1) Paina television painikkelta*:

Olulised ohutusjuhised

ETTEVAATUST

ELEKTRILÖOGIOHT

ARGEAVAGE

MENU Afi seaza Meniul/OSD

HnKora He n3non3BaTe 3aeHOb pa3nHn 6aTePN HcMecBaiTe HOBn I CTapn TaKbA.

IMxBbPnIeN3pa3XoJeHte6aTePNNo 6eONaceH 3a OKoHaTa CpeHaHuH.
IMxBbPnHeTo Ha 6aTeepn e perynpaHo Cbc 3aKOH B noBeyeTo CTpaHn ot EC.

M3BExKaHe OTeKcnNoaTaua

He n3xbpnaTe To3n TeeneBn3Op Hapec dpynte 6ntobn OTnabu. BbpHete ro B hKoN ot nppeeneHte ceHTPOBE 3a peuknnpahe CbIaNco DnpeKTNBata 3a NYEEO. NTo 3n NaHn NoDnomaTae 3anaBaHeto Ha pecypcn n 3aunTaBe OKonHaTc peda. 3a nobuee INΦopMauaCe CBpbXeTe C Hain-6nKn DaBac TbproBec nn C MeCTHne Bnactn.

CEДeКларuaи:

C HactoIto, Sharp Consumer Electronics Poland sp. zo.o. 3aAbaBa, ue TOBA o6OpUdBaHe e B CbOTBeTCTBne C OCHOBHnTe N3NCKBaHHn I npyUm yMeCTHn pa3npope6n Ha DnpeKtNbA 2014/53/EC (RED) 3a paAnOCbOpbJkeHN.
- Пьлниг Teкт на дeкларида за сботBetCTBVE на EC можete\ да почеши на adpec www.sharpcom.com/documents-of-conformity/

To3n ypeD moKe da ce n3non3Ba BBB BCnKu CTpaHn Ha EC.

C Φyнкцята 5 GHz WLAN (Wi-Fi) може за ce pa6otn сamo В зakрпtnnomeши. [ \text{WLAN} = \frac{\text{WLAN}}{\text{WLAN} + \text{WLAN} - \text{WLAN}} ]

Wi-Fi MaKc. MoHocT Ha npedaBaHe:

100mW npn 2,400 GHz -2,4835 GHz

100mW npn 5,150 GHz - 5,250 GHz

100mW npn 5,250 GHz - 5,350 GHz

100mW npu 5,470 GHz - 5,730 GHz

100mW npn 5,735 GHz - 5,835 GHz

BT MaKc. MoUHocT Ha npedabAhe: 10 mW npn 2,402 GHz - 2,480 GHz.

KaKBO e BKNJIOyeHO B NaKeTa

Pn 3akynbahe Ha To3n TeleBn3Op, ue noIyute cJeHNITE enemeHTN:

TeBnOp-16p. NaKeT 3a MoTax Ha

TeneBn3NOHHaTnOCTaBAk-16p.

-ДиuctaHOnHOуnpaBHeHne

Hapbukn3a6bp3cTAPT-16p.

• 5aTePnpu3MepAAA-26p.

PnKpenBaHe Ha noCTaBkTa

CneBaIte yka3aHnTa B TexHnueckata NICTOBKa, KOrTO ue OTKpNeTeB Top6uKhata C npHaadJeXHOCTN.

MOnTnpaHHe Ha TeNeBn3Opa Ha CTeHaTa

1.ИЗБАДЕТУЕТРУЕВИТА,КОТСА NOCTABEHIN B OTBOPNTE 3a MOHTIPAHE.

2.CToKaTa 3a MoHTnPaHe Ha CTeHa MoKe JIecHO Da 6bIe npIKpeNeHa KbM OTBOpHTe,pa3NoIOJKeHbBpXy 3aHaTa CtpaHa HTeNEBnOpa.
3. MoHTnpaIte KOH3OJaTa, cna3BaNk CbBETHe Na pOnu3BOUInTeJ.
Hakon TeNEBn3Op nca BKNIOueHn pa3dEJIeTNI u DblrN BuHTObe
3a MOHTpAne Ha cTeHa.AKO MOneJbT pa3NoIar c pa3dEJIeTIe, e
npenopbTuHEno npu MoNTax CbSITe Da 6bDaT N3No3BAHN, 3aeHNO
cNo-DbnITe BNHTOBE, BKNIOueHn B NaKeTa C AkceCoApn, BMeCTO
OpunHnAHnTE BuHTOBe OT MOHTAXHnTE OTBOPn Ha TeneBn3Opa.
Noctabete pa3dEJIeTIe B MOHTaxHnTE OTBOPn BbpxY 3aHnTa CTpaHa
Ha TeneBn3Opa, cNeI KoTo pa3NoIoxKeTe CteHHnTE KOH3OJIu BbpxY TIX.
PpIKpeTe KOH3OJIte n pa3dEJIeTIe NT KbM TeneBn3Opa C NOMoUta Ha
no-DbJIrTe BnHTOBe, KaKTo e NOKa3aHO No-dOly:

1.TENEB3OP

2.PA3JENITEI

3.BNHT

3A6EJEXKA: Buobm Ha meenebuzopa u cmeHHama KOH30na

e uiocpamueeh u cnyxu euhcmeHo 3a noareHue.

Cbbp3BaHe

3a Cbbp3BaHe Ha BbHnH yctpoCTBa pa3rpeaTe nocneHaTa CTpaHnua Ha HactoTo pBkoBOdCTBO.

PbPNCTbNKn - npBPOHaJHa NaCTpOJa

1.AKOBKMOPnyCaHaTeleBnOpaIIMApNkpeHnYmEHnactn, enEMeHTOnTnAINNeHTa，rNOTCTpaHHeBHMaTeNo.
2. Cbpxte TeneBn3opa KbMaHTeHHTO THe3do Ha CTeHaTa, nI0J3BaIKKa6eJ 3a aHTeHa (He e BkIOueH B KOMNKeTA).
3. 3a CbBp3BaHe KbM INHTepHET c Ka6eHa Bpb3ka CbBpxKeTe Cat 5/ Ethernet Ka6e (He e BkIoueH) O TeJeBn3Opa KbM WnpOKoIeHTOB Moem/pyTep.
4. NocTaBeTe npedoctaBeHnTe Bn 6aTePnB DnCTaHnOHnTo ynpabJeHne.
5.CbpxkeTe 3axpaHbaunKa6en KbEmeKtpueckn KOHTaKT.
6. Beue MoKeTe da npemHeTe KbM CneBaunTe CTbKnHa KOHnIpynpaHe Ha TeNeBUNOpa.
7.CnE KATO BKNIOHTe TeneBUN3Opa,ue 6bIe NOKa3aHO MeHIOTo 3a IpbBOHaayHnHCTaIauy.
8. Mon, 366epTe e3nK 3a MeHTo Ha TeNEBn3opa.
9. Mon, 3aJaTe JekanHe NaCtpoKn B OcTaBaunTe ekpanoT MeHIOTo 3a TbpBOHaayHa HcTalaunr.

Бутон ha TeileBn3opa*

Vol+ yBEnuBaHaHe Ha CnNaTa Ha 3ByKa n npemHbHaHe KbM MEHOTOBJACHO

Vol- HamaJIaBaHe Ha CnIaTa Ha 3ByKa I nIpeMInHaBaHe KbM MeHIO TO BIABO

CH+ nporpaMa/KaHaH Harope n PpeMHabaHe KbMeHTo rope

CH- nporpama/kaHan HadoJy n IpemnHaBaHe KbM MeHIOTo 0ny

MENU noka3Ba MeHIO/OSD

SOURCE NOKa3BaHe Ha MeHIO 3a N3TOUHnKa Ha BXOeH CNrHaJ.

STANDBY BKJIIOUBAHe/ɪəKJIIOUBAHe Ha TeIeBn3opa,doKaTo e BpeJIM Ha TOTOBHOCT.

*- npu modenu c 6ymoHa meeneu3opa

KpaTKo HaTnCKaHe Ha JxKOJCTNka-BKNOuBaHe

DokaTo rIeJaTe TeJeBn3nA:

HAJRACHO/HAJRABO-yeBnUaBaHe/HamJaBaHe cHaTaHa 3ByKa
HARPE/HADONY-npeBknOuBaHe KaHaI Harope/HaOny
KpaTKO HaTnCKaHe - NOKa3BaHe Ha MeHIO
- PpOdbJIKHTeHnHaTtCKaHe - NoCTaBHe BpeXm Ha FOTOBHOCT

DOKATO CE HAMNPAte B MEHIOTO:

HAJRCHO/HALRABO/HAROPE/HAIOJY-HABUNIPAHEKaYpcopaBMekHOTataHaekpaha
KpaTko HaNTCKaHe - OK / noTbBpJdaBaHa Hn36paH enMeHT
*-npu modenu c koucmuk

I36op Ha pexm 3a BXoJen CnRHaI/ I3TOUHVK

IpeBkIouBaHe MeJy pa3nHHTe BXoHN cInHaJI/CbP3BaHNA.

a) YnOTope6a Ha 6yToHInTe Ha dNcTaHcNoHHoTo ynpabneHHe:

1. HaTnCHeTe 6byToH [SOURCE/ ]- n3BeJda ce MeHIOTo 3a n3TOuHNK Ha CnHAn.
   2.CneToBaHaTnChHeTe [ ] nnn[▼],3aJa n36peTe npednouTaHnO t Bac bxOeH cnHn.
2. Hatnchete [OK].

61) ynotpe6a ha 6ytoHnTe Ha teneBu3opa*:

1. HatncheTe 6yToH [SOURCE].
   2.ПпeвьртeteHarope/HaNoIycnomoHTaHa6yToHnTeCH+/CH-3a da doCTNRHETe Do JekanHnO T BAc n3TOUHnK Ha BXoJen CunHan.
2. HatncheTe [VOL+], 3a Ja npomehnTe BXoHnna CnHaJI/n3ToHnka KbM TO3N, KOJTO CTe N36paII.

62) Ynortpe6a Ha dxoicnka*:

1. HatncheTe 6e3 da 3aBpkaTe, 3a da Bne3eTe B MeHIOTo.
2. HaTnCHeTe JxKoIcTuKa HAnOJy N npuDbNKeTe Kypcopa Do MeHIO3TOUHUN.
   3.BnE3Te B MeHIO N3TOUHNLc KpaTko HATNCKaHe.
   4.ИЗберете келань OT Bac BXODIg CINHAN / N3TOUHK C NOMOHTa Ha JxOJICTNkA.
   5.CkpaTkoHaTnCKaHeMoXeTe Da npomeHHTe BXoHnCnHn/ M3TOUHNKa.

*no u36op

YnpaBHeHne Ha MeHIOTo Ha TeJeBn3opa

C NOMOHTA Ha 6yToH ▲/▼/■ MoXeTe Da n36peTe XeJHaHn enEmeHT. HatncHeTe 6yToH OK, 3a Da NotBbPdnte n36opa Ha enEmeHTa.

Upe3HaTnCKaHe Ha 6yToH BACK (Ha3aI) MoKTe Da Ce BbPHeTe eHa CTbNkA Ha3aD B MEHIOTO.

MooTe Da n3ne3eOT MeHToC hATnCKaHe Ha 6yToH EXIT (N3xoJ).
Pn HATnCKaHe Ha 6yToH /HOME (HaayaneH ekpaH) ige BnE3eTe B
HaayanHToMeHIO Ha TeneBn3Opa.

3a BXoJ B MEHIO Live TV, HATNCHETe 6yTOH TV (TeJeBn3nA), CneI KOeTo HATNCHETe 6yTOH MENU.

Белеки OTHOCHO Вьзпpon3Вжданe насыдьржанe ot USB устpoистBO

To3n TeIeBn3Op NOIbPjA B3nPON3BExJaH He HA IINPOK CnEKTbp
faiIOBn FOpmATn OT BbHUNo USB ycTpoiCTBO. Bbnpk ToBa,
OT CbO6paKeHn 3a CmrypHocT Ha daHNITE, Google orpaHnUaba
NoIbPjXaHnTe TINObe faiIOBn CnCTemN.

AkoXenaete Da n3nBnHnTe Bb3npOn3BExKaHe Ha cbBbpxHaNe OTBHuHO USB yctpoNCTBO,cbIoTo Tp4Ba da 6bIe fOpMaTnpaHo BBbaiaNoBa cnctema FAT16 nnFAT32.NTFS He ce noDbpxa.

EneKtpoHNo pBkoBOdCTBO 3a ynotpe6a

Mozete da OTKpneTe DoIbHnHTeHa NOpE3Ha INΦopMaua DapeKTHO O TaBaua TeBn3Op.

3a cTAPtnpaH Na OHnH HApbYnHka,HaTncHeTe 6yToH /HOME (Haapanen ekpan), n36epete Apps (Ppuloxhen) ot HaapanHnEkpah, cnEkoTo n36epete "E-instruction Manual" (EnektpoHn HapbYnK 3a ekCnloatau)OT cnncbKa.

3A6EIXKKA:3a da u3non3bame mo3u hap6yHK ce u3uckBa c6bp3Bahe C Hmephem.

Дистанцонно упраьнhoe

IperneHaekpaHHTo pBkoBOcTBoHaTebeN3opa

Vázne sigurnosne upute

CH+ program/kanal gor in meni gor

CH- program/kanal dol in meni dol
