USER MANUAL DO7354M DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular7 DO7354M www.domo-elektro.be

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular16 DO7354M

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular26 DO7354M

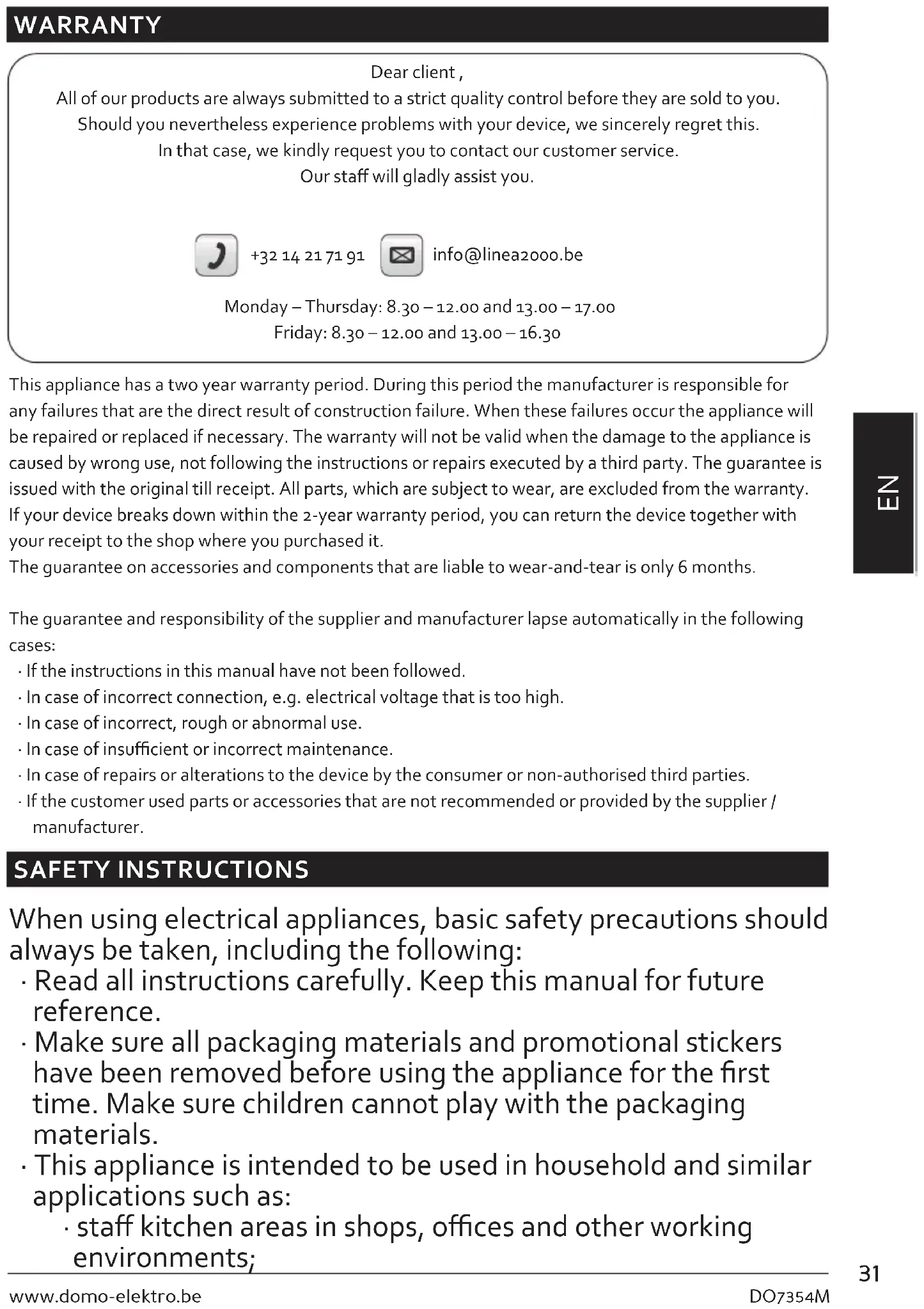

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. [phone] [e-mail] Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g. electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;32 DO7354M

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

I ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. I USE

• Do not use this appliance for other than intended use.

• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.34 DO7354M

The appliance can become hot during use. Keep the power cord away from hot parts. Don’t cover the appliance.

• Do not operate the unit when your feet are bare.

• Keep ammable materials such as cushions/pillows, clothing, curtains, etc. away from the unit. (min. 1 meter)

• Do not expose the unit to rain, sunshine, etc.

• If you decide never to use the unit again, we recommend that you cut the electrical cord o the unit after removing the cord from the socket. We also recommend that you dispose of any parts that could be dangerous for children.

• Installation of the unit must be carried out in accordance with the manufacturer’s instructions. Incorrect installation can lead to accidents involving people or animals or damage to things. The manufacturer cannot be held responsible for this.

• Do not leave the unit switched on and remove the plug from the socket when you do not need it. Do not place the unit against or directly under a socket.

• A person who is in the bathtub or shower should not be able to touch the appliance, the power cord or the control knobs.

• This product is only suitable for well insulated spaces or occasional use.

• CAUTION – Some parts of this product may become very hot and cause burns. Special attention should be paid to the presence of children and vulnerable people.

• Do not use this unit in conned spaces when these are used by people who are unable to leave the room on their own, unless they are under constant supervision.

• Do not use the heater if it has fallen over.

• Never insert foreign objects into the air inlet or outlet.

• Do not spray insecticides or ammable sprays around the product.

• Avoid blowing the airstream on small children for a long time.

• If the unit emits a strange odour or noise when in use, stop using it immediately and unplug it from the socket.

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular35 DO7354M www.domo-elektro.be

• Do not bend the cord.

• Do not use the appliance in the immediate vicinity of a bath, shower, or swimming pool.

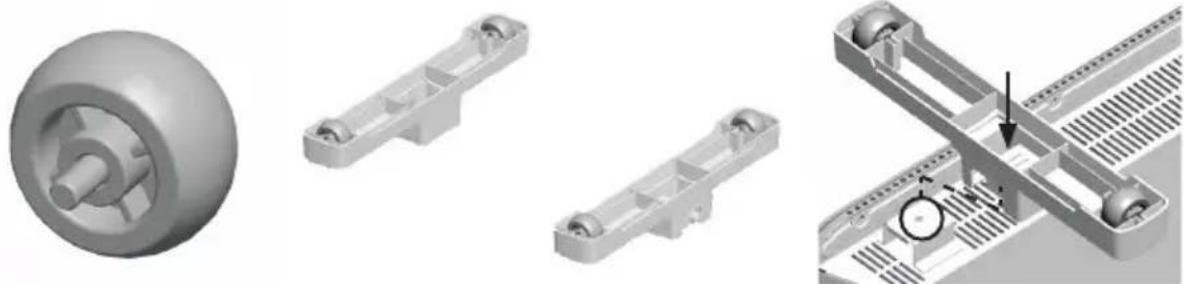

2. Support with wheels

• The heater should only be operated at a minimum distance of 50 cm from any wall or other object that could disturb its operation.

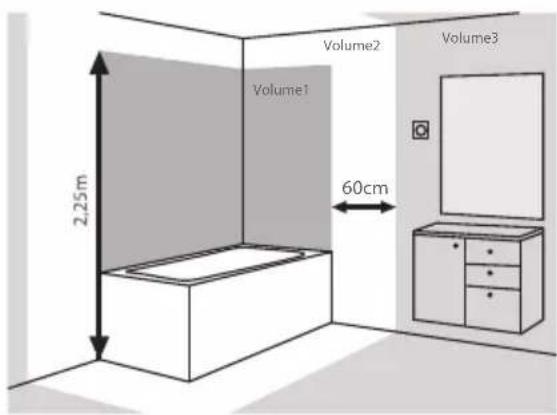

• Keep the appliance at a minimum distance of 60 cm (volume 3) from bathtub or shower, as indicated in the drawing. Volume2Volume3Volume1 60cm

• Position the air ow in order to optimise the heating of the room. Avoid corners, small volumes, oors and ceilings.

• Place the appliance on a smooth, stable surface.

• When the appliance is switched on for the rst time, a slight smell may be emitted. Please ensure sucient ventilation. This smell will disappear very quickly. INSTALLATION Attach the supports with the wheels to the bottom of the appliance using the screws. USE

1. Set the temperature knob to MIN and the position switch to 0. Plug in the

3. Turn the temperature knob into the desired position.

Overheat protection This heater is protected with an overheat protection that switches o the heater automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. The overheating shut-o switches o the temperature inside when the appliance exceeds the normal running temperature. The heating element will automatically stop working. In this case, unplug the appliance. If this happens, switch o the unit and wait until it has cooled down suciently (±10 minutes). Make sure that the air outlet is not covered. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service. Tip-over safety The appliance will turn o when it tips over. When you set the unit upright again, it will go back into standby mode.

CLEANING AND MAINTENANCE

• Before cleaning the appliance, ensure it has cooled down completely.

• Set the temperature knob to the minimum setting and the switch to 0. Disconnect the appliance from the power supply.

• To avoid the risk of electric shock, do not clean the heater with water and do not immerse it. Clean the housing with a damp cloth.

• Do not use petrol, thinners, corrosive cleaning agents, solvents, or chemicals.37 DO7354M www.domo-elektro.be

• If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance. Dust particles in the appliance may cause over-heating.

• Store the appliance in a clean and dry place.

PROBLEM AND SOLUTION

PROBLEM SOLUTION The appliance will stop working. · Make sure the appliance is stable and upright.

• The appliance is equipped with overheating protection. This automatically switches o the heating element when it overheats due to covering. If this happens, switch o the device and wait until it has cooled down suciently (±10 minutes). Remove whatever is covering the grid. Then turn the appliance back on. The appliance should now function normally again. If the problem persists, contact your nearest customer service centre. SPECIFICATIONS Model identier(s): DO7354M Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only Nominal heat output Pnom 1,5 kW manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin 0,8 kW manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output Pmax,c 1,5 kW electronic heat charge control with room and/or outdoor temperature feedback

with mechanic thermostat room temperature control Yes38 DO7354M

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options room temperature control, with presence detection

room temperature control, with open window detection

with distance control option No with adaptive start control No with working time limitation No with black bulb sensor No Contact details Linea 2000 BV Dompel 9 - 2200 Herentals - Belgium ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.39 DO7354M www.domo-elektro.be

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular43 DO7354M www.domo-elektro.be

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular51 DO7354M www.domo-elektro.be

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular59 DO7354M www.domo-elektro.be

Warning: In order to avoid overheating, do not cover

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located immediately below a

5. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can

become very hot and cause burns. Particular68 DO7354M
