HS30103660 - Safe Homak Security - Free user manual and instructions

Product Type	Gun Safe
Brand	Homak Security
Model	HS30103660
Material	Steel
Lock Type	Key (pin tumbler lock)
Capacity	Long guns with adjustable gun rest
Delivery Contents	2 keys, 4 mounting screws, gun rest kit, 2 plastic bins, foam
Wall Mounting	Yes, on studs spaced 16 inches apart
Gun rest	Height adjustable, slides onto a mounting rod
Foam bottom	Yes, adhesive at bottom of safe
Safety	Never leave a loaded firearm inside
Use	Not intended for children
Maintenance	Clean with a dry cloth
Support	Call 1-800-874-6625 or visit www.homak.com
Factory key code	Printed on back of user guide
Warranty	Product registration recommended for claims

Frequently Asked Questions - HS30103660 Homak Security

How to install the safe on the wall?

Use the 4 screws provided. Place the safe by centering the back holes with two wall studs spaced 16 inches apart. Drill pilot holes in the studs before screwing the safe. The safe must be secured to prevent tipping.

How to adjust the gun rest?

After installing the mounting rod, slide the gun rest onto the rod at the desired height. You can move it at any time. Cut the back wall foam to the desired height for optimal fit.

What to do if I lose the keys?

The factory key code is printed on the back of this user guide. Keep it in a safe place. If lost, call 1-800-874-6625 for assistance. Contact a certified locksmith to open the safe.

Can I store a loaded firearm in this safe?

No, never leave a loaded firearm in this safe. Even steel, a bullet could penetrate the wall. Check and remove firearms before any product return.

Is this safe suitable for children?

No, this item is not a toy and is not intended for children. Do not allow them to play on, in, or around the safe. It must remain locked at all times.

How to clean the safe?

Use a dry cloth to clean the exterior and interior. Avoid harsh chemicals. The foam at the bottom is adhesive; once attached, it cannot be removed without damage.

What to do if the safe won't open?

Contact a certified locksmith who can safely open the product. Do not force the lock. If the problem persists, call Homak customer service at 1-800-874-6625.

Can this safe be used without wall mounting?

No, it could tip over and cause serious injury. The safe must be fixed to the wall or a stable surface. Use the provided screws on studs spaced 16 inches apart.

What accessories are included with the safe?

The safe comes with 2 keys, 4 mounting screws, a gun rest kit (rod and support), 2 plastic bins, and adhesive foam for the bottom.

How to register my Homak product?

Dial 1-800-874-6625 or visit www.homak.com and click on the 'Product Registration' link. This will facilitate code retrieval, spare parts, and warranty claims.

USER MANUAL HS30103660 Homak Security

Homak security

Homak security

OWNER'S MANUAL & OPERATING INSTRUCTIONS

GUIDE D'UTILISATION ET DIRECTIVES DE FONCTIONNEMENT

Read all Instructions and safety tips before using this product.

ATTENTION :

This is not a toy. This is not intended for use by children.

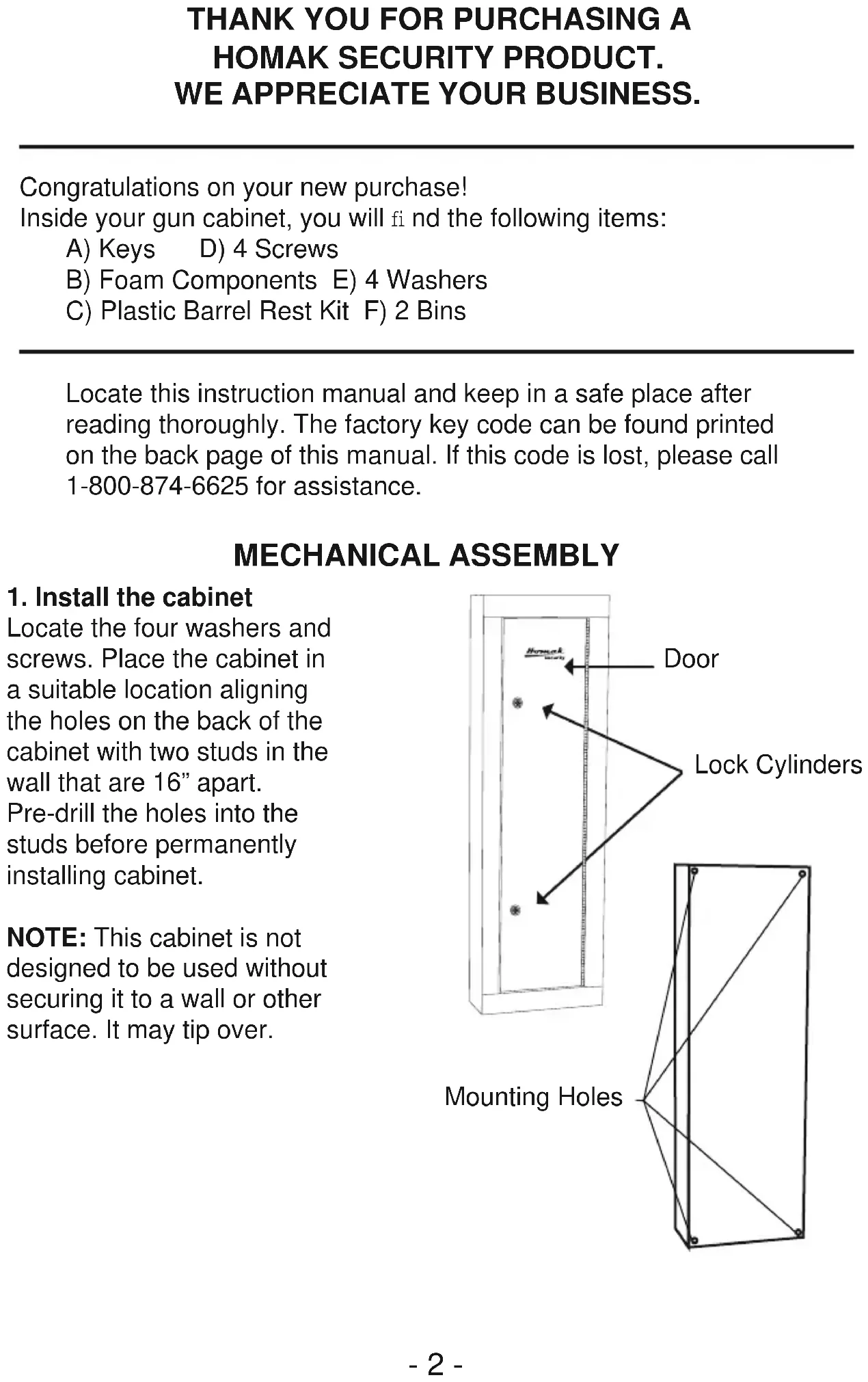

THANK YOU FOR PURCHASING A HOMAK SECURITY PRODUCT. WE APPRECIATE YOUR BUSINESS.

Congratulations on your new purchase!

Inside your gun cabinet, you will find the following items:

Locate this instruction manual and keep in a safe place after reading thoroughly. The factory key code can be found printed on the back page of this manual. If this code is lost, please call 1-800-874-6625 for assistance.

MECHANICAL ASSEMBLY

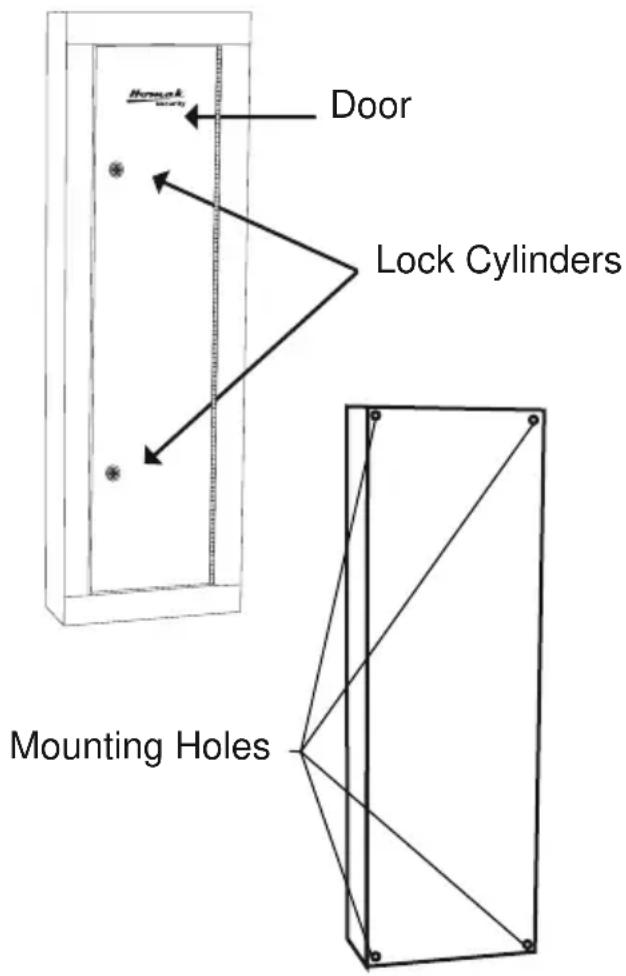

1. Install the cabinet

Locate the four washers and screws. Place the cabinet in a suitable location aligning the holes on the back of the cabinet with two studs in the wall that are 16" apart.

Pre-drill the holes into the studs before permanently installing cabinet.

NOTE: This cabinet is not designed to be used without securing it to a wall or other surface. It may tip over.

Door Lock Cylinders Mounting Holes

2. Foam Component

The foam part is shown below. The part has been designed to fit into the bottom of the cabinet. Carefully, remove the paper backing revealing the adhesive backing and place neatly into the bottom of the cabinet. Once the backing has been removed and the foam is attached, it can not be removed without damage.

Decide the height that you will place the barrel rest. From this measurement cut the back wall foam into two pieces at the height that you will place the barrel rest. Any extra that is left may be placed above the barrel rest on the back wall.

B

Foam

Components

C

BARREL REST

MOUNTING BAR

Back Wall

Foam

Bottom

BARREL REST INSTALLATION

After the barrel rest mounting bar has been attached during the foam installation instructions, you may slide the barrel rests onto the mount bar in any position. They can be moved at any time.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols)

SAFETY PRECAUTIONS:

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

MERCI DE VOTRE ACHAT D'UN PRODUIT DE SÉCURITÉ HOMAK. NOUS APPRÉCIONS VOTRE CLIENTÈLE.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols)

CONSIGNES DE SÉCURITÉ :

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols)

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

CONSIGNES DE SÉCURITÉ :

This is not a toy. This is not intended for use by children.

Thank you for purchasing this quality HOMAK product. Please take the time to register your product by calling 1-800-874-6625 or by visiting www.homak.com and clicking the "Product Registration" link.

This will allow us to better assist you in the future for:

• Combination Code Retrieval
• Parts
• Warranty Claims
• Other Product Concerns

ENREGISTREMENT DU PRODUIT

THIS PRODUCT CARRIES A LIMITED ONE (1) YEAR WARRANTY FOR PARTS PLEASE CALL 1-800-874-6625 OR VISIT WWW.HOMAK.COM FOR WARRANTY OR PART REPLACEMENT QUESTIONS

CE PRODUIT BÉNÉFICIE D'UNE GARANTIE LIMITÉE DE UN (1) ANS POUR LES PIÈCES APPELER AU 1-8001-874-6625 OU VISITER WWW.HOMAK.COM POUR TOUTE QUESTION SUR LA GARANTIE OU DES PIÈCES DE REMPLACEMENT.

ESTE PRODUCTO LLEVA UN (1) AÑOS DE GARANTÍA LIMITADA DE PIEZAS POR FAVOR LLAME AL 1-800-874-6625 O VISITE WWW.HOMAK.COM PARA LAS PREGUNTAS DE LA GARANTÍA O DEL REEMPLAZO DE LA PARTES.

Homak security

Homak Manufacturing

1605 Old Route 18 Suite 4-36

Wampum, PA 16157

[e-mail]

1-800-874-6625

Homak.*O

PRODUCT MADE IN CHINA PRODUIT FABRIQUÉ EN CHINE PRODUCTO FABRICADO EN CHINA
