HS30120100 - Safe Homak Security - Free user manual and instructions

Product Type	Gun Safe
Brand	Homak Security
Model	HS30120100
Material	Steel
Lock	Key Lock
Includes	Keys, floor foam, plastic gun rest, 4 screws, 4 washers
Mounting	Wall mounting required (16-inch stud spacing)
Weight	Very heavy (requires forklift for lifting)
Capacity	For multiple firearms (not specified)
Care and Cleaning	Clean with a dry cloth; do not use abrasive cleaners
Safety	Do not leave a loaded firearm; not for use by children; lock when displayed in store
Repairability	Contact Homak or a licensed locksmith; do not attempt to open yourself
Warranty	Product registration required for after-sales service (key code on back of manual)
Intended Use	Secure storage of unloaded firearms

Frequently Asked Questions - HS30120100 Homak Security

How to install the safe on a wall?

Drill holes in wall studs spaced 16 inches apart, then secure the safe with the provided screws and washers. Never use the safe without wall mounting, risk of tipping.

What if I lost the key code?

The factory key code is printed on the back of this user guide. If lost, call 1-800-874-6625 for assistance. Keep this guide in a safe place.

Can I leave a loaded firearm in this safe?

No, never leave a loaded firearm. Some firearms can discharge easily and a bullet can penetrate the steel. Make sure your firearms are unloaded before storing.

Is the safe suitable for children?

No, this product is not intended for children. Do not play on, in, or around the safe. Keep keys out of reach of children.

How to install the floor foam?

Gently remove the paper backing from the foam to release the adhesive, then place it at the bottom of the safe. Once attached, it cannot be removed without damage.

Where to place the gun rests?

After securing the mounting rod, slide the gun rests onto the rod in the desired position. They can be moved at any time.

What if the safe does not open?

Contact a licensed locksmith. Do not force the lock. You can also call Homak at 1-800-874-6625 for the combination code (if applicable).

Is the safe fire-resistant?

The manual does not mention fire resistance. This safe is designed for mechanical security, not fire protection.

How to register my product?

Dial 1-800-874-6625 or visit www.homak.com and click on 'Product Registration'. This provides assistance with code, parts, and warranty.

What are the dimensions of the safe?

Exact dimensions are not provided in the manual. The safe is designed to hold multiple firearms and must be attached to wall studs spaced 16 inches apart.

USER MANUAL HS30120100 Homak Security

FIRST-WATCH Harmak society

CAUTION:

Read all Instructions and safety tips before using this product.

ATTENTION :

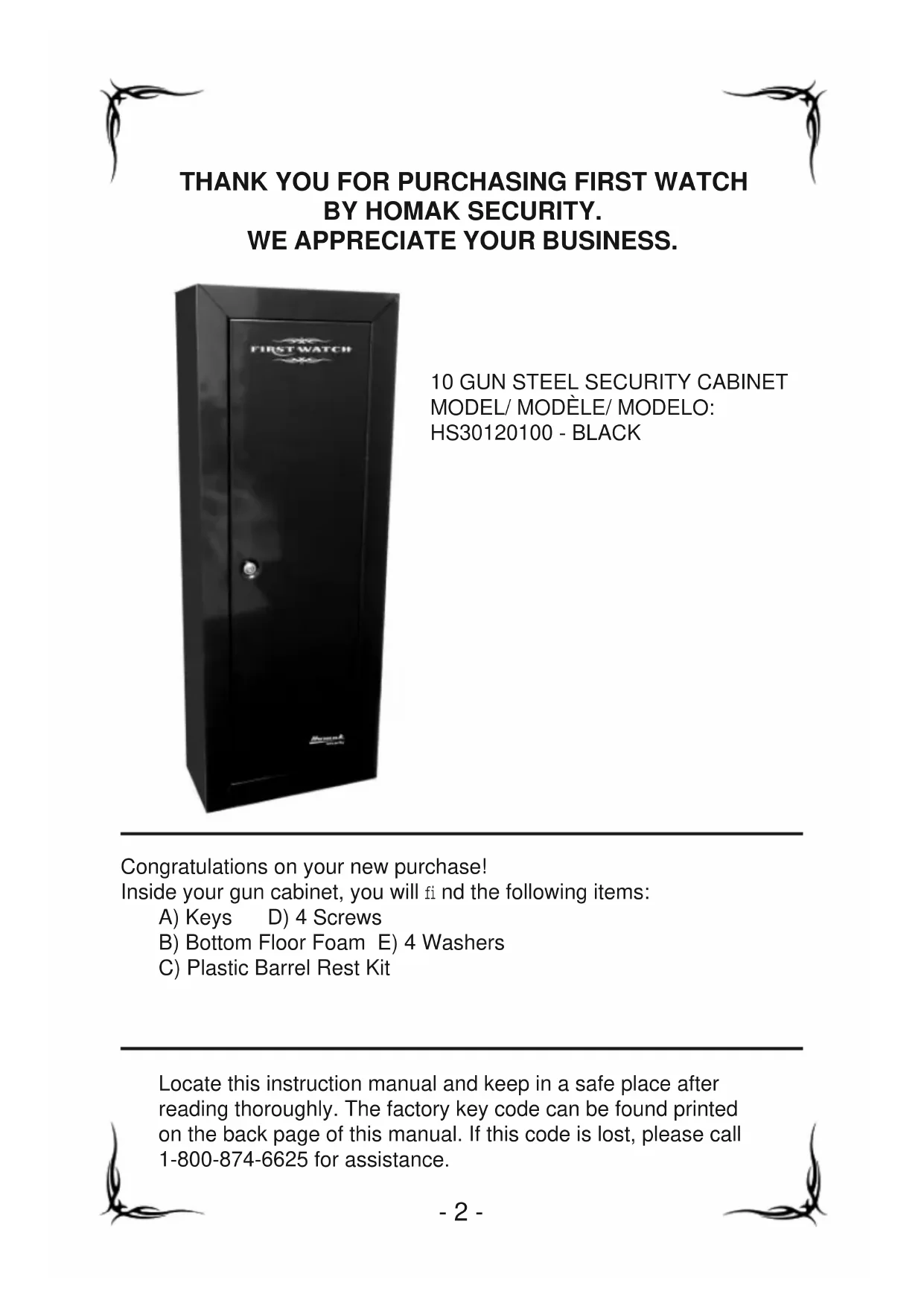

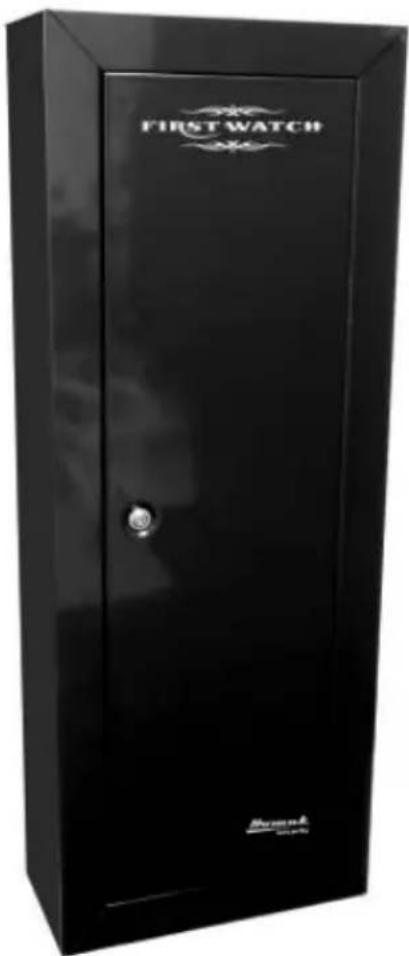

THANK YOU FOR PURCHASING FIRST WATCH BY HOMAK SECURITY.

WE APPRECIATE YOUR BUSINESS.

FIRST WATCH Braund

10 GUN STEEL SECURITY CABINET MODEL/ MODÈLE/ MODELO: HS30120100 - BLACK

Congratulations on your new purchase!

Inside your gun cabinet, you will find the following items:

Locate this instruction manual and keep in a safe place after reading thoroughly. The factory key code can be found printed on the back page of this manual. If this code is lost, please call 1-800-874-6625 for assistance.

MECHANICAL ASSEMBLY

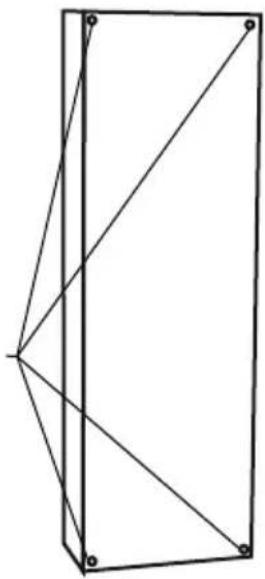

1. Install the cabinet

Locate the four washers and screws. Place the cabinet in a suitable location aligning the holes on the back of the cabinet with two studs in the wall that are 16" apart. Pre-drill the holes into the studs before permanently installing cabinet.

NOTE: This cabinet is not designed to be used without securing it to a wall or other surface. It may tip over.

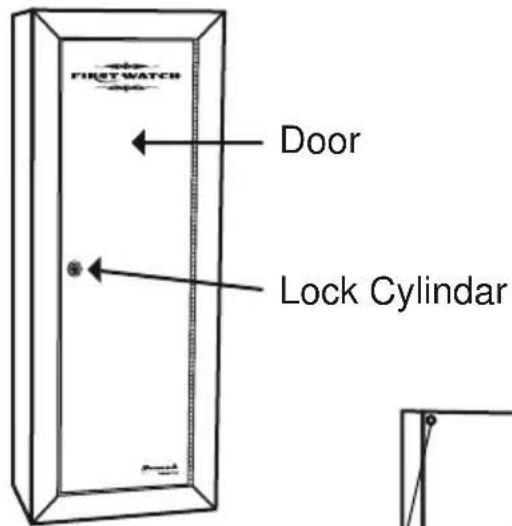

FIRST WATCH Door Lock Cylinder

Mounting Holes

Pure geometric line drawing of a 3D rectangular prism with internal diagonal lines (no text or symbols)

2. Foam Component

The foam part is shown below. The part has been designed to fit into the bottom of the cabinet. Carefully, remove the paper backing revealing the adhesive backing and place neatly into the bottom of the cabinet. Once the backing has been removed and the foam is attached, it can not be removed without damage.

B BOTTOM FLOOR FOAM

C BARREL REST MOUNTING BAR

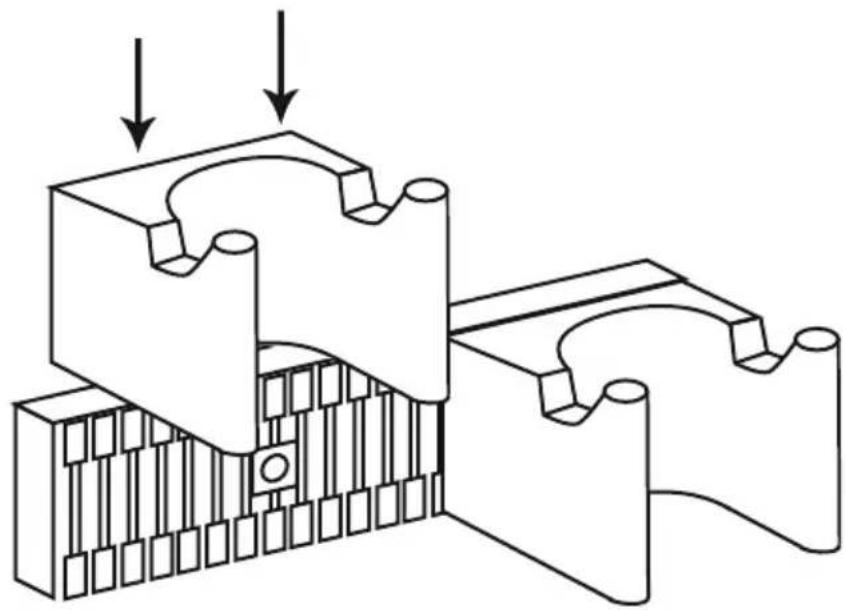

BARREL REST INSTALLATION

After the barrel rest mounting bar has been attached during the foam installation instructions, you may slide the barrel rests onto the mount bar in any position. They can be moved at any time.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or labels)

SAFETY PRECAUTIONS:

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

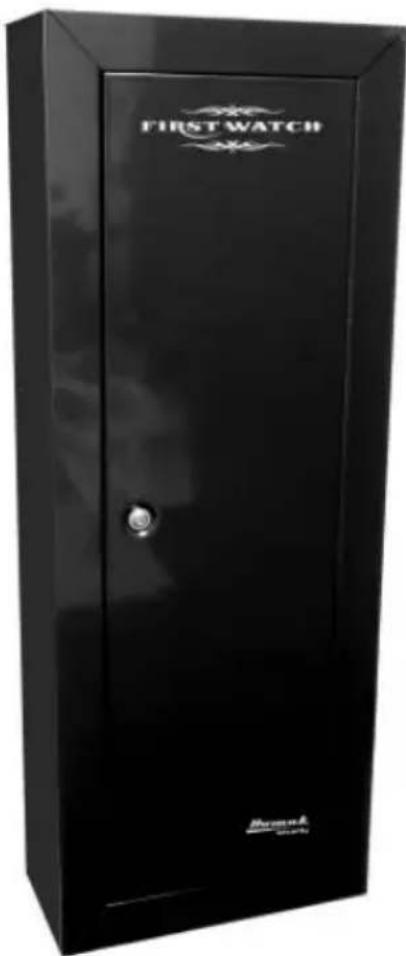

MERCI DE VOTRE ACHAT D'UN CABINET FIRST WATCH DE HOMAK SECURITY. NOUS APPRÉCIONS VOTRE CLIENTÈLE.

FIRST WATCH Dormick 2014 (GPTA)

CABINET DE SÉCURITÉ EN ACIER POUR 10 ARMES À FEU

MODEL/ MODÈLE/ MODELO: HS30120100 - NOIR

Pure geometric line drawing of a 3D rectangular prism with internal diagonal lines (no text or symbols)

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols present)

CONSIGNES DE SÉCURITÉ :

FIRST WATCH Benedict (2019)

GABINETE DE SEGURIDAD DE ACERO PARA 10 ARMAS DE FUEGO

MODEL/ MODÈLE/ MODELO: HS30120100 - NEGRO

FIRST WATCH Puerta Tambor De Chapa

Pure geometric line drawing of a 3D rectangular prism with internal diagonal lines (no text or symbols)

Mechanical assembly diagram showing two interlocking gears with downward arrows indicating force or movement (no text or symbols)

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

CONSIGNES DE SÉCURITÉ :

This is not a toy. This is not intended for use by children.

Thank you for purchasing this quality HOMAK product. Please take the time to register your product by calling 1-800-874-6625 or by visiting www.homak.com and clicking the "Product Registration" link.

This will allow us to better assist you in the future for:

• Combination Code Retrieval
• Parts
• Warranty Claims
• Other Product Concerns

ENREGISTREMENT DU PRODUIT

THIS PRODUCT CARRIES A LIMITED ONE (1) YEAR WARRANTY FOR PARTS AND LABOR PLEASE CALL 1-800-874-6625 OR VISIT WWW.HOMAK.COM FOR WARRANTY OR PART REPLACEMENT QUESTIONS

CE PRODUIT BÉNÉFICIE D'UNE GARANTIE LIMITÉE DE UN (1) ANS POUR LES PIÈCES ET LA MAIN-D'OEUVRE APPELER AU 1-8001-874-6625 OU VISITER WWW.HOMAK.COM POUR TOUTE QUESTION SUR LA GARANTIE OU DES PIÈCES DE REMPLACEMENT.

ESTE PRODUCTO LLEVA UN (1) AÑOS DE GARANTÍA LIMITADA DE PIEZAS Y LABOR POR FAVOR LLAME AL 1-800-874-6625 O VISITE WWW.HOMAK.COM PARA LAS PREGUNTAS DE LA GARANTÍA O DEL REEMPLAZO DE LA PARTES.

Homak security

Homak Manufacturing

1605 Old Route 18 Suite 4-36 Wampum, PA 16157

1-800-874-6625

Homak.*O

PRODUCT MADE IN CHINA PRODUIT FABRIQUÉ EN CHINE PRODUCTO FABRICADO EN CHINA
