HS30103630 - Safe Homak Security - Free user manual and instructions

Product Type	Gun Safe
Brand	Homak Security
Model	HS30103630
Main Material	Steel
Locking Type	Key with factory key code
Package Contents	Keys, 4 screws, barrel rest kit, 3 plastic bins, adhesive foam
Installation	Required wall mounting on studs (16-inch center)
Main Functions	Secure storage of firearms, adjustable barrel rest, cushioning foam
Safety	Do not give to children, always lock when displayed, never store loaded firearm
Weight	Very heavy (handling requires forklift)
Intended Use	Storage of firearms at home or in store
Customer Service	Phone [phone], website www.homak.com
Product Registration	Recommended for combination code, parts, warranty
Maintenance and Cleaning	Wipe with a soft dry cloth, do not use abrasive products
Repairability	Contact customer service or a certified locksmith for opening
Warranty	Manufacturer's warranty, registration required

Frequently Asked Questions - HS30103630 Homak Security

How to secure the safe to the wall?

Use the four provided screws and washers. Drill holes into wall studs spaced 16 inches apart, then securely fasten the safe. Never use without wall mounting.

What to do if I lose the key code?

The factory key code is printed on the back of the user guide. If lost, call 1-800-874-6625 for assistance.

Can I use this safe without mounting it to the wall?

No, the safe is not designed for use without mounting. IT COULD TIP OVER and cause injury.

Is this safe suitable for children?

No, this item is not a toy and is not intended for children. Do not play on, in, or around the safe.

Can I store a loaded firearm in this safe?

Never leave a loaded firearm in this safe. A bullet can penetrate the steel.

How to install the barrel rest?

After attaching the mounting rod and foam, slide the barrel rest onto the rod in the desired position. It can be moved at any time.

What does the safe include at purchase?

The safe includes: keys, 4 screws, a barrel rest kit, 3 plastic bins, and an adhesive foam component.

How to register my product?

Call 1-800-874-6625 or visit www.homak.com and click on «Enregistrement de produit». This facilitates after-sales service.

Can I remove the interior foam?

The foam is attached with a permanent adhesive. Once removed, it cannot be reattached without causing damage.

What to do if the safe does not open?

Call a certified locksmith to open the safe safely. Do not force the lock.

USER MANUAL HS30103630 Homak Security

Homak security

Homak security

OWNER'S MANUAL & OPERATING INSTRUCTIONS

GUIDE D'UTILISATION ET DIRECTIVES DE FONCTIONNEMENT

Read all Instructions and safety tips before using this product.

ATTENTION :

This is not a toy. This is not intended for use by children.

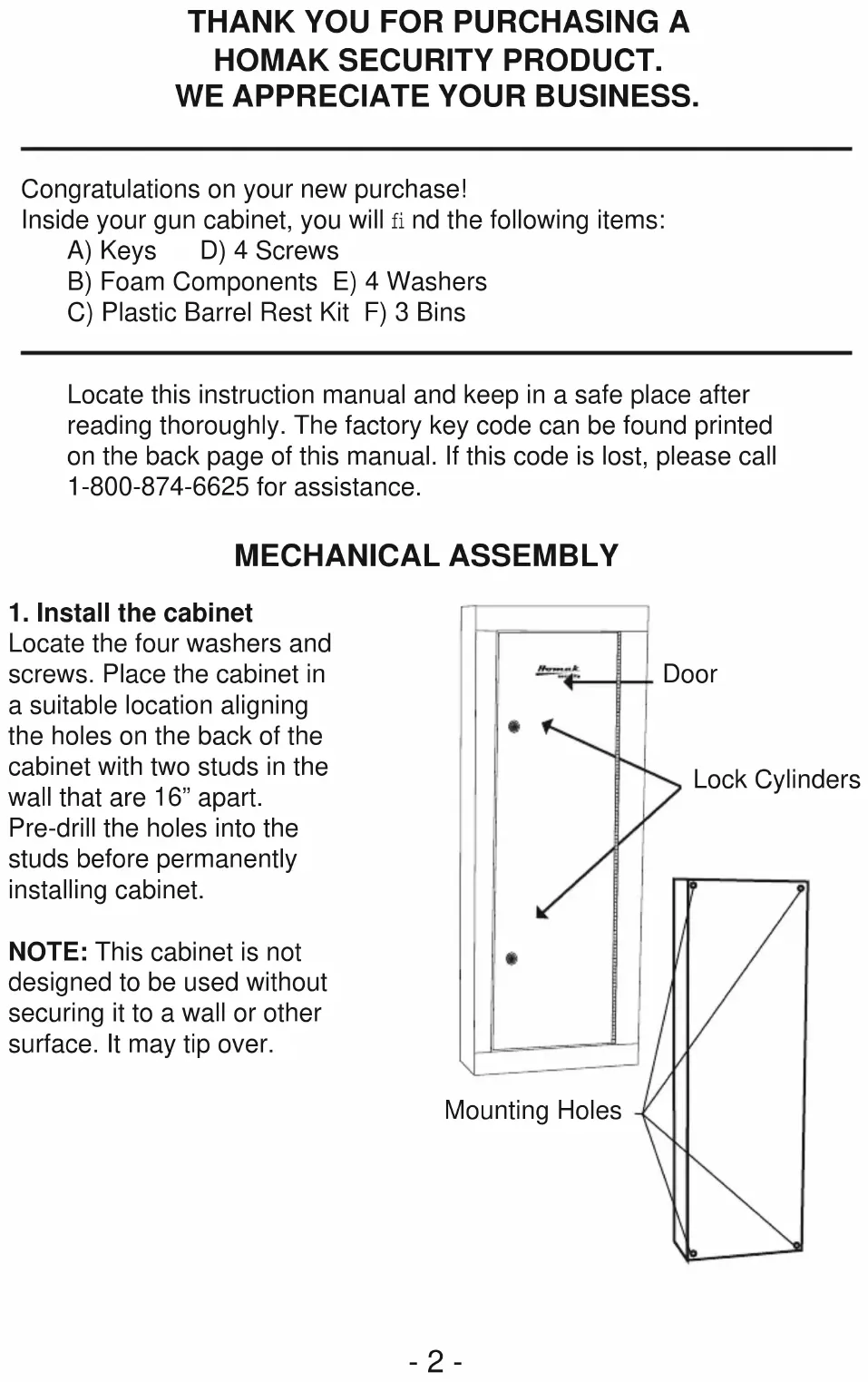

THANK YOU FOR PURCHASING A HOMAK SECURITY PRODUCT. WE APPRECIATE YOUR BUSINESS.

Congratulations on your new purchase!

Inside your gun cabinet, you will find the following items:

Locate this instruction manual and keep in a safe place after reading thoroughly. The factory key code can be found printed on the back page of this manual. If this code is lost, please call 1-800-874-6625 for assistance.

MECHANICAL ASSEMBLY

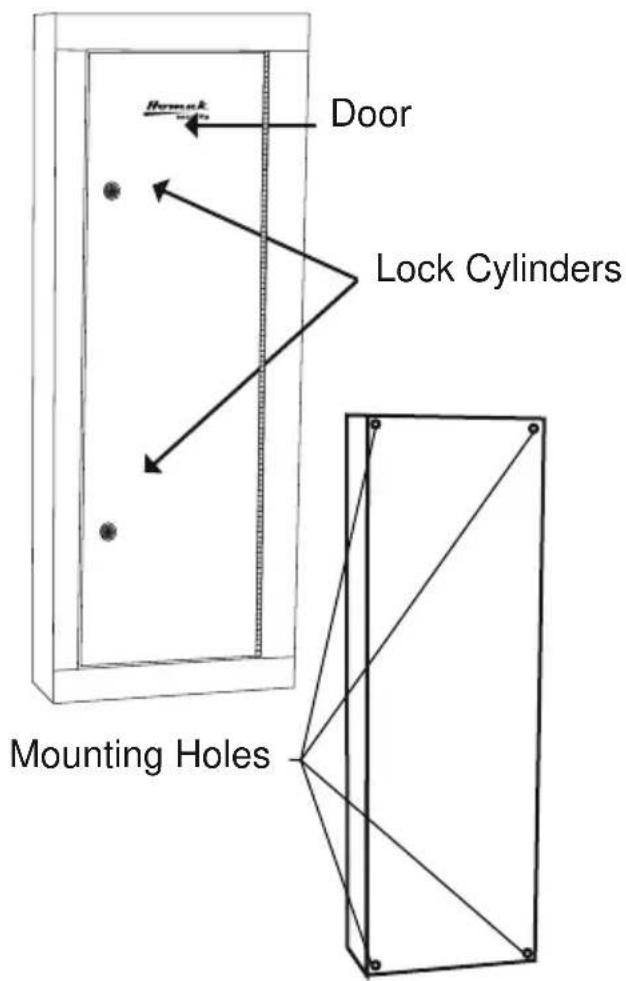

1. Install the cabinet

Locate the four washers and screws. Place the cabinet in a suitable location aligning the holes on the back of the cabinet with two studs in the wall that are 16" apart.

Pre-drill the holes into the studs before permanently installing cabinet.

NOTE: This cabinet is not designed to be used without securing it to a wall or other surface. It may tip over.

Door Lock Cylinders Mounting Holes

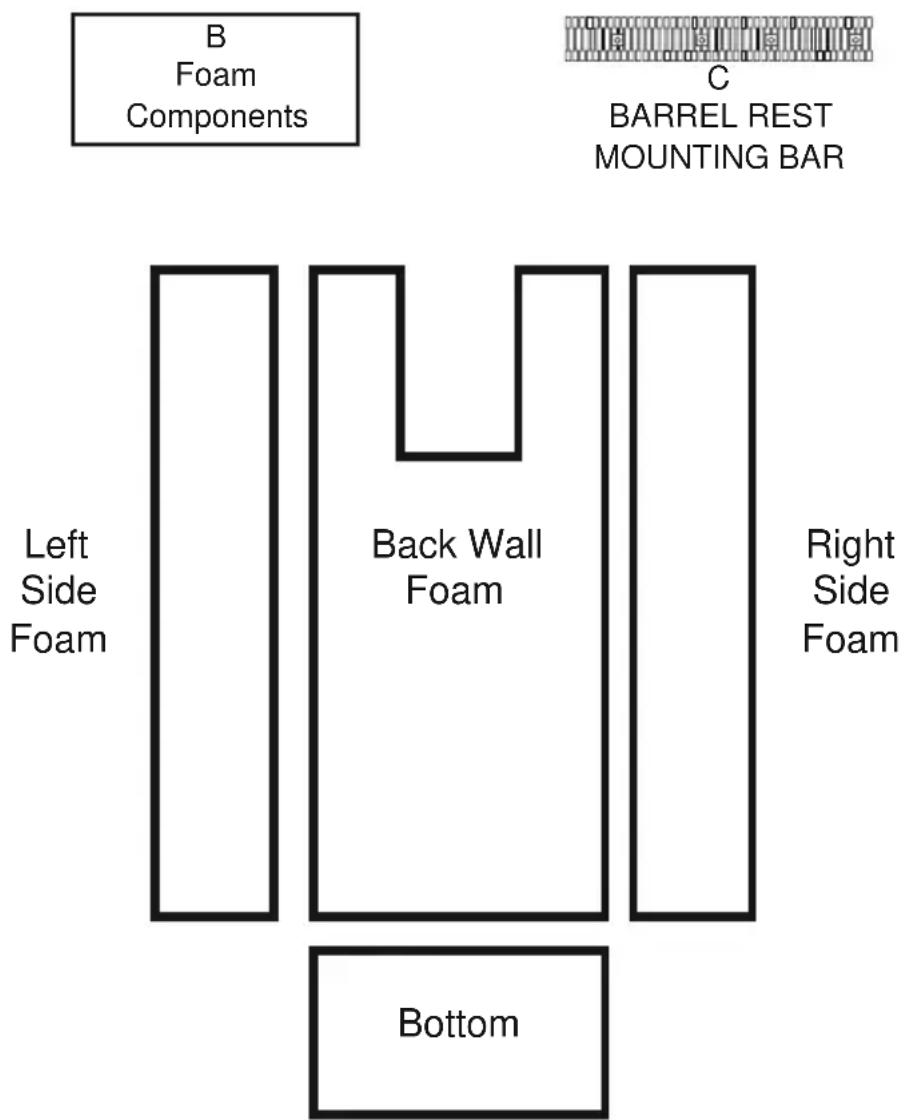

2. Foam Component

The foam part is shown below. The part has been designed to fit into the cabinet. Carefully, remove the paper backing revealing the adhesive backing and place neatly into the cabinet. Once the backing has been removed and the foam is attached, it can not be removed without damage.

Decide the height that you will place the barrel rest. From this measurement cut the back wall foam into two pieces at the height that you will place the barrel rest. Any extra that is left may be placed above the barrel rest on the back wall.

B Foam Components C BARREL REST MOUNTING BAR Left Side Foam Back Wall Foam Right Side Foam Bottom

BARREL REST INSTALLATION

After the barrel rest mounting bar has been attached during the foam installation instructions, you may slide the barrel rests onto the mount bar in any position. They can be moved at any time.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols present)

SAFETY PRECAUTIONS:

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

MERCI DE VOTRE ACHAT D'UN PRODUIT DE SÉCURITÉ HOMAK. NOUS APPRÉCIONS VOTRE CLIENTÈLE.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols)

CONSIGNES DE SÉCURITÉ :

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols)

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

CONSIGNES DE SÉCURITÉ :

This is not a toy. This is not intended for use by children.

Thank you for purchasing this quality HOMAK product. Please take the time to register your product by calling 1-800-874-6625 or by visiting www.homak.com and clicking the "Product Registration" link.

This will allow us to better assist you in the future for:

• Combination Code Retrieval
• Parts
• Warranty Claims
• Other Product Concerns

ENREGISTREMENT DU PRODUIT

THIS PRODUCT CARRIES A LIMITED ONE (1) YEAR WARRANTY

PLEASE CALL 1-800-874-6625 OR VISIT WWW.HOMAK.COM FOR WARRANTY OR PART REPLACEMENT QUESTIONS

CE PRODUIT BÉNÉFICIE D'UNE GARANTIE LIMITÉE DE UN (1) ANS POUR LES PIÈCES APPELER AU 1-8001-874-6625 OU VISITER WWW.HOMAK.COM POUR TOUTE QUESTION SUR LA GARANTIE OU DES PIÈCES DE REMPLACEMENT.

ESTE PRODUCTO LLEVA UN (1) AÑOS DE GARANTÍA LIMITADA DE PIEZAS POR FAVOR LLAME AL 1-800-874-6625 O VISITE WWW.HOMAK.COM PARA LAS PREGUNTAS DE LA GARANTÍA O DEL REEMPLAZO DE LA PARTES.

Homak security

Homak Manufacturing

1605 Old Route 18 Suite 4-36

Wampum, PA 16157

[e-mail]

1-800-874-6625

Homak.*O

PRODUCT MADE IN CHINA PRODUIT FABRIQUÉ EN CHINE PRODUCTO FABRICADO EN CHINA
