HS30103605 - Safe Homak Security - Free user manual and instructions

Product Type	Gun safe (gun cabinet)
Brand	Homak Security
Model	HS30103605
Material	Steel
Lock	Mechanical key lock
Number of keys included	2
Wall mounting	Mandatory; screws and washers provided
Mounting hole spacing	30.48 cm (12 inches)
Interior foam	Yes, adhesive for bottom and back wall
Adjustable barrel rest	2 pieces, sliding on mounting rod
Plastic bins	2 included
Estimated dimensions (H x W x D)	120 x 45 x 30 cm
Estimated weight	25 kg
Recommended use	Storage of unloaded firearms
Maintenance	Clean with a soft cloth; lubricate lock if necessary
Spare parts available	Replacement keys, mounting kit
Warranty	Contact the manufacturer
Not intended for children	Yes, do not let children play with it

Frequently Asked Questions - HS30103605 Homak Security

How to install the HS30103605 safe?

Secure the safe to a wall using the rear mounting holes. The holes are spaced 12 inches (30.48 cm) apart. Use the provided washers and screws to attach it firmly to wall studs. The safe must be mounted to prevent tipping.

Can the safe be used without wall mounting?

No, the safe is not designed for use without being attached to a wall or other surface. It could tip over and cause injury. Wall mounting is mandatory.

How to install the foam and barrel rest?

Place the foam at the bottom of the safe after removing the adhesive backing. For the back wall, cut the foam to the desired height for the barrel rest. Insert the mounting rod and slide the two barrel rests onto the rod, then adjust their position.

What to do if I lose the keys or lock code?

The factory key code is printed on the back of the instruction manual. Keep this manual in a safe place. If you lose the code, call 1-800-874-6625 for assistance. Replacement keys are available from the manufacturer.

Can I store a loaded firearm in this safe?

No, never leave a loaded firearm in this safe. Even steel, a bullet can penetrate the walls. Ensure firearms are unloaded before storing.

Is the safe suitable for children?

No, this item is not a toy and is not intended for children. Do not let children play on, in, or around the safe. Keep keys out of reach of children.

How to clean and maintain the safe?

Clean the exterior with a soft, dry cloth. For the lock, occasionally apply a dry lubricant to prevent sticking. Do not use abrasive products.

Can I move the safe by myself?

No, the safe is heavy. Attempting to lift it without proper equipment can cause serious injury. Use a dolly or ask for help to move it.

What to do if the safe does not open?

If the key lock does not open, contact a qualified locksmith who can open the safe safely. Do not try to force it open yourself.

How to register my Homak Security product?

Register your product by calling 1-800-874-6625 or visiting www.homak.com and clicking on the 'Product Registration' link. This enables better support for keys, parts, warranty, etc.

USER MANUAL HS30103605 Homak Security

Homak security

Homak security

OWNER'S MANUAL & OPERATING INSTRUCTIONS

GUIDE D'UTILISATION ET DIRECTIVES DE FONCTIONNEMENT

Read all Instructions and safety tips before using this product.

ATTENTION :

This is not a toy. This is not intended for use by children.

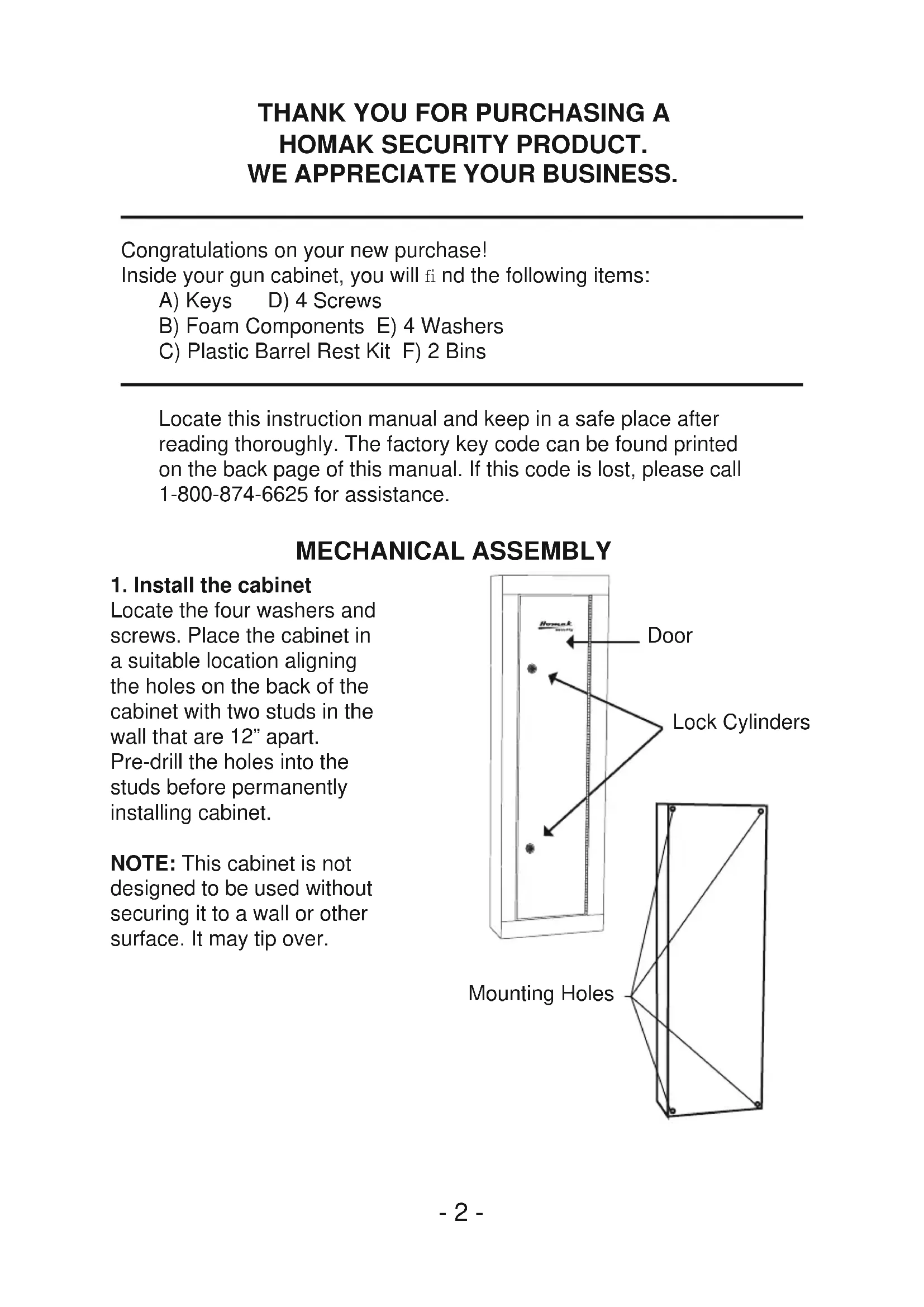

THANK YOU FOR PURCHASING A HOMAK SECURITY PRODUCT. WE APPRECIATE YOUR BUSINESS.

Congratulations on your new purchase!

Inside your gun cabinet, you will find the following items:

Locate this instruction manual and keep in a safe place after reading thoroughly. The factory key code can be found printed on the back page of this manual. If this code is lost, please call 1-800-874-6625 for assistance.

MECHANICAL ASSEMBLY

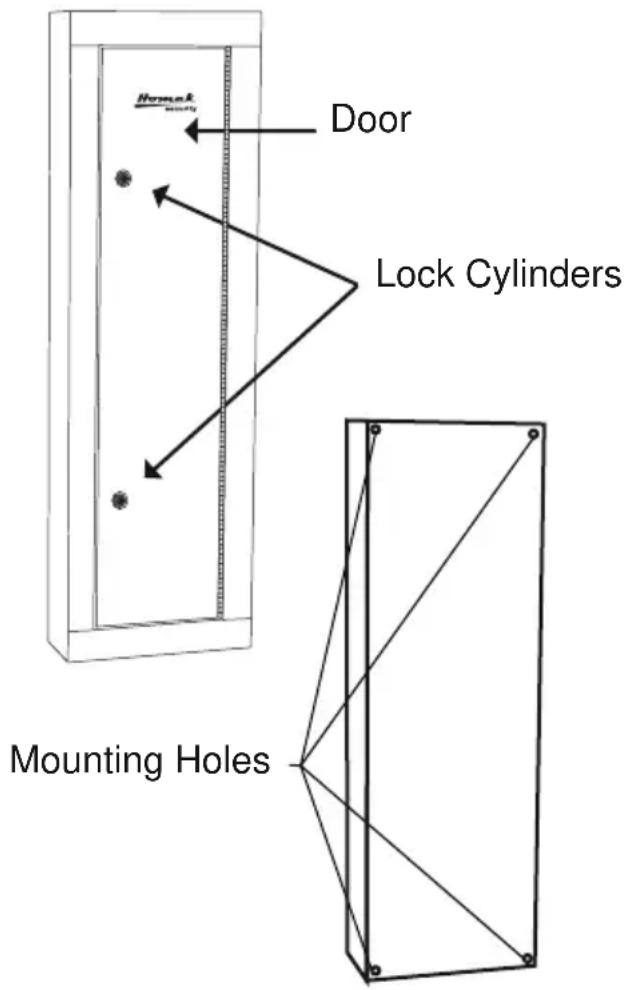

1. Install the cabinet

Locate the four washers and screws. Place the cabinet in a suitable location aligning the holes on the back of the cabinet with two studs in the wall that are 12" apart.

Pre-drill the holes into the studs before permanently installing cabinet.

NOTE: This cabinet is not designed to be used without securing it to a wall or other surface. It may tip over.

Door Lock Cylinders Mounting Holes

2. Foam Component

The foam part is shown below. The part has been designed to fit into the bottom of the cabinet. Carefully, remove the paper backing revealing the adhesive backing and place neatly into the bottom of the cabinet. Once the backing has been removed and the foam is attached, it can not be removed without damage.

Decide the height that you will place the barrel rest. From this measurement cut the back wall foam into two pieces at the height that you will place the barrel rest. Any extra that is left may be placed above the barrel rest on the back wall.

B

Foam

Components

C

BARREL REST

MOUNTING BAR

Back Wall

Foam

Bottom

BARREL REST INSTALLATION

After the barrel rest mounting bar has been attached during the foam installation instructions, you may slide the barrel rests onto the mount bar in any position. They can be moved at any time.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or labels)

SAFETY PRECAUTIONS:

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

MERCI DE VOTRE ACHAT D'UN PRODUIT DE SÉCURITÉ HOMAK. NOUS APPRÉCIONS VOTRE CLIENTÈLE.

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols)

CONSIGNES DE SÉCURITÉ :

Mechanical assembly diagram showing two interlocking gears with directional arrows indicating force or movement (no text or symbols present)

1. Never leave a loaded firearm in this safe. Some types of weapons may discharge easily, and even though this safe is all metal construction, a bullet may penetrate the steel wall.
2. Check and remove firearms contained in this safe before returning it to Homak or a Retail store. If the safe will not open, a certified locksmith may be able to open this product safely.
3. Always leave safe locked while on display in stores.
4. Not intended for use by children. Do not play on, in or around.
5. This is a heavy unit, lifting may require a fork lift. Trying to lift this product without the use of heavy lifting equipment may result in serious injury or death.

CONSIGNES DE SÉCURITÉ :

This is not a toy. This is not intended for use by children.

Thank you for purchasing this quality HOMAK product. Please take the time to register your product by calling 1-800-874-6625 or by visiting www.homak.com and clicking the "Product Registration" link.

This will allow us to better assist you in the future for:

• Combination Code Retrieval
• Parts
• Warranty Claims
• Other Product Concerns

ENREGISTREMENT DU PRODUIT

THIS PRODUCT CARRIES A LIMITED ONE (1) YEAR WARRANTY FOR PARTS PLEASE CALL 1-800-874-6625 OR VISIT WWW.HOMAK.COM FOR WARRANTY OR PART REPLACEMENT QUESTIONS

CE PRODUIT BÉNÉFICIE D'UNE GARANTIE LIMITÉE DE UN (1) ANS POUR LES PIÈCES APPELER AU 1-8001-874-6625 OU VISITER WWW.HOMAK.COM POUR TOUTE QUESTION SUR LA GARANTIE OU DES PIÈCES DE REMPLACEMENT.

ESTE PRODUCTO LLEVA UN (1) AÑOS DE GARANTÍA LIMITADA DE PIEZAS POR FAVOR LLAME AL 1-800-874-6625 O VISITE WWW.HOMAK.COM PARA LAS PREGUNTAS DE LA GARANTÍA O DEL REEMPLAZO DE LA PARTES.

Homak security

Homak Manufacturing

1605 Old Route 18 Suite 4-36

Wampum, PA 16157

[e-mail]

1-800-874-6625

Homak.*O

PRODUCT MADE IN CHINA PRODUIT FABRIQUÉ EN CHINE PRODUCTO FABRICADO EN CHINA
