Brand	Eufy
Model	E110
Product Type	Video Baby Monitor
Category	Baby Monitor
Monitor Screen	Integrated Screen
Camera Power	Adapter 5V 2A (micro-USB cable, 3m)
Monitor Power	Adapter 5V 2A (micro-USB cable, 1.5m) + built-in rechargeable battery
Night Vision	Yes, automatic (night/day mode)
Zoom	Adjustable
Lullaby	Yes, selectable (disables sound alert)
Two-Way Talk	Yes (talk button)
Sound Alert	Yes, adjustable threshold
Maximum Number of Cameras	4
Interchangeable Lens	Yes (standard 62° + wide-angle 110° included)
Wall Mount	Yes, mount included
Temperature Display	Yes, adjustable unit (°C/°F)
Menu Languages	Multilingual (French, German, English, Spanish...)
Warranty	12 months limited
Box Contents	Monitor, camera, 2 micro-USB cables, 2 adapters, wide-angle lens, wall mount, screws, manual
Compliance	Industry Canada CNR, Class B, IC RF
RF Safety Distance	20 cm from body

Frequently Asked Questions - E110 eufy

How to install the Eufy E110 baby monitor?

Plug the camera into the 5V 2A adapter with the micro-USB cable (3m). Charge the monitor with its adapter and cable (1.5m). Press the monitor's power button for 2 seconds to turn it on. The camera and monitor are pre-paired.

How to add an additional camera?

In the monitor menu, go to Camera > Add Camera and follow the on-screen instructions. Then press and hold the pairing button on the back of the new camera for 1 second until you hear a notification.

How to use the wide-angle lens?

Simply attach the supplied wide-angle lens over the standard fixed lens. It provides a 110° viewing angle (versus 62° for the standard).

How to set the screen sleep mode?

In the menu, select Sleep Mode and choose the duration (1 min, 3 min, 5 min) or disable the function.

How to enable sound alert?

In the menu, enable Sound Alert. You can adjust the detection threshold. Note that there is a 30-second interval between two alerts.

How to change the lullaby?

In the menu, select Lullaby and choose the melody. You can also adjust the volume. Caution: the lullaby masks crying and disables the sound alert.

How to zoom?

Go to the menu and select Zoom. Adjust the zoom level as needed.

How to clean and maintain the device?

Use a soft, dry cloth. Do not use abrasive products. Keep the device away from moisture and excessive heat.

What is the safe distance for RF exposure?

Maintain a distance of at least 20 cm between the product and your body to comply with RF exposure limits.

How to reset to default settings?

In the menu, select Default Settings to restore all factory settings.

USER MANUAL E110 eufy

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

Line drawing of a spherical device with a circular lens and a rectangular device (no text or symbols)

51005002011 V04

Table of Contents

What's in the Box 01

Feature Introduction 02

Setting Up the Camera and Monitor 04

Adding a Camera to the Baby Monitor 05

Placing the Camera (Wall Mount & Corner Mount) 06

Monitor Menu Settings 07

Replacing the Camera Lens 12

Notice

13

WHAT'S IN THE BOX

Baby Monitor ((T8300-M)

Baby Camera (T8300-C)

Wall Mount

Monitor Micro-USB Power Cable (1.5 m)

Camera Micro-USB Power Cable (3 m)

Camera Adapter (5V 2A)

Monitor Adapter (5V 2A)

Mounting Screws

DocumentsWide-Angle Lens

Power adapter varies by region.

FEATURE INTRODUCTION

Monitor Features:

1 Volume controls
2 Screen
3 Power button

- Press to switch on / off the monitor screen

- Press and hold for 2 seconds to power on / off

4 Menu button
5 Navigation buttons
6 OK button

- Press to confirm the selection

- Press to switch camera display if more than 2 cameras added

7 Return to previous level of menu / Talk button

• Press and hold to speak to the camera
• When menu is opened, press to return to the previous level of menu

01 English English 02

8 Monitor Antenna
9 Support stand
10 Micro USB charging port
11 LED indicator

- Red: charging

- White: Fully charged

12 Microphone
13 Speaker

Camera Features:

Simple line drawing of a hat with two buttons labeled 5 and 6 (no text or symbols on the hat itself)

1 Standard camera lens
2 Microphone
3 Power LED Status indicator

4 Speaker
5 Micro USB port
6 Pairing button

SETTING UP THE CAMERA AND MONITOR

Charge the Monitor

Fully charge the monitor before use. To charge:

I. Connect one end of the micro USB cable to the baby monitor, and the other end to the power adapter.
2 Plug the adapter into a power outlet.
3. Press and hold the power button for 2 seconds to turn the baby monitor on.

Simple line drawing of a plug connected to a device via cable (no text or symbols)

Charge the Camera

I. Connect one end of the micro USB cable to the baby camera, and the other end to the power adapter (5V 2A)
2. Plug the adapter into a power outlet.

Simple line drawing of a plug connected to a bulb (no text or symbols)

03 English English 04

The new baby monitor and camera will set up automatically. You are all set to use the products after monitor and camera are charged.

ADDING A CAMERA TO THE BABY MONITOR

The baby camera and baby monitor are paired out of the box. Refer to the following steps when adding extra baby cameras or after resetting a baby camera. Make sure the baby monitor's version is the same as the baby camera's.

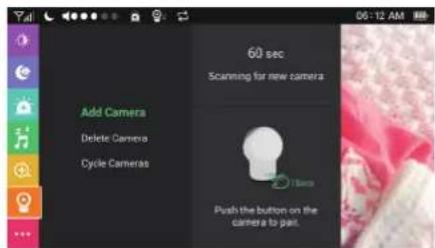

1. Enter menu settings, go to Camera -> Add Camera, then follow onscreen instructions to start the pairing.
2. Press and hold the pairing button on the rear of the camera for 1 second until a notification prompt is heard.

05 English English 06

When more than 2 cameras are added, you can manually switch among cameras.

Press the OK button, the screen will be switched to the next camera's screen. The icon of the camera you select will appear. You can also select the "Cycle Camera" option. The screen cycles through the list of connected baby cameras according to preset intervals.

When the volume is set to high, monitor will emit a loud noise if placed close to the camera. This is a normal phenomenon and can be resolved when camera is moved away from the monitor.

PLACING THE CAMERA (WALL MOUNT & CORNER MOUNT)

I. Use the monitor to test the viewing angle from your desired mounting spot.
2. Mark the screw holes with a pencil.
3. Drill 1/5" holes into the wall and then insert the anchors into the holes.
4. Insert the screws through the mounting holes of the wall mount and screw into the anchors.

Technical line drawing of a dual-plate plastic housing or tray component (no text or symbols)

1. Place the camera on the wall mount.

Technical line drawing showing a mechanical component with a base and a close-up inset of a bracket detail (no text or symbols)

You can select the way you like to install the camera.

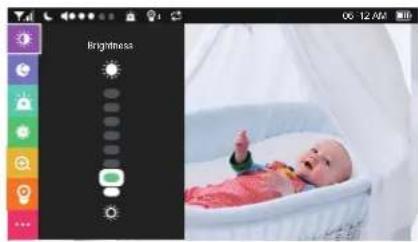

MONITOR MENU SETTINGS

Press and hold the power button to power on the monitor. Press the menu button to open Menu Settings.

07 English English 08

Menu Options	Description
Brightness	Set the brightness of the screen.
Sleep Mode	Enable to automatically turn off the screen after 1 min, 3 min, 5 min or Off.
Sound Alert	You can set the baby monitor to alert you when a specific noise level is detected.Note: Surrounding noise might set off false alarm.
	Alarm Volume
VOX	You can set the baby monitor to alert you when the screen is lit on.Note: Surrounding noise might set off false alarm.
	Alert duration
Time	Set the time on the monitor.
Lullaby	Select your desired lullaby song. You can adjust the volume by selecting the volume button.Note: Sound Alert is automatically disabled when Lullaby function is enabled.Warning: Your baby's cry might be obscured by the sound of a lullaby.
Zoom	Set the zoom level.
Camera	Add CameraNote: You can add up to 4 cameras per baby monitor.
	Delete Camera
	Cycle CamerasNote: Cycles through the list of connected baby cameras according to preset intervals.
Time	Set the time on the monitor.
Night Vision Mode	When enabled, the camera will change the screen color according to the light conditions in the room. When disabled, the camera will stick to daylight screen color and will not change when the surrounding environment is getting dark.Note: We recommend setting this function to On for most of the situations.
Anti-Screen Flicker	To solve flickering, change the refresh rate of the screen.
Language	Sets the on-screen display menu language.
Default Settings	Resets all options to their default setting.
Temperature Unit	Select your desired temperature measure unit.

Menu Options	Description
About	Displays the current hardware version, software version, and product number.
Connect with Us	Contact details.

The interval duration between each sound alert is 30 seconds. It will not alert during this interval even if there is alert trigger condition.

Menu option is subject to change without notice.

Digital photo of a newborn in a baby incubator, displayed within a smartphone interface (no text or symbols on the image itself)

On-screen Menu Icons

Icon Icon Description

Y,lll	Wireless signal strength
	Night Vision Mode is enabled
	Shows the camera that is currently presenting on the baby monitor screen
	Note: This icon will not appear on the screen when there is only one camera connected to monitor.
	Cycle Cameras enabled
	Sound Alert enabled
	Sound level of the room the camera is in
08:30 AM	Current time
	Current battery level of the baby monitor

REPLACING THE CAMERA LENS

Lens type Usage Lens

Standard camera lens (default lens)

This lens is recommended for general viewing; infants are clearly seen within a 2~3m range.The lens angle of view for standard camera lens is 60^ .

Wide-angle lens This lens provides a wide-angle view of the room. The lens angle of view for wide-angle lens is 110^ .

The standard camera lens is not removable. When you want to use the wide-angle lens, simply place it over the standard camera lens and fasten.

11 English English 12

NOTICE

Warning

Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1m (3ft) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided.

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site https://www.eufylife.com/.

This product can be used across EU member states.

Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.

A statement regarding the AC/DC adapter as disconnect device is missing in the user manual.

The statement shall require a socket outlet that is installed near equipment and that shall be easily accessible.

The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8300-M and accessories is -20°C-45°C.

The suitable temperature for T8300-C and accessories is -20^-40^ .

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ C\~ 25^ C.

Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the projector and the guarantee article.

The charger output voltage/current is 5Vdc/2A. The plug considered as disconnect device of adapter.

If you use a third-party charger, the recommended output voltage/current of the adaptor is 5Vdc/2A, and the adapter shall be CE approval type.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body. Operating Frequency Range: 2410-2477MHz

The T8300-C Max Output Power: 18.04 dBm, The T8300-M Max Output Power: 14.89 dBm

This T8300-M was tested for typical body-worn operations with the back of the handset kept 0 mm from the body. The SAR limit of Europe is 4.0 W/kg. Device types T8300-M has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the limb is 1.707W/kg. This device was tested for typical hand held operations with the back of the device kept 0mm from the Limb.

The T3800-C device has been evaluated to meet general RF exposure requirements and can be used in fixed exposure condition. RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body.

The following importer is the responsible party (contact for EU matters only) Importer: Anker Technology (UK) Ltd

Importer Address: Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, United Kingdom B11 2AA

13 English English 14

product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement

The T8300-C device has been evaluated to meet general RF exposure requirements. The T8300-C can be used in fixed exposure condition. The min separation distance is 20cm. This T8300-M was tested for typical body-worn operations with the back of the handset kept 0 mm from the body.

RF Exposure Information(SAR)

The Extremity SAR limit of FCC for Hand held is 4.0W/kg.

Device is recommended to use in hand held only and SAR when hand held is 1.804W/kg

Worn on body will have unexpected RF exposure RISK.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

FCC ID (for T8300-C): 2AOKB-T8300C

FCC ID (for T8300-M): 2AOKB-T8300M

The following importer is the responsible party.

Company Name:

POWER MOBILE LIFE, LLC

Address: 400 108th Ave., NE Suite 400, Bellevue, WA 98004-5541

Telephone: [phone]

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device."

15 English English 16

This Class B digital apparatus complies with Canadian ICES-003.

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Inhalt

Im Lieferumfang 19

1 Standard-Kameraobjektiv

2 Mikrofon

Simple line drawing of a cable and connector connected to a device (no text or symbols)

Technical line drawing of a two-part mechanical component with mounting holes and a central hub (no text or symbols)

Technical illustration of a mechanical device with a base mount and close-up view of its internal components (no text or symbols)

Simple line drawing of a bulb-like object with a strap and two labeled parts (no text or symbols)

Simple line drawing of a plug connected to a device with a bulb (no text or symbols)

Technical line drawing of a mechanical component with a base plate and top view (no text or symbols)

Diagram of a camera lens with an inset close-up showing the lens (no text or symbols present)

Caméra Support mural

Line drawing of a bulb-shaped object with a strap and two labeled parts (5 and 6), no text or symbols present.

Simple line drawing of a plug connected to a USB cable and a card (no text or symbols)

Technical line drawings of a dual-chamber fish-shaped container (no text or symbols)

Technical line drawing showing a mechanical assembly with a component and a close-up inset of a tool (no text or symbols)

49 Français Français 50

RÉGLAGES DU MENU DU MONITEUR

8

9

10

11

12

13

1

000000 2

3

000000000 4

5

6

7

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

The image contains no legible text or symbols. The OCR result "F" is a hallucination and does not correspond to any content in the source image. Therefore, the correct OCR output must reflect the absence of any visible characters.

[No text detected]

2

microSD

0000000000000000000000000000000000000

مميزات الكاميرا:

0000000

4

[0]

5

000000000

Simple line drawing of a bulb-like object with a bandage and two labeled parts (5 and 6), no text or symbols present.

1

□□□□□□□

2

3

Simple line drawing of a plug connected to a device with a bulb (no text or symbols)

تثبيت الكاميرا

Line drawing of a wall socket connected to a spherical device (no text or symbols)

Technical line drawing of a mechanical component with a base and top view (no text or symbols)

Diagram of a camera lens mounted on a wall, with an inset showing the lens detail (no text or symbols present)

63 ية العربية

12-month limited warranty
