Product Type	Precision Kettle
Brand	KitchenAid
Model	KEK1032
Capacity	1 liter (4 cups)
Temperature Range	60 °C to 100 °C (140 °F to 212 °F)
Temperature Setting	In 1° increments
Keep Warm	Up to 30 minutes
Power	1000 W
Voltage / Frequency	120 V ~ 60 Hz
Plug Type	3-prong grounded
Carafe Material	Stainless steel
Display	LCD screen (Celsius/Fahrenheit)
Integrated Thermometer	Yes
Flow Lever	3 adjustable positions
Automatic Shut-off Function	Yes
Base	With base, power cord
Weight (estimated)	1.3 kg
Dimensions (approx.)	22 x 18 x 25 cm
Color	White or black (depending on version)
Maintenance	Wipe exterior with damp cloth; descale with vinegar
Warranty	1 year (hassle-free replacement)
Intended Use	Household use only
Country of Origin	China (not specified, estimated)

Frequently Asked Questions - KEK1032 KITCHENAID

What is the capacity of the KitchenAid KEK1032 kettle?

The maximum capacity is 1 liter, indicated by the MAX line inside the carafe.

How do I change the display from Celsius to Fahrenheit?

Press and hold the "-" and "+" buttons simultaneously for a few seconds to toggle between units.

Can I use the kettle to heat milk or other liquids?

No, the kettle is designed only for heating water. Other liquids may damage the appliance or cause injury.

What should I do if the screen displays 'Add Water'?

The water level is too low. Fill the kettle with at least 0.25 liter (1 cup) of water for the appliance to operate.

How do I clean the limescale deposits inside?

Pour a mixture of 1 cup of vinegar and 3 cups of water, boil and let sit overnight. Rinse and repeat if necessary.

Why does the kettle turn off before reaching boiling?

At high altitude, water boils at a lower temperature. Refer to the altitude guide in the manual to adjust the temperature.

How do I activate the keep warm mode?

After selecting the temperature, press the keep warm icon. The kettle keeps the water at the chosen temperature for 30 minutes.

The flow lever is hard to move, what should I do?

You can adjust the tension by inserting or removing the tab located under the lever. Insert to reduce tension, remove to increase it.

Where can I find spare parts or after-sales service?

Call KitchenAid customer service at 1-800-541-6390 (United States) or 1-800-807-6777 (Canada) to get parts or a warranty replacement.

Is the kettle compatible with an extension cord?

No, using an extension cord is not recommended. Always plug the kettle directly into a 3-prong grounded outlet.

USER MANUAL KEK1032 KITCHENAID

Exterior view of a modern kitchen Aid with a black handle and digital display (no signage)

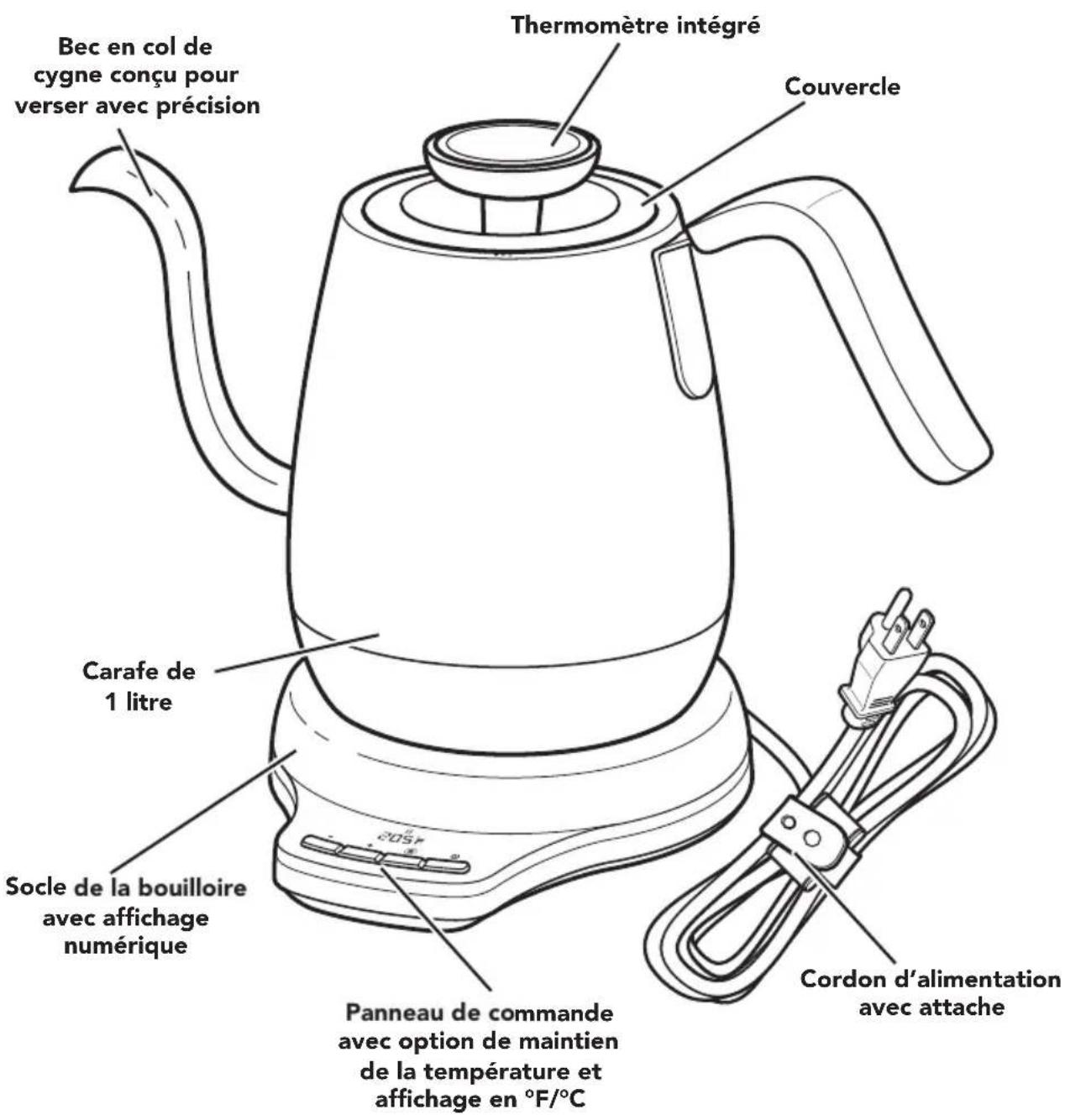

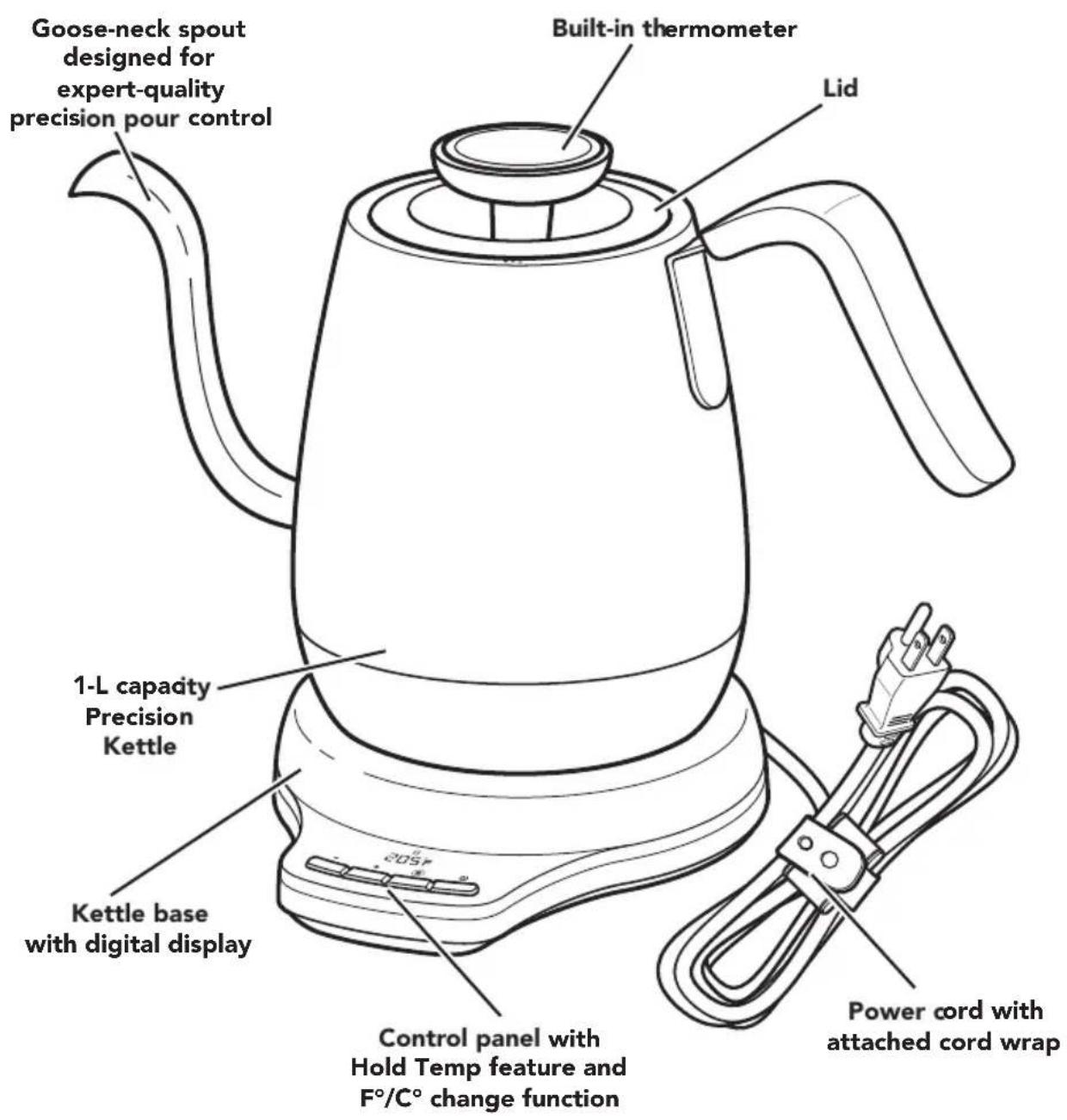

PARTS AND FEATURES

3-position precision flow control (inside body)

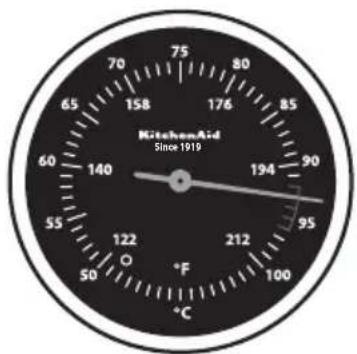

Built-in thermometer dial

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles.
3. To protect against fire, electrical shock, and injury to persons, do not immerse base, cord, plug, or the Precision Kettle in water or other liquids.
4. Use close supervision when using the Precision Kettle near or by children.
5. Unplug the Precision Kettle from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate the Precision Kettle with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Authorized Service Center for examination, repair, or adjustment.
7. Use of replacement parts or accessory attachments not recommended by manufacturer may result in fire, shock, or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over counter or table edges, or allow to come into contact with heated surfaces.

PRECISION KETTLE SAFETY

1. Do not place on or near a hot gas or electric burner, or in a heated oven.
2. The Precision Kettle should only be used to heat water.
3. Do not use the Precision Kettle without lid properly closed.
4. Do not use the Precision Kettle with loose or weakened handle.
5. Do not use the appliance for other than intended use.
6. Do not clean the Precision Kettle with abrasive cleaners, steel wool, or other abrasive materials.
7. Do not overfill the Precision Kettle.
8. Scalding may occur if the lid is removed during the heating cycle.
9. To disconnect, turn the control to "off," then remove plug from wall outlet.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Voltage: 120 VAC

Frequency: 60 Hz

Wattage: 1000 W

NOTE: The Precision Kettle has a 3 prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Before first use

Before using your Precision Kettle for the first time, wash the kettle and all accessories, including the lid, with warm, soapy water, then rinse with clean water and dry. Fill the Precision Kettle with water to the MAX fill line (see example below) and run one cycle at the maximum temperature. To avoid damage, do not fully immerse the Precision Kettle in water, and do not use abrasive cleaners or scouring pads.

NOTE: The entire Precision Kettle is hand wash only. To avoid damage, do not wash any part of the Precision Kettle, its accessories, or the base with power cord in a dishwasher.

Fill the Precision Kettle with water to the MAX fill line inside the Kettle.

Line drawing of a pressure gauge with dual ends and central dial (no text or symbols)

IMPORTANT: Be sure that the vent holes at the top of the kettle are clean and free of obstruction, or the Precision Kettle may overflow.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Line drawing of a power outlet connected to a wall-mounted socket, with brick wall and battery in background (no text or symbols)

1 Place the base with power cord on a flat, sturdy surface and plug it into a 3 prong grounded outlet.

FOR DETAILED INFORMATION ON USING THE PRECISION KETTLE

Visit kitchenaid.com/quickstart for additional instructions with videos and tips on how to use your Precision Kettle.

USING THE PRECISION KETTLE

BREW/STEEP TEMPERATURE SUGGESTIONS

The KitchenAid® Precision Kettle allows you to confidently pour with precision. It features the industry-standard 1-liter capacity carafe. Select your desired brewing temperature customizable in 1-degree increments ranging from 140-212°F (60-100°C), with the option to hold for 30 minutes. A brew-range thermometer is displayed on the lid to keep track of your water temperature while you pour so you know you are within your preferred brewing range.

NOTE: The Precision Kettle is designed for water only. Do not put any other liquids or substances in the Precision Kettle.

BEVERAGE Coffee	Green Tea	White Tea	Oolong Tea	Black Tea	Herbal Tea
		[KTCS]
SUGGESTED TEMPERATURE (C°/F°)	92-96°C 80°C 85°C 90°C 95°C 100°C
	196-205°F 176°F 185°F 194°F 203°F 212°F
SUGGESTED BREW/ STEEP TIME (MINUTES)	3-5 1-3 3-5 3-5 4-5 5-7

The above suggestions are points of reference. KitchenAid recommends that you experiment with temperature and brew/steep times to find the perfect formula for your preferred cup of coffee or tea.

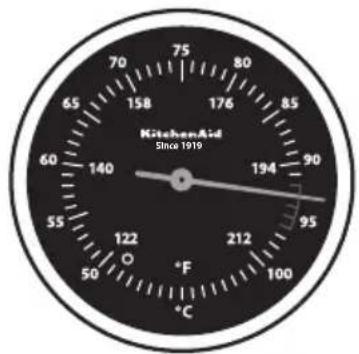

For easy reference, the suggested temperature range for brewing coffee is shown in red on the built-in thermometer.

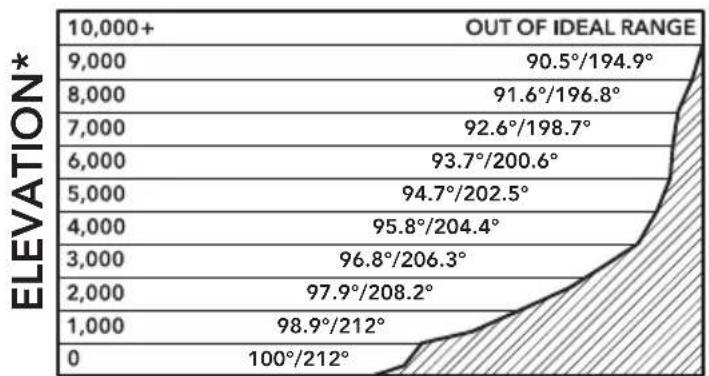

ALTITUDE BOILING POINT REFERENCE GUIDE

This chart shows the boiling point of water at different altitudes. Please refer to this chart in order to adjust your temperature setting according to the elevation in your area.

BOILING POINT °C/°F
*Elevation shown in feet above sea level.

USING THE PRECISION KETTLE

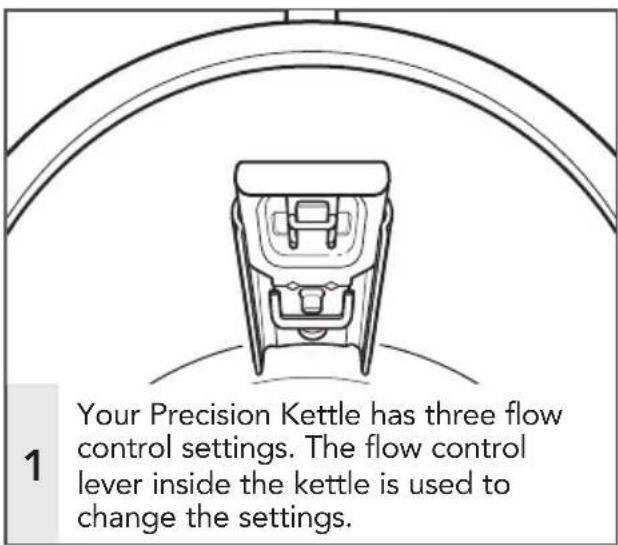

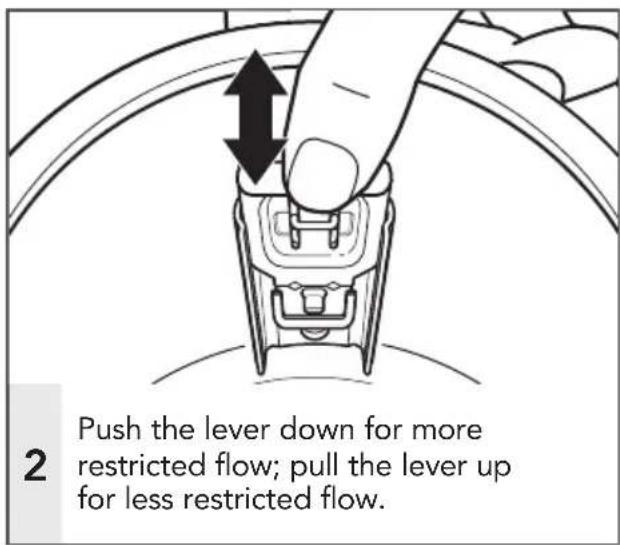

CHANGING THE FLOW CONTROL

TIP: Prior to first use, fill the Precision Kettle with room-temperature water and pour at each flow control setting to become familiar with the different flow rates.

NOTE: After heating water, be sure to empty the Precision Kettle and allow it to cool completely before changing any flow rate settings.

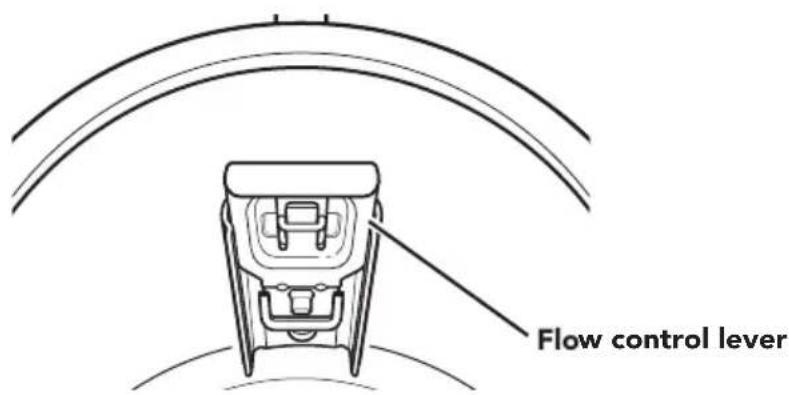

TIP: The flow control lever is meant to come out for cleaning. If you pull up too far while changing the flow rate settings and the lever comes out, it can easily slide back into place.

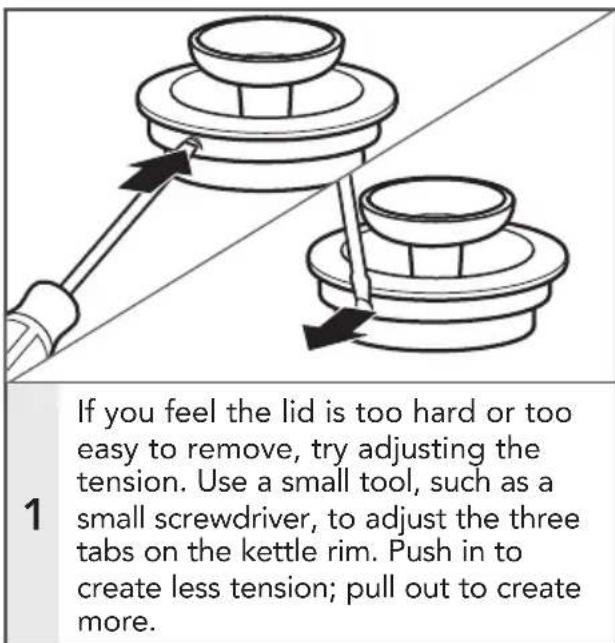

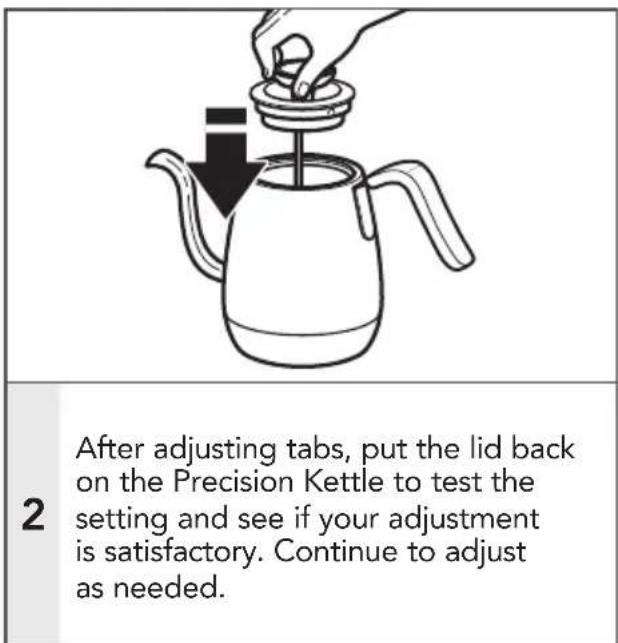

CUSTOMIZING THE KETTLE LID TENSION AND FLOW CONTROL LEVER

USING THE PRECISION KETTLE

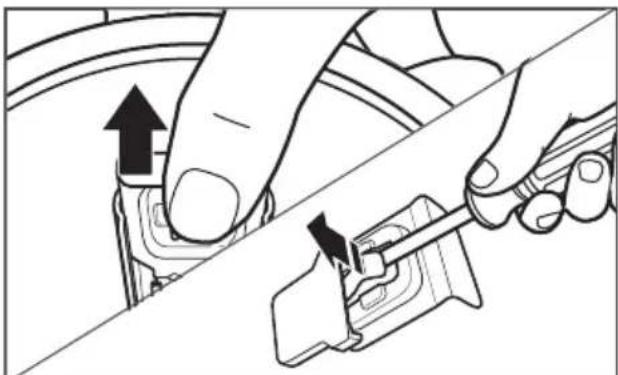

Illustration of hands using a tool to adjust or install a mechanical component, showing a step with an upward arrow (no text or symbols present)

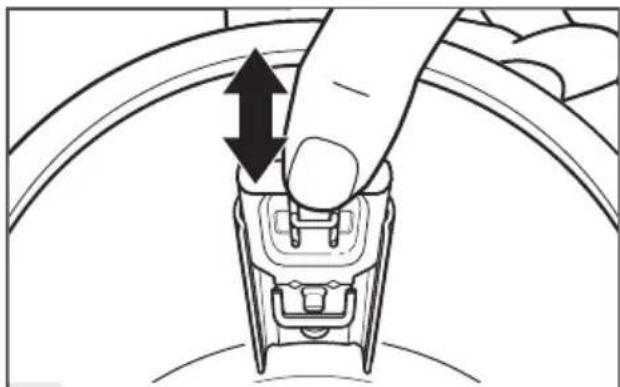

3 If you feel the flow control is too easy or too hard to move, use your fingers to adjust the tab on the flow control lever. Push in to create less tension; pull out to create more.

Diagram of a hand pressing down on a mechanical component with directional arrows (no text or symbols)

4 Test the flow control to see if the tension is correct; continue to adjust if needed.

FILLING THE PRECISION KETTLE WITH WATER

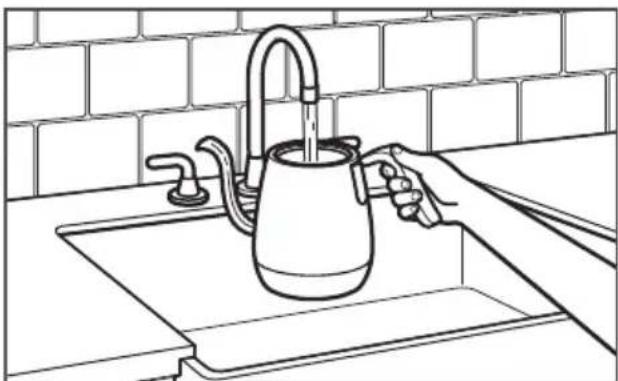

Line drawing of a hand washing a kettle on a kitchen sink with a brick wall background (no text or symbols)

1 Remove lid from the Precision Kettle and fill with water.

Line drawing of a hand pouring liquid into a kettle using a stand mixer (no text or symbols)

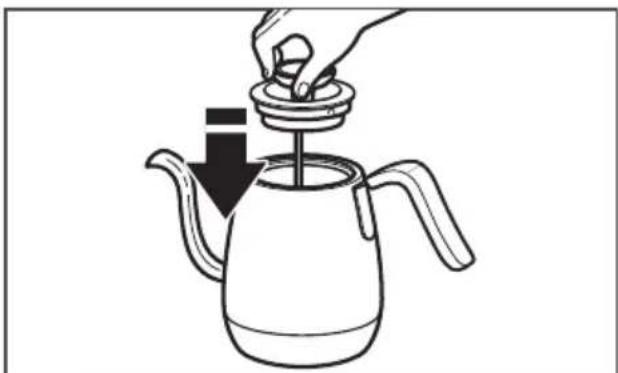

2 Replace the lid and put the Precision Kettle back on the base.

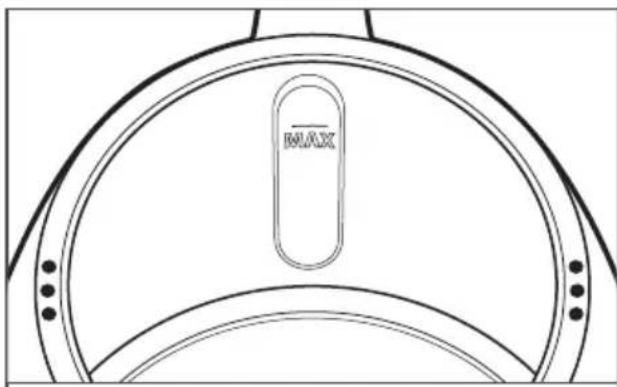

NOTE: Do not fill past the MAX fill line of 1 liter.

IMPORTANT: There must be a minimum of 1 cup (.25 L) of water for the Precision Kettle to operate. If the water level drops below this point, the Add Water icon will light, and you will need to add water to the Kettle before continuing use.

USING THE PRECISION KETTLE

HEATING WATER

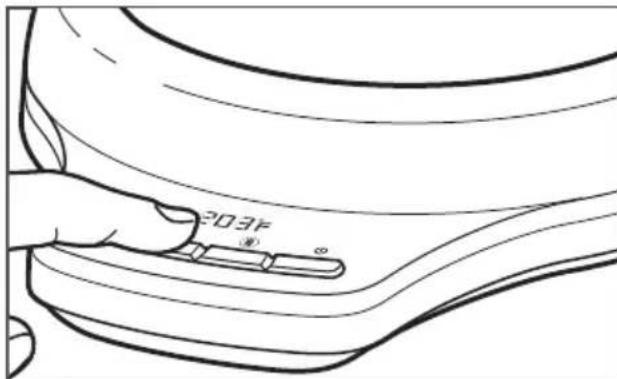

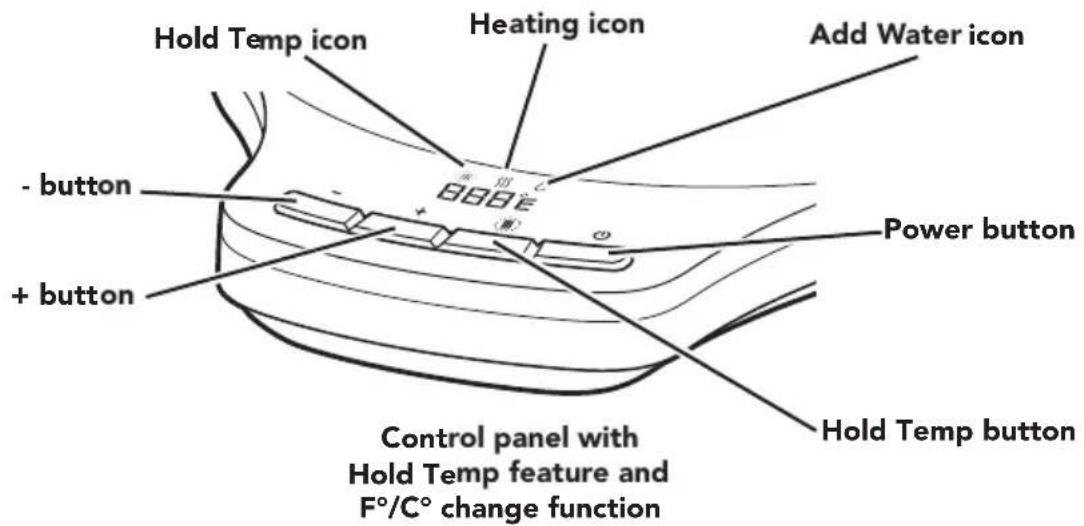

NOTE: The temperature can be displayed in Celsius (C) or Fahrenheit (F). To toggle between Celsius and Fahrenheit, hold the "-" and "+" buttons down at the same time. Refer to the "Altitude boiling point reference guide" for information on the peak temperature setting for your altitude.

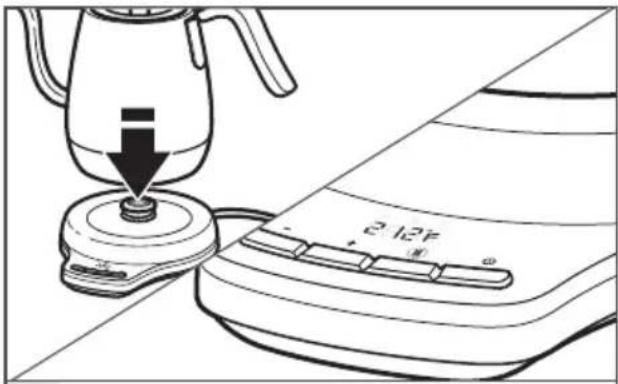

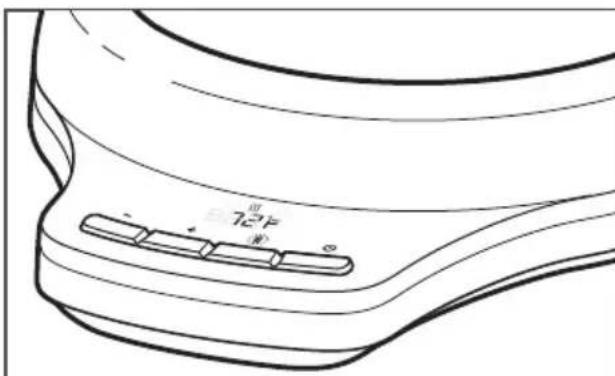

Line drawing of a kettle being placed on a base with a digital timer (no text or symbols)

When the Precision Kettle is first placed on the base, the display will show 212^ F or 100^ C*. After a few moments, the display will update to show the actual temperature of the water in the Precision Kettle.

Press the "-" or "+" buttons to select your desired water temperature between 140-212°F (60-100°C). 2 For faster temperature adjustment, hold the "-" or "+" button down for 3 seconds, and the temperature readout will scroll faster.

*The Precision Kettle has a temperature memory feature for your last selected temperature (between 140-212°F [60-100°C]). This feature will determine the temperature that appears on the display after the first use.

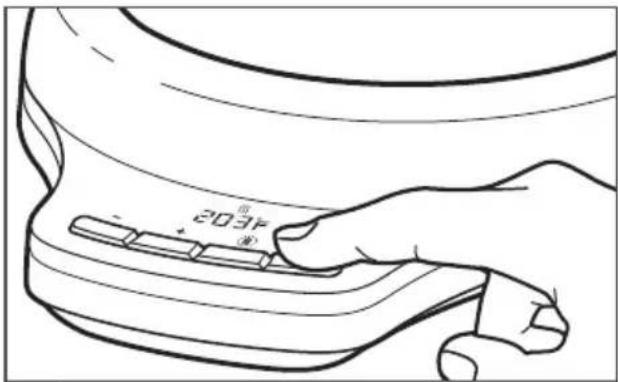

Press the (Power) button to save temperature and to begin heating the water. The (Heating icon) will be displayed on the LCD screen to indicate that the Precision Kettle is heating.

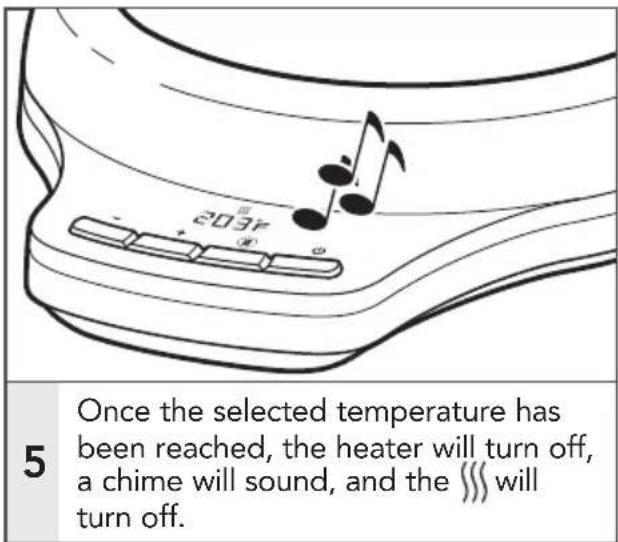

4 While heating, the temperature that shows on the display screen is the actual water temperature, not the selected temperature.

NOTE: The ⏻ button does not function when the Precision Kettle is off the base.

USING THE PRECISION KETTLE

IMPORTANT: Please see the "Altitude boiling point reference guide" for peak boiling temperature at your altitude. If using the Precision Kettle at higher altitudes, the Precision Kettle will boil continuously at a lower temperature until all the water has evaporated. If this happens, the Kettle will turn off.

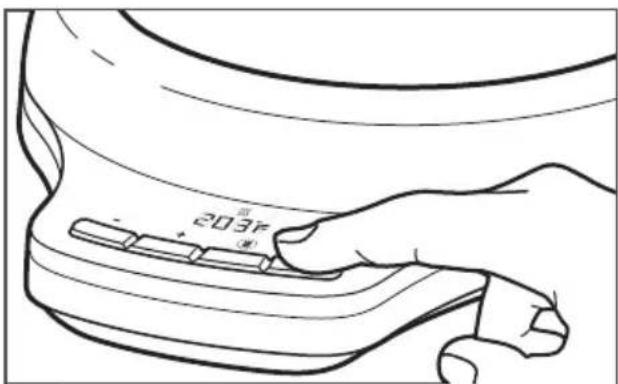

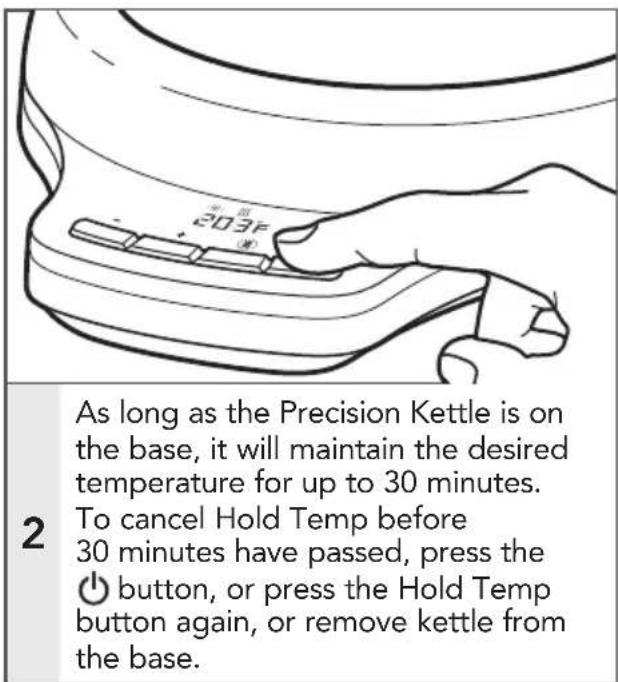

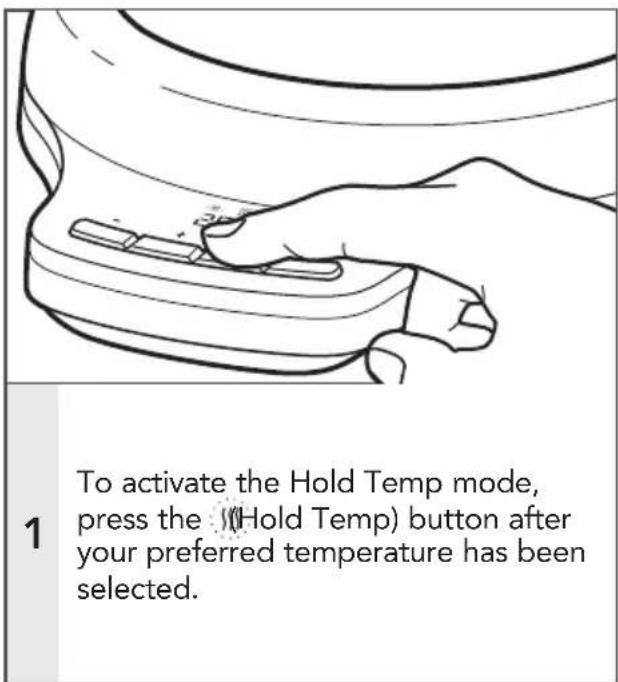

USING THE HOLD TEMP MODE

When using Hold Temp mode, please see the "Altitude boiling point reference guide" for peak boiling temperature at your altitude. If using the Precision Kettle at higher altitudes, the Precision Kettle will boil continuously at a lower temperature until it has evaporated. If this happens, the Kettle will turn off.

NOTE: The Precision Kettle must be on the base in order to activate the Hold Temp feature. Once the Kettle is removed from the base, the Kettle will turn off.

TIP: Hold Temp mode works for all temperatures within the range of 140-212°F (60-100°C). Altitude affects the Hold Temp mode; see the "Altitude boiling point reference guide" on page 7. Hold Temp is accurate within +/- 4°F (2°C).

USING THE PRECISION KETTLE

TURNING OFF THE PRECISION KETTLE

The Precision Kettle can be turned off in several ways:

1 Press ⏻ while in heating mode.

2 Press ☑ while in Hold Temp mode.

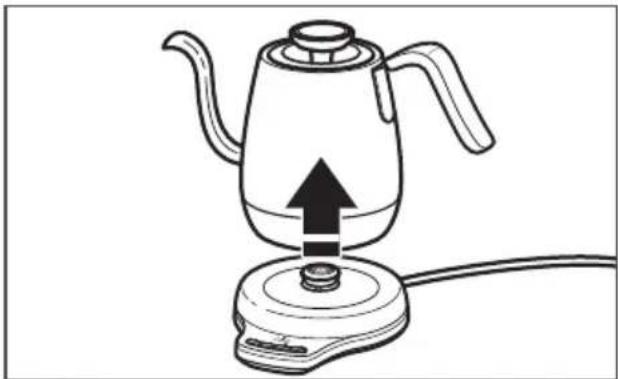

Line drawing of a kettle with an upward arrow emerging from its base, connected to a power outlet (no text or symbols)

3 Lift the Precision Kettle off the base.

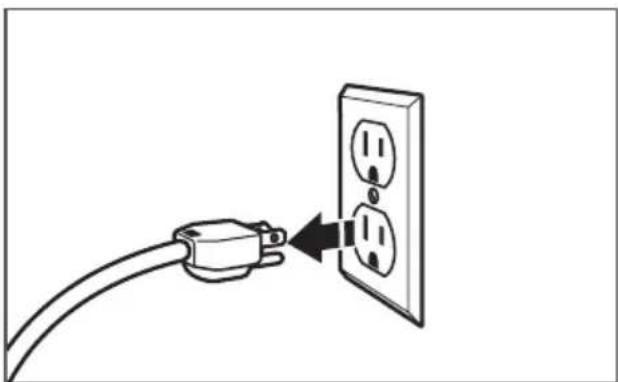

Line drawing of a cable inserted into an electrical outlet with two outlets (no text or symbols)

NOTE: Unplug the Precision Kettle when not in use.

CARE AND CLEANING

CLEANING THE EXTERIOR

IMPORTANT: Before cleaning, always disconnect the Precision Kettle from the electrical outlet. Make sure the Precision Kettle has cooled completely.

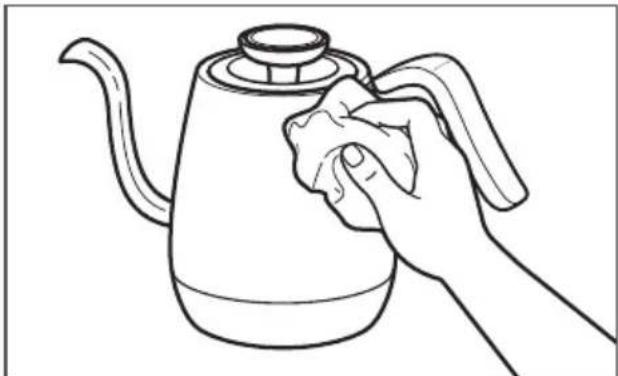

Line drawing of a hand cleaning a kettle with a cloth (no text or symbols)

The exterior of the Precision Kettle may be cleaned with a damp cloth. Dry and polish the Precision Kettle with a soft cloth. Abrasives and scouring agents of any kind are not recommended.

CARE AND CLEANING

REMOVING MINERAL DEPOSITS FROM THE INTERIOR

To get the best performance from your Precision Kettle, decalcification will be necessary. Calcium deposits may form on the interior of the Precision Kettle. The cleaning interval will depend on the hardness of the water you put in the Precision Kettle.

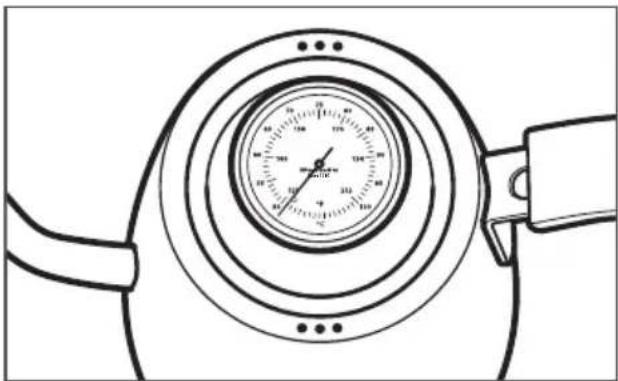

Line drawing of a pressure gauge with dual ends and central dial (no text or symbols)

IMPORTANT: Be sure that the vent holes at the top of the kettle are clean and free of obstructions, or the Precision Kettle may overflow.

Line drawing of a hand pouring liquid into a kettle on a counter, with brick wall background (no text or symbols)

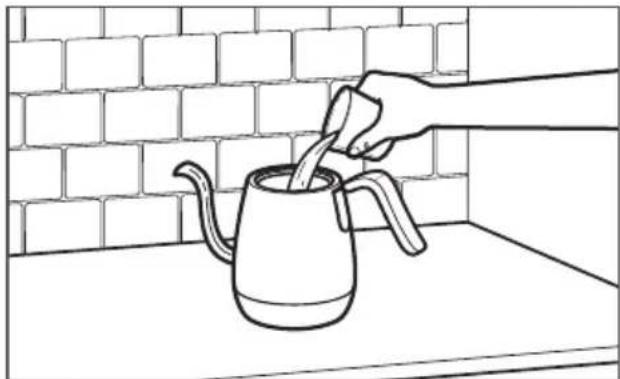

Fill the Precision Kettle with 1 cup (.25 L) of white vinegar and 3 cups (.75 L) of water. Boil and allow to stand overnight.

Line drawing of a hand pouring water from a bucket into a sink, with a brick wall background (no text or symbols)

2 Empty the solution from the Precision Kettle.

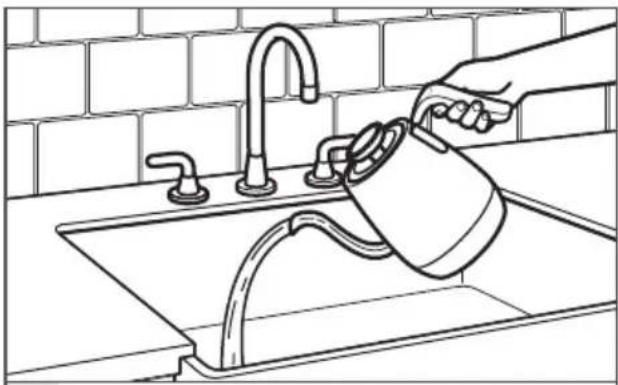

Line drawing of a kitchen sink with a hand holding a kettle, next to a grater (no text or symbols)

3 Fill the Precision Kettle with water, bring to a boil, and drain the water. Complete this step twice. The Precision Kettle is now ready to use.

NOTE: If desired, the flow control lever and built-in thermometer can be removed for further cleaning.

FOR DETAILED INFORMATION ON CLEANING THE PRECISION KETTLE

Visit kitchenaid.com/quickstart for additional instructions with videos and tips on how to use your Precision Kettle.

WARRANTY AND SERVICE

KITCHENAID® PRECISION KETTLE WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for the Precision Kettle operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Precision Kettle.See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Precision Kettle is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse, or abuse.C. Any shipping or handling costs to deliver your Precision Kettle to an Authorized Service Center.D. Replacement parts or repair labor costs for Precision Kettles operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY—50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Precision Kettle should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Precision Kettle returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Precision Kettle should fail within the first year of ownership, simply call our

toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Precision Kettle, use the carton, packing materials, and prepaid shipping label to pack up your original Precision Kettle and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY—CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Precision Kettle should fail within the first year of ownership, we will replace your Precision Kettle with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Precision Kettle should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Precision Kettle, use the carton, packing materials, and prepaid shipping label to pack up your original Precision Kettle and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Precision Kettle for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

Line drawing of a pressure gauge with dual ends and central dial (no text or symbols)

Line drawing of a power plug connecting to an electrical outlet (no text or symbols)

Line drawing of a hand holding a device with a small inset showing a small object, no text or symbols present.

Line drawing of a kettle with an upward arrow emerging from its base, connected to a power outlet (no text or symbols)

3 Soulever la bouilloire de sa base.

Line drawing of a cable inserted into an electrical outlet with two outlets (no text or symbols)

Line drawing of a hand cleaning a kettle with a cloth (no text or symbols)

Technical line drawing of a pressure gauge with dual ends and central dial (no text or symbols)

Line drawing of a hand pouring liquid into a kettle on a shelf against a brick wall background (no text or symbols)

Line drawing of a hand pouring liquid into a kitchen sink with a pipe (no text or symbols)

Line drawing of a kitchen appliance with a hand holding a kettle and a water dispenser, against a brick wall background (no text or symbols)

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Line drawing of a pressure gauge with dual ends and central dial (no text or symbols)

Line drawing of a power outlet connected to a wall-mounted socket, with brick wall and battery in background (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Line drawing of a hand pouring liquid into a kettle on a kitchen sink, brick wall background (no text or symbols)

Line drawing of a hand pouring liquid into a kettle using a stand (no text or symbols)

Line drawing of a kettle being placed on a stand next to a digital kitchen appliance (no text or symbols)

Line drawing of a hand pressing down on a device component (no text or symbols)

Line drawing of a pressure gauge with dual ends and central dial (no text or symbols)

Line drawing of a hand pouring liquid into a kettle on a counter, with brick wall background (no text or symbols)

1

Line drawing of a hand pouring water from a bucket into a sink, with no text or symbols present.

2

Line drawing of a kitchen sink with a kettle and hand holding the cup, against a brick wall background (no text or symbols)

3

Red background with a white telephone handset icon (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

PREGUNTAS SOBRE EL PRODUCTO O DEVOLUCIONES

USA: 1.800.541.6390 | KitchenAid.com

CANADA: 1.800.807.6777 | KitchenAid.ca

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

Silhouette of a kitchen mixer and bowl (no text or symbols)

KitchenAid®

®/™ ©2018 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere. Used under license in Canada.
