USER MANUAL KSMVSA KITCHENAID

Close-up of a red Kitchen Aij brand blender with a white kitchen brush and yellow pasta inside, no visible text or symbols on the device itself.

STAND MIXER ATTACHMENT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

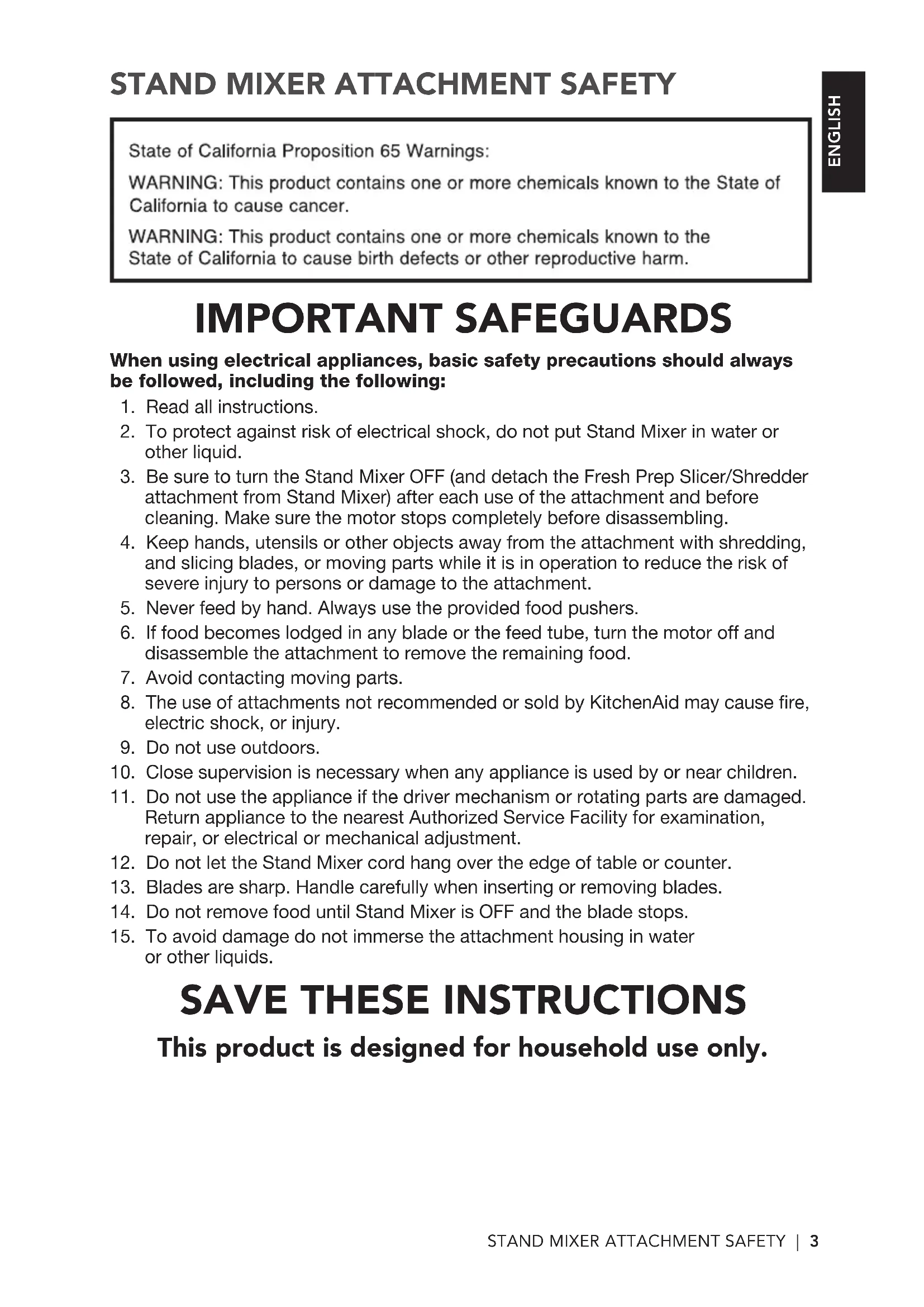

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put Stand Mixer in water or other liquid.
3. Be sure to turn the Stand Mixer OFF (and detach the Fresh Prep Slicer/Shredder attachment from Stand Mixer) after each use of the attachment and before cleaning. Make sure the motor stops completely before disassembling.
4. Keep hands, utensils or other objects away from the attachment with shredding, and slicing blades, or moving parts while it is in operation to reduce the risk of severe injury to persons or damage to the attachment.
5. Never feed by hand. Always use the provided food pushers.
6. If food becomes lodged in any blade or the feed tube, turn the motor off and disassemble the attachment to remove the remaining food.
7. Avoid contacting moving parts.
8. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
9. Do not use outdoors.
10. Close supervision is necessary when any appliance is used by or near children.
11. Do not use the appliance if the driver mechanism or rotating parts are damaged. Return appliance to the nearest Authorized Service Facility for examination, repair, or electrical or mechanical adjustment.
12. Do not let the Stand Mixer cord hang over the edge of table or counter.
13. Blades are sharp. Handle carefully when inserting or removing blades.
14. Do not remove food until Stand Mixer is OFF and the blade stops.
15. To avoid damage do not immerse the attachment housing in water or other liquids.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

USING THE STAND MIXER ATTACHMENT

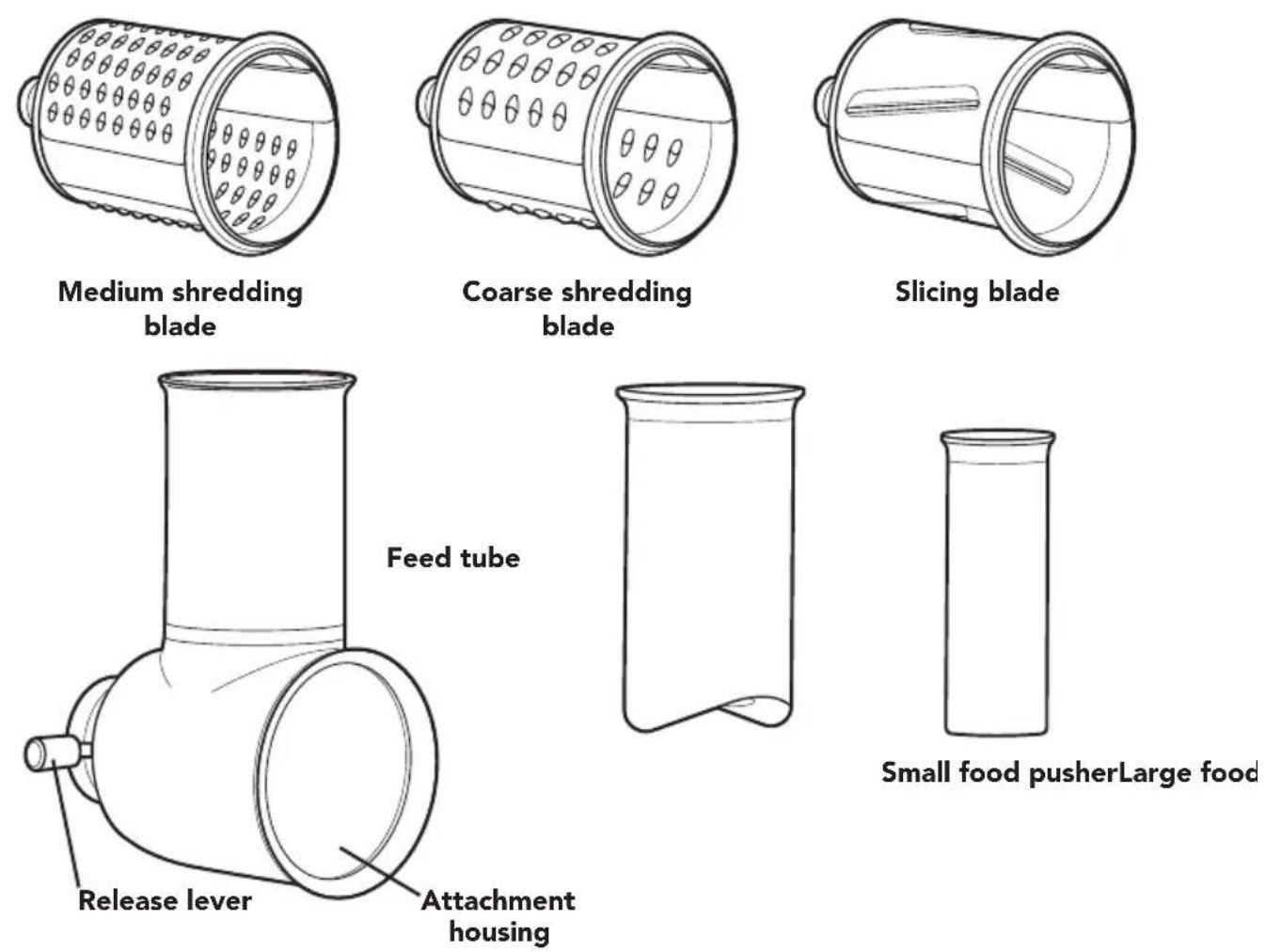

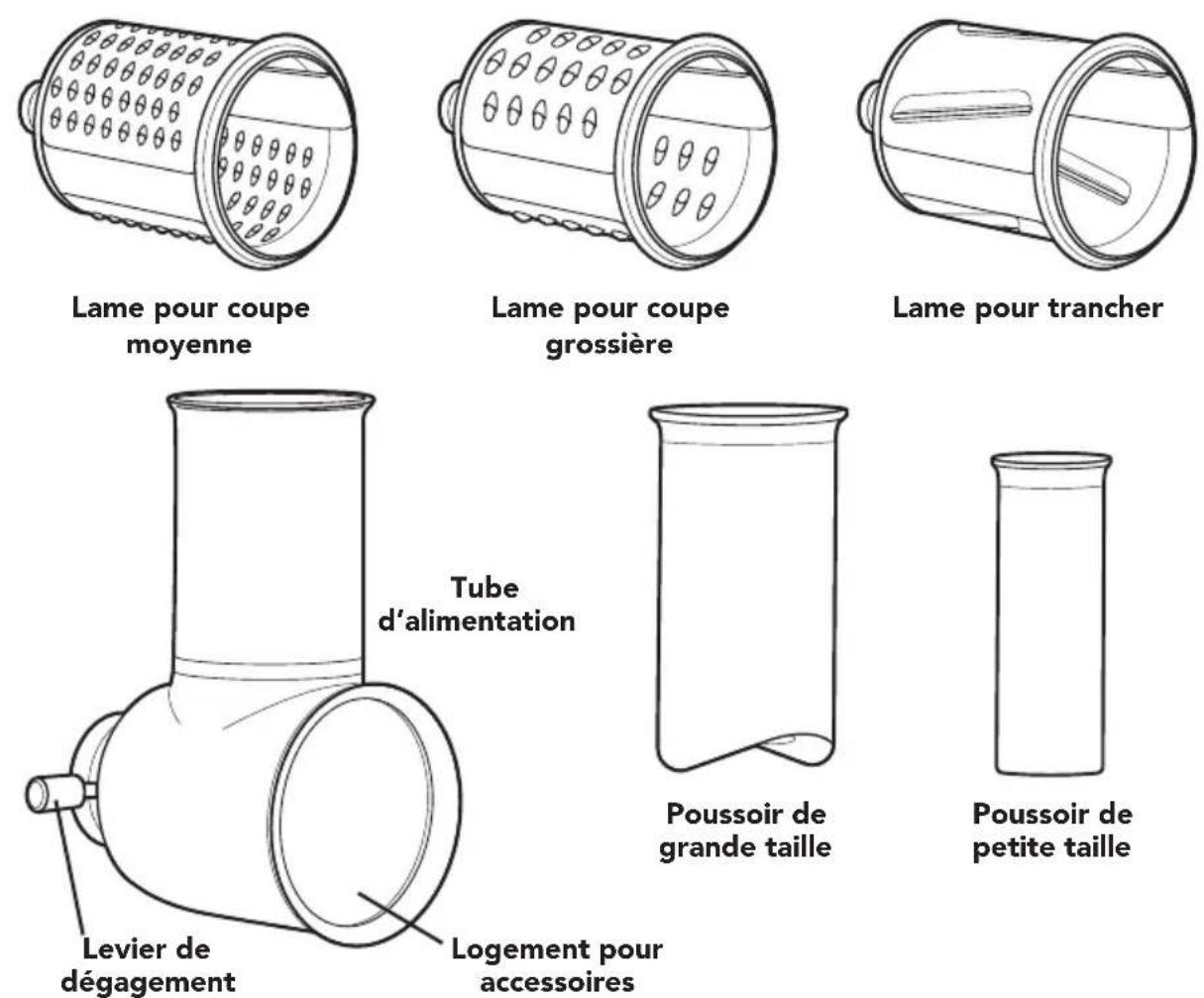

FRESH PREP SLICER/SHREDDER ATTACHMENT BLADE CHART

WARNING Rotating Blade Hazard Always use food pusher. Keep fingers out of openings. Keep away from children. Failure to do so can result in amputation or cuts.

NOTE: For best results, feed only one item at a time into the feed tube (ex. carrot). Do not feed items into the feed tube by hand; always use the food pushers. If food remains in the Fresh Prep Slicer/Shredder attachment after running, stop the Fresh Prep Slicer/Shredder attachment, remove the remaining items, and place back into the feed tube to shred or slice again.

USE THESE PARTS WITH	THESE PARTS	SUGGESTED FOODS	SPEED
MEDIUM SHREDDING BLADE	HOUSING and SMALL or LARGE FOOD PUSHER	CAULIFLOWER BEETS CARROTS CHEESE	4
COARSE SHREDDING BLADE		ZUCCHINI POTATOES CHEESE
SLICING BLADE		CARROTS CUCUMBER ZUCCHINI POTATOES CABBAGE (shred)

FOR DETAILED INFORMATION ON USING THE FRESH PREP SLICER/SHREDDER ATTACHMENT

Visit kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use your Fresh Prep Slicer/Shredder attachment.

USING THE STAND MIXER ATTACHMENT

ASSEMBLING THE FRESH PREP SLICER/SHREDDER ATTACHMENT

Diagram showing electrical outlet installation with labeled components and directional arrows indicating connection points

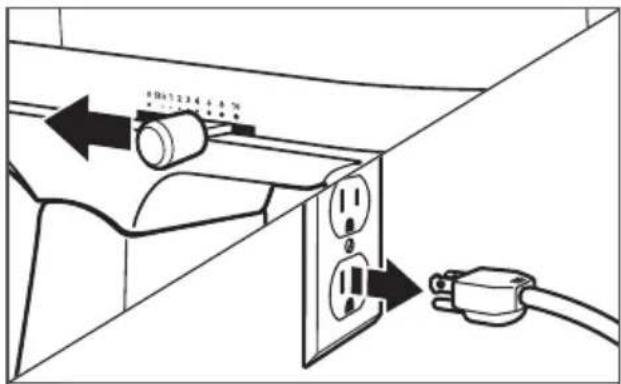

1 Turn the Stand Mixer off and unplug.

Diagram showing a pipe being inserted into a cylindrical device (no text or symbols present)

2

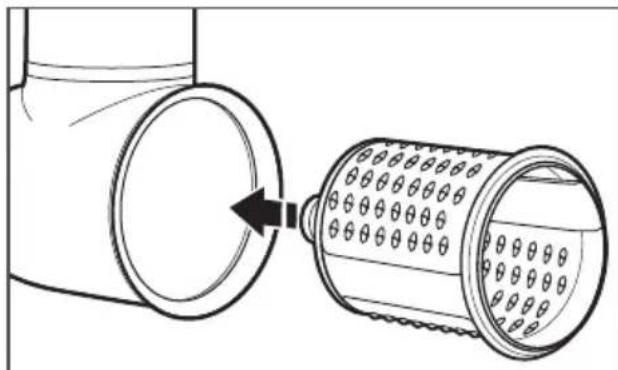

Slide the blade you want to use into the housing. You will hear a click when the blade snaps into place properly on the drive shaft.

Line drawing of a mechanical device with a knob and rotating knob (no text or symbols)

MinshawAid

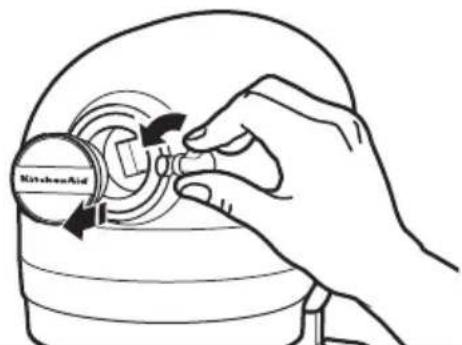

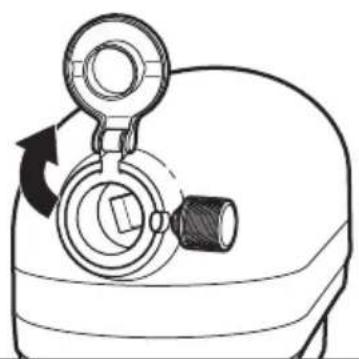

For Stand Mixers with a hinged attachment hub cover: Flip up to open.

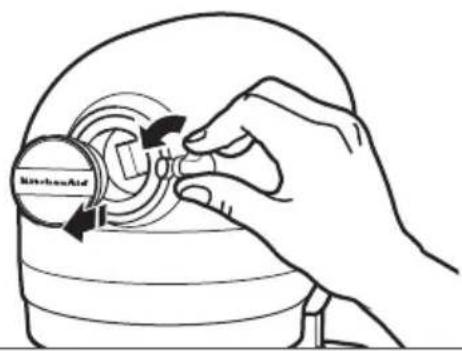

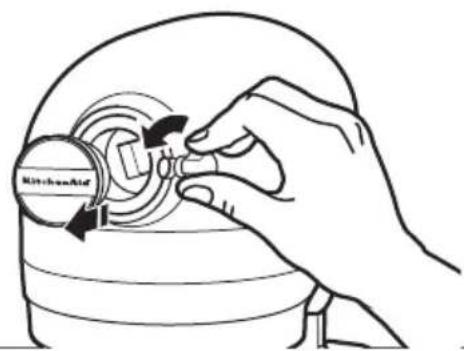

For Stand Mixers with a removable attachment hub cover: Turn the attachment knob counterclockwise to remove attachment hub cover.

3

Line drawing of a kitchen electric motor with a pipe fitting and a separate motor component (no text or symbols)

4

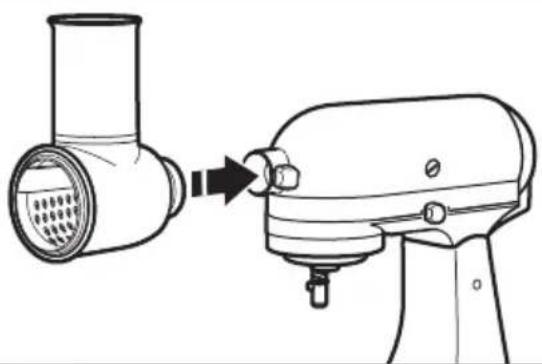

Insert the attachment shaft housing into the attachment hub, making certain the power shaft fits into the square hub socket. If necessary, rotate the attachment back and forth. The pin on the attachment housing fits into the notch of the hub rim when in the proper position.

Line drawing of a hand operating a cylindrical device with a mesh pipe (no text or symbols)

5

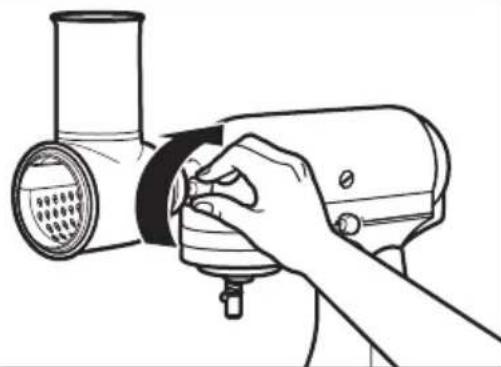

Tighten the Stand Mixer attachment hub knob until the attachment is completely secured to the Stand Mixer. Make sure that hub knob is properly seated in the retention hole in the attachment.

USING THE STAND MIXER ATTACHMENT

USING THE FRESH PREP SLICER/SHREDDER ATTACHMENT

NOTE: For best results, feed only one item at a time into the feed tube (ex. carrot).

Do not feed items into the feed tube by hand; always use the food pushers. If food remains in the Fresh Prep Slicer/Shredder attachment after running, turn the Stand Mixer to "0" (Off), remove the remaining items, and place back into the feed tube to shred or slice again.

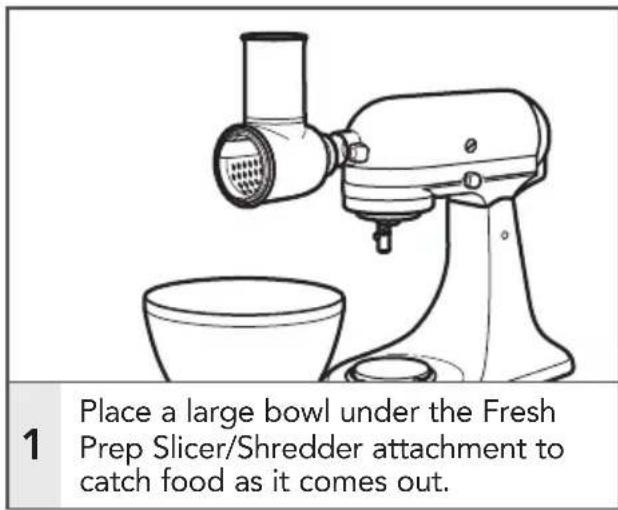

1 Place a large bowl under the Fresh Prep Slicer/Shredder attachment to catch food as it comes out.

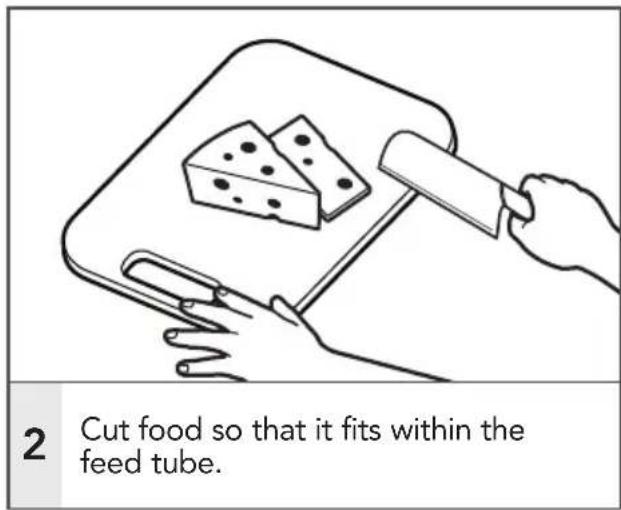

2 Cut food so that it fits within the feed tube.

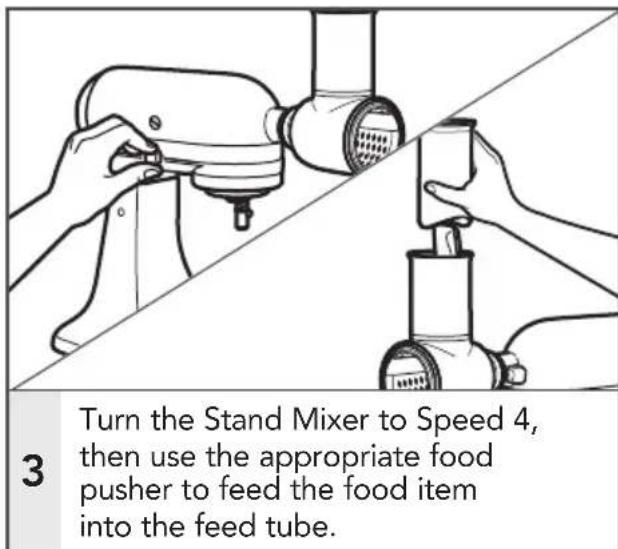

Turn the Stand Mixer to Speed 4, then use the appropriate food pusher to feed the food item into the feed tube.

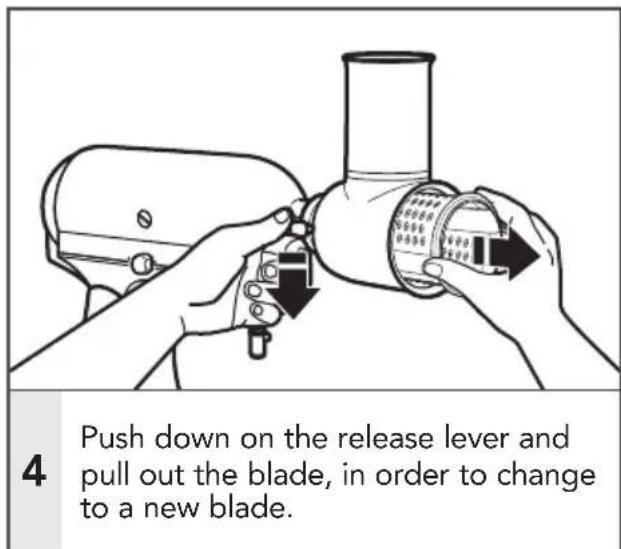

4 Push down on the release lever and pull out the blade, in order to change to a new blade.

CARE AND CLEANING

CLEANING THE FRESH PREP SLICER/SHREDDER ATTACHMENT

IMPORTANT: The housing of the Fresh Prep Slicer/Shredder attachment must be hand washed only using warm, soapy water. The Fresh Prep Slicer/Shredder attachment blades and accessories are dishwasher safe, top rack only.

Technical line drawing showing a device with internal components and three cylindrical parts (no text or symbols)

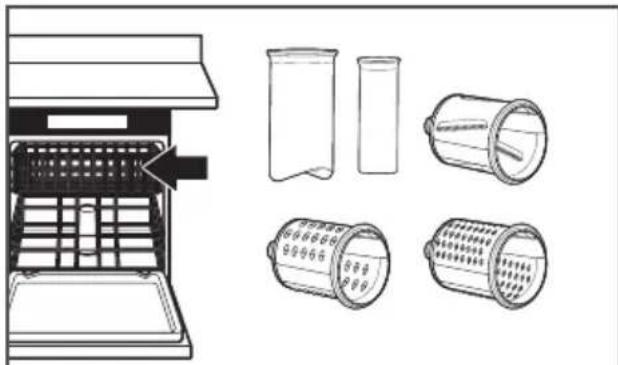

After using the Fresh Prep Slicer/Shredder attachment, remove all blades and accessory items. Wash the blades and accessories in the dishwasher, top rack only.

NOTE: For best cleaning, rinse blades immediately after use. If necessary, use a dish washing brush.

TROUBLESHOOTING

If your Stand Mixer should malfunction or fail to operate while using the Fresh Prep Slicer/Shredder attachment, please check the following:

• Did you follow the preparation suggestions in the "Fresh Prep Slicer/ Shredder attachment blade chart"?
• Did you choose a blade recommended for the type of food you are slicing/shredding?
• Is the Stand Mixer plugged in? Refer to the "Instructions" manual that came with your Stand Mixer to find possible solutions.

Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present

2

Clean the housing of the Fresh Prep Slicer/Shredder attachment by hand only. Wash with a soft, damp cloth. Dry thoroughly with a soft dry cloth. Do not wash in the dishwasher.

- Is the fuse in the circuit to the Stand Mixer in working order? Refer to the "Instructions" manual that came with your Stand Mixer to find possible solutions.

If the problem is not due to one of the above items, see the "Arranging for Service" section in the "Warranty".

Do not return the Fresh Prep Slicer/ Shredder attachment or the Stand Mixer to the retailer, as they do not provide service.

WARRANTY AND SERVICE

KITCHENAID® FRESH PREP SLICER/SHREDDER ATTACHMENT WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Fresh Prep Slicer/Shredder attachments operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay Hassle-Free Replacement of your Fresh Prep Slicer/for Your Choice of: Shredder attachment. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.

THE RESELLING HASSIE FREE REPLACEMENT WARRANTY QUALITY

OR

KitchenAid Will A. Repairs when your Fresh Prep Slicer/Shredder Not Pay for: attachment is used in other than normal single family home use.

B. Damage resulting from accident, alteration, misuse or abuse.
C. Any shipping or handling costs to deliver your Fresh Prep Slicer/Shredder attachment to an Authorized Service Center.
D. Replacement parts or repair labor costs for Fresh Prep Slicer/Shredder attachments operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Fresh Prep Slicer/Shredder attachment should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Fresh Prep Slicer/Shredder attachment returned to us. Your replacement unit will also be covered by our one year limited warranty. If your Fresh Prep Slicer/Shredder attachment should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Fresh Prep Slicer/Shredder attachment, use the carton, packing materials, and prepaid shipping label to pack up your original Fresh Prep Slicer/Shredder attachment and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Fresh Prep Slicer/Shredder attachment should fail within the first year of ownership, we will replace your Fresh Prep Slicer/Shredder attachment with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. If your Fresh Prep Slicer/Shredder attachment should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. When you receive your replacement Fresh Prep Slicer/Shredder attachment, use the carton, packing materials, and prepaid shipping label to pack up your original Fresh Prep Slicer/Shredder attachment and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Fresh Prep Slicer/Shredder attachment for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.
