USER MANUAL BCGSGA KITCHENAID

ACCESSORY FEATURES 5

KITCHENAID® BLADE COFFEE GRINDER

OPERATING INSTRUCTIONS 6

KITCHENAID® SPICE GRINDER

ACCESSION OPERATING

INSTRUCTIONS (OPTIONAL) 7

COFFEE GRINDING TIPS. 8

SPICE GRINDING TIPS. 9

COFFEE GRINDER CARE 9

PROOF OF PURCHASE AND

PRODUCT REGISTRATION 9

WARRANTY 10

TABLE DES MATIÈRES

SECURITE DU MOULIN A

CAFE A LAME 12

MESURES DE SECURITE IMPORTANTES...12

SPECIFICATIONS ELECTRIQUES 13

CHARACTERISTIQUES DU MOULIN

A CAFÉ À LAME KITCHENAID® 14

CHARACTERISTIQUES DU MOULIN

À ÉPICES KITCHENAID® (ACCESSIONE).... 15

INSTRUCTIONS D'UTILISATION

DU MOULIN A CAFÉ

À LAME KITCHENAID 15

INSTRUCTIONS D'UTILISATION

DU MOULIN A ÉPICES KITCHENAID

(ACCESSOIRE) (FACULTATIF) 17

ASTUCES POUR MOULIN A CAFÉ 18

ASTUCES POUR MOUDRE DES ÉPICES ....19

ENTRETIEN DU MOULIN A CAFÉ 19

PREUVE D'ACHAT ET

ENREGISTREMENT DU PRODUIT 19

GARANTIE 20

INDICE

SEGURIDAD DEL MOLINILLO

DE CAFÉ CON CUCHILLAS 22

State of California Proposition 65Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the

State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.
  To protect against risk of electric shock, do not put Coffee Grinding in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug Coffee Grinding from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Check hopper for presence of foreign objects before using.
  This product is designed for household use only.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS

Volts: 120 Volts AC only

Hertz: 60 Hz

NOTE: This Coffee Grinding has a grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

A short power supply cord (or detachable power supply cord) is supplied to reduce the risk resulting from becoming

entangled in or tripping over a longer cord.

If a longer detachable power supply cord or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

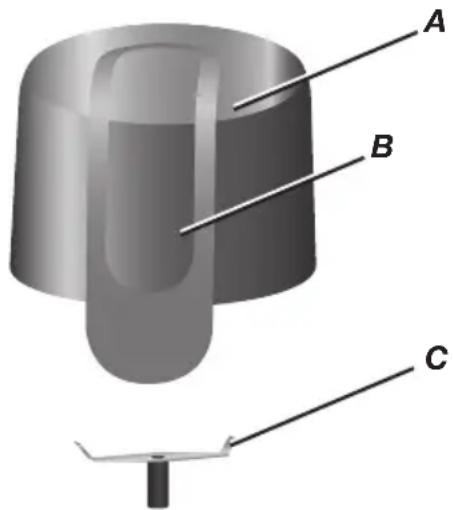

KITCHENAID® BLADE COFFEE GRINDER FEATURES

A. Clear Top Cover with fingertip control

Push down on the clear top cover to begin grinding and release to stop grinding. Top cover must be in place to operate grinder. Cover can be washed in the top rack of a dishwasher.

B. Dual Safety Switch System

Dual switch mechanism keeps the coffee grinder from operating until the top cover is correctly positioned over side guides on the motor housing.

C. Stainless Steel Coffee Grinding Blade

Blade is mounted inside the stainless steel bowl.

D. Stainless Steel 4-oz. (125 mL) Capacity Bowl

Bowl has measurement markings etched inside for ease of processing the amount of beans needed for 4, 8, 10, or 12 cups of coffee. It locks into the motor housing with a clockwise turn. Bowl can be washed in a dishwasher.

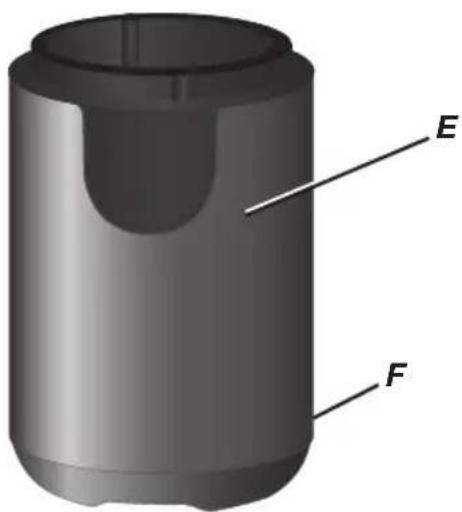

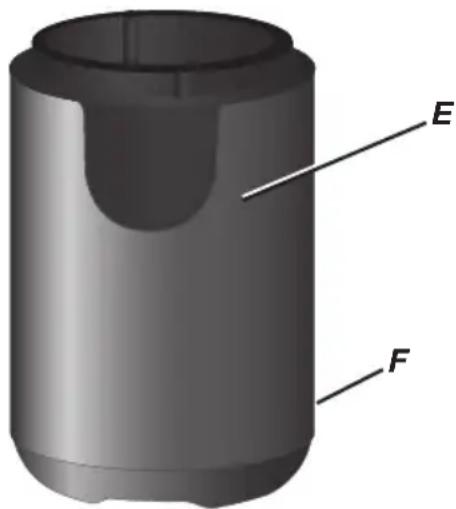

E. Heavy Duty Motor Housing

Keeps grinder stable during operation.

F. Round Power Cord (not shown) Cleanseasily.

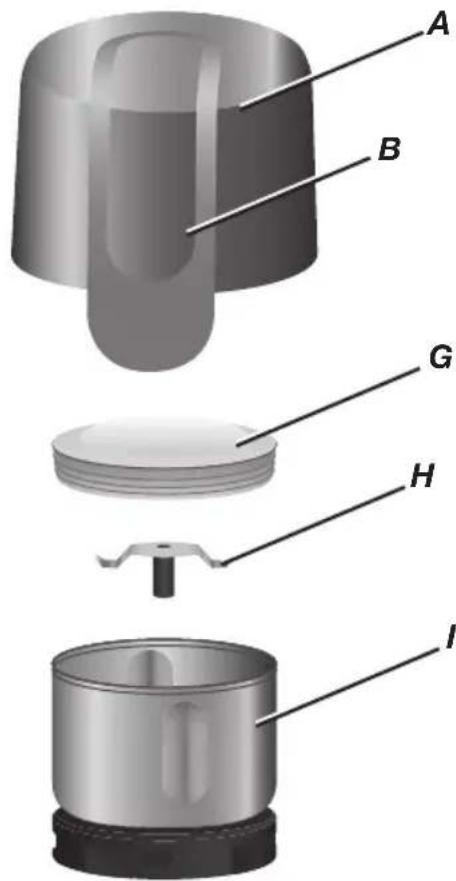

KITCHENAID® SPICE GRINDER* ACCESSORY FEATURES

G. Solid Spice Grinding Bowl Lid

Place this lid on the spice grinder bowl before placing the clear top cover when grinding spices.

H. Stainless Steel Blade

Blade is mounted inside the stainless steel bowl.

I. Stainless Steel 2-oz. (62 mL) Capacity Bowl

Bowl can be used for up to 2 oz. of spices. (See the "Spice Grinding Tips" section for suggested amounts.) The bowl locks into the motor housing with a clockwise turn. Bowl can be washed in a dishwasher.

KITCHENAID® BLADE COFFEE GRINDER OPERATING INSTRUCTIONS

Before First Use

Wash bowl and top cover in hot, soapy water. Rinse and dry. Handle the blade gently. Bowl and top cover can also be washed in the dishwasher (top rack only).

To Use Blade Coffee Grinding:

1. Be sure the Coffee Grinding is unplugged. Make sure the inside of the top cover is free of coffee grinds or residue.

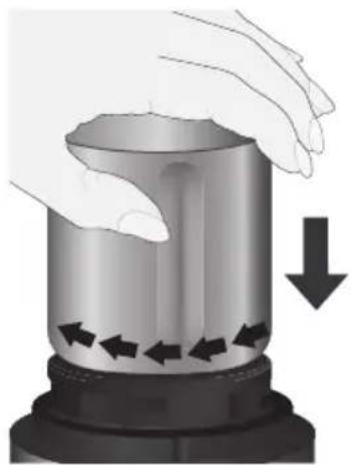

2. Secure the bowl to the motor housing by placing the bowl on top and turning clockwise to lock into place.

1. A scale is provided inside the bowl for the KitchenAid recommended amount of beans to grind for 4, 8, 10, and 12 cups of coffee. Fill the bowl to your desired cup size with 4 cups minimum or 12 cups maximum level. Various bean blends and bean sizes can cause differences in fill level and grind times.
2. Position the top cover over the bowl so that the lid's latch aligns with the motor housing base and the side guides fall into place.

NOTE: Make sure both cover and bowl are in position; otherwise, the Coffee Grinding will not operate.

1. Plug power cord into electrical outlet.
2. Press down on the top cover to start processing. For optimum grinding results, do not pulse the top cover. Continue grinding until all the beans are ground to the desired

consistency, or see the "Suggested Grinding Chart" in the "Coffee Grinding Tips" section.

1. To stop processing, release pressure on the top cover.
2. Unplug the Coffee Grinding.
3. Wait until the blade has stopped rotating and remove top cover.

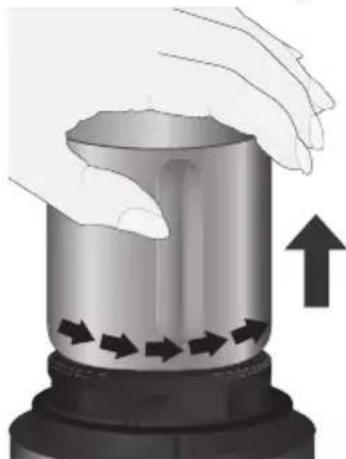

4. Unlock bowl by turning it counterclockwise. Remove bowl from the motor housing.

1. Pour out ground coffee.

KITCHENAID® SPICE GRINDER OPERATING INSTRUCTIONS* (OPTIONAL)

1. Remove the coffee bowl from the grinder base.

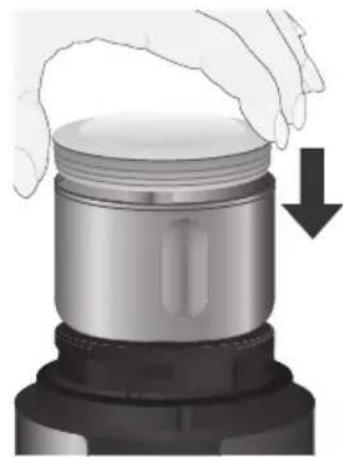

1. Fill the spice grinder with the desired spices, then put on the solid spice grinder lid.

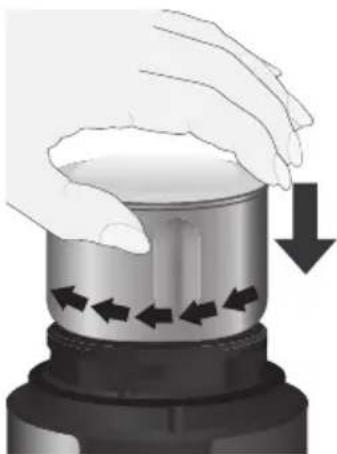

1. Place the spice grinder bowl into the grinder base and twist clockwise to lock into place.

1. Place the top cover of the coffee grinder over the solid spice grinder lid, making sure the top cover aligns with the motor housing base in the same way it does when grinding coffee. Then, press down on the top cover to run the coffee grinder to grind spices to the desired consistency. For optimum grinding results, do not pulse the top cover.

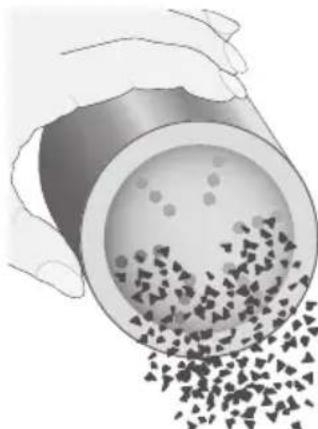

1. After grinding, remove the top cover and solid spice grinder lid. Then place the shaker lid and dispense your freshly ground spices.

*The Spice Grinding accessory (BCGSGA) can only be used with Coffee Grinding models BCG111 and BCG211.

COFFEE GRINDING TIPS

1. Grind only beans you will immediately use for freshest tasting coffee.
2. Adjust amount of coffee beans and grinding time to suit your own personal taste. Shorter grinding time results in coarser grinds. Longer grinding times result in finer grinds, but can overheat the coffee grinds and valuable coffee flavors can be lost. (For optimum grinding results, do not pulse top cover.)

3. KitchenAid does not recommend using this grinder to grind beans for pump espresso-type machines.

4. The Suggested Grinding Chart shows recommended grinding times at various levels for automatic drip coffee makers and French press machines.

5. A scale is provided inside the bowl for the KitchenAid recommended amount of beans to grind for 4, 8, 10, and 12 cups of coffee. Fill the bowl to your desired cup size with 4 cups minimum or 12 cups maximum level. Various bean blends and bean sizes can cause differences in fill level and grind times.

Suggested Grinding Chart
For automatic drip coffee makers and French press machines*
Fill to Max. amount	Suggested grinding time
12-Cup Fill Line 14	Tbsp. Process for 21 seconds
10-Cup Fill Line 12	Tbsp. Process for 19 seconds
8-Cup Fill Line 9 Tbsp.	Process for 17 seconds
4-Cup Fill Line 5 Tbsp.	Process for 14 seconds

*French press machines require a coarse grind. For optimum results, process beans continuously until desired grind size is achieved.

SPICE GRINDING TIPS

Suggested Grinding Chart
Spice/Nut Max.	amount Suggested grinding time
Black peppercorns 2 oz.	Process for 25 seconds
Cumin seeds 2 oz.	Process for 30 seconds
Whole allspice 1.5 oz.	Process for 25 seconds
Szechuan peppercorns	1 oz. Process for 30 seconds
Coriander seeds 0.5 oz.	Process for 10 seconds

COFFEE GRINDER CARE

1. Always unplug Coffee Grinding before cleaning.
2. Remove the bowl and top cover. Wash in hot, soapy water, rinse and dry. Bowl and top cover can also be washed in the dishwasher (top rack only). After removing from the dishwasher, allow to cool before reassembling.
3. Wipe the motor housing clean with a damp, soft cloth.

NOTE: Do not use abrasive cleaners. Do not immerse the motor housing in water.

1. Wipe cord with warm, sudsy cloth; then wipe clean with a damp cloth. Dry with a soft cloth.
2. Reassemble your coffee grinder after cleaning.

PROOF OF PURCHASE AND PRODUCT REGISTRATION

Always keep a copy of the sales receipt showing the date of purchase of your Coffee Grinding. Proof of purchase will assure you of in-warranty service.

Before you use your Coffee Grinding, please fill out and mail your product registration card packed with the unit.

This card will enable us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty. Please complete the following for your personal records:

Model Number
Serial Number
Date Purchased
Store Name and

KitchenAid® Coffee Grinding Warranty for the 50 United States, the District of Columbia, Puerto Rico, and Canada

This warranty extends to the purchaser and any succeeding owner for Coffee Grinders operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay Hasdle-Free Replacement of your Coffee Grinding. for Your Choice of: See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at I-800-541-6390. OR The Installment parts and repair labor costs to correct dB.WARRANTY materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

KitchenAid Will A. Repairs when Coffee Grinding is used in other than Not Pay for: normal single family home use. B. Damage resulting from accident, alteration, misuse or abuse. C. Any shipping or handling costs to deliver your Coffee Grinding to an Authorized Service Center. D. Replacement parts or repair labor costs for Coffee Grinders operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES IMPLIED WARRANTYES, INCLUDING TO THE EXTENT APPLICABLE WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDING TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTYES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTYED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Coffee Grinding should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Coffee Grinding returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service.

If your Coffee Grinding should fail within the first year of ownership, simply call our

toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Coffee Grinding, use the carton and packing materials to pack up your original Coffee Grinding.

Hassle-Free Replacement Warranty - Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid® brand that, if your Coffee Grinding should fail within the first year of ownership, KitchenAid Canada will replace your Coffee Grinding with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service.

If your Coffee Grinding should fail within the first year of ownership, take the Coffee Grinding or ship collect to an Authorized KitchenAid Service Centre. In the carton

include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Coffee Grinding will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner, call our toll-free Customer Experience Centre at 1-800-807-6777.

Or write to us at:
Customer eXperience Centre
KitchenAid Canada
200 - 6750 Century Ave.
Mississauga, ON L5N 0B7

Arranging for Service after the Warranty Expires, or Ordering Accessories and Replacement Parts

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Portable Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Coffee Grinding for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

Or write to:
Customer eXperience Centre
KitchenAid Canada
200 - 6750 Century Ave.
Mississauga, ON L5N 0B7
