USER MANUAL Moorefield MFD20 DIMPLEX

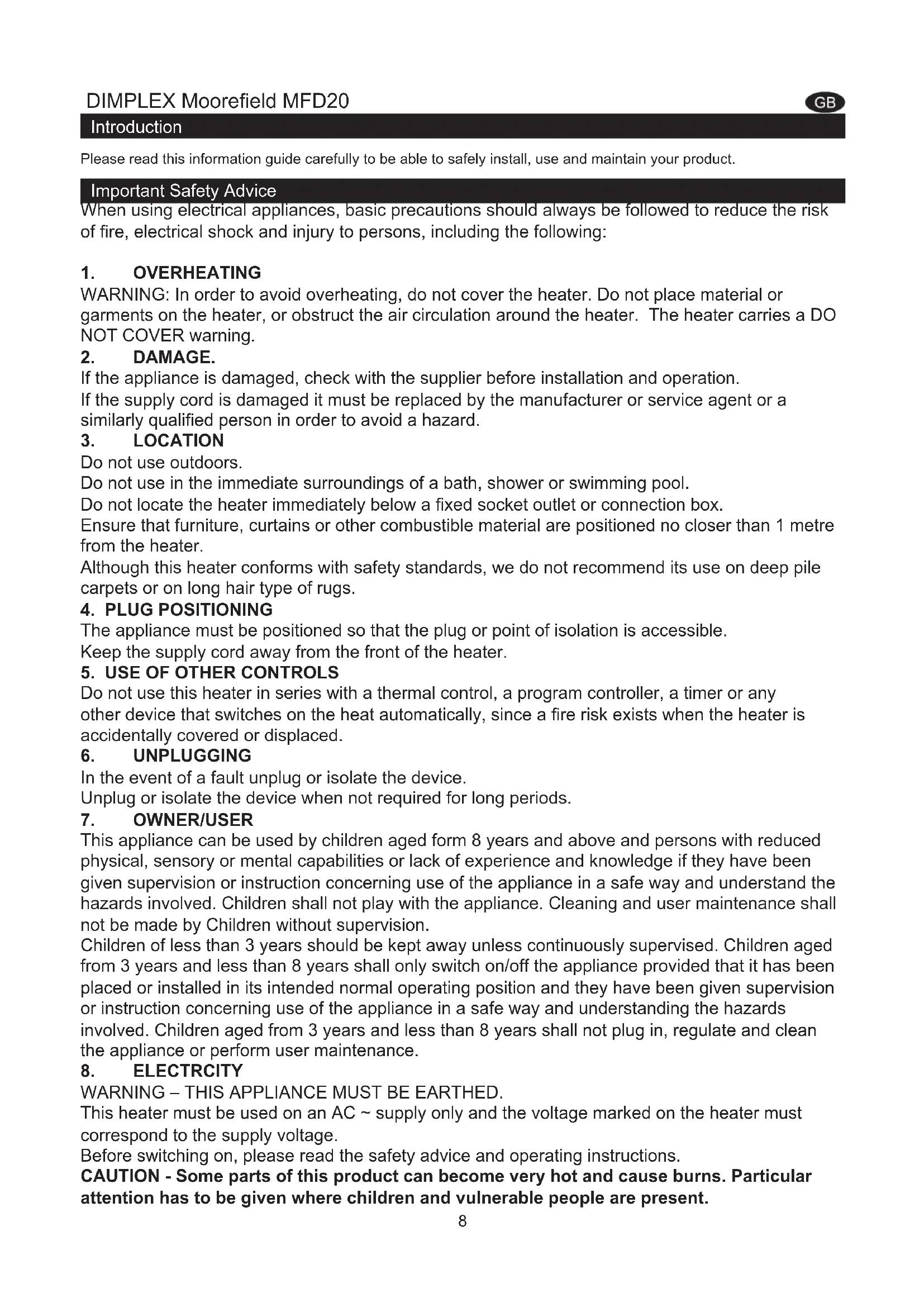

WARNING: In order to avoid overheating, do not cover the heater. Do not place material or

garments on the heater, or obstruct the air circulation around the heater. The heater carries a DO NOT COVER warning.

If the appliance is damaged, check with the supplier before installation and operation. If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualied person in order to avoid a hazard.

Do not use outdoors. Do not use in the immediate surroundings of a bath, shower or swimming pool. Do not locate the heater immediately below a xed socket outlet or connection box. Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the heater. Although this heater conforms with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs.

The appliance must be positioned so that the plug or point of isolation is accessible. Keep the supply cord away from the front of the heater.

5. USE OF OTHER CONTROLS

Do not use this heater in series with a thermal control, a program controller, a timer or any other device that switches on the heat automatically, since a re risk exists when the heater is accidentally covered or displaced.

In the event of a fault unplug or isolate the device. Unplug or isolate the device when not required for long periods.

This appliance can be used by children aged form 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by Children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understanding the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

WARNING – THIS APPLIANCE MUST BE EARTHED. This heater must be used on an AC ~ supply only and the voltage marked on the heater must correspond to the supply voltage. Before switching on, please read the safety advice and operating instructions. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.9 General Information Only use decalcied water in this appliance. This model is designed to be free standing and is normally positioned near a wall. Always ensure that the appliance is sitting on a level surface. Although this heater complies with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs. Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is related to the operation of the ame effect. This is normal and should not be a cause for concern. If this product experiences a power surge for whatever reason the product may cut-out. This is a normal safety feature and the product will resume operation after 30 seconds. Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank. If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the sump. The water tank, sump, sump lid, tank cap and air lters must be cleaned once every two weeks, particularly in hard water areas. The appliance should never be operated if the lamps are not working. The lamps should be regularly inspected as described under ‘Maintenance’ and ‘Changing lamps’. Technical Information Model No: MFD20 Heat Output 230V 240V Nominal Heat Output P Nom

Minimum Heat Output P min

Maximum Continous Heat Output P max,c

with mechanic thermostat room temperature control Installation Instructions This section describes how to set up your re.

1. Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible future use e.g. in the event of moving house or returning the appliance to your supplier.

2. Before connecting the stove, check that the supply voltage is the same as that stated on the heater.

WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT, THIS RESTRAINT IS NOT A

SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE. DO NOT ALLOW CHILDREN TO CLIMB ON FURNITURE. FAILURE TO DETACH THIS RESTRAINT BEFORE MOVING FURNITURE MAY RESULT IN INJURY AND DAMAGE. This product is provided with a ‘Tipping Restraint Kit’ as shown in Fig 1, to prevent the product accidentally tipping over. Fitting Instructions are supplied with this kit please follow these instructions carefully. Hold the re by the sides of surround and gently manoeuvre into position. Place the re against a wall and connect to your electricity supply. Connect the power cable to the appropriate power connector at the back of the re. Plug the power cable into a 16amp/230volt outlet. Ensure that the supply cable exits at the back of the re, at the right or left hand corner to suit your supply socket location and is not trapped under the re such that it might cause it to be damaged. Do not yet switch the appliance on. Connecting the Transducer Unit + Lamps

1. Release the two red tabs by turning them by 90 degrees (Fig 2)10

Operating the Fire This section describes how to activate your re using either the manual controls or remote control. MANUAL CONTROLS The manual controls are located beneath the hinged ap. (Fig.10 for Manual Control lay out) Switch ‘A’:- Controls the electricity supply to the Fire. Note: This switch must be in the ‘ON’ ( I ) position for the Fire to operate either with or without heat. Switch ‘B’:- Press once to turn on the ame effect. This will be indicated by an audible beep. Although the main lights operate immediately it will take a further 30 seconds before the ame effect starts. Press again to give ame effect and half heat. This will be indicated by two beeps. Press again to give ame effect and full heat. This will be indicated by three beeps. Press again to return to ame effect only. This will be indicated by one beep. Press to put re in to standby mode. This will be indicated by one beep. Control Knob ‘C’:- Controls the Thermostat setting. Turning the control knob to the left will decrease the temperature setting, turning the control knob to the right will increase the temperature setting. Control Knob ‘D’:- Controls the intensity of the ame effect. Turning the control knob to the left increases the ame effect, turning the control knob to the right will decrease the ame effect.

SETTING THE THERMOSTAT

Ensure the re is plugged in and switch it on to the full heat setting. Turn the Control Knob ‘C’ fully to the right (max temperature setting) to warm the room rapidly. When the room temperature has reached the desired level, turn the thermostat knob back slowly until you hear the thermostat just click off. The heater will then maintain the room temperature at the chosen level. Note: Should your heater fail to come on when the thermostat is at a low setting, this may be due to the room temperature being higher then the thermostat setting

THERMAL SAFETY CUT-OUT

A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if the heat outlet was restricted in any way. If the cut-out operates, unplug the heater from the socket outlet and allow approximately 10 minutes before reconnecting. Before switching the heater back on remove any obstruction that may be restricting the heat outlet, then continue normal operation. Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a switch that is regularly switched on and off by the utility.

GETTING THE DESIRED FLAME EFFECT

1. The ame control knob ‘D’ (Fig.10) may be turned up or down to give a more realistic effect.

2. Generally the ames appear more realistic when the ame control is turned down.

2. Lift out the Sump Nozzle (Fig 3)

3. Insert lamps into lamp holders (Fig 4), carefully locating the pins into the holes (Fig 4a)

4. Push lamps rmly into place

5. Place the Transducer Unit into the sump and join the cable to the connector on the sump (Fig 5)

6. To ensure that the Transducer Unit is correctly placed in the sump, the tab on the Transducer Unit should be lined

up with the moulded recess in the sump (Fig 5a).

7. Ensure that the cable is not placed above the disc on the Transducer Unit (Fig 5b). To prevent the cable becoming

pinched between the nozzle and the sump, place the cable in the slot in the wall of the sump.

8. Replace the Sump Nozzle and secure it by turning the two red tabs by 90 degrees (Fig 6)

Filling the Water Tank

9. Place Water Tank in sink and remove cap (turn anti-clockwise to open) (Fig 7)

10. Fill Water Tank with decalcied tap water only. This is necessary to prolong the life of the ame and smoke

producing unit. The water should be ltered through a conventional domestic water lter unit and the lter should be replaced regularly.

11. Screw the cap back on – do not overtighten.

12. Place the Water Tank in the Sump, with the tank cap facing down and the at side of the tank facing outward (Fig 8)

13. Place the Fuelbed on top of the Water Tank and Mist Nozzle (Fig 9)11

3. Give the ame generator time to react to changes you may make.

4. The re will use less water if the ame effect is set to a lower level.

5. Do not tilt or move the re while there is water in the tank or sump.

6. Make sure that the re is on a level oor.

REMOTE CONTROL OPERATION

On the control panel, Switch A (Fig.10) must be in the ‘ON’ ( I ) position in order for the remote control to operate. There are 3 buttons on the remote control. (Fig.12) To operate correctly the remote must be pointed towards the front of the grate. (Fig 17). The remote control functions are as follows: Press once to turn on Flame effect only. This will be indicated by one beep. Press once to turn on Half Heat and Flame Effect. This will be indicated by two beeps. Press again to turn on Full Heat and Flame Effect. This will be indicated by three beeps. Standby This will be indicated by one beep. Maintenance GENERAL TIPS Only use decalcied tap water in this appliance. Always ensure that the appliance is sitting on a level surface. If you intend not using the appliance for longer than 2 weeks, remove and empty the sump and water tank. Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank. The appliance should never be operated if the lamps are not working. The lamps should be regularly inspected as described under ‘Changing lamps’.

FILLING THE WATER TANK

When the water tank is empty, the ame and smoke effect shuts off and you will hear 2 audible beeps, follow these steps.

1. Press Switch ‘A’ to (0) (Fig.10)

2. Gently lift out the fuelbed and carefully set aside.

3. Remove the water tank by lifting upwards and outwards.

4. Place the water tank in sink and remove cap, Anti-clockwise to open. (Fig 7)

5. Fill tank with decalcied tap water only. This is necessary to prolong the life of the ame and smoke producing unit.

The water should be ltered through a conventional domestic water lter unit and the lter should be replaced regularly.

6. Screw the cap back on, do not over tighten.

7. Return the tank to the sump, with the tank cap facing down and the at side of the tank facing outward. (Fig 8)

8. Gently place the fuelbed back into position. (Fig 9)

9. Press Switch ‘A’ to ‘ON’ (I) position (Fig.10)

CHANGING LAMPS If the ame and smoke effect appears grey or colourless it may be that one or more lamps have failed. You can check for lamp failure as follows.

1. Leaving the ame effect on, lift out the fuelbed and water tank.

2. It should be possible to view the lamps with the nozzle in place and observe which one needs to be changed.

3. Put Switch ‘A’ in the ‘OFF’ position, and unplug the re from the mains.

4. Leave the appliance for 20 minutes to allow the lamps to cool down before removing them.

5. Remove the sump as described in the Cleaning Section.

6. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (Fig.4 and 4a). Replace with a OPTIMYST, 12V, 45W, Gu5.3 base, 8º beam angle, coloured lamp. (To purchase replacement lamps go to the section ‘After Sales Service’, details of how to purchace the lamps are contained therein.) 7. Carefully insert the two pins of the new lamp into the two holes in the lamp holder. Push rmly in place. (Fig.4 and 4a).

8. Replace the sump, nozzle, water tank and fuelbed.

CLEANING Warning – Always press Switch ‘A’ to the ‘OFF’ (0) position (Fig.10) and disconnect from the power supply before cleaning the re. We recommend cleaning the following components once every 2 weeks, particularly in hard water areas:- Water Tank, Sump, Nozzle, Tank cap and seal, Air lter.12 Additional Information

Your product is guaranteed for two years from the date of purchase. Within this period, we undertake to repair or exchange this product free of charge (excluding lamps & subject to availability) provided it has been installed and operated in accordance with these instructions. Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee. Should you require after sales information or assistance with this product please go to warrenty card at back of the book where you can ring our help desk. Spare parts are also available. Please retain your receipt as proof of purchase. RECYCLING For electrical products sold within the European Community - At the end of the electrical products useful life it not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.

PATENT / PATENT APPLICATION

Products within the Optimyst range are protected by one or more of the following patents and patent applications: Great Britain GB 2402206, GB 2460259, GB 2460453 , GB 2418014, GB 2465738, GB 2449925, GB 2465537 , GB 2455277 , GB1020534.2, GB1020537.5, GB1110987.3 United States US 7967690, US 2010299980, US 2011062250, US 2008028648, US 13/167,042 Russia RU2008140317 European EP 2029941, EP 2201301, EP 2315976, EP 1787063, EP07723217.1 , EP11170434.2, EP 11170435.9 China CN 101883953, CN 200980128666.2, CN 101057105, CN 101438104 Australia AU 2009248743, AU 2007224634 Canada CA 2725214, CA 2579444, CA 2645939 International Patent Application WO 2006027272 South Africa ZA 200808702 For general cleaning use a soft clean duster – never use abrasive cleaners. To remove any accumulation of dust or uff the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater. Water tank

1. Remove water tank, as described earlier, put into sink and empty water.

2. Using the supplied brush gently rub the inside surfaces of the cap paying particular attention to the rubber ring in

the outer groove and the centre rubber seal. 3. Put a small quantity of washing up liquid into the tank, ret the cap and shake well, rinse out until all traces of washing up liquid are gone.

4. Rell with decalcied tap water only, replace the cap, do not overtighten.

2. Gently lift out the fuelbed and place carefully on the ground.

3. Remove the water tank by lifting upwards.

4. Disconnect the electrical connector, located on the right side of the sump. (Fig.5) .

5. Release the right sump locking tabs by turning 90º. This allows the sump to be lifted completely from its location. (Fig. 11)

6. Gently lift up the sump, taking care to keep level so as not to spill any water. Sit the assembly in the sink.

7. Release the left sump locking tabs by turning 90º, then lift off the Nozzle. (Fig.3)

8. Lift out the transducer and carefully tilt, as shown, so that the liquid drains out of the sump. (Fig.13)

9. Put a small amount of washing up liquid into the sump, and using the supplied brush, gently clean all surfaces in the

sump and gently clean the transducer including the metal discs located in the top grooved surface. (Fig.14)

10. When cleaned, thoroughly rinse the sump with clean water to remove all traces of washing up liquid.

11. Clean the Nozzle with the brush and ush out thoroughly with water. (Fig.15)

12. Reverse the above steps to reassemble.

1. Gently lift out the fuelbed and place carefully on the ground.

2. Gently slide the air lter upwards out of its plastic holder. (Fig.16)

3. Gently rinse with water in the sink and dry with fabric towel before returning.

4. Replace the lter making sure that the coarse black lter is facing the front of the re.

5. Replace the fuelbed.13

Symptom Cause Corrective Action The ame effect will not start. Mains plug is not plugged in. Low water level. Low voltage connector not connected properly. (Fig.5) The Transducer Unit is not sitting correctly in the sump When distilled water is being used, the transducer may not start. Check plug is connected to wall socket correctly. Check that the water tank is full and there is water in the sump. Check that the connector is inserted correctly. (Fig.5) Ensure the Transducer in sitting down into the moulded recess in the sump. Please use tapped, decalcied water at the beginning and try distilled water later. The ame effect is too low. Flame effect control knob is set too low. (Fig.10) The Metal Disc in the transducer might be dirty (Fig.14) The wire from the Transducer Unit is sitting over the metal disc Low mist at start up. Increase level of ame by turning Control knob ‘D’ to the left slowly. (Fig.10) Clean the Metal Disc with soft brush supplied. (Fig.14) See ‘Maintenance.’ for a step by step procedure. Direct the wire to the back of the sump and make sure it sits into the side slot exiting the sump. Before rst operation: please allow the re place to warm up to room temperature. Unpleasant smell when unit is used. Dirty or stale water. Using unltered tap water. Clean the unit as described under maintenance. Use only ltered tap water. The ame effect has too much smoke. Flame effect setting is too high. Turn the ame effect Control knob ‘D’ to the right, about ¼ a turn, at a time. Give the ame generator some time to adjust to the new setting. (Fig.10) Main lamps are not working and there are no ames or smoke. There is no water in the water tank Follow instructions under Maintenance, ‘Filling the water tank’. Check the plug is connected to the wall socket correctly and that Switch ‘A’ Fig. 10 is in the ‘ON’ ( I ) position. Troubleshooting Mexico MX 2008011712 Korea KR 20080113235 Japan JP 2009529649 Brazil BR P10708894-9 India IN 4122/KOLNP/2008 New Zealand NZ 57190014 DIMPLEX Mooreeld MFD20 Introduction Veuillez lire ce guide d'information attentivement an de pouvoir installer, utiliser et entretenir votre produit en toute sécurité. Avis de sécurité important Lorsque vous utilisez des appareils électriques, les précautions essentielles doivent toujours être suivies an de réduire le risque d'incendie, d'électrocution et de blessure, y compris les précautions suivantes :
