Product Type	Stroller
Brand	Kindercraft
Model	NUBI 2
Recommended Age	From 0 to 4 years (22 kg max)
Maximum Child Weight	22 kg
Seat Orientation	Backrest continuously adjustable from reclined to upright position
Footrest	2 adjustment levels
Canopy	With zip extension
Safety Bar	Removable
Mosquito Net	Included, attaches to footrest
Cup Holder	Included, can be installed on right or left
Brake	Foot-operated parking brake on rear axle
Safety Belts	3-point harness system, suitable for newborns
Basket Capacity	Maximum 3 kg
Folding	Compact folding mechanism with automatic lock
Cleaning	Clean gently with damp cloth and mild detergent; do not machine wash, do not bleach, do not iron, do not tumble dry, do not dry clean
Warranty	24 months (extendable to 120 months upon registration at kinderkraft.com)
Spare Parts	Use only parts and accessories recommended by the manufacturer

Frequently Asked Questions - NUBI 2 Kindercraft

How to unfold the Kindercraft NUBI 2 stroller?

Press the locking button on the parent handle, then press the folding button while lifting the frame until you hear a click.

How to fold the stroller?

Hold the handle and simultaneously press the locking button and the folding button, then push down. The stroller automatically locks in the folded position.

How to install the wheels?

Slide the rear wheels (10) and front wheels (7) into the designated holes until you hear a click.

How to adjust the seat backrest?

Use the strap located at the back of the seat to continuously adjust from reclined to upright position.

How to use the brake?

Press the lower part of the brake (on the rear axle) to lock; lift the lower part upwards to unlock.

How to fasten the child with the safety belts?

Insert the buckle of the shoulder belt into the buckle of the waist belt and slide into the central buckle until it clicks. Press the buckle to release the straps.

What is the maximum child weight?

The maximum child weight is 22 kg, up to about 4 years.

How to install the mosquito net?

Insert the mosquito net into the footrest, undo the zipper under the footrest, and attach it by passing the buttons through the loops.

How to remove the safety bar?

Press the buttons on each side of the bar and remove it.

How to clean the stroller?

Clean with a damp cloth and mild detergent. Do not machine wash, do not bleach, do not iron, do not tumble dry, do not dry clean. Never fold or store the product wet to prevent mold.

USER MANUAL NUBI 2 Kindercraft

Available only in selected countries Details on www.kindredraft.com

WATCH OUR PRODUCT FILMS!

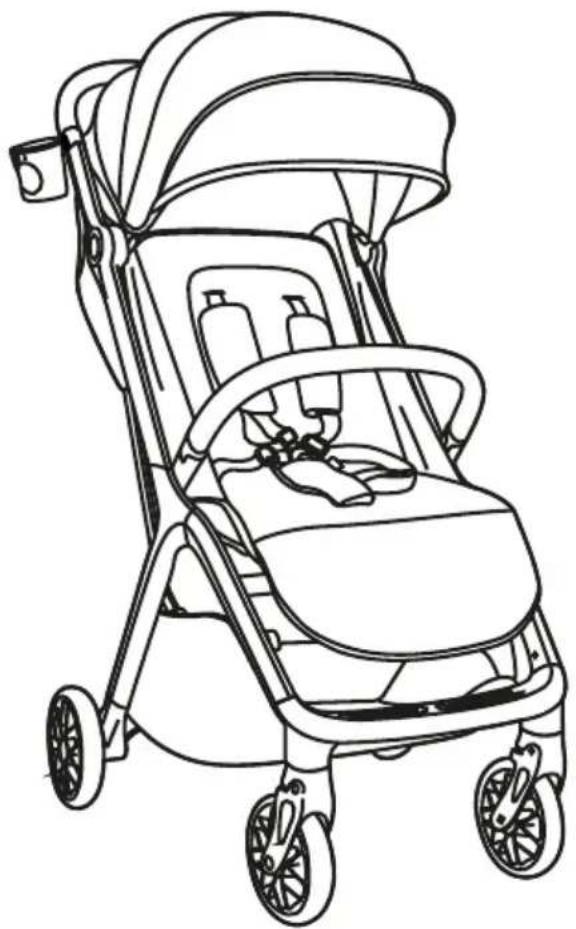

Line drawing of a stroller with car seats and front panel (no text or symbols)

kinderkraft.com

/kinderkraftofficial

kinderkraft

@kinderkraftofficial

(AR) عربة أطفال

(CS) Kočárek

(DE) Buggy

(EN) Stroller

(ES) Silla de paseo

(FR) Pousette

(HU) Babakocsi

(IT) Passeggino

دليل الاستخدام

NÁVÓD K OBSLUZE

BEDIENUNGSANLEITUNG

USER MANUAL

MANUAL DE USARIO

GUIDE D'UTILISATION

HASZNÁLATI UTASÍTÁS

ISTRUZIONI PER UTENTE

(NL) Kinderwagen

(PL) Wózek

(PT) Carrinho de bebé

(RO) Cărucior

MANUAL DE INSTRUÇÕES

MANUAL DE UTILIZARE

ВО ПО ЭКСПЛУАТАЦИИ

NÁVOD NA POUŽÍVANIE

ANVÄNDARMANUAL

للمنتج. الأشكال هي لاغراض توضي kidneyه افطط zobrazení produktu./Die gezeigten Bilder dienen nur als Referenz, das tatsächliche Produkt kann von der Abbildung abweichen./The illustrations are for illustration only and do not represent the product./Las ilustraciones son meramente orientativas y no constituyen una representación completa del producto./Les illustrations sont données à titre indicatif et ne constituent pas une représentation complète du produit./Az illusztrációk csak tájékoztató jellegüek és eltérhetnek a valós terméktöl./Le immagini sono inserite a scopo dimostrativo e non rispecchiano appieno le caratteristiche del prodotto./De afbeeldingen dienen uitsluitend ter illustratie en geven geen volledig beeld van het product./Ilustracje mają charakter poglądowy i nie stanowią pełnego odwzorowania produktu./As ilustrações têm uma função informativa e não são uma representação fiel do produto./ Ilustrațiile sunt doar pentru referință și nu reprezintă produsul complet./Иллюстрации приведены только для справки и не представляют весь продукт./Obrázky slúžia len na ilustráciu a nie sú úplným predstavením produktu./Illustrationer är endast för referens och representerar inte hela produkten

AR....10

CS....13

DE....15

EN....18

ES....20

FR....23

HU 25

IT 28

NL....30

PL....33

PT....35

RO....38

RU....40

SK......43

SV 45

1
2

Diagram of a stroller with numbered parts for identification

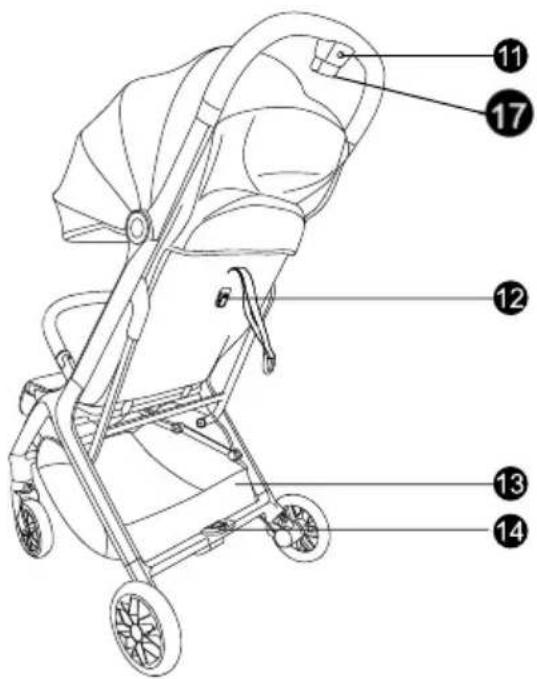

Technical diagram of a stroller with numbered parts labeled 11, 12, 13, and 14 for identification.

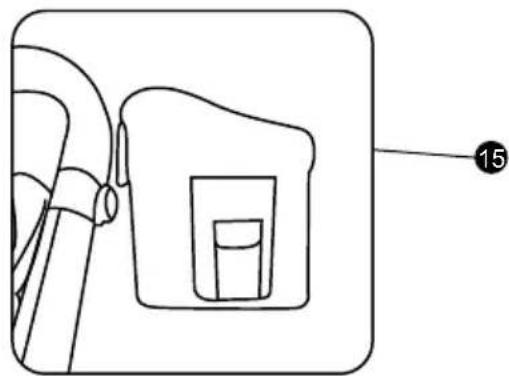

Simple line drawing of a mechanical component or housing with a numbered label (15) pointing to it, no text or symbols present.

Line drawing of a stroller with labeled parts (no text or symbols present)

AR

الأعزاء، عملانا

Thank you for purchasing a Kinderkraft product. Our products have been designed for your child's safety and comfort. The buggy is an ideal solution for those who value quality, modernity and functionality. Please read the manual carefully and follow its recommendations.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING!

• Never leave the child unattended.
• Ensure that all the locking devices are engaged before use.
• To avoid injury ensure that the child is kept away when unfolding and folding this product.
• Do not let the child play with this product.
• Always use the restraint system.
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- This product is not suitable for running or skating.

• Age and weight usage: from 0 months up to 22 kg or 4 years whichever come first.
• We recommend using lowest reclined position for newborn babies.
• This product may only be used by one child at the same time
• The parking device shall be engaged when placing and removing the children
  • The maximum basket load is 3 kg.
• The maximum load carried in the cup holder must never exceed 0,5 kg

• The maximum load on the pockets for small items on the back of the canopy is 0.5 kg

• Do not hang any bags on the parent handle.

• Any additional load, hanging on the handles of the stroller and/or behind the backrest and/or on the sides of the stroller, causes deterioration of its stability.
• Use only parts and accessories supplied or recommended by the manufacturer. Do not use other parts or accessories.
• Lift the front suspension when going up a curb or step.
• Do not place the product near open flame or other heat sources.
• Do not use with an additional platform.
• Stop using the baby carriage if you have any doubts concerning its usage or suspect any danger.

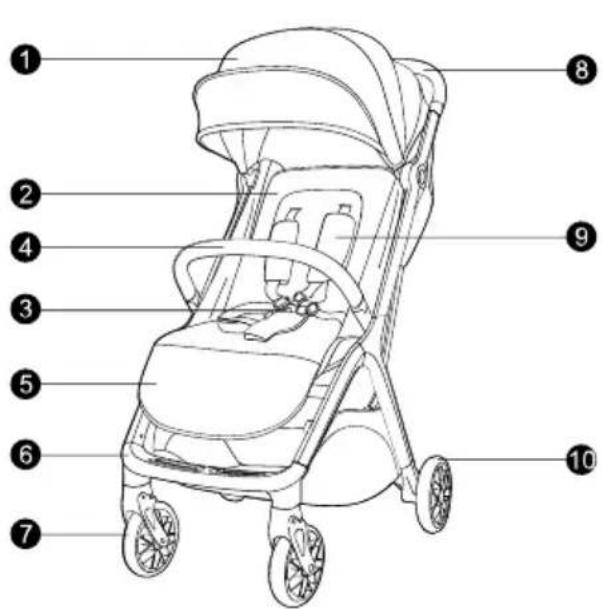

I. STROLLER'S ELEMENTS (PICPIC. 1)

1. Hood
2. Seat with a safety harness(3)
3. Bumper bar
4. Footrest
5. Bumper
6. Front wheels
7. Parent handle
8. Cover/Harness pads
9. Rear wheels

I. STROLLER'S ELEMENTS (PIC. 2)

1. Lock button
2. Backrest adjustment lever
3. Basket
4. Brake
5. Cup
6. Mosquito net
7. Fold button

III. ASSEMBLY OF STROLLERR'S FRAME

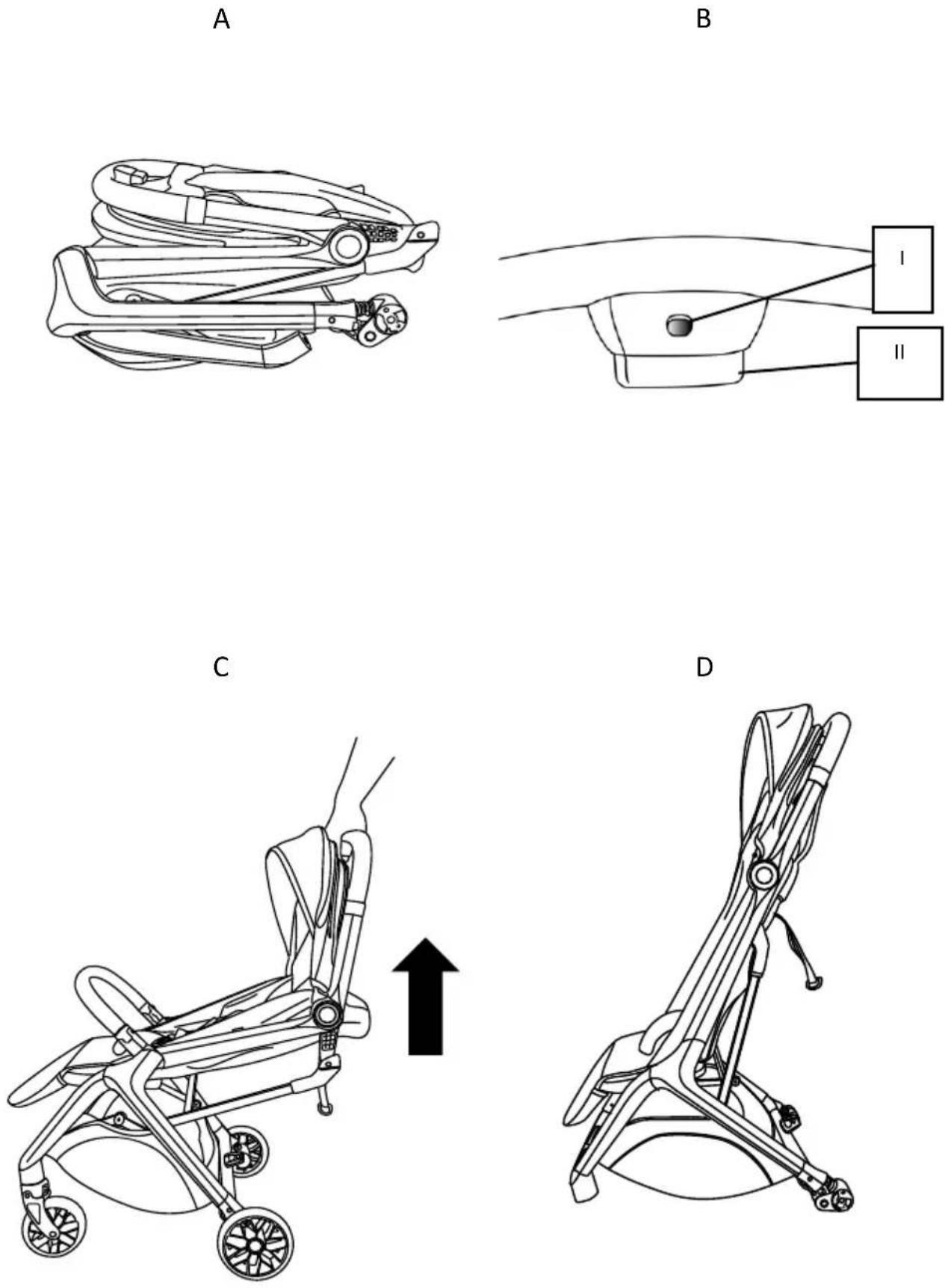

Place the frame on a flat surface with the handle directed upwards (PIC. A). To unfold the stroller, begin by pressing the parent handle to the stroller's frame to make all elements strictly adhere to each other, and then press the lock button located on a handle (PIC. B.I), simultaneously pressing the fold button (PIC. B.II) and lift the frame up according to the arrows on the picture (PIC. C), until hearing a lock sound (PIC. D). Slide in the rear wheels (10) into the designated slots until you hear a lock sound (PIC. E). Slide in the front wheels (7) into the designated slots until you hear a lock sound (PIC. F).

IV. ASSEMBLY /DISASSEMBLY OF THE BUMPER BAR, HOOD ADJUSTMENT, CUP HOLDER, MOSQUITO NET

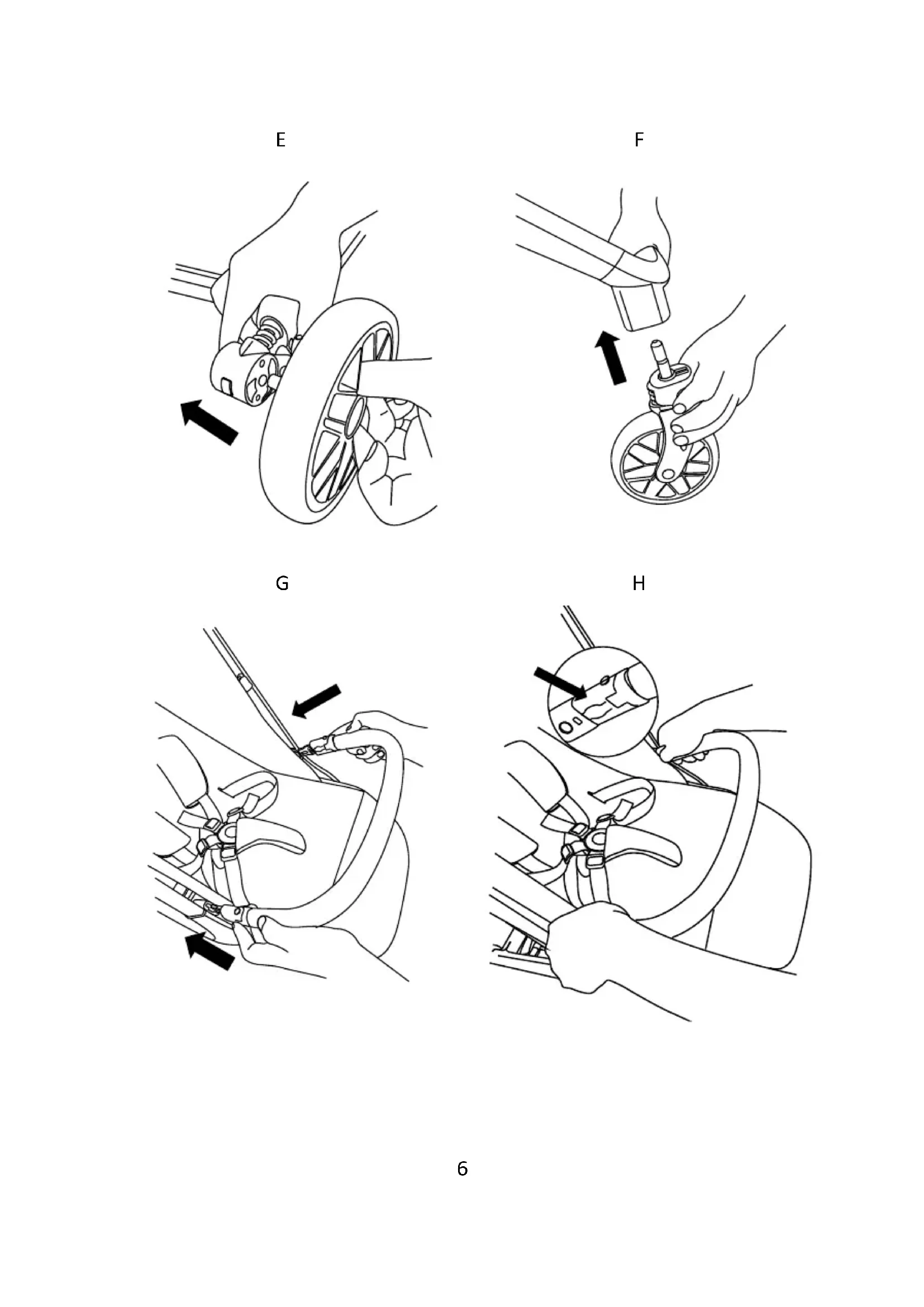

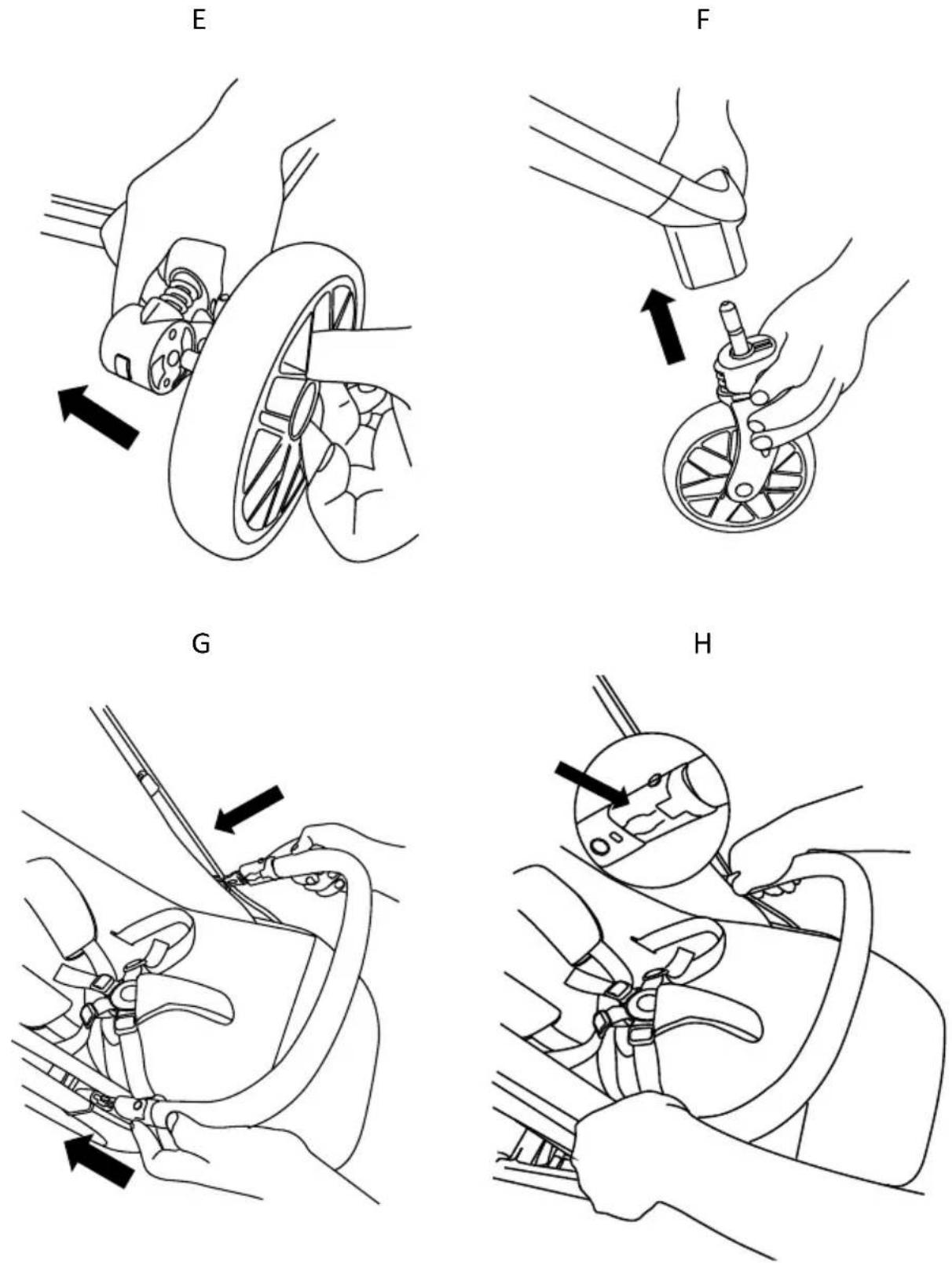

Insert the bumper bar into the appropriate slot in the frame (PIC. G). To disassemble, press the buttons and remove the bumper bar (PIC. H). To adjust the hood and unfold another fabric layer, unzip the zipper located on the hood. Attaching the stroller's fabric layer located on the backrest is possible. To do this, put a loop on the clasp located on the hood. The cup holder (15) can be attached to the right or left side of the stroller on its stem (PIC. I).

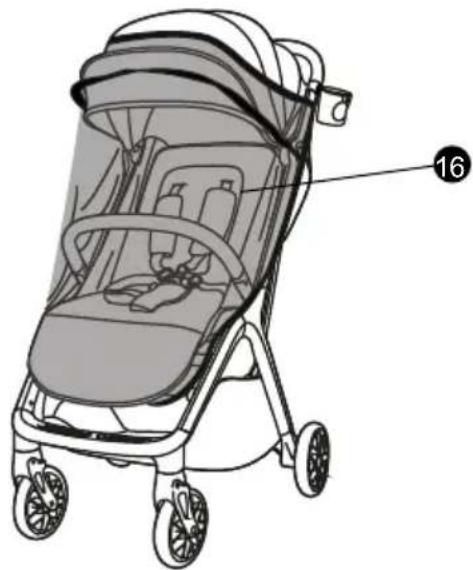

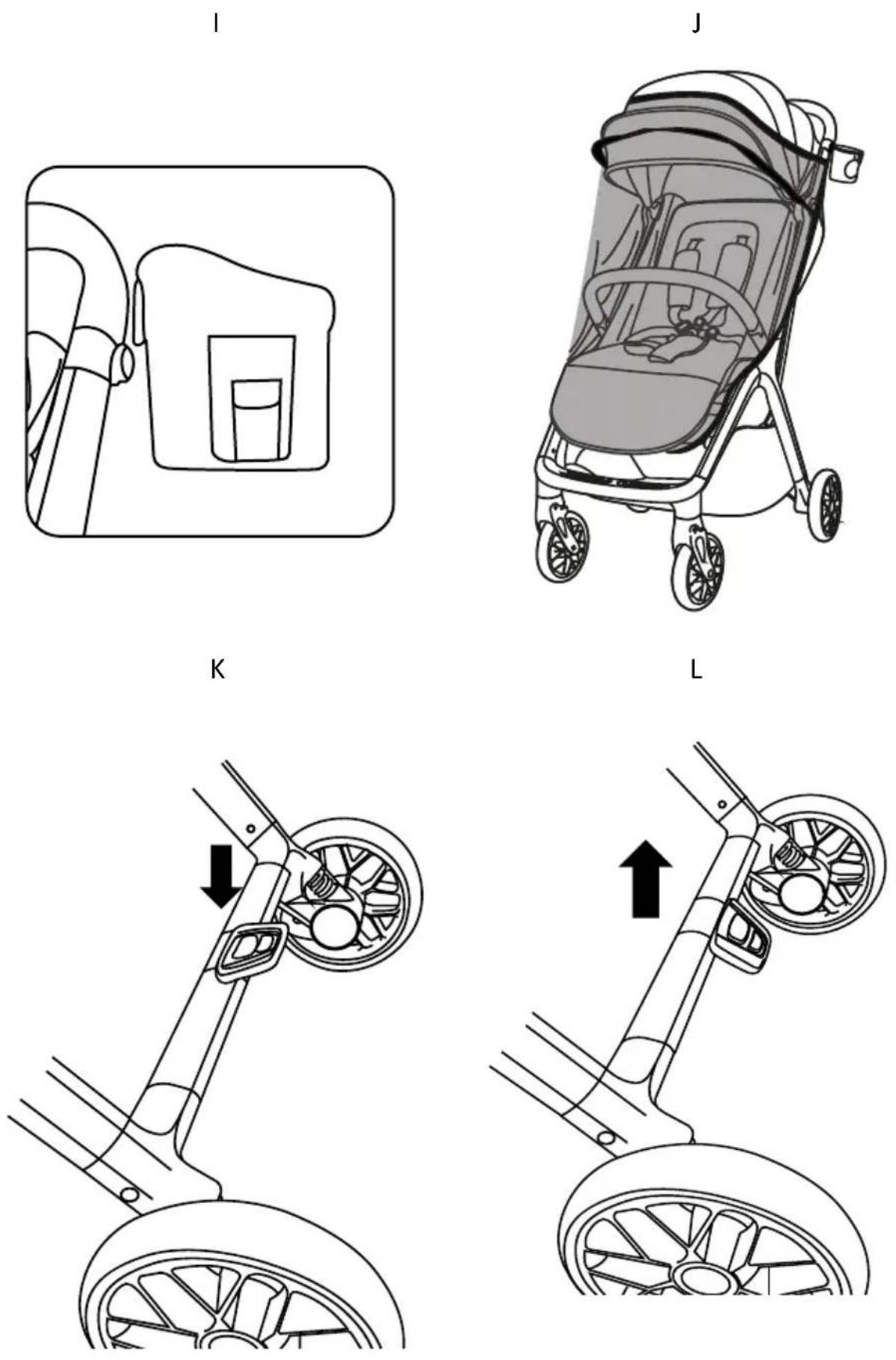

The mosquito net is hidden in the footrest, unzip the zipper under the footrest, put on, and secure by putting the buttons through the loops (PIC.J).

V. USING THE BRAKE

The stroller is equipped with a foot-operated parking brake located on the rear axis. Press down the lower part of the brake, the brake will be activated after hearing the lock sound (PIC. K). To unlock, lift the lower part of the brake upwards (PIC. L).

VI. ADJUSTMENT OF A BACKREST, FOOTREST

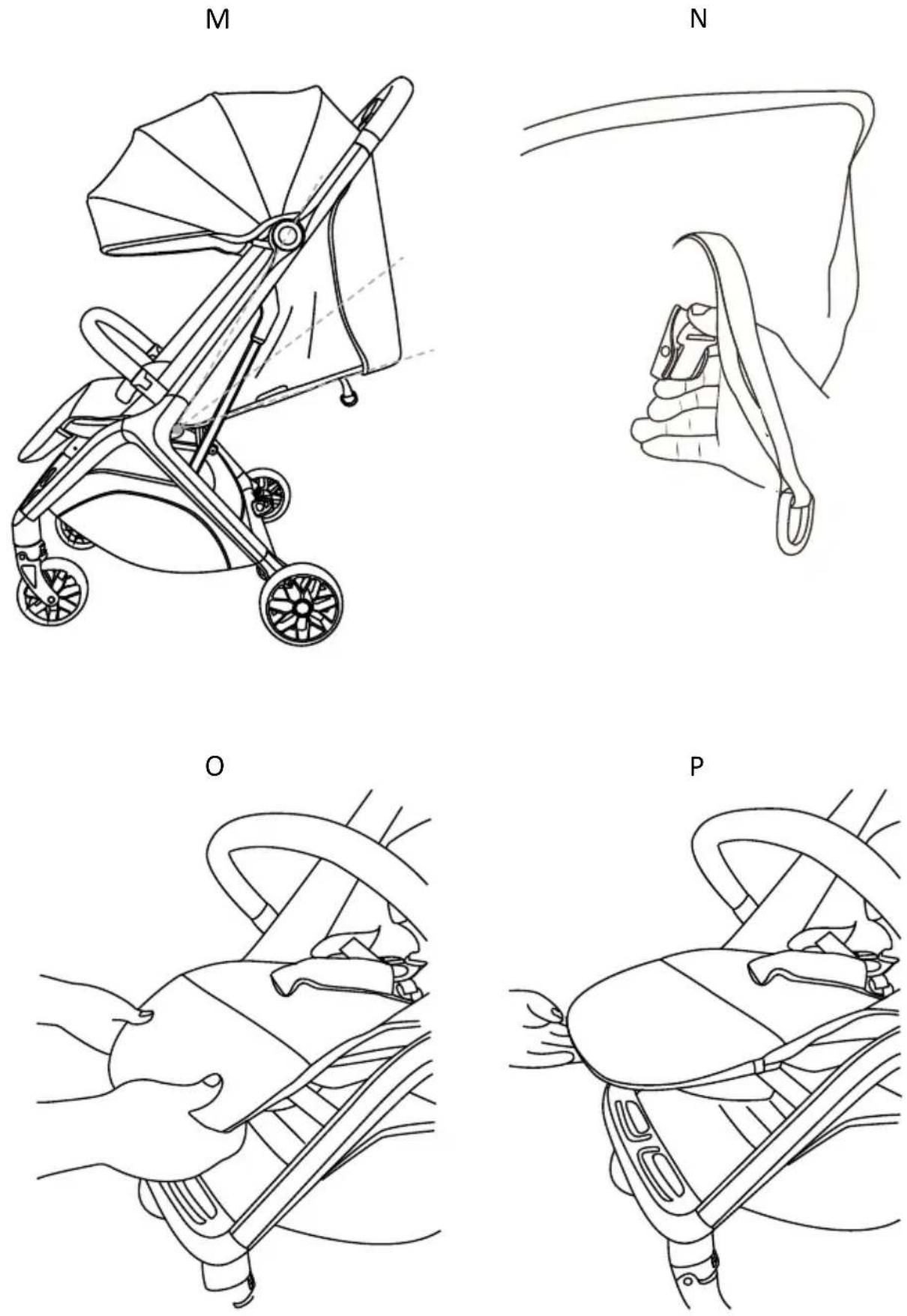

The seat has a smooth regulation from lie-flat to the sitting position (PIC. M), by using the buckle (PIC. N). The footrest has 2 adjustment levels. Pull the levers located on the bottom of the footrest (PIC. O) to change its position (PIC. P).

VII. SAFETY HARNESS

This stroller's safety harness is suitable for newborns. Make sure you always use the fastening system. To secure the child, first place the shoulder strap's buckle part on the hip belt buckle part and slide them into the central buckle until it locks (PIC. Q. I). Press the buckle to unfasten the harness (PIC. Q.II). Adjust the straps each time.

VIII. FOLDING THE STROLLER

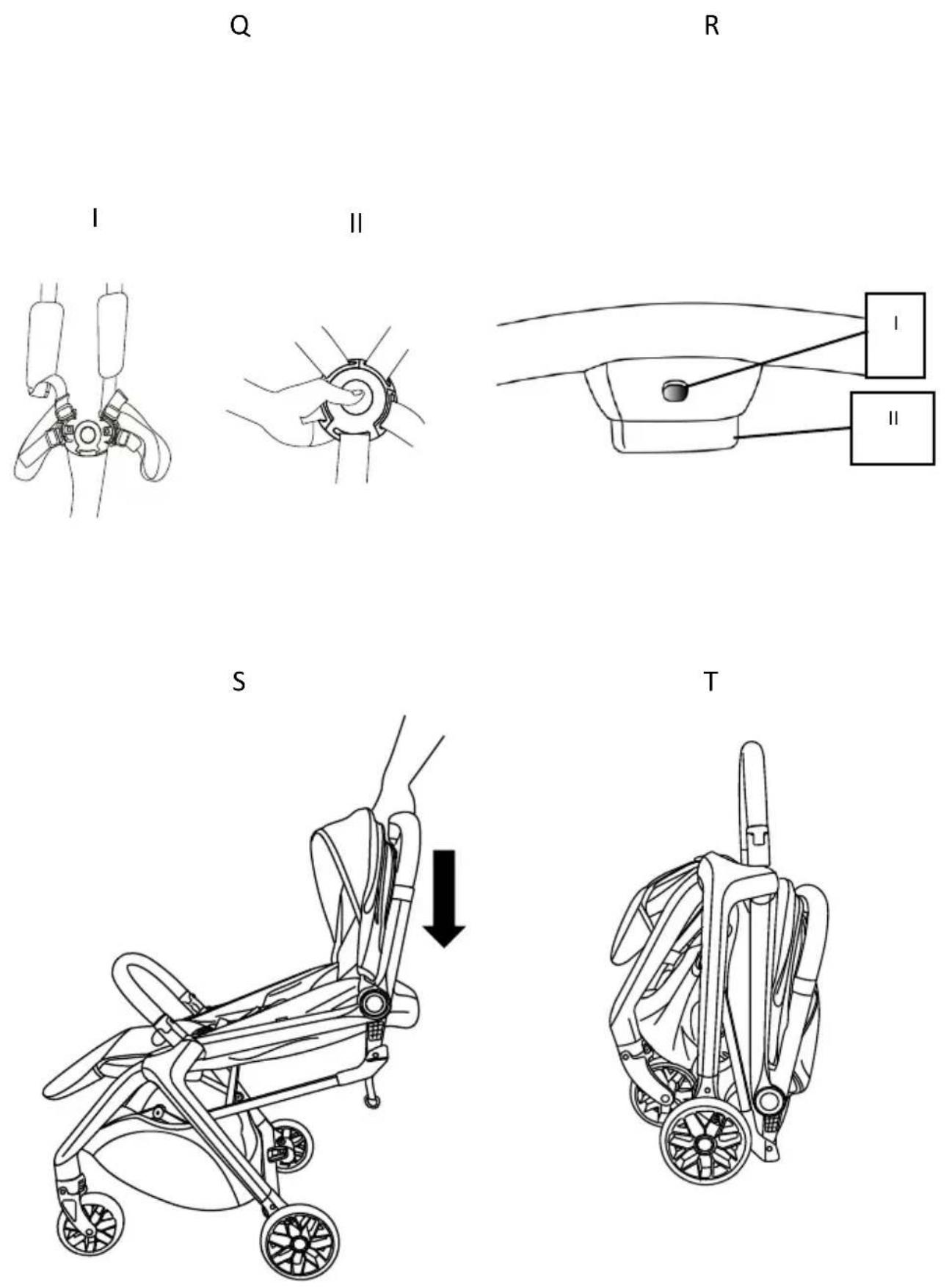

Hold the handle and press the lock button (PIC. R.I) and fold button (PIC. R.II) and push downwards at the same time (PIC. S).

After folding, the stroller is locked automatically, as shown on (PIC. T).

IX. CARE AND MAINTENANCE The buyer is responsible for proper installation of all functional elements as well as for carrying out all required maintenance and adjustments in order to keep the buggy in good technical condition. The buggy must be periodically checked for potential problems. Significant measures to be applied to ensure the child's safety and prevent shortening of the product life have been presented below:

• Check the strength and safety of all rivets and connections.
• Check all wheel locking equipment and tyres. If necessary, replace or repair.
• Check if all safety devices work properly, particularly the main and additional fasteners that should move freely at any time.

If the wheels squeak, apply a thin layer of silicone. Do not use oil or grease based products as they attract dirt, which makes buggy movement difficult.

X. CLEANING

Wash at max. 30°C, gentle process.

Do not bleach

Do not dry in a tumble dryer

Do not wash. Clean the product gently with a damp cloth and a mild detergent.

Do not iron

Do not dry clean

If the elements of the buggy chassis have been exposed to saltwater, rinse with tap water as soon as possible.

Basket, Seat canopy, seat sheathing: Do not wash. Clean the product gently with a damp cloth and a mild detergent, Do not bleach, Do not iron, Do not dry in a tumble dryer, Do not dry clean.

Do not fold or store the product when it is wet and never store it in wet conditions, as it can lead to mould growth.

XI. Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period starts from the date the product is handed over to the Buyer.

2. The warranty is only valid in the member states of the European Union, excluding overseas territories and the territory of the United Kingdom of Great Britain and Northern Ireland excluding the British Overseas Territories.

3. The manufacturer's warranty does not apply to countries not listed above. The conditions of the additional warranty may be determined by the Seller.

4. In some countries, it is possible to extend the warranty to a limited period of 120 months (10 years). The complete terms and conditions and the warranty extension registration form are available at WWW.KINDERKRAFT.COM

5. Claims must be made by completing the form available at WWW.RMA.KINDERKRAFT.COM

6. The warranty does not cover:

A. Cosmetic damage, including but not limited to: scratches, dents and cracks in plastic, unless the failure is due to a material or manufacturing defect;

B. Damage resulting from misuse or poor maintenance - including but not limited to: mechanical damage to products caused by misuse or poor maintenance. Refer to the instructions for use and installation of the product contained in the user manual;

C. Damage caused by improper assembly, installation or disassembly of products and/or accessories. Refer to the instructions for use and installation of the product contained in the user manual;

D. Damage caused by corrosion, mould or rust, resulting from improper maintenance, care and storage;

E. Damage caused by normal wear and tear or otherwise resulting from the normal passage of time. This includes: tears or punctures in inner tubes; tyre damage; tyre tread damage; fading of fabrics resulting from mechanical use (e.g. on joints and covering of moving parts);

F. Damage or erosion caused by sun, perspiration, detergents, storage conditions or frequent washing, etc;

G. Damage caused by accident, abuse, misuse, fire, contact with liquid, earthquake or other external causes;

H. Products that have been modified to change functionality without 4Kraft's written consent;

1. Products from which the serial number or lot number has been removed or tampered with in any way;

J. Damage caused by the use of third party components or products - including but not limited to: cup holders, umbrellas, reflectors, bells;

K. Damage caused by transport or by ground handling service providers.

1. The warranty period for accessories included with the product is 6 months from the date of sale, excluding the faults described above.

2. These warranty conditions are complementary to the Customer's statutory rights with respect to 4KRAFT sp. z o.o. The warranty does not exclude, limit or suspend the Customer's rights under warranty for defects in goods sold.

3. The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM
