Product type	PAR LED floodlight, adjustable white
Number of LEDs	31 (15 warm white + 16 cold white)
Individual LED power	15 W
Color temperature	3200 K - 6800 K
Luminous flux (Full On)	21000 lm
Luminous flux (warm white)	9700 lm
Luminous flux (cold white)	12000 lm
CRI	>83
Beam angle (at half intensity)	8°
Beam angle (at tenth intensity)	16,5°
Control protocols	DMX512, RDM
DMX functions	Dimmer, strobe, warm white, cold white, CCT, device settings
Standalone modes	Direct, CCT, Timer
Display	OLED
Control elements	Rotary encoder with push button
Operating voltage	100 - 240 V, 50/60 Hz
Power consumption	400 W
Protection rating	IP20
Minimum distance (illuminated surface)	0,5 m
Minimum distance (flammable materials)	0,5 m
Weight	5,5 kg
Housing color	Black
Housing material	Magnesium alloy
Cooling	Thermostatically controlled fan
DMX connectors	5-pin XLR male (input), 5-pin XLR female (output)
Power connectors	TRUE1 compatible sockets (IN + OUT)
Included accessories	1 power cable
Optional accessories	Diffuser discs (20°, 50°, 80°, 60°×10°), omega bracket, barn doors
Maintenance	Clean the housing with a damp cloth; dust the ventilation grilles regularly; no internal user maintenance.
Safety	Do not look directly into the beam; respect minimum distances; use a safety cable when suspended.

Frequently Asked Questions - X3 TW Cameo

How to set the DMX start address?

From the main screen, press the encoder to open the main menu. Select DMX Address, turn the encoder to choose the address (001-512 depending on DMX mode), then press to confirm.

How to use the Direct standalone mode?

In the main menu, choose Stand Alone then Direct. You can then individually adjust the dimmer (Dimmer), strobe (Strobe), warm white (Warm White) and cold white (Cold White) from 000 to 255.

What safety precautions must I observe?

Never look directly into the light beam. Maintain a distance of at least 0.5 m from illuminated surfaces and flammable materials. Do not open the device. Use a safety cable when suspended.

How to clean the projector?

Unplug the device. Clean the housing with a clean, damp cloth. Dust the ventilation grilles with compressed air while blocking the fans. Do not use abrasive products.

What to do if the display flashes?

The flashing display indicates no DMX signal. Check the DMX connection and that the console is transmitting. If you are working in standalone mode, this flashing does not appear.

How to restore factory settings?

Go to the Settings menu then Factory Reset. Select Yes and confirm. All parameters will be reset.

How to mount the projector at height?

Attach a clamp to the U-bracket or use an omega bracket (optional). Tighten the side levers to adjust the beam. Always attach a safety cable to the designated ring.

How to connect multiple projectors in Master/Slave mode?

Connect the projectors with a DMX cable. On the master, activate a standalone mode (Direct, CCT or Loop). On the slaves, set the mode to Slave. All slaves will follow the master.

How to adjust the color temperature (CCT)?

In CCT standalone mode, select Stand Alone then CCT. You can adjust the dimmer, strobe, and color temperature (3200K to 6800K) via the encoder.

Can I replace an LED myself?

No, the LEDs are fixed and must only be replaced by the manufacturer or an authorized technician. The device contains no user-serviceable parts.

USER MANUAL X3 TW Cameo

Black rectangular light bulb with 12 circular LED array, no visible text or symbols

X3 TW

EXHIBITION LAMP WITH TUNABLE WHITE LEDS

CLX3TW

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

DEFINITIONS AND SYMBOL EXPLANATIONS 6

SAFETY INSTRUCTIONS 7

NOTES FOR MOBILE INDOOR DEVICES 10

PACKAGING CONTENT 11

INTRODUCTION 11

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12

OPERATION 14

INSTALLATION 20

FITTING THE DIFFUSER OR SASH LIMITER 21

OPTIONAL ACCESSORIES 21

CARE, MAINTENANCE AND REPAIR 22

ABMESSUNGEN (MM) 23

TECHNICAL DATA 24

MINIMUM DISTANCE TO ILLUMINATED SURFACE 25

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 25

DISPOSAL 25

MANUFACTURER'S DECLARATIONS 26

DEUTSCH

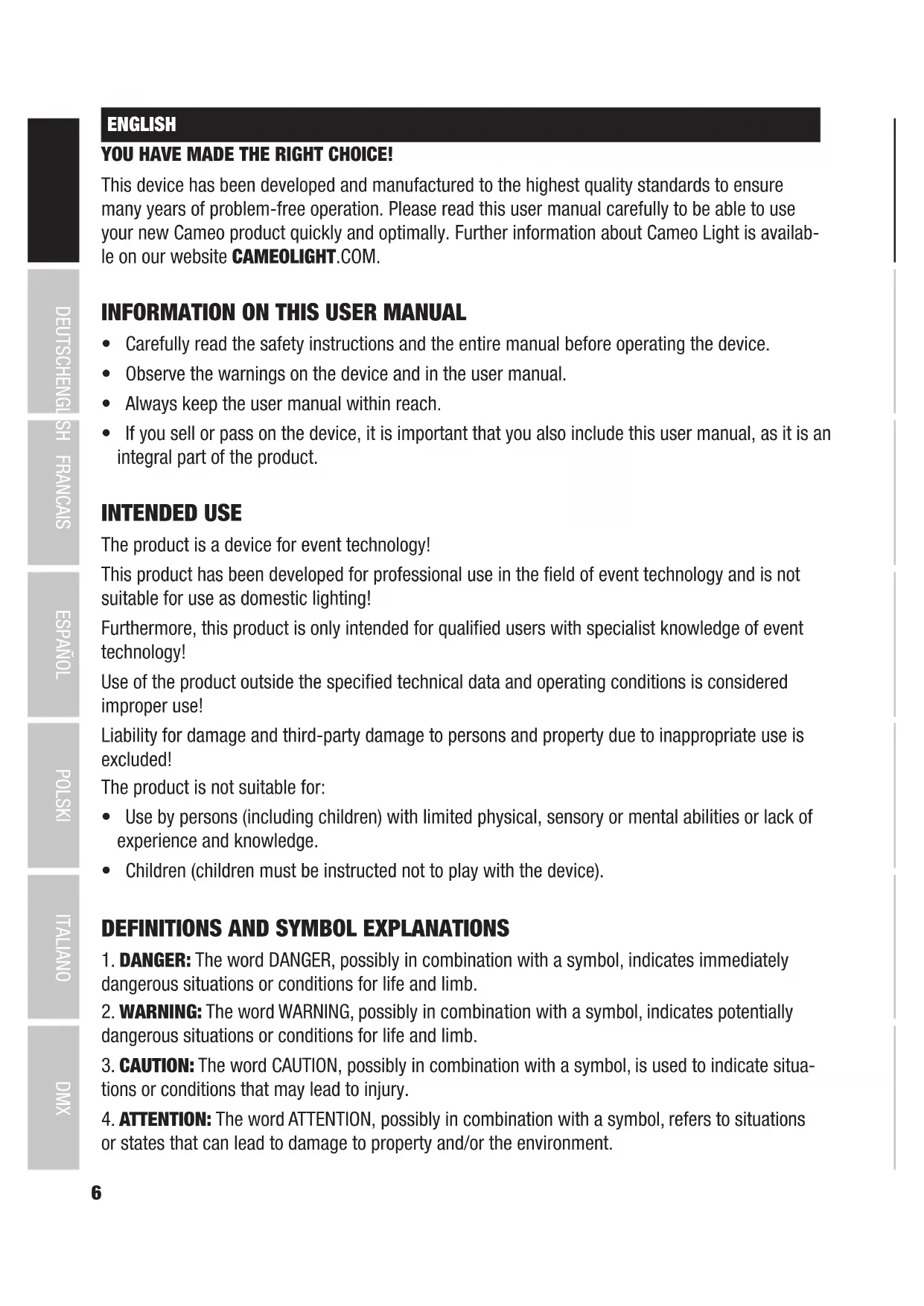

This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

The product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately dangerous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations or states that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol denotes a device that does not contain any user-serviceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

HAZARD:

1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

ATTENTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctuations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning strikes).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
   7 Replace plug-in power cables with original cables only.

HAZARD:

1. Danger of suffocation! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Danger from falling down! Make sure that the device is securely installed and will not fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid damage or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden device movement can cause shock reactions.
3. The housing surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the lamp to cool sufficiently before removal, maintenance work and charging etc.

ATTENTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufacturer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidity according to the specifications.
   7 Devices can be continuously further developed. In the event of deviating information on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always takes priority.
7. The device is not suitable for tropical climate zones or for operation over 2,000 m above sea level.
   9 Unless explicitly stated, the device is not suitable for operation under marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the instructions included.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.

2. Never look into the beam of light using optical devices such as a magnifying glass.

1. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

1. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this lighting unit may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

NOTES FOR MOBILE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.

2. Continuous operation or permanent installation can impair the functioning of the device and cause premature ageing.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging includes:

▶ 1 x Cameo X3TW Spotlight
1x power cable
▶ User manual

INTRODUCTION

LED PAR with 15 x 15 W Warm White and 16 x 15 W Cold White LEDs CLX3TW

CONTROL FUNCTIONS:

1 CH, 2 CH 16 bit, 2 CH CCT, 2 CH Direct, 7 CH 16 bit DMX control

Master/slave operation

Standalone operation

FEATURES:

15 x 15 W Warm White and 16 x 15 W Cold White LEDs. DMX512. 5-pin DMX connectors. Quick-light via rotary-push encoder. Operating voltage: 100–240 V AC.

The spotlight features the RDM standard (Remote Device Management). This remote device management enables the status query and configuration of RDM end devices via an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).

The Cameo UNICON also allows access to the entire fixture menu.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DMX OUT 5 6 Cameoo® X3 TW -- 0,5 m Cameoo® is a registered brand of the Adam Hall Group Adam Hall GmbH Adam Hall-3kt, 1 61/267 New-Anspach Germany, Designed and engineered in Germany, Assumed in PAG Adam Hall Ltd, The Sevenbed Business Centre 963 92V Essex (United Kingdom www.admirhall.com) POWER CONSUMPTION: 400 W POWER IN AC:100-240V 50/60Hz POWER OUT MAX:100-240V 10A tₐ = 40°C Look Lock 3 FUSE T5A / 250 V 1 2 CE UK CA FC

1 POWER IN

TRUE1-compatible mains input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable mains cable with TRUE1 compatible plug is included.

2 POWER OUT

TRUE1-compatible mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.

3 FUSE

for 5 x 20 mm fuses. IMPORTANT NOTE: Replace the fuse only with one of the same type and rating. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male 5-pin XLR socket for connection to a DMX control device (e.g. DMX console).

5 DMX OUT

Female 5-pin XLR socket for sending the DMX control signal.

6 OLED DISPLAY

The OLED display shows the currently activated operating mode (main display), the menu items in the menu and the numerical value or operating status in the corresponding menu items. If there is no input for approx. 30 seconds, the display automatically returns to the main display. Note on the main display in the operating modes with external control: As soon as the control signal is interrupted, the characters in the display start flashing; if the control signal is present again, the flashing stops.

7 ROTARY-PUSH ENCODER

Use the rotary-push encoder to navigate in the unit menu and configure the spotlight:

Open the main menu: Press encoder

Exit menu level: Select and confirm the arrow symbol

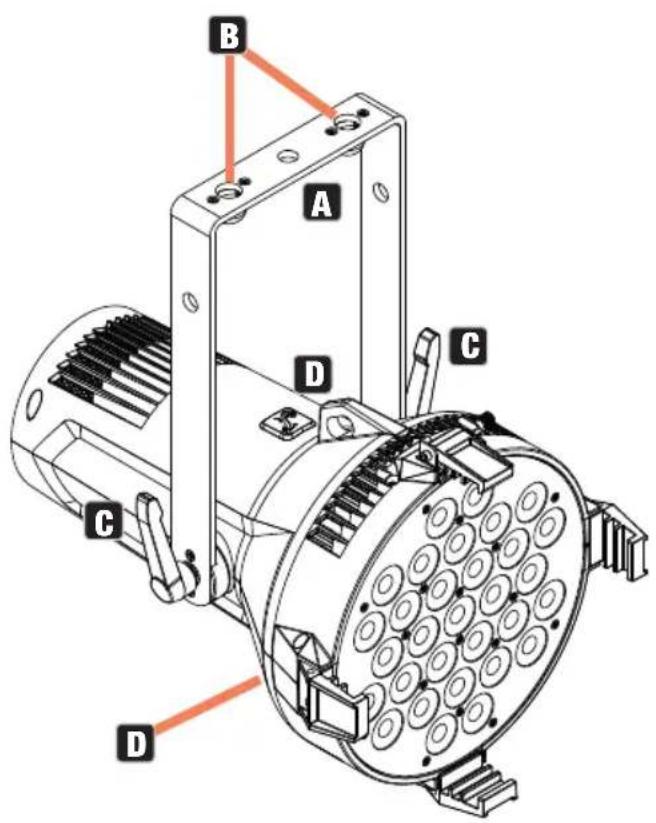

SECURING LUG

One safety eyelet each for securing the headlamp when mounted overhead is located on the top and bottom of the headlamp.

OPERATION

PLEASE NOTE

• As soon as the spotlight is correctly connected to the power supply, the following are displayed in succession: “Update wait ...” (for service purposes only), “Welcome to Cameo”, the model name and the software version. After this process, the spotlight is ready for operation and the previously activated operating mode is launched.
• The main display is activated automatically if no input is made within approximately 30 seconds.
• If one of the DMX operating modes is activated and there is no DMX signal at the DMX input, the characters in the display start flashing. Turning the encoder now activates the Quicklight mode and you can set the total brightness from 000 to 255 as desired (CW and WW each preset to value 255).

Quicklight 255

MAIN DISPLAY

The main display shows the currently activated mode (in the example DMX mode with DMX start address 001).

DMX Address 001

SETTING DMX START ADDRESS (DMX address)

Starting from the main display, press the encoder to enter the main menu. Now select the menu item DMX Address and confirm. Set the desired DMX start address and confirm the entry (highest value depends on the currently set DMX operating mode).

---- Menu ---- ► DMX Address DMX Mode Stand Alone Slave Settings System Info

---- DMX Address ---- 001

CONFIGURING DMX MODE (DMX Mode)

Starting from the main display, press the encoder to enter the main menu. Now select the menu item DMX Mode and confirm. Select the desired DMX operating mode and confirm the selection. Tables with the channel assignments can be found in these instructions under DMX CONTROL.

---- Menu ---- DMX Address ► DMX Mode Stand Alone Slave Settings System Info

---- DMX Mode ---- ► 1 CH 2 CH 16Bit 2 CH CCT 2 CH Direct 7 CH 16Bit

STAND-ALONE DIRECT MODE

The stand-alone Direct mode allows dimmer, strobe, warm white and cold white to be set directly on the unit, similar to a DMX controller. In this way, an individual scene can be created without an additional DMX controller.

Starting from the main display, press the encoder to enter the main menu. Now select the Stand Alone menu item, confirm, then select Direct and confirm again. Now select the menu item you wish to edit and confirm. Set the desired value and confirm the entry. The values for the strobe effect correspond to the values in channel 3 of the DMX table 7 CH 16 bit.

---- Menu ---- DMX Address DMX Mode ► Stand Alone Slave Settings System Info

Stand Alone ► Direct CCT Timer

---- Direct ---- ► Dimmer 000 - 255 Strobe 000 - 255 Warm White 000 - 255 Cold White 000 - 255

CCT STANDALONE MODE (Correlated Colour Temperature)

Adjust the dimmer, strobe and colour temperature as desired.

Starting from the main display, press the encoder to enter the main menu. Now select the Stand Alone menu item, confirm, then select CCT and confirm again. Now select the menu item you wish to edit and confirm. Set the desired value and confirm the entry. The values for the strobe effect correspond to the values in channel 3 of the DMX table 7 CH 16 bit.

---- Menu ---- DMX Address DMX Mode ► Stand Alone Slave Settings System Info

Stand Alone ← Direct ► CCT Timer

CCT Dimmer 000 - 255 Strobe 000 - 255 CCT 3200K - 6800K

TIMER FUNCTION

The timer function allows timed control of the Direct and CCT stand-alone modes in such a way that the fade-in time (Fade In) can be set from 1 to 60 minutes, the dwell time (Dwell Time) from 1 to 24 hours and the fade-out time (Fade Out) from 1 to 60 minutes. Time control starts immediately after activating the timer function in the previously activated standalone mode and remains active even if the spotlight is switched off and restarted.

Starting from the main display, press the encoder to enter the main menu. Select the Stand Alone menu item, confirm, then select Timer and confirm again. Now select Fade In, Dwell Time or Fade Out for the individual settings and confirm. The display shows a number field in each case and you can set the value as desired from 1 to 60 or 1 to 24 by turning the encoder. Confirm again. Once all settings have been made as desired, activate the timer function by selecting the Timer On/Off sub-menu item, confirm, select On and confirm again (to deactivate the timer function, please select Off and confirm).

---- Menu ---- DMX Address DMX Mode ► Stand Alone Slave Settings System Info

Stand Alone Direct CCT Timer

Timer Timer On - Off Fade In 1 - 60 min Dwell Time 1 - 24 h Fade Out 1 - 60 min

Note: The timer function is suitable for use in master/slave operation via cable.

SLAVE MODE

Starting from the main display, press the encoder to enter the main menu. Select the Slave menu item and confirm the selection. Connect the slave and the master unit (same model, same software version) using a DMX cable and activate one of the stand-alone operating modes (Direct, CCT) in the master unit. The slave unit will now follow the master unit.

---- Menu ---- DMX Address DMX Mode Stand Alone ► Slave Settings System Info

Mode Slave

SYSTEM SETTINGS (Settings)

This will take you to the submenu for setting the submenu items. See table (rotate the encoder to select and push the encoder to confirm selection, change value or status by rotating, confirm by pressing encoder.

Settings
Display Reverse	=	Rotate display OFF No	display rotation
			ON Display	is rotated by 180° (e.g. for over-head installation)
Display Off Timer	=	Display lighting Off after	20s	Deactivates after approximately 20 seconds of inactivity
			Always On	On permanently
DMX fail	=	Operational status with DMX signal fault	Hold Last command is retained
			or blackout,	Activates blackout
			Full Full On	= maximum brightness
			Standa-lone	Stand Alone Mode Direct is activated
Dimmer curve	=	Dimmer curve Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-curve Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
Constant Brightness	=	Constant brightness when threading from warm white to cool white and vice versa	On Function enabled
			Off Function	disabled
Dimmer response	=	Dimmer response LED	Lamp responds abruptly to changes in DMX value
			Halogen Light behaves like a halogen spotlight with slight brightness changes
PWM Frequency	=	LED PWM frequency	650Hz, 1530Hz, 3600Hz, 12000Hz, 18900Hz, 25000Hz	Select LED PWM frequency
Fan = Fan control Car Automatic fan speed control
				Off Deactivated fan with greatly reduced brightness
				Constant high fan speed
				Constant average fan speed with reduced brightness, if necessary
				Constant low fan speed with reduced brightness, if necessary
Calibration = Calibration of warm white and cool white			Warm White	Individual calibration of warm white and cool white. Cross-mode brightness setting with values from 000-255
			Cold White
Factory Reset = Reset to factory settings			Reset Now? Yes / No	Reset with Yes, cancel with No
Service Timer Reset	=	Resetting the Service Timer	Reset Now? Yes / No	Reset with Yes, cancel with No

SYSTEM INFORMATION (System Info)

Starting from the main display, press the encoder to enter the main menu. Select the System Info menu item and confirm the selection.

---- Menu ---- ← DMX Address DMX Mode Stand Alone Slave Settings ► System Info

This will take you to the submenu for accessing the system information (see table):

System Info
Firmware = D	displays device firmware		Main CPU V1.xx
Temperature = D	displays temperature of LED unit		Temperature LED xx°C / xx°F
			Temperature unit	°C (= display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Operation Hours = D	Displays operating time		Unit Operation Time xx:xxh	Display of the unit operating time in hours and minutes
			LED Operation Time xx:xxh	Display of LED operating time in hours and minutes
			Service Time D	display of the unit operating time since the last reset of the service timer in hours and minutes

INSTALLATION

DANGER : Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

Mount a suitable truss clamp directly on the U-bracket (fig. A). An optionally available Omega bracket can also be attached to the U-bracket (Fig. B). Installation on a truss is possible with a truss clamp. Suitable truss clamps are optionally available.

Loosen the two clamping levers on the sides of the headlamp (fig. C) to adjust the beam direction on a vertical plane and tighten the two clamping levers again after adjustment.

Always ensure firm connections and secure the headlamp with a suitable safety rope, depending on the situation, to the safety eyelet on the top or bottom of the headlamp (Fig. D).

Technical diagram of an electric motor with labeled components A, B, C, D and internal wiring layout

FITTING THE DIFFUSER OR SASH LIMITER

To mount an optionally available diffusing lens (or wing limiter), press the spring-loaded locking pin on the top of the headlamp (fig. A). The holder now automatically folds upwards (Fig. B). Slide the diffuser (or sash limiter) from above into the grooves of the side and bottom brackets.

Technical diagram of a mechanical device with labeled components A and B, showing internal components and motion direction.

Now fold the spring-loaded bracket on the top of the headlamp back down, making sure that the locking pin engages correctly.

OPTIONAL ACCESSORIES

4-fold Barndoor Diffusers Omega bracket

CLX3BARNDOOR CLX31060LENS (10° x 60°) CLOMEGABRACKET1

CLX320LENS (20°)

CLX350LENS (50°)

CLX380LENS (80°)

Black plastic camera lens assembly with four blades (no text or symbols visible)

Simple black oval object with a handle, resembling a lid or pan (no text or symbols)

Black metal bracket with two side slots and a circular hole, shown against a white background (no text or symbols)

- Illustrations similar -

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used.

We generally recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited in the event of defects resulting from inadequate maintenance.

CARE (carried out by user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment of the device or even its destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case).
3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must generally be stored dry and protected from dust and dirt.

MAINTENANCE AND REPAIR (by qualified personnel only)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

ABMESSUNGEN (mm)

TECHNICAL DATA

Product number: CLX3TW
Product type: LED spotlight
Type: Measuring lamp
Colour spectrum: Tunable White
Number of LEDs: 16 x CW + 15 x WW
LED type: 15 W
LED PWM frequency: 650 Hz, 1530 Hz, 3600 Hz, 25 kHz (adjustable)
Half scattering angle (tenth 8° (16,5°)scattering angle)
Control signal input: 5-pin XLR male
Control signal output: 5-pin XLR female
DMX functions: Dimmer, strobe, warm white, cool white, CCT, device setting
Control protocols: DMX 512, RDM
Standalone functions: Direct, CCT, Timer
Display:	OLED
Operating controls:	Rotary-push encoder
Operating voltage:	100–240 V AC/50–60 Hz
Power consumption:	400 W
POWER OUT	max. 10 A
Light intensity (@ 3m):	50000 lx
Colour temperature: 3200K - 6800K
Luminous flux:	Full On: 21000 lmWW: 9700 lmCW: 12000 lm
CRI:	>83
Power supply connection:	TRUE1 compatible sockets (IN + OUT)
IP protection class	IP20
Ambient temperature (in operation):	0 °C-40 °C
Minimum distance to illuminated surface:	0.5 m
Minimum distance to normally flammable materials:	0.5 m
Housing colour:	Black
Housing material: Magnesium Alloy
Housing cooling:	Temperature-controlled fan
Dimensions (W x H x D, without bracket):	275 x 276 x 395 mm
Weight:	5,5 kg
Accessories included: 1x power cable
Accessories (optional):	Diffusing lens 20°, 50°, 80°, 60° x 10°; Omega Bracket; Barn-door

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. In this example, the distance is 0.5 m. Please refer to the technical data in this manual and the imprint on the unit casing for the value valid for this unit!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and normally flammable materials. In this example, the distance is 0.5 m. Please refer to the technical data in this manual for the value valid for this unit!

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach

E-mail: [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032)

Radio Equipment Regulations 201 7(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DMX OUT 6 camoo X3 TW Cameon® is a registered brand of the Adam Hall Group Adam Hall GmbH Adam Hall St, 1-61267 New-Akspach Germany. Designed and engineered in Germany. Assumulated in P.R.S. Adam Hall Ltd. The Second Business Centre SS3 90° Essex United Kingdom www.udanthall.com POWER CONSUMPTION: 400 W POWER IN AC:100-240V 50/60Hz POWER OUT MAX:100-240V 10A tₐ = 40°C DEMMING DMX IN WEIGHT: 5,5 kg 1 2 3 FUSE TSA / 250 V Look Lock PEETROUTIC CE UK CA FC

1 POWER IN

Technical diagram of an electrical component with labeled parts A, B, C, D and a grid-like internal structure.

Technical diagram showing mechanical assembly with labeled components A and B, including a magnified view of a device component.

Abstract black geometric sculpture with overlapping panels and a central circular ring (no text or symbols)

Simple black circular object with a handle, resembling a lid or pan (no text or symbols)

Black metal bracket component with two side slots and a central hole (no text or symbols visible)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DMX OUT 5 6 Cameo® X3 TW Cameo® is a registered brand of the Adam Hall Group Adam Hall GmbH Adam Hall 80, 1 61267. New-Enspach Germany. Designed and engineered in Germany. Automated in P.G. Adam Hall Ltd., The Second Business Center 553 92K Essan (United Kingdom www.adamhall.com) POWER CONSUMPTION: 400 W POWER IN AC:100-240V 50/60Hz POWER OUT MAX:100-240V 10A tₐ = 40°C Look Lock 3 FUSE T5A / 250 V 1 2 CE UK CA FC

1 POWER IN (Entrée D'alimentation)

MODE STANDALONE CCT (Correlated Colour Temperature)

Technical diagram of an electric motor with labeled components A, B, C, D and internal wiring layout

MONTER L'ÉCRAN DIFFUSEUR OU LE LIMITEUR D'AILE

Technical diagram showing mechanical assembly with labeled components A and B, including a magnified view of a device component.

Black plastic film reel with multiple blades and a central ring (no text or symbols visible)

Simple black circular object with a handle, resembling a lid or pan (no text or symbols)

Black metal bracket component with two protruding slots and a central hole (no text or symbols visible)

- Illustrations similaires -

ENTRETIEN, MAINTENANCE ET RÉPARATION

Dimensions (L x H x P, sans 275 x 276 x 395 mm

Directive CEM (2014/30/UE)

RoHS (2011/65/UE)

RED (2014/53/UE)

MODO AUTÓNOMO CCT (Correlated Color Temperature)

Technical diagram of an electrical component with labeled parts A, B, C, D and a grid-like circular component inside.

MONTAJE DEL DIFUSOR O VISERA

Technical diagram showing mechanical assembly with labeled components A and B, including a magnified view of a device component.

Abstract black geometric sculpture with overlapping panels and a central circular ring (no text or symbols)

Simple black oval plate with a handle, no text or symbols visible

Black metal bracket component with two side slots and a circular hole (no text or symbols)

- Imagen aproximada -

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

PAR LED z 15 x 15 W Warm White i 16 x 15 W Cold White diodami LED CLX3TW

FUNKCJE STEROWANIA:

1 CH, 2 CH 16 bit, 2 CH CCT, 2 CH Direct, 7 CH 16 bit sterowanie DMX

Tryb pracy master/slave

Funkcja standalone

CHARAKTERYSTYKA:

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DMX OUT 5 6 Cameoo® X3 TW Cameoo® is a registered brand of the Adam Hall Group Adam Hall GmbH Adam Hall-30, 1 61/267 New-Anspach Germany. Designed and engineered in Germany. Automated in PAG Adam Hall Ltd. The Scenbed Business Centre 953 DQY Essex (United Kingdom www.adamhall.com) POWER CONSUMPTION: 400 W POWER IN AC:100-240V 50/60Hz POWER OUT MAX:100-240V 10A Look Lock DMX IN WEIGHT: 5,5 kg 3 FUSE T5A / 250 V 1 2 DIMMING tₐ = 40°C CE UK CA FC

1 POWER IN

TRYB PRACY STAND-ALONE CCT (Correlated Colour Temperature)

Technical diagram of an electric motor with labeled components A, B, C, D and internal wiring layout

MONTAŻ DYFUZORA LUB SKRZYDEŁ OGRANICZAJĄCYCH

Technical diagram showing mechanical assembly with labeled components A and B, including a magnified view of a device component.

Black plastic film reel with four blades arranged in a square frame (no text or symbols visible)

Circular black-and-white photo of a flat, circular object with a small handle (no text or symbols visible)

Black plastic mechanical bracket with two side slots and a central hole (no text or symbols visible)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

MODALITÀ STAND ALONE CCT (Correlated Colour Temperature)

Technical diagram of an electrical component with labeled parts A, B, C, D and a grid-like circular component

MONTAGGIO DEL DIFFUSORE O DEL DEFLETTORE AD ALETTE

Technical diagram showing mechanical assembly with labeled components A and B, including a magnified view of a device component.

Black plastic film reel with four blades arranged in a square frame (no text or symbols visible)

Simple black circular object with a handle, resembling a pair of eyeglasses or a flat plate (no text or symbols)

Black metal bracket component with two side slots and a central hole (no text or symbols visible)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf
