Product type	Studio PAR projector
Brand	Cameo
Model	STUDIO PAR 6 G2
Light source	12 LED SMD 12 W RGBAWuV 6-in-1
Luminous flux	4675 lm (Full On)
Beam angle / field angle	21° / 35°
CRI	>74
Dimmer resolution	16-bit
Control modes	DMX, RDM, Wireless DMX (via iDMX dongle), Stand Alone, Master/Slave
DMX connectors	XLR 3-pin (input/output)
Power connectors	Power Twist (blue IN, white OUT)
Power supply voltage	100-240 V AC, 50/60 Hz
Max. power consumption	124 W (230 V)
Fuse	T2A
Protection rating	IP20 (indoor)
Cooling	Fan (auto, silent, off)
Operating temperature	-10°C to 40°C
Minimum distance to illuminated surface	0.5 m
Minimum distance to flammable materials	0.5 m
Dimensions (W x H x D)	360 x 245 x 314 mm (overall)
Weight	4.9 kg
Housing	Die-cast aluminum, black epoxy lacquer
Main functions	Dimmer, Stroboscope, RGBWA+UV, Color Presets, EZ-Chase
Maintenance	Clean surfaces with a damp cloth, dust ventilation openings
Safety	Do not look into the beam, min. distance 0.5 m, installation by qualified personnel
Spare parts	Light source not user-replaceable, no accessible internal parts

Frequently Asked Questions - STUDIO PAR 6 G2 Cameo

How to set the DMX address?

From the main screen, press MENU, select DMX Address using ▲/▼ buttons, confirm with ENTER, then adjust the address (001-xxx) and confirm.

How to use Stand Alone mode?

Press MENU, choose Stand Alone, then a sub-mode: Auto (automatic programs), Static (manual color setting), Color Preset (color presets) or Playback Loop (custom loops). Use ▲/▼ and ENTER to navigate.

How to connect multiple fixtures in master/slave?

Connect slave units to the master via DMX cable. On the master, activate a Stand Alone mode. On each slave, go to Slave and select Group 0 (for identical tracking) or an offset group (1-24) for a chaser effect.

What to do in case of DMX signal loss?

Via Settings > Signal Fail, you can choose: Hold (holds last value), Blackout (turn off), Fade 10 s (fade to black in 10 s) or User Color 1 (display a predefined color).

How to clean the device?

Unplug the device. Clean surfaces with a damp cloth (no abrasive products). Dust ventilation openings with compressed air while blocking the fans.

What is the safety distance?

Keep a minimum distance of 0.5 m between the device and illuminated surfaces as well as normally flammable materials.

Can I replace the light source?

No, the LEDs are fixed and should only be replaced by the manufacturer or an authorized repairer. The device contains no user-replaceable parts.

How to use the DMX Delay function?

In the menu, set DMX Delay to assign a group (0-24) to each fixture. On the DMX controller, use the dedicated offset channel (0.0 to 2.0 s) to delay the signal. This creates a chaser effect without complex programming.

What are the available DMX modes?

The STUDIO PAR 6 G2 offers 9 DMX modes: 1 CH, 3 CH, 4 CH, 6 CH, 9 CH, 10 CH, 12 CH, 14 CH and 18 CH. They include functions such as dimmer, strobe, individual color control (RGBWA+UV), presets, etc.

How to reset the device?

In Settings > Load Default, choose Factory to return to factory settings, or Preset A/B/C to restore personal backups. Confirm with ENTER.

USER MANUAL STUDIO PAR 6 G2 Cameo

Two black laser head-mounted lighting units with pink and green LED lights (no text or symbols visible)

STUDIO PAR 4 G2

LED PAR SPOTLIGHT WITH 12 X RGBW 4-IN-1 LED

CLPST4G2

STUDIO PAR 6 G2

LED PAR SPOTLIGHT WITH 12 X RGBAWUV 6-IN-1 LED

CLPST6G2

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

DEFINITIONS AND SYMBOL EXPLANATIONS 6

SAFETY INSTRUCTIONS 7

NOTES FOR MOBILE INDOOR DEVICES 10

INCLUDED 10

INTRODUCTION 11

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12

OPERATION 14

SETUP AND INSTALLATION 24

MOUNTING THE FILTER FRAME 25

CARE, MAINTENANCE AND REPAIR 26

TECHNICAL DATA 27

MINIMUM DISTANCE TO ILLUMINATED SURFACE 28

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 28

DISPOSAL 29

MANUFACTURER'S DECLARATIONS 29

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

DEUTSCH

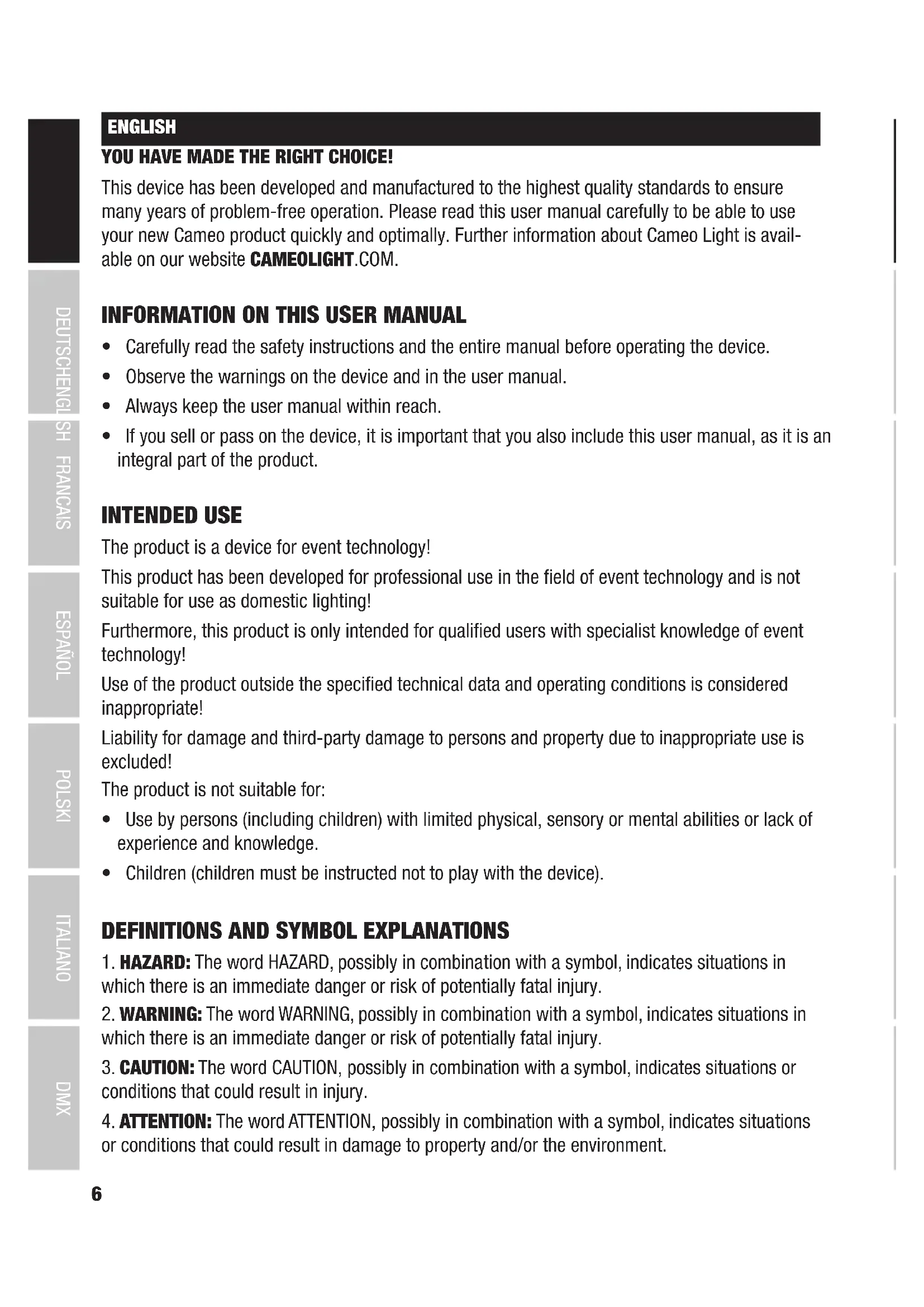

This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

The product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered inappropriate!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that could result in damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates a device in which there are no user-replaceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

HAZARD:

1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and unplug it from the power source. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

ATTENTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctuations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning strikes).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in power cables with original cables only.

HAZARD:

1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid damage or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.

CAUTION:

1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden movement of the device can cause shock reactions.
3. The housing surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work and charging etc.

ATTENTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufacturer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidity according to the specifications.
7. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always has priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000 m above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the instructions included.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.

1. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
2. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this lighting unit may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

NOTES FOR MOBILE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent installation can impair the functioning of the device and cause premature ageing.

INCLUDED

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

Included with the CLPST4G2:

1x STUDIO PAR 4 G2 spotlight
▶ 1x filter frame (pre-assembled)
1x power cable
▶ User manual

Included with the CLPST6G2:

1x STUDIO PAR 6 G2 spotlight
▶ 1x filter frame (pre-assembled)
1x power cable
▶ User manual

INTRODUCTION

CLPST4G2: 1-channel DIM UC, D3-channel macro, 4-channel RGBW, 4-channel strobe macro, D8-channel strobe macro, 10-channel macro control, D6-channel direct 8 bit, 10-channel direct 16 bit and 14-channel full access DMX control

CLPST6G2: 1-channel DIM UC, D3-channel macro, 4-channel strobe macro, 6-channel RGBWAUV, D10-channel strobe macro, 12-channel macro control, D9-channel direct 8 bit, 14-channel direct 16 bit, 18-channel full access DMX control

Master / slave operation

Standalone functions

W-DMX connection via optional iDMX stick

FEATURES:

3-pin DMX connections. Power Twist mains connections IN and OUT. OLED display.

PWM frequency adjustable. Connection for iDMX stick. Installation double bracket included. Operating voltage 100-240 V AC.

The spotlight features the RDM standard (Remote Device Management). Remote device management allows the user to view the status and configuration of RDM terminals via an RDM-capable controller.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

cameo® STUDIO PAR 4 G2 7 IDMX STICK 8 MENU ENTER ▲▼ 6 POWER CONSUMPTION: 90 W MAX OUT CURRENT: 14 A POWER IN POWER OUT 1 FUSE T2 A 250 V 2 DMX IN DMX OUT 3 WEIGHT: 4.9 kg 100 - 240 V AC 50/60 Hz 9 SAFETY Cameo® is a registered brand of the Adam Hall Group I Adam Hall GmbH Adam-Hall-Str.1 61267 Neu-Anspach Germany I Designed and engineered in Germany, assembled in P.R.C I www.adamhall.com Adam Hall Ltd. The Seedbed Business Centre SS3 9QY Essex I United Kingdom tₐ= 45° C

The STUDIO PAR 4 G2 and STUDIO PAR 6 G2 models feature identical connections, operating and display elements.

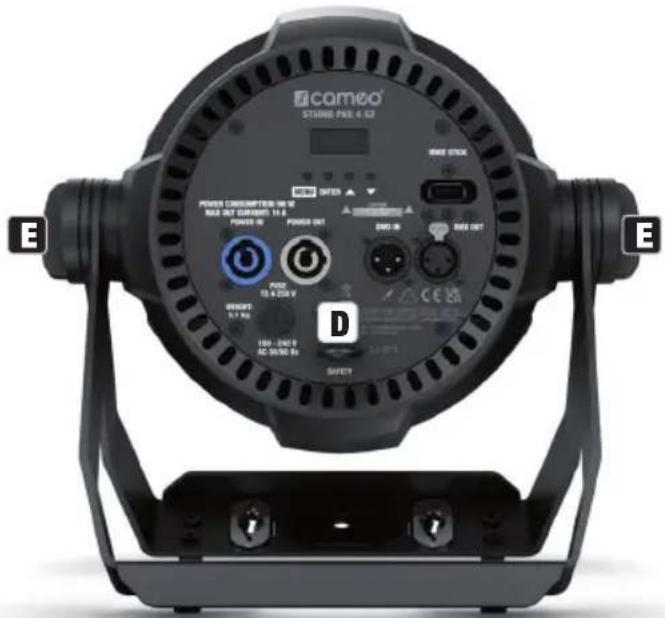

1 POWER IN

Blue Power Twist mains input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable power cable with Power Twist plug is included.

2 POWER OUT

White Power Twist mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.

3 FUSE

for 5 x 20 mm fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console).

5 DMX OUT

Female 3-pin XLR socket for sending the DMX control signal.

6 IDMX STICK

Connection for the optional iDMX stick for W-DMX ^TM connection (plug in the iDMX stick with the antenna facing upwards).

7 OLED DISPLAY

The OLED display shows the currently activated mode (main display), the menu items in the menu and the numerical value or operational status in certain menu items. If there is no input for approx. 30 seconds, the display automatically returns to the main display. Note regarding the main display in operating modes with external control: As soon as the control signal is interrupted, the characters in the display begin to flash. When there is a control signal again, the flashing stops. Briefly pressing the ▲ button when in the main display rotates the display by 180°.

8 CONTROL KEYS

MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main display. Pressing MENU without confirming a value or status change with ENTER restores the previously confirmed value or status.

ENTER – press ENTER to access the menu levels, to make value changes, and to access the submenus. Confirm value or status changes by pressing ENTER.

▲ and ▼- Select individual menu items in the main menu (DMX address, DMX mode etc.) and in the submenus. Allows you to change the value of a menu option, such as the DMX address, as desired (long press = quick value change).

9 SAFETY

Securing lug for attaching the spotlight.

OPERATION

NOTES

• As soon as the spotlight is correctly connected to the power supply, the following are displayed in succession: "Software Update Please Wait" (for service purposes only), "Welcome to Cameo," the model name and the software version. After this process, the spotlight is operational and the previously activated operating mode is launched.
• The main display is activated automatically if no input is made within approximately 30 seconds. To navigate one level up in the submenus, briefly press MENU.
• Briefly pressing▲ when in the main display rotates the display by 180°.
• To quickly change a value (e.g. DMX start address), press and hold ▲ or ▼

MAIN DISPLAY DMX OPERATING MODE

The display shows the DMX address and current DMX start address (in the example 001).

DMX Address 001

MAIN DISPLAY STANDALONE MODE

The display shows the currently activated standalone mode (Mode Auto, Mode Static, Mode Color Preset, Mode Loop).

Mode Auto

Mode Static

Mode Color Preset

Mode Loop

MAIN DISPLAY SLAVE MODE

The display shows Mode Slave.

Mode Slave

CONFIGURING DMX START ADDRESS (DMX Address)

Starting from the main display, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX address and confirm with ENTER. Now use the ▲ or ▼ buttons to configure the desired DMX start address and press ENTER to confirm (highest value dependent upon activated DMX mode).

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

CONFIGURING DMX MODE (DMX Mode)

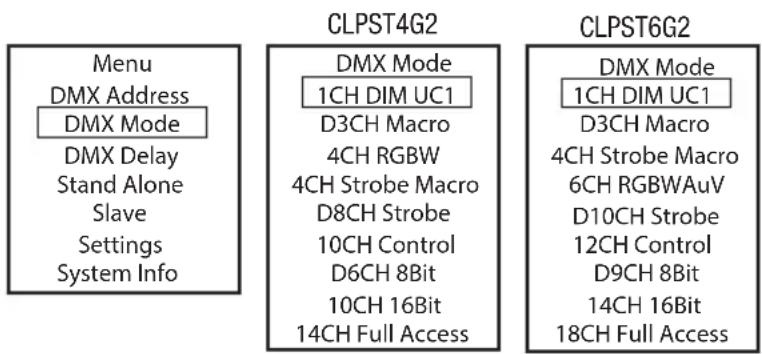

Starting from the main display, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX Mode and confirm with ENTER. Again use ▲ or ▼ to select the desired DMX mode and confirm with ENTER (DMX modes with DMX delay channel are identified with "D"). Tables with the channel assignment of the different DMX modes can be found in these instructions under DMX CONTROL.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info CLPST4G2 DMX Mode 1CH DIM UC1 D3CH Macro 4CH RGBW 4CH Strobe Macro D8CH Strobe 10CH Control D6CH 8Bit 10CH 16Bit 14CH Full Access CLPST6G2 DMX Mode 1CH DIM UC1 D3CH Macro 4CH Strobe Macro 6CH RGBWAuV D10CH Strobe 12CH Control D9CH 8Bit 14CH 16Bit 18CH Full Access

DMX DELAY

The DMX Delay function is a simple way to create a running light effect with a large number of spotlights that are all the same model and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming programming. All the spotlights used (same models, same software version) are set to the same DMX operating mode with DMX delay channel and controlled via the same DMX start address.

Setting the DMX delay:

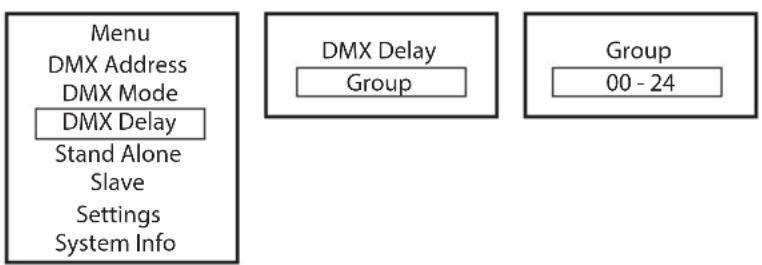

Starting from the main display, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX Delay and confirm 2x with ENTER.

Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER.

The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate DMX delay channel of the corresponding DMX mode (0.0s to 2.0s in 0.1s increments).

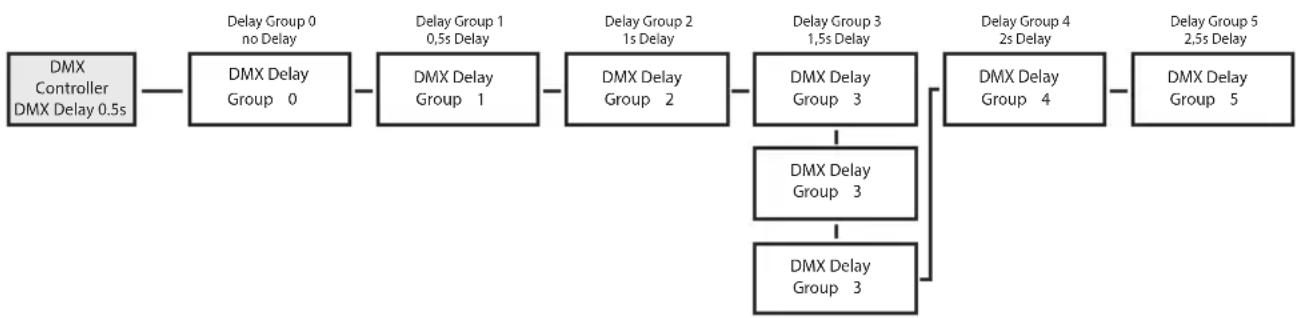

Setup example:

AUTO STANDALONE MODE

The 6 available auto programs partly comprise non-editable colour change sequences and partly random scenes. Brightness and running speed can be set separately for each program.

Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Stand Alone, confirm with ENTER, then select Static, confirm with ENTER, then select the desired program and confirm once again with ENTER.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

This will take you to the submenu for setting the submenu items (see table, select with ▲ and ▼, confirm with ENTER, change value with ▲ and ▼, confirm with ENTER). The settings for each programme are made separately and are retained even after restarting the device.

Dimmer Sets brightness 0-100
Speed Sets running speed 0-100
Delay Sets the delay time for slave units 0.0 - 2.0 s

STATIC STANDALONE MODE

The standalone mode static allows the dimmer, strobe, R, G, B and W values (CLPST4G2) or the R, G, B, W, A and UV values (CLPST6G2) to be set directly on the device, in a similar way to with a DMX controller. In this way, an individual scene can be created without an additional DMX controller.

Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Stand Alone and confirm with ENTER, then select Static and confirm once again with ENTER. Using ▲ and ▼ now select the menu item that you wish to edit and confirm with ENTER. Use ▲ and ▽ set the desired value. Confirm all entries with ENTER.

CLPST4G2 CLPST6G2

MenuDMX AddressDMX ModeDMX DelayStand AloneSlaveSettingsSystem Info

Stand AloneAutoStaticColor PresetPlayback LoopEdit User ColorEdit Loop

Static
Dimmer	000 - 100
Strobe	000 - 255
Red	000 - 100
Green	000 - 100
Blue	000 - 100
White	000 - 100

Static
Dimmer	000 - 100
Strobe	000 - 255
Red	000 - 100
Green	000 - 100
Blue	000 - 100
White	000 - 100
Amber	000 - 100
UV	000 - 100

COLOUR PRESET STANDALONE MODE

15 different colour presets plus 4 individually adjustable user presets are available. The brightness and a strobe effect can be set at a higher level.

Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Stand Alone and confirm with ENTER, then select Colour Preset and confirm once again with ENTER. Now use ▲ and ▼ to select the menu option with the currently activated preset and confirm with ENTER. The desired preset can now be selected with ▲ and ▼ confirm the selection with ENTER. Now select the Dimmer or Strobe using ▲ and ▼, confirm with ENTER and make the settings as desired. Confirm all entries with ENTER

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

Colour Preset

Red

|

Cold White

User Colour 1

|

User Colour 4

Dimmer 000-100

Strobe 000-255

PLAYBACK LOOP STANDALONE MODE

Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Stand Alone, confirm with ENTER, then select Playback Loop and confirm again with ENTER. Now use ▲ and ▼ to select Loop, confirm, then select one of the four available loops for playback and confirm again. All four loops can be edited individually (Main Menu -> Stand Alone -> Edit Loop). A delay time for slave units can also be set (Loop Delay).

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

Loop S	Selection of colour change programs	Loop 1
		I
		Loop 4
Loop Delay	Sets the delay time for slave units	0.0-2.0 s

EDITING USER PRESETS (Edit User Colour)

The four user presets available in the standalone mode Colour Preset can be edited individually. Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Stand Alone, confirm with ENTER, then select Static and confirm once again. Now use ▲ and ▽ to select the desired preset and confirm with ENTER. You can now create an individual colour mix of Red, Green, Blue and White (CLPST4G2) or Red, Green, Blue, White, Amber and UV (CLPST6G2) with values ranging from 0 to 100 each (select colour with ▲ and ▼, confirm with ENTER, change value with ▲ and ▽, confirm with ENTER).

CLPST4G2 CLPST6G2

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop Edit User Color 1 2 3 4 User Color x Red 000 - 100 Green 000 - 100 Blue 000 - 100 White 000 - 100 User Color x Red 000 - 100 Green 000 - 100 Blue 000 - 100 White 000 - 100 Amber 000 - 100 UV 000 - 100

EDIT LOOP (Edit Loop)

Brightness, step duration and fade time can be set separately for all four loops. Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Stand Alone, confirm with ENTER, then select Edit Loop and confirm once again. Using ▲ and ▼, now select the desired loop for editing and confirm with ENTER.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop Edit Loop 1 2 3 4 Loop x Dimmer 0 - 100 t-Step 0 - 255 t-Fade 0 - 255 Step 1 | Step 8

This will take you to the submenu for setting the submenu items (see table, select with ▲ and ▼, confirm with ENTER, change value or status with ▲ and ▼, confirm with ENTER). The settings for each loop are made separately and are retained even after restarting the device.

Edit Loop (Loop 1 - Loop 4)
Dimmer Sets brightness 0-100
t-step Sets step time 0-255
t-fade Sets fade time 0-255
Step 1 15 colours	from Colour Preset Red-Cold White
	4 colours from User Colour User Color 1 – User Color 4
	Blackout Black
Step 2 “ “
Step 3 15 colours	from Colour Preset Red-Cold White
	4 colours from User Colour User Color 1 –	User Color 4
	Blackout Black
	Skip step Skip Step
Step 4 “ “
Step 5 “ “
Step 6 “ “
Step 7 “ “
Step 8 “ “

SLAVE MODE

Standard Slave mode: Starting from the main display, press MENU to enter the main menu. Now use ▲ and ▼ to select the menu item Slave, confirm with ENTER, select Slave Group 0 and again confirm with ENTER. Connect the slave and the master units (same model, same software version) using a DMX cable, and enable one of the standalone modes on the master unit (Auto, Static, Colour Preset, Play Loop). The slave unit will now follow the master unit.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

Advanced slave mode: If you wish to control the slave units in master/slave mode using one of the Auto or Playback Loop standalone modes, the control signal can be reproduced with a time delay of up to 24 steps. The delay is set in the submenu item Delay in the relevant standalone mode; the delay factor is set in the slave menu of the corresponding spotlight. This is a simple way to create a running light effect with a large number of spotlights that are all the same model and have the same software version. This is otherwise only possible using a suitable DMX controller and time-consuming programming.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

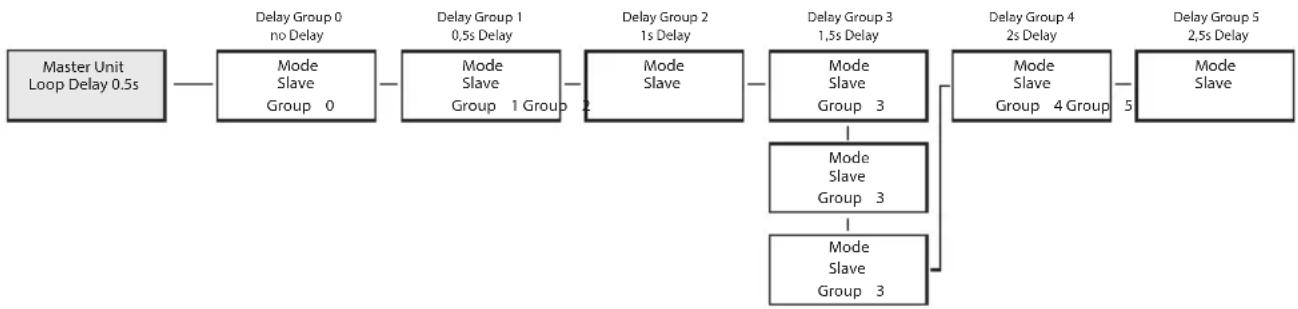

Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

Setup example:

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to enter the main menu. Using ▲ and ▼ select the menu item Settings and confirm with ENTER.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

This will take you to the submenu for setting the submenu items (see table, select with ▲ and ▼, confirm with ENTER, change value or status with ▲and ,▼ confirm with ENTER).

Settings
Disp Rev =	Rotate display Off No display rotation
				On Display is rotated by 180° (e.g. for over-head installation)
Display Off Timer	= Display lighting Off after		20s	Deactivates after approximately 20 seconds of inactivity
			Always On On permanently
Signal Fail	= Operational status with DMX signal fault		Hold Last command is retained
			Blackout Activates blackout
			Fade	10s fade to blackout
			User Colour 1	User Colour 1 is activated
PWM	= LED PWM frequency		650Hz, 1530Hz, 3600Hz, 12000Hz, 18900Hz, 25000Hz	Select LED PWM frequency

Dimmer Curve	= Dimmer curve Linear Light intensity increase linearly with DMX value
Dimmer Response	= Dimmer response LED Lamp responses abruptly to changes in DMX value
Calibration	= Colour calibration User Calibration	Individual colour calibration. Cross-mode brightness setting of R, G, B and W (CLP-ST4G2) or R, G, B, W, A and UV (CLPST6G2) with values from 0-255
		RAW CLPST4G2: R, G, B and W with maximum value 255CLPST6G2: R, G, B, W, A and UV with maximum value 255
Fan Mode	= Fan control Auto Fan Automatic fan speed control
Load Default	= Reset settings Factory	Reset to factory settings: Perform reset with ENTER, cancel with MENU
		Preset A Reset to Preset A: Perform reset with ENTER, cancel with MENU
		Preset B Reset to Preset B: Perform reset with ENTER, cancel with MENU
		Preset C Reset to Preset C: Perform reset with ENTER, cancel with MENU
Edit Default	= Store all system settings in 3 individual presets	Preset A Store with ENTER
		Preset B Store with ENTER
		Preset C Store with ENTER

SYSTEM INFORMATION (System Info)

Starting from the main display, press MODE to enter the main menu. Now use ▲ and ▼ to select the menu item System Info and confirm with ENTER.

Menu DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

This will take you to the submenu for accessing the system information (see table, selection with ▲ and ▼ confirm with ENTER, change status with ▲ and , ▽ confirm with ENTER).

System Info
Firmware = Displays device firmware Software			V1.xx
Temperature = Displays temperature of LED unit			Temperature xxx °C / xxx °F
			Temperature unit	°C (= display in degrees Celsius)
				°F (= display in degrees Fahrenheit)
Op Hours = Displays operating time Op Hours			xxxx:xxh	Displays total operating time in hours and minutes

SETUP AND INSTALLATION

HAZARD: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

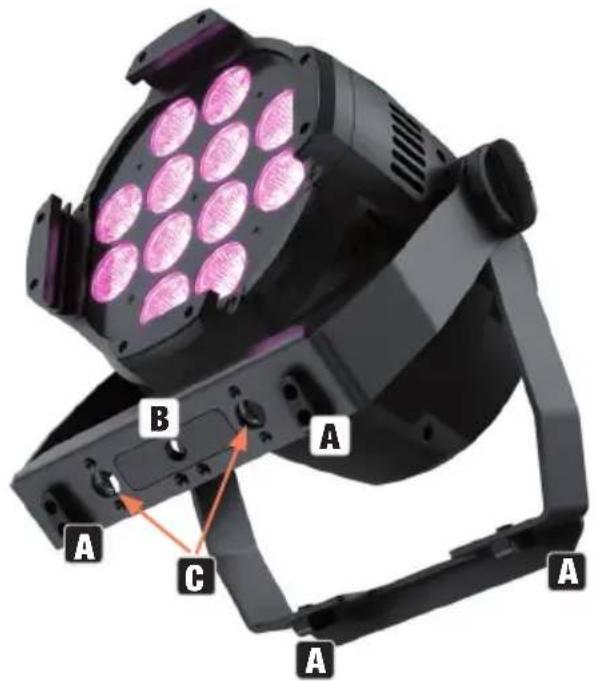

Thanks to its convenient double bracket, the spotlight can be positioned in a suitable location on a level surface. Rubber feet prevent scratching of surfaces and ensure stability (A). Installation on a truss is possible with a suitable truss clamp, which is attached to the mounting bracket (B). An optional Omega bracket can be attached to the U-bracket for truss mounting (C). Suitable truss clamps are optionally available. Ensure firm connections and secure the spotlight by attaching a suitable safety cable to the securing lug on the back of the spotlight (D). Loosen the two handle screws on the sides of the spotlight (E) to adjust the beam direction in the vertical plane and tighten the two handle screws again after adjustment.

A B C A A

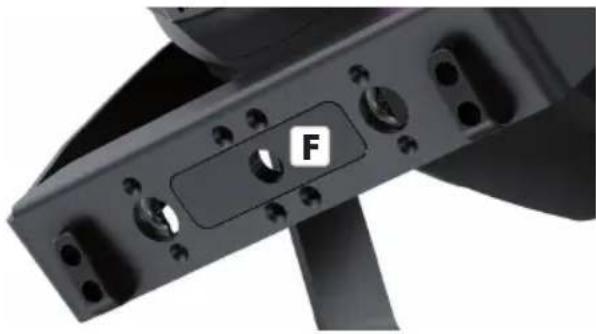

cameo STORMO PSE: 4.62 E E POWER CONSUMPTION: 16 M MAX OUT CORNERS: 16 A PUNDS IN PUNDS OUT MAX OUT MAX OUT PUNDS TO A 250 V 100 / 200 V AC 30/800 V SAVETY D

The optionally available, tool-free, fold-out 16 mm TV spigot CLZSPIN16 can be mounted on the U-bracket instead of the mounting plate with mounting hole (F).

Close-up of a black mechanical component with circular holes and a labeled 'F' button (no readable text or symbols beyond the letter)

MOUNTING THE FILTER FRAME

To mount the filter frame (or the optionally available barndoor), first move the spring-loaded fuse holder on the top of the spotlight to the right to unlock it, and then flip it up (Figure A). Insert the filter frame (or the optionally available barndoor) into the grooves of the lateral and bottom holders from above.

Black 3D photo of a black 3D laser head-mounted optical array with pink-lit circular light fixtures (no text or symbols visible)

Now fold the spring-loaded fuse holder on the top of the spotlight down again, making sure that it engages properly.

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used.

We generally recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited in the event of defects resulting from inadequate maintenance.

CARE (carried out by user)

WARNING! Before carrying out any maintenance work, the power supply and, if possible, all device connections must be unplugged.

PLEASE NOTE! Improper care can lead to impairment of the device or even destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case).
3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must generally be stored dry and protected from dust and dirt.

MAINTENANCE AND REPAIR (by qualified personnel only)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors.

PLEASE NOTE! There are no user-serviceable components in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

TECHNICAL DATA

Item number CLPST4G2 CLPST6G2

Product category Static LED light Static LED light
Type Studio PAR Studio PAR
Light source 12 x 4in1 RGBW 8W SMD LED 12 x 6in1 RGBAWuV 12W SMD LED
Luminous flux 4620lm @ Full On 4675lm @ Full On
Lense / optic 12 x Acryl Lense	12 x Acryl Lense
PWM frequency	650 Hz; 1530 Hz; 3600 Hz; 12000 Hz; 18900 Hz; 25000 Hz	650 Hz; 1530 Hz; 3600 Hz; 12000 Hz; 18900 Hz; 25000 Hz
Dimmer Resolution	16 Bit	16 Bit
CRI	>72	>74
Beam angle / field angle	15° / 29°	21° / 35°
Color spectrum	R: 630nm; G: 519nm; B: 458nm; W: 6980K	R: 630nm; G: 523nm; B: 461nm; White: 7115K; A: 595nm; UV: 400nm
Color control modes	Direct (RGBW); Color Presets	Direct (RGBAWuV); Color Presets
Control options	DMX; RDM; Wireless-DMX – Ready (iDMX-Stick optionally available); Stand Alone; Master-Slave	DMX; RDM; Wireless-DMX – Ready (iDMX-Stick optionally available); Stand Alone; Master-Slave
Physical data connectors	XLR 3-Pin In/Out; iDMX-Stick-Slot	XLR 3-Pin In/Out; iDMX-Stick-Slot
DMX modes	1 CH; 3 CH; 4 CH; 4 CH; 6 CH; 8 CH; 10 CH; 10 CH; 14 CH	1 CH; 3 CH; 4 CH; 6 CH; 9 CH; 10 CH; 12 CH; 14 CH; 18CH
DMX functions	Dimmer; Strobe; R; G; B; W; Color Presets; Settings; EZ-Chase	Dimmer; Strobe; R; G; B; A; W; UV; Color-Presets; Settings; EZ-Chase
Stand alone	Auto; Static; Preset; Loop	Auto; Static; Preset; Loop
System settings	Display; Signal Fail; Dimmer Curve; Dimmer Response; PWM; Calibration; Fan Mode; Default	Display; Signal Fail; Dimmer Curve; Dimmer Response; PWM; Calibration; Fan Mode; Default
User interface	4-button: MENU; ENTER; UP; DOWN	4-button: MENU; ENTER; UP; DOWN
Display	2-row OLED	2-row OLED
IP rating	IP 20 indoor use	IP 20 indoor use
Ambient temperature rating	-10°C – 40°C	-10°C – 40°C
Humidity	< 80% non condensing	< 80% non condensing
Cooling	Fan Off; Auto; Silent	Fan Off; Auto; Silent
Operation voltage	100V AC – 240V AC; 50Hz-60Hz 100V AC – 240V AC; 50Hz-60Hz
Max. current 0.38A @230V; 0.67A @110V 0.54A @230V; 1.09A @110V
Inrush current 13.3A 13.3A
Max. power consumption	87W @230V; W 74@110V 124W @230V; W 120@110V
Fuse T2A T2A
Cos Phi 0.990 0.998
Minimum distance to the illuminated surface	0,5 m 0,5 m
Minimum distance to normal flammable materials	0,5 m 0,5 m
Power connectors	IN: Power Twist Blue; OUT: Power Twist White	IN: Power Twist Blue; OUT: Power Twist White
Power link 27 Units @230V / 15 Units @ 110V 20 Units @230V / 9 Units @ 110V
Housing	Aluminium die cast, black powder coated	Aluminium die cast, black powder coated
Dimensions h/w/d	Over All: 360 x 245 x 314 / Floor-mount: 328 x 267 x 314	Over All: 360 x 245 x 314 / Floor-mount: 328 x 267 x 314
Weight	4.9 kg	4.9 kg

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. In this example, the distance is 0.5 m. The value applicable for this unit can be found in the technical data in this manual and the imprint on the unit housing!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and normally flammable materials. In this example, the distance is 0.5 m. The value applicable for this unit can be found in the technical data in this manual!

DISPOSAL

Packaging:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

Device:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws and regulations applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach, Germany / E-mail [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf. Contact your distribution partner for service.

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032)

Radio Equipment Regulations 2017(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF EXPOSURE INFORMATION

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!

DEUTSCH

cameo® STUDIO PAR 4 G2 7 IDMX STICK 8 MENU ENTER 6 POWER CONSUMPTION: 90 W MAX OUT CURRENT: 14 A POWER IN POWER OUT DMX IN DMX OUT 1 FUSE T2 A 250 V WEIGHT: 4.9 kg 3 100 - 240 V AC 50/60 Hz SAFETY tₐ = 45° C Cameo® is a registered brand of the Adam Hall Group I Adam Hall GmbH Adam-Hall-Str.1 61267 Neu-Anspach Germany I Designed and engineered in Germany, assembled in P.R.C I www.adamhall.com Adam Hall Ltd. The Seedbed Business Centre SS3 9QY Essex I United Kingdom

STAND-ALONE-BETRIEBSART AUTO

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

Color Preset

Red

|

Cold White

User Color 1

|

User Color 4

Dimmer 000 – 100

Strobe 000 – 255

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

Close-up of a black mechanical component with circular holes and a labeled 'F' button (no readable text or symbols beyond the letter)

FILTERRAHMEN MONTIEREN

Black 3D photo of a black laser head-mounted optical array with pink-lit spherical lights, labeled 'A' (no text or symbols on the device itself)

cameo® STUDIO PAR 4 G2 7 IDMX STICK 8 MENU ENTER ▲▼ 6 POWER CONSUMPTION: 90 W MAX OUT CURRENT: 14 A POWER IN POWER OUT 1 FUSE T2 A 250 V 2 DMX IN DMX OUT 3 WEIGHT: 4.9 kg 100 - 240 V AC 50/60 Hz 9 SAFETY Caution RISK OF ELECTRIC SHOCK DO NOT OPEN CE UK CA Cameo® is a registered brand of the Adam Hall Group I Adam Hall GmbH Adam-Hall-Str.1 61267 Neu-Anspach Germany I Designed and engineered in Germany, assembled in P.R.C I www.adamhall.com Adam Hall Ltd. The Seedbed Business Centre SS3 90Y Essex I United Kingdom ta= 45° C

Close-up of a black mechanical component with multiple holes and a labeled 'F' button (no readable text or symbols beyond the letter)

MONTAGE DU CADRE DE FILTRE

Black 3D photo of a black laser beam with purple light bulbs, labeled 'A' and an orange arrow indicating rotation (no text or symbols on the device itself)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Directive CEM (2014/30/UE)

RoHS (2011/65/UE)

RED (2014/53/UE)

DÉCLARATION DE CONFORMITÉ CE

www.adamhall.com/compliance/

SOUS RÉSERVE DE FAUTES D'IMPRESSION ET D'ERREURS, AINSI QUE DE MODIFICATIONS TECHNIQUES OU AUTRES !

ESPAÑOL

cameo® STUDIO PAR 4 G2 7 IDMX STICK 8 MENU ENTER ▲▼ 6 POWER CONSUMPTION: 90 W MAX OUT CURRENT: 14 A POWER IN POWER OUT 1 FUSE T2 A 250 V 2 DMX IN DMX OUT 3 WEIGHT: 4.9 kg 100 - 240 V AC 50/60 Hz SAFETY tₐ= 45° C Cameo® is a registered brand of the Adam Hall Group I Adam Hall GmbH Adam-Hall-Str.1 61267 Neu-Anspach Germany I Designed and engineered in Germany, assembled in P.R.C I www.adamhall.com Adam Hall Ltd. The Seedbed Business Centre SS3 90Y Essex I United Kingdom

Close-up of a black mechanical component with circular holes and a labeled 'F' button (no readable text or symbols beyond the letter)

MONTAJE DEL PORTAFILTROS

Black circular light fixture with 12 purple-lit hexagonal lights, labeled 'A' at top (no text or symbols on device)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

cameo® STUDIO PAR 4 G2 7 IDMX STICK 8 MENU ENTER ▲▼ 6 POWER CONSUMPTION: 90 W MAX OUT CURRENT: 14 A POWER IN POWER OUT 1 FUSE T2 A 250 V 2 DMX IN DMX OUT 3 WEIGHT: 4.9 kg 100 - 240 V AC 50/60 Hz SAFETY Cameo® is a registered brand of the Adam Hall Group I Adam Hall GmbH Adam-Hall-Str:1 61267 Neu-Anspach Germany I Designed and engineered in Germany, assembled in P.R.C | www.adamhall.com Adam Hall Ltd. The Seedbed Business Centre SS3 9QY Essex I United Kingdom tₐ= 45° C

USTAWIANIE TRYBU PRACY STANDALONE AUTO

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

Color Preset
Red
I
Cold White
User Color 1
I
User Color 4
Dimmer 000 - 100
Stro-boskop	000 – 255

TRYB PRACY STANDALONE PLAYBACK LOOP

Stand Alone Auto Static Color Preset Playback Loop Edit User Color Edit Loop

    B --> H["Mode Slave Group 0"]
    C --> I["Mode Slave Group 1 Group 2"]
    E --> J["Mode Slave Group 3"]
    F --> K["Mode Slave Group 4 Group 5"]

    H --> L["Mode Slave Group 3"]
    I --> M["Mode Slave Group 3"]
    J --> N["Mode Slave Group 3"]

USTAWIENIA SYSTEMU (Settings)

Close-up of a black mechanical component with circular holes and a labeled 'F' button (no readable text or symbols beyond the letter)

MONTAŻ RAMY FILTRA

Black 3D photo of a black laser beam with purple-lit spherical light fixtures, labeled 'A' with an orange arrow indicating rotation (no text or symbols on the device itself)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

cameo® STUDIO PAR 4 G2 7 IDMX STICK 8 MENU ENTER 6 POWER CONSUMPTION: 90 W MAX OUT CURRENT: 14 A POWER IN POWER OUT DMX IN DMX OUT 1 FUSE T2 A 250 V 4 5 WEIGHT: 4.9 kg 3 100 - 240 V AC 50/60 Hz SAFETY Cameo® is a registered brand of the Adam Hall Group I Adam Hall GmbH Adam-Hall-Str.1 61267 Neu-Anspach Germany I Designed and engineered in Germany, assembled in P.R.C I www.adamhall.com Adam Hall Ltd. The Seedbed Business Centre SS3 9QY Essex I United Kingdom tₐ = 45° C

    B --> H["Mode Slave Group 0"]
    C --> I["Mode Slave Group 1 Group 2"]
    D --> J["Mode Slave"]
    E --> K["Mode Slave Group 3"]
    F --> L["Mode Slave Group 4 Group 5"]
    G --> M["Mode Slave"]

    H --> N["Mode Slave Group 3"]
    I --> O["Mode Slave Group 3"]
    J --> P["Mode Slave Group 3"]

IMPOSTAZIONI SISTEMA (Settings)

cameo STIRD FX 4.02 E E POWER CIRCUMPTION: 16 M MAX OUT HARVEST: 15 A POWER IN POWER OUT UNIT IN MAX OUT MINI TO 2.00 V MINI TO 2.00 V MAX OUT MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00 V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00V MINI TO 2.00

Close-up of a black mechanical component with circular holes and a labeled 'F' (no readable text or symbols beyond the letter)

INSTALLAZIONE DEL PORTAFILTRO

Black 3D photo of a black laser head-mounted optical array with pink-lit spherical lights, labeled 'A' (no text or symbols on the device itself)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

CLP ST4 G2
1 CH Dim(User Color 1)	Function Values
1 Dimmer 000 -	255 0% to 100%

CLP ST4 G2
4 CH RGBW	10 Ch Direct 16Bit	Function Values
	1 Dimmer 000 - 255 0% to 100%
	2 Dimmer fine 000 - 255 0% to 100%
1	3 Red 000 - 255 0% to 100%
	4 Red fine 000 - 255 0% to 100%
2	5 Green	000 - 255 0% to 100%
	6	Green fine	000 - 255 0% to 100%
3	7	Blue	000 - 255 0% to 100%
	8	Blue fine	000 - 255 0% to 100%
4	9	White	000 - 255 0% to 100%
	10	White fine	000 - 255 0% to 100%

CLP ST4 G2
4 CH Strobe Macro	Function	Values
1	Dimmer	000 - 255		0% to 100%
2	Multifunctional Strobe	000 - 005		Strobe open
		006 - 010		Strobe closed
		011 - 022		Ramp up/down, slow -> fast
		023 - 033		Ramp up/down random, slow->fast
		034 - 045 Ramp up, slow -> fast
		046 - 056		Ramp up random, slow -> fast
		057 - 068		Ramp down, slow -> fast
		069 - 079		Ramp down random, slow -> fast

2	Multifunctional Strobe	080 - 102 Random Strobe effect, slow -> fast
		103 - 127	Strobe Break effect, 5s.....1s(short burst with break)
		128 - 250 Strobe slow -> fast <1Hz - 20Hz
		251 - 255 Strobe open
3 Color Preset		000 - 005 Color off
		006 - 013 Red
		014 - 021 Amber
		022 - 029 Yellow warm
		030 - 037 Yellow
		038 - 045 Green
		046 - 053 Turquoise
		054 - 061 Cyan
		062 - 069	Blue
		070 - 077	Lavender
		078 - 085 Mauve
		086 - 093	Magenta
		094 - 101	Pink
		102 - 109 Warm White
		110 - 117	White
		118 - 125	Cold White
		126 - 127	Color Jumping Stop
		128 - 164	Color Jumping Speed slow -> fast / Color1 -> 12
		165 - 201	Color Fading Speed slow -> fast / Color1 -> 12
		202 - 207	User Color_1
		208 - 213	User Color_2
		214 - 219	User Color_3
		220 - 225	User Color_4
		226 - 255	No function
4	Color Preset Crossfade	000 - 005	0s
		006 - 105	0,1s - 10s (0,1s Steps)
		106 - 214	11s - 119s (1s Steps)
		215 - 232	2m - 4m50s (10s Steps)
		233 - 255	5m - 27m (1m Steps)

CLP ST4 G2
10 CH Macro Control	14 Ch Full Access	Function Values
1 1 Dimmer 000 - 255 0% to 100%
2 2 Dimmer fine 000 - 255 0% to 100%
3	3	Multifunctional Strobe	000	005	Strobe open
			006	010	Strobe closed
			011	022	Ramp up/down, slow -> fast
			023	033		Ramp up/down random, slow->fast
			034	045	Ramp up, slow -> fast
			046	056	Ramp up random, slow -> fast
			057	068		Ramp down, slow -> fast
			069	079		Ramp down random, slow -> fast
			080	102		Random Strobe effect, slow -> fast
			103	127		Strobe Break effect, 5s......1s (short burst with break)
			128	250		Strobe slow -> fast <1Hz - 20Hz
			251	255	Strobe open
4 4	Red	000 - 255 0% to 100%
	5 Red fine 000 - 255 0% to 100%
5 6	Green	000 - 255 0% to 100%
	7	Green fine	000	255 0% to 100%
6 8	Blue	000 - 255 0% to 100%
	9	Blue fine	000	255 0% to 100%
7	10 White	000 - 255 0% to 100%
	11	White fine	000	255 0% to 100%
8	12	Color Preset (override RGBW)	000	005		Color off
			006	013		Red
			014	021		Amber
			022	029		Yellow warm
			030	037		Yellow

8	12	Color Preset (override RGBW)	038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093 Magenta
			094 - 101 Pink
			102 - 109 Warm White
			110 - 117 White
			118 - 125 Cold White
			126 - 127 Color Jumping Stop
			128 - 164	Color Jumping Speed slow -> fast / Color 1 -> 12
			165 - 201	Color Fading Speed slow -> fast / Color 1 -> 12
			202 - 207 User Color_1
			208 - 213 User Color_2
			214 - 219 User Color_3
			220 - 225 User Color_4
			226 - 255 No function
9	13	Color Preset Crossfade	000 - 005	0s
			006 - 105	0,1s - 10s (0,1s Steps)
			106 - 214	11s - 119s (1s Steps)
			215 - 232	2m - 4m50s (10s Steps)
			233 - 255	5m - 27m (1m Steps)
10 14	Device Settings		000 - 023 No function
			024 - 025 Record User Color 1 (hold 3s)
			026 - 027 Record User Color 2 (hold 3s)
			028 - 029 Record User Color 3 (hold 3s)
			030 - 031 Record User Color 4 (hold 3s)
			032 - 073 No function
			074 - 075	Dimmer Response LED (hold 1,5s)
			076 - 077	Dimmer Response Halogen (hold 1,5s)

10 14 Device Settings		078 - 097 No function
		098 - 099 Silent Fan (hold 3s)
		100 - 101 Auto Fan (hold 3s)
		102 - 103 Fan Off (hold 3s)
		104 - 119 No function
		120 - 121 PWM 1 (650 Hz) (hold 3s)
		122 - 123 PWM 2 (1530 Hz)(hold 3s)
		124 - 125 PWM 3 (3600 Hz)(hold 3s)
		126 - 127 PWM 4 (12000 Hz)(hold 3s)
		128 - 129 PWM 5 (18900 Hz)(hold 3s)
		130 - 131 PWM 6 (25000 Hz)(hold 3s)
		132 - 133 RAW (hold 3s)
		134 - 135 User Calibrated (hold 3s)
		136 - 139 No function
		140 - 141 Display on (hold 3s)
		142 - 143 Display off (hold 3s)
		144 - 163 No function
		164 - 165 Dimmer Curve Linear (hold 3s)
		166 - 167 Dimmer Curve Exponential (hold 3s)
		168 - 169 Dimmer Curve Logarithmic (hold 3s)
		170 - 171 Dimmer Curve S-Curve (hold 3s)
		172 - 239 No function
		240 - 241 Factory Default set (except DMX-Address, DMX-Mode) (hold 3s)
		242 - 243 No function
		244 - 245 Default A-User set (except DMX-Address, DMX-Mode) (hold 3s)
		246 - 247 Default B-User set (except DMX-Address, DMX-Mode) (hold 3s)

10 14 Device Settings		248	249	Default C-User set (except DMX-Address, DMX-Mode) (hold 3s)
		250	255 No function

CLP ST4 G2
D3 CH Macro	D8 CH Strobe Macro	D6 CH Direct 8Bit	Function Values
1 1 1 Dimmer 000 -	255 0% to 100%
	2		Multifunctional Strobe	000	005	Strobe open
				006	010	Strobe closed
				011	022		Ramp up/down, slow->fast
				023	033		Ramp up/down ran-dom, slow->fast
				034	045	Ramp up, slow -> fast
				046	056		Ramp up random, slow->fast
				057	068		Ramp down, slow -> fast
				069	079		Ramp down random, slow -> fast
				080	102		Random Strobe effect, slow -> fast
				103	127		Strobe Break effect, 5s.....1s (short burst with break)
				128	250		Strobe slow -> fast <1Hz - 20Hz
				251	255	Strobe open
	3 2 Red 000 - 255 0% to 100%
	4 3 Green 000 - 255 0% to 100%
	5 4 Blue 000 - 255 0% to 100%
	6 5 White 000 - 255 0% to 100%
2	7		Color Preset (override RGBW)	000	005		Color off
				006	013		Red
				014	021		Amber

2	7		Color Preset (override RGBW)	022 - 029 Yellow warm
				030 - 037 Yellow
				038 - 045 Green
				046 - 053 Turquoise
				054 - 061 Cyan
				062 - 069 Blue
				070 - 077 Lavender
				078 - 085 Mauve
				086 - 093 Magenta
				094 - 101 Pink
				102 - 109 Warm White
				110 - 117		White
				118 - 125		Cold White
				126 - 127		Color Jumping Stop
				128 - 164		Color Jumping Speed slow -> fast / Color 1 -> 12
				165 - 201		Color Fading Speed slow -> fast / Color 1 -> 12
				202 - 207		User Color_1
				208 - 213		User Color_2
				214 - 219		User Color_3
				220 - 225		User Color_4
				226 - 255		No function
386	DMX	Delay		000 - 005		No Delay
				006 - 255		0,1s - 2,0s

CLP ST6 G2
1 CH Dim(User Color 1)	Function	Values
1	Dimmer	000 + 25	5 0%	to 100%

CLP ST6 G2
4 CH Strobe Macro	Function Values
1 Dimmer 000 - 255 0% to 100%		%
2	Multifunctional Strobe	000	005	Strobe open
		006	010	Strobe closed
		011	022	Ramp up/down, slow -> fast
		023	033	Ramp up/down random, slow->fast
		034	045	Ramp up, slow -> fast
		046	056	Ramp up random, slow -> fast
		057	068	Ramp down, slow -> fast
		069	079	Ramp down random, slow -> fast
		080	102		Random Strobe effect, slow -> fast
		103	127		Strobe Break effect, 5s.....1s (short burst with break)
		128	250		Strobe slow -> fast <1Hz - 20Hz
		251	255	Strobe open
3	Color Preset	000	005		Color off
		006	013		Red
		014	021		Amber
		022	029		Yellow warm
		030	037		Yellow
		038	045		Green
		046	053		Turquoise
		054	061		Cyan
		062	069		Blue
		070	077		Lavender
		078	085		Mauve
		086	093		Magenta
		094	101		Pink
		102	109	Warm White
		110	117		White
		118	125		Cold White
		126	127		Color Jumping Stop

3 Color Preset	128 - 164			Color Jumping Speed slow -> fast / Color 1 -> 12
	165 - 201			Color Fading Speed slow -> fast / Color 1 -> 12
	202 - 207 User			Color_1
	208 - 213 User			Color_2
	214 - 219 User			Color_3
	220 - 225 User			Color_4
	226 - 255 no function
4	Color Preset Crossfade	000 - 005 0s
		006 - 105 0,1s		- 10s (0,1s Steps)
		106 - 214 11s		- 119s (1s Steps)
		215 - 232 2m		- 4m50s (10s Steps)
		233 - 255 5m		- 27m (1m Steps)

CLP ST6 G2
6 CH RGBWAUV	14 Ch Direct 16Bit	Function Values
	1 Dimmer	000 - 255 0% to 100%
	2 Dimmer	fine 000 - 255 0% to 100%
1	3	Red	000 - 255 0% to 100%
	4 Red fine	000 - 255 0% to 100%
2	5	Green	000 - 255 0% to 100%
	6	Green fine	000 - 255 0% to 100%
3	7	Blue	000 - 255 0% to 100%
	8	Blue fine	000 - 255 0% to 100%
4	9	White	000 - 255 0% to 100%
	10	White fine	000 - 255 0% to 100%
5	11 Amber	000 - 255 0% to 100%
	12 Amber	fine 000 - 255 0% to 100%
6	13	UV	000 - 255 0% to 100%
	14 UV fine	000 - 255 0% to 100%
12 CH Macro Control	18 Ch Full Access	Function Values
1 1 Dimmer 000 - 255	0% to 100%
2 2 Dimmer fine 000 - 255	0% to 100%
3	3	Multifunctional Strobe	000	-005	Strobe open
			006	-010	Strobe closed
			011	-022	Ramp up/down, slow -> fast
			023	-033		Ramp up/down random, slow->fast
			034	-045	Ramp up, slow -> fast
			046	-056	Ramp up random, slow -> fast
			057	-068		Ramp down, slow -> fast
			069	-079		Ramp down random, slow -> fast
			080	-102		Random Strobe effect, slow -> fast
			103	-127		Strobe Break effect, 5s......1s (short burst with break)
			128	-250		Strobe slow -> fast <1Hz - 20Hz
			251	-255	Strobe open
4 4	Red	000 - 255	0% to 1	00%
	5 Red fine	000 - 255	0% to 1	00%
5 6	Green	000 - 255	0% to 1	00%
	7	Green fine	000	-255	0% to 100%
6 8	Blue	000 - 255	0% to 1	00%
	9	Blue fine	000	-255	0% to 100%
7	10	White	000	-255	0% to 100%
	11	White fine	000	-255	0% to 100%
8	12 Amber	000 - 255	0% to 1	00%
	13 Amber fine	000 - 255	55	0% to 1	00%
9	14	UV	000	-255	0% to 100%
	15 UV fine	000 - 255	0% to 1	00%

10 16		Color Preset (override RGBAWuV)	000 - 005 Color off
			006 - 013 Red
			014 - 021 Amber
			022 - 029 Yellow warm
			030 - 037 Yellow
			038 - 045 Green
			046 - 053 Turquoise
			054 - 061 Cyan
			062 - 069 Blue
			070 - 077 Lavender
			078 - 085 Mauve
			086 - 093	Magenta
			094 - 101 Pink
			102 - 109	Warm White
			110 - 117	White
			118 - 125 Cold	White
			126 - 127	Color Jumping Stop
			128 - 164	Color Jumping Speed slow -> fast / Color 1 -> 12
			165 - 201	Color Fading Speed slow -> fast / Color 1 -> 12
			202 - 207	User Color_1
			208 - 213	User Color_2
			214 - 219	User Color_3
			220 - 225	User Color_4
			226 - 255	No function
11 17		Color Preset Crossfade	000 - 005	0s
			006 - 105	0,1s - 10s (0,1s Steps)
			106 - 214	11s - 119s (1s Steps)
			215 - 232	2m - 4m50s (10s Steps)
			233 - 255	5m - 27m (1m Steps)
12 18	Device Settings		000 - 023	No function
			024 - 025 Record User Color 1 (hold 3s)
			026 - 027 Record User Color 2 (hold 3s)
			028 - 029 Record User Color 3 (hold 3s)
12 18 Device Settings		030 - 031 Record User Color 4 (hold 3s)
		032 - 073 No function
		074 - 075 Dimmer Response LED(hold 1,5s)
		076 077 Dimmer Response Halogen(hold 1,5s)
		078 - 097 No function
		098 - 099 Silent Fan (hold 3s)
		100 - 101 Auto Fan (hold 3s)
		102 - 103 Fan Off (hold 3s)
		104 - 119 No function
		120 - 121 PWM 1 (650 Hz) (hold 3s)
		122 - 123 PWM 2 (1530 Hz)(hold 3s)
		124 - 125 PWM 3 (3600 Hz)(hold 3s)
		126 - 127 PWM 4 (12000 Hz)(hold 3s)
		128 - 129 PWM 5 (18900 Hz)(hold 3s)
		130 - 131 PWM 6 (25000 Hz)(hold 3s)
		132 - 133 RAW (hold 3s)
		134 - 135 User Calibrated (hold 3s)
		136 - 139 No function
		140 - 141 Display on (hold 3s)
		142 - 143 Display off (hold 3s)
		144 - 163 No function
		164 - 165 Dimmer Curve Linear (hold 3s)
		166 - 167 Dimmer Curve Exponential(hold 3s)
		168 - 169 Dimmer Curve Logarithmic(hold 3s)
		170 - 171 Dimmer Curve S-Curve(hold 3s)
		172 - 239 No function
		240 - 241 Factory Default set (exceptDMX-Address, DMX-Mode)(hold 3s)
		242 - 243 No function

12 18 Device Settings		244 - 245	Default A-User set (except DMX-Address, DMX-Mode) (hold 3s)
		246 - 247	Default B-User set (except DMX-Address, DMX-Mode) (hold 3s)
		248 - 249	Default C-User set (except DMX-Address, DMX-Mode) (hold 3s)
		250 - 255 No function

CLP ST6 G2
D3 CH Macro	D10 CH Strobe Macro	D9 CH Direct 8Bit	Function Values
1 1 1 Dimmer 000 -	255 0% to 100%
	2	2	Multifunctional Strobe	000 - 005 Strobe open
				006 - 010 Strobe closed
				011 - 022			Ramp up/down, slow-> fast
				023 - 033			Ramp up/down ran-dom, slow->fast
				034 - 045 Ramp up, slow -> fast
				046 - 056			Ramp up random, slow-> fast
				057 - 068			Ramp down, slow -> fast
				069 - 079			Ramp down random, slow -> fast
				080 - 102			Random Strobe effect, slow -> fast
				103 - 127			Strobe Break effect, 5s.....1s (short burst with break)
				128 - 250			Strobe slow -> fast <1Hz - 20Hz
				251 - 255 Strobe open
	3 3 Red 000 - 255 0% to 100%
	4 4 Green 000 - 255 0% to 100%
	5 5 Blue 000 - 255 0% to 100%
	6 6 White 000 - 255 0% to 100%
	7 7 Amber 000 - 255 0% to 100%
	8 8 UV 000 - 255 0% to 100%
2	9		Color Preset (override RGBAWuV)	000 - 005 Color off
				006 - 013 Red
				014 - 021 Amber
				022 - 029 Yellow warm
				030 - 037			Yellow
				038 - 045			Green
				046 - 053			Turquoise
				054 - 061			Cyan
				062 - 069			Blue
				070 - 077			Lavender
				078 - 085 Mauve
				086 - 093			Magenta
				094 - 101			Pink
				102 - 109 Warm White
				110 - 117			White
				118 - 125			Cold White
				126 - 127 Color Jumping Stop
				128 - 164			Color Jumping Speed slow -> fast / Color 1 -> 12
				165 - 201			Color Fading Speed slow -> fast / Color 1 -> 12
				202 - 207			User Color_1
				208 - 213			User Color_2
				214 - 219			User Color_3
				220 - 225			User Color_4
				226 - 255			No function
3	10	9	DMX Delay	000 - 005			No Delay
				006 - 255			0,1s - 2,0s
