USER MANUAL PARTYBTHPLH BIGBEN

Bluetooth speaker INSTRUCTIONS

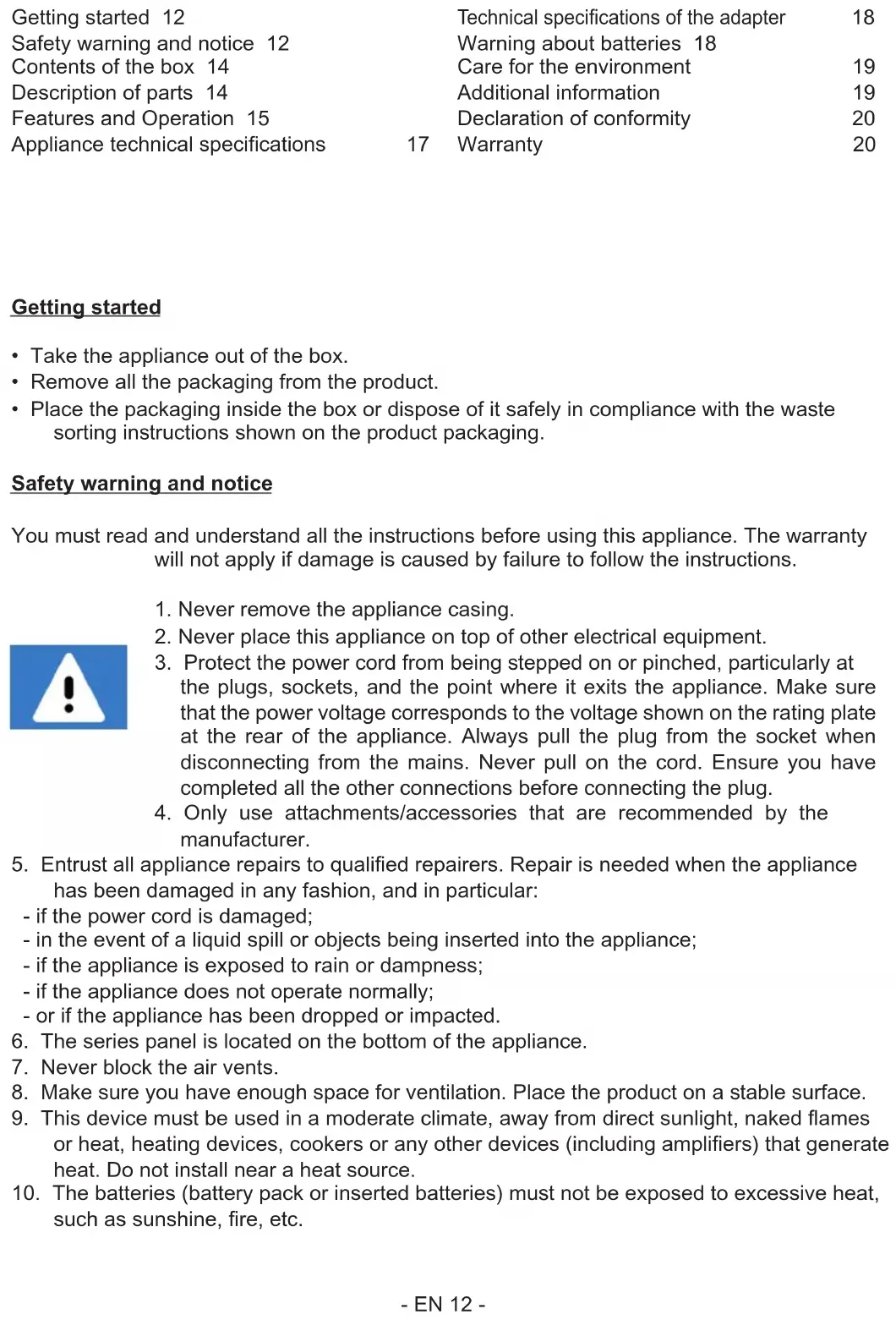

• Take the appliance out of the box.

• Remove all the packaging from the product.

• Place the packaging inside the box or dispose of it safely in compliance with the wa󰘵e sorting in󰘵ructions shown on the product packaging. Safety warning and notice You mu󰘵 read and under󰘵and all the in󰘵ructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the in󰘵ructions.

1. Never remove the appliance casing.

2. Never place this appliance on top of other electrical equipment.

3. Protect the power cord from being 󰘵epped on or pinched, particularly at

the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the

5. Entru󰘵 all appliance repairs to quali󰘰ed repairers. Repair is needed when the appliance

has been damaged in any fashion, and in particular: - if the power cord is damaged; - in the event of a liquid spill or objects being inserted into the appliance; - if the appliance is exposed to rain or dampness; - if the appliance does not operate normally; - or if the appliance has been dropped or impacted.

6. The series panel is located on the bottom of the appliance.

7. Never block the air vents.

8. Make sure you have enough space for ventilation. Place the product on a 󰘵able surface.

9. This device mu󰘵 be used in a moderate climate, away from direct sunlight, naked 󰘱ames

or heat, heating devices, cookers or any other devices (including ampli󰘰ers) that generate heat. Do not in󰘵all near a heat source.

10. The batteries (battery pack or inserted batteries) mu󰘵 not be exposed to excessive heat,

such as sunshine, 󰘰re, etc. Getting started 12 Safety warning and notice 12 Contents of the box 14 Description of parts 14 Features and Operation 15 Appliance technical specications 17 Technical specications of the adapter

Warning about batteries 18 Care for the environment 19 Additional information 19 Declaration of conformity 20 Warranty 20- EN 13 -

11. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

12. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect

this appliance from the mains if necessary.

13. Do not use this appliance near water. It mu󰘵 not be dripped on or splashed. Do not use

this appliance in a damp or wet environment.

14. Disconnect this appliance in the event of a 󰘵orm or if you are not going to use it for a long

15. This appliance can be used by children aged 8 and over, and by persons with a physical

or sensory disability, learning di󰘲culties or a lack of experience and knowledge, provided they are supervised or have received in󰘵ructions on the safe use of the appliance, and they under󰘵and the risks involved. Children mu󰘵 not play with the appliance or power cord (risk of 󰘵rangulation). Children mu󰘵 not clean or maintain the appliance without supervision.

16. This device mu󰘵 only be supplied with very low safety voltage corresponding to the

marking on the device.

17. The battery should be removed from the device before disposal. The device mu󰘵 be

disconnected from the power supply when removing the battery.

18. The product mu󰘵 be at a minimal di󰘵ance of 20 cm from the human body when working.

19. This appliance is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are 󰘵rong enough to present a risk of electric shock. The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) in󰘵ructions in the literature accompanying the appliance.- EN 14 - Direct current Class II material Alternating current For indoor use only Contents of the box Check and identify the contents of your box:

• 1 microphone with cable

• 1 shoulder 󰘵rap Description of parts- EN 15 - Features and Operation Power button: Press the "Power" button to turn the speaker on and o󰘯. Choice of mode: Press the “mode” button to switch from LINE IN mode to USB and BT (Bluetooth®) modes. The chosen mode will appear on the screen. Bluetooth connection:

• When switched on, the speaker automatically switches to Bluetooth search mode.

• Find the device called “PARTYBTHPLH” on your mobile device and select it. Once found, you’ll hear a beep indicating that the speaker is connected to the device.

• During pairing, the text "Blue" 󰘱ashes during the search and remains 󰘰xed once paired.

• Short-press the Next/Previous button to select the next/previous track.

• Short-press the Play/Pause button on the device, and the speaker will play or 󰘵op the music. AUX-IN mode:

• Press the “mode” button to select AUX mode. The word “AUX” appears on the screen.

• Use the 3.5mm audio cable to connect your device.

• Li󰘵en to music via USB/micro-SD card

• Insert a USB key/micro-SD card into the slot, and the music will 󰘵art automatically. NB: Maximum supported capacity of 32 GB for playing USB/SD cards. This device plays This device plays MP3, WAV formats. The device does not play SanDisk Ultra 32GB SD cards. EQ light: The light turns on when the speaker is turned on and the LED light button is set to ON. Press and hold the MODE button to change the light e󰘯ects. Fa󰄋 rewind: In USB or micro-SD card mode, you can long-press the "previous" button to get the fa󰘵 rewind function. Fa󰄋 forward: In USB or micro-SD card mode, you can long-press the "next" button to get the fa󰘵 forward function. Standby mode: The speaker will go into 󰘵andby mode after 10 minutes without use. How to recharge:

• Do not use a power source greater than 9V 2A.

• Recharge your speaker with our 󰘵andard 9V/2A USB adapter. During charging, the LED indicator lights up red. The LED charging indicator turns o󰘯 when charging is complete.

• An audible signal will remind you to recharge the battery when it’s low. As soon as the beep sounds, remember to plug in your speaker to recharge it.- EN 16 - Microphone:

• Connect the microphone cable to the MIC port on the speaker.

• Turn the M.VOL dial to adju󰘵 the volume.

• Turn the Bass/Treble dials to adju󰘵 the level of bass and treble tones.

• Turn the Echo dial on the speaker to adju󰘵 the reverb e󰘯ect.

• After use, unplug the microphone and 󰘵ore it when not in use. WARNING! Risk of hearing damage Adju󰘵 the player to a low volume before connecting the headphones to the sound source. Avoid any excessive volume, particularly for long periods of time or in the event of frequent use. Excessive volume can lead to permanent hearing loss. Remote control:

1.POWER: Press this button to turn the speaker on/o󰘯. 2.MODE: Press this button to switch from Bluetooth mode to Aux mode. 3.NEXT: In Bluetooth, USB or micro-SD card mode, short-press this button to go to the next track. In USB or micro-SD card mode, long-press to fa󰘵 forward the music. 4.PREV: Plug in the USB key or micro-SD card, short-press this button to skip to the next track. In USB or micro-SD card mode, long-press to fa󰘵-rewind. 5.VOL-: Press this button to reduce the volume. 6.VOL+: Press this button to increase the volume. 7.EQ: Press this button to choose Jazz, Rock, Bass or Normal modes- EN 17 -

8. LED: Press to change light e󰘯ects.

9. RPT: Connect the USB 󰘵ick or micro-SD card, brie󰘱y press “RPT” (the screen will show

“ALL”) to replay the entire playli󰘵, and press “PRT” twice (the screen will show “ONE”) to replay the track.

10. 󰄈gures "0 to 9": Press a number from 0 to 9 to switch from one track to another on the

USB key/SD card. 11.Play/pause: Short-press to pause the music. Press again to resume the music. 12.MUTE: Press this button to mute the music. Appliance technical specifications Type Speci󰄈cations Type Speci󰄈cations Speaker 2 x 6.5” (2x10W ) Charging time 5-6 hours Bluetooth pairing name PARTYBTHPLH Bluetooth version 5.3 RMS power 20 W Playback time 100% volume about

volume about 3.5 hours Speaker frequency 100 Hz - 20 KHz Bluetooth frequency 2.40 - 2.48 GHz Power supply 9V 2A Speaker 16.5 cm, 4 ohm speaker S/B ratio ≥70dB Transmission range 10 m EIRP 2.24 dBm Battery type Battery 3000mAh - Lithium Dimensions (WxDxH) 550*245*270mm Net weight 4.35 kg accessories included- EN 18 - Technical specifications of the adapter

• Supply voltage and frequency: 100-240V 50/60Hz

• Output voltage, current, electrical power: 9.0V, 2A, 18W

• Average e󰘲ciency in active mode: ___85___%

• Low-load e󰘲ciency (10%): ___75__%

• No-load power consumption: __0.1___W Warning about batteries This product contains one or more batteries.

• Do not swallow the battery/ies. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.

• The batteries (or battery pack) mu󰘵 not be exposed to excessive heat, such as sunlight, 󰘰re, etc.

• Do not heat batteries and do not dispose of them in 󰘰re or water.

• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.

• Do not disassemble the batteries.

• Cover the ends of the batteries with tape to prevent explosions and combu󰘵ion when these need to be scrapped.

• Be environmentally friendly when scrapping batteries

• Do not dispose of batteries in ordinary household wa󰘵e.

• When scrapping batteries, be sure to comply with the local regulations in force in this matter.- EN 19 - Care for the environment Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused. Attention should be drawn to the environmental aspects of battery disposal. When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please 󰘰nd out about the local separate collection sy󰘵em for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household wa󰘵e. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health. Additional information

• To save energy, when the appliance does not issue any audio output for a certain amount of time, it will automatically go into 󰘵andby mode. It can be switched ON by using the POWER selector again

• If there is an incoming call while the PARTYBTHPLH sy󰘵em is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends (depending on the type of mobile phone, playback may sometimes 󰘵ay paused after the end of the call).

, the mark and logo are regi󰘵ered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.

• This product is manufactured and sold under the responsibility of Bigben Interactive.

• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners. Declaration of conformity

• Bigben Interactive hereby declares that the PARTYBTHPLH type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/ Warranty This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which o󰘯er a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.- EN 20 - Support www.bigben-interactive.co.uk/support [e-mail] Made in China Manufactured by BIGBEN INTERACTIVE SA 396, Rue de la Voyette CRT2 – FRETIN CS 90414 59814 LESQUIN Cedex - France www.bigben.eu
