CD63NUSB - Loudspeaker BIGBEN - Free user manual and instructions

Product type	Speaker with CD player
Brand	Bigben
Model	CD63NUSB
Power supply	Mains 110-240 V~ 50/60 Hz or 4 x R14 batteries (not included)
RMS power	4 W
Speaker	40 mm, 4 ohms
Speaker impedance	4 ohms
Sensitivity	90 ± 2 dB
Power consumption	2 W
Standby power consumption	0.5 W
Audio inputs	AUX (3.5 mm), USB (max 32 GB), headphones (3.5 mm)
FM radio	Yes, with telescopic antenna
CD player	Yes, audio CD
Equalizer	FLAT, CLASS, JAZZ, ROCK, POP
Repeat functions	Repeat one track, repeat all tracks
FM station presets	Up to 30 programmable stations
Warranty	2 years
Maintenance	Soft dry cloth, no abrasive products
Safety	Indoor use only, do not expose to water, keep out of reach of children
Support service	www.bigben.fr/support, phone [phone] (Mon-Fri 10am-6pm)

Frequently Asked Questions - CD63NUSB BIGBEN

How to turn on the CD63NUSB device?

Briefly press the ON/OFF button to turn on the device. It will default to FM radio mode.

How to listen to FM radio?

Press MODE to select FM mode. Unfold the FM antenna for better reception. Use the PREV/TUN- and NEXT/TUN+ buttons to manually search for stations, or press and hold for automatic search.

How to play a CD?

Open the CD player lid, insert an audio CD, then press MODE to select CD mode. Press Play/Pause to start playback.

How to connect a USB flash drive?

Insert a USB flash drive (max capacity 32 GB) into the USB port. Press MODE to select USB mode. Playback starts automatically.

How to use the auxiliary input?

Connect a 3.5 mm jack cable between the AUX input of the device and the audio source (MP3 player, phone). Press MODE until AUX mode is selected.

How to adjust the sound equalizer?

Press and hold the EQ/MODE button to cycle through sound modes: FLAT, CLASS, JAZZ, ROCK, POP. Release when the desired mode is displayed.

How to repeat a track?

In CD or USB mode, briefly press STOP/REP/MEM to repeat the current track. Press a second time to repeat all tracks, and a third time to cancel repeat.

What batteries to use and how to install them?

Use four R14 batteries (not included), respecting the polarity (+ and -) indicated in the compartment. Do not mix different types of batteries or new and used batteries.

How to clean the device?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use abrasive products or harsh cleaners. Do not lubricate any parts.

What to do if the device does not turn on?

Check the mains connection or battery status. Make sure the outlet works. If the problem persists, contact Bigben support at 09 69 39 79 59 or via www.bigben.fr/support.

USER MANUAL CD63NUSB BIGBEN

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Démarrage

6. LECTURE/PAUSE/P+/SCAN

Réglage radio FM

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

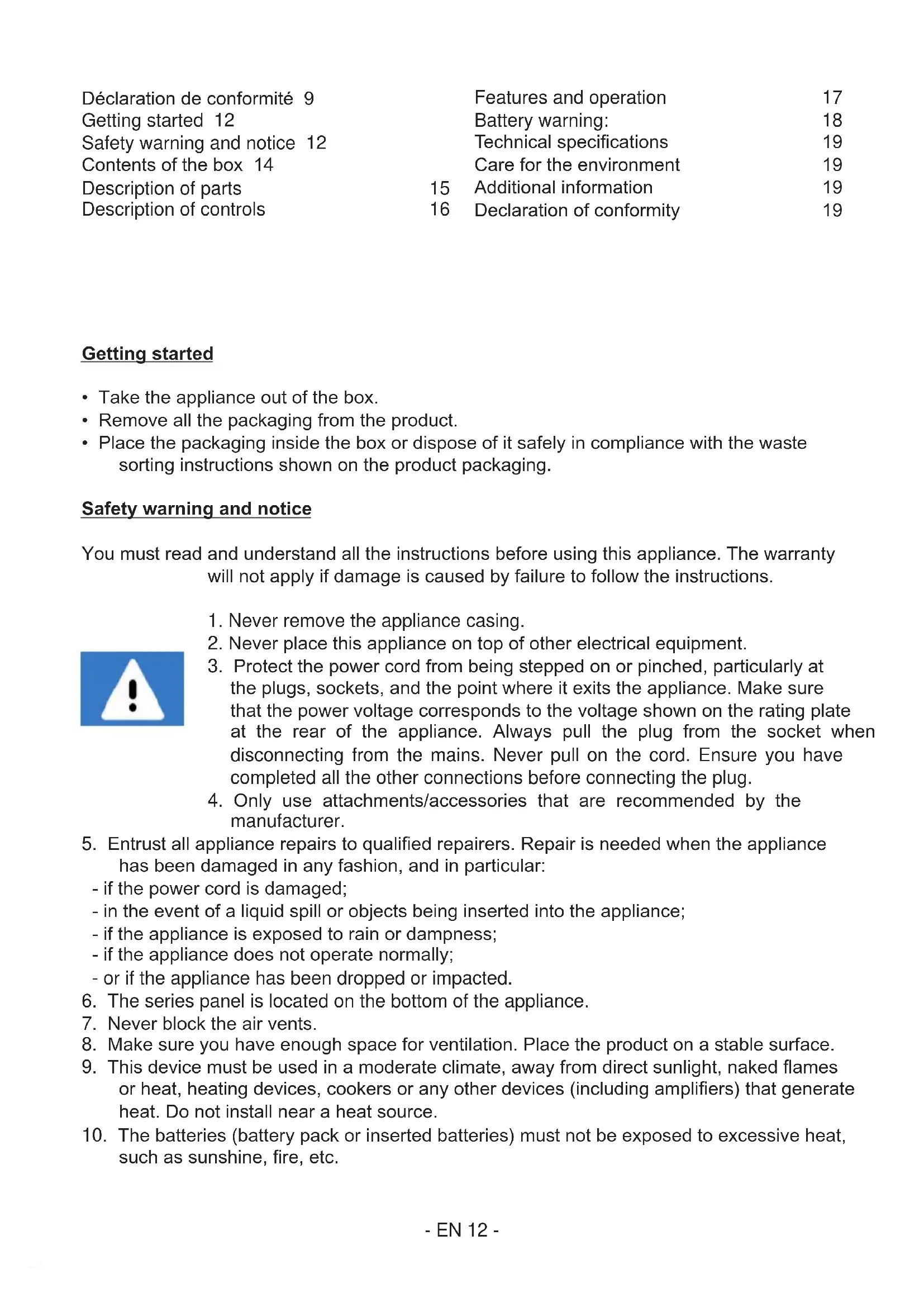

Déclaration de conformité 9		Features and operation	17
Getting started 12		Battery warning:	18
Safety warning and notice 12		Technical specifications	19
Contents of the box 14		Care for the environment	19
Description of parts	15	Additional information	19
Description of controls	16	Declaration of conformity	19

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this appliance from the mains if necessary.
18. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
19. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
20. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimal distance of 20 cm from the human body when working.
24. This appliance is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• CD player
• Mains power cord
• User manual

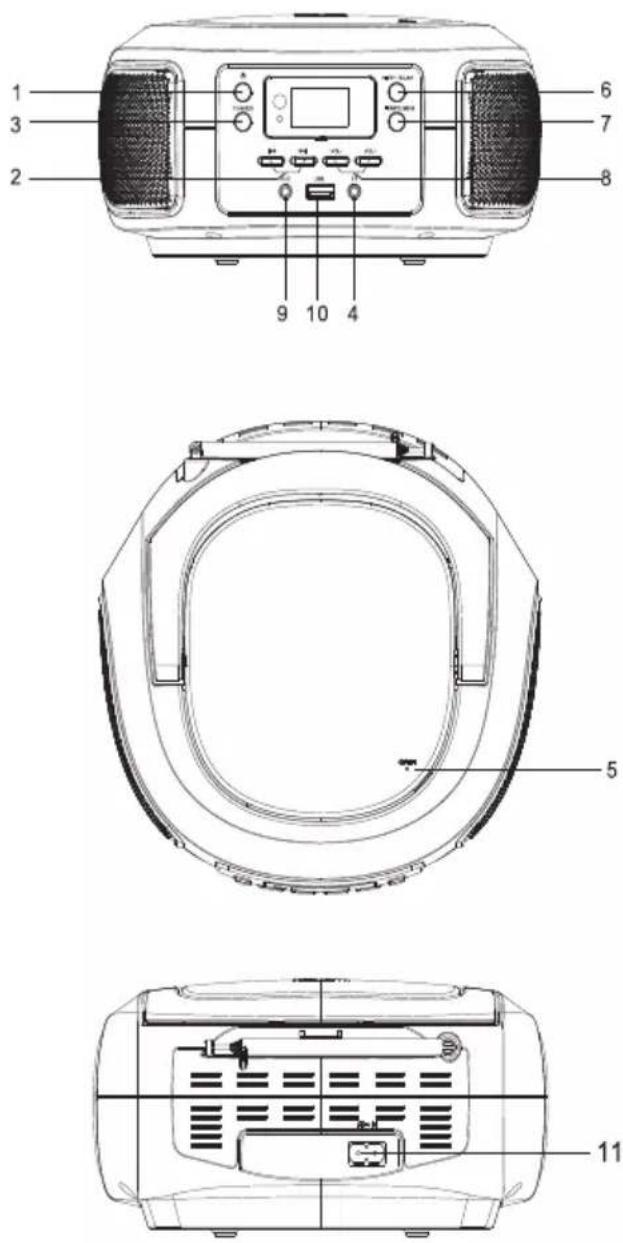

1. ON/OFF
2. PREV/TRAK-/NEXT/TRAK+
3. EQ/MODE
4. HEADPHONE INPUT
5. CD PLAYER LID
6. PLAY/PAUSE/P+/SCAN
7. STOP/REP/MEM
8. VOL+/VOL-
9. AUX
10. USB
11. POWER SUPPLY

Description of controls

1. ON/OFF

Standby mode: press briefly to turn the device on and again briefly to turn it off. The device defaults to FM radio when turned on for the first time.

2. PREV/TRAK-/NEXT/TRAK+

In FM mode: Short-press to manually search for your radio station. Long-press to cycle through the stations.

In CD/USB mode: Short-press to return to the previous track or skip to the next one. Long-press to rewind or fast forward.

In AUX mode: These buttons do not have a function.

3. EQ/MODE

A long press on the EQ button switches between the different sound modes (FLAT/CLASS/JAZZ/ROCK/POP).

During operation: short-press to change mode (Radio/CD/USB/AUX).

4. EARPHONES

EARPHONES input

WARNING! Risk of hearing damage

- Adjust the volume on the device to low power before plugging in the headphones.

- Do not set the volume too high, especially if you use them often or for a long time.

Exposure to excessive volumes can cause irreversible hearing damage.

5. OPEN/CLOSE THE CD PLAYER COVER

6. PLAY/PAUSE/P+/SCAN

In FM mode: short-press to quickly cycle through the available station frequencies. Press for 2 seconds to automatically search for FM frequencies.

In CD/USB mode: short-press to pause playback, and a second short press to resume playback.

In AUX mode: This button has no function.

7. STOP/REP/MEM

In FM mode: short-press to save the station you're listening to. You can store up to 30 stations with << and >>.

In CD/USB mode: In play mode, short-press to repeat one track, press a second time to repeat all tracks, and a third time to cancel repeat. Long-press to stop playback.

In AUX mode: This button has no function.

8. VOL+/VOL-

Short-press to increase or decrease the volume by one level. Long-press to gradually increase or decrease the volume.

9. AUX

Use the auxiliary input to connect an external audio source (MP3 player) to the appliance.

10. USB

Insert a USB stick and press the Mode button to select the USB mode. NB: Only use a USB stick with a maximum capacity of 32 GB. A higher capacity may damage the device.

11. MAINS POWER INPUT

Use the mains power input to connect the appliance to the mains.

Power cable specifications

Power supply: 110-240V\~50/60Hz 0.5A

Maximum output: 5V = 1 A Max

Cable length: About 1.2 m

Features and operation

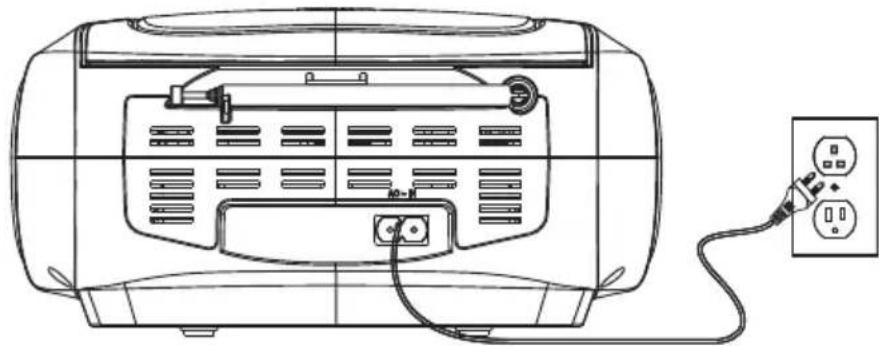

Mains supply

Connect the detachable mains cable to a standard wall outlet (110-240V\~ 50/60Hz)

Battery power supply

Requires four R14 batteries (not included).

FM radio setting

Step 1: Press the Mode button to select FM mode. Extend the FM antenna to improve FM reception.

Step 2: Briefly press PREV or NEXT to go back to the previous station or skip to the next one.

Play a CD

Step 1: Open the CD player lid and put a CD in the player.

Step 2: Press the Mode button to select CD mode.

Step 3: Press the Play/Pause button to start playing the selected CD.

Using the auxiliary input

Step 1: Connect a 3.5 mm jack cable to the auxiliary input on the device and to the audio output of the MP3 player or mobile phone.

Step 2: Press the MODE button several times to select the Aux input mode.

Music played by the connected MP3 player is now streamed by the device.

Battery warning:

This product contains one or more batteries.

• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the product if the battery compartment does not close properly.
• If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.
• If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.
• Do not swallow the battery/ies. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or fires.
• Do not use different types of battery or a mixture of new and old batteries at the same time.
• Insert the batteries according to the correct polarity (+ and -).
• Do not put the same battery poles in contact with each other.
• Remove dead batteries quickly. There is a risk of the battery exploding if this is not replaced correctly or if the appliance is not used for a period of time.
• Replace the battery with an identical or equivalent model.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries and do not dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these need to be scrapped.

• Be environmentally friendly when scrapping batteries

• Do not dispose of batteries in ordinary household waste.

• When disposing of batteries, be sure to follow local disposal regulations.

Technical specifications

Type Specifications Type Specifications
Speaker 2 W RMS power 4 W
Power consumption 2 W	Power supply 5V, 1A direct current
Impedance of the speaker 4 Ω Loud-speaker			Speaker ∅ 40 mm, 4 Ohms
Sensitivity 90 ± 2dB Standby power 0.5 W

In an environment with electrostatic discharge, the device may turn off. The user must then recharge the battery and reset the device.

Care for the environment

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

- This product is manufactured and sold under the responsibility of Bigben Interactive.

Declaration of conformity

- Bigben Interactive hereby declares that the CD63NUSB-type radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www.bigben-interactive.co.uk/support

[e-mail]

Made in China
