Product Type	Gas Drill
Brand	Tanaka
Model	TED-270PFDH
Displacement	26.9 ml (1.64 cu in)
Spark Plug	Champion CJ-8 or equivalent
Fuel Tank Capacity	0.67 L (22.8 fl oz)
Dry Weight	6.6 kg
Chuck Capacity	12.7 mm (1/2 in)
Drive Shaft Diameter	1/2"-20 UNF
Max Bit Size (Wood)	25.4 mm (1 in)
Lock Off Switch	Yes
Sound Pressure Level (LpA)	94.0 dB(A)
Sound Power Level (LwA)	104 dB(A)
Vibration (Front Handle)	Up to 7.81 m/s²
Vibration (Rear Handle)	Up to 6.76 m/s²
Power Source	Mixture of unleaded gasoline (89 octane) and 2-cycle oil (ratio 25:1 to 50:1)
Maintenance	Regular cleaning of air filter, spark plug, cylinder fins, and muffler. Drain fuel tank for long-term storage.
Safety	Wear goggles, gloves, hearing protection, and dust mask. Do not use indoors.
Spare Parts	Use only genuine Tanaka parts
General Information	114-page manual available in multiple languages. CE declaration of conformity.

Frequently Asked Questions - TED-270PFDH Tanaka

How to start the Tanaka TED-270PFDH drill?

Set the switch to ON, press the primer bulb (if present), close the choke, pull the starter cord sharply until the engine fires, then open the choke and pull again. Let it warm up for 2-3 minutes before use.

What fuel to use?

Use a mixture of unleaded gasoline (89 octane) and JASO FC or ISO EGC grade two-stroke engine oil, in a ratio of 25:1 to 50:1. For California, use a 50:1 ratio.

What is the chuck capacity?

The chuck accepts drill bits with a maximum diameter of 12.7 mm (1/2 inch).

How to adjust idle speed?

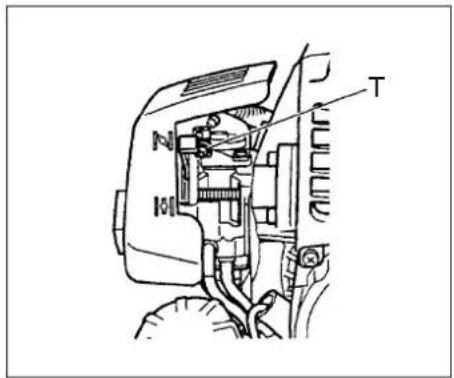

Idle speed is adjusted with the T screw. The drill bit should not rotate at idle. If necessary, screw in the T screw until the bit starts to turn, then unscrew until it stops.

How to clean the air filter?

Remove the filter cover, take out the element, wash it in warm soapy water, dry it, then soak it in two-stroke engine oil and squeeze out excess. Replace if damaged.

What to do if the bit rotates at idle?

This indicates idle speed is too high. Adjust the idle screw (T) by unscrewing it until the bit stops. If the problem persists, consult a Tanaka dealer.

How to replace the spark plug?

Disconnect the spark plug cap, unscrew the plug with a suitable wrench, check the electrode gap (0.6 mm) and replace with a new Champion CJ-8 or equivalent. Tighten firmly.

How to store the machine for a long period?

Empty the fuel tank, run the engine until it stops, clean the machine, put a few drops of oil into the cylinder through the spark plug hole, and store in a dry place.

What safety precautions to take?

Always wear goggles, gloves, hearing protection, and a dust mask. Do not use indoors due to toxic fumes. Maintain a safety zone of 5 meters.

Where to find replacement parts?

Use only genuine Tanaka parts. Contact an authorized Tanaka dealer for spare parts.

USER MANUAL TED-270PFDH Tanaka

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book and a lowercase 'i' symbol, no text or labels present

Read the manual carefully before operating this machine.

Owner's manual

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a circle (no text or symbols)

Always wear eye, head and ear protectors when using this unit.

Two black-and-white icons: one showing a person reading a book, the other showing an open book (no text or symbols)

It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.

Two abstract black symbols on white background, no text or labels present

Explains choke position. Upper sign indicates choke closed and the lower fully open.

Read, understand and follow all warnings and instructions in this manual and on the unit.

Do not touch the bit when running the engine.

!WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Before using your machine

• Read the manual carefully.
• Check that the cutting equipment is correctly assembled and adjusted.
• Start the unit and check the carburetor adjustment. See "Maintenance".

Declaration of conformity

We, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

Declare under our sole responsibility that the product, Engine drill model

TED-270PFL/PFLS

TED-270PFR/PFRS

TED-270PFHS/PFDH

TED-270PFDLS

to which this declaration relates is in conformity with the essential safety requirements of directives.

98/37/EC, 89/336/EEC, 2000/14/EC

The following standards have been taken into consideration

ISO 3864 (EN ISO 12100-1/2)

Manufactured at : Chiba, Japan

on the 01/01/2008

Signature:

Yoshio Osada

Serial No. up from

E001001

Position : Director

Index

What is what? 4

Warnings and safety instructions 5

Assembly procedures 6

Operating procedures 6

Maintenance 10

Specifications 12

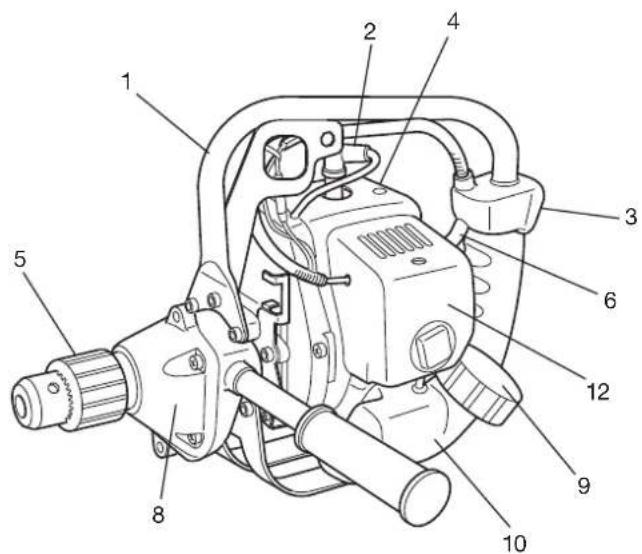

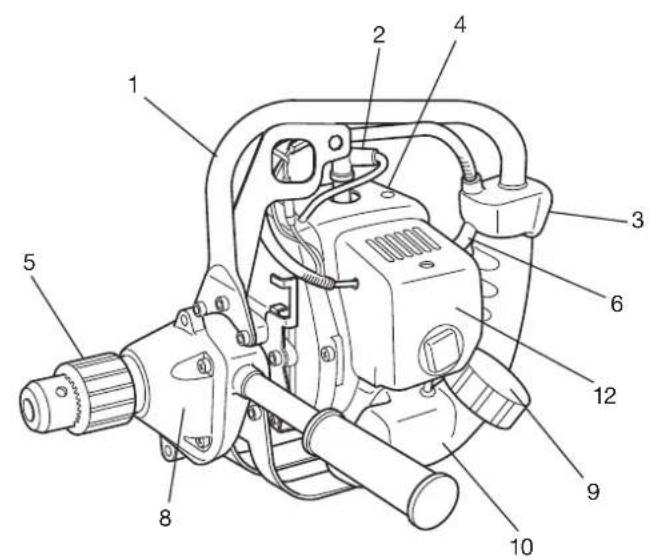

1. What is what?

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

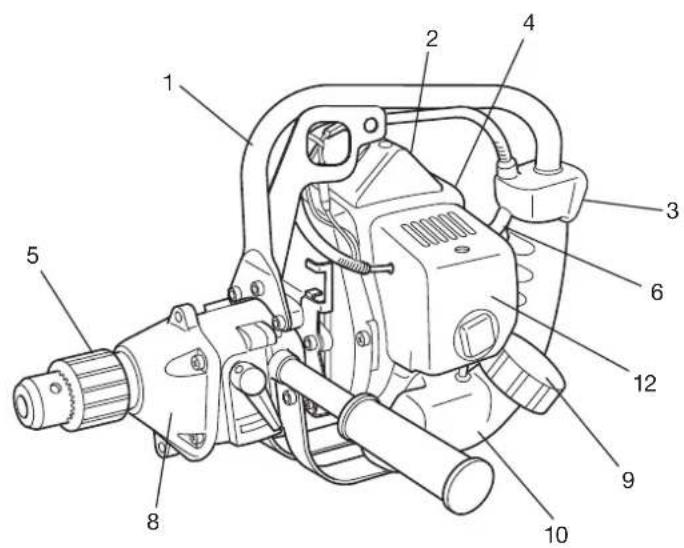

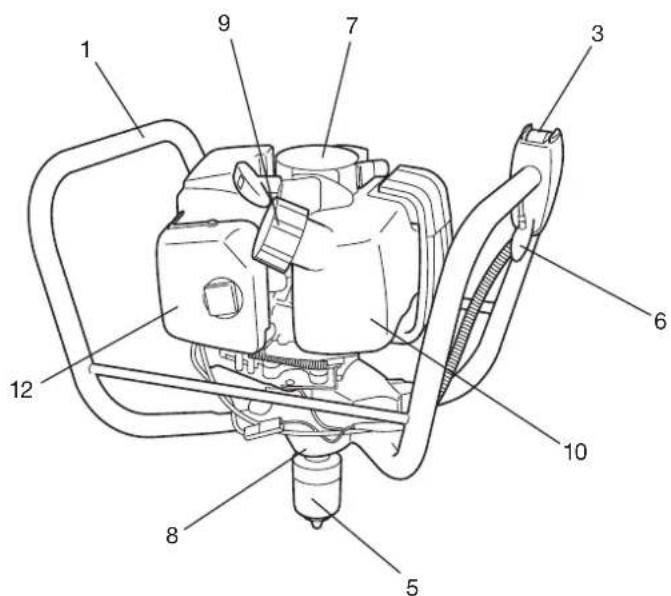

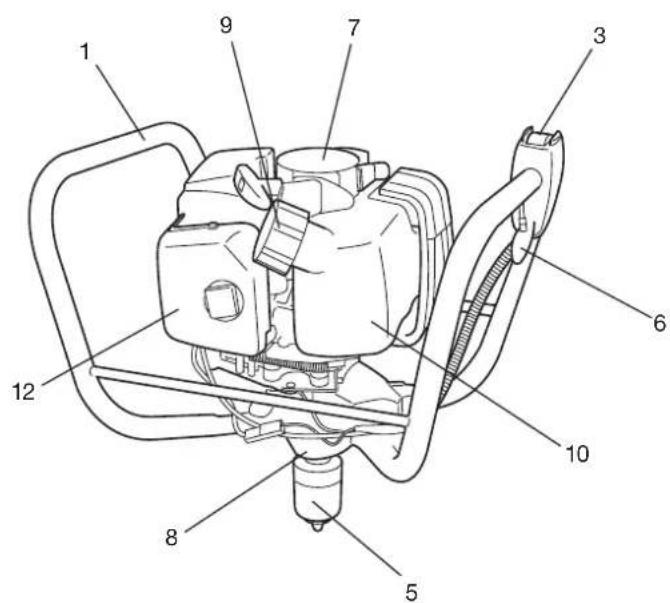

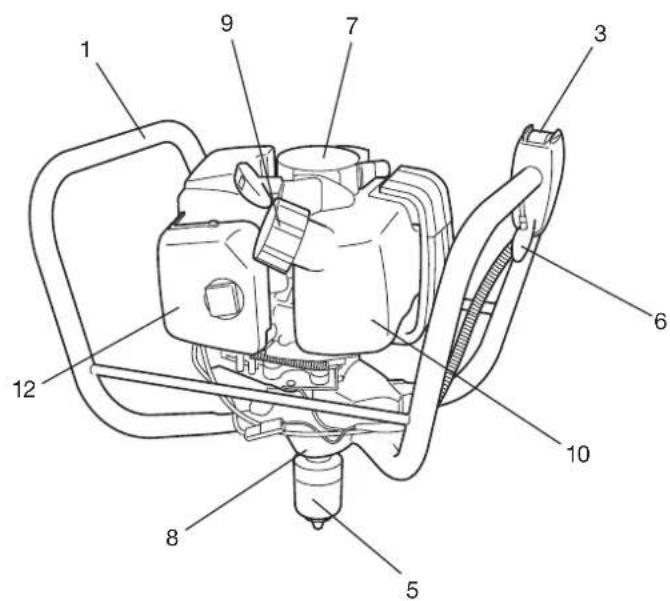

1. Handle
2. Plug cap
3. Ignition switch
4. Muffler
5. Chuck unit
6. Throttle trigger
7. Recoil starter
8. Gear case
9. Fuel cap
10. Fuel tank
11. Shift lever
12. Air cleaner
13. Hole for strap

2. Warnings and safety instructions

Operator safety

• Always wear a safety face shield or goggles.
- Always wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
- Do not operate this unit/machin when you are tired, ill or under the influence of alcohol, drugs or medication.
- Never let a child or inexperienced person operate the machine.
- Wear hearing protection.
- Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.
- Keep handles free of oil and fuel.
- Keep hands away from drilling equipment.
- Do not grab or hold the unit by the drilling equipment.
- When the unit is turned off, make sure the drilling attachment has stopped before the unit is set down.
- When operation is prolonged, take a break from time to time so that you may avoid possible whitefinger disease which is caused by vibration.

Unit / machine safety

• Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
• Replace parts that are cracked, chipped or damaged in any way before using the unit/machine.
• Keep others away when making carburetor adjustments.
• Use only accessories as recommended for this unit/machine by the manufacturer.

! WARNING!

Never modify the unit/machine in any way. Do not use your drilling tool for any job except that for which it is intended.

Fuel safety

• Mix and pour fuel outdoors and where there are no sparks or flames.
• Use a container approved for fuel.
• Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.

• Wipe up all fuel spills before starting engine.

• Move at least 3 m away from fueling site before starting engine.

• Stop engine before removing fuel cap.
• Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.

WARNING!

Antivibration systems do not guarantee that you will not sustain whitefinger disease or carpal tunnel syndrome.

Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.

Drilling safety

• Do not drill any material other than that for which is intended.
• Inspect the area to be drilled before each use. Remove objects which can be thrown or become entangled.
• For respiratory protection, wear an aerosol protection mask when drilling the area after insecticide is scattered.
• Keep others including children, animals, bystanders and helpers outside the 5 m hazard zone. Stop the engine immediately if you are approached.
• Hold the unit/machine firmly with both hands.
• Keep firm footing and balance. Do not over-reach.
• Keep all parts of your body away from the muffler and drilling attachment when the engine is running.

Maintenance safety

• Maintain the unit/machine according to recommended procedures.
• Disconnect the spark plug before performing maintenance except for carburetor adjustments.
• Keep others away when making carburetor adjustments.
• Use only genuine Tanaka replacement parts as recommended by the manufacturer.

Transport and storage

• Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
• Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting in a vehicle.
• Empty the fuel tank before storing the unit/machine, It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store unit/machine out of the reach of children.
• Clean and maintenance the unit carefully and store it in a dry place
• Make sure engine switch is off when transporting or storing.
• When transporting in a vehicle, cover bit with bit cover or rug.

If situations occur which are not covered in this manual, take care and use common sense. Contact Tanaka dealer if you need assistance. Pay special attention to statements preceded by the following words:

! WARNING!

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION!

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE!

Helpful information for correct function and use.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a central tool and housing (no text or symbols)

Fig.1-1D

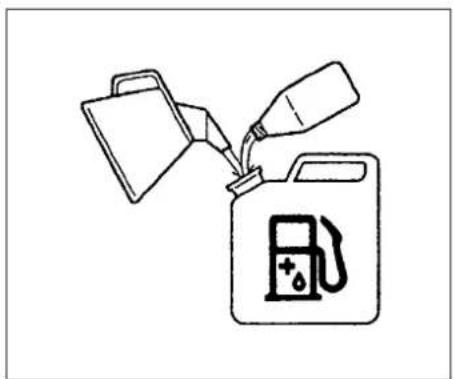

Line drawing of a fuel can pouring liquid into a container with an icon of fuel (no text or symbols)

Fig.2-1

3. Assembly procedures

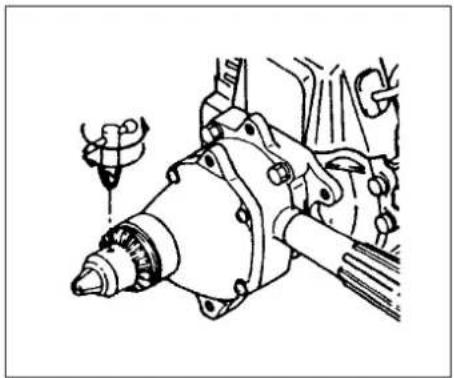

Assembling (Fig. 1-1, 1B, 1C)

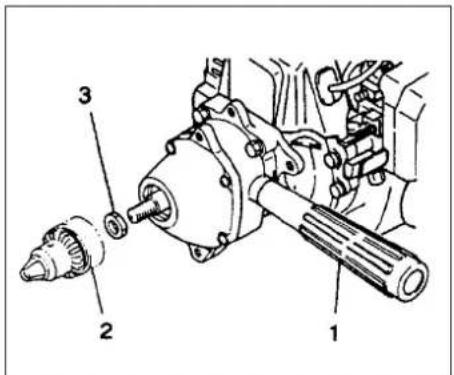

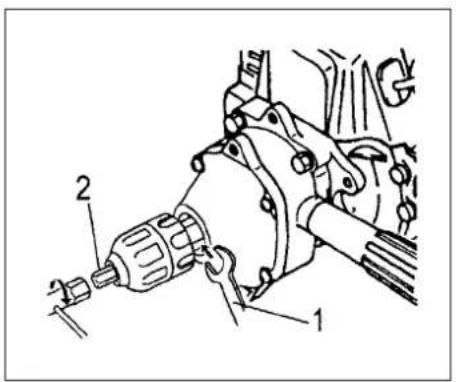

1. Assemble the handle (1) witch is supplied with the unit to the gear case.

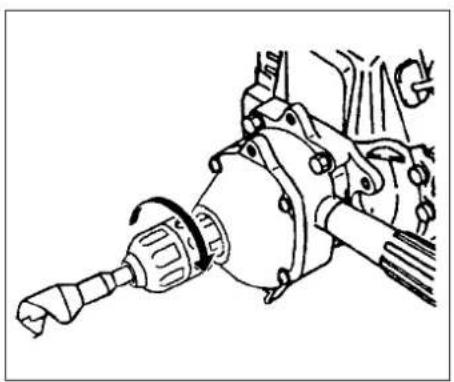

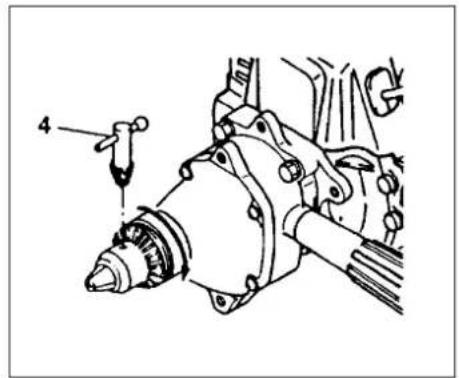

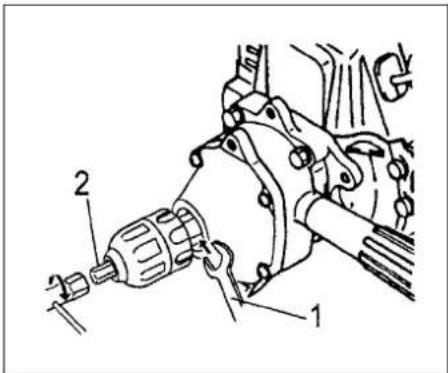

2. Screw the chuck unit (2) into the drive shaft (clockwise) after the collar B (3) has been installed. (if so equipped)
3. Insert the drill bit to be used after opening the chuck by the chuck handle (4) and tighten the chuck by the handle.

NOTE!

If the keylesschuck is equipped, loosen chuck and insert drill bit. Then tighten chuck by turning clockwise till making "click" noise (Fig.1-1D)

Selection of a Suitable Bit

Choose a drill bit according to material to be drilled.

4. Operating procedures

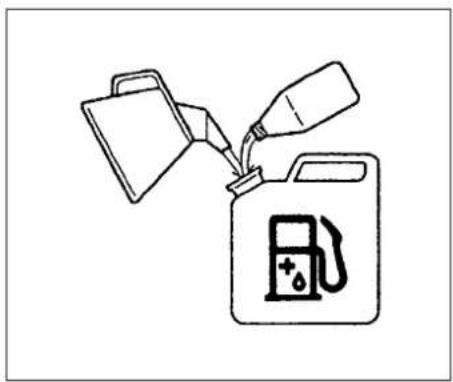

Fuel (Fig. 2-1)

! WARNING!

The power drill is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.

Provide good ventilation, when fueling or handling fuel.

Fuel

• Always use branded 89 octane unleaded gasoline.
- Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or Tanaka dealer
• Only for the state of California at 50:1.
- If genuine oil is not available, use an antioxidant added quality oil expressly labeled for air-cooled 2-cycle engine use(JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.
- Never use multi-grade oil (10 W/30) or waste oil.
• Always mix fuel and oil in a separate clean container.

Always start by filling half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of fuel.

Mix (shake) the fuel-mix thoroughly before filling the fuel tank.

Fueling

! WARNING!

•Always shut off the engine before refueling.
- Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
• Tighten the fuel cap carefully, after fueling.
- Always move the unit at least 3 m (10 ft.) from the fueling area before starting.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.

Fig. 2-2 Fig. 2-2B

Fig. 2-3

Technical line drawing of two mechanical components with hoses and a shaft, no visible text or symbols

Fig. 2-4

Starting

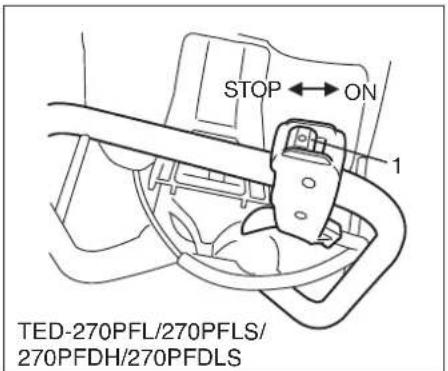

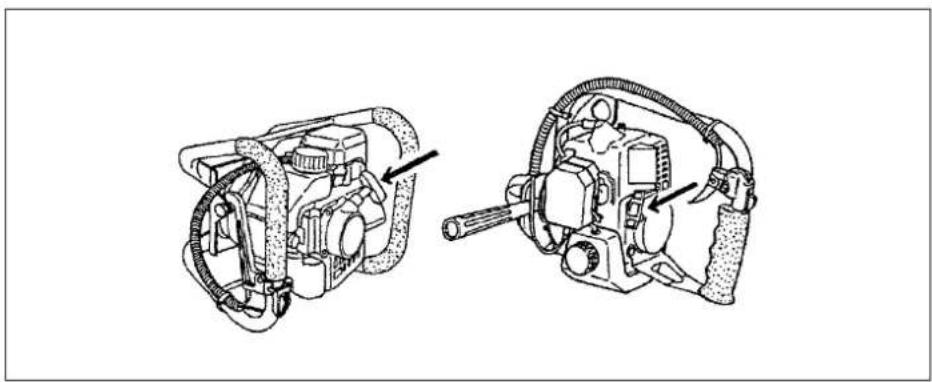

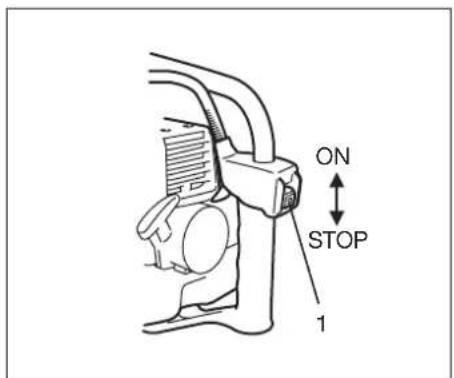

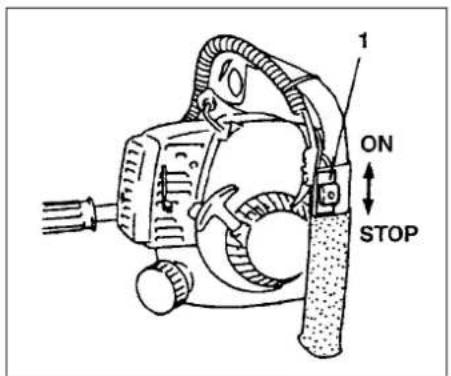

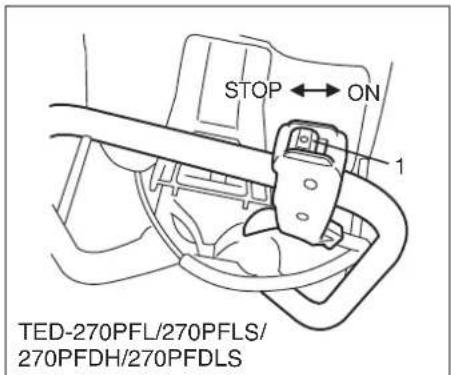

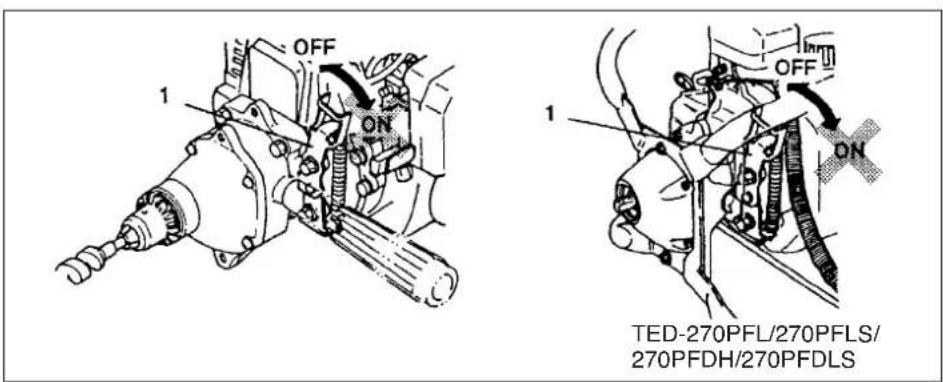

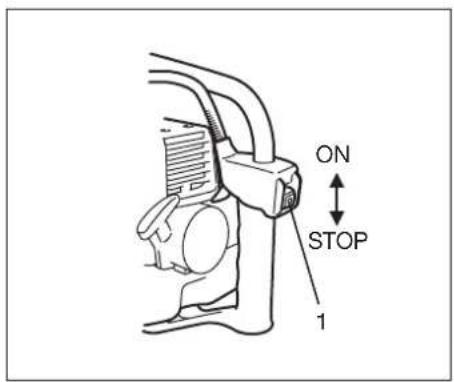

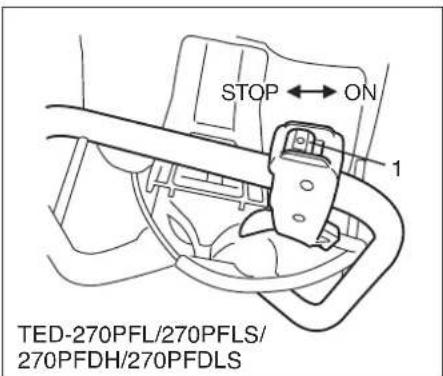

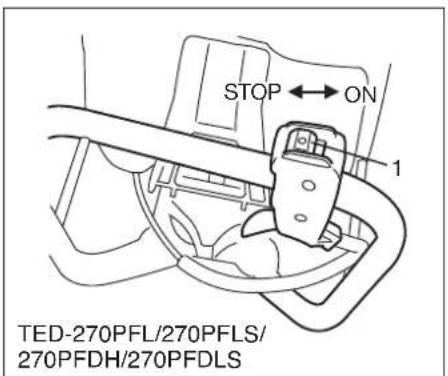

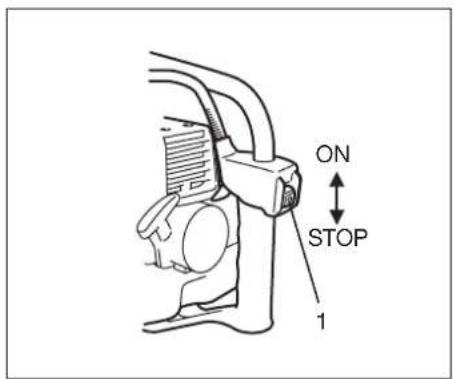

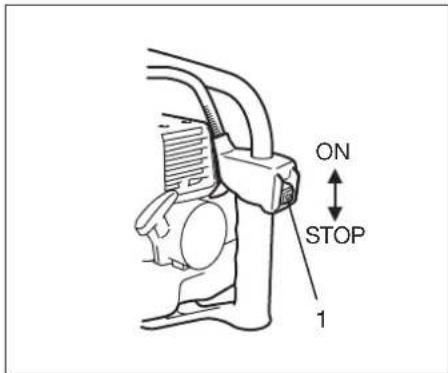

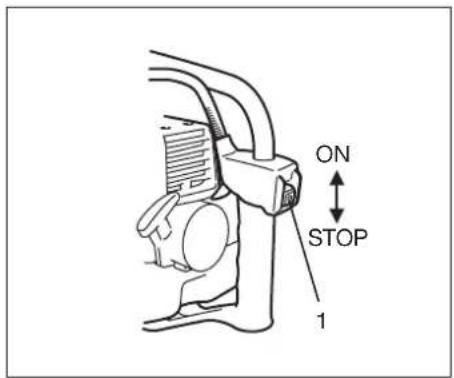

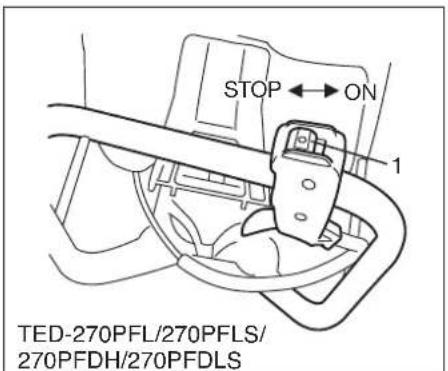

1. Set ignition switch (1) to ON position. (Fig. 2-2, 2B)
   *Push priming bulb (4) several times so that fuel flows through the bulb or return pipe. (If so equipped) (Fig. 2-3)

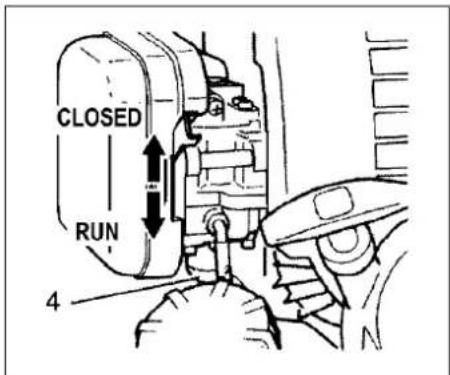

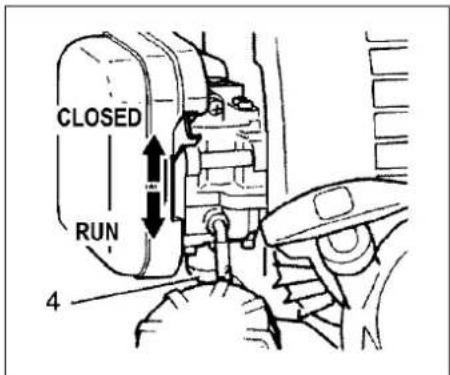

2. Set choke lever to CLOSED position. (Fig. 2-3)

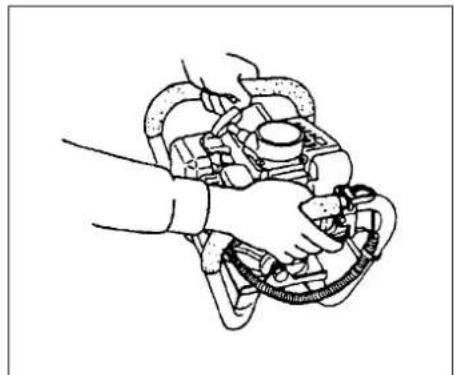

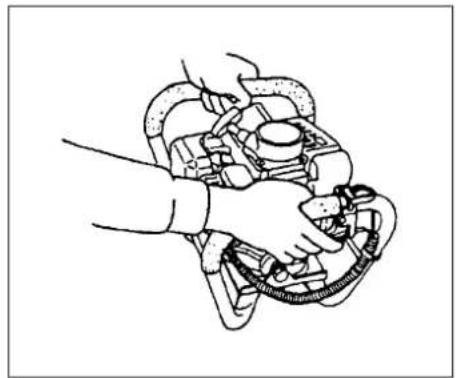

3. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 2-4)
4. When you hear the engine want to start, return choke lever to RUN position (open). Then pull recoil starter briskly again. (Fig. 2-3)

NOTE!

If engine does not start, repeat procedures from 2 to 4.

1. After starting engine, allow the engine about 2-3 minutes to warm up before subjecting it to any load.

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand holding a mechanical component with hoses and gears (no text or symbols)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

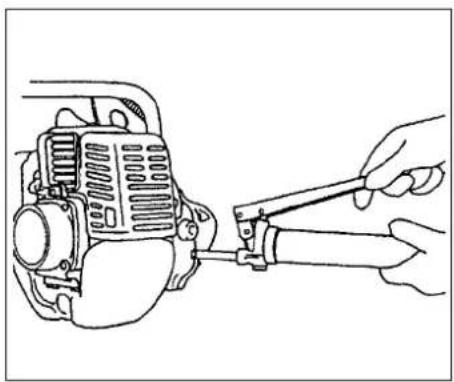

Drilling (Fig. 2-5, 5B)

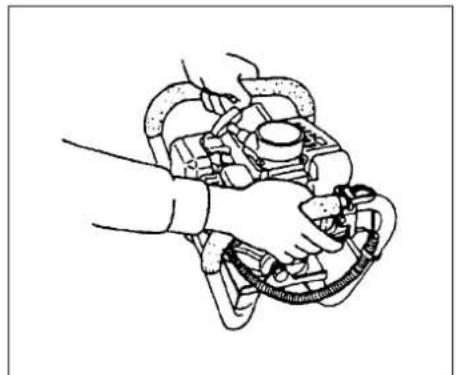

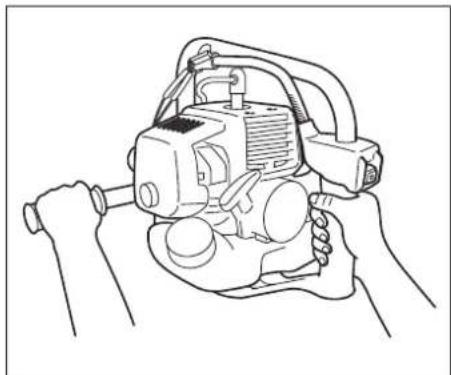

•Always hold unit firmly with both hands on handles and body well balanced.
- Operate at a high engine speed and let drill bit do the work. Do not force bit into hole.
- If material become twisted around drill bit, stop engine, allow unit to cool and remove wire from spark plug before attempting to clear bit.
- Stop engine and inspect unit if abnormal vibration or noise is generated.

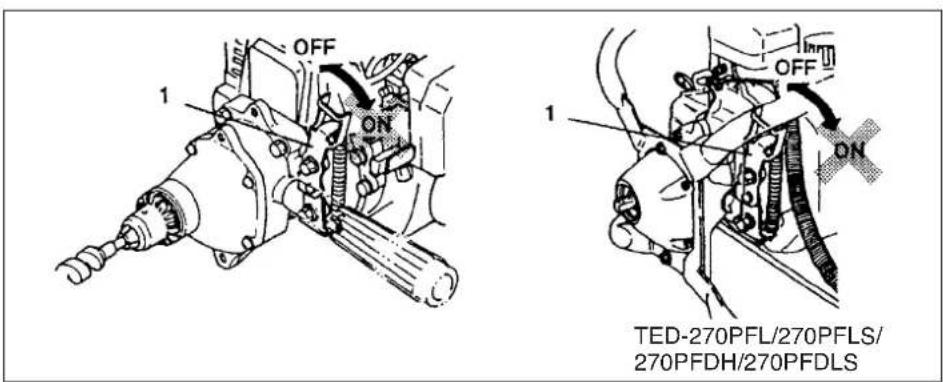

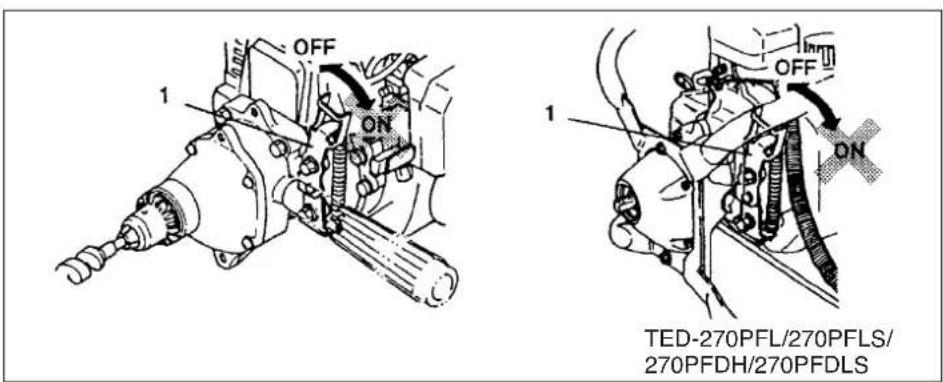

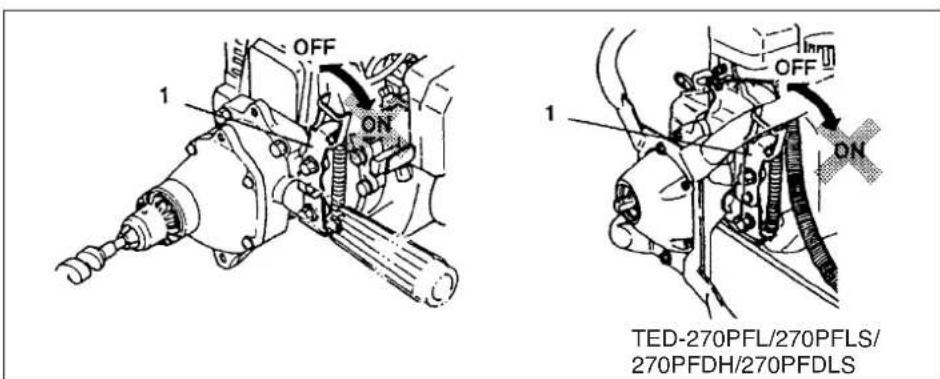

How to operate Lock control (on TED270PFL/270PFLS/270PFDH/270PFDLS) (Fig. 2-5C)

NOTE!

Always stop the engine before operation of lock control.

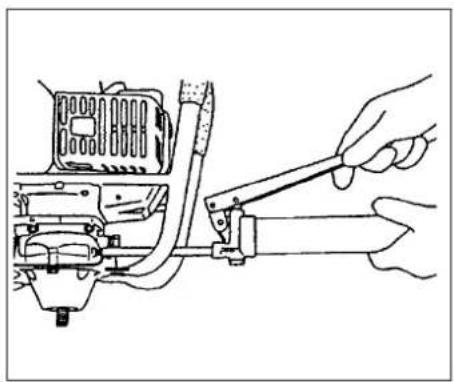

• When bit has stuck in object, stop engine and turn on lock lever (1).
• Rotate whole unit counter-clockwise so that the bit can be pulled out easily.
• If the unit would not move, rotate it clockwise a little and then counterclockwise again.

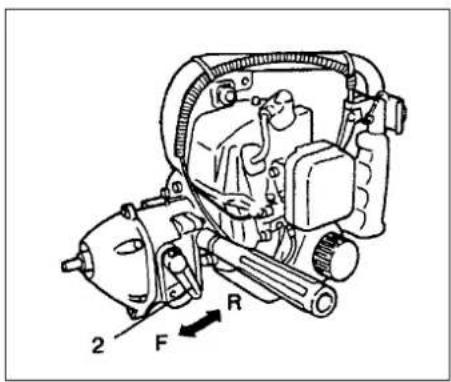

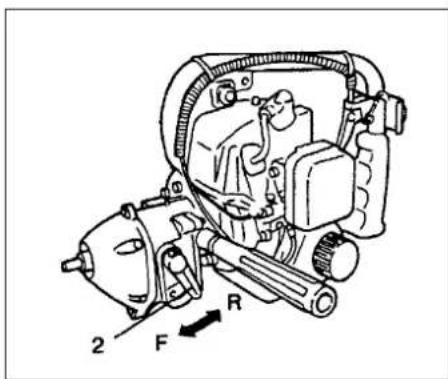

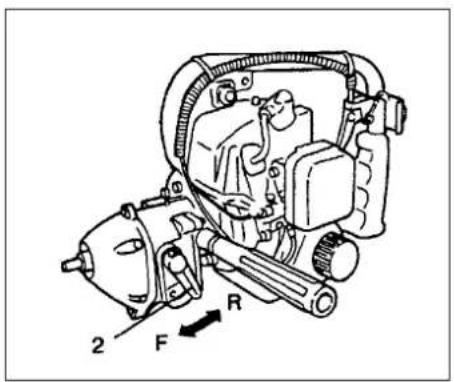

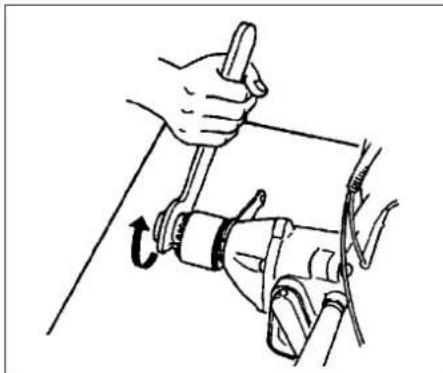

How to operate Reverse control (on TED-270PFR/270PFRS) (Fig. 2-5D)

• Decrease engine speed to idle and move shift lever (2) to R (Reverse) position, then accelerate to pull out.
• Shift lever may not move unless engine is running. If so, turn drill chuck a little bit by hand.

* The purpose of Lock control and Reverse control is mainly for easy pullout of bit.

Mechanical assembly diagram showing a hand operating a tool with a rotating component (no text or symbols)

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Line drawing of a hand using a tool to lift a mechanical component (no text or symbols)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B

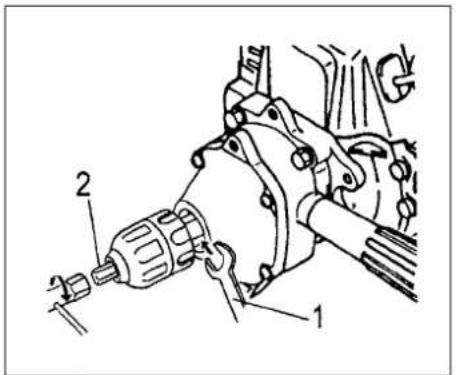

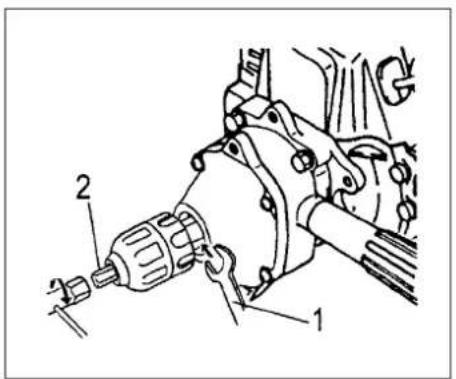

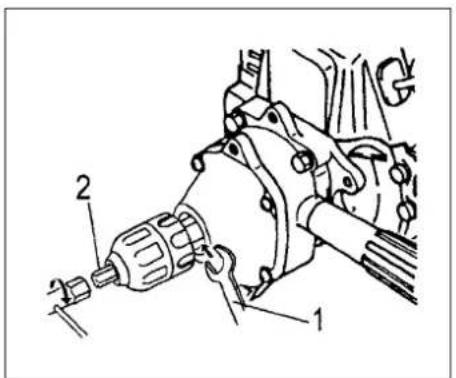

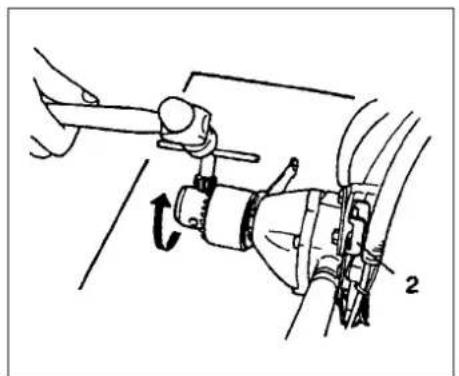

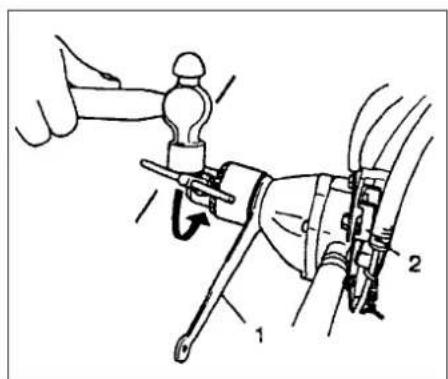

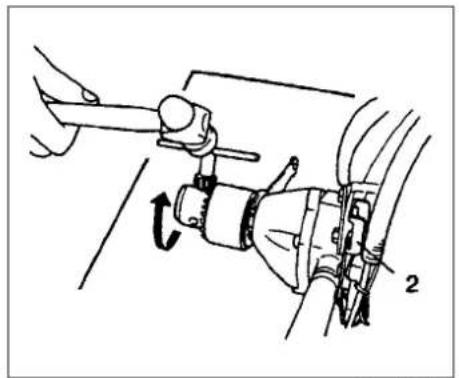

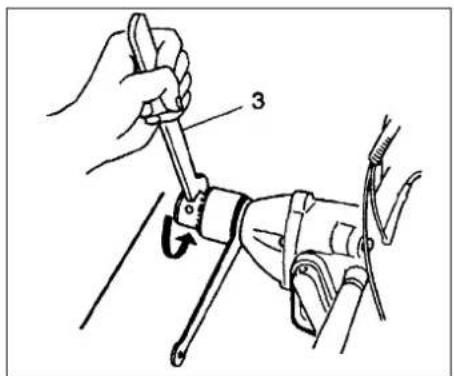

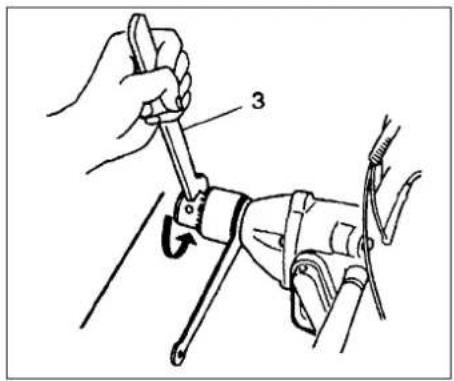

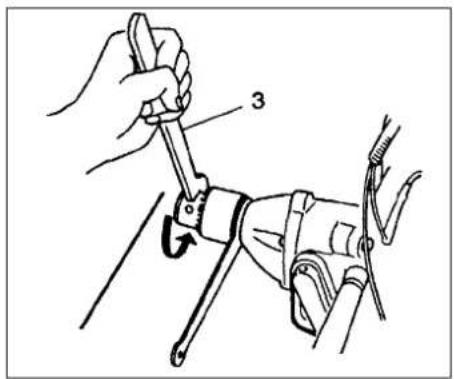

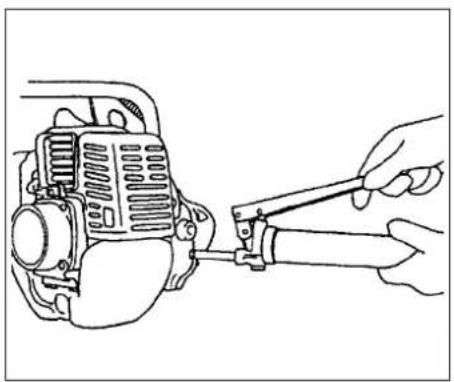

• To tighten the chuck more securely, set a 19mm spanner (1) between gear case and drill chuck to lock drive shaft. Turn on lock lever (2) then hit the mounted chuck handle with a hammer to screw in (clockwise) the chuck. (TED-270PFL/270PFLS/270PFDH/270PFDLS/270PFHS) (Fig. 2-6)

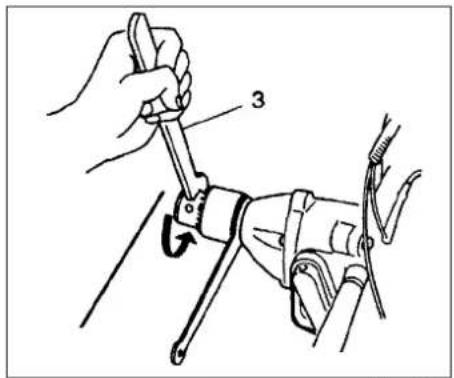

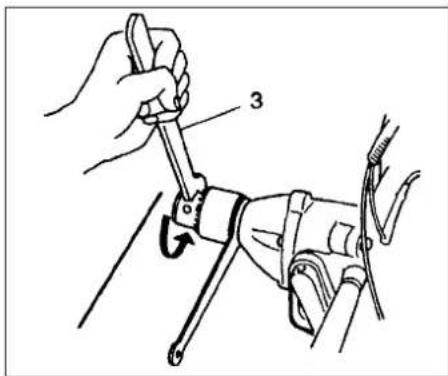

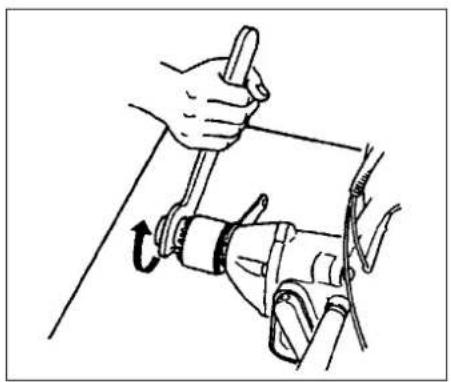

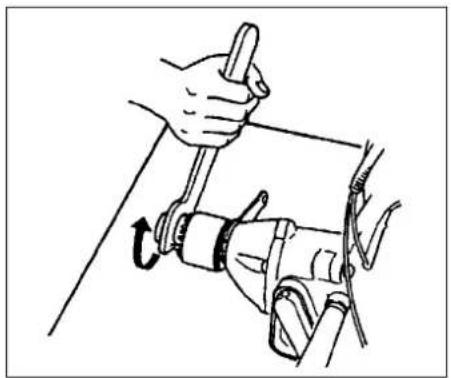

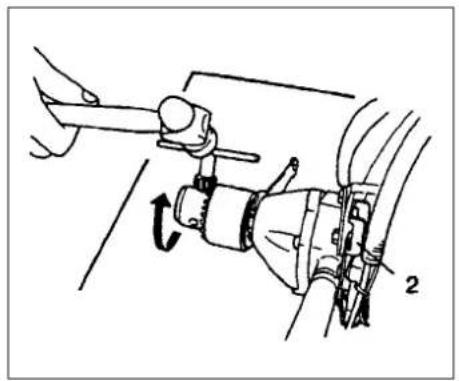

  • To loosen the chuck, set the spanner on the other side and hit the chuck handle from this side to screw out (counterclockwise), the chuck with the lock lever on.(TED-270PFL/270PFLS/270PFDH/270PFDLS/270PFHS) (Fig. 2-6B)

• Note! use chuck mount wrench (3) in place of chuck handle and tighten or untighten manually instead of hitting. Do not hit the chuck mount wrench. (Fig. 2-7, 7B)
  •To install or loosen the keyless chuck, set a 19mm spanner (1) between gear case and chuck to lock drive shaft. Install the locking bar (2) in the tool bag into the chuck, and then tighten(clockwise) the bar (2) with the enclosed box spanner or loosen (counter-clockwise). (Fig.2-7C)

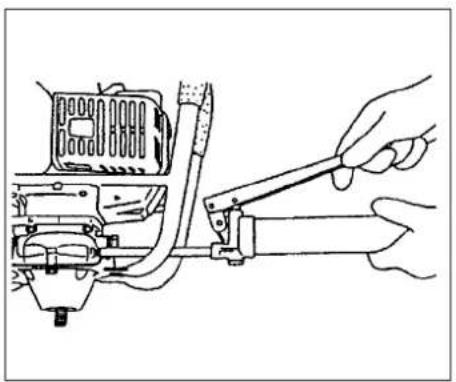

Stopping (Fig. 2-8, 8B)

- Decrease engine speed, and push ignition switch to stop position.

Fig. 3-1

Mechanical assembly diagram showing a disassembled component with parts removed (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 3-4BFig. 3-4

5. Maintenance

MAINTENANCE. REPLACEMENT, OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEM MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 3-1)

WARNING!

The bit may be spinning during carburetor adjustments.

WARNING!

Never start the engine without the complete clutch cover and gear case assembled! Otherwise the clutch can come loose and cause personal injuries.

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility: T = Idle speed adjustment screw.

Idle speed adjustment (T)

Check that the air filter is clean. When the idle speed is correct, the bit will not rotate. If adjustment is required, close (clockwise) the T-screw, with the engine running, until the bit starts to rotate. Open (counter-clockwise) the screw until the bit stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the bit starts to rotate.

If the bit still rotates after idle speed adjustment, contact Tanaka dealer.

WARNING!

When the engine is idling the bit must under no circumstances rotate.

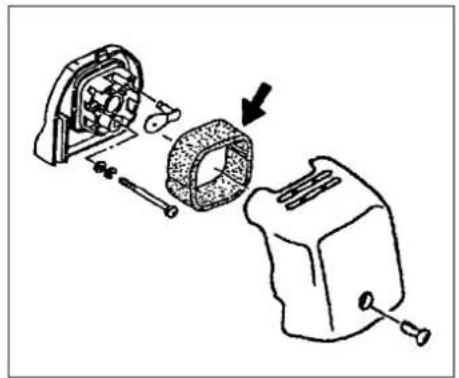

Air filter (Fig. 3-2)

The air filter must be cleaned from dust and dirt in order to avoid:

• Carburetor malfunctions.

- Starting problems.

• Engine power reduction.

- Unnecessary wear on the engine parts.

• Abnormal fuel consumption.

Clean the air filter daily or more often if working in exceptionally dusty areas.

Cleaning the air filter

Remove the air filter cover and the filter. Rinse it in warm soap suds. Check that the filter is dry before reassembly. An air filter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced by a new one. A damaged filter must always be replaced.

NOTE!

Saturate the element in 2 cycle oil or the equivalent. Squeeze the element to distribute the oil completely and to remove any excess oil.

Spark plug (Fig. 3-3)

The spark plug condition is influenced by:

• An incorrect carburetor setting.
• Wrong fuel mixture (too much oil in the gasoline)
• A dirty air filter.
• Hard running conditions (such as cold weather).

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first. If the spark plug is dirty, clean it and check the electrode gap. Readjust if necessary. The correct gap is 0.6 mm (.024"). The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

NOTE!

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

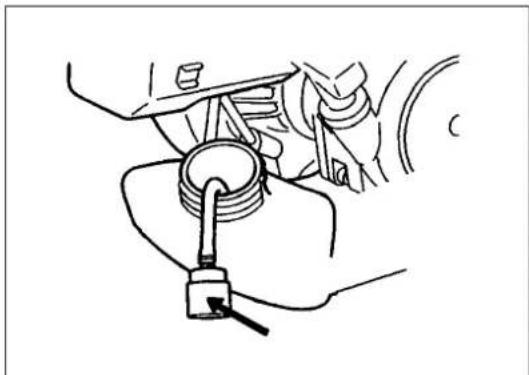

Gear case (Fig. 3-4, 4B)

Apply a good quality lithium based grease through the grease fitting. Lubrication should be applied at 50 hour intervals and more frequent at heavy use.

Line drawing of a mechanical valve assembly with a piston and handle (no text or symbols)

Technical line drawings of mechanical components (no text or labels)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and parts (no text or labels)

Fig. 3-7

Fuel filter (Fig. 3-5)

Remove the fuel filter from the fuel tank and thoroughly wash it in solvent. After that, push the filter into the tank completely.

NOTE!

If the filter is hard due to dust and dirt, replace it.

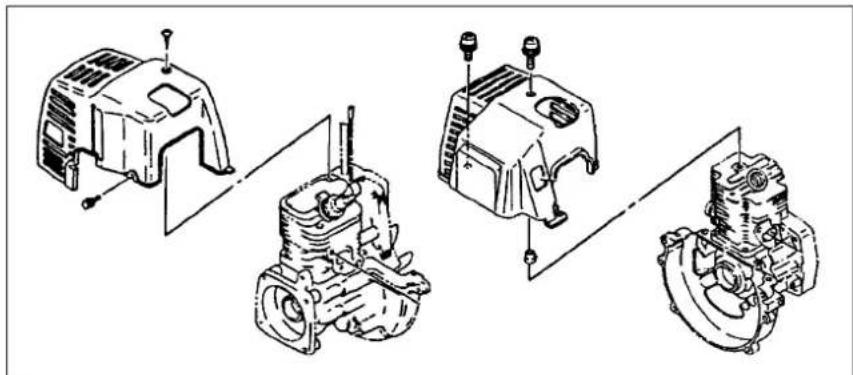

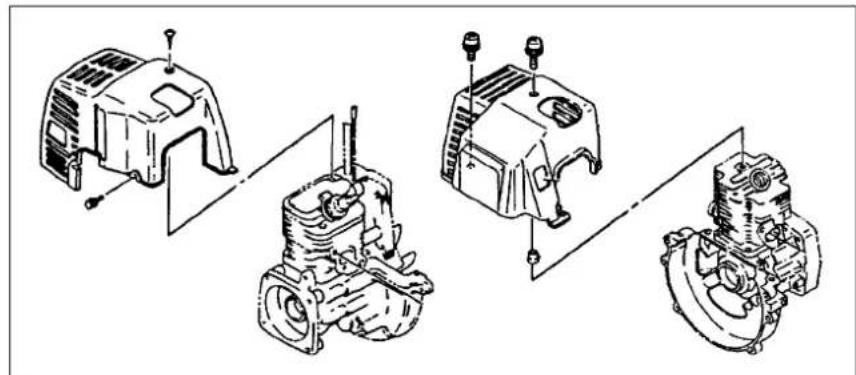

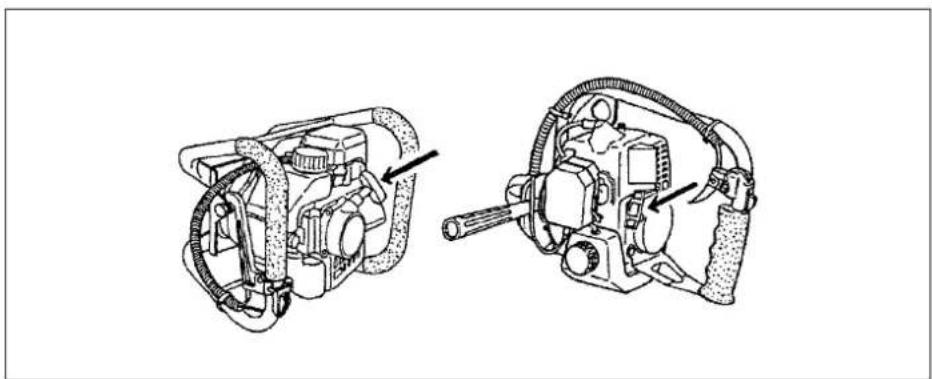

Cleaning the cylinder fins (Fig. 3-6)

When wood chips are caught between cylinder fins, the engine may overheat, resulting in lower output. To avoid this, always keep cylinder fins and fan case clean.

Every 100 Operating hours, or once a year (more often if conditions require), clean fins and external surfaces of engine of dust, dirt and oil deposits which can contribute to improper cooling.

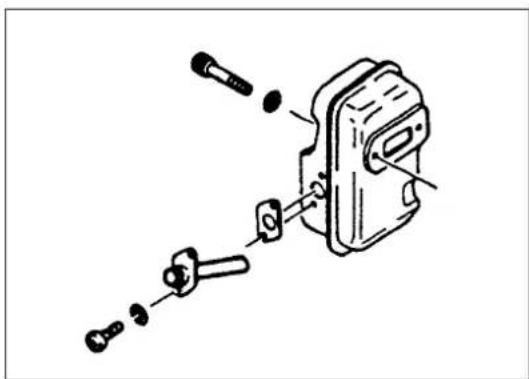

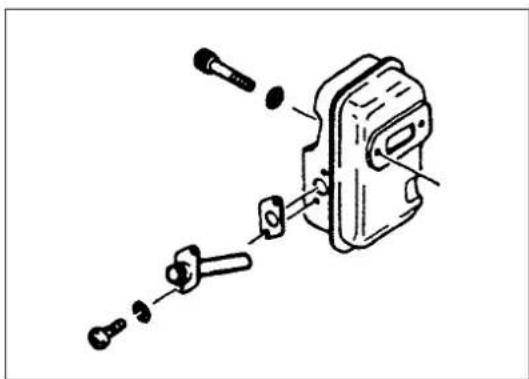

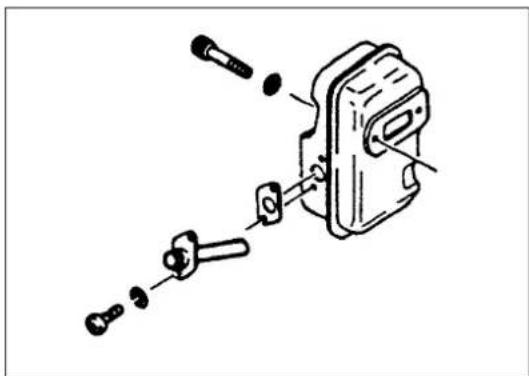

Cleaning the muffler (Fig. 3-7)

Remove the muffler and spark arrestor (if so equipped), and clean out any excess carbon from the exhaust port or muffler inlet every 100 hours of operation.

For long-term storage

Drain all fuel from the fuel tank. Start and let engine run until it stops. Repair any damage which has resulted from use. Clean the unit with a clean rag, or the use of high pressure air hose. Put a few drops of two-cycle engine oil into the cylinder through the spark plug hole, and spin the engine over several times to distribute oil. Cover the unit and store it in a dry area.

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact Tanaka dealer.

Daily maintenance

• Clean the exterior of the unit.
• Check that the drilling attachment is properly centred, sharp, and without cracks. An offcentred bit induces heavy vibrations that may damage the unit.
• Chock that the drilling attachment is sufficiently tightened.
• Check that nuts and screws are sufficiently tightened.

Weekly maintenance

• Check the starter, especially cord and return spring.
• Clean the exterior of the spark plug.

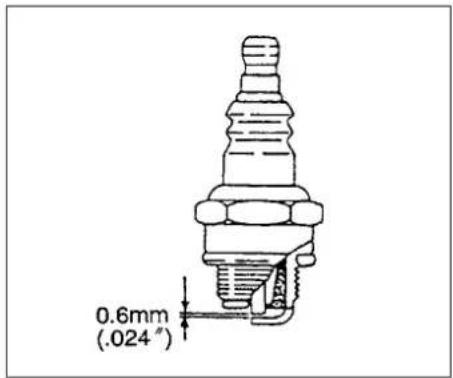

• Remove it and check the electrode gap. Adjust it to 0.6 mm, or change the spark plug.
• Clean the cooling fins on the cylinder and check that the air intake at the starter is not clogged.
• Check that the angle gear is filled with grease up to 3/4.
• Clean the air filter.

Monthly maintenance

• Rinse the fuel tank with gasoline.
- Clean the exterior of the carburetor and the space around it.
- Clean the fan and the space around it.

6. Specifications

MODEL TED-270PFL/TED-270PFLS		TED-270PFR/TED-270PFRS	TED-270PFHS
Engine Size (ml)	26.9 (1.64 cu. in.)	←	←
Spark Plug	Champion CJ-8 or equivalent	←	←
Fuel Tank Capacity (I)	0.67 (22.8 fl. oz)	←	←
Dry Weight (kg)	5.1 (11.2 lbs) 5.6 (12.3 lbs) 5.0 (11.0 lbs)
Chuck Capacity (mm)	12.7 (1/2 in)	←	←
Drive Shaft Diameter	1/2"-20 UNF	←	←
Max. Bit Size (mm)	25.4 (1 in) (Wood)	←	←
Reverse Control		○
Lock Control
Sound pressure level (dB(A))	LpA(EN 27917) 95.1 95.1 95.1
Sound power level (db(A))	LwA116 116 116
Vibration level (m/s2) (ISO 7916)
Front handle	7.1	7.1	7.1
Rear handle	7.2	7.2	7.2

NOTE : Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution : 1/2 idle, 1/2 racing.

*All data subject to change without notice.

MODEL

TED-270PFDH TED-270PFDLS

Engine Size (ml) 26.9 (1.64 cu. in.)

Spark Plug .... Champion CJ-8

or equivalent

Fuel Tank Capacity (I)....0.67 (22.8 fl. oz)

Dry Weight (kg)....6.66.6

Chuck Capacity(mm).... 12.7(1/2 in)

Drive Shaft Diameter....1/2"-20 UNF

Max. Bit Size (mm)....25.4 (1 in) (Wood)

Reverse Control......

Lock Control....○ ○

Sound pressure level (dB(A)) .... LpA (EN 27917) 94.0 94.1

Sound power level (db(A))...... LwA 104 104

Vibration level (m/s ^2 ) (ISO 7916) Front handle .... 7.81 Right 6.50 Rear handle .... 5.66 Left 6.76

NOTE : Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution : 1/2 idle, 1/2 racing. *All data subject to change without notice.

Tanaka®

TED-270PFL/PFLS TED-270PFR/PFRS TED-270PFHS/PFDH TED-270PFDLS

Two black-and-white icons: a person reading a book inside a circle and an open book with an open mouth, both without any text or symbols.

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' beside it, no text or symbols present.

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a circle (no text or symbols)

Two abstract geometric symbols: a horizontal line with a dot and a vertical line with a diamond, both without any text or labels.

Do not touch the bit when running the engine.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Fig.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Fig.2-1

3. Montage

Assemblage (Fig. 1-1, 1B, 1C)

Fig. 2-2 Fig. 2-2B

Fig. 2-3

Technical line drawing of two mechanical components with no visible text or symbols

Fig. 2-4

Démarrage

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand holding a mechanical component with hoses and gears (no text or symbols)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

Percage (Fig. 2-5, 5B)

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Illustration of a hand using a tool to lift a mechanical component, showing motion (no text or symbols)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B

Mechanical assembly diagram showing a gear and housing with a magnified inset view (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 3-4BFig. 3-4

5. Entretien

L'ENTRETIEN. LE REMPLACEMENT OU LA REPARATION DES DISPOSITIFS ET SYSTEMES DE CONTRÔLE DE L'ECHAPPEMENT PEUVENT ETRE EFFECTUES PAR N'IMPORTE QUEL ATELIER DE RÉPARATION OU MÉCANICIEN DE MOTEUR NON AUTOMOBILE.

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Technical line drawings of mechanical components (no text or symbols)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and shafts (no text or labels)

Fig. 3-7

Technical line drawing of a mechanical assembly (no text or symbols visible)

Niveau de vibrations (m/s ^2 ) (ISO 7916)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' beside it, no text or symbols present.

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a black circle (no text or symbols)

Do not touch the bit when running the engine.

Noi, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Fig.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Fig.2-1

Fig. 2-2 Fig. 2-2B

Fig. 2-3

Technical line drawing of two mechanical components with hoses and a shaft, no visible text or symbols

Fig. 2-4

Avviamento

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand holding a mechanical component with hoses and gears (no text or symbols)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

Mechanical assembly diagram showing a hand operating a tool with a rotating component (no text or symbols)

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Illustration of a hand using a tool to lift a mechanical component (no text or symbols present)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B

Mechanical assembly diagram showing a gear and housing with a directional arrow (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig. 3-4B Fig. 3-4

5. Manutenzione

LA MANUTENZIONE, SOSTITUZIONE O RIPARAZIONE DEI DISPOSITIVIE SISTEMI DI CONTROLLO DELLE EMISSIONI POS-SONO ESSERE ESEGUITE DA QUALSIASI OFFICINA O TECNICO DI RIPARAZIONE MOTORI NON VEICOLARI.

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Technical line drawings of mechanical components including a motor, cylinder, and gear assembly (no text or labels)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and shafts (no text or labels)

Fig. 3-7

Filtro del carburante (Fig. 3-5)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' beside it, no text or symbols present.

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a circle (no text or symbols)

Two abstract black symbols on white background, no text or labels present

Do not touch the bit when running the engine.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Fig.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Fig.2-1

3. Zusammenbau

Fig. 2-3

Fig. 2-2 Fig. 2-2B

Technical line drawing of two mechanical components with hoses and a shaft, no visible text or symbols

Fig. 2-4

Anlassen

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand holding a mechanical component with hoses and gears (no text or symbols)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

Mechanical assembly diagram showing a hand operating a tool with a rotating component (no text or symbols)

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Illustration of a hand using a tool to lift a mechanical component (no text or symbols present)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B

Mechanical assembly diagram showing a gear and housing with a magnified inset view (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 3-4B Fig. 3-4

5. Wartung

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Technical line drawings of mechanical components including a motor, cylinder, and gear assembly (no text or labels)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and shafts (no text or labels)

Fig. 3-7

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' beside it, no text or symbols present.

Simple black-and-white icon of a smiling face inside a circle (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Two abstract black symbols on white background: a horizontal line with a dot and a vertical line with a diamond (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Fig.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Fig.2-1

Fig. 2-3

Fig. 2-2 Fig. 2-2B

Technical line drawing of two mechanical components with hoses and a shaft, no visible text or symbols

Fig. 2-4

Arranque

Line drawing of hands operating a mechanical device with no visible text or symbols

Illustration of hands holding a mechanical component with hoses and gears (no text or symbols)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

Perforacion (Fig. 2-5, 5B)

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B Fig. 2-8C

Fig. 3-1

Mechanical assembly diagram showing a gear and housing with a magnified inset view (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 3-4BFig. 3-4

5. Mantenimiento

MANTENIMIETNO, REEMPLAZO O

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Technical line drawings of mechanical components including a motor, cylinder, and gear assembly (no text or labels)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and shafts (no text or labels)

Fig. 3-7

Filtro de combustible (Fig. 3-5)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' beside it, no text or symbols present.

Two black-and-white icons: one showing a person reading a book, the other showing an open book (no text or symbols)

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a circle (no text or symbols)

Do not touch the bit when running the engine.

Wij, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Fig.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Fig.2-1

3. Montageprocedure

Montage (Fig. 1-1,1 B,1 C)

Fig. 2-3

Fig. 2-2 Fig. 2-2B

Technical line drawing of two mechanical components with hoses and a shaft, no visible text or symbols

Fig. 2-4

Starten

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand holding a mechanical component with hoses and gears (no text or symbols)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Illustration of a hand using a tool to lift a mechanical component (no text or symbols present)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B

Mechanical assembly diagram showing a gear and housing with a directional arrow (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig. 3-4B Fig. 3-4

5. Onderhoud

ONDERHOUD, VERVANGING EN REPARATIE VAN DE ONDERDELEN EN SYSTEMEN DIE MET UITSTOOT VAN UITLAATGASSEN EN GELUIDSOVERLAST TE MAKEN HEBBEN MOGEN WORDEN UITGEVOERD DOOR DESBETREFFENDE VAKBEDRIJVEN EN VAKLUI.

Carburateurafstelling (Afb. 3-1)

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Technical line drawings of mechanical components including a motor, cylinder, and gear assembly (no text or labels)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and shafts (no text or labels)

Fig. 3-7

Two black-and-white icons: a person reading a book and an open book, both without any text or symbols.

Leia o manual atentamente antes de operar esta máquina.

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a circle (no text or symbols)

Two abstract black symbols on white background, no text or labels present

Do not touch the bit when running the engine.

Declaration of conformity

Nós, a Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japão

98/37/CE, 89/336/CEE, 2000/14/CE

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.1-1 Fig.1-1C Fig.1-1B

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Fig.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Fig.2-1

3. Montagem

Fig. 2-3

Fig. 2-2 Fig. 2-2B

Technical line drawing of two mechanical components with hoses and a shaft, no visible text or symbols

Fig. 2-4

Arrancar o motor

CUIDADO!

Line drawing of hands operating a mechanical device with no visible text or symbols

Illustration of hands holding a mechanical component (no text or symbols visible)

Fig. 2-5 Fig. 2-5B

Fig. 2-5C
Fig. 2-5D

Furar (Fig. 2-5, 5B)

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

Fig. 2-6 Fig. 2-7 Fig. 2-6B

Illustration of a hand using a tool to lift a mechanical component (no text or symbols present)

Fig. 2-7B Fig. 2-8Fig. 2-7C

Fig. 2-8B

Mechanical assembly diagram showing a gear and housing with a directional arrow (no text or labels)

Fig. 3-2

Fig. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig. 3-4BFig. 3-4

5. Manutenção

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Technical line drawings of mechanical components (no text or labels)

Fig. 3-5 Fig. 3-6

Mechanical assembly diagram showing components like bolts, shafts, and housing (no text or labels)

Fig. 3-7

Filtro de gasolina (Fig. 3-5)

Limpar as abas do cilindro (Fig. 3-6)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' beside it, no text or symbols present.

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular icon with a stylized animal face wearing sunglasses and a helmet, enclosed in a black circle (no text or symbols)

Two abstract black symbols on white background, no text or labels present

H Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

Eik.1-1

Eik.1-1CEik.1-1B

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a drill bit and housing (no text or symbols)

Elk.1-1D

Line drawing of a fuel can being poured into a container with an icon of a fuel pump (no text or symbols)

Eik.2-1

Eik. 2-2 Eik. 2-2B

Eik. 2-3

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Eik. 2-4

Εκκίνηση

Line drawing of hands operating a mechanical device with no visible text or symbols

Eik. 2-5 Eik. 2-5B

Illustration of hands holding a mechanical component with hoses and tubing (no text or symbols)

Eik. 2-5D

Elk. 2-5C

Eik. 2-6

Mechanical assembly diagram showing a hand operating a tool with a rotating component (no text or symbols)

Eik. 2-6B

Elk. 2-7

Illustration of a hand using a tool to lift a mechanical component, showing motion (no text or symbols)

Eik. 2-7B

Eik. 2-8Eik. 2-7C

Eik. 2-8B

Elk. 3-1

Mechanical assembly diagram showing a gear and housing with a magnified inset view (no text or labels)

Eik. 3-2

Eik. 3-3

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Eik. 3-4BEik. 3-4

Line drawing of a hand holding an engine cylinder and valve (no text or symbols)

Eik. 3-5

Technical line drawings of mechanical components (no text or labels)

Eik. 3-6

Mechanical assembly diagram showing exploded view of a mechanical component with bolts and shafts (no text or labels)

Eik. 3-7

Technical line drawing of a mechanical assembly (no text or symbols visible)

Nikko Tanaka Engineering Co., Ltd.
