USER MANUAL FS-260IM Orien

Automatic Commercial Ice Cube Machine

Line drawing of a four-legged industrial machine with ventilation grilles and a top panel (no text or symbols)

Be sure the ice machine has been standing upright for at least 24 hours prior to plug-in.

921 General Hill Drive

Virginia Beach, VA23454

Tel.: [phone]

E-mail: [e-mail]

FS-260IM

TABLE OF CONTENTS

Page

ICE MAKER SAFETY 2

IMPORTANT SAFEGUARDS 2-4

TECHNICAL INFORMATION ....5

INTRODUCTION 5

COMPONENT LOCATIONS ....6

ICE MAKER INSTALLATION 7 - 11

Unpacking 7

Installing the Adjustable Feet....7

Installing the Stability Brackets 8

Location Requirements 8 - 9

Electrical Requirements 9 - 10

Leveling the Ice Maker ....10

Water Supply 10 - 11

Installation Types 11

OPERATION 12-14

Final Checklist before Operation 12

Operating Method 12 - 13

How the Machine Makes Ice ....13

Normal Sounds 13 - 14

Preparing the Ice Maker for Long Storage 14

CLEANING AND MAINTENANCE ....14 - 17

Exterior Cleaning 15

Interior Cleaning 15

Water Distribution Tube Cleaning 16

Ice-Making System Cleaning 16

Sanitizing the Ice-Making System 17

CONTROL PANEL 18 - 19

TROUBLESHOOTING 20 - 21

LIMITED WARRANTY 22 - 23

We reserve the right to make changes in specifications and design without prior notice.

ICE MAKER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

Warning symbol: white exclamation mark inside a black triangle on black background (no text or numbers)

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. All safety messages will follow the Safety Alert Symbol and either the words “DANGER”, “WARNING” OR “CAUTION”.

DANGER

DANGER means that failure to heed this safety statement may result in death or severe personal injury.

WARNING

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION means that failure to heed this safety

CAUTION

statement may result in minor or moderate personal injury,

or property or equipment damage.

All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock or injury, when using your ice maker, follow these basic precautions:

• Plug into grounded 3-prong outlet
• Do not remove grounding prong
• Do not use an adapter

• Do not use an extension cord

• Disconnect power before cleaning

• Disconnect power before servicing
• Replace all panels before operating
• Use 2 or more people to move and install ice maker

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

Warning symbol: white exclamation mark inside a black triangle on black background (no text or numbers)

Before the ice maker is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. 2 LHQ8 6\$ / / & Industries strongly recommends that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. To reduce the risk of fire, electrical shock or injury when using the ice maker, follow basic precautions, including the following:

! DANGER !

- Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do not use an extension cord.

- It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain.

- Do not connect or disconnect the electric plug when your hands are wet.

- Never unplug the ice maker by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Never clean ice maker parts with flammable fluids. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

- Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected and the water line is shut off. (EXCEPTION: When cleaning the machine's ice making and water systems, see pages 18 – 19.)

- Before operating, put all the enclosure panels back into their original places.

- Do not touch the evaporator with your hand when the machine is operating.

- Unplug the ice maker or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.

- Do not attempt to repair or replace any part of your ice maker unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

- Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.

- To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 50°F (10°C) and below 100°F (38°C). This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips.

- The ice maker should not be located next to ovens, grills or other sources of high heat.

- The ice maker must be installed with all electrical and water connections in accordance with state and local codes. A standard electrical supply (115 VAC only, 60 Hz, 15 A), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.

- Do not kink or pinch power supply cord or drain lines between ice maker and cabinet.

• The fuse (or circuit breaker) size should be 15 amperes.

- It is important for the ice maker to be leveled in order to work properly. You may need to make several adjustments to level it.

- All installations must be in accordance with local plumbing code requirements.

- Make certain that the hoses are not pinched or kinked or damaged during installation.

- Check for leaks after connection.

- Remove the packing materials and clean the ice maker before using.

- Turn on the water supply tap before switching on the ice maker. Never turn the water supply tap off when the ice maker is working.

- Except to take ice from the unit, keep the door closed in order to reduce ice melting and to promote proper ice formation.

• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• If the ice maker will not be used for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the ice maker after cleaning.
• DO NOT touch the condenser fins. The condenser fins are sharp and can be easily damaged.
• DO NOT use solvent-based cleaning agents or abrasives on the interior. These cleaners may transmit taste to the ice cubes, or damage or discolor the interior.
• The ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based cleaner products. Use rubber gloves to protect hands. Carefully read the material safety instructions on the container of the ice machine cleaner.
• Do not use this apparatus for other than its intended purpose.

SAVE THESE INSTRUCTIONS

Electrical Connection

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall outlet to minimize the possibility of electric shock hazard from the appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The ice maker should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your ice maker by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the ice maker, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this ice maker.

Technical Information

Model: FS-260IM

Electrical input: 115VAC \~ 60Hz

Power consumption: 9.4 kW • h /100 lbs of ice

Ice-making/Ice-harvest rated current: 9.2A/12A

Refrigerant: R404a, 22.9 oz.

High/Low side pressure: 350psig/190psig

Unit width x depth x height: 24" x 24" x 39"

Unit weight: 136 lbs maximum

Ice storage capacity: 75 lbs maximum

Ice-making capability: 2501 bs/day*

Ice shape: Cube

Ice cube dimensions: 1" x 1" x 3/4"

Ambient temperature range

for best operation: 50^ F – 100^ F

Optimum temperature range

for feed water: 41^ F – 90^ F

*The actual quantity of ice produced per day can vary with room and water conditions.

The technical data and performance index listed above should be used for reference only. They are subject to change.

Introduction

The ORIEN FS-260IM Ice Cube Machine produces hard, crystal-clear, gourmet cube ice, and offers convenience for homeowners and hotel guests. An insulated ice storage bin is built in. This user's manual is intended as a resource for persons installing, using and servicing model FIM200. It contains valuable information on safety and maintenance. ORIEN strongly recommends that this manual be kept in a place where it can be accessed when needed. Every ORIEN Ice Cube Machine is designed and manufactured according to the highest standards of safety and performance. It meets or exceeds the safety standard of UL563.

Orien USA, L.L.C., assumes no liability or responsibility of any kind for products manufactured by Orien USA, L.L.C., that have been altered in any way, including the use of any parts and/or other components not specifically approved by Orien USA, L.L.C. Orien USA, L.L.C. reserves the right to make design changes and/or improvements at any time. Specifications and designs are subject to change without notice.

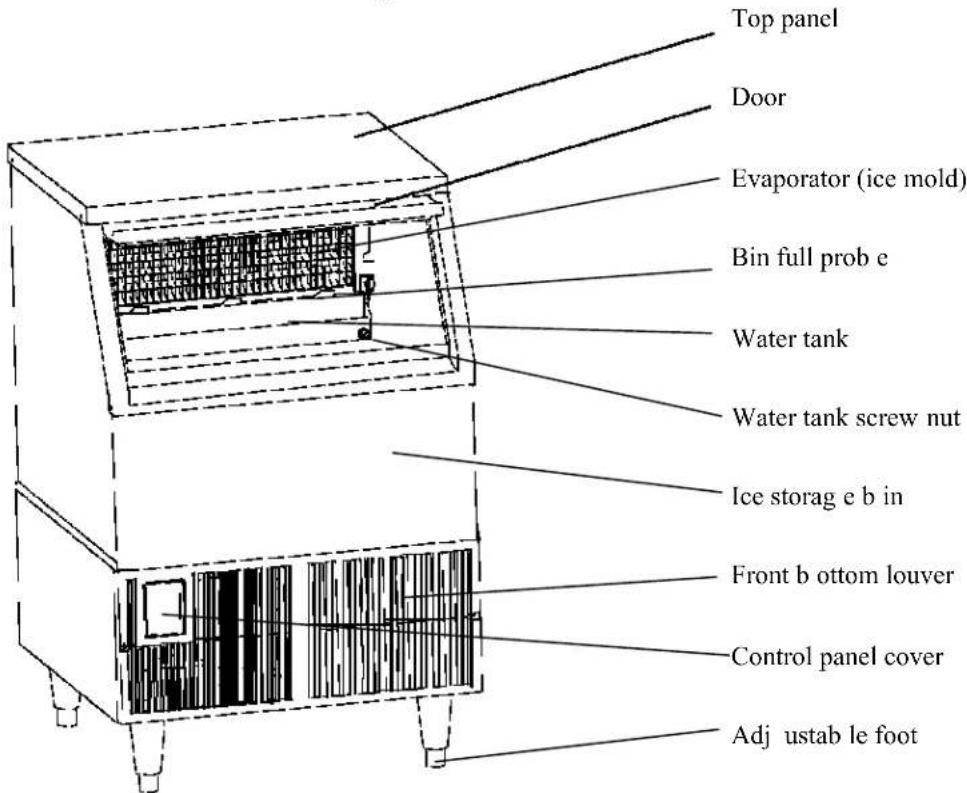

Component Loc a ti ons

Top panel Door Evaporator (ice mold) Bin full prob e Water tank Water tank screw nut Ice storag e b in Front b ottom louver Control panel cover Adj ustab le foot

Top view

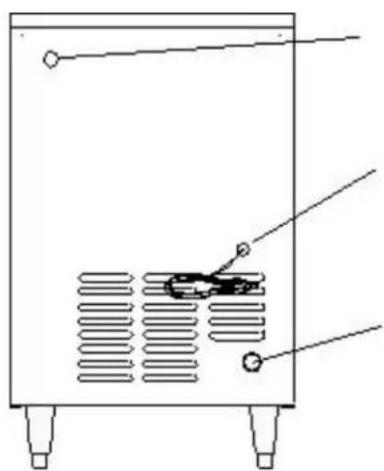

Back view

Technical line drawing of a mechanical device with no visible text or symbols

Water inlet

3/8" FPT

(Female Pipe Thread)

Power supply line

Bin drain

1 / 2" FPT

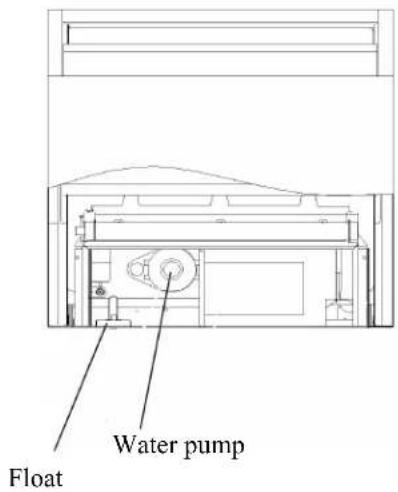

Float Water pump

Stability b rackets

Ice Maker Installation

Unpacking

WARNING

Excessive Weight Hazard

Use two or more persons to move and install ice maker. Failure to do so can result in back or other injury.

Remove packaging materials

IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice maker.

Remove tape and glue from your ice maker before using,

• To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your ice maker.
• Leave lowermost foam panel in place until after the adjustable feet are attached.

Cleaning before use

After you remove all tape and glue from the machine, clean the inside of your ice maker before using it. See “Interior Cleaning” in the Cleaning and Maintenance section.

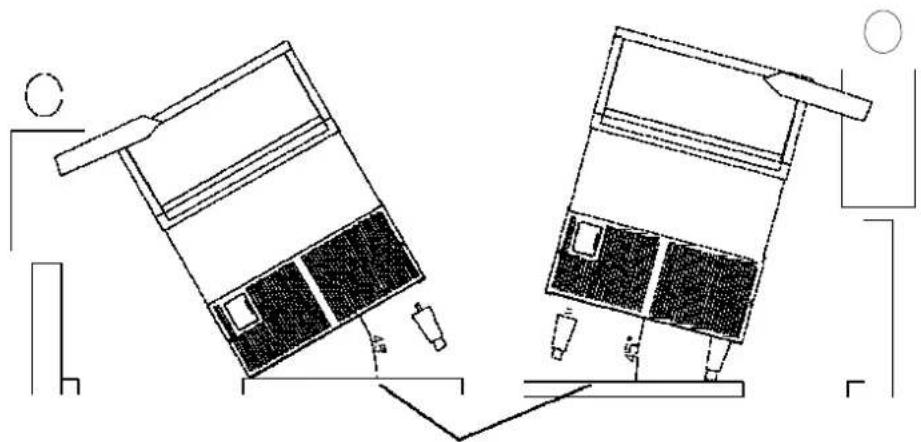

Installing the adjustable feet

At least two persons are required to install the adjustable feet.

You will find four adjustable feet packed in the ice storage bin. To install, tilt one side of the unit and screw in two adjustable feet, as illustrated. (IMPORTANT: Do not tilt the unit more than 45 degrees.) Then tilt the other side and screw in the remaining two feet.

Technical line drawing of two mechanical components with mounting holes and a central component, no text or symbols present.

Lower foam panel

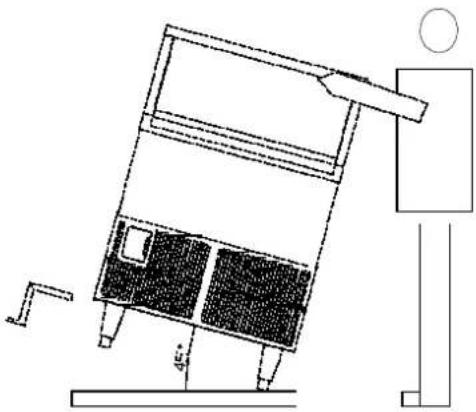

Installing the stability brackets

This operation requires at least two persons.

If you wish to install the ice maker in a free-standing mode rather than enclosed, it is necessary to attach the two metallic stability brackets that can be found packed inside the ice storage bin.

Keeping the machine tilted to the right, but not more than 45^ , attach one bracket to the center of the underside of the ice maker with two screws (supplied). See illustration below. Set the unit back on its four feet, then tilt it forward in order to screw in the second bracket on the underside of the unit opposite the first bracket. Level the ice maker. This operation will stabilize it for free-standing operation.

Simple line drawing of a room with furniture and a vertical structure (no text or symbols)

Location Requirements

This ice maker should be installed by qualified personnel.

NOTICE:

1. Before setting the ice maker inside a cabinet, connect the water supply pipe correctly. Insert the drain hose into the drain, and connect the power supply line.

2. Do not kink or pinch the power supply line between the ice maker and wall or cabinet.

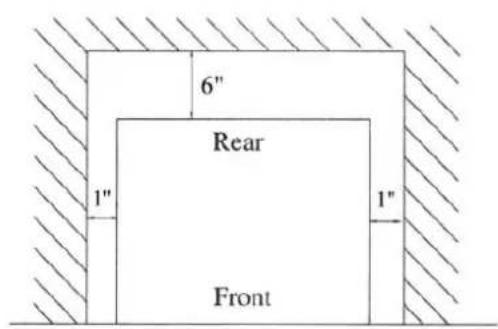

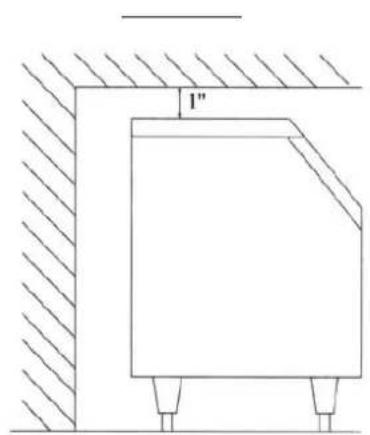

Installation clearance

Top view Side view

6" Rear 1" 1" Front

l"

• To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed.
• When installing the ice maker under a counter, follow the recommended spacing dimensions shown. Allow at least 6" (150 mm) clearance at rear, and 1" (25 mm) at the sides and at the top for proper air circulation. The installation should allow the ice maker to be pulled forward for servicing if necessary.
• Choose a well-ventilated area with temperatures above 50^ F ( 10^ C) and below 100^ F ( 38^ C). This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips.
• The unit should not be located next to ovens, grills or other sources of high heat.
• Installation of the ice maker requires a cold water supply inlet of 3/8" (9,5 mm) soft copper tubing with a shut-off valve.
• The ice maker requires a continuous water supply with a minimum pressure of 15 psig and a static pressure not to exceed 80 psig. The temperature of the water feeding into the ice maker should be between 41^ (5°C) and 90^ (32°C) for proper operation.

WARNING

Normal operating ambient temperature should be between 50^ F ( 10^ C) and 100^ F ( 38^ C). Normal operating water temperature should be between 41^ F ( 5^ C) and 90^ F ( 32^ C). Operation of the ice maker for extended periods outside of these normal temperature ranges may affect production capacity.

- IT IS STRONGLY RECOMMENDED TO USE A WATER FILTER. A FILTER, IF IT IS OF THE PROPER TYPE, CAN REMOVE TASTE AND ODORS AS WELL AS PARTICLES AND CAN PROLONG THE LIFE OF THE MACHINE.

- The ice maker must be installed with all electrical and water connections in accordance with state and local codes.

- The unit should be located on a firm and level surface. It is important for the ice maker to be level in order to work properly. If needed, you can adjust the height of the ice maker by rotating the feet. See the Leveling the Ice Maker section.

Electrical Requirements

DANGER

Electrical Shock Hazard

Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter. Never use an extension cord. Failure to follow these instructions can result in fire, electrical shock or death.

Before you move your ice maker into its final location, it is important to make sure you have the proper electrical connection. A standard electrical supply (115 VAC only, 60 Hz, 15 A), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. The ice maker should always be plugged into its own individual electrical outlet. It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain. The fuse (or circuit breaker) size should be 15 amperes.

Recommended grounding method

For your personal safety, this appliance must be grounded. It is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-pronged and grounding-type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician.

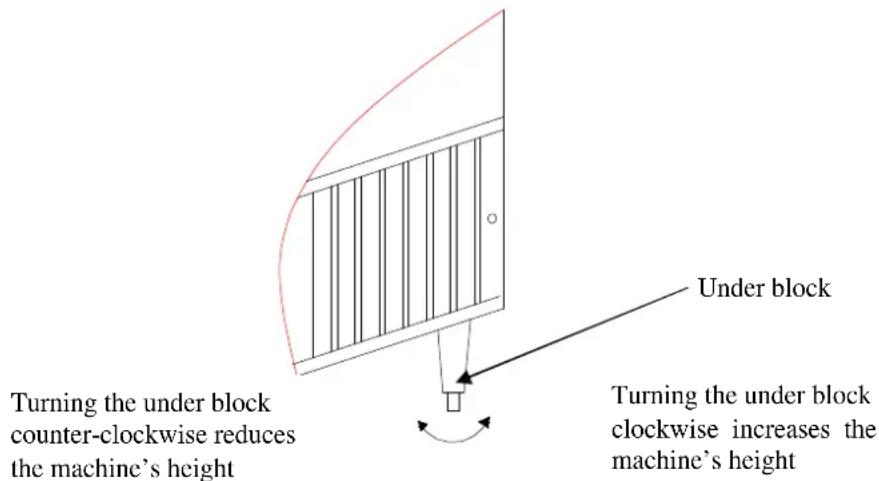

Leveling the Ice Maker

Once the ice cube machine is set in its enclosure, if the base is not level, you can adjust the feet by rotating the under block (see below) until the machine is level.

Turning the under block counter-clockwise reduces the machine's height Under block Turning the under block clockwise increases the machine's height

It is important for the ice maker to be leveled, or water may not flow properly through the evaporator (ice mold). Ice production will be lower than normal, and operation will be noisy.

Adjust the height of the under block of the adjustable foot, rotating it to the right (counterclockwise) to lower that side of the ice maker. Turning the under block to the left (clockwise) raises that side of the ice maker.

Water Supply

The water supply should be ready at the point of installation. The water supply pressure should be a minimum of 15 psig with a static pressure not more than 80 psig. (A wall outlet directly behind the ice maker will make installation easier.)

We strongly recommended the use of a water filter. A filter, if it is of the proper type, can remove taste and odors as well as particles and can prolong the life of the machine.

IMPORTANT:

1. All installations must be in accordance with local plumbing code requirements. Professional installation is recommended.
2. Water inlet fitting: 3/8" FPT (Female Pipe Thread); drain line connection: 1/2" FPT.
3. Make certain you have a suitable water supply hose and two suitable drain hoses, and that the hoses are not pinched, kinked or damaged during installation.
4. Check for leaks after connection.

Tools required: 3/8" open-end wrench, Phillips screwdriver

Connecting the water line:

1. Turn off main water supply.
2. Find a water supply line near the installation location. The distance should be less than the length of the water supply hose.
3. A shut-off valve must be installed to the main water supply.
4. Connect the water supply hose to tap and water inlet valve. Tighten firmly by hand, then one-half turn with wrench.
5. Connect one water drain hose to ice maker drain line connection. Tighten firmly by hand, then one-half turn with wrench.
6. Connect another water drain hose to bin drain line connection. Tighten firmly by hand, then one-half turn with wrench.
7. Turn on main water supply and tap. Check for water supply connection leaks. Tighten every connection (including connections at the water inlet).

NOTE: If using a water filter, be sure to follow the filter manufacturer's directions.

Installation Types

This ice cube machine has been designed to be enclosed (as under a cabinet). It can also be freestanding (using the supplied stability brackets) or built-in (sealed to the floor). In every case, there must be adequate air space around the unit for ventilation purposes (see diagrams on page 8).

Enclosed Installation:

An enclosed installation will allow you to install the ice cube machine under a counter or in a kitchen cabinet provided the required clearance space around the ice maker is respected. You must follow the stated instructions for

a. Electrical requirements

b. Water supply

Free-standing Installation:

The ice cube machine can be installed to be free-standing in any place you desire provided you have access to a water supply. This installation has the same requirements as an enclosed installation, plus you must also follow the stated instructions for Installing the Stability Brackets.

Built-in Installation:

If this method of installation is chosen, it will still be necessary to allow adequate ventilation space around the unit. The following additional items must be observed.

1. Place the ice cube machine in front of the installation location. Raise the machine and place it on the floor or on a platform depending on your installation requirements.
2. The water supply line must be plumbed before connecting to the ice maker.
3. Turn on the main water supply and tap. Check for water supply connection leaks. Tighten every connection (including connections at the water inlet).
4. If the electrical outlet for the ice maker is behind the cabinet, plug in the ice maker.
5. Push the ice maker into position.
6. Seal all around the cabinet to the floor with an approved caulking compound.

Operation

Final Check List before Operation

1. Have all packing materials and tape been removed from the interior and exterior of the ice maker?
2. Did you clean the ice storage bin? (See pages 15 - 17.)
3. Have the installation instructions been followed, including connecting the machine to water and electricity?
4. Has the machine been leveled?
5. Is the ice cube machine in a site where the ambient temperature is between 50^ F ( 10^ C) and 100^ F ( 38^ C) and the water temperature between 41^ F ( 5^ C) and 90^ F ( 32^ C) allyear round?
6. Has the water supply pressure been checked to ensure a minimum of 15 psig with a static pressure not to exceed 80 psig?
7. Is there a clearance of at least 6" (150 mm) at the rear, 1" (25 mm) at the top and sides for proper air circulation?
8. Has the power supply voltage been checked or tested against the nameplate rating? And has proper grounding been installed for the ice cube machine?
9. Is the ice cube machine plugged in?
10. Have you turned on the main water supply and the tap?
11. Have you checked for leaks at all water supply connections?

Operating Method

1. Turn on the water tap, letting the water enter the water tank, then turn the power switch ON. The power switch's indicator lamp lights, as well as the other three indicator lights on the control panel.
2. After about 3 minutes, the ice maker will automatically proceed to the ice-making stage, and the sound of flowing water will be heard. Only the red power switch lamp and the green Ice Making LED will be on.
3. When the batch of ice has been fully formed, ice will automatically fall into the ice storage bin. The yellow Ice Harvest LED and power switch LED are on, and the other two LEDs are off.

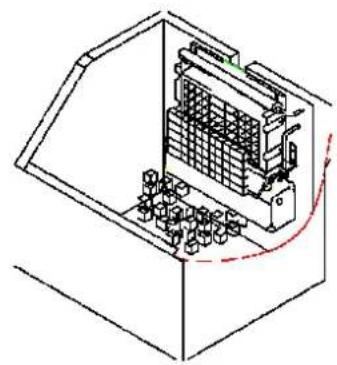

4. When the ice storage bin is full, the sheet of cubes will not fall completely and will hold the bin full probe open. The machine is in the bin full mode, and the red Bin Full LED is lit. The power switch LED is on and the other two LEDs are off.
5. The unit starts making ice again automatically approximately 3 minutes after ice cubes are removed. As ice is removed, the bin full probe swings back to operating position.

Technical line drawing of two 3D electrical enclosure components with internal wiring and mounting hardware (no text or symbols)

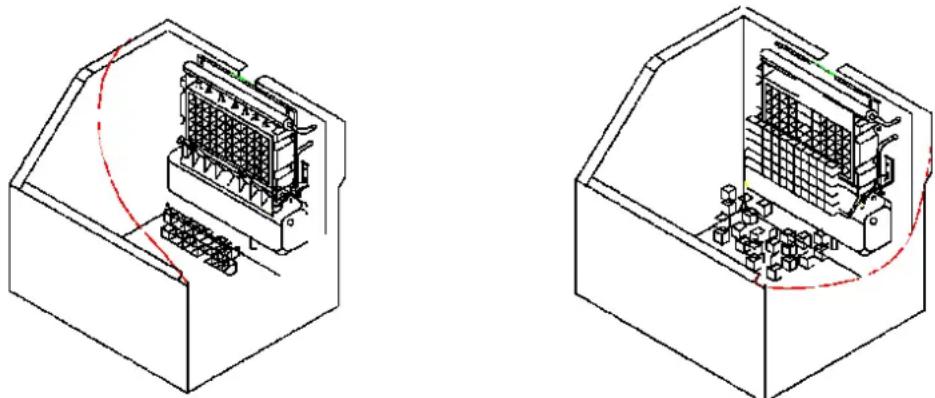

Ice-making stage Ice harvest stage

IMPORTANT:

- Although the unit has been tested and cleaned at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.

• Never turn the water supply tap off when the ice maker is working.
• Never touch the evaporator when the machine is running.
• Except to take ice from the unit, keep the door closed to reduce melting and insure proper ice formation.

How the Machine Makes Ice

When the power switch is first turned ON, the machine is in Stand-by mode. After about 3 minutes, it will automatically proceed to the ice-making stage.

There are two distinct cycles: Freeze and Harvest. During the Freeze cycle, water flows to the evaporator surface. In the Harvest cycle, the ice is released and water enters the machine. A complete cycle can take 15 to 40 minutes, depending on ambient temperature and operating conditions.

Freeze: During the Freeze cycle the compressor is pumping refrigerant, the fan motor is blowing air, and the water pump is circulating water. When the batch of ice has been fully formed, the ice maker stops the Freeze cycle and begins the Harvest cycle.

Harvest: During the Harvest cycle the compressor is still operating, but the water pump has stopped. The hot gas valve opens, diverting hot refrigerant gas into the evaporator. The gas warms the evaporator, causing the cubes to slide as a unit off the evaporator and into the storage bin. The Freeze cycle will restart when all the cubes drop into the bin.

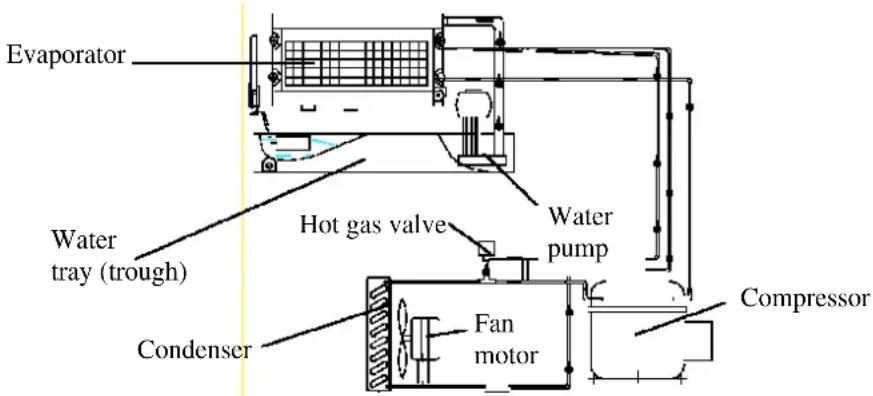

How the machine uses water:

The ice cube machine begins with a fixed charge of water that is contained in the water tank. As the water flows to the freezing evaporator surface, the water will freeze and stick to the ice cube molds. During the ice-making process, fresh water enters the water tank continuously as the water from the trough freezes continuously on the evaporator.

Evaporator Water tray (trough) Hot gas valve Water pump Condenser Fan motor Compressor

Normal Sounds

Your new ice cube machine may make sounds that are unfamiliar to you. Most of the new sounds are normal. Hard surfaces like the floor and walls can amplify the sounds. The following describes the kinds of sounds that might be new to you and what may be causing them.

• Rattling noises may come from the flow of the refrigerant or the water line. Items stored on top of the ice cube machine can also make noises.
• The high-efficiency compressor may make a pulsating or high-pitched sound.
• Running water may make a splashing sound.

- You may hear air being forced over the condenser by the condenser fan.

- During the Harvest cycle, you may hear the sound of ice cubes falling into the ice storage bin.

Preparing the Ice Cube Machine for Long Storage

If the ice cube machine will not be used for a long time, or it is to be moved to another place, it will be necessary to drain the system of water.

1. Shut off the water supply at the main water source.
2. Disconnect the water supply line from the water inlet.
3. Shut off the power supply at the main electrical power source.
4. Screw off the water tank screw nut and drain out water completely, then tighten the nut after finishing. Dry the tank.
5. Remove the ice from the ice storage bin. Dry the bin.
6. Leave the door open to allow for circulation and to prevent mold and mildew.
7. Leave the water supply line and power cord disconnected until ready to reuse.

IMPORTANT:

• Do not touch the power plug when your hands are wet.
• Never unplug the unit by pulling on the cord.

Cleaning and Maintenance

CAUTION

If the ice maker is left unused for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the ice maker after cleaning.

Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or there are other special considerations.

What shouldn't be done

Never keep anything in the ice storage bin other than ice: objects like wine and beer bottles are not only unsanitary, but the labels may slip off and plug up the drain.

What should be kept clean

There are 4 things to keep clean:

1. The exterior
2. The interior
3. Water distribution tube
4. The ice-making system

WARNING

Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected and the water line is shut off. (EXCEPTION: Cleaning of ice-making system)

Exterior Cleaning

The door and cabinet may be cleaned with a mild detergent and warm water solution such as 1 oz of dishwashing liquid mixed with 2 gallons of warm water. Do not use solvent-based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting. Clean stainless steel with a cloth dampened with a mild detergent and warm water solution. Never use an abrasive cleaning agent.

Interior Cleaning

The ice storage bin should be sanitized occasionally. Clean the water tank before the ice cube machine is used for the first time and reused after stopping for an extended period of time. It is usually convenient to sanitize the trough after the ice-making system has been cleaned and the ice storage bin is empty.

1. Disconnect power to the unit.
2. Open the door. You will find the water tank screw nut on the front right of the water tank. Screw off the nut and drain water completely into the ice storage bin. The water drains out of the machine through the drain hole in the bin.
   NOTE: Don't forget to screw the nut back into place again.
3. Using a sanitizing solution made of 1 ounce of household bleach and 2 gallons of hot water (95° to 115°F), wipe down the water tank and the inside of the ice storage bin with a clean cloth. To clean hard-to-reach corners, apply the sanitizing solution with a spray bottle.
4. Rinse thoroughly with clear water. This completes the routine interior cleaning of the unit.
5. Reconnect the power.

WARNING

DO NOT use solvent-based cleaning agents or abrasives on the interior. These cleaners may transmit taste to the ice cubes, or damage or discolor the interior.

Water Distribution Tube Cleaning

When you find that the ice cubes are incompletely formed or the output of ice cubes is low, the water distribution tube may be blocked. Set the power switch to OFF. Unscrew the six screws holding the top panel and remove the panel. You will see the water distribution tube. Rotate the water distribution tube so that the holes in it are facing up. Using a toothpick or similar tool, dredge the holes, then rotate the water distribution tube back to its original position. If the tube is badly blocked, clean it as follows:

1. Shut off the water and power supplies.
2. Disconnect the water hose from the distribution tube.
3. Lift one side, remove the distribution tube.
4. Replace the distribution tube.
5. Reconnect the water supply and power supply lines.

6. Re-attach the top panel.

7. With a brush, clean the tube with a dilute solution of warm water and a mild detergent such as dishwashing liquid. After removing the dirt and lint from the surface, rinse the tube with clean water.

Ice-Making System Cleaning

Minerals that are removed from water during the freezing cycle will eventually form a hard, scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends on how hard your water is or how effective your filtration may be. With hard water of 15 to 20 grains/ gallon (4 to 5 grains/liter), you may need to clean the system as often as every 3 months.

1. Set the power switch to OFF.
2. Remove all ice cubes from the storage bin.
3. Keep the ice maker connected to the water supply. Pour 8 oz. of Nickel-Safe Ice Maker Cleaner Solution into the water tank.
4. Turn the power switch ON. Within 3 minutes, press the CLEAN button. The machinewill run the Automatic Clean mode. The green Ice Making and the yellow Ice Harvest LEDs will blink.
5. The cleaning cycle will continue for 30 minutes unless you press the power switch (you can press the power switch to stop the cleaning cycle any time during the 30 minutes). After cleaning, the green Ice Making and yellow Ice Harvest LEDs go on steady and the machine returns to Stand-by mode.
6. The dirty water must be drained out completely. Perform steps 2 and 3 in the Interior Cleaning section.
7. Repeat steps 1 to 6 above three times to rinse the ice-making system completely. NOTE: Do not add Ice Maker Cleaner Solution to the water trough during the rinses.
8. If you want to make ice cubes after cleaning, turn off the power switch, drain off the waste water, then turn on the power switch. The next ice-making cycle will begin.
9. Discard the first batch of ice.

Sanitizing the Ice-Making System

1. Set the power switch to OFF.
2. Remove all ice cubes from the storage bin.
3. Prepare a sanitizing solution by mixing 1 oz. household bleach with 1 gallon of warm water.
4. Keep the ice maker connected to the water supply. Fill the water tank with the sanitizing solution.
5. Turn the power switch ON. Within 3 minutes, press the CLEAN button. The machine will run the Automatic Clean mode. The yellow Ice Harvest and the red Bin Full LEDs will blink.
6. The cleaning cycle will continue for 30 minutes unless you press the power switch (you can press the power switch to stop the cleaning cycle any time during the 30 minutes). After cleaning, the yellow Ice Harvest and the green Ice Making LEDs go on steady and the machine returns to Stand-by mode.
7. The dirty water must be drained out completely. Perform steps 2 and 3 in the Interior Cleaning section.
8. Repeat steps 4 to 7 above three times with fresh water to rinse the ice-making system completely.
   NOTE: Do not add any cleaning or sanitizing solution to the water trough during the rinses.
9. If you want to make ice cubes after cleaning, turn off the power switch, drain off the waste water, then turn on the power switch. The next ice-making cycle will begin.
10. Discard the first batch of ice.

WARNING

The ice machine cleaner contains acids.

DO NOT use or mix with any other solvent-based cleaner products.

Use rubber gloves to protect hands. Carefully read the material safety instructions on the container of the ice machine cleaner.

DISCARD the first batch of ice produced after cleaning.

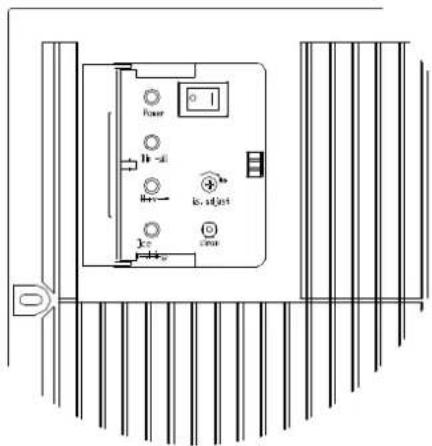

Control Panel (located at left side of front bottom louver panel)

Power 1+ - Power 16.14Jx24 3e 200A

Push the control panel cover to open it. The control panel includes one power switch, one button, one adjustable screw and four indicator lights.

Operation of the control panel:

1. When the unit is plugged in and the power switch is turned on, the power indicator and the other three indicator lights are all on.

2. After 3 minutes for water inlet, the ice machine will start to make ice automatically. Only the power and ice-making indicators will be on.

3. During harvesting, the harvest indicator light is on and the ice-making indicator is off. When the ice storage bin is full, only the bin-full indicator and power indicator are on.

4. If the Clean button is pressed during the ice-making mode, it will be ignored. The ice-making will continue.

5. When you want to clean the machine, turn off the power switch first, then turn it on again. Press the Clean button within 3 minutes and the ice maker will start the cleaning mode, with harvest and ice-making indicators blinking. After 30 minutes, the cleaning mode stops and the harvest indicator and ice-making indicators are on steady. If you want to restart the ice-making process after cleaning, turn off the power switch first and drain the waste water, then turn on the power switch again and the machine will automatically go into the ice-making process.

6. If you want to interrupt the cleaning mode before it is finished, do not press the Clean button again. Instead, turn the power switch off. This stops the cleaning mode.

7. If the machine is on but only the power indicator light is lit, this may indicate that not enough water is reaching the system, that the water pump is not functioning, or some similar problem. First check the level in the water tank, then examine the water pump, etc.

8. If the unit is connected to the power supply but no visual indicator lights up when the power switch is turned on, the fuse in the control panel box may need to be replaced.

Descriptions of LEDs and buttons:

1. Bin Full (red) LED: Bin Full indicator light

When this LED is on, the ice storage bin is full of ice cubes or there is something obstructing the bin full probe. The unit will stop working. When ice cubes are removed from the ice storage bin, clearing the bin full probe, the red LED will flash for 3 minutes. Then the unit

will restart and return to the ice-making mode.

1. Ice Making (green) LED: Ice Making indicator light

When this LED is on, the unit is working in the ice-making mode. When the green LED is flashing, the unit is working in the ice-making mode but approaching the ice harvest mode.

1. Ice Harvest (yellow) LED: Ice Harvest indicator light

When this LED is on, the unit is working in the ice harvest mode controlled by the bin full probe.

1. I. S. Adjust screw: Ice size adjustment

For service only. Adjustment of this screw by unqualified persons can damage the machine's controls.

1. Power switch

This is the main switch. When it is turned on, the unit goes into Stand-by mode for about 3 minutes, with all LEDs on, then starts to make ice cubes automatically, switching between ice-making and ice harvest modes.

1. CLEAN button

While the unit is in Stand-by mode (all LEDs on steady), you can press CLEAN to start the Automatic Clean procedure. The green and yellow LEDs will flash together.

NOTE: When you finish working with the control panel, close the cover.

IMPORTANT:

- Avoid letting water contact the control box.

- When you finish working with the control panel, close the cover.

Troubleshooting

Before Calling for Service

If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something very simple that can be solved without a service call.

Problem	Possible Cause	Probable Correction
The machine doesn't operate.	The ice maker is unplugged.	Plug the ice maker in.
	The fuse is blown.	Replace fuse. If it happens again, call for service to check for a short circuit in the ice maker.
	The ice maker power switch is OFF.	Turn the ice maker power switch to ICE (ON).
	The ice storage bin is full of ice.	Remove some ice; make sure the ice-full probe is free of ice.
	The drainage tray on top of the compressor is full.	Drain off water by unscrewing lower drainage nut.
The water doesn't feed in after the ice maker starts.	The water supply tap is turned off.	Turn on the water supply tap.
	The water supply line is not connected properly.	Reconnect the water supply line.
Machine makes ice, but ice storage bin does not fill up with ice.	Condenser may be dirty.	Clean the condenser air screen.
	The air flow to the ice maker may be obstructed.	Check the installation.
	The ambient temperature and water temperature are high, or machine is near some heat source.	Check the installation.
Water is leaking from the unit.	A few water drops fall to the floor when you open the door to take out ice from the ice storage bin.	Normal condensation on the door or some water together with ice. Take care when you take out ice.
	Water supply connection leaking.	Tighten fitting. See “Connecting the Water Line”.
Cubes are partially formed or are white at the bottom.	Not enough water in the water trough.	Check if the water supply pressure is below 15 psig.
		Check water supply; filter may be restricted.
		Check for a water leak at the water trough.
Noise during operation	The feet are not leveled and locked.	Level and lock the feet. See “Leveling the Ice Maker”.
	Certain sounds are normal.	See “Normal Sounds”.
The ice maker stops suddenly while making ice.	The electricity is off.	Reconnect the power supply line.
	The room temperature is out of the stated range.	Cut off the electricity; let the ice maker stop working until the temperature returns within the stated range.
	The ice storage bin is full of ice.	Remove some ice cubes; make sure the ice-full probe is free of ice.
The body of the ice maker is electrified.	The grounding line isn’t in the socket.	Use a socket meeting the required electrical standard.
Scaling occurs frequently inside the machine.	The hardness of the water is too high.	Use a water-softening device installed in front of the water inlet.

The ice cubes are not completely formed when being dumped.

The sprinkler is blocked. Clean the sprinkler. See Interior Cleaning.

Ice Machine Parts and Labor Domestic Limited Warranty for Commercial Products\* Operating in a Commercial Environment

Orien USA L.L.C. (the “Company”) warrants Orien brand commercial ice machines, water filters (not including filter cartridges), and ice storage bins to the end customer against defects in material and factory workmanship for twelve (12) months parts and labor from the date of installation.

An additional forty-eight (48) month warranty on parts and labor will be extended to all commercially-rated cube ice machine sealed systems (defined as evaporator plates, condensers and compressors) from the date of original installation. The company will replace per the Company facility, without cost to the Customer, that part of any such machine that becomes defective. In the event that the Warranty Registration Card indicating the installation date has not been returned to Orien, the warranty period will begin on the date of shipment from the Company. Irrespective of the actual installation date, the aforementioned sealed systems will be warranted for a maximum of sixty (60) months from date of shipment from the Company.

Cube ice machines which are commercially installed and are registered in the Water Filter Extended Warranty Program will receive an additional twenty-four (24) months parts coverage on all non-sealed system components from the date of original installation. Water filters must be installed at the time of installation and registered with the Company at that time. Water filter cartridges must be changed every six (6) months and that change reported to the Company to maintain the extended component warranty.

No replacement will be made for any part or assembly which (I) has been subject to an alteration or accident; (II) was used in any way which, in the Company's opinion, adversely affects the machine's performance; (III) is from a machine on which the serial number has been altered or removed; or, (IV) uses any replacement part not authorized by the Company. This warranty does not apply to destruction or damage caused by unauthorized service, using other than Orien authorized replacements, risks of transportation, damage resulting from adverse environmental or water conditions, accidents, misuse, abuse, improper drainage, interruption in the electrical or water supply, charges related to the replacement of non-defective parts or components, damage by fire, flood, or acts of God. This warranty is valid only when installation, service, and preventive maintenance are performed by a Company-authorized service coordinator or service agency. The Company reserves the right to refuse claims made for ice machines or bins used in more than one location. This Limited Warranty does not cover ice bills, normal maintenance, adjustments made after installation, and cleaning.

Limitation of Warranty

This warranty is valid only for products produced and shipped from the Company after October 10, 2007. A product produced or installed before that date shall be covered by the Limited Warranty in effect at the date of its shipment. The liability of the Company for breach of this warranty shall, in any case, be limited to the cost of a new part to replace any part, which proves to be defective. The Company makes no representations or warranties of any character as to accessories or auxiliary equipment not manufactured by the Company. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER. ORIEN USA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Filing a Claim

All warranty service work must be dispatched by the Company Technical Service Department. All claims for reimbursement must be received by the Company within 90 days from date of service to be eligible for credit. All claims outside this time period will be void. The model, the serial number and, if necessary, proof of installation, must be included in the claim. Claims for labor to replace defective parts must be included with the part claim to receive consideration. Payment on claims for labor will be limited to the published labor time allowance hours in effect at the time of repair. The Company may elect to require the return of components to validate a claim. Any defective part returned must be shipped to the Company, transportation charges pre-paid, and properly sealed and tagged at the discretion of the Company. The Company does not assume any responsibility for any expenses incurred in the field incidental to the repair of equipment covered by this warranty. The decision of the Company with respect to repair or replacement of a part shall be final. No person is authorized to give any other warranties or to assume any other liability on the Company's behalf unless done in writing by an officer of the Company.

Governing Law

This Limited Warranty shall be governed by the laws of the state of New York, U.S.A., excluding their conflicts of law principles.

Orien USA, L.L.C.

921 General Hill Drive

Virginia Beach VA23454

Website: [e-mail]

Warning symbol image with exclamation mark inside a triangle

Technical diagram showing two mechanical or architectural components with dimension annotations including 45 and 45+ units.

Architectural floor plan diagram showing room layout and door placement (no text or labels)

Technical line drawing of a mechanical component with hatched walls and a 1" top section (no text or symbols)

I Ia fat Ia Ia offact Ica clean

921 General Hill Drive

Virginia Beach, VA23454

Website: [e-mail]

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

(61,0 x 61,0 x 99,1 cm)

Simple line drawing of a device with heat exchanger and cooling elements (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of two mechanical or electrical setups with labeled components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Isometric line drawing of an electronic device housing with internal components and a red curved line indicating a connection or path (no text or symbols)

Technical line drawing of an electrical enclosure with internal components and wiring (no text or symbols)

No. Full No. S- Lx adjust Control

921 General Hill Drive

Virginia Beach, VA23454

Website: [e-mail]
