USER MANUAL M73 Zoeller

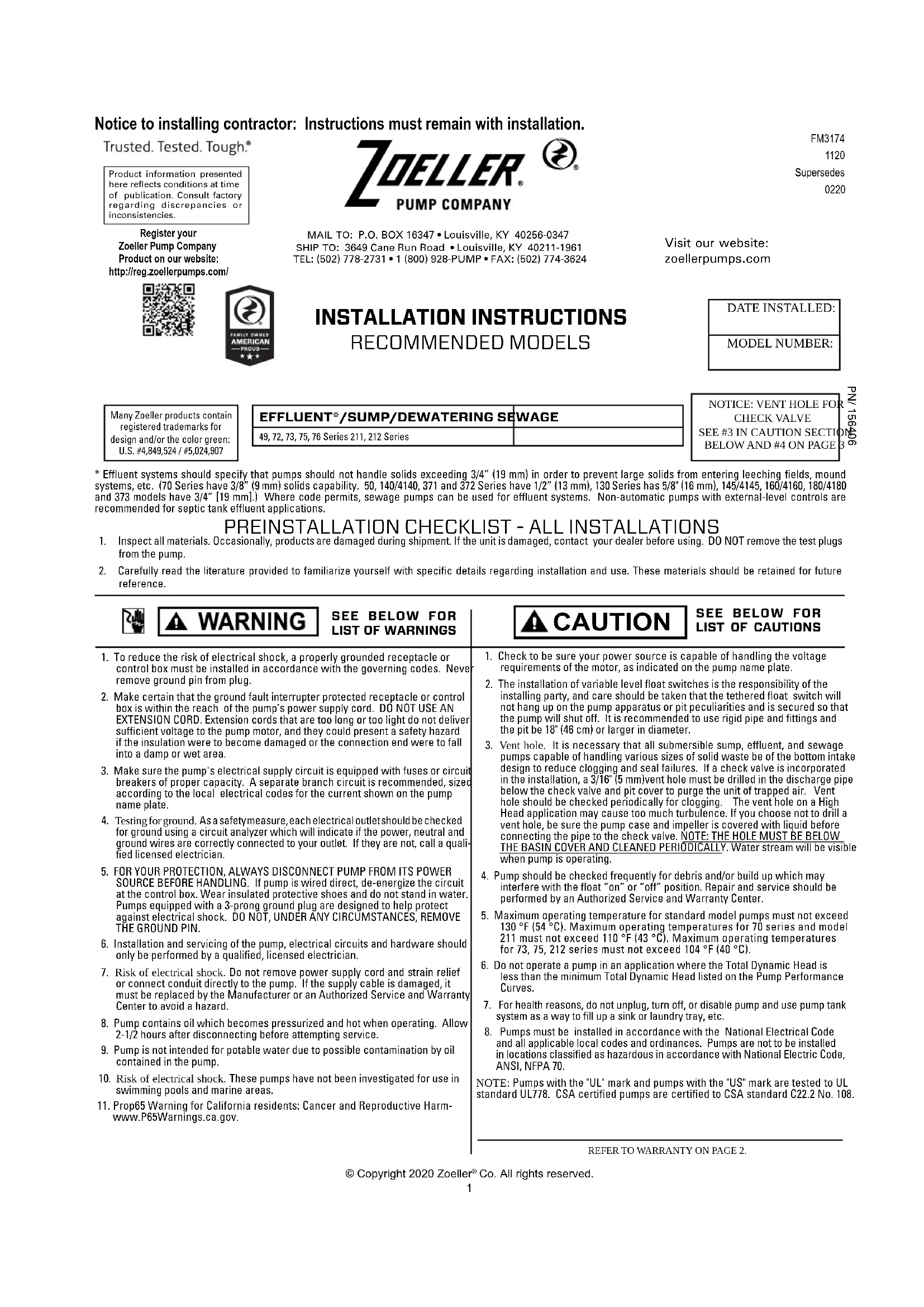

© Copyright 2020 Zoeller Co. All rights reserved. INSTALLATION INSTRUCTIONS RECOMMENDED MODELS Notice to installing contractor: Instructions must remain with installation. FM3174 Supersedes

• Efuent systems should specify that pumps should not handle solids exceeding 3/4” (19 mm) in order to prevent large solids from entering leeching elds, mound systems, etc. (70 Series have 3/8” (9 mm) solids capability. 50, 140/4140, 371 and 372 Series have 1/2” (13 mm), 130 Series has 5/8" (16 mm), 145/4145, 160/4160, 180/4180 and 373 models have 3/4” [19 mm].) Where code permits, sewage pumps can be used for efuent systems. Non-automatic pumps with external-level controls are recommended for septic tank efuent applications. 1. Inspect all materials. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before using. DO NOT remove the test plugs from the pump. 2. Carefully read the literature provided to familiarize yourself with specic details regarding installation and use. These materials should be retained for future reference.

REFER TO WARRANTY ON PAGE 2. 1. To reduce the risk of electrical shock, a properly grounded receptacle or control box must be installed in accordance with the governing codes. Never remove ground pin from plug. 2. Make certain that the ground fault interrupter protected receptacle or control box is within the reach of the pump’s power supply cord. DO NOT USE AN EXTENSION CORD. Extension cords that are too long or too light do not deliver sufcient voltage to the pump motor, and they could present a safety hazard if the insulation were to become damaged or the connection end were to fall into a damp or wet area. 3. Make sure the pump's electrical supply circuit is equipped with fuses or circuit breakers of proper capacity. A separate branch circuit is recommended, sized according to the local electrical codes for the current shown on the pump name plate.

4. Testing for ground. As a safety measure, each electrical outlet should be checked

for ground using a circuit analyzer which will indicate if the power, neutral and ground wires are correctly connected to your outlet. If they are not, call a quali-ed licensed electrician. 5. FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM ITS POWER SOURCE BEFORE HANDLING. If pump is wired direct, de-energize the circuit at the control box. Wear insulated protective shoes and do not stand in water. Pumps equipped with a 3-prong ground plug are designed to help protect against electrical shock. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE GROUND PIN. 6. Installation and servicing of the pump, electrical circuits and hardware should only be performed by a qualied, licensed electrician.

7. Risk of electrical shock. Do not remove power supply cord and strain relief

or connect conduit directly to the pump. If the supply cable is damaged, it must be replaced by the Manufacturer or an Authorized Service and Warranty Center to avoid a hazard. 8. Pump contains oil which becomes pressurized and hot when operating. Allow 2-1/2 hours after disconnecting before attempting service. 9. Pump is not intended for potable water due to possible contamination by oil contained in the pump. 10. Risk of electrical shock. These pumps have not been investigated for use in swimming pools and marine areas. 11. Prop65 Warning for California residents: Cancer and Reproductive Harm- www.P65Warnings.ca.gov. 1. Check to be sure your power source is capable of handling the voltage requirements of the motor, as indicated on the pump name plate. 2. The installation of variable level oat switches is the responsibility of the installing party, and care should be taken that the tethered oat switch will not hang up on the pump apparatus or pit peculiarities and is secured so that the pump will shut off. It is recommended to use rigid pipe and ttings and the pit be 18" (46 cm) or larger in diameter.

3. Vent hole. It is necessary that all submersible sump, efuent, and sewage

pumps capable of handling various sizes of solid waste be of the bottom intake design to reduce clogging and seal failures. If a check valve is incorporated in the installation, a 3/16" (5 mm)vent hole must be drilled in the discharge pipe below the check valve and pit cover to purge the unit of trapped air. Vent hole should be checked periodically for clogging. The vent hole on a High Head application may cause too much turbulence. If you choose not to drill a vent hole, be sure the pump case and impeller is covered with liquid before connecting the pipe to the check valve. NOTE: THE HOLE MUST BE BELOW THE BASIN COVER AND CLEANED PERIODICALLY. Water stream will be visible when pump is operating. 4. Pump should be checked frequently for debris and/or build up which may interfere with the oat “on” or “off” position. Repair and service should be performed by an Authorized Service and Warranty Center. 5. Maximum operating temperature for standard model pumps must not exceed 130 °F (54 °C). Maximum operating temperatures for 70 series and model 211 must not exceed 110 °F (43 °C). Maximum operating temperatures for 73, 75, 212 series must not exceed 104 °F (40 °C). 6. Do not operate a pump in an application where the Total Dynamic Head is less than the minimum Total Dynamic Head listed on the Pump Performance Curves. 7. For health reasons, do not unplug, turn off, or disable pump and use pump tank system as a way to ll up a sink or laundry tray, etc. 8. Pumps must be installed in accordance with the National Electrical Code and all applicable local codes and ordinances. Pumps are not to be installed in locations classied as hazardous in accordance with National Electric Code, ANSI, NFPA 70. NOTE: Pumps with the "UL" mark and pumps with the "US" mark are tested to UL standard UL778. CSA certied pumps are certied to CSA standard C22.2 No. 108. Register your Zoeller Pump Company Product on our website: http://reg.zoellerpumps.com/ NOTICE: VENT HOLE FORCHECK VALVESEE #3 IN CAUTION SECTIONBELOW AND #4 ON PAGE 3Many Zoeller products contain registered trademarks for design and/or the color green: U.S. #4,849,524 / #5,024,907 PN/ 1564062 © Copyright 2020 Zoeller

Co. All rights reserved. in lieu of all other warranties expressed or implied; and we do not authorize any representative or other person to assume for us any other liability in connection with our products. Contact Manufacturer at, 3649 Cane Run Road, Louisville, Kentucky 40211, Attention: Customer Support Department to obtain any needed repair or replacement of part(s) or additional information pertaining to our warranty. MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE EXPRESSED WARRANTY. Some states do not allow limitations on the duration of an implied warranty, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may also have other rights which vary from state to state. LIMITED WARRANTY Manufacturer warrants, to the purchaser and subsequent owner during the warranty period, every new product to be free from defects in material and workmanship under normal use and service, when properly used and maintained, for a period of two years from date of purchase. Proof of purchase is required. Parts that fail within the warranty period that inspections determine to be defective in material or workmanship will be repaired, replaced or remanufactured at Manufacturer's option, provided however, that by so doing we will not be obligated to replace an entire assembly, the entire mechanism or the complete unit. No allowance will be made for shipping charges, damages, labor or other charges that may occur due to product failure, repair or replacement. This warranty does not apply to and there shall be no warranty for any material or product that has been disassembled without prior approval of Manufacturer, subjected to misuse, misapplication, neglect, alteration, accident or uncontrollable act of nature; that has not been installed, operated or maintained in accordance with Manufacturer's installation instructions; that has been exposed to outside substances including but not limited to the following: sand, gravel, cement, mud, tar, hydrocarbons, hydrocarbon derivatives (oil, gasoline, solvents, etc.), or other abrasive or corrosive substances, wash towels or feminine sanitary products, etc. in all pumping applications. The warranty set out in the paragraph above is

CONDITION COMMON CAUSES

A. Pump will not start or run. Check fuse, low voltage, overload open, open or incorrect wiring, open switch, impeller or seal bound mechanically, motor or wiring shorted. Float assembly held down. Switch, damaged or out of adjustment.

Motor overheats and trips overload or blows fuse. Incorrect voltage, negative head (discharge open lower than normal) impeller or seal bound mechanically, motor shorted. C. Pump starts and stops too often. Float switch tether length too short, check valve stuck open, or none installed in long distance line, overload open, binding, sump pit too small. D. Pump will not shut off. Debris under oat assembly, oat bound by basin sides or other, switch, damaged or out of adjustment.

Pump operates but delivers little or no water. Check inlet, strainer housing, discharge pipe, and vent holes for obstructions. Discharge head exceeds pump capacity. Low or incorrect voltage. Incoming water containing air or causing air to enter pumping chamber. Incorrect motor rotation. (3 phase pumps only)

Drop in head and/or capacity after a period of use. Increased pipe friction, clogged line or check valve. Abrasive material and adverse chemicals could possibly deteriorate impeller and pump housing. Check line. Remove base and inspect. G. Tank or fittings leak. Carefully tighten pipe joints (use pipe dope) and screws. Check gasket location, tighten lid evenly. Do not over tighten ttings or screws. If the above checklist does not reveal the problem, consult the Product Support Department. Do not attempt to service or otherwise disassemble pump. Service must be peformed by a Zoeller Authorized Service and Warranty Center. Visit www.zoeller.com for a complete list of service centers. SERVICE CHECKLIST DO’S & DON'T’S FOR INSTALLING UNIT

1. DO read all installation material with the unit.

2. DO inspect unit for any visible damage caused by shipping. Contact dealer

if unit appears to be damaged.

3. DO remove all debris from the basin. Be sure that the pump will have a hard,

level surface beneath it. DO NOT install on sand, gravel or dirt.

4. DO be sure that the area is large enough to allow proper clearance for the

level control switch(es) to operate properly.

5. DO Always Disconnect Pump From Power Source Before Handling.

DO always connect to a separately protected and properly grounded circuit. DO NOT ever cut, splice, or damage power cord (Only splice in a watertight junction box). DO NOT carry or lift pump by its power cord. DO NOT use an extension cord.

6. DO install a check valve and a union in the discharge line.

DO NOT use a discharge pipe smaller than the pump discharge.

7. DO NOT utilize this unit for pumping gasoline or other hazardous liquids.

8. DO test pump immediately after installation to be sure the system is working

9. DO review all applicable governing codes and verify that the installation

conforms to each of them.

10. DO consult manufacturer for clarications or questions.

consider a two-pump system with an alarm where an installation may become overloaded or primary pump failure would result in property damages.

12. DO consider a D.C. Backup System where a sump or dewatering pump is

necessary for the prevention of property damages from ooding due to A.C. power disruptions, mechanical or electrical problems or system overloading.

13. DO inspect and test system for proper operations at least every 3 months.

In instances where property damages are incurred as a result of an alleged product failure, the property owner must retain possession of the product for investigation purpose.3 © Copyright 2020 Zoeller

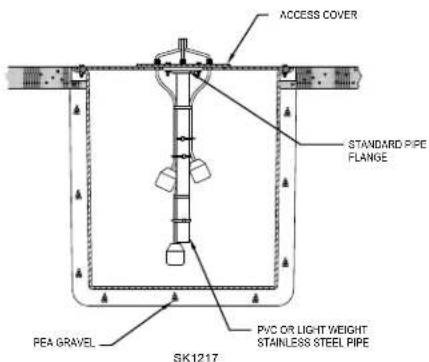

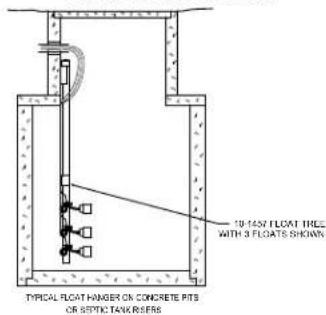

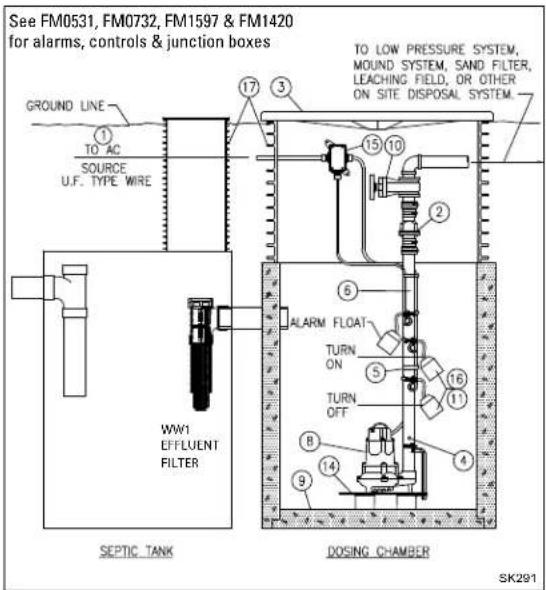

Co. All rights reserved. On some installations, it may be desirable to install an independent hanger for the level control switches to avoid possible hang-ups on the pumps, piping, valves, etc. Float hangers are available from Zoeller Company on Catalog Sheet FM0526 or can be fabricated from standard pipe and ttings. Suggested Methods of Float Installation

All installations must comply with all applicable electrical and plumbing codes, including, but not limited to, National Electrical Code, local, regional, and/or state plumbing codes, etc. Not intended for use in hazardous locations.

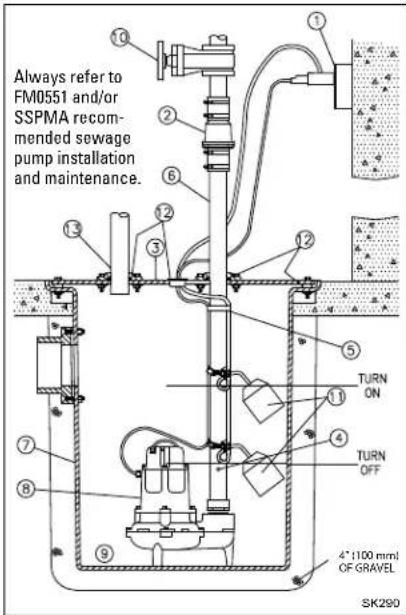

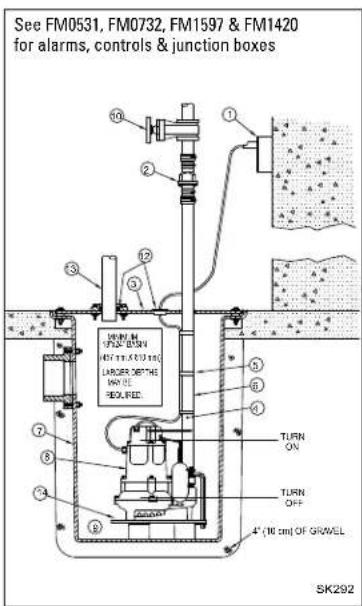

TYPICAL SEWAGE INSTALLATION

SK2904” (100 mm)OF GRAVEL Always refer to FM0551 and/or SSPMA recom- mended sewage pump installation and maintenance.

1. Electrical wiring and protection must be in accordance with governing

2. Install proper Zoeller Unicheck (combination union and check valve),

preferably just above the basin to allow easy removal of the pump for cleaning or repair. If high head or below-cover installation is required, use 30-0164 on 1-1/2" (DN40) pipe, 30-0152 on 2" (DN50) pipe and 30-0160 on 3" (DN80) pipe.

3. All installations require a basin cover to prevent debris from falling into

the basin and to prevent injury.

4. When a Unicheck is installed, drill a 3/16" (5 mm) diameter hole in the

discharge pipe even with the top of the pump. NOTE: THE HOLE MUST ALSO BE BELOW THE BASIN COVER AND CLEANED PERIODICALLY. (High Head unit see “Caution” on front page). Water stream will be visible from this hole when pump is operating.

5. Securely tape or clamp power cord to discharge pipe, clear of the oat

6. Use a discharge pipe equivalent in diameter to the pump's discharge.

7. Basin must be in accordance with governing codes and specications.

8. Pump must be level and oat mechanism(s) clear of sides of basin

before starting pump.

9. Basin must be clean and free of debris after installation.

10. Gate valve, shut-off valve, or ball valve to be supplied by installer and

installed according to any and all codes.

11. Locate oat switches as shown in sketches. The best place for the “off”

point is above the motor housing and positioned 180° from the inlet. Never put “off” point below discharge on pump

12. Gas-tight seals are required to contain gases and odors.

13. Vent gases and odors to the atmosphere through vent pipe. Must comply

with local codes but not required for dewatering.

14. Optional pump stand (P/N 10-2421) eliminates the need for blocks or

bricks under the pump. For use with efuent and dewatering pumps only.

15. Optional watertight control box available, see FM1597 for details.

16. For proper spacing of "On" - "Off" switches refer to local or

national standards and guidelines.

17. Optional septic tank risers for easy access to pump, controls and lters.4

© Copyright 2020 Zoeller

Co. All rights reserved.

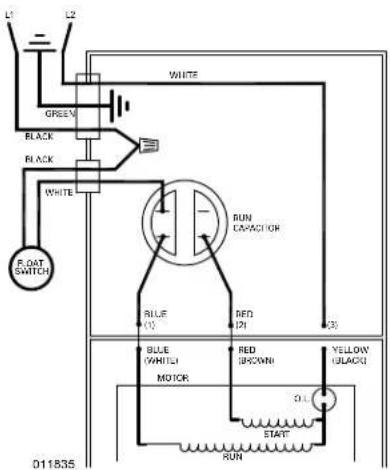

WD - 230 V, 1 Ph, 60 Hz. WH - 200/208 V, 1 Ph, 60 Hz. Models WD & WH are fully automatic. A oat switch is included and factory-wired in the pump circuit to provide automatic operation once the oat switch is secured properly to the outlet pipe. Use the diagram above to secure the oat switch properly and obtain the proper tether to customize the on-off cycle to each application. Determining Pumping Range in Inches (1 inch = 2.5 cm) Tether Length 5 10 15 20 22 Pumping Range 9 13.5 18 22 24 max. Use only as a guide. Due to weight of cable, pumping range above horizontal is not equal to pumping range below horizontal. Ranges are based on testing in nonturbulent conditions. Range may vary due to water temperature and cord shape. As tether length increases, so does the variance of the pumping range. min. START RUN BLUE MOTOR(WHITE) RED (BROWN) O.L.

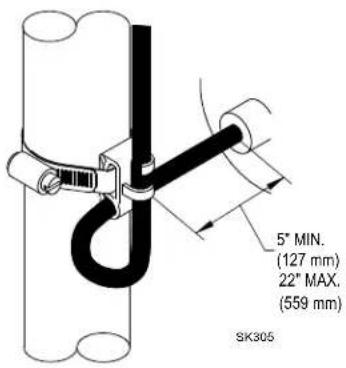

(3) Note: Failure to keep within proper tether limits may prevent reliable switch operation. Note: Cable must be mounted in horizontal position. 22" MAX. (559 mm) 5" MIN. (127 mm) 20 AMP SWITCH (WD & WH MODELS) SK305

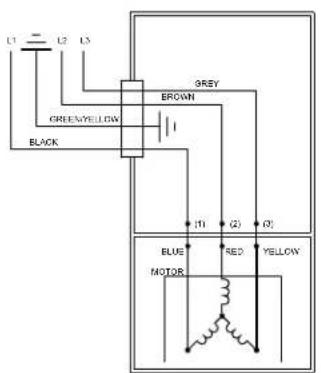

THREE PHASE WIRING INSTRUCTIONS

FOR YOUR PROTECTION, ALWAYS

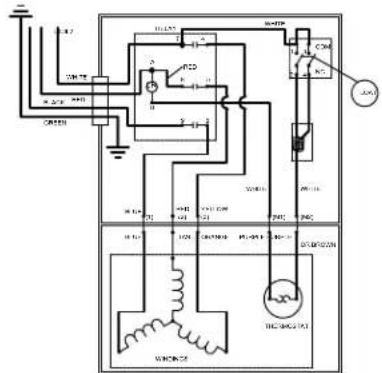

DISCONNECT PUMP FROM ITS POWER SOURCE BEFORE HANDLING. To automatically operate a nonautomatic three phase pump, a control panel is required. Follow the instructions provided with the panel to wire the system. For automatic three phase pumps, see automatic 3 phase wiring diagram located to the far right. Before installing a pump, check the pump rotation to ensure that wiring has been connected properly to power source, and that the green lead of power cord (see wiring diagram) is connected to a valid ground. Momentarily energize the pump, observing the directions of kick back due to starting torque. Rotation is correct if kick back is in the opposite direction of rotation arrow on the pump casing. If rotation is not correct, switching of any two power leads other than ground, should provide the proper rotation. All three phase pumps require motor starting devices with motor overload protection. See FM0486 for duplex installations. Pumps must be installed in accordance with the National Electrical Code and all applicable local codes and ordinances. Pumps are not to be installed in locations classied as hazardous in accordance with National Electrical Code, ANSI/NFPA 70. NONAUTOMATIC 3 PHASE AUTOMATIC 3 PHASE (3) FLOAT (1) (2) BLUE TAN COM

FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM ITS POWER SOURCE BEFORE HANDLING. Single phase pumps are supplied with a 3-prong grounded plug to help protect you against the possibility of electrical shock. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE GROUND PIN. The 3-prong plug must be inserted into a mating 3-prong grounded receptacle. If the installation does not have such a receptacle, it must be changed to the proper type, wired and grounded in accordance with the National Electrical Code and all applicable local codes and ordinances. Risk of electrical shock. Do not remove power supply cord and strain relief or connect conduit directly to the pump. Installation and checking of electrical circuits and hardware should be performed by a qualied licensed electrician. Units supplied without a plug (single and three phase) and single phase nonautomatic units with a 20 amp plug must have a motor control and liquid level control provided at time of installation. The control device should have suitable voltage, ampere, frequency, grounding and horsepower rating for the pump to which it is connected. IMPORTANT NOTICE: Some insurance policies, both commercial and residential, extend coverage for damages incurred by product failure. You will need to have possession of the product to support your claim in most cases. Zoeller Pump Co. will exchange the unit or refund the original purchase price once the claim is settled with the insurer in the case where you need to retain possession of the product to support a damage claim you submit to your insurance company. MOTOR (3) BLUE RED BLACK GREEN/YELLOW
