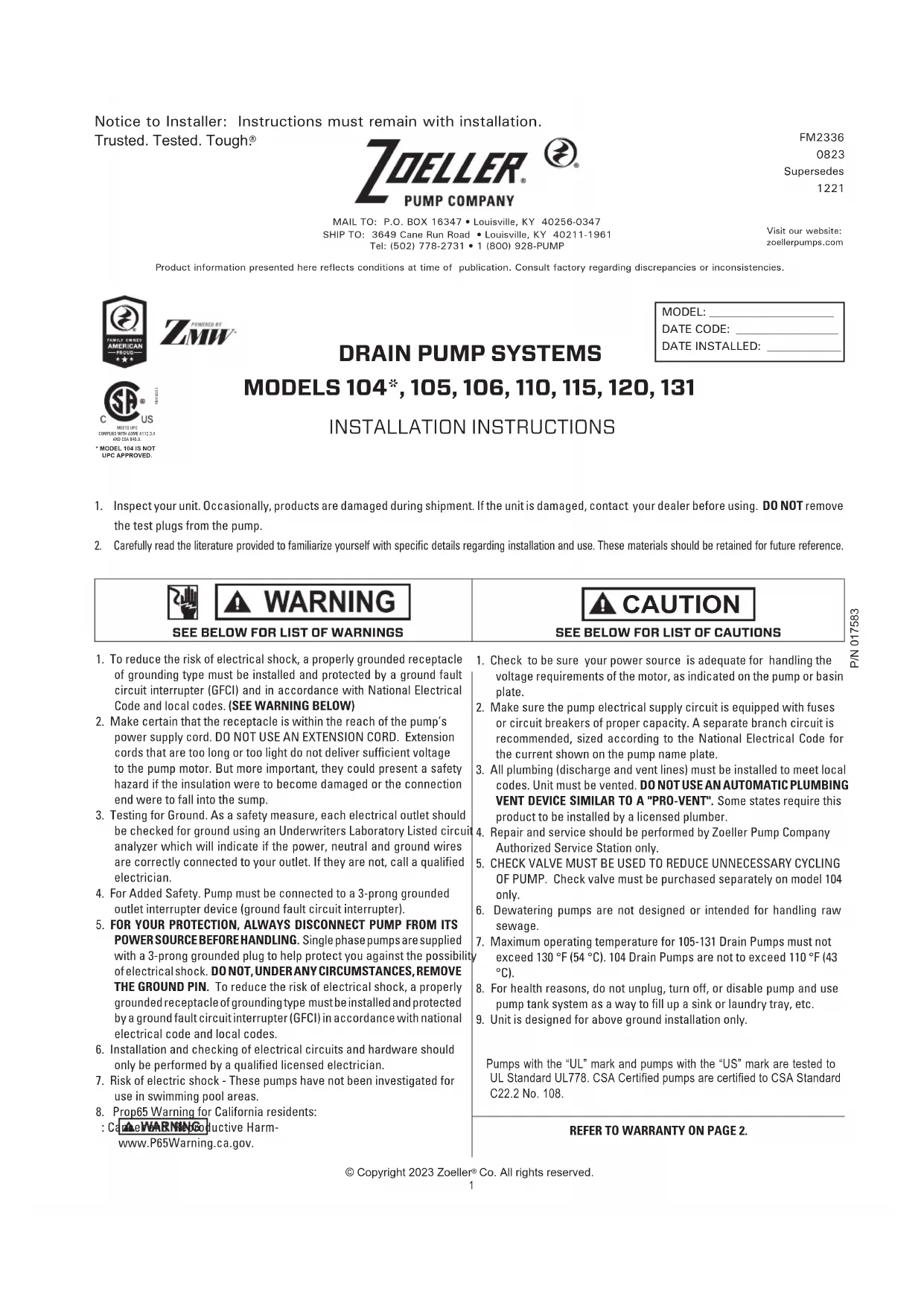

MODELS 104*, 105, 106, 110, 115, 120, 131 INSTALLATION INSTRUCTIONS P/N 017583FM2336 Supersedes

Notice to Installer: Instructions must remain with installation.

MODEL: ______________________DATE CODE: __________________DATE INSTALLED: _____________

When making changes to this FM, be sure to also make changes to the Spanish and French version and also the FW0107 if the 104 pump is changed. Also, if the changes will a󰀨ect the model 1104, FM2366 for Dayton will also be a󰀨ected. 1. Inspect your unit. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before using. DO NOT remove the test plugs from the pump. 2. Carefully read the literature provided to familiarize yourself with specic details regarding installation and use. These materials should be retained for future reference. 1. To reduce the risk of electrical shock, a properly grounded receptacle of grounding type must be installed and protected by a ground fault circuit interrupter (GFCI) and in accordance with National Electrical Code and local codes. (SEE WARNING BELOW) 2. Make certain that the receptacle is within the reach of the pump’s power supply cord. DO NOT USE AN EXTENSION CORD. Extension cords that are too long or too light do not deliver sufcient voltage to the pump motor. But more important, they could present a safety hazard if the insulation were to become damaged or the connection end were to fall into the sump.3. Testing for Ground. As a safety measure, each electrical outlet should be checked for ground using an Underwriters Laboratory Listed circuit analyzer which will indicate if the power, neutral and ground wires are correctly connected to your outlet. If they are not, call a qualied electrician.4. For Added Safety. Pump must be connected to a 3-prong grounded outlet interrupter device (ground fault circuit interrupter).5. FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM ITS POWER SOURCE BEFORE HANDLING. Single phase pumps are supplied with a 3-prong grounded plug to help protect you against the possibility of electrical shock. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE GROUND PIN. To reduce the risk of electrical shock, a properly grounded receptacle of grounding type must be installed and protected by a ground fault circuit interrupter (GFCI) in accordance with national electrical code and local codes.6. Installation and checking of electrical circuits and hardware should only be performed by a qualied licensed electrician. 7. Risk of electric shock - These pumps have not been investigated for use in swimming pool areas.8. Prop65 Warning for California residents: : Cancer and Reproductive Harm- www.P65Warning.ca.gov.1. Check to be sure your power source is adequate for handling the voltage requirements of the motor, as indicated on the pump or basin plate. 2. Make sure the pump electrical supply circuit is equipped with fuses or circuit breakers of proper capacity. A separate branch circuit is recommended, sized according to the National Electrical Code for the current shown on the pump name plate. 3. All plumbing (discharge and vent lines) must be installed to meet local codes. Unit must be vented. DO NOT USE AN AUTOMATIC PLUMBING VENT DEVICE SIMILAR TO A "PRO-VENT". Some states require this product to be installed by a licensed plumber.4. Repair and service should be performed by Zoeller Pump Company Authorized Service Station only.5. CHECK VALVE MUST BE USED TO REDUCE UNNECESSARY CYCLING OF PUMP. Check valve must be purchased separately on model 104 only. 6. Dewatering pumps are not designed or intended for handling raw sewage. 7. Maximum operating temperature for 105-131 Drain Pumps must not exceed 130 °F (54 °C). 104 Drain Pumps are not to exceed 110 °F (43 °C). 8. For health reasons, do not unplug, turn off, or disable pump and use pump tank system as a way to ll up a sink or laundry tray, etc.9. Unit is designed for above ground installation only.SEE BELOW FOR LIST OF WARNINGS CAUTION SEE BELOW FOR LIST OF CAUTIONSREFER TO WARRANTY ON PAGE 2. Pumps with the “UL” mark and pumps with the “US” mark are tested to UL Standard UL778. CSA Certified pumps are certified to CSA Standard C22.2 No. 108. Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies. MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961Tel: [phone] • 1 (800) 928-PUMP Visit our website:zoellerpumps.com Trusted. Tested. Tough.

Co. All rights reserved. Manufacturer warrants, to the purchaser and subsequent owner during the warranty period, every new product to be free from defects in material and workmanship under normal use and service, when properly used and maintained, for THE PERIOD MENTIONED IN THE CHART BELOW FOR THE SPECIFIC MODEL PURCHASED, from the date of purchase. Proof of purchase is required. Parts that fail within the warranty period, that inspections determine to be defective in material or workmanship, will be repaired, replaced or remanufactured at Manufacturer's option, provided however, that by so doing we will not be obligated to replace an entire assembly, the entire mechanism or the complete unit. No allowance will be made for shipping charges, damages, labor or other charges that may occur due to product failure, repair or replacement. This warranty does not apply to and there shall be no warranty for any material or product that has been disassembled without prior approval of Manufacturer, subjected to misuse, misapplication, neglect, alteration, accident or act of nature; that has not been installed, operated or maintained in accordance with Manufacturer's installation instructions; that has been exposed to outside substances including but not limited to the following: sand, gravel, cement, mud, tar, hydrocarbons, hydrocarbon derivatives (oil, gasoline, solvents, etc.), or other abrasive or corrosive substances, wash towels or feminine sanitary products, etc. in all pumping applications. The warranty set out in the paragraph above is in lieu of all other warranties expressed or implied; and we do not authorize any representative or other person to assume for us any other liability in connection with our products. Contact Manufacturer at, 3649 Cane Run Road, Louisville, Kentucky 40211, Attention: Customer Service Department to obtain any needed repair or replacement of part(s) or additional information pertaining to our warranty. MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE EXPRESSED WARRANTY. Some states do not allow limitations on the duration of an implied warranty, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may also have other rights which vary from state to state. Limited Warranty ELECTRICAL PRECAUTIONS- Before servicing a pump, always shut off the main power breaker and then unplug the pump - making sure you are not standing in water and wearing insulated protective sole shoes. Under ooded conditions, contact your local electric company or a qualied licensed electrician for disconnecting electrical service prior to pump removal. Submersible pumps can become pressurized under normal operating conditions — allow 2-1/2 hours after disconnecting before attempting service. CONDITION A. Pump will not start or run. B. Motor overheats and trips overload or blows fuse. C. Pump starts and stops too often. D. Pump will not shut off. E. Pump operates but delivers little or no water. F. Drop in head and/or capacity after a period of use. G. Iftankorttingsleak. If the above checklist does not uncover the problem, consult the factory. do you attempt to service or otherwise disassemble pump. Service must beperformedbyZoellerautorizedServiceandwarrantycenters.Gotowww.zoellerpump.comtondtheauthorizedservicecenterinyourarea. Service Checklist COMMON CAUSES Check fuse, low voltage, overload open, open or incorrect wiring, open switch, impeller or seal bound mechanically, defective capacitor or relay when used, motor or wiring shorted. Float assembly held down. Switch defective, damaged, or out of adjustment. Incorrect voltage, negative head (discharge open lower than normal) impeller or seal bound mechanically, defective capacitor or relay, motor shorted. Float too tight on rod, check valve stuck, or none installed in long distance line, overload open, switch defective. Debris under oat assembly, oat or oat rod bound by basin sides or other, switch defective, damaged or out of adjustment. Check strainer housing, discharge pipe, or if check valve is used, the vent hole must be clear. Discharge head exceeds pump capacity. Low or incorrect voltage. Incorrect motor rotation. Capacitor defective. Incoming water containing air or causing air to enter pumping chamber. Increased pipe friction, clogged line or check valve. Abrasive material and adverse chemicals could possibly deteriorate impeller and pump housing. Check line. Remove base and inspect. Carefully tighten pipe joints (use pipe dope) and screws. Check gasket location, tighten lid evenly. Do not over tighten ttings or screws. In instances where property damages are incurred as a result of an alleged product failure, the property owner must retain possession of the product for investigation purpose. Drain Pump Model

Pump Model M72 M53 M63 M55 M57 M59 M98 Warranty 2 year 3 year 5 year 1 year 3 year 1 year 3 year3 © Copyright 2023 Zoeller Co. All rights reserved.

1. Read all instructions before beginning installation.

2. Be certain that basin is on a rm level surface.

3. Do not use an automatic plumbing vent device.

4. Do not over-torque lid attachment screws.

5. Always use a check valve on the discharge line.

6. Test operation of pump per STEP 6.

Ten Helpful Hints For Easy Installation Performance Characteristics

7. Always provide some means to disconnect basin from plumbing

for maintenance purposes.

8. Run unit at least once a month to verify proper operation.

9. The model number and date code can be found on the lid warning

10. Plug pump into a properly grounded GFCI receptacle.

1. DO read all installation material included with the pump.

2. DO inspect unit for any visible damage caused by shipping.

Contact dealer if unit appears to be damaged.

3. DO clean all debris from the basin and pump.

4. DO always disconnect pump from power source before handling.

DO always connect to a separately protected and properly grounded ground fault protected circuit. DO NOT ever cut, splice or damage power cord. DO NOT carry or lift pump by its power cord. DO NOT use an extension cord. Do’s And Don't’s For Installing A Unit

6. DO test pump immediately after installation to be sure that the

system is working properly.

7. DO review all applicable local and national codes and verify that

the installation conforms to each of them.

8. DO NOT install unit in the ground.

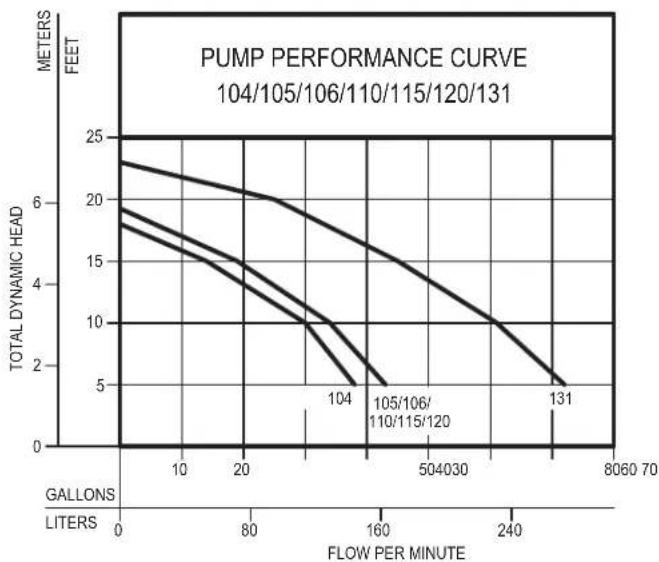

FLOW PER MINUTE105/106/8060 70

104/105/106/110/115/120/131

Co. All rights reserved. X (4" MIN.) SEE NOTE

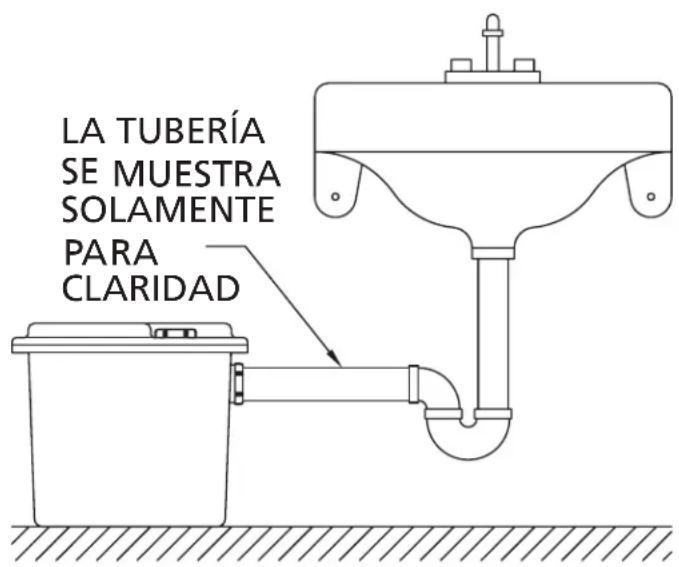

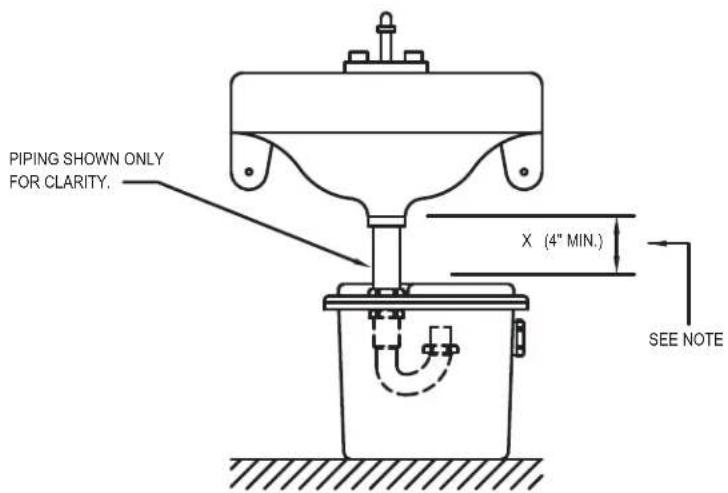

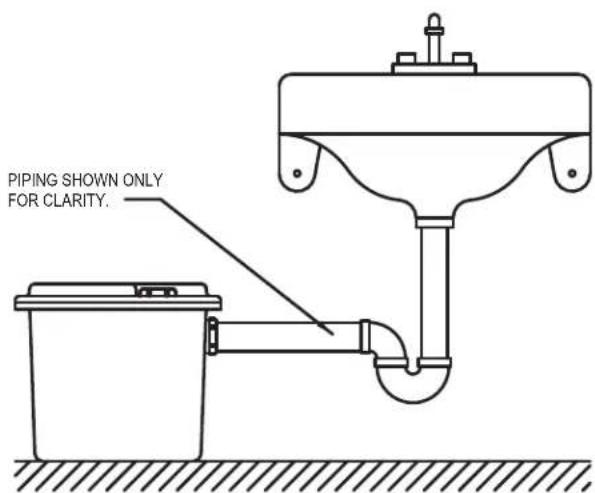

FOR CLARITY. STEP 1 Determine Installation Configuration NOTE:Thebasinisdesignedtobeinstalleddirectlyunderthesink(InternalTrap)orontheside(Standard). IMPORTANT! Checklocalandstatecodesbeforeusingtheinternaltrapoption. 1.1) Figure 1.1A and 1.1B are typical congurations for installation of the drain systems. The actual conguration will vary depending on your cabinet and sink conguration. NOTE:Ifinstallingtheinternaltrap,recordthe“x”dimension,itwillberequiredinStep4. INTERNAL TRAP COMPONENTS SUPPLIED BY OTHERS.! Figure 1.1B STANDARD (EXTERNAL TRAP) SK2001 Figure 1.1A INTERNAL TRAP5 © Copyright 2023 Zoeller

Co. All rights reserved. STEP 2 Install the Discharge Pipe onto the Pump ( All Models) Figure 2.1

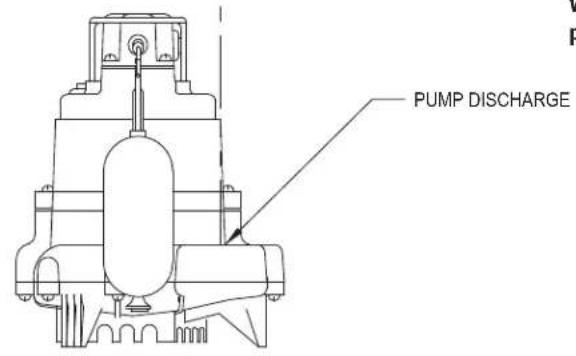

BE SURE THAT WEEPHOLE

IS NOT DIRECTED TOWARD THE FLOAT! Waterstreamwillbevisiblefromthisholeduringpumprun periods. IMPORTANT!

DISCHARGE PIPEPUMP DISCHARGEWEEP HOLESK2002

STEP 3 Installation of the Gasket 3.1) Install the gasket into the “gasket seat” at the top of the basin, refer to Figure 3.1 for details. Figure 3.1 SK2972 SEAL DETAIL BASIN SEAL

ENSURE NOTCHES LINE UP6

© Copyright 2023 Zoeller

Co. All rights reserved. INLET TAIL PIPE TRAP

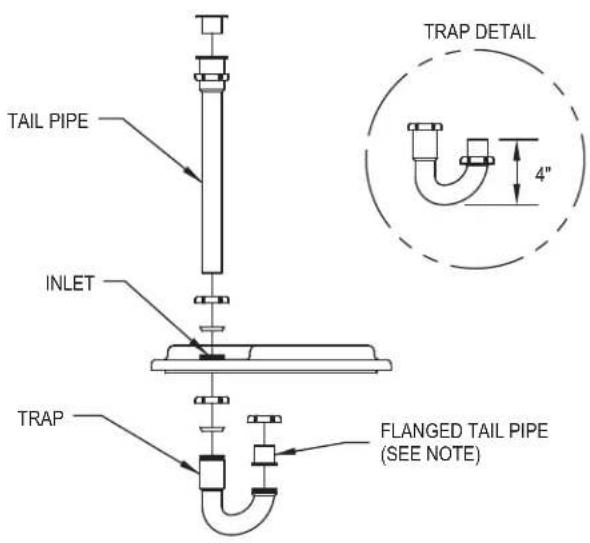

TRAP DETAIL TAIL PIPE TAILPIPE LENGTH DIMENSION MEASURED IN STEP 1. STEP 4 Internal Trap Installation Only 4.1) Cut the tailpipe to the dimension determined in Figure 4.1. 4.2) Install the sink drain components to the lid as shown in Figure 4.2. 4.3) Orient the lid assembly as shown in Figure 4.3 and secure the trap components. (HAND TIGHTEN the assembly to the lid at this time. Adjustment will be required in Step 5.) Note:Toensureaproperwaterseal,theextensionmustbeinstalledasshowninthe“trapdetail”. INTERNAL TRAP COMPONENTS SUPPLIED BY OTHERS. Figure 4.1 SK2004 Figure 4.3 Figure 4.27 © Copyright 2023 Zoeller

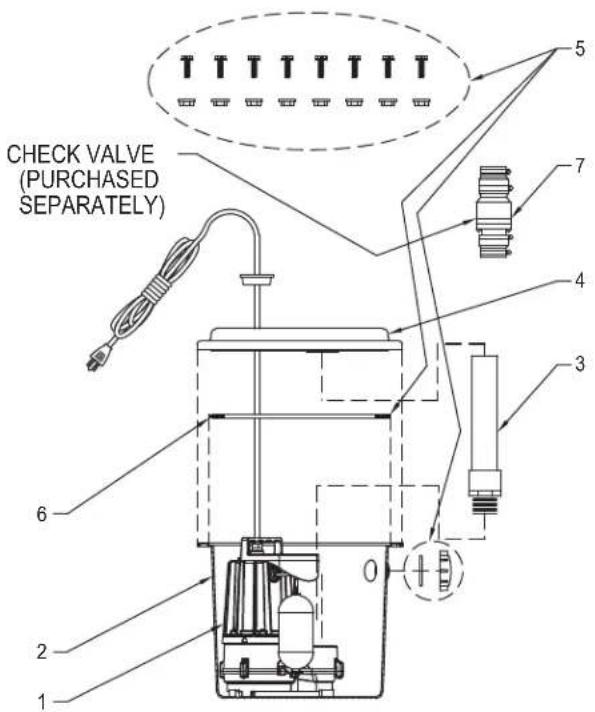

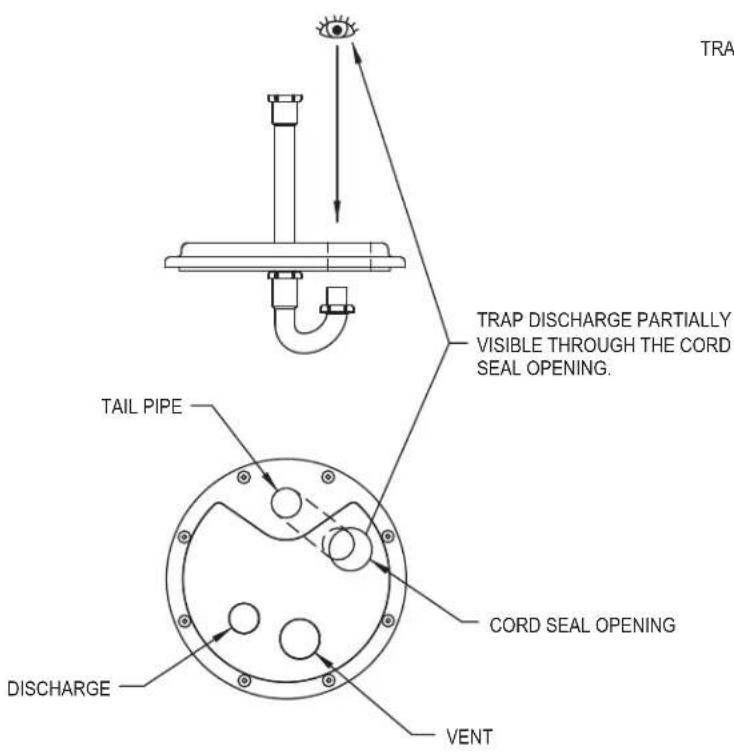

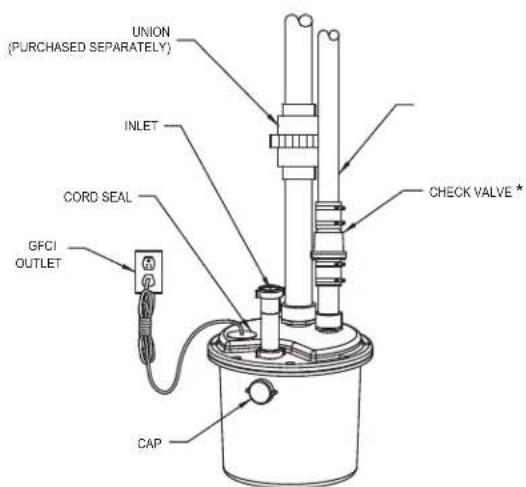

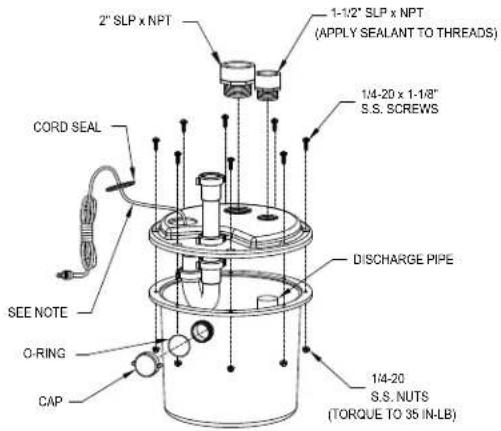

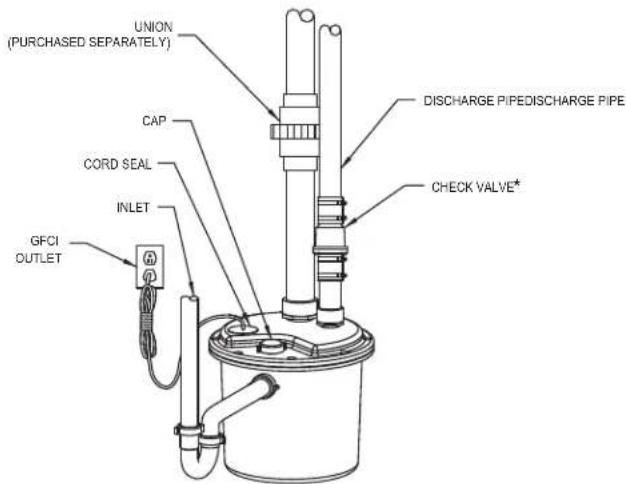

Co. All rights reserved. 1/4-20 x 1-1/8"S.S. SCREWSDISCHARGE PIPE1-1/2" SLP x NPT2" SLP x NPTCORD SEAL1/4-20 S.S. NUTS(TORQUE TO 35 IN-LB)SEE NOTE(APPLY SEALANT TO THREADS) CAP O-RING KEY TRAP INLET GFCI OUTLET GFCI OUTLETCORD SEAL CAP UNION(PURCHASED SEPARATELY)CHECK VALVEDISCHARGE PIPEDISCHARGE PIPECHECK VALVE CAP UNION(PURCHASED SEPARATELY)CORD SEALINLETINLETINTERNAL TRAP INSTALLATION STANDARD INSTALLATION STEP 5 Final Assembly NOTE:Externalplumbingcongurationwillvarydependingonthelocationofbasin,locationofmainstackand available space. 5.1) Place the pump in the basin as shown in Figure 5.1. NOTE: Ifinstallingtheinternaltrap,rotatethetailpipetotheorientationshowninFigure5.1. 5.2) Install the lid components as shown in Figure 5.2. NOTE: PullexcesscordagethroughtheopeningandinstallthecordsealasshowninFigure5.3A. Insureo-ringisinthecapbeforeinstallation. 5.3) Place the basin assembly in its nal position and complete plumbing. Secure all connections (shown in 5.3A or 5.3B). STEP 6 Initial Testing of Drain Basin System 6.1) Plug the cord into a properly grounded GFCI receptacle. 6.2) Fill tank with water. 6.3) Check all plumbing for leaks as the basin lls. 6.4) Verify that the pump starts and stops.

6.5.) Check the discharge line for leaks as the pump empties the basin.

6.6.) Repeat steps 6.2 to 6.5 as necessary to insure proper operation.

6.7.) If problems persist, refer to the troubleshooting guide located on page 2 of this manual.

Figure 5.3A Figure 5.3B SK2006

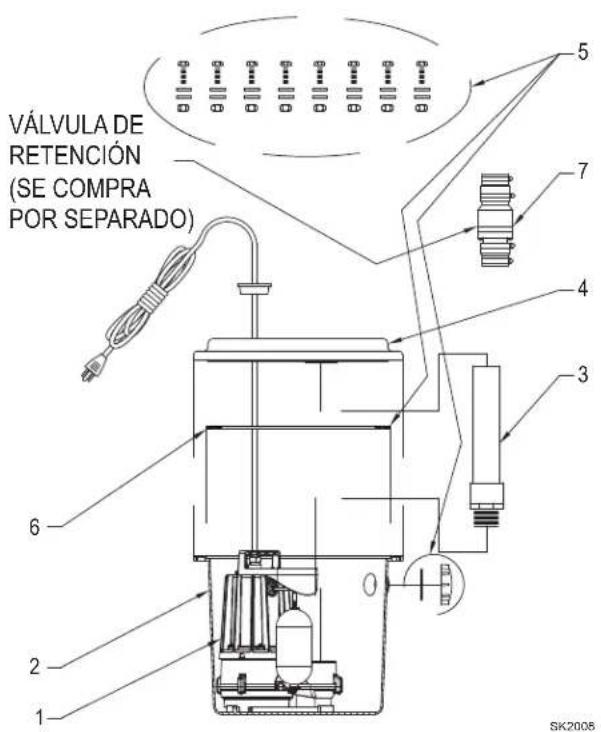

MODELS 105-D 106-A 110-D 115-D 120-D 131-C 104-D

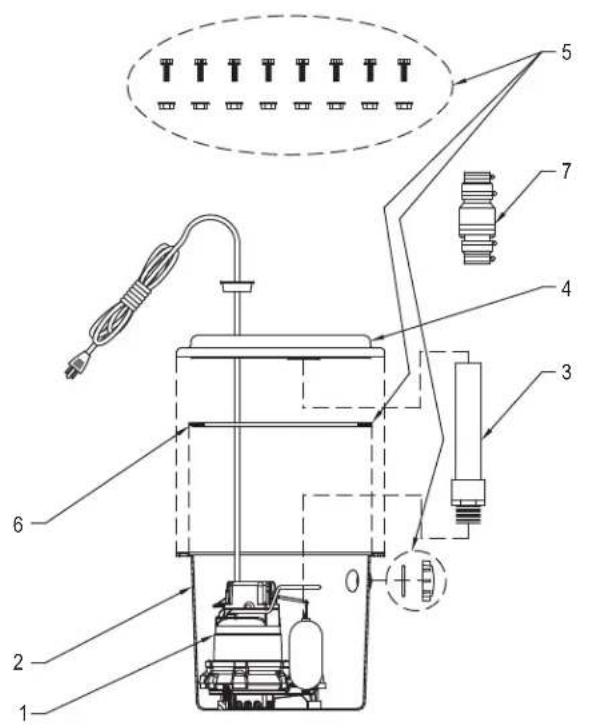

ITEM DESCRIPTION QTY

08/00 thru Current 04/20 thru Current 08/00 thru Current 08/00 thru Current 08/00 thru Current 08/00 thru Current 08/00 thru Current

104/105/106/110/115/120/131

© Copyright 2023 Zoeller

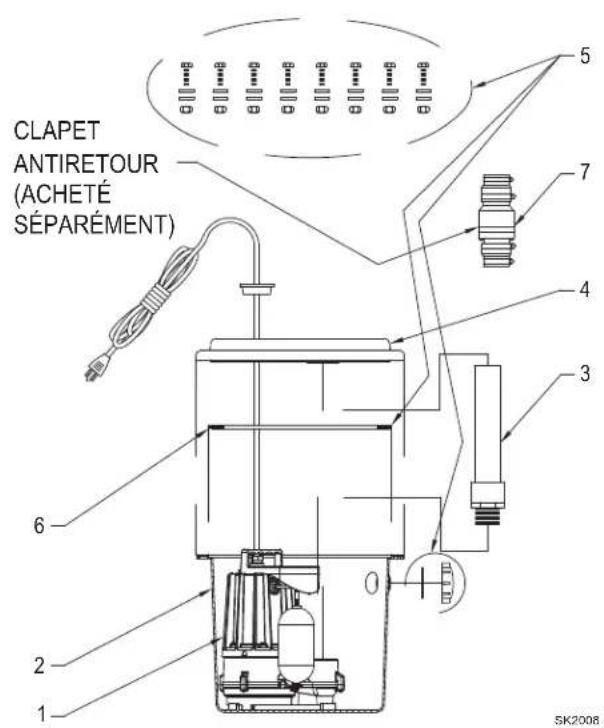

TAPA ANILLO O ANILLO O TAPA © Copyright 2023 Zoeller

104/105/106/110/115/120/131

© Copyright 2023 Zoeller

MODEL 105/106/110/115/120/131 MODÈLES 105-D 110-D 115-D 120-D 131-C 104-D RÉF. DESCRIPTION QUANT. 08/00
