Product type	Immersion circulator (temperature control thermostat)
Brand	LA VAGUE
Model	Sous Chef
Power	850 W (220-240 V)
Temperature range	25.0 °C to 99.9 °C
Temperature precision	±0.1 °C
Circulation pump flow rate	8.2 LPM (max flow)
Voltage	220-240 V
Materials in contact with liquid	Stainless steel (removable grid), PC (pump cover)
Minimum container depth	10 cm
Functions	Temperature setting, timer, unit change (°C/°F), on/off
Cleaning	Grid and pump cover dishwasher safe; main body do not immerse
Safety	Safety feature: operation only possible with water level between min and max; stops if fully submerged
Included accessories	Mounting clamp, removable stainless steel grid
Intended use	Heating water for sous vide cooking of vacuum-packed food
Repairability	Do not disassemble; contact retailer in case of malfunction

Frequently Asked Questions - Sous Chef LA VAGUE

How do I set the temperature on the Sous Chef?

Turn the control knob to select the temperature. Turn slowly for 1-degree increments, quickly for 3-degree increments. Press the function button (timer symbol) to confirm.

How do I set the timer?

After confirming the temperature, turn the knob to set the time. Turn slowly for 1-minute increments, quickly for 30-minute increments. Press the function button to confirm, then press on/off to start.

Can I use the Sous Chef with any container?

Yes, but the container must have a minimum depth of 10 cm and the water level must be between the MIN and MAX marks. Attach the device with the clamp on the edge.

How do I clean the Sous Chef?

Unplug and let cool. The stainless steel grid and pump cover are dishwasher safe. The main body (upper part) should never be immersed; clean it with a damp cloth.

What foods can I cook with the Sous Chef?

Meat, fish, seafood, vegetables, fruits, eggs, pudding, and more, packaged in heat-resistant vacuum bags.

What is the minimum and maximum temperature?

The adjustable temperature ranges from 25.0 °C (77.0 °F) to 99.9 °C (211.8 °F), with a precision of ±0.1 °C.

How do I know when the temperature is reached?

An audible signal sounds when the set temperature is reached. Then add the food to the water bath.

Can I leave the appliance unattended?

No, never leave the appliance unattended while plugged in or still hot. Unplug after use.

What should I do if the appliance falls into water?

Unplug immediately. Do not reuse the appliance; contact your retailer.

Can I use the appliance with an extension cord?

No, do not use extension cords or damaged cables. Plug directly into a properly grounded outlet.

USER MANUAL Sous Chef LA VAGUE

Line drawing of a mechanical device with a circular base and handle, no text or symbols present

Line drawing of a mechanical device with a downward arrow indicating motion or force, next to a circular table (no text or symbols)

Line drawing of a cylindrical container with a hand mixer and handle, no text or symbols present

Inbetriebnahme

Two-step diagram showing a device being adjusted, with no visible text or symbols.

Technical line drawing of a device with exploded and assembled views (no text or symbols)

Reinigung des Thermostats

Rare 50-54.5°C
Medium-Rare 55-60°C
Medium 60.5-65°C
Medium-Well 65.5-68°C
Well done 68.5-71°C

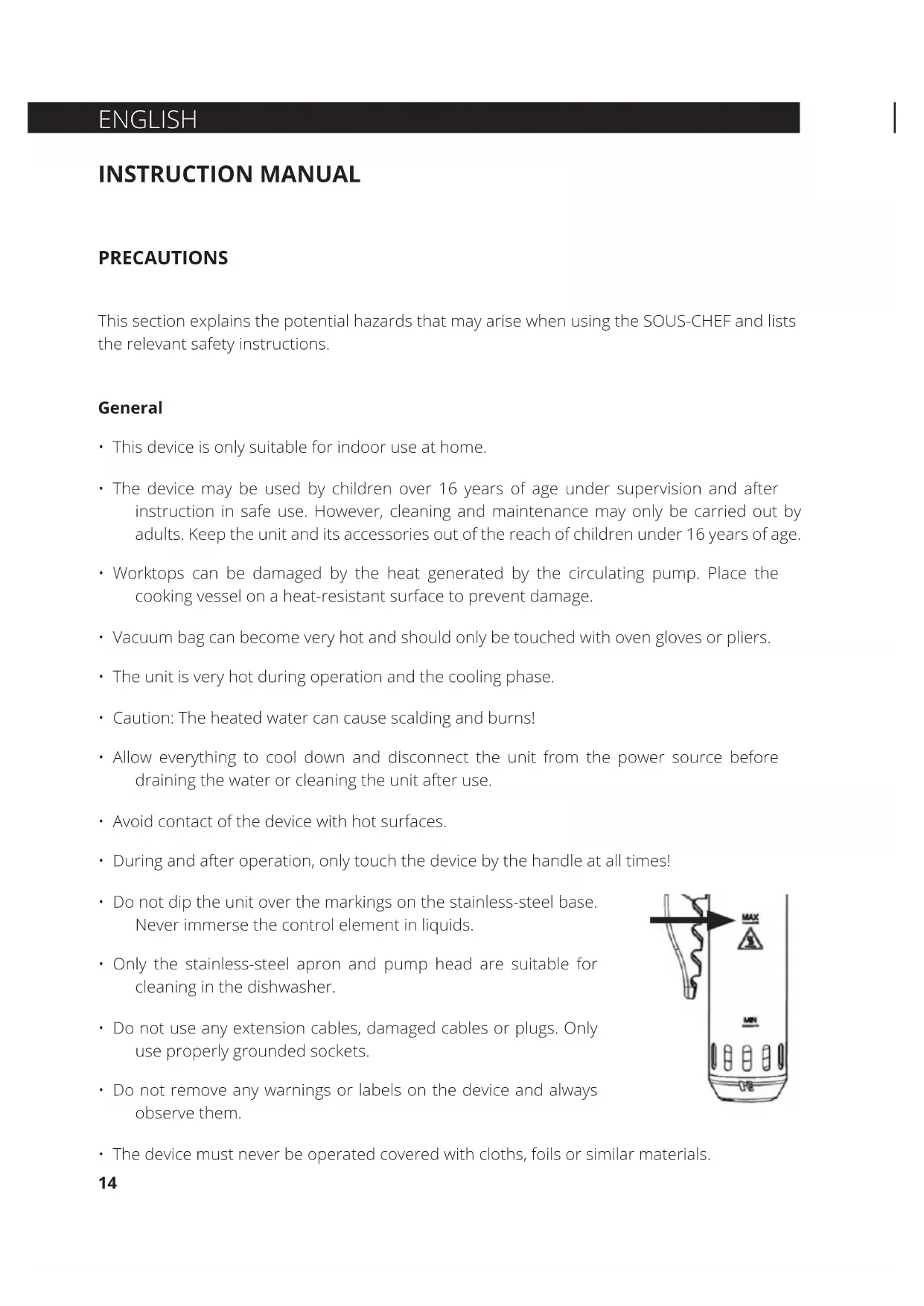

This section explains the potential hazards that may arise when using the SOUS-CHEF and lists the relevant safety instructions.

General

• This device is only suitable for indoor use at home.
- The device may be used by children over 16 years of age under supervision and after instruction in safe use. However, cleaning and maintenance may only be carried out by adults. Keep the unit and its accessories out of the reach of children under 16 years of age.
- Worktops can be damaged by the heat generated by the circulating pump. Place the cooking vessel on a heat-resistant surface to prevent damage.
• Vacuum bag can become very hot and should only be touched with oven gloves or pliers.
• The unit is very hot during operation and the cooling phase.
- Caution: The heated water can cause scalding and burns!
- Allow everything to cool down and disconnect the unit from the power source before draining the water or cleaning the unit after use.
- Avoid contact of the device with hot surfaces.
- During and after operation, only touch the device by the handle at all times!
- Do not dip the unit over the markings on the stainless-steel base. Never immerse the control element in liquids.
- Only the stainless-steel apron and pump head are suitable for cleaning in the dishwasher.
- Do not use any extension cables, damaged cables or plugs. Only use properly grounded sockets.
- Do not remove any warnings or labels on the device and always observe them.
- The device must never be operated covered with cloths, foils or similar materials.

MAX MIN

• Only use this device for its intended purpose.
• The unit may only be used to heat water.
• The cable must not be suspended from the side of a work surface.
• Place the appliance in the container filled with water and allow the clamp to snap firmly into place at the edge of the container.
• Place the container on a flat surface. The unit must not be placed on a hot stove or oven.
• Do not operate the unit near heat sources or in other equipment such as an oven.
• Do not use distilled water.

Electrical safety

If your circulation thermostat falls into the water, disconnect the power supply as soon as possible. In this case, the device must not be reused. Please contact your contractual partner.

• If the power cord is damaged, it must be replaced before re-use.
• Make sure that the cable does not come into contact with the hot device.
• Never leave the unit unattended while the power plug is plugged in.
• The device must only be connected to power sources according to the type plate.
• The device must never be operated with a timer.
• Check the plug and cable at regular intervals for wear and tear or damage.
• In case of malfunctions, disconnect the device immediately from the power source.
• Do not disassemble the unit (danger of electric shock).

INTRODUCTION

Sous Vide thermostats are precise temperature-controlled thermostats that adjust the water temperature.

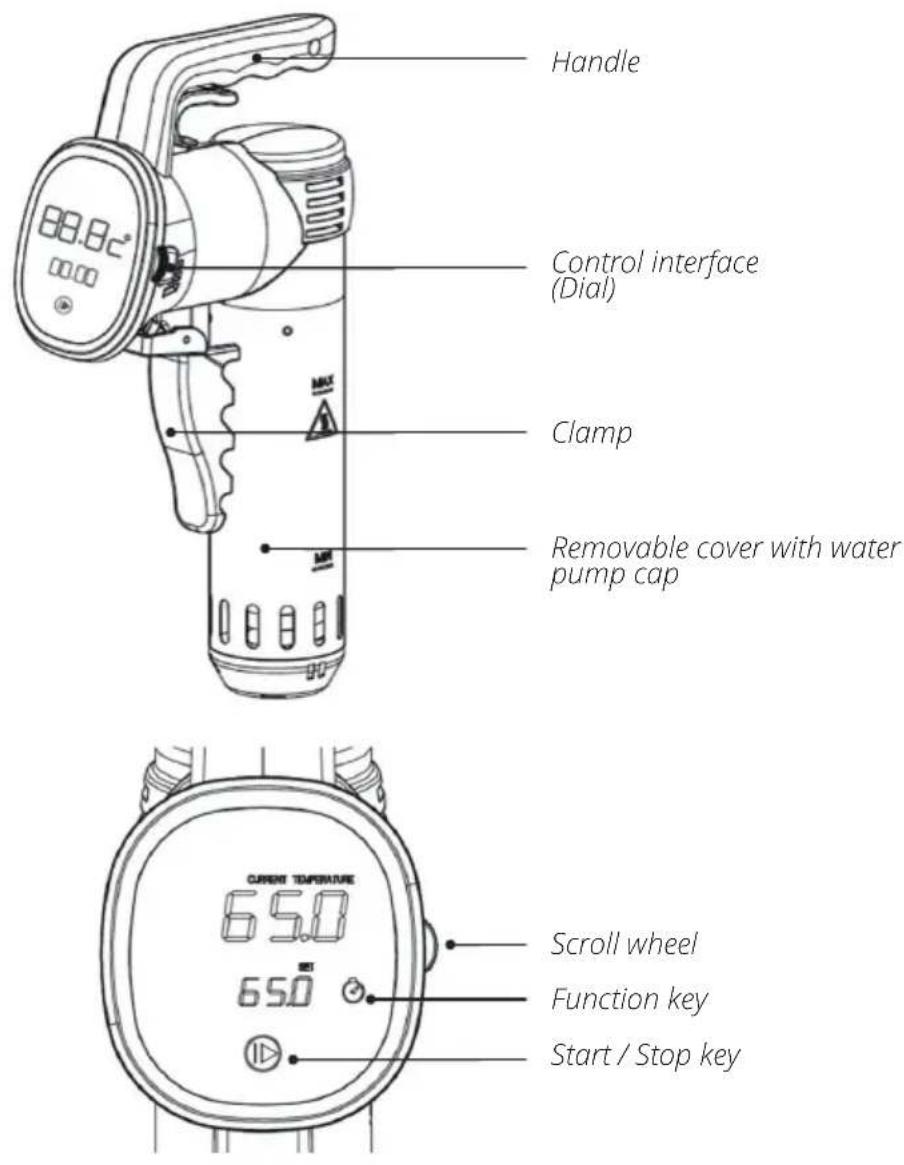

System features

Handle Control interface (Dial) Clamp Removable cover with water pump cap CURRENT TEMPERATURE 65.0 65.0 Scroll wheel Function key Start / Stop key

Sous Vide thermostats are not designed for direct food contact. Food products must not come into contact with detergents at any time. Food products must be vacuum-sealed or heat-sealed before they can be used with the thermostat.

Food products such as juice, soup or dairy products must be packaged for cooking or kept in closed jars.

Only the stainless-steel cover and pump housing are dishwasher-safe. The heating circulation pump and display contain sensitive electronic parts and are therefore not dishwasher-safe.

Technical Data

Temperature Min.: 25.0°C (77.0 °F)
Temperature Max.: 99.9 °C (211.8 °F)
Temperature resistance: ±0.1 °C
Heating capacity: 850 W (220-240V)
Circulation pump: 8,2 LPM Max.
Input voltage: EU: 220-240V
Wetted materials: stainless steel (cover), PC (pump cap)

SETUP

Sous Vide thermostats are designed for use in water only.

Clamp & pot

Sous Vide thermostats require a container at least 10 cm deep.

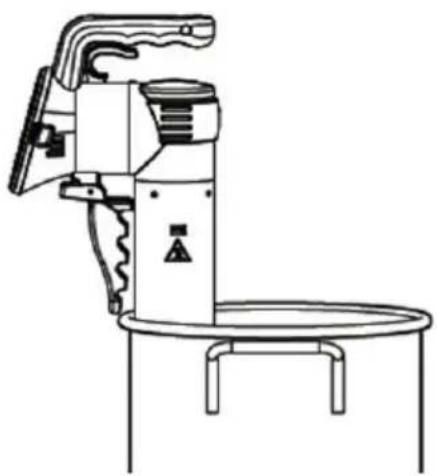

Line drawing of a mechanical device with a handle and circular base (no text or symbols)

Tighten the handle switch, open the clamp and insert the stainless-steel part into the container.

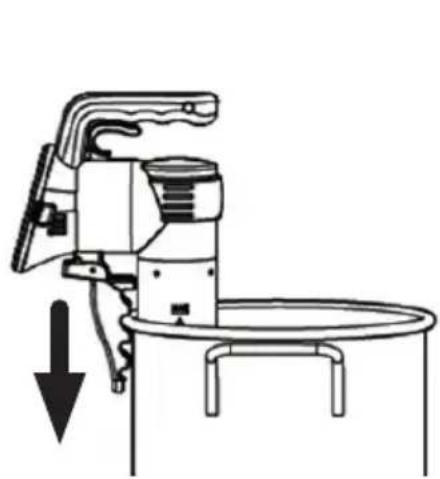

Line drawing of a mechanical device with a downward arrow indicating motion or force, next to a circular table (no text or symbols)

When the stainless steel cover is set into the correct depth, loosen the handle switch, and the Sous Vide will automatically fix on the container.

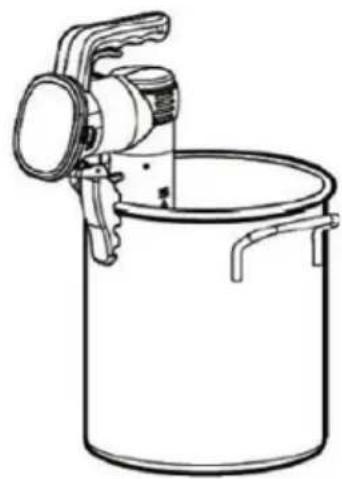

Line drawing of a cylindrical container with a hand mixer, no text or symbols present

Getting started

The Sous Vide is ready for use as soon as the power cord is connected to the power outlet and the display lights up.

Attention: The Sous Vide Garer SOUS CHEF has a protective function: The start-up is only possible with a water level between the minimum and maximum marking.

The temperature and operating time (timer) can be set using the dial on the right of the display.

First, the temperature is set by pressing the setting wheel. As soon as the desired temperature value appears on the display, confirm this by pressing the function key (timer symbol) on the right of the display.

Turn the control dial again to set the desired cooking time and confirm again by pressing the function key (timer symbol).

By pressing the „Start/Stop“ key, the process is initiated with the programmed values (temperature/cooking time).

As soon as the set temperature is reached, a signal sounds. Then add the vacuum-cooked food to the container filled with water.

As soon as the set cooking time has been reached, a signal also sounds. To maintain the cooking time precisely, quickly remove the food from the water bath.

Setting the temperature

Turn the scroll wheel up or down.

Scroll the wheel slowly to adjust the temperature by 1 degree. Scroll the wheel quickly to set it in 3-degree increments.

Press the function key to confirm the desired temperature value.

Setting the Timer

Turn the scroll wheel up or down to set the time.

Turning the scroll wheel slowly changes the timer setting in 1-minute increments; Turning quickly changes the time setting in 30-minute increments.

Start/Stop

Press „Start“ (after setting the working time).

Press and hold the „Stop“ button for more than 2 seconds to cancel the operation.

°C/°F units change

Press and hold the function button for 3 seconds.

MAINTENANCE AND CARE

• Always turn off the unit and unplug the power cord.
- Internal service work may only be carried out by certified personnel.
• Make sure the system is at room temperature.
- Check the device for signs of damage.

• If the unit falls into the water or is physically damaged, please contact your contract partner.

Assembly

Turn the stainless-steel cover to the left until it loosens.

Sometimes the wheels get caught on the side while the cover is pulled off. Shake the stainless-steel cover from side to side to loosen it.

Technical line drawing of a handheld device with two views showing internal components and a downward arrow indicating transformation (no text or symbols present)

Cleaning of Cover/Pump

Unscrew the pump cover from the locking position and then remove it.

Technical line drawing of a device with exploded and assembled views (no text or symbols)

The cover and pump head are dishwasher-safe.

To clean the stainless-steel cover and pump housing, put both into the dishwasher or clean the parts in the sink with detergent.

Cleaning the thermostat

For cleaning the heating coil, pump shaft and sensors, use detergent and a soft brush and rinse under water.

Do not flush the upper part of the thermostat, including the main body, with water.

Lime / hard water stains removal

If stains and lime deposits appear on the heater and the stainless-steel apron, please use the following products with gloves for removal:

• Calcium lime and rust remover
• Common household lime remover
Vinegar

ABOUT SOUS-VIDE

Sous-vide (French for „under vacuum“) is a method of cooking food in which the ingredients are placed in heat-resistant, vacuum-sealed packaging and then immersed in a temperature-controlled water bath. The Sous-Vide method makes it possible to consistently produce perfectly cooked food that also preserves the taste, freshness and nutrients and achieves delicate results.

Vacuum cooking was born in 1970, when the French scientist Bruno Goussault began his first sous vide cooking experiments. In 1983, in collaboration with Bruno Goussault, Joël Robuchon further developed sous vide cooking in his gourmet restaurant. Meanwhile, this method has become indispensable in any starred restaurant. The SOUS CHEF from LA VAGUE allows you to cook professionally at home, just like in a starred restaurant. Comfortable and controlled, you can conjure up delicious, perfectly cooked meals at the touch of a button. Simply vacuum pack the food, set the desired temperature and cooking time and put the vacuum bags in a pot or the LA VAGUE Sous Vide container and let the SOUS CHEF do all the work for you.

Which foods are suitable for Sous Vide?

Meat, fish, seafood, vegetables, fruit, eggs, pudding and more are ideal for the Sous Vide method.

The sous vide kitchen contributes to the tenderness and texture of the meat, preserving the bright colors of fruit and vegetables, preserving the delicate, velvety finish of fish and giving desserts a delicate taste. Sous Vide also allows the visual character and nutritional benefits of food to be preserved, unlike traditional dishes.

Sous Vide Tips

Set the right time and temperature according to the table and your Sous Vide will prepare

delicious, perfectly cooked food every time. In order to maintain the precise time, remove the vacuumed bags from the water bath immediately after the cooking time has elapsed.

Salt:

The Sous-Vide kitchen does an excellent job of enhancing the natural taste of food. To further refine the taste, the addition of salts is also recommended. For example, you can add meat, poultry or fish to a simple brine of water, salt and black pepper or syrup, salt, apple juice and sage.

Marinating:

Marinades are important tools in the sous vide kitchen. Olive oil, sage, lemon thyme, rosemary and bay leaf are a particularly delicious combination, as are honey, teriyaki, rice wine and bay leaves, which give every dish a sweet eastern touch.

Spices:

Use a light note for seasoning, as the sous vide method enhances the flavour. Fresh herbs are best as they provide a fine taste. Dry herbs, on the other hand, are often too concentrated. The only exception is garlic. A small amount of dried garlic is recommended (also powdered).

Ideal cooking times & temperatures

TEMPERATURE GUIDE

Meat (beef, lamb, pork):

Rare 50-54.5°C
Medium rare 55-60°C
Medium 60.5-65°C
Medium well 65.5-68°C
Well done 68.5-71°C

Pork should always be cooked at a medium temperature of 60,5-65°C and never below 55°C.

Fish (salmon, cod, scallops, prawns)

Rare 43-49°C
Medium 49.5-54.5°C
Well done 55-60°C

Poultry (chicken, duck, turkey)

Rare medium (duck) 55-58°C
Medium (chicken, turkey, breast) 63-66°C
Dark meat (leg) 70-74°C

Fruit & Vegetables

Fruit & Vegetables 80-88°C

Cooking times

Meat Thickness Temperature
Filet (lamb or beef) 25	mm Select cooking point 1 – 4 hours
Back (lamb or beef) 50	mm Select cooking point 2 – 5 hours
Roast roast / leg of lamb	70 mm 56,5 °C 10 – 48 hours
rib 50 mm 60 °C 8 – 48 hours
pork fillet 38 mm 56,5 °C 1,5 – 8 hours
pork loin roast 70 mm	71 °C – 80°C	12 – 30 hours
venison fillet		58 °C 20 min. – 1,5 hours
stag's back		58 °C 25 min. – 1,5 hours
wild boar's back		60 °C 30 min. – 2 hours
chicken breast fillet 50	mm 60 °C 45 min. - 4 hours
chicken thighs		65 °C 1,5 - 6 hours
turkey		80 °C 8 - 10 hours
duck breast fillet		Select cooking point 1 – 3 hours
leg of duck		65 °C 1,5 hours

Some types of meat (especially red meat, lamb, duck breast...) must be fried quickly in a pan after vacuum cooking in order to obtain a nice caramelization.

Fish	Thickness Temperature	Duration
Low fat fish	12,5 mm	Select cooking point	15 - 45 min.
Fatty fish	25 mm Select cooking	point 20 - 45 min.
lobster		59 °C 15 - 25 min.
scallop	23 mm 47 °C 30 - 45 min.
prawns	jumbo	50 °C 30 - 45 min.

Fruit & Vegetables Diameter Temperature Duration
root vegetables < 50 mm 84 °C 1 - 4 hours
Tender vegetables < 50 mm 84 °C 45 min. - 1,5 hours
fruits < 50 mm 84 °C 45 min. - 2 hours
Soft fruits < 50 mm 84 °C 30 min. - 1 hours

Eggs Amount Temperature Duration
Eggs soft (fast) 1 - 12 75 °C 15 – 18 min.
Eggs soft (slow) 1 - 12 63,5 °C 45 min. - 1,5 hours
Eggs hard 1 - 12 71 °C 45 min. - 1,5 hours
scrambled eggs	5	75 °C 20 min.

These tables are for guidance only. If larger or smaller foods are used, the cooking times should be adjusted accordingly.

Please note that pregnant and immunocompromised persons should avoid foods that are not pasteurised during cooking due to low temperature.

Tips for achieving the best sous-vide results while ensuring the highest possible food safety:

• Always use fresh and high quality food
• Cool food for storage before use at 5^ C or below (preferably 3^ C).
- When preparing food, always use separate cutting boards and knives for raw meat, vegetables and cookware.
• Make sure that the Sous Vide Garer SOUS CHEF has reached the desired temperature before placing the vacuum bags filled with food in the water bath.
• Cook the food for at least the minimum cooking time shown in the table.
- Ensure that foods cooked below the pasteurization level (54.5°C) are suitable for raw consumption.

Cooling and storage

If you wish to store your cooked food in a refrigerator or freezer, please observe the following rules:

- Bring the food you are cooking down to fridge temperature or a lower temperature as soon as possible by dipping the food (still vacuum packed) in an iced water bath to double the minimum cooking time and lower the core temperature to 5^ or less. If necessary, cool the water further with more ice cubes.

• Rapid cooling for storage is more important with Sous-Vide-gegarten foods than with conventionally cooked foods, as vacuum packaging, lack of oxygen and low cooking temperatures may develop toxins. Food should therefore be cooled to refrigerator temperature (5°C or less) in less than six hours.
  • Refrigerated food can be stored for up to 7 days in a refrigerator at 3^ C or less and for up to one year in the freezer.

Warming up food

Frozen Sous-Vide bags should not be placed in the warm Sous-Vide water bath as this takes a lot of time to defrost and warm up. We therefore recommend taking the frozen food out of the freezer about a day in advance and putting it in the fridge. The food should already be defrosted when it is put into the water bath. Refrigerated pouches have a temperature of about 5°C. They do not need to be heated to room temperature; this will only prolong the warm-up time slightly.

To reheat, set the water temperature approx. 2 degrees below the original cooking temperature. This should be between 57°C and 60°C for beef, pork and lamb and 63.5°C for poultry. Thanks to the sous vide method, the food is not overcooked.

PLEASE NOTE

All users are obliged to dispose of all electrical and electronic equipment, whether or not it contains toxic substances, at a municipal or commercial collection point, as it must be disposed of in an environmentally friendly manner.

Manufacturer

VEHNSGROUP

VEHNS GROUP GmbH

Theatinerstr. 40 - 42

80333 Munich

Germany

www.vehnsgroup.com

[e-mail]

CE ← ©

Subject to alterations and errors.

The manufacturer assumes no liability in case of faulty installation, improper or incorrect use.

© VEHNS GROUP GmbH

Version 1.3 – May 2020

MODE D'EMPLOI

AVERTISSEMENT

Line drawing of a mechanical device with a handle and base, no text or symbols present

Line drawing of a mechanical device with a downward arrow indicating motion or force, next to a round table (no text or symbols)

Line drawing of a bucket with a hand pump and lid, no text or symbols present

Mise en service

Technical line drawing of a handheld device with two views showing internal components and a downward arrow indicating transformation (no text or symbols present)

Diagram of a cylindrical device with internal components and an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with clamping mechanism and control panel (no text or symbols)

Line drawing of a mechanical device with a circular base and handle, no text or symbols present

Line drawing of a mechanical device with a downward arrow indicating motion or force, next to a circular table (no text or symbols)

Line drawing of a cylindrical container with a hand pump and lid, no text or symbols present

Technical line drawing of a handheld device with two views showing internal components and a downward arrow indicating transformation (no text or symbols present)

Technical line drawing of a handheld device with exploded view and internal components (no text or symbols)

Version 1.3 - May 2020

La VAGUE

www.lavague.de

VEHNSGROUP
