KAC04 - Battery charger KRESS - Free user manual and instructions

Product Type	Battery Charger
Brand	Kress
Model	KAC04
Input Voltage	100-240 V ~
Frequency	50-60 Hz
Rated Power	100 W
Output Voltage (per port)	20 V DC
Output Current (per port)	2 A
Number of Ports	2
Compatible Battery Type	Li-Ion Kress
Weight	0.95 kg
Indicator Lights	Green and red (charging, fault, thermal protection)
Thermal Protection	Yes (suspends charging if battery <0°C or >45°C)
Recommended Charging Temperature	18-24°C
Charging Time (examples)	2.0Ah: 30 min (1 pc), 1h (2 pcs); 4.0Ah: 1h/2h; 8.0Ah: 2h/4h
Protection Class	II
Usage	Indoor only
Maintenance	No greasing required
Cleaning	With a dry cloth
Safety	Read instructions before use; do not expose to water or moisture
Compliance	CE, directives 2014/35/EU, 2014/30/EU, 2011/65/EU

Frequently Asked Questions - KAC04 KRESS

How to charge the battery with the KAC04 charger?

Plug the charger into a suitable mains socket (100-240 V). Insert one or two compatible Kress batteries into the ports. The green flashing light indicates charging is in progress. When the light stays solid green, the battery is fully charged.

What do the indicator lights mean?

Flashing green light: charging in progress. Solid green light: battery fully charged. Solid red light: defective battery. Flashing red light: thermal protection activated (battery too hot or too cold).

Can I charge two batteries at the same time?

Yes, the KAC04 charger has two ports and can charge two batteries simultaneously. The total charging time will be adjusted (e.g., two 2.0Ah batteries take about 1 hour).

What to do if the battery does not charge?

Check that the mains socket works. Make sure the battery is compatible and inserted correctly. If the light stays red, the battery is probably defective. Test with another battery. If the problem persists, contact customer service.

Can I use batteries from other brands?

No, use only Kress batteries of the same model or recommended by Kress. Using other batteries may cause damage or safety risks.

How to clean and maintain the charger?

Always unplug the charger before cleaning. Use a dry cloth to wipe the device. Do not use water or chemicals. Store the charger in a dry place away from frost.

Where should I dispose of the charger at the end of its life?

Do not throw the charger in household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

Why does charging not start even though the battery is inserted?

This may be due to the battery temperature being out of range (<0°C or >45°C). The red light flashes. Let the battery cool down or warm up to a temperature between 18 and 24°C, then charging will resume automatically.

Can I leave the battery on the charger after full charge?

Yes, the charger maintains the battery with a trickle charge. The light stays green. There is no risk of overcharging.

What is the output voltage and current of the charger?

Each port provides 20 V DC and 2 A. The charger has a rated power of 100 W and an input voltage of 100-240 V ~ 50-60 Hz.

USER MANUAL KAC04 KRESS

Technical line drawing of a mechanical device with two internal components and a central connector (no text or symbols)

Charger	EN	P03
Ladegerät	D	P09
Chargeur	F	P15
Carica batteria	I	P21
Cargador	ES	P27
Oplaadapparaat	NL	P33
Opladningsaggregat	DK	P39
Зарядное устройство	RU	P44
Laddningsaggregat	SV	P51
KAC04

Technical diagram of a Kres EV battery pack with labeled components and parts

TABLE OF CONTENTS

Introduction....3

Safety Instructions....4

Component List....5

Technical Data....5

Charging Procedure....6

Problem Solution....7

Maintenance....7

Environmental Protection....7

Declaration of Conformity....8

INTRODUCTION

Dear Customer,

Thank you for buying this Kress product. We are dedicated to developing high quality products to meet your lawn & garden requirements.

The Kress brand is synonymous with premium quality service. Over the years of your products life, if you have any questions or concerns about your product, please contact your location of purchase or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

Users can view the electronic instructions at https://www.kress.com/.

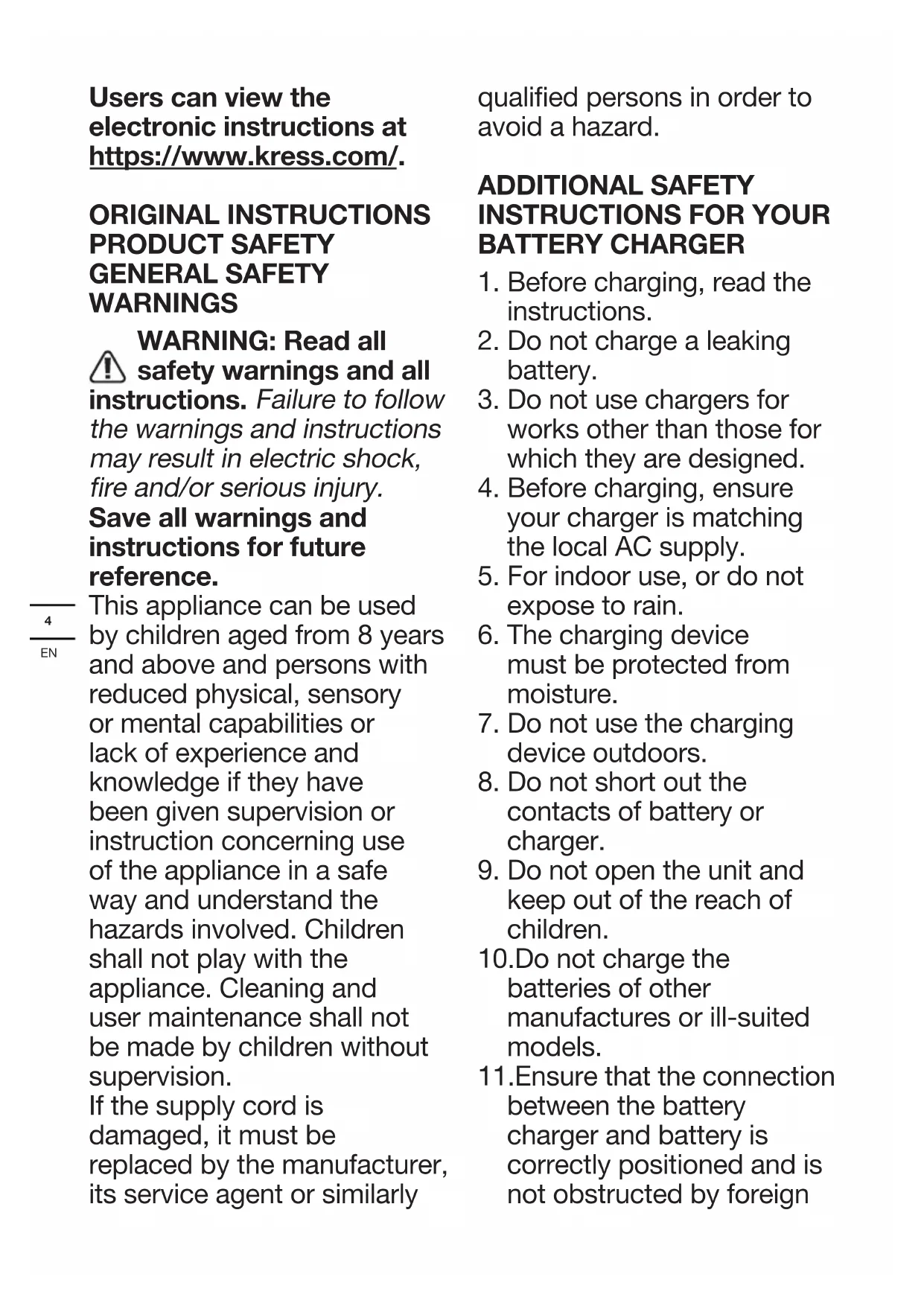

ORIGINAL INSTRUCTIONS PRODUCT SAFETY GENERAL SAFETY WARNINGS

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR BATTERY CHARGER

1. Before charging, read the instructions.
2. Do not charge a leaking battery.
3. Do not use chargers for works other than those for which they are designed.
4. Before charging, ensure your charger is matching the local AC supply.
5. For indoor use, or do not expose to rain.
6. The charging device must be protected from moisture.
7. Do not use the charging device outdoors.
8. Do not short out the contacts of battery or charger.
9. Do not open the unit and keep out of the reach of children.
10. Do not charge the batteries of other manufactures or ill-suited models.
11. Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign

bodies.

1. Keep battery charger's slots are free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.
2. When charging batteries, ensure that the battery charger is in a well-ventilated area and away from inflammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.
3. Do not recharge non-rechargeable batteries, as they can overheat and break.
4. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18°C and 24°C. Do not charge the battery pack in air temperatures below 0°C, or above 40°C. This is important as it can prevent serious damage to the battery pack.
5. Charge only battery pack of the same model provided by Kress and of models recommended by Kress.

SYMBOLS

	Read the operator's manual.
	Warning
	For indoor use only
	Double insulation
	Fuse
	Positive terminal
	Negative terminal
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

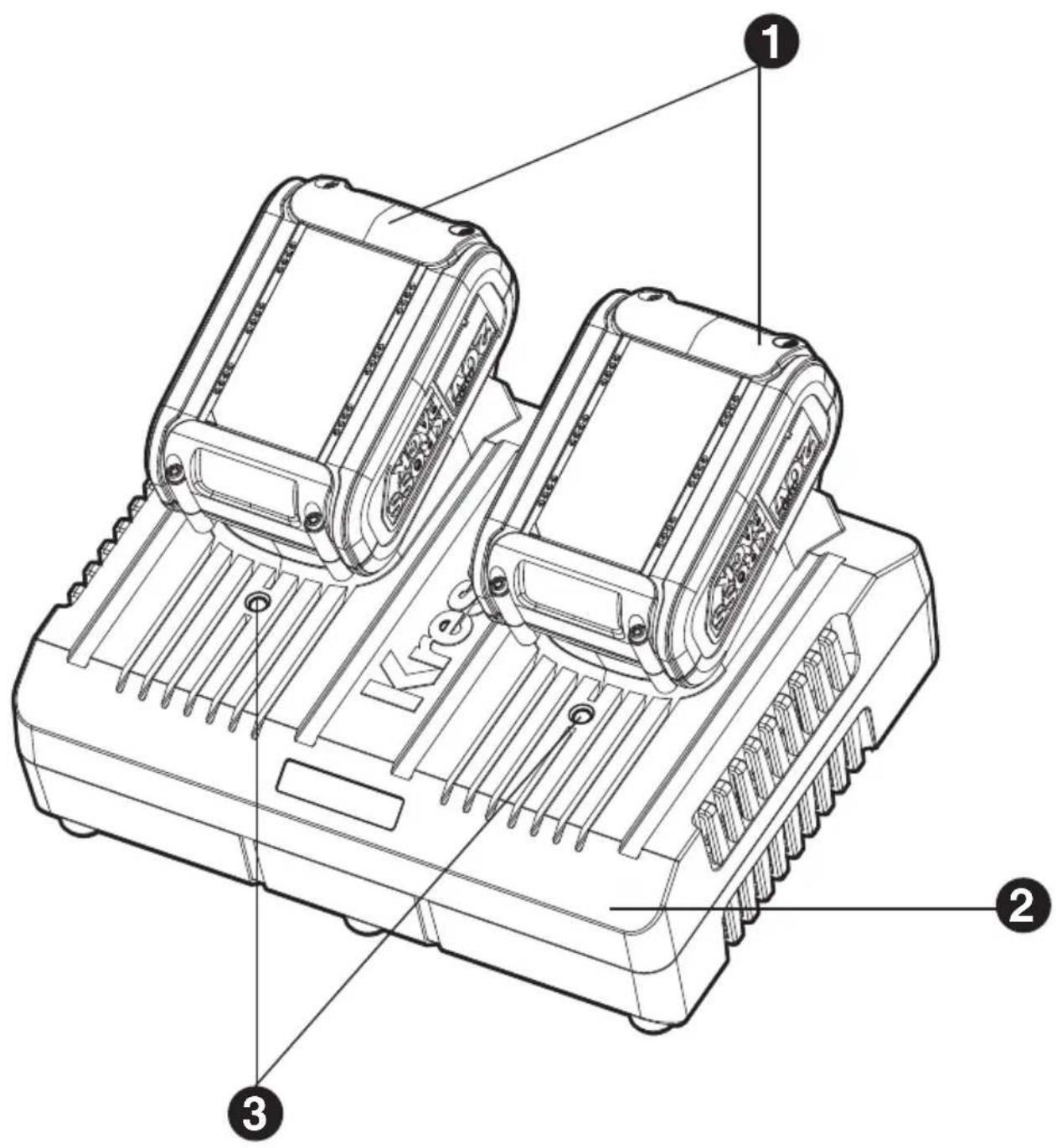

COMPONENT LIST

1. BATTERY PACK*
2. CHARGER
3. CHARGE INDICATOR LIGHT

*Not all the accessories illustrated or described are included in standard delivery.

We recommend that you purchase your accessories listed in the above list from the same store that sold you the battery charger. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

TECHNICAL DATA

Rated input voltage 100-240	V~50-60 Hz
Rated input power 100 W
Charger output 1 20 V d.c., 2 A **
Charger output 2 20 V d.c., 2 A **
Charge battery Li-lon
Charging time (approx.)
2.0 Ah (1 pc)	0.5 hr
2.0 Ah (2 pcs)	1 hr
4.0 Ah(1 pc)	1 hr
4.0 Ah(2 pcs)	2 hrs
8.0 Ah(1 pc)	2 hrs
8.0 Ah(2 pcs)	4 hrs
Protection class	☐/II
Machine weight 0.95 kg

** Charger output 1 and output 2 mean two ports with the same output voltage and current.

For the technical data of the types, the number of cells and the rated capacity of the batteries that can be charged, please refer the nameplate of the battery pack supplied by Kress.

CHARGING PROCEDURE

NOTE: Before using the tool, read the instruction book carefully.

CHARGING INSTRUCTIONS

1. CHARGING YOUR BATTERY PACK

The charger is designed to charge one or two battery packs at the same time.

WARNING: The charger and battery pack are specifically designed to work together

so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur.

Your battery pack is UNCHARGED and you must charge once before use.

3. HOW TO CHARGE YOUR BATTERY CHARGING PROCEDURE

1) Plug the charger into an appropriate outlet.

2) Slide one or two battery packs into the charger. Normally, the relevant charge indicator light (3) will flash in green color showing the battery is being charged.

WARNING: When battery charge runs out after continuous use or exposure to direct sunlight or heat, allow time for the battery to cool down before re-charging to achieve the full charge.

CHARGING INDICATOR

This charger is designed to detect some problems that can arise with battery packs. Indicator lights indicate problems (see table below). If this occurs, insert a new battery pack to determine if the charger is OK. If the new battery charges correctly, then the original pack is defective and should be returned to a service center or recycling service center. If the new battery pack displays the same problem as the original Battery Pack, have the charger tested at an authorized service center.

Light	ON/ Flash	Status
Red on		Defective Battery
Red flash		Battery Temperature ProtectionThe temperature of battery pack is less than 0°C or more than 45°C.
Green on		Fully Charged
Green flash		Charging

BATTERY TEMPERATURE PROTECTION

This charger has a battery temperature protection feature. When the charger detects a battery pack that is too hot or cold (the light will be red and flash), it automatically activates the protection circuit, and suspends charging until the battery pack has reached the correct temperature. The charging process will then automatically begin (the light will be green and flash). This feature ensures maximum battery life.

LEAVING THE BATTERY PACK IN THE CHARGER

If a fully charged battery pack is left in the charger, the Light will remain green. The battery pack will remain charging with a maintenance trickle current.

DEFECTIVE BATTERY PACKS

This charger will detect a defective battery pack. When a defective battery pack is inserted into the

charger, the charger will try to repair it. This process will last about 30mins (the light will be green and flash). If the repair is successful, the charger will automatically begin to charge the battery pack to the highest capacity possible (the light will be green and flash). If the light becomes solid red, the battery pack is dead.

NOTE: Repaired battery packs are still usable but should not be expected to perform as much work as new battery packs.

IMPORTANT CHARGING NOTES:

1. For a new battery or a battery that has been in storage for sometime, please recharge the battery before use. If you want to store the battery for a long time, please fully charge the battery pack to ensure maximum battery life.
2. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between (18-24 °C). Do not charge the battery pack in air temperatures below 0 °C, or above 40 °C. This is important as it can prevent serious damage to the battery pack.
3. Never freeze your charger or immerse charger in water or any other liquid.
4. When the battery pack fails to produce sufficient power on jobs that were previously done easily, please recharge your battery, do not continue to use under this condition. You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.
5. When charging it is normal that the charger and battery pack may become warm to touch.
6. If the battery pack does not charge properly:
   a. Check current at power outlet by plugging in another appliance.
   b. Plug and unplug to check whether the charger is ok.
   c. Check whether the battery has been damaged
   d. Move the charger and battery pack to a location where the surrounding air temperature is approximately 18-24°C.
   e. If the charging problem persists, take the tool, battery pack and charger to an authorized service center.
   f. Under certain conditions, when the charger is plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the charger or before attempting to clean.

PROBLEM SOLUTION

I CANNOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

a) Check if the charger and the battery pack are specifically designed for working together.

b) The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the indicator light should be green and flash when the battery is charging.

REASONS FOR DIFFERENT CHARGING TIMES

The charging time can be affected by many reasons which are not defects in your product.

a) If the battery pack is only partly discharged it may be re-charged in less than rated charging time.
b) If the battery pack and ambient temperature are very cold/ hot, it may take longer to re-charge. Please find an appropriate environment with proper air temperature to start charging.
c) If the battery pack is very hot, remove battery pack from the charger and allow battery pack to cool first to ambient temperature and then recharging can be started.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your battery charger requires no additional lubrication or maintenance. Never use water or chemical cleaners to clean your charger. Wipe clean with a dry cloth. Always store your charger in a dry place.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

Declare that the product,

Description Kress Battery Charger

Type KAC04

Complies with the following Directives,

2014/35/EU

2014/30/EU

2011/65/EU&(EU)2015/863

Standards conform to

EN 60335-1

EN IEC 60335-2-29

EN 62233

EN IEC 55014-1

EN IEC 55014-2

EN IEC 61000-3-2

EN 61000-3-3

EN IEC 63000

A#

C€

2023/08/21

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China
