USER MANUAL KA3714 KRESS

Technical line drawing of a device with internal components and cable (no text or symbols)

SAFETY AND OPERATING MANUAL

Completely dark image with no visible content, text, or symbols.

Users can view the electronic instructions at https://www.kress.com/.

ORIGINAL INSTRUCTIONS PRODUCT SAFETY GENERAL SAFETY WARNINGS

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR BATTERY CHARGER

1. Before charging, read the instructions.
2. Do not charge a leaking battery.
3. Do not use chargers for works other than those for which they are designed.
4. Before charging, ensure your charger is matching the local AC supply.
5. For indoor use, or do not

expose to rain.

1. The charging device must be protected from moisture.

2. Do not use the charging device outdoors.

3. Do not short out the contacts of battery or charger.

4. Respect the polarity “+/-” when charging.

5. Do not open the unit and keep it out of the reach of children.

6. Do not charge the batteries of other manufactures or ill-suited models.

7. Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies.

8. Keep battery charger's slots free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.

9. When charging batteries, ensure that the battery charger is in a well-ventilated area and away from in ammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.

15.Do not recharge non-

rechargeable batteries, as they can overheat and break.

1. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18^irc C and 24^irc C. Do not charge the battery pack in air temperatures below 0^irc C, or above 40^irc C. This is important as it can prevent serious damage to the battery pack.

2. Charge only battery pack of the same model provided by Kress and of models recommended by Kress.

3. For charge Li-ion battery pack only.

4. This appliance incorporates an earth connection for functional purposes.

19.Do not expose the appliance or battery to excessive temperatures

1. Rechargeable batteries are to be removed from the appliance before being charge

2. Different types of batteries or new and used batteries are not to be mixed;

3. Exhausted batteries are to be removed from the appliance and safely disposed of;

4. If the appliance is to be stored unused for a long period, the batteries should be removed;
   24.Do not use non- rechargeable batteries in place of rechargeable batteries.
   25.Do not use modified or damaged batteries.

SYMBOLS

	Read the operator's manual.
	Warning
	Indoor use only
	Fuse
	Double insulation
	Positive terminal
	Negative terminal
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	RCM marking

ABN: Australian Business Number. By this number, business information such as entity type, status, business location etc. can be found at website http://abr.business.gov.au. ABN of Kress Australia Pty Limited is 14 101 682 357

COMPONENT LIST

1. CHARGER

2. CHARGE INDICATOR LIGHT

3. BATTERY PACK *

4. WALL-MOUNT HOLES

Not all the accessories illustrated or described are included in standard delivery.

We recommend that you purchase your accessories listed in the above list from the same store that sold you the battery charger. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

TECHNICAL DATA

Rated Input voltage 220-240 V~50 Hz
Output voltage 60 V		---
Charging current 5 A
Power Input 350 W
Charge battery Li-Ion
Battery model		KA3000 / KA3001 / KA3002/ KA3008 / KA3018
Battery capacity		2.0 Ah / 2.5 Ah /4.0 Ah /5.0 Ah / 8.0 Ah
Number of battery pack 1
Charging time(approx.)	2.0 Ah 25	mins
	2.5 Ah 30	mins
	4.0 Ah 50	mins
	5.0 Ah 60	mins
	8.0 Ah 77	mins
Protection class		☐/II
Machine weight(bare tool)		1.5 kg

For the technical data of the types, the number of cells and the rated capacity of the batteries that can

be charged, please refer the nameplate of the battery pack supplied by Kress.

CHARGING PROCEDURE

NOTE: Before using the tool, read the instruction book carefully.

CHARGING INSTRUCTIONS

1. CHARGING YOUR BATTERY PACK

WARNING: The charger and battery pack are specifically designed to work together so do not attempt to use any other devices. Never or allow metallic objects into your charger or v pack connections because an electrical and hazard will occur.

Your battery pack is partly charged and needs to be fully charged before first use.

3. HOW TO CHARGE YOUR BATTERY CHARGING PROCEDURE

1) Plug the charger into an appropriate outlet (220-240 V).

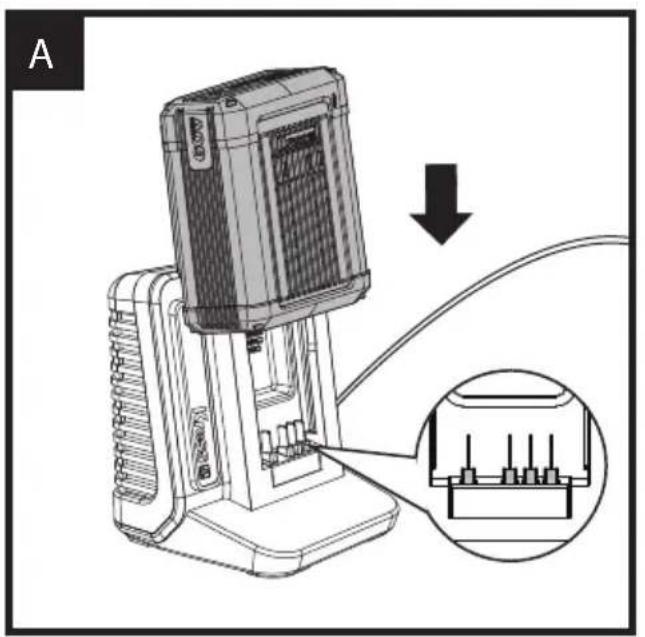

2) Slide the battery pack into the charger as shown in illustration A., the LIGHT will become green and flash to show charging has started.
3) After charging approx. 25 mins (2.0 Ah) / 30 mins (2.5 Ah) / 50 mins (4.0 Ah) / 60 mins (5.0 Ah) / 77 mins (8.0 Ah), the light will stay green without flashing, which means the battery is fully charged.

WARNING: When battery charge runs out after continuous use or exposure to direct sunlight or heat, allow time for the battery

to cool down before re-charging to achieve the full charge.

CHARGING INDICATOR

This charger is a "smart charger" that is designed to provide you information on the status of your battery charge. Indicator lights n the table below will show the charging status.

If you receive a defective battery indication light (red on), insert a new battery to determine if the charger is OK. If the new battery charges correctly, then the original pack is defective and should be returned to a service center or recycling service center. If the new battery pack displays the same problem as the original Battery Pack, have the charger tested at an authorized service center.

Light ON/Flash Status
Red on		Defective Battery

Red flash	----	Battery Temperature Protection.The temperature of battery pack is less than 0°C or more than 60°C.
Green on	—	Fully Charged
Green flash	---- Charging

BATTERY TEMPERATURE PROTECTION

This charger has a battery temperature protection feature. When the charger detects a battery pack that is too hot (the light will be red and flash), its internal fan will rapidly cool the battery to the correct temperature. When the charger detects a battery pack that is too cold (the light will be red and flash), it automatically activates the protection circuit, and suspends charging until the battery pack has reached the correct temperature. The charging process will then automatically begin (the light will be green and flash). This feature ensures maximum battery life.

LEAVING THE BATTERY PACK IN THE CHARGER

If a fully charged battery pack is left in the charger, the Light will remain green. The battery pack will remain charging with a maintenance trickle current.

DEFECTIVE BATTERY PACKS

This charger will detect a defective battery pack. When a defective battery pack is inserted into the charger, the charger will try to repair it. This process will last about 30mins (the light will be green and flash). If the repair is successful, the charger will automatically begin to charge the battery pack to the highest capacity possible (the light will be green and flash). If the light becomes solid red, the battery pack is dead.

NOTE: Repaired battery packs are still usable but should not be expected to perform as much work as new battery packs.

MOUNTING CHARGER ONTO THE WALL

Install screws (not provided) in the wall. Use screws sufficiently strong to hold the combined weight of the charger and battery pack. (See Fig. B)

IMPORTANT CHARGING NOTES:

1. For a new battery or a battery that has been in storage for sometime, please recharge the battery before use. If you want to store the battery for a long time, please fully charge the battery pack to ensure maximum battery life.

2. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between (18°C-24°C). Do not charge the battery pack in air temperatures

below 0^irc C, or above 40^irc C. This is important as it can prevent serious damage to the battery pack.

1. Never freeze your charger or immerse charger in water or any other liquid.
2. When the battery pack fails to produce sufficient power on jobs that were previously done easily, please recharge your battery, do not continue to use under this condition. You may charge a partially used pack whenever you desire with no adverse affect on the battery pack.
3. When charging it is normal that the charger and battery pack may become warm to touch.
4. If the battery pack does not charge properly:
   a. Check current at power outlet by plugging in another appliance.
   b. Plug and unplug to check whether the charger is ok.
   c. Check whether the battery has been damaged
   d. Move the charger and battery pack to a location where the surrounding air temperature is approximately 18^irc C- 24^irc C.
   e. If the charging problem persists, take the tool, battery pack and charger to an authorized service center.
   f. Under certain conditions, when the charger is plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the charger or before attempting to clean.

PROBLEM SOLUTION

1. I CANNOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

a) Check if the charger and the battery pack are specifically designed for working together.
b) The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the indicator light should be green and flash when the battery is charging.

2. REASONS FOR DIFFERENT CHARGING TIMES

The charging time can be affected by many reasons which are not defects in your product.

a) If the battery pack is only partly discharged it may be re-charged in less than rated charging time.
b) If the battery pack and ambient temperature are very cold/ hot, it may take longer to re-charge. Please find an appropriate environment with proper air temperature to start charging.

MAINTAIN TOOLS WITH CARE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your tool requires no additional lubrication or maintenance. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your authorities or retailer for recycling advice.

PLUG REPLACEMENT(ONLY FOR REWIRABLE PLUG OF UK & IRELAND)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

BLUE = NEUTRAL

BROWN = LIVE

As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.

WARNING! Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the correct rated current fuse which is used in the plug.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

Positec Australia Pty Limited 10 Corporate Blvd Bayswater, VIC 3153, Australia

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

On behalf of Positec declare that the product

Description Battery Charger

Type KA3714

Complies with the following Directives,

2014/35/EU

2014/30/EU

2011/65/EU&(EU)2015/863

Standards conform to

EN 60335-1

EN IEC 60335-2-29

EN 62233

EN IEC 55014-1

EN IEC 55014-2

EN IEC 61000-3-2

EN 61000-3-3

EN IEC 63000

2024/01/24

Allen Ding

Deputy Chief Engineer Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Kress (UK & Ireland) Ltd.,

PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Kress declare that the product

Description Battery Charger

Type KA3714

Complies with the following regulations,

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment

Regulations

Standards conform to

BS EN 60335-1,

BS EN IEC 60335-2-29,

BS EN 62233,

BS EN IEC 55014-1,

BS EN IEC 55014-2,

BS EN IEC 61000-3-2,

BS EN 61000-3-3,

BS EN IEC 63000

UK CA

2024/01//24

Allen Ding

Deputy Chief Engineer Testing & Certification

Kress Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China
