HC05B - High chair Baby Trend - Free user manual and instructions

Product Type	High Chair
Brand	Baby Trend
Model	HC05B
Maximum Child Weight	18.14 kg (40 lb)
Materials	Metal frame, fabric cushion, plastic tray
Main Functions	Reclining seat (multiple positions), adjustable height, removable tray (3 positions), 5-point safety harness, compact folding
Care and Cleaning	Dishwasher-safe tray (max 71°C); chair and tray cleaned with mild soap and soft brush; do not immerse; cushion washable per label
Safety	5-point harness with central buckle, height and recline lock, stable base, warnings against falls and strangulation
Spare Parts and Repairability	Replacement parts available from Baby Trend customer service (1-800-328-7363)
Warranty	180 days against manufacturing defects (North America)
Assembly	Requires an adult; hinge bar, adjustment hooks, front and rear legs, tablet and tray to be installed
Usage	Vertical position recommended for child able to sit without assistance; always strap child even in reclined position

Frequently Asked Questions - HC05B Baby Trend

What is the maximum weight supported by the Baby Trend HC05B high chair?

The maximum child weight is 18.14 kg (40 lb).

How do I assemble the backrest and seat base?

Place the base on a flat surface, attach the backrest to the base using the hinge bar: press the support rod retainer and insert the bar from right to left until it clicks.

How do I adjust the height of the high chair?

Simultaneously press the adjustment handles on each side and adjust to the desired height. Never adjust the height with a child seated.

How do I clean the tray?

The food tray is dishwasher safe up to 71°C. Avoid abrasive sponges that could damage the surface.

How do I fold the high chair for storage?

Place the backrest in an upright position, remove the tablet and hang it on the rear leg hooks. Pull up the side levers on the frame and push the rear legs forward until folded.

Is the harness mandatory even in the reclined position?

Yes, the 5-point harness must always be used whether the seat is reclined, semi-reclined, or upright. The tray does not restrain the child.

How do I remove the seat cushion?

Unhook the elastic loops of the cushion, remove the harness straps by passing them through the slots, and remove the cushion. Reverse the assembly instructions.

Can this high chair be used from birth?

No, the upright position is recommended for a child already able to sit without assistance. Typical age is from about 6 months.

How do I contact Baby Trend customer service?

Call 1-800-328-7363 Monday through Friday from 8:00 am to 4:30 pm (PST) for replacement parts, repairs, or questions.

Can I use non-Baby Trend replacement parts?

No, never use parts other than those from Baby Trend as this could compromise your child's safety.

USER MANUAL HC05B Baby Trend

DO NOT RETURN YOUR PRODUCT TO THE STORE. PLEASE CONTACT BABY TREND FOR REPLACEMENT PARTS, SERVICE AND REPAIR.

The Baby Trend® warranty covers workmanship defects within the first 180 days of purchase. Any product which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, improper assembly, negligence, environmental exposure, alteration or accident, or has had its serial number altered or removed invalidates all claims against the manufacturer. Any damage to property during installation is the sole responsibility of the end user. The Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00am and 4:30pm (PST). Return Authorizations are required prior to returning product(s) to Baby Trend® Warranty only valid in North America.

GARANTIA

NO DEVUELVA SU PRODUCTO A LA TIENDA. POR FAVOR CONTACTE A BABY TREND PARA PIEZAS DE REPUESTO, SERVICIO Y REPARACION.

Baby Trend, Inc. 1607 S. Campus Ave., Ontario, CA 91761

1-800-328-7363
(8:00am ~ 4:30pm PST)
www.babytrend.com

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
Lea todas las instrucciones ANTES de armar y USAR el producto. CONSERVE LAS INSTRUCCIONES PARA USO FUTURO.
Lisez toutes les instructions du manuel AVANT l'assemblage ou L'UTILISATION de ce produit. CONSERVEZ CES INSTRUCTIONS POUR REFERENCE ULTERIEURE.

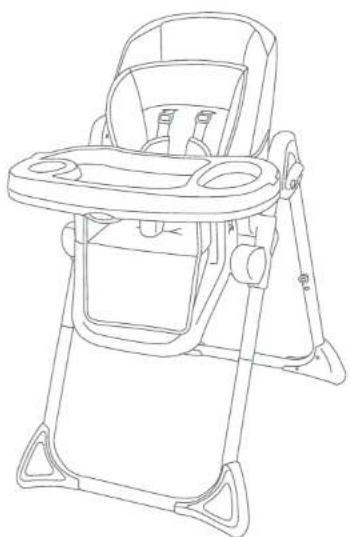

HC05B Instruction Manual Manual de Instrucciones Manuel d'instruction

babytrend

www.babytrend.com

HC05xxxB_3L_011218

Table of Contents Index Table des Matieres

PARTS

English 2

Parts 2
Warning	3
Assembly	4
Operation	7
Maintenance	14

Espanol 15

Check that you have all the parts for this model before assembly.

Seat Base

Seat Pad

Seal Back

*Harness Covers (X2)

*Body Insert

Upper Frame Assemblies

Legs

Height Brackets

Tray

Tray Insert

Footrest

WARNING

ASSEMBLY

WARNING: Failure to follow these warnings and the instructions could result in serious injury or death.

FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

Always use restraints, and adjust to fit snugly.
- Tray is not designed to hold child in chair.
- Stay near and watch child during use.
- Never allow child to push away from table.

STRANGULATION HAZARD: Do not place High Chair in any location where there are cords, such as a window blind cords, drapes, phone cords etc.
WARNING: The child should be secured in the high chair at all times by the 5-point restraining system, either in the reclining, semi-reclining or upright position. The tray is not designed to hold the child in the chair. It is recommended that the high chair be used in the upright position only by children capable of sitting upright unassisted. See page 8 for instructions on proper use of restraint system.

• Other accessory items may change the balance of the high chair and cause hazardous unstable conditions.
• Be certain the high chair is fully erect and latched in the open position before allowing the child near the high chair.
• This high chair is designed to be used by a child with a maximum weight of 40 pounds, (18.14 kg.)
• NEVER allow your high chair to be used as a toy.
• NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Baby Trend Customer Service at 1-800-328-7363 for replacement parts, repair or instructions. NEVER substitute parts.

IMPORTANT! To ensure safe operation of your product, please follow these instructions carefully. Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.

IMPORTANT! Adult assembly is required.

IMPORTANT! Always check that the high chair is locked in the open position before using.

ATTENTION:

Carefully remove parts from box. Check that you have all the parts for this model before assembling the high chair. NOTE: Certain High Chair models are packaged with the High Chair Seat Fabric and Seat Insert already attached to the Seat Back.

Fig. 2a

TO ASSEMBLE SEAT

1) Place the Seat Base on a flat surface.
2) Join the Seat Back to the Seat Base using the Seat Back Hinge Rod (Fig. 2a). To install the hinge rod, press down on the hinge rod retainer and insert the rod into the hinge from right to left (Fig. 2b).

Fig. 2b

ASSEMBLYASSEMBLY

3) Slide the left and right sides' Height Bracket onto the Seat Base (Fig. 3a). Lock the brackets in place (Fig. 3b).
4) - Slide the Footrest onto the Seat Base (Fig. 4). Lock Footrest into place.
5) Insert the front tube of the right and left side Upper Frame Assemblies into the Height Bracket (Fig. 5). The front tube is easily distinguished from the rear tube by the array of holes located on the backside of the front tube.

6) - Squeeze the Release Handles on both sides simultaneously and push the tube through the Height Adjusters until it locks in the highest position (Fig. 6).
7) Insert the Legs into the ends of the front tube of both the right and left Upper Frame Assemblies (Fig. 7). NOTE: Legs are properly connected when the lock buttons are lined up with the holes on the ends of the Upper Frame Assemblies. Make sure the lock buttons are engaged before use.
8) Insert another Leg into the ends of the rear tube of both the right and left Upper Frame Assemblies (Fig. 8). NOTE: Legs are properly connected when the lock buttons are lined up with the holes on the ends of the Upper Frame Assemblies. Make sure the lock buttons are engaged before use.

Fig. 8

OPERATIONOPERATION

TO ATTACH AND OPERATE TRAY

WARNING: Always check that the high chair is locked in the open position before using.
WARNING: The tray is not designed to hold the child in the chair. The child should be secured in the high chair at all times by the 5-point restraining system, either in the reclining, semi-reclining or upright position.

TO ATTACH TRAY

9) To attach the Tray, line up the grooves on the bottom of the tray with the armrests of the high chair. Squeeze the Tray's release handle and slide the tray onto the armrests (Fig. 9a). The Tray has a 3-position adjustment. To adjust the position, squeeze the Tray's release handle located underneath the tray and reposition the tray to the desired position (Fig. 9b). Release the Tray's handle. Check that the Tray is securely locked in its new position.

Tray Release located underneath tray Fig.9a

Fig. 9b

TO ATTACH INSERT TRAY

10) The dishwasher safe food Tray Insert snaps onto the High Chair Tray and is held in place by tabs on the sides of the Tray (Fig. 10a). When installing the Tray Insert make sure that its snaps into place to prevent the child from removing the Tray Insert. To remove Insert unsnaps tabs from the Tray.
The Tray may be stored on the back legs of the High Chair. Align the holes in the rear of the tray with the small pegs on the back legs (Fig. 10b).

Fig. 10a

Fig. 10b

TO USE SAFETY BELT

WARNING: It is recommended that only children capable of sitting upright unassisted use the high chair in the upright position.
WARNING: Prevent serious injury or death from falls or sliding out. Always use the restraint system. The child should be secured in the high chair at all times by the 5-point restraining system, either in the reclining, semi-reclining or upright position.

The Tray is not designed to hold the child in the chair. Stay near and watch child during use. NEVER leave child unattended.

OPERATIONOPERATION

11) The shoulder straps of the 5-point harness have 2 attachment positions. Select the position that places the shoulder strap level with, or below, the top of the child's shoulders (Fig. 11a).
- Carefully place the child in the seat and position the safety harness around the child's waist and over the shoulders. Place the crotch strap between the child's legs. Insert the male end of each shoulder/waist belt into the buckle on the crotch strap. Tighten the harness to be snug around the child's waist and over the child's shoulders (Fig. 11b).

TO RELEASE SAFETY BELT

12) Push Button on Center Clasp, the two Harness Buckles will pop free (Fig. 12).

RECLINE SEAT

13) Squeeze recline lever on back of the seat and adjust to the preferred recline or upright position (Fig. 13). Use caution not to trap arms, hands and fingers when adjusting recline positions.

Fig. 11a

Fig. 13

WARNING: Do not adjust seat height with child in seat. Adjust seat height before placing your child in the high chair.
WARNING: Always check that the height adjustment bracket is level and both left and right sides locked before placing child in the high chair.
WARNING: Never rest the height adjustment bracket on the locking pins.
14) Squeeze the Release Handles on both sides simultaneously of the Height Adjustment (Fig. 14a) and adjust to the ideal position (Fig. 14b). DO NOT adjust with child in the seat.

ATTENTION:

Make sure the Height Brackets lock on the lowest position. DO NOT rest Height Adjustment Brackets on the Locking Pins (Fig. 14c).

Fig. 14a

Fig. 14b

Fig. 14c

OPERATIONOPERATION

TO FOLD HIGH CHAIR

The High Chair may be folded with the seat in any of the height positions.

15) Place seat in the desired height position. Place Seat Back in the most upright position (Fig. 15).
16) Squeeze the tray release handle and slide the tray out (Fig. 16).
17) Hang the tray on the hooks located on the back of the rear leg (Fig. 17).
18) Pull upward on the release levers located on the sides of the frame and push the rear legs in the direction of the front legs until folded (Fig. 18). Chair is now ready to put away. DO NOT allow your child to play around a folded high chair as it may fall.

TO UNFOLD HIGH CHAIR

Read the Warning and see (Fig. 18), then Reverse the steps above.

WARNING: Do not sit on the frame when the seat is not attached. Do not use frame as a foot stool. Potential pinch point when opening the frame.

Fig. 15
Tray Release located underneath tray Fig.16

Fig.17

Fig. 18

TO REATTACH SEAT PAD

NOTE: Certain High Chair models are packaged with the High Chair Seat Pad and Seat Insert already attached to the Seat Back.

19) Thread non-buckle end of Harness Straps called Harness Attachment Tabs through the provided slots in the Seat Fabric, Seat Insert, Seat Back, and Seat Base (Fig. 19). When Harness Attachment Tabs are through the provided slots, rotate the Harness Attachment Tabs 90 degrees. Make sure that the straps are firmly in place.
20) Loop the flap on the back of the pad over the top of the Seat Back. Connect the Seat Pad to the Seat Back with the two Elastic Loops. These fit over the Attachment Tabs located near the top harness slots (Fig. 20a).
- Insert the Harness Covers through the Harness Straps (Fig. 20b).

Fig. 19

Fig. 20a

Fig. 20b

OPERATION

MAINTENANCE

21) Attach the bottom of Seat Pad to the Seat Base with the two Elastic loops located at the rear of the bottom of the Seat Pad. These fit over the Attachment Tabs located on the Seat Base near where the Seat Back and Seat Base Join (Fig. 21).

TO REMOVE SEAT PAD

Reverse steps above.

Fig. 21

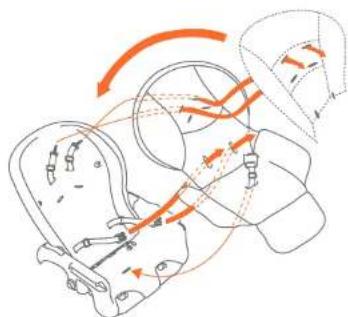

OPTIONAL SEAT INSERT

22) Set Seat Insert onto Seat Pad. See step 19.

Fig. 22

CARE AND MAINTENANCE

WARNING: Harness Straps and Basket are NOT washable.

Dishwasher Safe Tray Insert: The Tray Insert is dishwasher safe to 160^ F (71^ C). Do not use scouring pads on the Tray Insert as they will damage the surface and the Tray Insert will become more difficult to clean.

High Chair/Tray: Use mild soap and wash with damp cloth. Please use only a soft bristle brush, sponge or cloth to clean the surface or remove particles of food. DO NOT submerge High Chair and Tray in water. Surface clean only.

Seat Pad and fabrics (please refer to the care label on individual soft good pieces for cleaning instructions).

To remove the seal pad:

Remove Harness Straps by pushing Harness Attachment Tabs through the Harness slots on the Seat Back, Seat Base and Seat Pad. Remove Elastic Loops from Attachment Tabs on Seat Base and Seat Back.

To attach the seat pad:

Carefully follow the instructions outlined in Step 19 on how to correctly re-thread the safely harness.

PIEZAS
