Product type	Inkjet multifunction printer
Brand	Canon
Model	Pixma TS5352A
Dimensions (W x D x H)	Approx. 435 x 370 x 195 mm
Weight	Approx. 6.3 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption (standby)	Approx. 1.0 W
Power consumption (printing)	Approx. 10 W
Main functions	Print, copy, scan
Printing technology	Inkjet (FINE color and black cartridges)
Max print resolution	4800 x 1200 dpi
Print speed (black)	Up to 11 ipm
Print speed (color)	Up to 6 ipm
Supported paper type	Plain paper, photo paper, envelopes
Input tray capacity	Cassette: 100 sheets (plain paper), rear tray: 20 sheets (photo paper)
Connectivity	Wi-Fi, USB 2.0
Display	1.5-inch monochrome LCD
Scanning	Flatbed scanner
Maintenance and cleaning	Print head cleaning via menu, use lint-free wipes for exterior
Safety	Do not expose to moisture, unplug before cleaning, use only Canon cartridges
Spare parts and repairability	FINE cartridges (PG-560XL black, CL-561XL color), removable power cord
General information	Designed for home use, compatible with Windows and macOS, Canon PRINT app for mobile

Frequently Asked Questions - Pixma TS5352A CANON

How to install the ink cartridges?

Open the scanning unit, pinch the cartridge lock lever on the left, remove the cartridge from its packaging, remove the protective tape, insert the cartridge into the cartridge holder and push the lever down until it clicks. Repeat for the black cartridge on the right.

How to connect the printer via Wi-Fi?

From a smartphone, install the Canon PRINT Inkjet/SELPHY app. Enable Wi-Fi on your smartphone, open the app and follow the instructions to add the printer. For a computer, go to ij.start.canon and follow the setup guide.

What type of paper to use?

Use plain A4 or Letter paper for regular prints. For photos, load photo paper (e.g., 10 x 15 cm) in the rear tray, printable side up.

How to replace an empty ink cartridge?

Turn on the printer, open the scanning unit. The cartridge holder moves to the center. Press the lock lever on the empty cartridge, remove it. Unpack the new cartridge, remove the protective tape, insert it and close the lever until it clicks.

The printer no longer prints, what should I do?

Check that the cartridges are not empty. Clean the print heads from the menu: Settings > Maintenance > Cleaning. If the problem persists, perform head alignment. Make sure paper is loaded correctly.

How to scan a document?

Place the document face down on the scanner glass, align it with the mark. Close the lid. On the printer screen, select Scan. You can also use the Canon PRINT app on your smartphone or computer.

The printer displays 'cartridge error', what should I do?

Remove the faulty cartridge and check that it is compatible and properly installed. Clean the electrical contacts with a dry cloth. Reinsert it firmly. If the error persists, try a new cartridge.

How to clean the printer?

Unplug the printer. Use a soft, dry cloth to wipe the exterior. For the interior, do not use liquids. Print head cleaning is done through software via the printer's Maintenance menu.

Can I use non-Canon compatible cartridges?

It is recommended to use genuine Canon cartridges to ensure print quality and avoid damaging the printer. Compatible cartridges may not be recognized or cause issues.

How to save ink?

Select Draft mode in the print settings for everyday documents. Use Ink Save mode if available. Avoid printing unnecessary photos and turn off the printer after use.

USER MANUAL Pixma TS5352A CANON

Read Safety and Important Information (addendum) first.

Icon showing a printer with a paper airplane and a document, symbolizing file transfer or receipt (no text present)

Installing the Printer......page 1

Two white devices on a solid red background: a laptop and a smartphone (no text or symbols)

Connecting to a Computer, Smartphone or Tablet......page 4

Instructional Videos

Instructions vidéo

Anleitungsvideos

Instructievideo's

Video informativi

Setting Up the Printer

1. Box Contents

• FINE cartridges

Color Black

Power cord
- Setup CD-ROM for Windows
• Safety and Important Information
• Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any packing materials and orange tape.

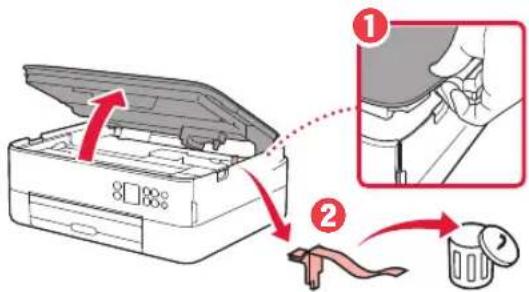

2 Open the scanning unit / cover, remove and dispose of the orange tape and protective material inside.

3 Close the scanning unit / cover.

- Open the scanning unit / cover fully and then close it.

Caution
Watch your fingers.

3. Turning on the Printer

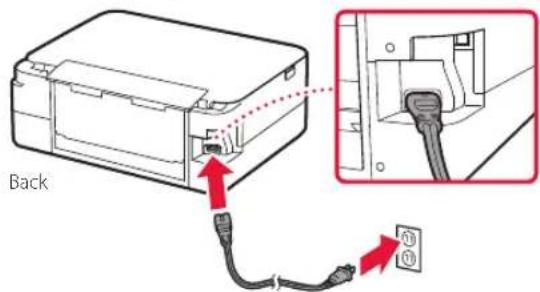

1 Connect the power cord.

Important
At this time, do not connect any other cables.

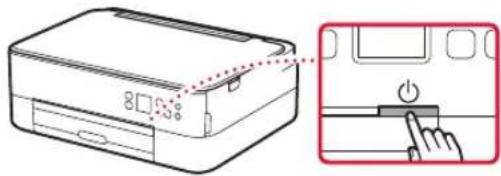

2 Press the ON button.

3 Use the ▲, ▼ and OK buttons to select a language.

4 Press the OK button.

Important
Scan the QR code for a video tutorial of the setup procedure.

5 Use the ▲ and ▼ buttons to check the on-screen content, and then press the OK button.

Setting Up the Printer

4. Installing the FINE Cartridges

1 Open the scanning unit / cover.

Diagram of an open printer with a red arrow indicating the open lid (no text or symbols present)

Caution

Do not touch the FINE cartridge holder until it stops moving.

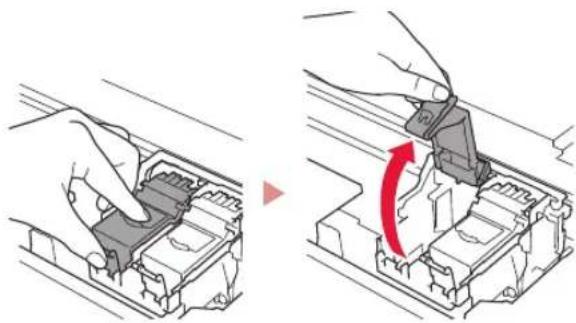

2 Pinch and open the ink cartridge locking cover on the left-hand side.

Illustration showing two steps of a mechanical assembly: adding a component to a housing, then adjusting a component with a red arrow indicating rotation (no text or symbols present)

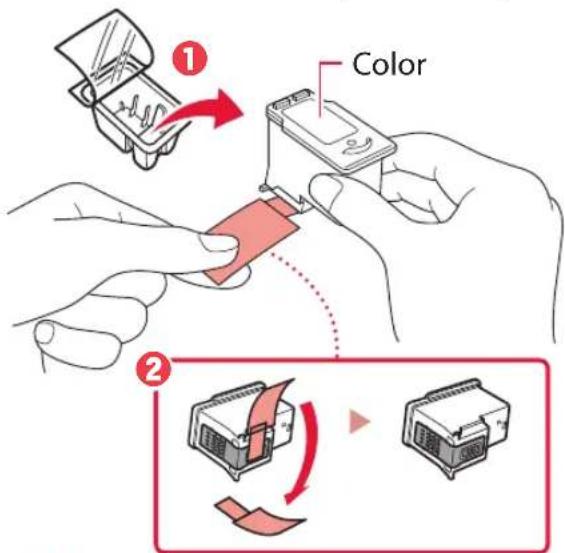

3 Remove the Color FINE cartridge from the container and remove the protective tape.

Important

• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.

4 Set the Color FINE cartridge in the FINE cartridge holder.

Diagram of a car interior showing a seatbelt mechanism with a red arrow indicating direction (no text or symbols present)

Important

Do not bump the FINE cartridge. Doing so may cause a malfunction.

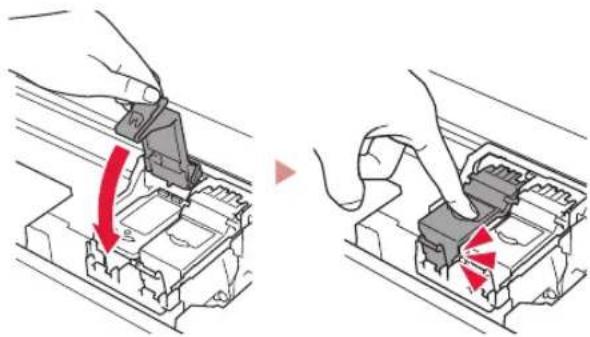

5 Push down the ink cartridge locking cover firmly until it snaps into place to close it completely.

Two-step diagram showing hand inserting a component into a device, with red arrows indicating direction (no text or symbols)

6 Repeat steps 2 to 5 and install the Black FINE cartridge as well, on the right-hand side.

Illustration of hands inserting a device into a container with a red triangular warning symbol (no text or labels)

7 Close the scanning unit / cover.

• The printer will start initializing.

Caution

Watch your fingers.

5. Loading Paper

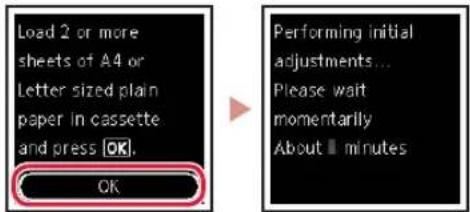

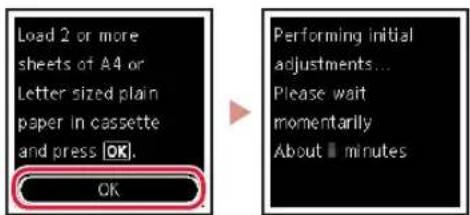

1 Press the OK button.

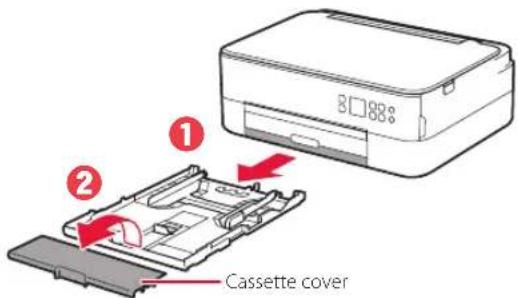

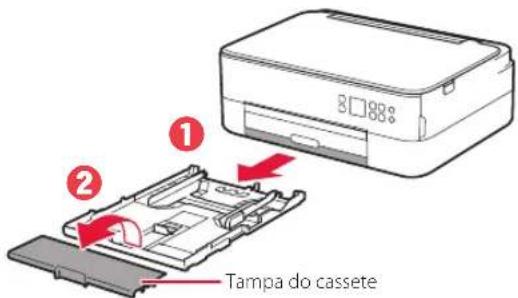

2 Remove the cassette from the printer and remove the cassette cover.

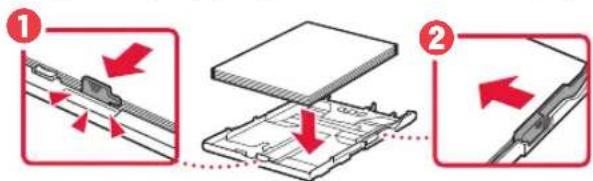

3 Slide apart the paper guides.

- Slide the right paper guide to the right edge. Align the front paper guide with the Letter or A4 mark.

4 Load paper.

• Load 2 or more sheets of Letter or A4 sized plain paper with the print side facing down.
• Place the paper against the front paper guide, and align the right paper guide to the width of the paper.

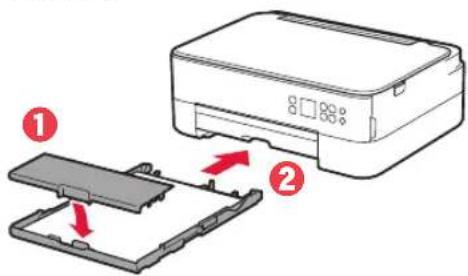

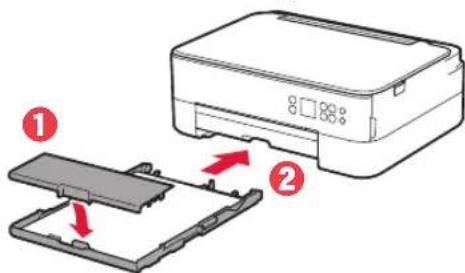

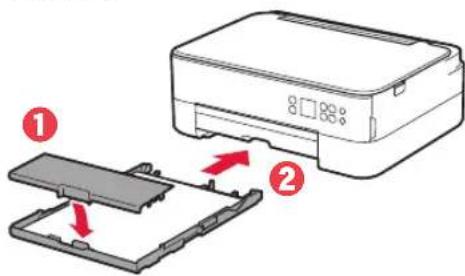

5 Attach the cassette cover and replace the cassette.

- Look at it from the side to confirm it looks like the diagram.

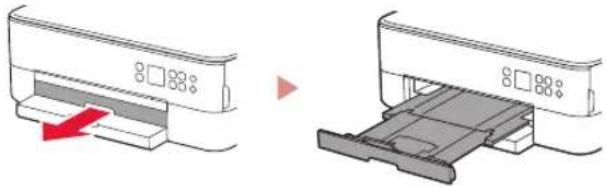

6 Pull out the paper output tray.

Diagram showing two printer printing process stages: one with a red arrow indicating compression, the other with a gray handle and a red arrow indicating print (no text or symbols present)

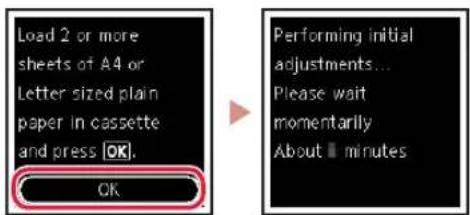

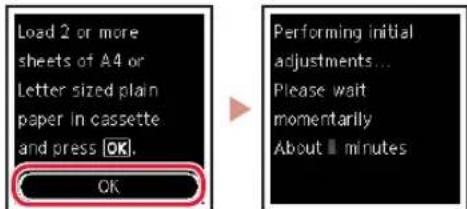

7 Press the OK button.

8 Press the OK button.

Important

Scan the QR code for a video tutorial of the setup procedure.

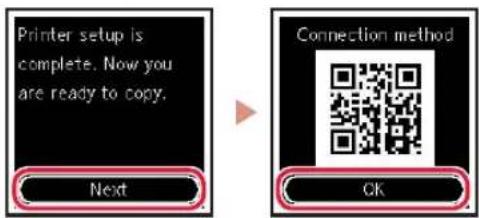

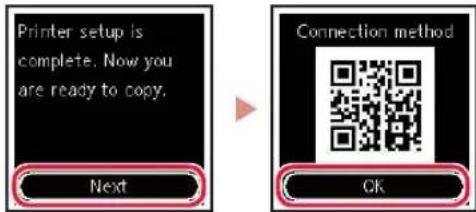

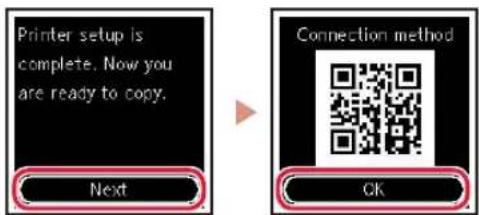

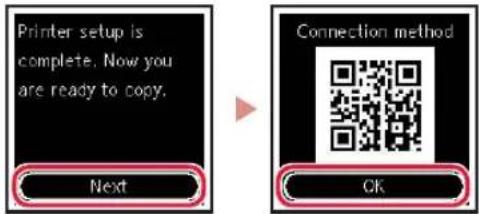

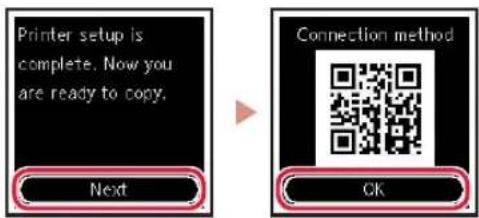

9 Check that the following screen appears.

If you will use the printer without connecting any other devices, setup is now complete.

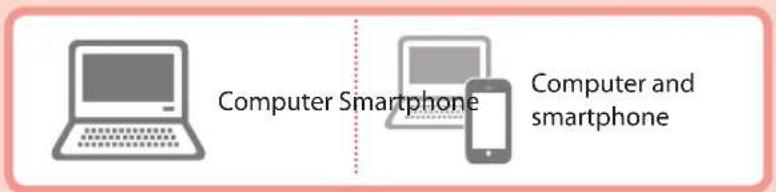

What device are you connecting?

Simple line drawing of a smartphone inside a rounded rectangle (no text or symbols)

6-a

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from a computer.

https://ij.start.canon

2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click If you have already prepared your printer, go to Connect.

Note

The following steps are for Windows (except Windows 10 in S mode) and macOS users. For other operating systems, continue setup by following the on-screen instructions instead.

6 Click Download.
7 Run the downloaded file.
8 Click Start Setup.

9 Follow the on-screen instructions.

• These operations may take some time.
- To connect to a smartphone as well, see "6-b. Connecting to a Smartphone" on page 5.

Using the Setup CD-ROM for Windows

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

6-b

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

1 Enable the Wi-Fi setting on your smartphone.
2 Connect your smartphone to the wireless router (if you have a wireless router). Refer to your smartphone and wireless router manuals for more details.

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

- Scan the QR code shown on the right to access the Canon website, and then download the app.

2 Open the installed app.

3 Follow the on-screen instructions in the app to add your printer.

Once you have added your printer, you can print from your smartphone.

To print photos, see "Loading Photo Paper" on page 6.

Loading Photo Paper

Photo paper can only be loaded in the rear tray.

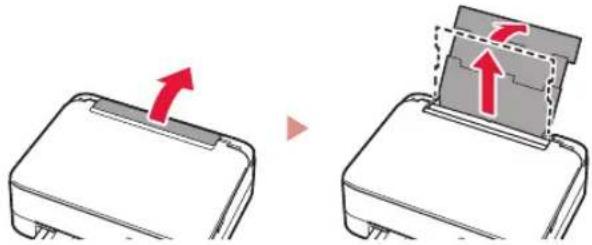

1 Open the rear tray cover and extend the paper support.

Diagram showing two steps of a device with red arrows indicating motion, no text or symbols present

2 Open the feed slot cover and slide the right-hand side paper guide to the far right.

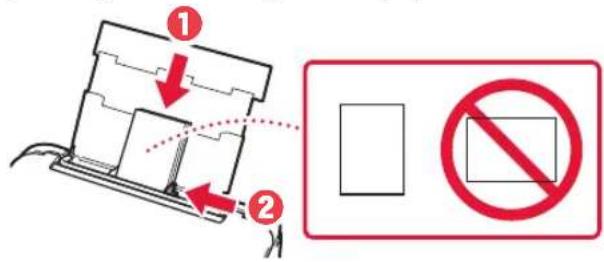

3 Load several sheets of photo paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

4 Close the feed slot cover.

- Follow the on-screen instructions to set information for the loaded paper.

Copying

1 Turn on the printer.
2 Load Letter or A4 sized plain paper.

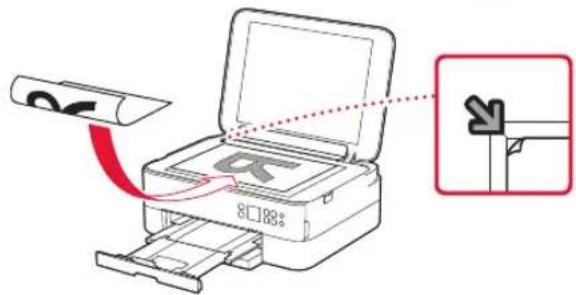

3 Open the document cover and place the document face down on the platen. Align the document with the alignment mark (↘)

4 Close the document cover.
5 Press the OK button.
6 Select Copy settings, and then press the OK button.
7 Specify print settings using the ▲, ▼ and OK buttons.

8 Press the Start button.
