LMV1500 - 147 bottles

LMV1900 - 182 bottles

LMV2870 - 287 bottles

TABLE OF CONTENTS

Introducing the wine cabinet	Page 56
Important warnings and tips	Page 57
Setting up the cabinet	Page 61
Specific information	Page 61
Usage	Page 67
Care of your cabinet	Page 69
Troubleshooting	Page 70
Guarantee	Page 70

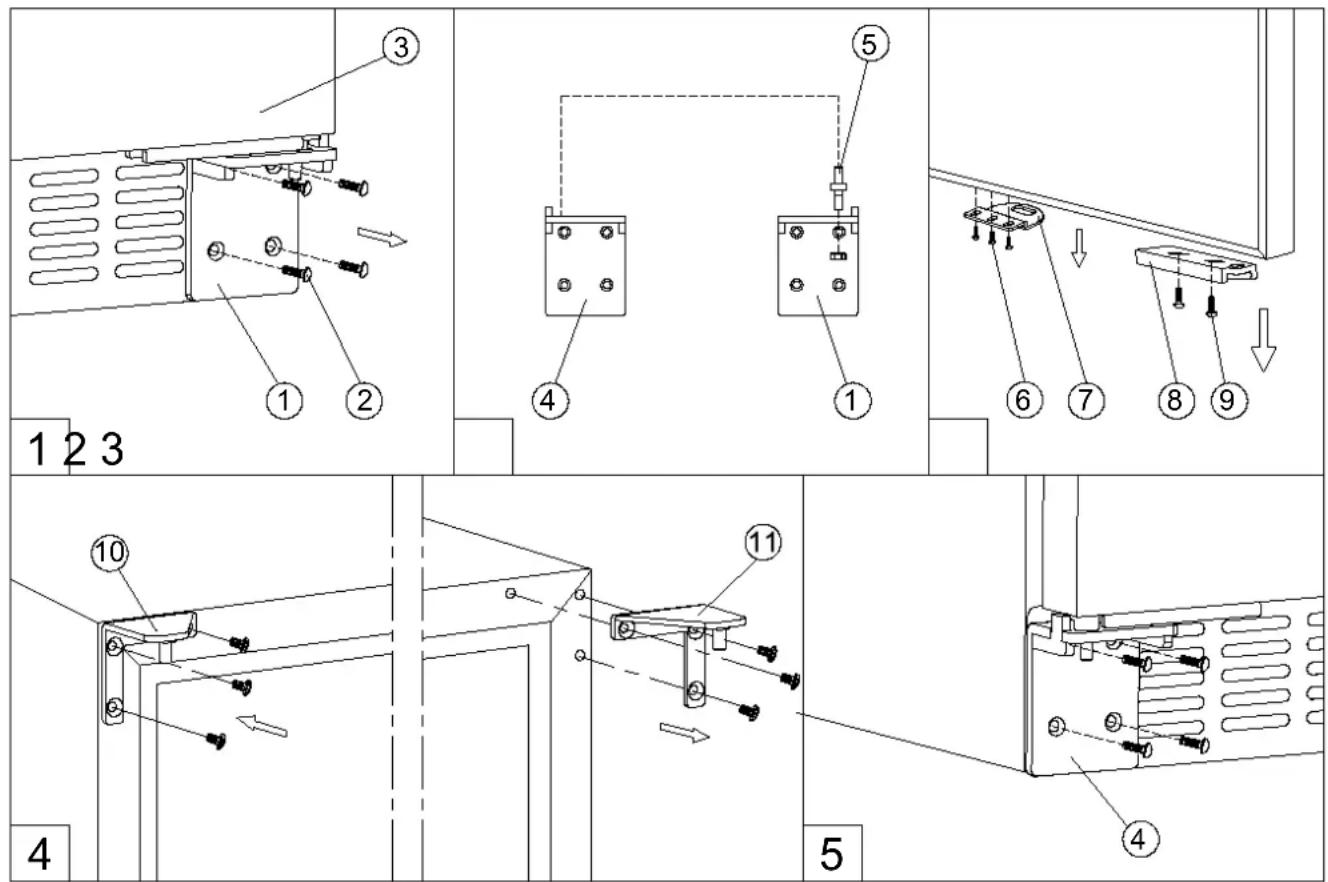

Changing door opening side	Page 71

TECHNICAL AND ENERGY CHARACTERISTICS

Brand: LE CHAI	ModelLMV1500(147 bottles Max)	ModelLMV1900(182 bottles Max)	ModelLMV2870(287 bottles Max)
Foodstuffs	220-240V~ 50Hz
Size (L*W*H) (mm)	595x575x1476	595x575x1768	680x676x1820
Weight	66 kg	76 kg	86 kg
Defrosting Automatic
Climate class	STThis device is designed for use at ambient temperatures between 16°C and 38°C
Installation type Free Standing

The cabinet is exclusively designed for storing wine.

The product information fiche according to regulation 2019/2016 / EU is available via

Model	Website	QR-code
LMV1500	https //eprel.ec.europa/qr/349116
LMV1900	https //eprel.ec.europa/qr/346471
LMV2870	https //eprel.ec.europa/qr/349117

This device complies with European Directive requirements:

2014/35/EU pertaining to electrical safety

2014/30/EU pertaining to electromagnetic compatibility

CE

INTRODUCING THE WINE CABINET

Diagram of a server rack with numbered components for identification

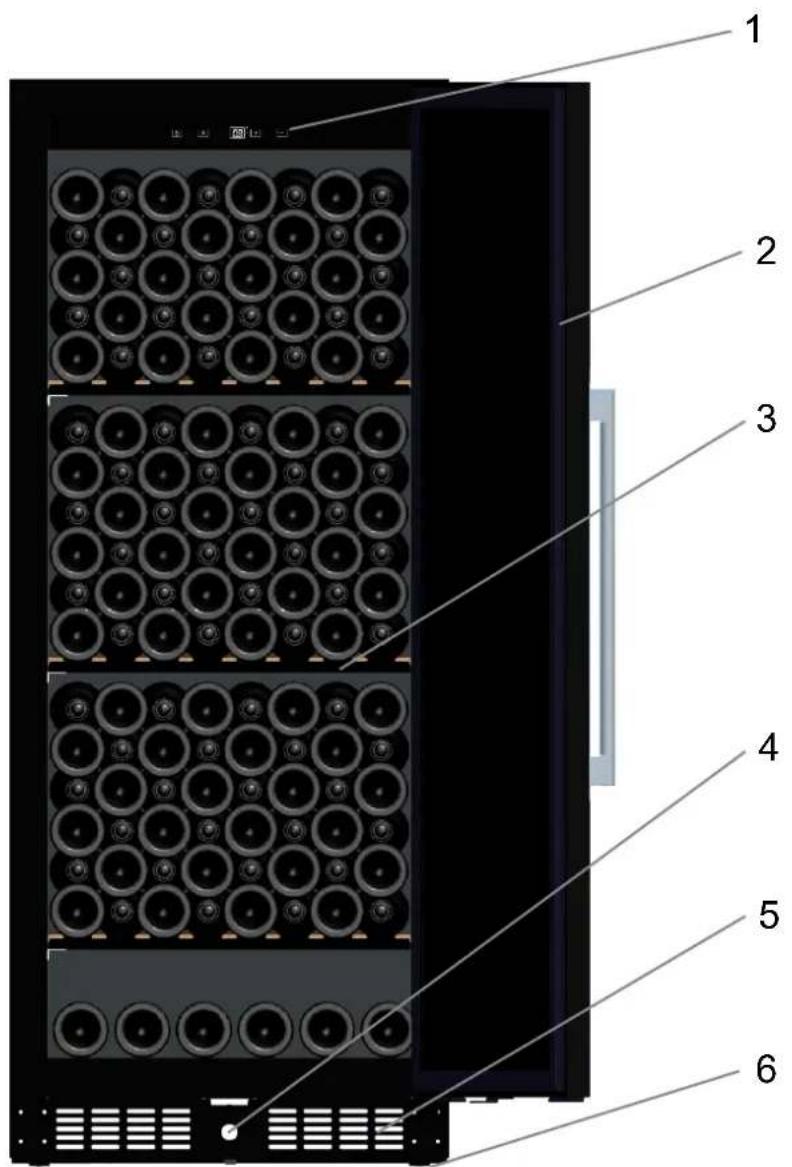

1 – Control Panel

2 – Solid door with handle

3 – Shelves

4 - Lock

5 – Ventilation

6 – Adjustable feet

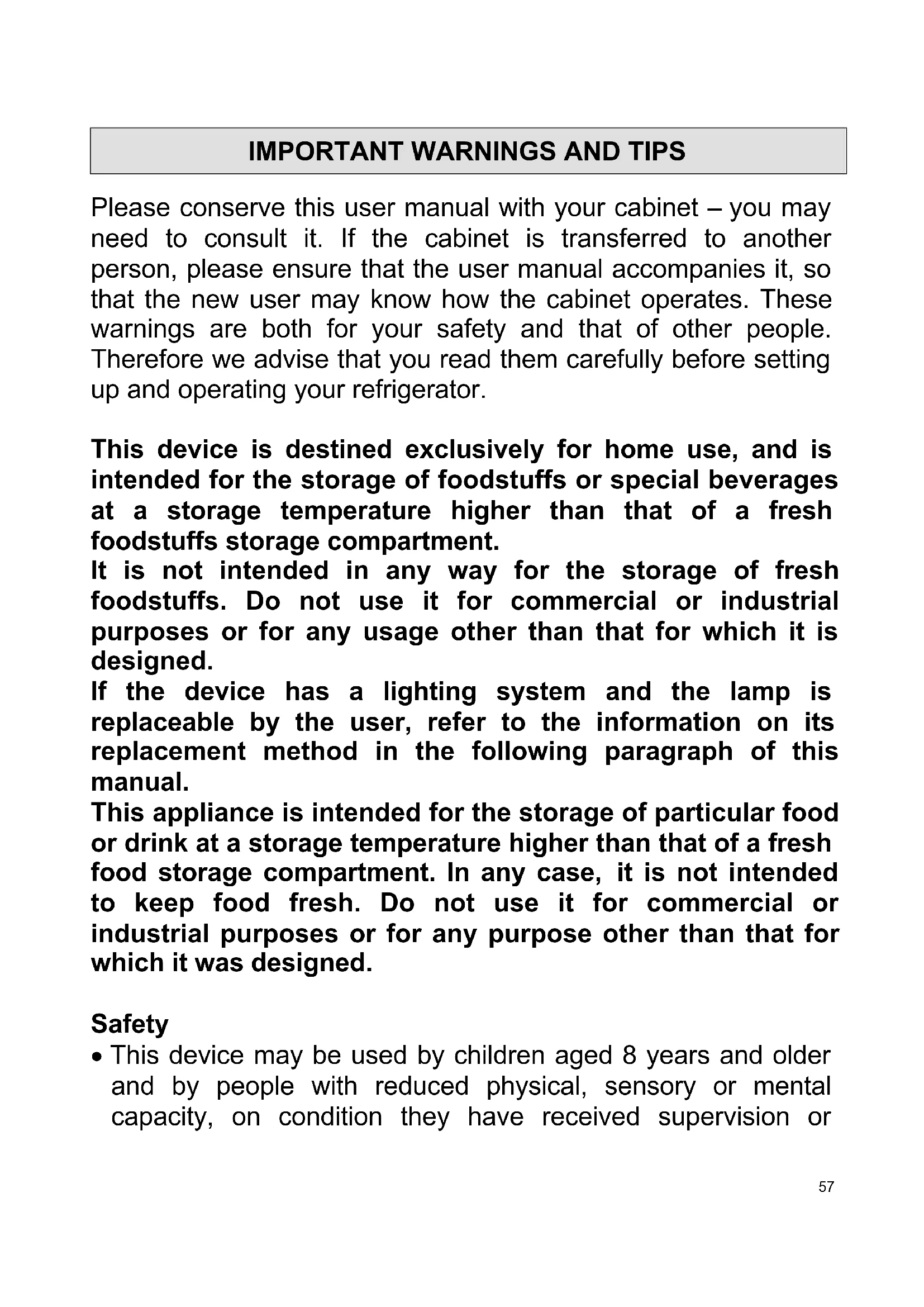

IMPORTANT WARNINGS AND TIPS

Please conserve this user manual with your cabinet – you may need to consult it. If the cabinet is transferred to another person, please ensure that the user manual accompanies it, so that the new user may know how the cabinet operates. These warnings are both for your safety and that of other people. Therefore we advise that you read them carefully before setting up and operating your refrigerator.

This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverages at a storage temperature higher than that of a fresh foodstuffs storage compartment.

It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it is designed.

If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual.

This appliance is intended for the storage of particular food or drink at a storage temperature higher than that of a fresh food storage compartment. In any case, it is not intended to keep food fresh. Do not use it for commercial or industrial purposes or for any purpose other than that for which it was designed.

Safety

- This device may be used by children aged 8 years and older and by people with reduced physical, sensory or mental capacity, on condition they have received supervision or

instruction concerning use of the device in all safety, and that they understand the risks.

• Children should not be allowed to play with the device.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the illuminating lamp; before moving the device or before cleaning the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.
• WARNING: Do not damage the refrigeration circuit.
• WARNING: Do not use electrical equipment inside the foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.
• WARNING: Do not use mechanical tools or other means to speed up defrosting, unless they are recommended by the manufacturer.
• WARNING: Keep the cabinet's ventilation openings clear in the enclosure or the built-in space around the cabinet.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not connect the device to a power supply without overload protection (protected by an electrical fuse).
• Never use power-strips or extension cords to connect the device to the mains.
• This device is not destined for use with an outside timer or remote control system or any device that switches it on automatically.
• Do not use the device to store explosive substances such as aerosols that contain flammable propulsion gas.

• After installing the cabinet, ensure that it is not resting on the power cord.

• If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards.

• The device is heavy; be careful when moving it.
• If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it.
• In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains.
• Ensure that you put your cabinet in a place that can support its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg).
• Your cabinet must be placed on a level surface. If you have placed it on a rug or on carpeting, insert a support beneath it.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• This refrigeration appliance is not suitable for freezing foodstuffs.

Servicing – repairs

• It is dangerous to modify or attempt to modify the characteristics of the device.
• If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.

Refrigerant

Warning; Risk of fire / flammable materials.

The refrigerant gas contained in this device is isobutane (R 600a), it is low-polluting but is

flammable.

• When transporting and installing the device, take care not to damage any part of the refrigerating circuit.
• Do not use a pointed or sharp edged tool to defrost the device.
• Do not use any electrical devices inside the cabinet.

If the refrigerating circuit is damaged:

• Do not allow any open flame near the device.
• Avoid sparks – do not switch on any electrical appliances or lamps nearby.
• Immediately ventilate the room.

Disposal

This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way.

For more information please contact your local or regional government.

Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances.

This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.

SETTING UP THE CABINET

If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. This will prevent children from locking themselves inside it and endangering their lives.

Location

Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operation of the device, the ambient room temperature should be between +16°C and +38°C (class ST). Outside these limits, the device will not operate properly.

- Ensure that air can circulate freely behind the device: do not place it too close to a wall, in order to avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption.

Leave at least 2 cm between the walls and the wine cabinet and 3 cm minimum between the rear of the wine cabinet and the wall. Leave at least 10 cm free space above the device.

- The device must be installed in such a way that the electric plug is accessible. After installing the cabinet, make sure that it is not resting on the power cord.

– Level the device by using the 4 adjustable feet.

Connecting the power supply

Your cabinet is designed for operation with 230 V single-phase.

It must be connected to a wall socket equipped with earthing and protected by a 10 A fuse in compliance with the standard NF C15-100 and in compliance with your electricity supplier's prescriptions.

SPECIFIC INFORMATION

• We recommend that you install your wine cabinet in a temperate room.
• If the inside light remains on, please note that the inside temperature will be higher.
• Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained.
• In order to keep your wines at a stable temperature, avoid leaving the door open for long periods.
• Do not install your wine cabinet close to a heat source; avoid direct sunlight.
• In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations.
• Do not store perishable foodstuffs inside your wine cabinet.
• The wine cabinet is not designed for use in a garage, outside, or in the open air.
• The following (approximate) temperatures are recommended for wine drinking:

○ Great Bordeaux wines – Red 16 – 17°C
- Great Burgundy wines – Red 15 – 16°C
- Great vintages dry white wines 14 – 16°C
- Red wines, fruity wines, young wines 11 – 12°C
- Rosé wines from Provence, early-to-market wines 10 – 12°C
- Dry white wines and local red wines 10 – 12°C
○ Local white wines 8 – 10°C
- Champagnes 7 – 8°C
○ Liqueur wines 6°C

- Temperature stability is of the greatest importance when storing wine.

- Exposure to light, vibrations, temperature variations or humidity can spoil the wine.

The cooling system

According to specialists, the ideal temperature for wine storage is around 12^ C, in the range of 10^ to 14^ C. Do not confuse with the operating temperature, which varies depending on the specificity of each type of wine from 5 to 18^ C.

It is especially important to avoid sudden temperature changes. Designed by specialists, for wine lovers, this device, unlike the single refrigerator, electronically ensures constant average temperature control.

The anti-vibration system:

The compressor is equipped with special shock (silent-blocks) and the inner tank is isolated from the body by a thick layer of polyurethane foam. These features can prevent the transmission of vibrations to the wines.

The humidification system:

During the compressor off-cycle, the evaporator defrosts automatically and the condensate collects in the drain trough behind the rear wall of the unit, and part of it flows through the drainage hole into the drip tray by the compressor. During the compressor on-cycle, the humidity level inside the cabinet will decrease because the water inside the air becomes frost accumulated on the evaporator. At that very moment the patented Humidity Pump will work and re-introduce the condensed water into the cabinet as humid air to balance the humidity level. So that the correct relative humidity between 50% and 80% can be created.

The UV system:

The light accelerates aging of your wines. In full doors cellars, the wines are naturally immune subject of course limited openings). This model glass door was subject of a particular treatment, which filters harmful ultraviolet rays; the wines are perfectly safe.

Defrost:

This product does not produce frost (No-Frost). There is no frost or ice; so, no operation is required to remove it.

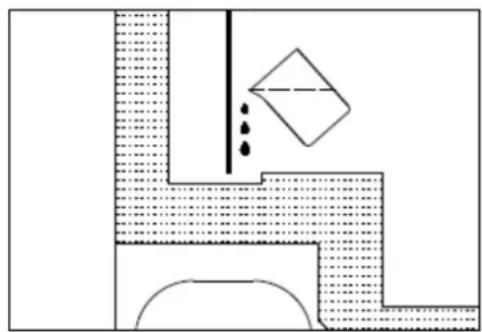

Important: please add around 500ml steamed water into the drain trough softly when starting to use the unit at the first time. The water can insure the unit with correct humidity in the next around six months. If the humidity alarm indicates low humidity level, please add another 500ml steamed water into the drain trough.

Too high humidity level inside the cabinet will not spoil the stored wines but mildew and mould may appear and labels may get unstuck.

Pure architectural floor plan lines without any text, numbers, or symbols

ACTIVE CHARCOAL AIR FILTER

The active charcoal air filter (if your model supplied with it) is located in the back of compartment. Replace it with a new one once a year. It can be purchased from your dealer or from the Spare Parts Department.

• Remove the shelf in front of the filter.
• Grip the filter and turn it 90°clockwise or anti-clockwise to remove.
• Insert the new filter in the vertical position and turn it 90° clockwise or anti-clockwise until it clicks into position..

LOADING

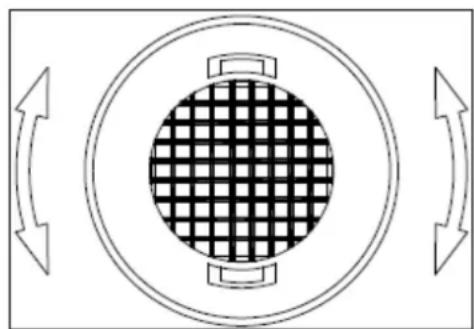

Diagram of a circular structure with a grid pattern and bidirectional arrows, no text or symbols present.

The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device.

The information comes from tests carried out using standard bottles; in reality, in extreme conditions it would be possible to load a greater number of bottles without racks, but a "diverse wine cellar" is used in many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. Therefore you will probably load fewer bottles then the given maximum numbers.

How to load and care for your wine cabinet:

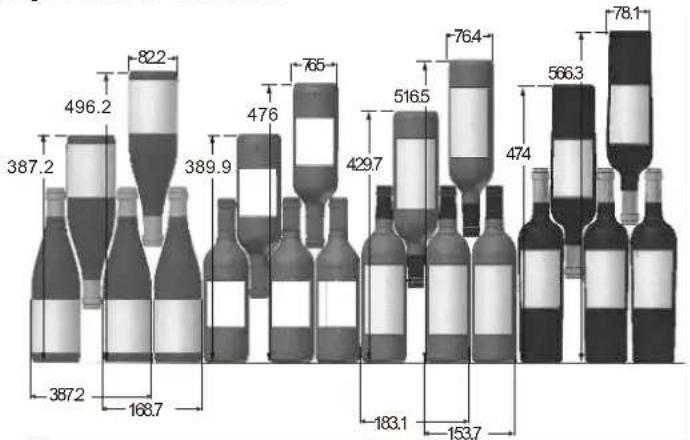

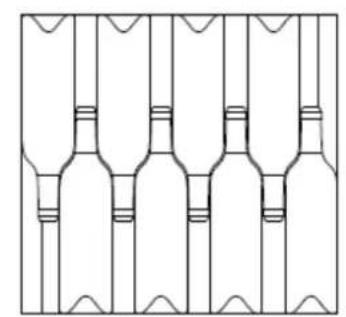

Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes.

There are many other types, with various volumes and of all shapes.

Note the different ways they are stored depending on the height and diameter of the bottles as well as the interleaving method used.

For better conservation and avoid food waste

To avoid spoiling the wine, it is important that the temperature remains stable in the cavity, avoid frequently opening the door and blocking the interior vents.

To avoid the appearance of mold, please avoid having too much humidity in the cavity.

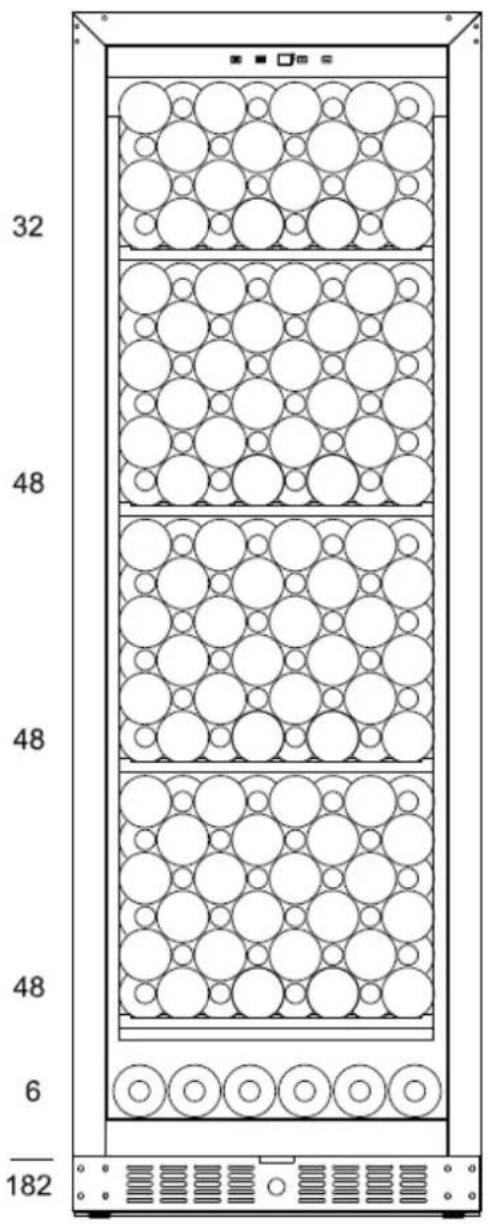

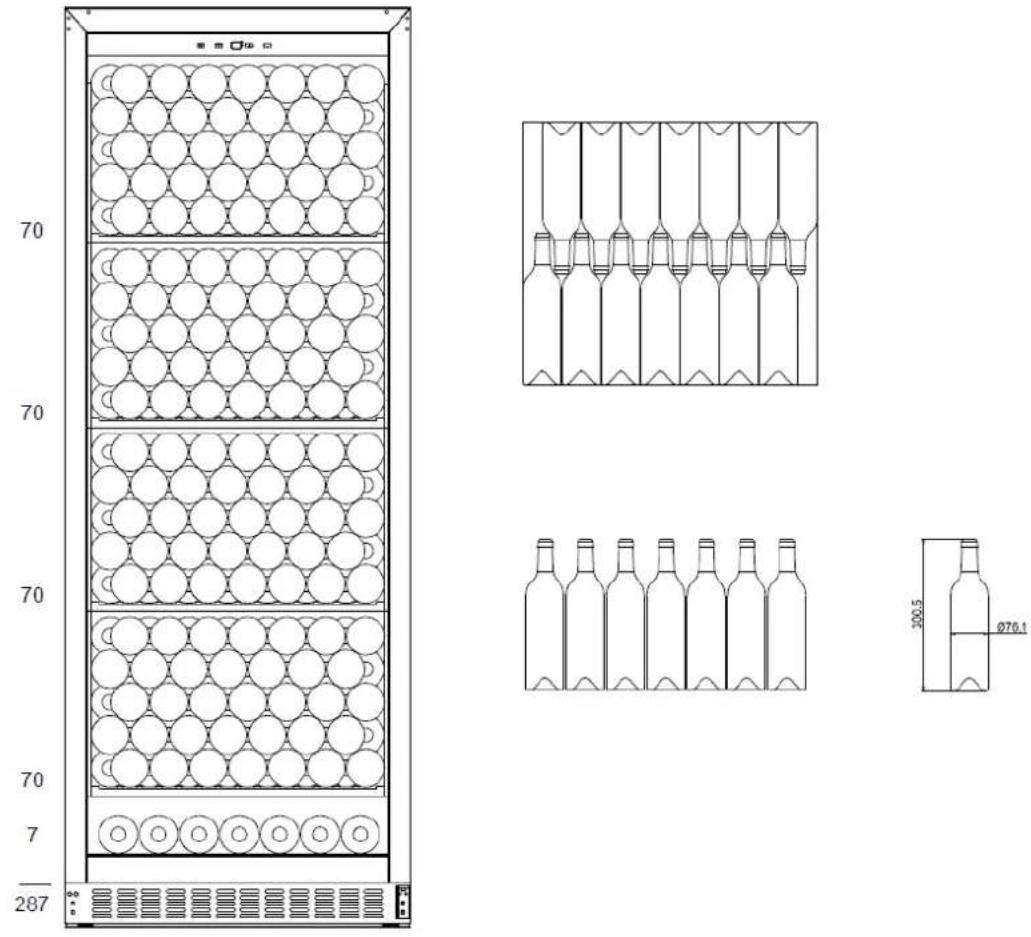

LMV1500 (147 bottles max)

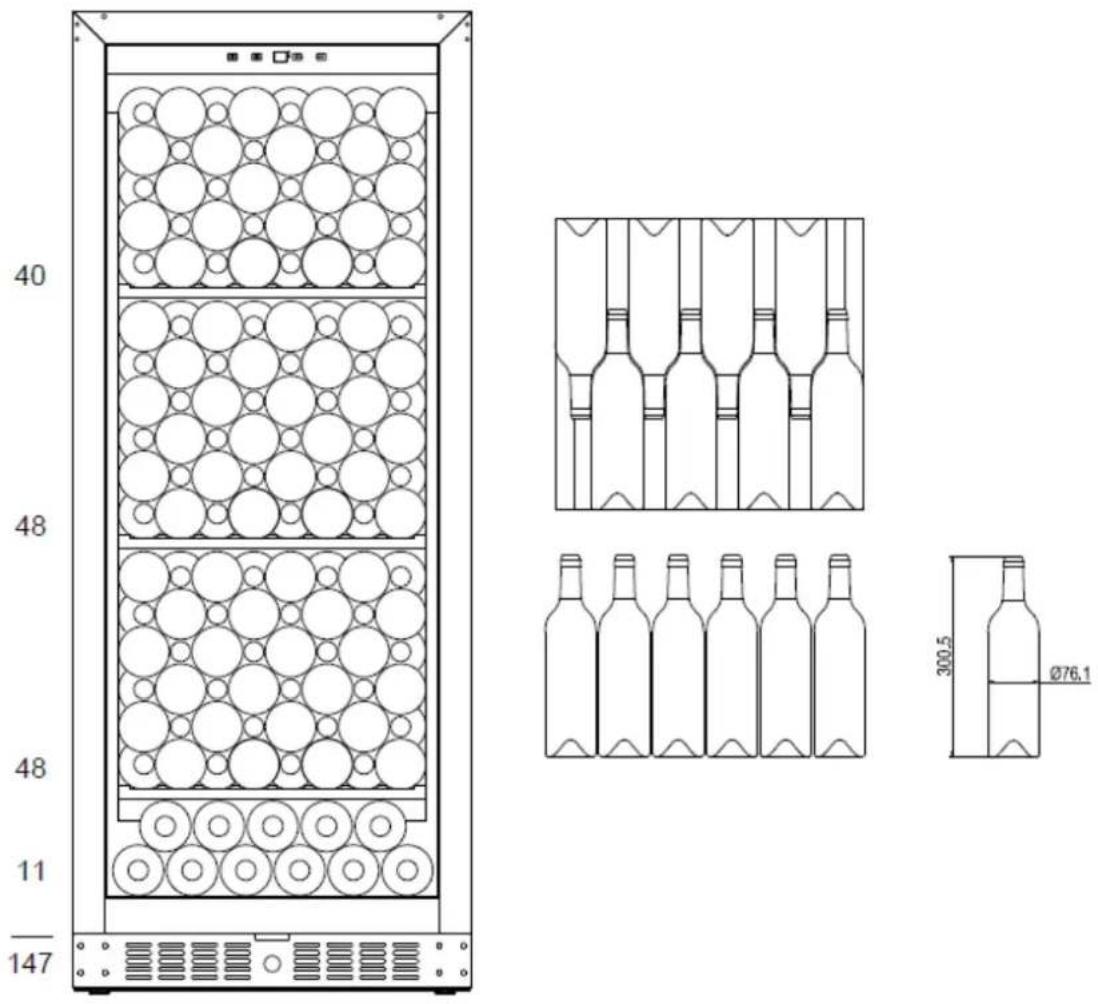

LMV1900 (182 bottles max)

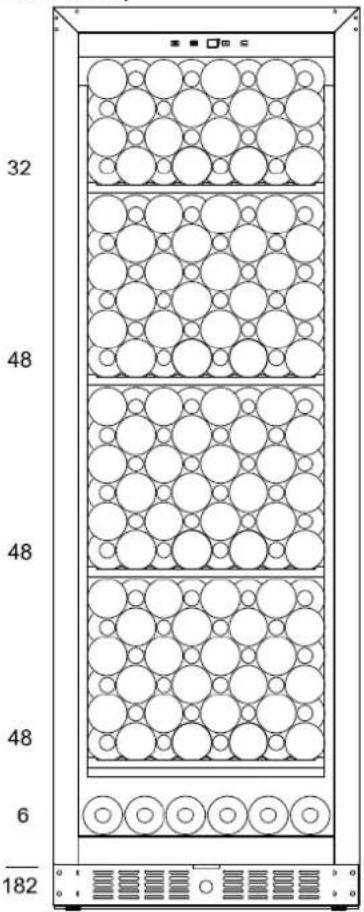

32 48 48 48 6 182

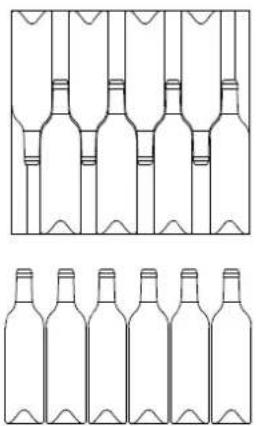

Line drawing of a wine bottle arrangement in a row (no text or symbols)

Line drawing of six identical empty wine bottles arranged in a row (no text or symbols)

LMV2870 (287 bottles max)

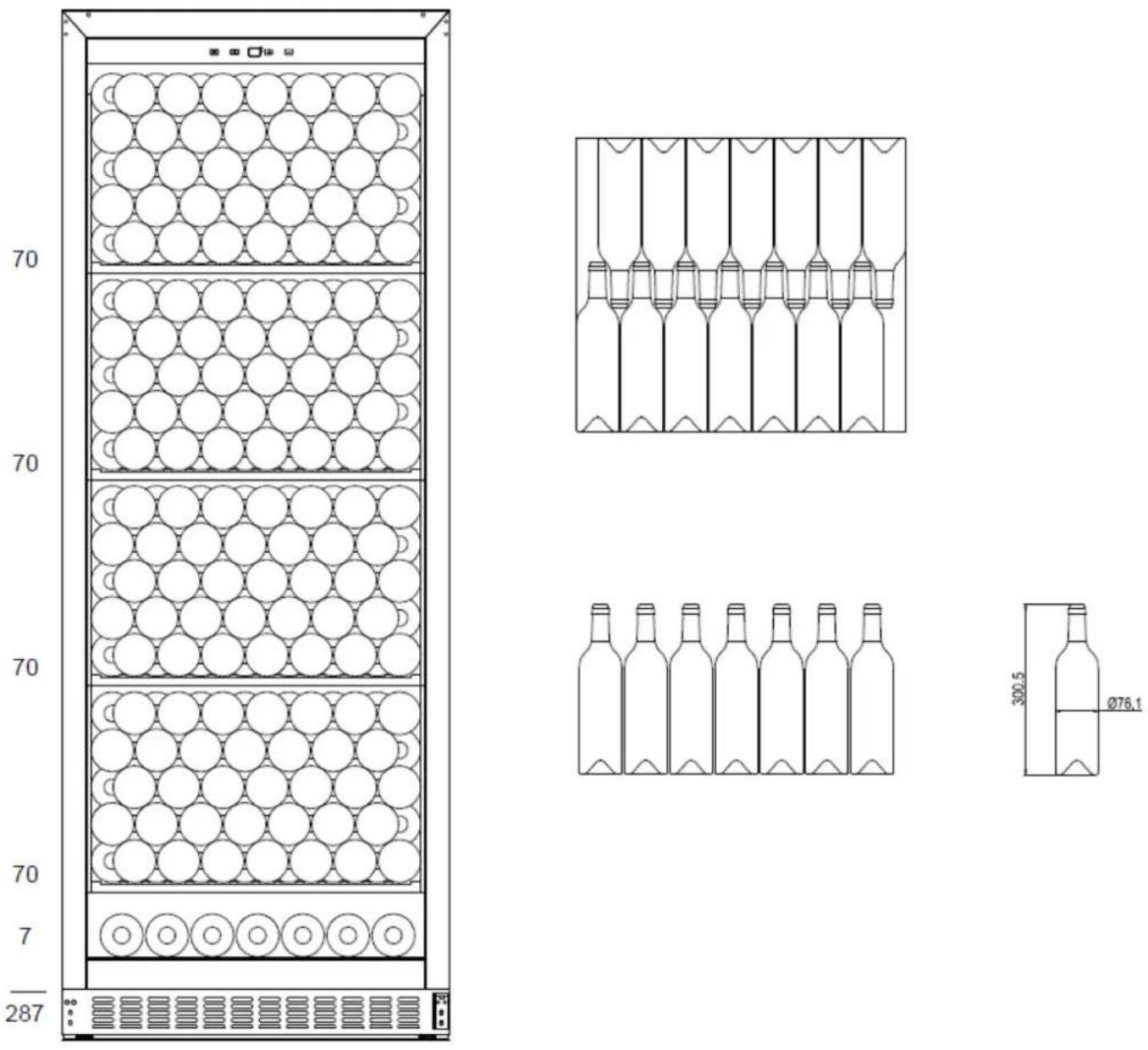

The maximum number of stored bottles is based on standard Bordeaux bottles containing 0.75 L.

USAGE

Starting up the device

Once the wine cabinet is properly installed, we advise that you clean the inside using warm water with a low concentration of dishwashing liquid. Do not use abrasives or scouring powder; they may scratch the surface finish.

USAGE

CAUTION! Wine cabinets are intended only for storing and preserving wine.

IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L capacity. It can contain larger bottles; however care must be taken that they do not prevent the door from closing properly.

• When closing the door ensure that it does not touch any of the bottles.
• If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature.
• In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails.

Adjusting the temperature

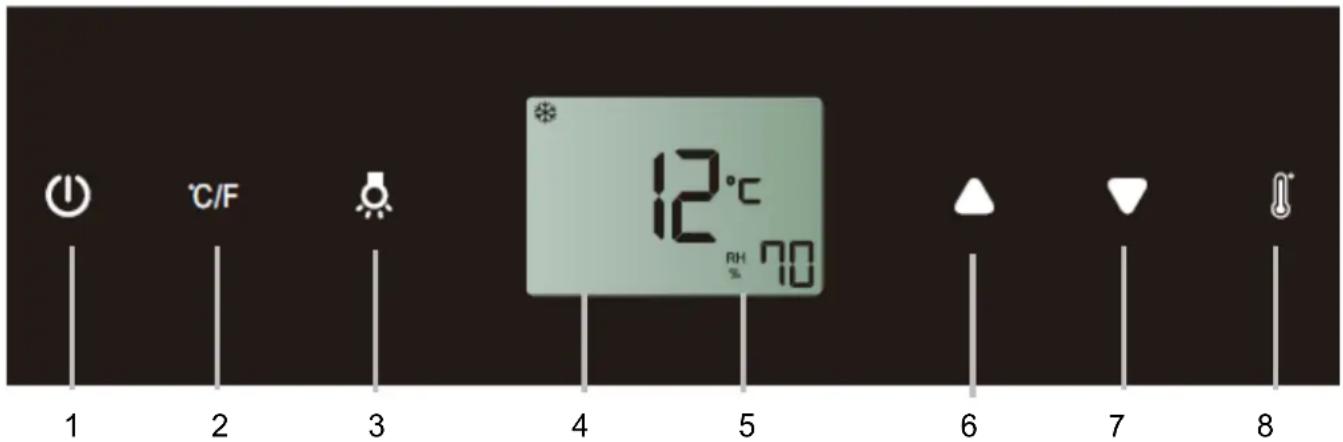

1 2 3 4 5 6 7 8 °C/F 12°C RH 7.0

1. ON/OFF button
2. °C/°F selector
3. Light button

4. LCD screen

5. Temperature & Humidity display

6. and 7. Temperature setting
7. Setting selector

POWER

To turn the appliance off, press and hold the key 1 for 5 seconds until temperature display goes out. To turn the appliance on, press and hold the key 1 for 5 second until temperature display lights up.

NOTE: Pressing the key once can switch off the audible alarm when the alarm is on.

UP

To increase (warm) the set temperature by 1^ C or 1^ F.

DOWN

To decrease (cool) the set temperature by 1^ C or 1^ F.

LIGHT

Used to turn the inner light on/off.

° F/° C SELECTOR

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit.

Setting the Temperature Control

The unit has a single adjustable temperature zone. The temperature can be set between 5°C and 20°C (41°F and 68°F). It can be used as a wine maturing cabinet or a wine serving cabinet. The recommended temperature setting range for maturing wine is between 11°C and 14°C (52°F and 57°F). The recommended temperature setting range for serving white wine is between 5°C and 10°C (41°F and 50°F) and the recommended temperature setting range for serving red wine is between 15°C and 20°C (58°F and 68°F).

When the unit is plugged in for the first time, the unit will power up automatically to the preset defaults. The temperature preset at the factory is 12^ C ( 54^ F) (ideal maturing temperature).

Press the ⚫ until the temperature you want to set is flashing. Then you can use the ▲ and ▼ keys to set the internal temperature as required. When you press either key at the first time, the display will show the last temperature set previously.

The temperature will increase 1^ C/ 1^ F if you press the ▲key once, or the temperature will decrease 1^ C/ 1^ F if you press the ▼key once. The display flashes while you make the setting.

The set temperature will temporarily flash in the display for 5 seconds after the temperature has been set. Then the display shows the current inner temperature again.

To view the set temperature at any time, press the ⚪key, the set temperature will temporarily flash in the display for 5 seconds. Then the display shows the current inner temperature again.

Setting the Humidity Control

Humidity level can be kept automatically for models with humidity pump.

Press the ⚡ until the humidity display % is flashing. Now you can use the ▲ and ▼ key to choose the relative humidity setting from 50% to 80% and 00%. The set humidity will temporarily flash in the display for 5 seconds. Then the display shows the current inner humidity again. The humidity preset at the factory is 70% (ideal wine storage humidity).

When 00% is selected, the humidity pump will be switched off. The humidity pump increases the energy consumption of the unit. If the function is not necessary, please switch it off. The rated energy consumption is based on the function is switched off.

TEMPERATURE MEMORY FUNCTION

In the event of a power interruption (power surge, breaker switch, etc.), the unit remembers the previous temperature settings. When the power is recovered, the cabinet temperature will go back the same setting temperature as before the power interruption.

TEMPERATURE ALARM

An audible alarm will sound if the temperature in one of the zones rises or falls outside the temperature range. The relevant temperature display will flash at the same time. The temperature the appliance is set at determines the temperature the appliance recognizes as being too warm or too cool. The audible alarm will sound and the display will ⚠️ & 🔒 flash:

- When you switch the appliance on, if the temperature inside the appliance is very different from the temperature set.

- When there has been a lengthy interruption to the power supply.

- When too many items have been put into the unit at one time. Or too much ambient air flowed in when rearranging and removing storage items.

- When the door is not been closed tightly.

- The appliance is faulty.

The audible alarm will be automatically silenced and the temperature display stops flashing when the set temperature is reached again. However, if the noise disturbs you, you can switch the audible alarm off before this if you wish by pressing the POWER key once. The alarm will stop. The relevant temperature

display continues to flash until the set temperature has been reached. The display then lights up constantly, and the alarm system is fully active again.

HUMIDITY ALARM

An audible alarm will sound if the humidity inside the unit rises or falls outside the humidity range. The relevant humidity display will flash at the same time and the symbol ⚠️ will light up. The flash of % LL and ⚠️ indicates too low humidity level and the flash of % HH and ⚠️ indicates too high humidity level.

The audible alarm will be automatically silenced, the humidity display stops flashing and the symbols ⚠️ & 🔊 will go out when the set humidity range is reached again.

However, if the noise disturbs you, you can switch the audible alarm off before this if you wish by pressing the POWER key once. The alarm will stop. The relevant humidity display continues to flash and the symbols ⚠️ & 🔒 will continue to be lit up until the set humidity has been reached. The display then lights up constantly, the symbols ⚠️ & 🔒 will go out, and the alarm system is fully active again.

DOOR ALARM

If the door has been left open for more than 60 seconds, the audible alarm will sound. Closing the door or pressing the POWER key once can switch off the audible alarm.

Note

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
• When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

CARE OF YOUR CABINET

DEFROSTING

Defrosting of your wine cabinet is fully automatic. It requires no action on your part.

During operation, you may notice condensation drops forming on the rear inside wall of the cabinet. They will be eliminated during automatic defrosting.

CLEANING

Before any cleaning, unplug the device from the mains.

Never use abrasives or a scraper sponge when cleaning the inside or the outside of your wine cabinet.

• Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been added a gentle unscented detergent (dishwashing liquid for example); rinse with bleach water and carefully dry off.
• Wash the inside walls in the same way; pay particular attention to the rack supports
• Wash the door seal as well as under the seal.
• Plug the wine cabinet into the mains.

From time to time, dust off the condenser behind the device; accumulated dust may reduce the efficiency of your wine cabinet.

In the event of a prolonged absence, empty and clean out the device; maintain the door slightly open during the period of non-use.

REPLACING THE ILLUMINATING LAMP

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. The life cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite of the care taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any repair.

TROUBLESHOOTING

You can resolve many of the problems that may arise without having to call Customer Care Service. Please try the suggestions below.

PROBLEM	POSSIBLE CAUSE
No operation	Check your installation's power supplyCheck your circuit breakerA fuse has blown
Not cold enough	Check the setting temperatureAmbient temperature requires readjustment of the temperaturesThe door is open too oftenThe door is not closed properlyThe door seal is not air-tightThere is not enough space around the device
No interior lightNo display on the LCD screen	Contact your Customer Care Service
There appears to be a loud noise	Check the device levellingVerify that a piece of paper or part of the packaging has not remained stuck in the device.
The door does not close properly	Check the device levellingThe seal is in poor repairThe feet have "moved"
The light (LED) does not come on	The control panel is not workingPrinted circuit problemMains plug problemContact your Customer Care Service
LED display error	Poor displayThe temperature value is not shownContact your Customer Care Service
The fans are not working	Control Panel to be replaced by your Customer Care Service

GUARANTEE

Repairs and spare parts available

The manufacturer's warranty is applicable for this device for a period of 2 years.

In the event of a malfunction during this period, any request for support must be made to the after-sales service of your dealer.

Outside the warranty period, any information regarding professional repair services or ordering original spare parts may be obtained by contacting your dealer.

In accordance with the Ecodesign Regulation, spare parts will be available for at least 7 years from the date of purchase of your device.

CHANGING DOOR OPENING SIDE

This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.

For your safety, please unplug appliance before doing this operation.

1. Remove the right bottom hinge (1) by unscrewing the four lock screws (2). Be careful to hold the door (3) firmly after removing the screws. (Fig. 1)
2. Gently pull down to remove the door from the right top hinge and place it on a padded surface to avoid the risk of damage. Then remove the right top hinge (11). (Fig. 4)
3. Pop out the cover caps on the left side of cabinet and use them to cover the screw holes on the right hand side.
4. Screw the alternative left top hinge (10), included in the fittings, on the left hand side of cabinet. (Fig. 4)
5. Unscrew and transfer the hinge pin (5) to the left bottom hinge included in the fittings. (Fig. 2)
6. Unscrew and transfer the door adapter (8) and/or lock catch (7) to the top designated positions of the door. (Fig. 3)
7. Rotate the door 180^ and relocate the glass door to the designated position. Then screw the left bottom hinge on the designated position and tighten them. (Fig. 5)
8. Recheck and adjust the door alignment by loosening the screws (9) and moving the door adapter (8). Tighten the screws (9) after the door is levelled. (Fig. 5)

Le Chai

GEBRUIKSHANDLEIDING

INBOUWBARE WIJNKAST

LMV1500 - 147 flessen

LMV1900 – 182 flessen

LMV2870 - 287 flessen

INHOUD

Model	Website	QR-code
LMV1500	https //eprel.ec.europa/qr/349116
LMV1900	https //eprel.ec.europa/qr/346471
LMV2870	https //eprel.ec.europa/qr/349117

Diagram of a server rack with numbered components for identification

Pure architectural floor plan lines without any text, numbers, or symbols

Diagram of a circular structure with a grid pattern and bidirectional arrows, no text or symbols present.

Line drawing of a wine bottle arrangement in a row (no text or symbols)

Line drawing of six identical empty wine bottles arranged in a row (no text or symbols)
