Product type	Dual zone wine cooler
Brand	Le Chai
Model	LBN445
Capacity	44 bottles (0.75 L standard)
Dimensions (W × D × H)	595 × 572 × 820 mm
Weight	49 kg
Power supply	220-240 V ~ 50 Hz
Climate class	N/ST (16°C to 38°C)
Installation type	Built-in
Defrost	Automatic (No Frost)
Upper zone temperature range	5 °C to 10 °C
Lower zone temperature range	10 °C to 18 °C
Interior lighting	LED (class G, automatic shut-off after 10 min)
Anti-UV filter	Yes, on glass door
Anti-vibration system	Dampers and polyurethane insulation
Humidification tray	Yes, to be placed under the fan
Refrigerant	R600a (isobutane)
Number of shelves	5 shelves (with stop catches)
Compliance	CE, directives 2014/35/EU and 2014/30/EU
Warranty	2 years
Availability of spare parts	At least 7 years after purchase
Main functions	Electronic temperature control, digital display, LED lighting, humidification, anti-UV, anti-vibration, reversible door
Care and cleaning	Clean with warm soapy water, no abrasive products, dust the condenser
Safety	Child lock, unplug before cleaning, do not damage the refrigerant circuit

Frequently Asked Questions - LBN445 LE CHAI

What is the capacity of the LBN445 wine cellar?

The LBN445 wine cellar can hold up to 44 standard 0.75 L bottles (Bordeaux type).

How to set the temperature of the two zones?

Use the 'Upper zone' and 'Lower zone' buttons on the control panel to adjust the temperature degree by degree. The upper zone offers a range of 5°C to 10°C, the lower zone from 10°C to 18°C.

Can I change the door opening direction?

Yes, it is possible to change the opening direction. Follow the detailed instructions in the manual by moving the hinges. The operation must be carried out with the appliance unplugged.

How to maintain and clean the wine cellar?

Before any cleaning, unplug the appliance. Use warm water with a little dish soap for the interior and shelves. Never use abrasive products or scouring pads. Regularly dust the condenser at the back.

What to do if the LED light does not turn on?

The LED lamp is not user-replaceable. If it does not light up, contact customer service for assistance. Also check that the light button is activated.

The wine cellar makes noise, is this normal?

A slight operating noise is normal. If the noise is significant, check that the appliance is level, that there is no packaging trapped, and that the space around is sufficient for ventilation.

What is the ideal temperature for storing wine?

Experts recommend a storage temperature around 12°C (between 10°C and 14°C). Avoid sudden temperature changes. Serving temperature varies by wine type.

Can I store food in this wine cellar?

No, this cellar is intended solely for wine storage. Do not store perishable items or food. The appliance is not designed for fresh food preservation.

How does the humidification tray work?

The humidification tray should be filled to 3/4 of its capacity with water and placed on the shelf under the fan. Check the water level regularly, especially if storing wine for a long period.

Is the appliance shipped with a warranty?

Yes, the wine cellar comes with a manufacturer's warranty of 2 years from the date of purchase. Spare parts are available for at least 7 years after purchase, in accordance with regulations.

USER MANUAL LBN445 LE CHAI

Diagram of a multi-tiered storage unit with numbered labels pointing to each component.

Black metal bracket with four circular holes on a yellow background (no text or symbols)

Close-up of a metallic pipe joint or pipe fitting (no visible text or symbols)

Line drawing of a cabinet or rack with a handle and control panel, no text or symbols present

CHARGEMENT

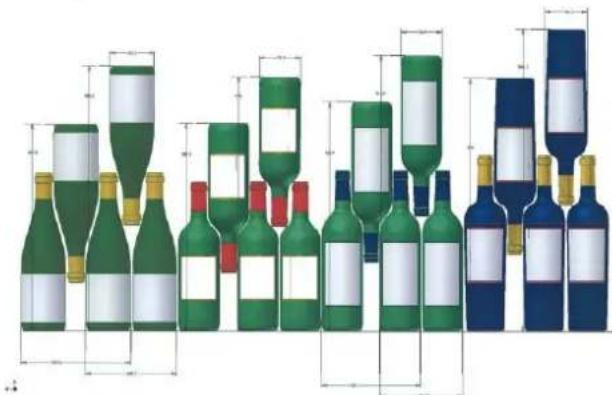

Illustration of multiple wine bottles with green and red labels, shown in 3D perspective without any text or symbols.

Fig.A ⑩ ⑪ ① ② ③ ④

Diagram of a multi-tiered wine rack with numbered labels pointing to each component.

Black metal bracket with four circular holes on a yellow background (no text or symbols)

Close-up of a metallic mechanical component with a curved surface and small protrusions (no visible text or symbols)

Conexión a la red

Line drawing of a cabinet or rack with a scroll and directional arrow (no text or symbols)

CARGA

Illustration of multiple wine bottles with green and blue labels, shown in 3D perspective without any text or symbols.

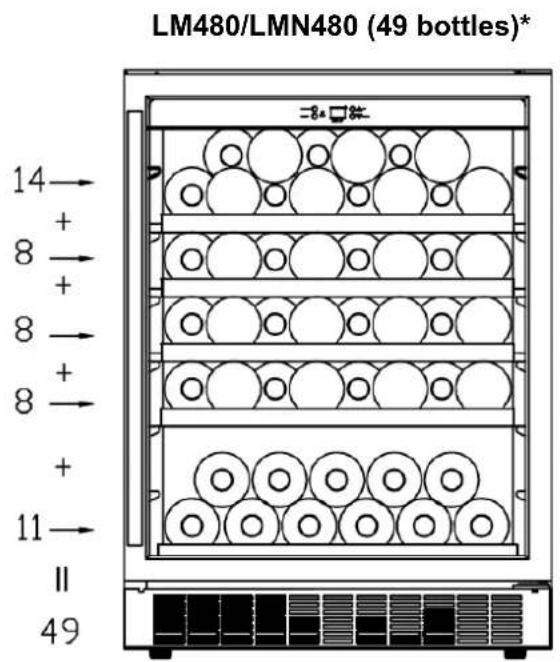

LM480/LMN480 (49 botellas)*

14→ 8 + + 8 → 8 + + + 11→ II 49 284口样

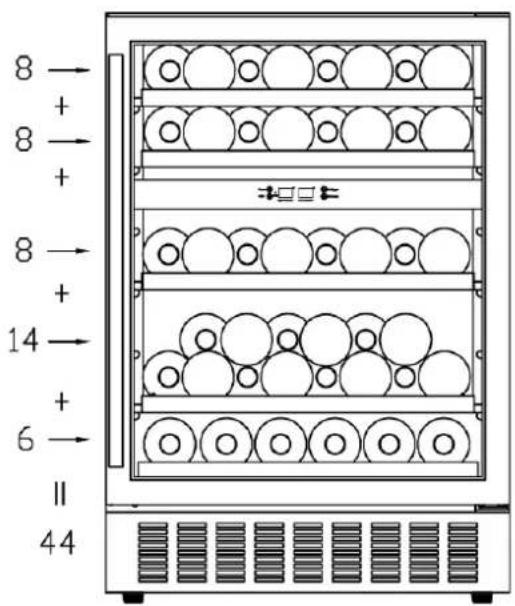

LB445 / LBN445 (44 botellas)*

8 → + 8 → + 8 → + 14 → + 6 → II 44

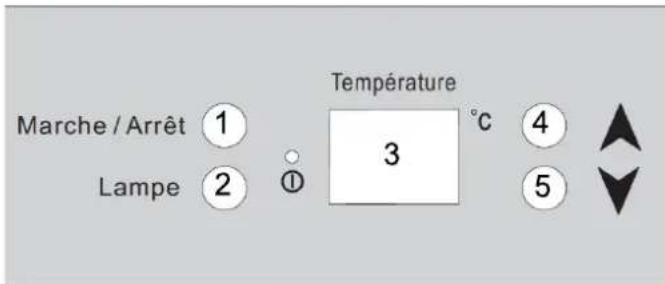

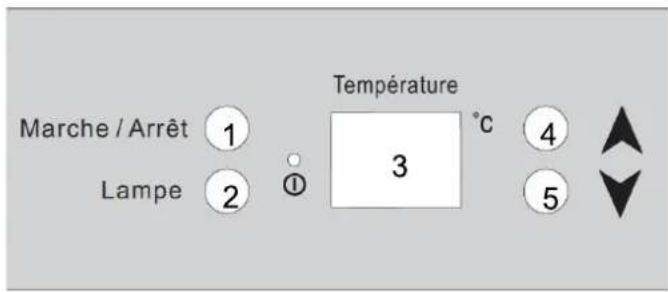

Panel de control LM480/LMN480

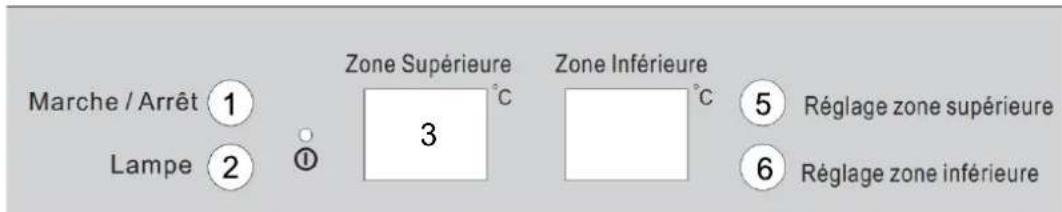

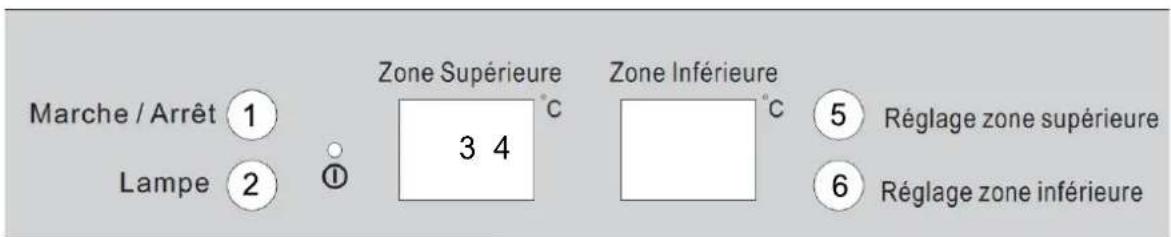

Panel de control LB445 / LBN445

PROBLEMAS Y SOLUCIONES

Fig.A ⑩ ⑪ ① ② ③ ④

Modell	website	QR-code
LM480 https //eprel.ec.europa/qr/404018
LMN480	https //eprel.ec.europa/qr/404019
LB445	https //eprel.ec.europa/qr/347725
LBN445	https //eprel.ec.europa/qr/347730

Diagram of a multi-tiered wine rack with numbered labels pointing to each component.

Black metal bracket with four circular holes on a yellow background (no text or symbols)

Close-up of a black metal bracket with a small protrusion, mounted on a wooden surface (no visible text or symbols)

Netzanschluss

Line drawing of a door with a scroll inside, showing a handle and control panel (no text or symbols)

BEFÜLLEN

Illustration of multiple wine bottles with green and blue colors, no text or symbols present

Fig.A ⑩ ⑪ ① ② ③ ④

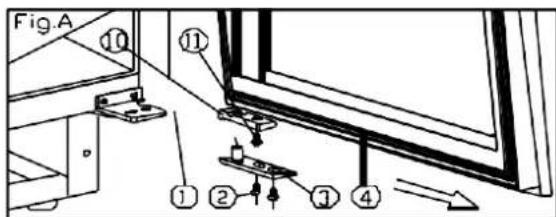

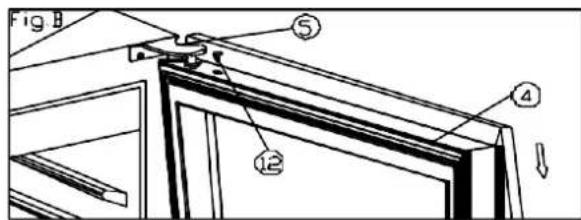

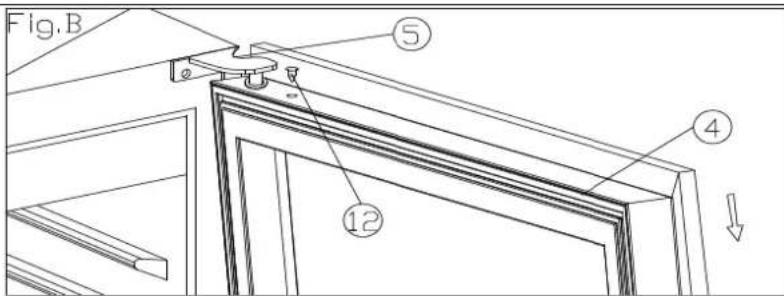

Fig.B ⑤ ④ ⑫

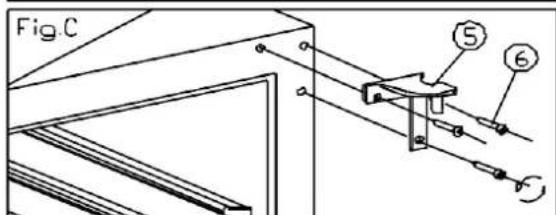

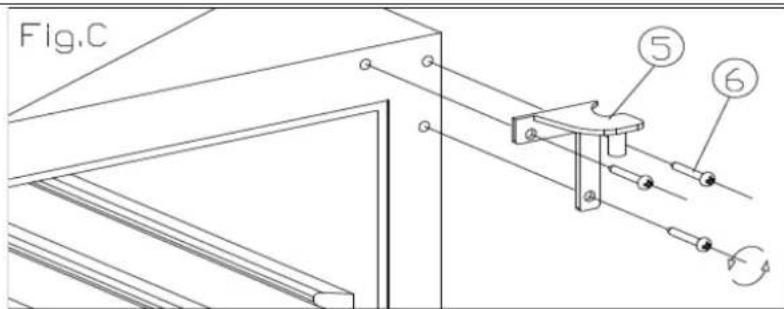

Fig.C ⑤ ⑥

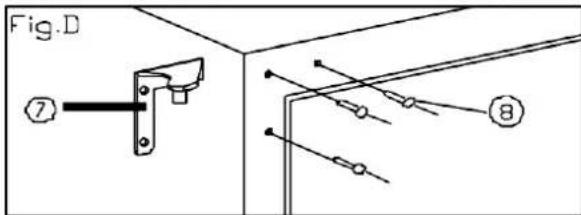

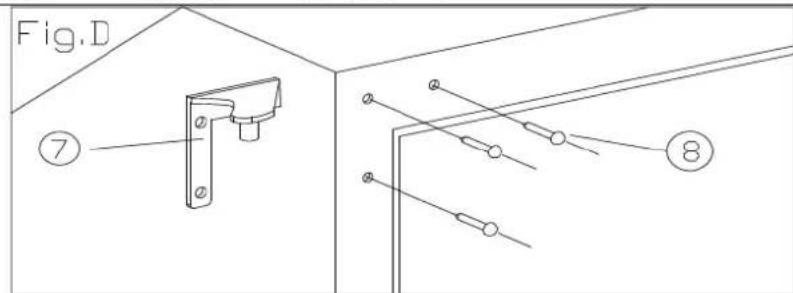

Fig.D ⑦ ⑧

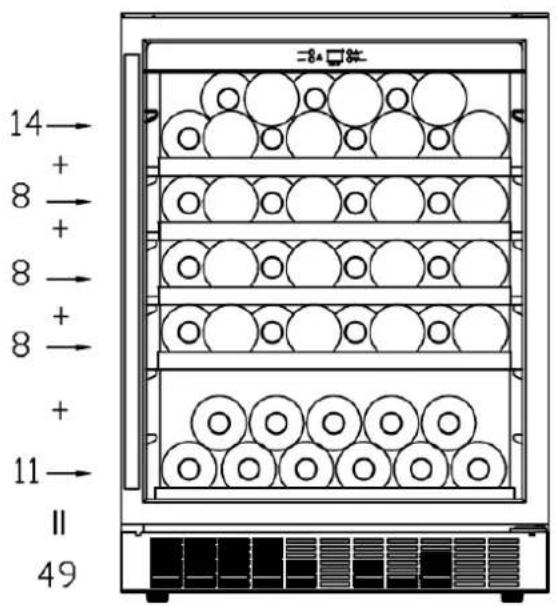

LM480/LNN480 - 49 bottles

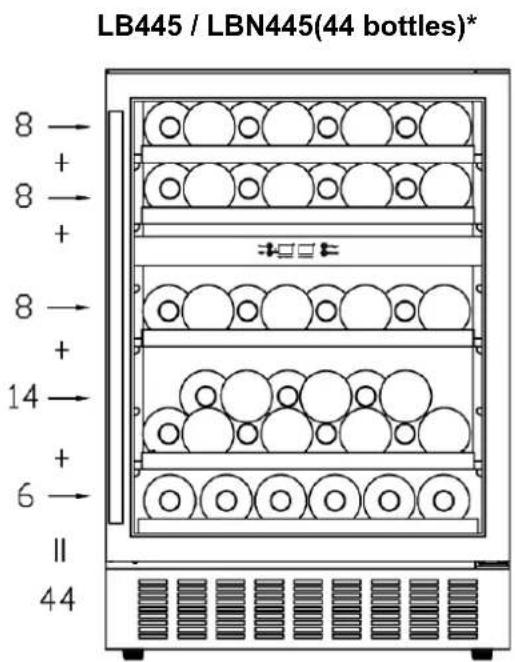

LB445 / LBN 445 - 44 bottles

TABLE OF CONTENTS

Introducing the wine cabinet	Page 57
Important warnings and tips	Page 59
Setting up the cabinet	Page 63
Specific information	Page 64
Usage	Page 66
Care of your cabinet	Page 69
Troubleshooting	Page 69
Changing door opening side	Page 70
Guarantee	Page 71

TECHNICAL AND ENERGY CHARACTERISTICS

Brand: LE CHAI	Model MonozoneLM480/LMN480(49 bottles)	Model MonozoneLB445 / LBN445(44 bottles)
Foodstuffs	220-240V~ 50Hz
Size (L*W*H) (mm)	595x572x820
Weight	49 kg	49kg
Defrosting	No-Frost
Climate class	N/ST : This device is designed for use at ambient temperatures between 16°C and 38°C
Installation type	Built under

The cabinet is exclusively designed for storing wine.

The product information fiche according to regulation 2019/2016 / EU is available via

Model	Website	QR-code
LM480 https://eprel.ec.europa.eu/qr/404018
LMN480 https://eprel.ec.europa.eu/qr/404019
LB445 https://eprel.ec.europa.eu/qr/347725
LBN445 https://eprel.ec.europa.eu/qr/347730

This device complies with European Directive requirements:

2014/35/UE pertaining to electrical safety

2014/30/UE pertaining to electromagnetic compatibility

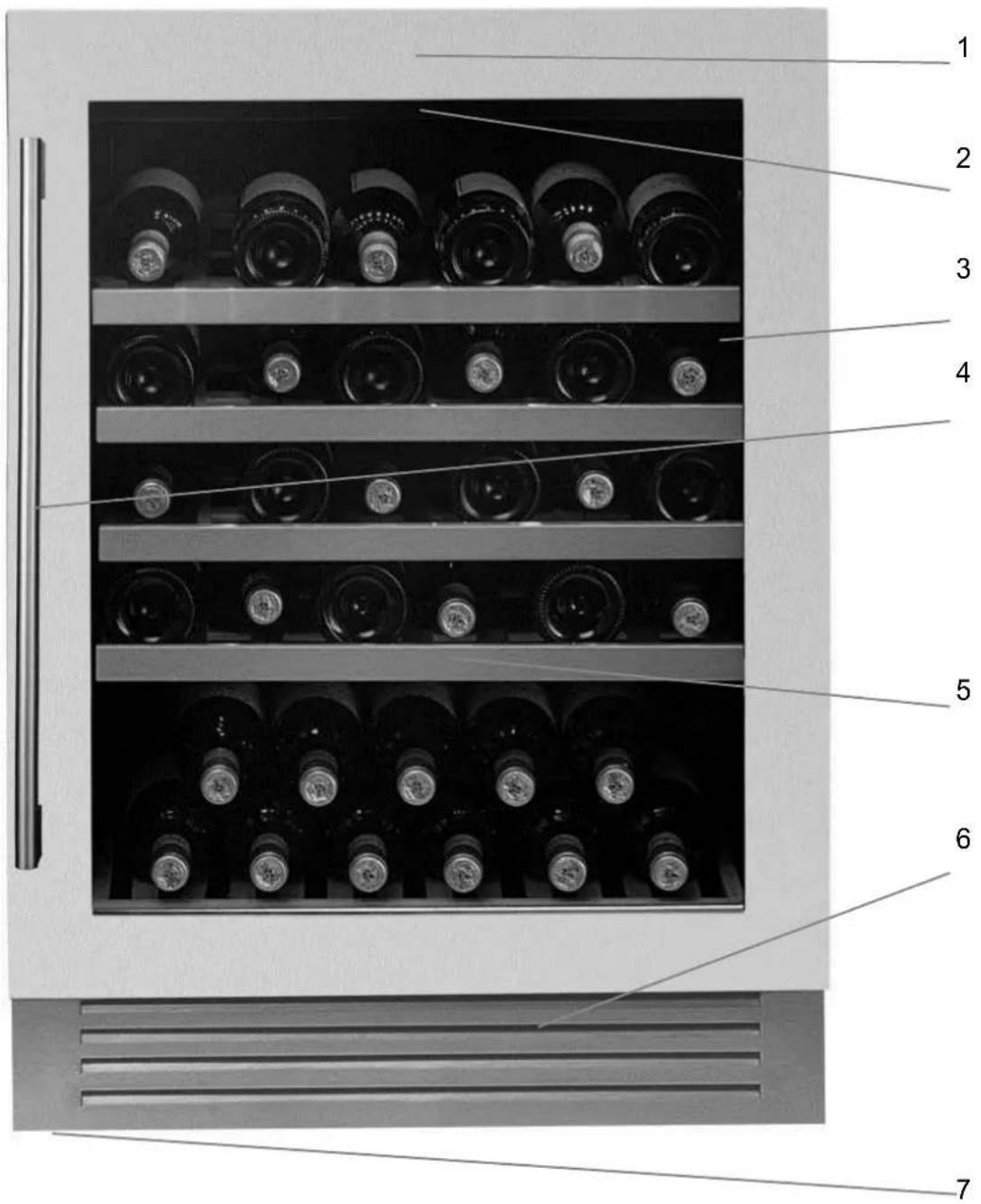

INTRODUCING THE WINE CABINET LM480/LMN480

Diagram of a multi-tiered wine rack with numbered labels pointing to each component.

1 – Control Panel
2 - Light (LED)
3 - Glass door
4 - Handle

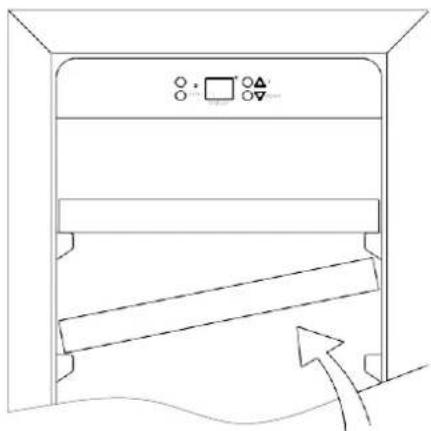

5 – Shelves
6 – Ventilation
7 - Adjustable feet

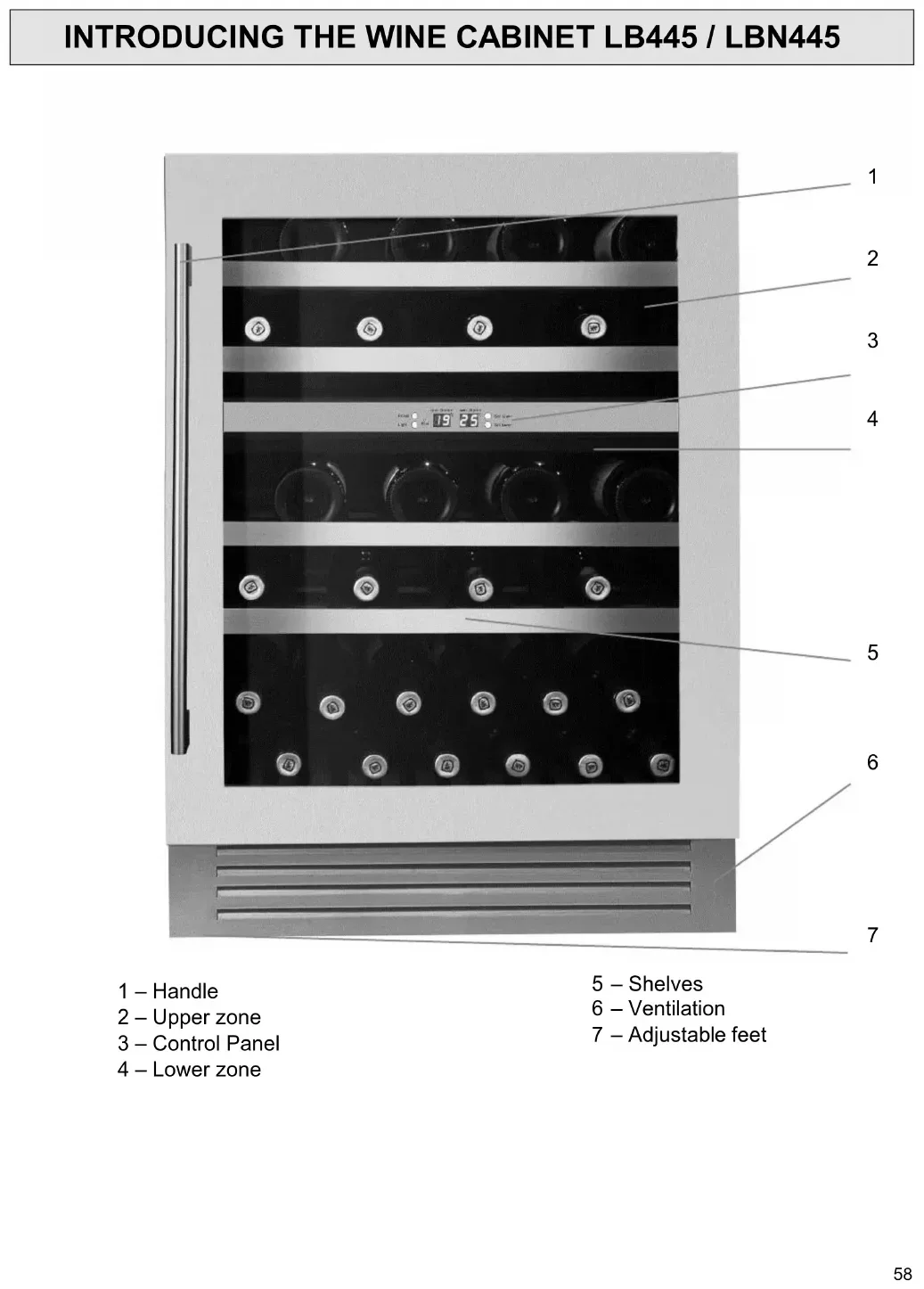

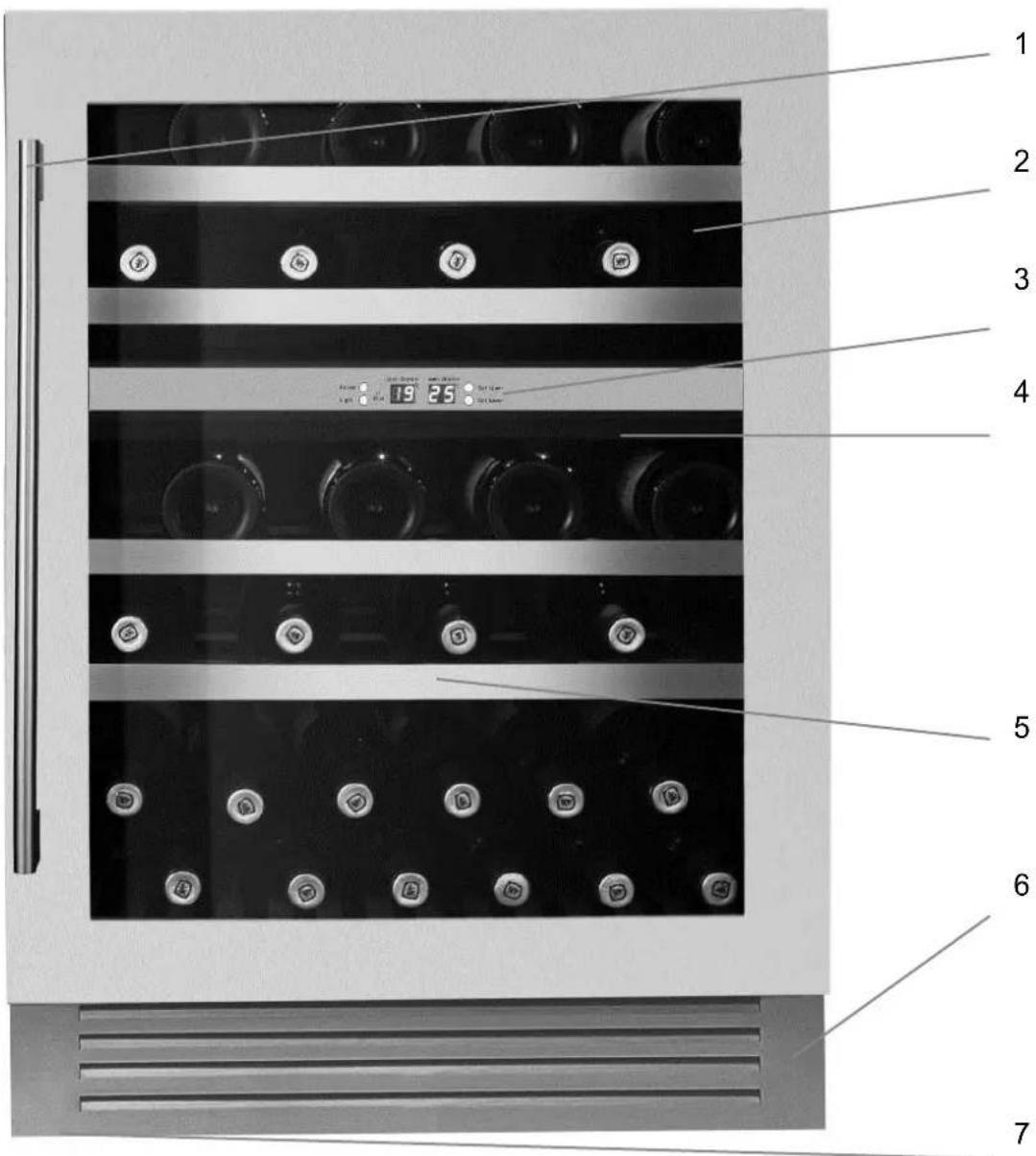

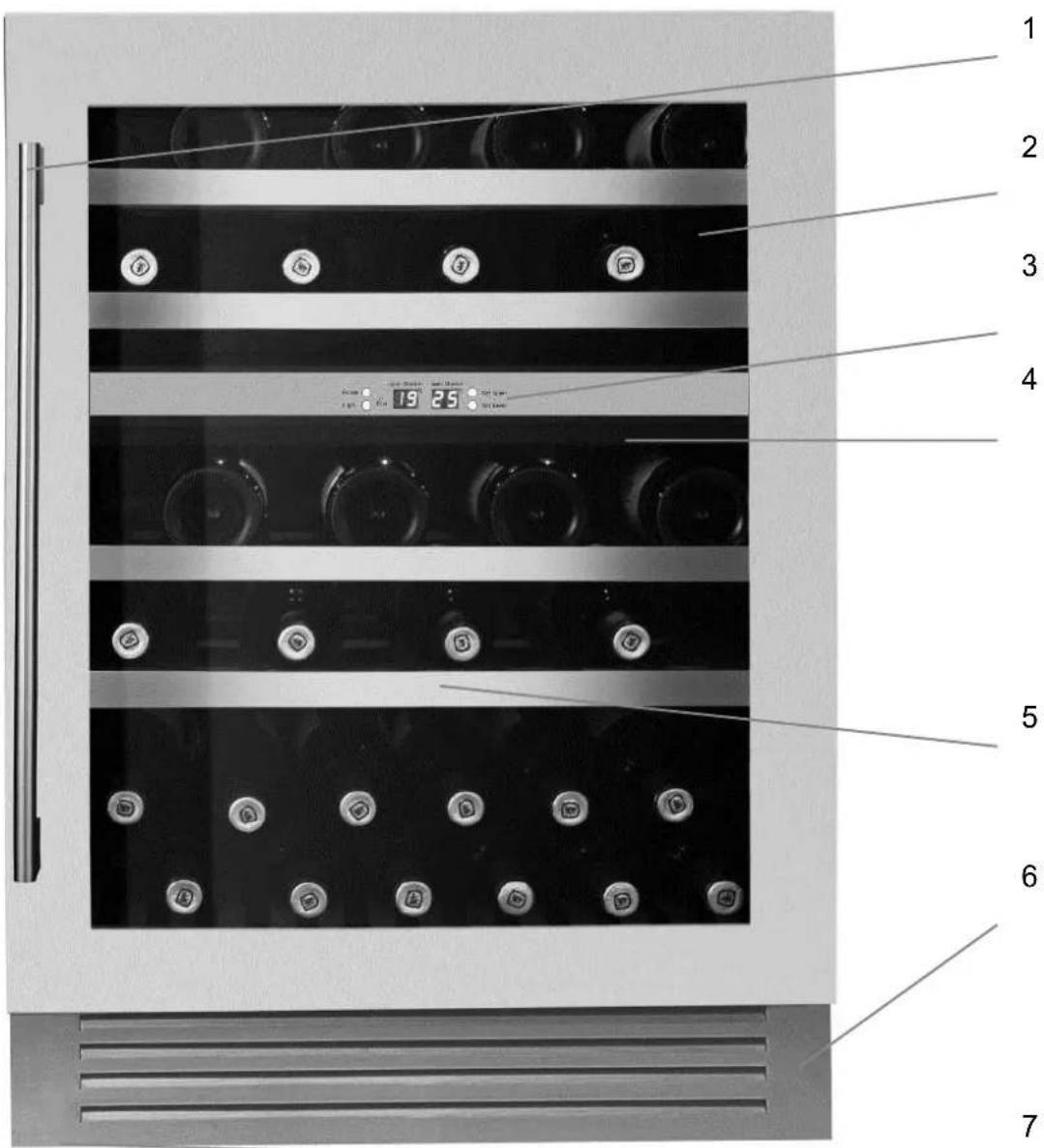

INTRODUCING THE WINE CABINET LB445 / LBN445

1 2 3 4 5 6 7

1 - Handle
2 - Upper zone
3 - Control Panel
4 - Lower zone

5 – Shelves
6 – Ventilation
7 - Adjustable feet

IMPORTANT WARNINGS AND TIPS

Please conserve this user manual with your cabinet – you may need to consult it. If the cabinet is transferred to another person, please ensure that the user manual accompanies it, so that the new user may know how the cabinet operates. These warnings are both for your safety and that of other people. Therefore we advise that you read them carefully before setting up and operating your refrigerator.

This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverages at a storage temperature higher than that of a fresh foodstuffs storage compartment.

It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it is designed.

If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual.

This appliance is intended for the storage of particular food or drink at a storage temperature higher than that of a fresh food storage compartment. In any case, it is not intended to keep food fresh. Do not use it for commercial or industrial purposes or for any purpose other than that for which it was designed.

Safety

- This device may be used by children aged 8 years and older and by people with reduced physical, sensory or mental capacity, on condition they have received supervision or instruction concerning use of the device in all safety, and that they understand the risks.

• Children should not be allowed to play with the device.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the illuminating lamp; before moving the device or before cleaning the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.
• WARNING: Do not damage the refrigeration circuit.
• WARNING: Do not use electrical equipment inside the foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.
• WARNING: Do not use mechanical tools or other means to speed up defrosting, unless they are recommended by the manufacturer.
• WARNING: Keep the cabinet's ventilation openings clear in the enclosure or the built-in space around the cabinet.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• This device is provided with a ground connection for functional purposes only.
• Do not connect the device to a power supply without overload protection (protected by an electrical fuse).
• Never use power-strips or extension cords to connect the device to the mains.
• This device is not destined for use with an outside timer or remote control system or any device that switches it on automatically.
• Do not use the device to store explosive substances such as aerosols that contain flammable propulsion gas.

• After installing the cabinet, ensure that it is not resting on the power cord.
- If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards.
- The device is heavy; be careful when moving it.
- If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it.
- In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains.
- Ensure that you put your cabinet in a place that can support its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg).
- Your cabinet must be placed on a level surface. If you have placed it on a rug or on carpeting, insert a support beneath it.
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
- This refrigeration appliance is not suitable for freezing foodstuffs.

Servicing – repairs

• It is dangerous to modify or attempt to modify the characteristics of the device.
• If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.

Refrigerant

Warning; Risk of fire / flammable materials.

The refrigerant gas contained in this device is isobutane (R600a), it is low-polluting but is flammable.

• When transporting and installing the device, take care not to damage any part of the refrigerating circuit.
• Do not use a pointed or sharp edged tool to defrost the device.
• Do not use any electrical devices inside the cabinet.

If the refrigerating circuit is damaged:

• Do not allow any open flame near the device.
• Avoid sparks – do not switch on any electrical appliances or lamps nearby.
• Immediately ventilate the room.

Disposal

This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way.

For more information please contact your local or regional government.

Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances.

This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.

SETTING UP THE CABINET

If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. This will prevent children from locking themselves inside it and endangering their lives.

Location

Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operation of the device, the ambient room temperature should be between +16°C and +38°C (class N/ST). Outside these limits, the device will not operate properly.

- Ensure that air can circulate freely behind the device: do not place it too close to a wall, in order to avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption.

Leave at least 2 cm between the walls and the wine cabinet and 3 cm minimum between the rear of the wine cabinet and the wall. Leave at least 10 cm free space above the device.

- The device must be installed in such a way that the electric plug is accessible. After installing the cabinet, make sure that it is not resting on the power cord.

– Level the device by using the 2 adjustable feet.

Built-in

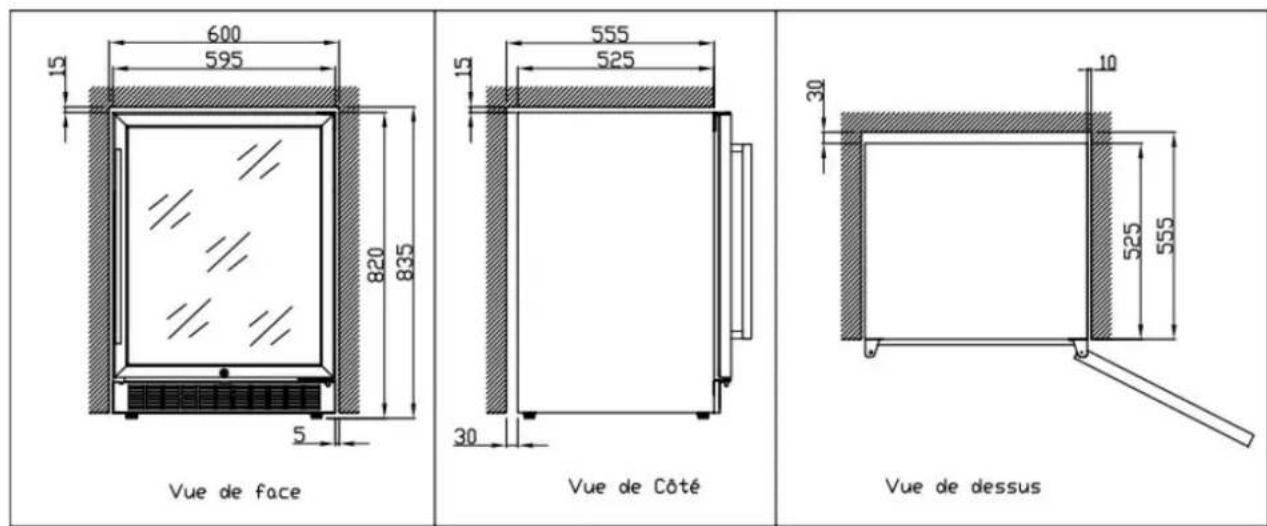

Below the built-in dimensions to use before installing in the best condition this appliance

In order to guarantee the stability of the model, install and screw the fastening bracket correctly onto the kitchen furniture:

Black metal bracket with four circular holes on a yellow background (no text or symbols)

Close-up of a metallic mechanical component with a small protrusion (no visible text or symbols)

Connecting the power supply

Your cabinet is designed for operation with 230 V single-phase.

It must be connected to a wall socket equipped with earthing and protected by a 10 A fuse in compliance with the standard NF C15-100 and in compliance with your electricity supplier's prescriptions.

SPECIFIC INFORMATION

• We recommend that you install your wine cabinet in a temperate room.
• If the inside light remains on, please note that the inside temperature will be higher.
• Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained.
• In order to keep your wines at a stable temperature, avoid leaving the door open for long periods.
• Do not install your wine cabinet close to a heat source; avoid direct sunlight.
• In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations.
• Do not store perishable foodstuffs inside your wine cabinet.
• The wine cabinet is not designed for use in a garage, outside, or in the open air.

- The following (approximate) temperatures are recommended for wine drinking:

○ Great Bordeaux wines – Red	16 – 17°C
○ Great Burgundy wines – Red	15 – 16°C
○ Great vintages dry white wines	14 – 16°C
○Red wines, fruity wines, young wines	11 – 12°C
○ Rosé wines from Provence, early-to-market wines	10 – 12°C
○ Dry white wines and local red wines	10 – 12°C
○ Local white wines	8 – 10°C
○ Champagnes	7 – 8°C
○Liqueur wines 6°C

- Temperature stability is of the greatest importance when storing wine.

- Exposure to light, vibrations, temperature variations or humidity can spoil the wine.

The cooling system

According to specialists, the ideal temperature for wine storage is around 12 ^ , in the range of 10 ^ to 14 ^ . Do not confuse with the operating temperature, which varies depending on the specificity of each type of wine from 5 to 18 ^ .

It is especially important to avoid sudden temperature changes. Designed by specialists, for wine lovers, this device, unlike the single refrigerator, electronically ensures constant average temperature control.

The anti-vibration system:

The compressor is equipped with special shock (silent-blocks) and the inner tank is isolated from the body by a thick layer of polyurethane foam. These features can prevent the transmission of vibrations to the wines.

The humidification system:

This device is equipped with a tray (depending on model) which maintains the correct level of humidity. If the humidity is too low, fill the tank level to 34 of its capacity. Check the water level time to time and add water if necessary. Make sure the tank always contains water.

The tray is placed on the shelf under the fan at the bottom to provide a minimum humidity.

Be careful to control the water level if you store your wines for a long time and you do not dedicate the unit to their implementation at operating temperature only (with rapid rotations of your bottles).

The UV system:

The light accelerates aging of your wines. In full doors cellars, the wines are naturally immune subject of course limited openings). This model glass door was subject of a particular treatment, which filters harmful ultraviolet rays; the wines are perfectly safe.

Defrost:

This product does not produce frost (No-Frost). There is no frost or ice; so, no operation is required to remove it.

Shelves

To prevent damage to the door seal, make sure the door is open before pulling the shelves to install or remove the bottles.

For easier access to the contents of shelves you need to slide the shelf outward about 1/3 however they are designed with a stop on each side to prevent the bottles from falling.

To remove or position the shelves, tilt the shelf as shown in the diagram and pull or push as required.

Line drawing of a cabinet or rack with directional arrows indicating movement (no text or symbols)

LOADING

The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device.

The information comes from tests carried out using standard bottles; in reality, in extreme conditions it would be possible to load a greater number of bottles without racks, but a "diverse wine cellar" is used in many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. Therefore you will probably load fewer bottles then the given maximum numbers.

How to load and care for your wine cabinet:

Illustration of multiple wine bottles with green and blue labels, shown in 3D perspective without any text or symbols.

Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes.

There are many other types, with various volumes and of all shapes.

Note the different ways they are stored depending on the height and diameter of the bottles as well as the interleaving method used.

Loading for Max capacities

LM480/LMN480 (49 bottles)* 14→ + 8→ + 8→ + 8→ + 11→ II 49

LB445 / LBN445(44 bottles)* 8 → + 8 → + 8 → + 14 → + 6 → II 44

The maximum number of stored bottles is based on standard Bordeaux bottles containing 0.75 L.

Note: in the case of using the 'water tank', the maximum number of bottles decreases to 44 for the LM480 and 43 for the LB445.

For better conservation and avoid food waste

To avoid spoiling the wine, it is important that the temperature remains stable in the cavity, avoid frequently opening the door and blocking the interior vents.

To avoid the appearance of mold, please avoid having too much humidity in the cavity.

USAGE

Starting up the device

Once the wine cabinet is properly installed, we advise that you clean the inside using warm water with a low concentration of dishwashing liquid. Do not use abrasives or scouring powder; they may scratch the surface finish.

USAGE

CAUTION! Wine cabinets are intended only for storing and preserving wine.

IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L capacity. It can contain larger bottles; however care must be taken that they do not prevent the door from closing properly.

• When closing the door ensure that it does not touch any of the bottles.
• If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature.
• In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails.

Adjusting the temperature

Control panel of the LM480/LMN480

1 - ON/OFF button
2 - Light button
3 – Digital display of the temperature
4 - Setting button to increase temperature
5 – Setting button to decrease temperature

Starting the appliance

Press the start/stop button for about 3 seconds Ⓓ

Do the same to turn it off.

Temperature control

The internal temperature is regulated by the electronic thermostat controlled by the buttons inside the appliance.

You can adjust the temperature degree by degree. The temperature is set using the arrows ▲ or ▼ or on the right of the temperature indicator.

After the temperature is selected, the display will flash for 5 seconds and display the set-point temperature. If you want to know the actual temperature in the cellar, you must press the arrows ▲ and ▼ at the same time for 3 seconds; after 5 seconds, the set-point temperature will be displayed again.

NOTE: Because of its construction, there is usually a difference in temperature ( 4^ - 6^ ) between the top and the bottom of the wine cellar. We advise you to place the bottles requiring a lower temperature (white wine, rosé or champagne) at the bottom.

The temperature range of this wine cellar is between 5°C and 18°C.

To avoid too much condensation when the ambient temperature is higher than 28^ C, do not lower the temperature below 7^ C.

Control of the light

To turn on or off the internal light, press the button.

The (LED) light is suitable for the conservation of wine.

In order to reduce energy consumption, the LED light goes off automatically after 10 minutes. However, we recommend turning off the light under normal use or after each use. However, if you wish to leave the light on, the procedure is as follows; press button 2 for at least 5 seconds; the display will then show "LP". After a few seconds, the display comes back to the temperature indication and the light stays on continually. To return to the light turning off automatically after 10 minutes, press button 2 for at least 5 seconds; the display will then show "LF". After a few seconds, the display comes back to the temperature indication and the light goes off automatically.

Control panel of the LB445 / LBN445

3 - Digital display of the temperature in the upper zone
4 - Digital display of the temperature in the lower zone
5 - Setting button for the upper zone
6 - Setting button for the lower zone

Starting the appliance

Press the start/stop button for about 3 seconds

Do the same to turn it off.

Temperature control

The internal temperature is regulated by the electronic thermostat controlled by the buttons inside the appliance.

Each time the “upper zone” or “lower zone” key is pressed, the selected zone is incremented by one degree. To obtain a temperature lower than the one indicated,

You can adjust the temperature degree by degree. The temperature is set using the arrows 5 or 6 on the right of the temperature indicator.

After the temperature is selected, the display will flash for 5 seconds and display the set-point temperature. If you want to know the actual temperature in the cellar, you must press the arrows 5 and 6 at the same time for 3 seconds; after 5 seconds, the set-point temperature will be displayed again.

NOTE: The range of temperature of this wine cellar is between 5°C and 10°C in the upper zone and between 10°C and 18°C in the lower zone.

To avoid too much condensation when the ambient temperature is higher than 28^ C, do not lower the temperature below 7^ C.

Control of the light

To turn on or off the internal light, press the button.

The (LED) light is suitable for the conservation of wine.

In order to reduce energy consumption, the LED light goes off automatically after 10 minutes. However, we recommend turning off the light under normal use or after each use. However, if you wish to leave the light on, the procedure is as follows; press button 2 for at least 5 seconds; the display will then show "LP". After a few seconds, the display comes back to the temperature indication and the light stays on continually. To return to the light turning off automatically after 10 minutes, press button 2 for at least 5 seconds; the display will then show "LF". After a few seconds, the display comes back to the temperature indication and the light goes off automatically.

Note

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
• When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

CARE OF YOUR CABINET

DEFROSTING

Defrosting of your wine cabinet is fully automatic. It requires no action on your part.

During operation, you may notice condensation drops forming on the rear inside wall of the cabinet. They will be eliminated during automatic defrosting.

CLEANING

Before any cleaning, unplug the device from the mains.

Never use abrasives or a scraper sponge when cleaning the inside or the outside of your wine cabinet.

• Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been added a gentle unscented detergent (dishwashing liquid for example); rinse with bleach water and carefully dry off.
• Wash the inside walls in the same way; pay particular attention to the rack supports
• Wash the door seal as well as under the seal.
• Plug the wine cabinet into the mains.

From time to time, dust off the condenser behind the device; accumulated dust may reduce the efficiency of your wine cabinet.

In the event of a prolonged absence, empty and clean out the device; maintain the door slightly open during the period of non-use.

REPLACING THE ILLUMINATING LAMP

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. The life cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite of the care taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any repair.

• This product contains a light source of energy efficiency class 'G'.
  • Light source in this product is replaceable only by qualified personnel.

TROUBLESHOOTING

You can resolve many of the problems that may arise without having to call Customer Care Service. Please try the suggestions below.

PROBLEM	POSSIBLE CAUSE
No operation	Check your installation's power supplyCheck your circuit breakerA fuse has blown
Not cold enough	Check the setting temperatureAmbient temperature requires readjustment of the temperaturesThe door is open too oftenThe door is not closed properlyThe door seal is not air-tightThere is not enough space around the device
No interior lightNo display on the LCD screen	Contact your Customer Care Service
There appears to be a loud noise	Check the device levellingVerify that a piece of paper or part of the packaging has not remained stuck in the device.
The door does not close properly	Check the device levellingThe seal is in poor repairThe feet have "moved"
The light (LED) does not come on	The control panel is not workingPrinted circuit problemMains plug problemContact your Customer Care Service
LED display error	Poor displayThe temperature value is not shownContact your Customer Care Service
The fans are not working	Control Panel to be replaced by your Customer Care Service

CHANGING DOOR OPENING SIDE

This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.

For your safety, please unplug appliance before doing this operation.

1. Lower hinge (Right)

2. Door

3. Top hinge (Left)

4. Door limit device

5. Screws

6. Top hinge (Right)

7. Decorative nail

8. Screw

3 .Door axis

1. Hinge Screws

2. Lower hinge (Left)

3. Plug

Fig.A ⑩ ⑪ ① ② ① ④

Fig.C ⑤ ⑥

Fig E ⑨

Fig 8 ⑤ ④ ⑫

Fig.D ⑦ ⑧

1. When open the door 90 degree, take out 2 screws (2) from lower door axis (3), remove the door (4), then pull out the door and door axis (Fig. A).

2. Put the door (4) safety and take out the plug (12) from top of door frame, unscrew 1 screw (11) at bottom and remove the Door limit device (10), then install the Door limit device (10) at top of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)

3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)

4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top of cabinet with 3 screws. (Fig. D)

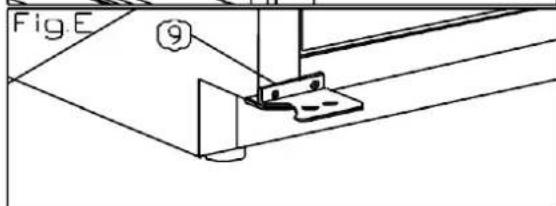

5. According above procedure, install spare lower hinge (left) (9). (Fig. E)

6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door aligned.
7. Block the hole at right top of cabinet with spare decorative nail (8).

GUARANTEE

Repairs and spare parts available

The manufacturer's warranty is applicable for this device for a period of 2 years. In the event of a malfunction during this period, any request for assistance must be made to your dealer's after-sales service. Outside the warranty period, any information concerning a repair request or the order of original spare parts can be obtained by contacting your retailer.

In accordance with the Ecodesign regulation, spare parts will be available for at least 7 years from the date of purchase of your appliance.

The list of spare parts and the ordering procedure are available on the manufacturer's websites. If necessary, please contact your dealer.

Le Chai

GEBRUIKSHANDLEIDING

INBOUWBARE WIJNKAST

LM480/LMN480 - 49 flessen

LB445 / LBN 445 – 44 flessen

INHOUD

Diagram of a multi-tiered wine rack with numbered labels pointing to each component.

1 – Bedieningspaneel
2 - Licht
3 - Glazen deur
4 - Handgreep

5 - Rekjes
6 – Ventilatie
7 – Verstelbare poten

PRESENTATIE VAN HET TOESTEL LB445 / LBN445

1 2 3 4 5 6 7

1 - Handgreep
2 - Bovenste zone
3 – Bedieningspaneel
4 - Lagere zone

5 - Rekjes
6 – Ventilatie
7 – Verstelbare poten

BELANGRIJKE WAARSCHUWINGEN EN ADVIES

Black metal bracket with four circular holes on a yellow background (no text or symbols)

Close-up of a metallic mechanical component with a dark surface and small protrusions (no visible text or symbols)

Stroomaansluiting

Line drawing of a cabinet or rack with directional arrows indicating movement (no text or symbols)

LADEN

Illustration of multiple wine bottles with green and blue labels, no text or symbols present
