USER MANUAL TKG EBBQ 1002 L KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/40

230V ~ 50/60Hz 2500W I/B Version 181130Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

2. Structural Supports (Stand)

3. Variable Temperature Dial with

Indicator Light - left side

4. Heavy Duty Grip Handle with

6. Drip Tray (to the rear)

9. Variable Temperature Dial with

11. GrillplatteCopies of the I/B. Please reproduce them without any

changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

1. Plaque de base (support)

changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 5 TKG EBBQ 1002 L- 181130

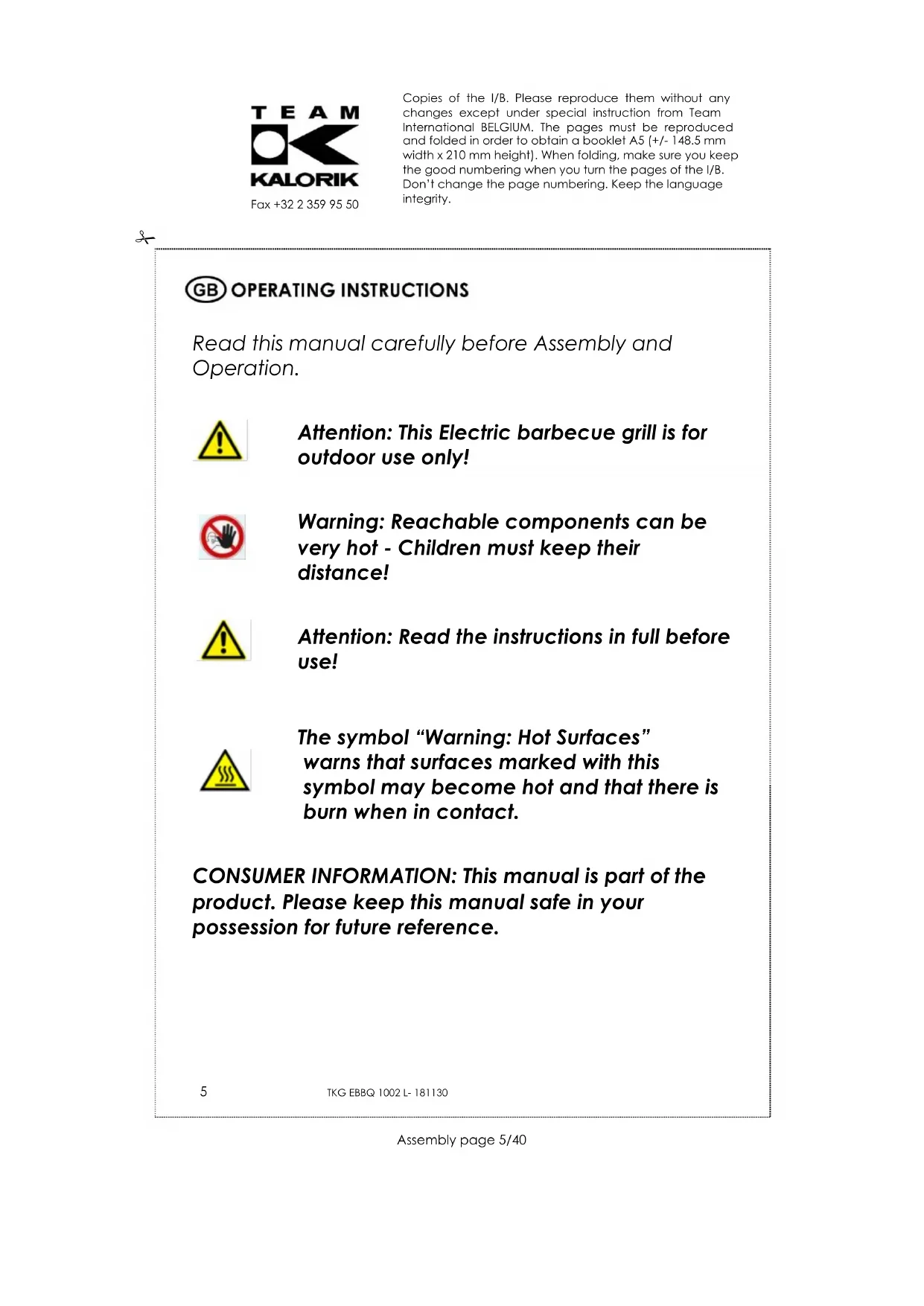

Read this manual carefully before Assembly and Operation.

Attention: This Electric barbecue grill is for outdoor use only!

very hot - Children must keep their distance!

Attention: Read the instructions in full before use!

The symbol “Warning: Hot Surfaces” warns that surfaces marked with this symbol may become hot and that there is burn when in contact.

CONSUMER INFORMATION: This manual is part of the product. Please keep this manual safe in your possession for future reference.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Read the following instructions carefully and make sure that the barbecue grill is correctly assembled. Failure to follow the instructions may result in malfunction, damage to the unit, to other property or serious personal injury! If you have any questions regarding the installation or operation of the Barbecue Grill, please contact the place of purchase or customer service located on the last page of this manual. Important: The device may not be used by children and people with a physical, sensory, mental or motor disability, or lack of experience and knowledge, unless these persons are supervised or have been instructed on the safe use of the device and its associated devices and understood its dangers. Children should not play with the device. Cleaning and maintenance must not be performed by children unless they are over 8 years old and supervised. Never leave your device and power cord unattended and in the reach of children under 8 or irresponsible persons, especially if it is plugged in or when it is still hot. To operate the Barbecue Grill, a 16-amp socket is required. If you are not sure, ask a specialist (*). All actions on and with this appliance may only be carried out to the extent described in these user instructions. If you would like to transfer the product to another person, always include this user manual. Check that the mains voltage matches the voltage indicated on the appliance before using the appliance. Never leave your appliance unattended during use. Check regularly whether the connection cable and the plug are not damaged. If the power cord, plug orCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

appliance are damaged, do not use the latter. Contact a specialist for repairs (*). Make sure that the power cord does not come into contact with the hot parts of the appliance. Only use the appliance for household purposes as specified in the user manual. Do not immerse the appliance in water or other liquids, neither for cleaning nor for any other purpose. Do not put the appliance in the dishwasher. Use only accessories recommended by the supplier. Other accessories pose a danger to the user and could damage the appliance. Never pull on the power cord to move the appliance. Make sure that the power cord does not get caught somewhere and could not cause the appliance to fall. Do not wrap the power cord around the appliance and do not bend it. Place the appliance on a stable, level surface. During use, accessible parts of the appliance can reach a very high temperature. Make sure that the heating element does not come into contact with other objects. Remove the plug from the socket before cleaning the appliance. Allow the grill to cool completely before cleaning or putting it away. Always un-plug the appliance from the socket when the appliance is not in use. Do not pull the plug to unplug and turn off the device. Make sure that the hot parts do not come into contact with highly flammable material during operation. Do not place the unit on hot surfaces or close to open gas flames - risk of melting the casing. The appliance is not a toy: keep it away from children when using and when storing it. Operate the Barbecue Grill outdoors only. Only prepare foods that are suitable for grilling and eating.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

You should keep the appliance clean as it is in direct contact with food. Never use charcoal, barbecue lighters or liquids for classic charcoal barbecues to heat the Grill Plates or increase the temperature. This appliance can only be heated with the help of the electric heating element. The barbecue grill should be used at a distance of no less than 1 metre from any walls or objects on all sides. Do not cover the appliance when in use. Oil and fat preparations may burn if overheated. Be extremely careful. Your appliance must not be switched on via an external timer or any other separate remote-control system. The barbecue must be protected from the rain. If you modify the appliance in any way, it may affect your warranty. Ensure that the appliance is not damaged or defect before using it. Clean the appliance with a damp cloth, do not use dishwasher soap or detergents. Repairs must be done by a professional. If not, this may be dangerous for the user. Ensure that the cord is fully unfurled before use. Ensure the cord does not come close to any hot surfaces. Ensure the item is in ‘Off’ position before plugging it in. (*) Specialist: Approved customer service of the supplier or importer responsible for such repairs. For any repairs, please contact this customer service.

Assemble the barbecue as described in the "Assembly" chapter. Clean the barbecue grill and accessories (see Cleaning and Care). It is advisable to preheat the Barbecue Grill for at least 10 minutes at full temperature and without any food on the Grill Plate, so that any residual odours dissipate when first using the appliance.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

GETTING STARTED Insert the plug into the wall socket, and the two LED function lights in the thermostat buttons (3 and 9) will illuminate Blue. This indicates that the device is receiving power, and ready for use. Turn the Heat on by turning the progressive thermostat (3 and 9) clockwise. The LED function light (3 and 9) will illuminate Red. The grill plate (11) has two separate heating zones. These can be switched on and adjusted separately with the respective thermostat controller below. Preheat the unit for about 10 minutes at maximum power, then set the progressive thermostat to the desired temperature level. During operation, the LED function lights will alternate between Red and Blue illumination. This is totally normal as the thermostat automatically regulates throughout the heating process. So, when the desired temperature is reached, the LED function lights will first illuminate Blue. If they switch back to Red, the device is heating up again, before returning to Blue once the desired temperature is reached. This is the normal cycle of the thermostat once the desired temperature is reached. Open the lid (5). Place the food on the grill plate (11). The grilling times are always different depend on the type of food being cooked and the individual weight of each item. Always use the handle (4) to open and close the lid. DRIP TRAY The drip tray (6) collects any grease emitting from foods during the grilling process. Please make sure that the area where the Drip Tray is inserted into the Electric barbecue housing (6) is not blocked.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

PRACTICAL TIP Always thaw frozen food before grilling. Cook sensitive food (e.g. fish or mushrooms) on low heat. To keep barbecued food warm, turn the thermostat control to low heat. For meat where retaining juices is vital for a great taste such (as steaks), avoid poking holes in the meat with a fork or other instrument used for piecing - this may cause the food to become dry. Ideally, you should use non-abrasive barbecue tongs to turn your food. From time to time, turn your food for best results. Season food during preparation often yields the tastiest results. Please ensure all foods are cooked thoroughly and are piping hot throughout before consumption.

Allow the appliance to cool down completely. Remove the plug from the wall socket after use and turn the thermostat to the lowest position. Remove all food from the grill plate. Clean the grill plate (11) and the drip tray (6). Place the Barbecue Grill in a safe, sheltered, damp free, waterproofed location.

If it looks like paint is peeling off inside the grill, it is usually grilled food leftovers. Before cleaning the appliance, unplug it from the socket. Let the appliance cool down completely before cleaning. Remove the grill plate using protective gloves The grill plate can be cleaned in soapy water (not in the dishwasher). Dry the Grill Plate thoroughly afterwards. The outside of the barbecue should only be cleaned with a damp cloth and wiped with a dry cloth. Do not use harsh or abrasive cleaning agents. Do not clean the barbecue grill by immersing in liquids and do not use a steam cleaner for cleaning

Never try to clean the grill plate by burning it off. Toxic gases would emerge from the grill - Risk of suffocation!Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

TROUBLESHOOTING Problem Possible cause Solution The Barbecue Grill does not heat up. The Barbecue Grill is not connected to the power supply. Insert the mains plug in a socket with earthing contact. The Barbecue Grill switches off on its own. The selected temperature setting has been reached. The thermostat will automatically switch off. The thermostat will switch the power on and off maintaining the grill temperature. Rotate the thermostat control to higher temperature setting to force heating on.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. ErP Declaration – Regulation 1275/2008/EC We, Team Kalorik SA/NV, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible! For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Check all the parts to make sure you have everything. Use suitable tools for assembly. If necessary, seek the help of someone else. Before using the appliance for the first time, make sure that the barbecue has been completely and correctly assembled.

Assembly instructions: see page 36Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Montageanleitung: Seite 36Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Feuille de métal Pied Pied Contrepoids Couvercle inférieur Pieds ajustables Bac à huile Clé RondelleCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Montagehandleiding: zie pagina 36 Metalen plaat Pied Voet Tegenwicht Onder kaft Vestelbare voeten Olieplateau Moersleutel SluitringCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

ASSEMBLY - MONTAGE -ASSEMBLAGE - ENSAMBLAJE - MONTAŻCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Customer Service – Kundenservice - Service Clients - Klantenservice Efbe Elektrogeraete GmbH Gustav-Toepfer-Straße 6 07422 Bad Blankenburg / Thueringen Tel: [phone] Fax: [phone] [e-mail] www.efbe-schott.deCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
